  1. Home/
  2. DAZA Electronics Company/
  3. Z8VR15BT

Z8VR15BTBT headphone

DAZA Electronics Company
BT headphone - FCC ID Z8VR15BT - DAZA Electronics Company
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 02, 2014
Application Purpose
Original Equipment
Date of Application
Sep 02, 2014
Equipment Note
BT headphone
Frequency Range
2402.00000000 - 2480.00000000
Company
DAZA Electronics Company
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Manual Instructions: ① Power key/ telephone answering key ② Touch to increase the volume/ to pick previous song ③ Touch to decrease the volume/ to pick next song ④ Mic hole ⑤ USB charging port ⑥ AUX IN port Features: 1. Bluetooth Version: 4.0 BLE,can be compatible to connecting two mobiles at the same time . 2. Support Bluetooth phone calls, Bluetooth Music and re-dial last number 3. Finger Touch control design 4. Support PC voice commucation( With special Mic Cable) 5. Support Computer, MP3, CD ...AUX in 6. Built-in lithium battery, with Micro USB charging port 7. Smart Electricity-saving ( after 3 minutes no connection, it will turn off automatically to save the electricity.) Specifications: 1. Wireless transmission distance: CLASS II 2. Battery capacity: 300MAH 3. Frequency range: 20-20KHZ 4. Sensitivity: 95DB 5. Speaker impedance: 32 ohm 6. Speaker Size: 32MM 7. Charing time: 2H 8. Output power: 50MW 9. Voice Communication working time: 8-10H 10. Bluetooth Music Playing time: 8-10H(Based on two-thirds of the maxium volume) Operations: 1. Bluetooth Functions Bluetooth pairing: 1. For first time paring, press and hold key for 5 seconds to pairing mode, the light will indicate in BLUE and RED light flash in turn. When the pairing is successful, your device will show the connected Bluetooth icon. The reality will be different from device to device. If it is the IOS system then it will be display the device’s battery life. 2. After successful pairing, press key to play music sourcing from your device. Press again to pause. When there is phone call coming, press key to answer the call directly, Press and holding key for 3 seconds to swithch to mobile phone answering. Press and holding on 3 seconds again is back to Bluetooth answering. 3. Double click key to call the previous Number which you made last phone call to. 4. Operation for One headphone pairing with two mobile at the same time: When the headphone was in repairing mode,turn on the First Mobile’s bluetooth and start searching,and connect it once you find it,after done it ,Turn off this Mobile’s bluetooth. Then adjust the Second Mobile to the bluetooth repairing mode,turn on its Mobile’s bluetooth and start searching,connect it once you find it,after done it then turn to turn on the First Mobile’s bluetooth,click and connect it .When it connecting with two Mobile at the same time,it only can play one Mobile’s music between them. 1.1.2 Bluetooth Music: 1. Click key for once to play the music sourcing from your mobiles.Click again to pause. 2. Finger touch area is divided into two parts by “.”.Quick click the volme inrease or decrease area to realize songs pick, the next or previous. 3. Press and hold the volume control area, you can easily to increase or decrease the volume continuously.When it reaches the maximum or minimum, the device will indicate with a “tick ,tick” voice. 1.1.3 Bluetooth phone calls: 1. When there is a phone call incoming, press key to answer the call directly,press it one more time is hang up the call.Press and holding on key for 3 seconds to switch to your mobile phone answering, press and holding on once again is back to Bluetooth answering. 2. Double-click key to call the previous Number which you made last phone call. 1.1.4 LINE IN 1 When you want to listen to the music sourcing from other audio devices, connect the Headphone with them, with the AUX in Cable inside the AUX in port as the picture shows. On this model, the Bluetooth will turn off automatically, turn it on is not allowed. 1.1.5 Charging 1. Connect the Charging cable with a adapter or ( Computer’s USB port), while the other end insert into the USB charging port as pictures shows. This device will indicate in RED light keeping bright on the right when charging. When it is full, the RED light will turn off automatically. 2、Bluetooth version: 4.0 Compatible with the mainstream market or domestic brand mobile phones. But if the Mobile’s player don’t AVRCP function, then it can not through it to control the previous、next song, play / pause etc functions. Notes: AVRCP (Audio / Video Remote Control Profile), which is an audio / video remote control profile. AVRCP is designed to provide control TV, Hi-Fi equipment and other standard interfaces. This configuration file is used to permit a single re mote control device (or other device) user can control access to all A / V device. 3、Accessories AUX IN cable:1.2M Charging Cable:0.65M 4、Product size: 5、FCC Statement The device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter mush not be co-located or operating with any other antenna or transmitter

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 4.0 DAZA Electronics Company Aug 30, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, DAZA Electronics Company hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product name: BT headphone Model No.: R-15BT FCC ID: Z8VR15BT Sincerely, Client’s signature Client’s name / title : Yu Zhou / Engineer Contact address: Bldg G, Xinmusheng Low Carbon Industrial Park, No.6, Xinmu Road Pinghu, Shenzhen China Contact telephone: 0755-36615522 Email: [email protected]

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] FCC Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 DAZA Electronics Company FCC Confidentiality Request Letter Aug 30, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: Z8VR15BT We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : Yu Zhou / Engineer Contact address: Bldg G, Xinmusheng Low Carbon Industrial Park, No.6, Xinmu Road Pinghu, Shenzhen China Contact telephone: 0755-36615522 Email: [email protected]

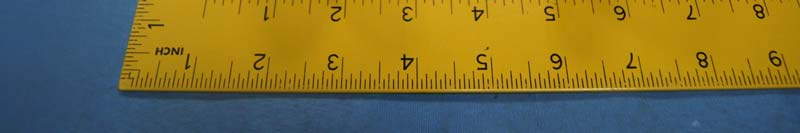

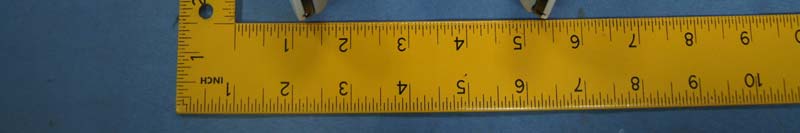

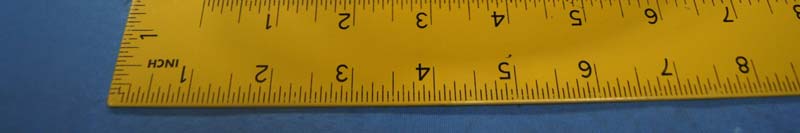

External Photos

External Photos

ID Label/Location Info

label and label location FCC ID: Z8VR15BT

Internal Photos

Internal Photos Antenna

RF Exposure Info

FCC ID : Z8VR15BT Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Bluetooth 4.0 Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 2402 -1.19 0.76 0.24 3.0 2440 -1.68 0.68 0.21 3.0 2480 -2.91 0.51 0.16 3.0 Threshold at which no SAR required is ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required. SIMULTANEOUS TRANSMISSION EVALUATION N/A

Test Report

Report No.: ATE20141645 Page 1 of 50 FCC ID: Z8VR15BT ACCURATE TECHNOLOGY CO., LTD APPLICATION CERTIFICATION FCC Part 15C On Behalf of DAZA Electronics Company BT headphone Model No.: R-15BT FCC ID: Z8VR15BT Prepared for : DAZA Electronics Company Address : Bldg G, Xinmusheng Low Carbon Industrial Park, No.6, Xinmu Road Pinghu, Shenzhen China Prepared by : ACCURATE TECHNOLOGY CO., LTD Address : F1, Bldg. A, Chan Yuan New Material Port, Keyuan Rd. Science & Industry Park, Nan Shan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE20141645 Date of Test : Aug 20-28,2014 Date of Report : Aug 28,2014 Report No.: ATE20141645 Page 2 of 50 FCC ID: Z8VR15BT ACCURATE TECHNOLOGY CO., LTD TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 5 1.1. Description of Device (EUT)....................................................................................................................5 1.2. Carrier Frequency of Channels .................................................................................................................6 1.3. Special Accessory and Auxiliary Equipment ...........................................................................................6 1.4. Description of Test Facility ......................................................................................................................7 1.5. Measurement Uncertainty.........................................................................................................................7 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 8 3. OPERATION OF EUT DURING TESTING ................................................................................. 9 3.1. Operating Mode ........................................................................................................................................9 3.2. Configuration and peripherals ..................................................................................................................9 4. TEST PROCEDURES AND RESULTS ....................................................................................... 10 5. POWER LINE CONDUCTED MEASUREMENT ..................................................................... 11 5.1. Block Diagram of Test Setup..................................................................................................................11 5.2. Power Line Conducted Emission Measurement Limits..........................................................................11 5.3. Configuration of EUT on Measurement .................................................................................................11 5.4. Operating Condition of EUT ..................................................................................................................11 5.5. Test Procedure ........................................................................................................................................12 5.6. Power Line Conducted Emission Measurement Results ........................................................................13 6. 6DB BANDWIDTH MEASUREMENT ........................................................................................ 16 6.1. Block Diagram of Test Setup..................................................................................................................16 6.2. The Requirement For Section 15.247(a)(2) ............................................................................................16 6.3. EUT Configuration on Measurement .....................................................................................................16 6.4. Operating Condition of EUT ..................................................................................................................16 6.5. Test Procedure ........................................................................................................................................17 6.6. Test Result ..............................................................................................................................................17 7. MAXIMUM PEAK OUTPUT POWER ....................................................................................... 19 7.1. Block Diagram of Test Setup..................................................................................................................19 7.2. The Requirement For Section 15.247(b)(3)............................................................................................19 7.3. EUT Configuration on Measurement .....................................................................................................19 7.4. Operating Condition of EUT ..................................................................................................................19 7.5. Test Procedure ........................................................................................................................................20 7.6. Test Result ..............................................................................................................................................20 8. POWER SPECTRAL DENSITY MEASUREMENT.................................................................. 22 8.1. Block Diagram of Test Setup..................................................................................................................22 8.2. The Requirement For Section 15.247(e).................................................................................................22 8.3. EUT Configuration on Measurement .....................................................................................................22 8.4. Operating Condition of EUT .........................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Test Photos

Contact Information

Applicant

Yu Zhou(Engineer)
[email protected]0755-36615522Fax: 0755-84528100

Test Firm

Accurate Technology Co., Ltd.Sean Liu
[email protected]86-75526503291Fax: 86 755 26503396

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz760.00 µW
Confidentiality
Long Term
Grant Notes
Power listed is the maximum conducted output power.
