Z9F-TPMSCTPMS Sensor

User's Manual TPMS-C is the transmitter module in the TPMS system. 1、Appearance as below，the user can install the correspondi ng matching valve in the tire on the rim. 2、Testing Methods Testing Tools: Wakeup Handle Testing Steps: a)、Direct the front of the wakeup handle at the transmitter module b)、Turn on the power of the wakeup handle Arrow Pointing 1.Read Sensor→Press ENTER, then step into the submenu Through Pgdown, Arrow Pointing 2.RF On-Off→Then Press ENTER Step into power ON/OFF MENU of the transmitter, then to power on/off the transmitter through the following two options to enter into the working model or exit: 1. Send On 2. Send Off c）、when select 1.Send on，press ENTER，then shows ID number on the screen of the handle, which means that the transmitter is in the state of continuous sending(picture as below ) , send cycle is 3 frames per 15second . d)、when testing finished, select 2.Send off, press ENTER, then shows ID number on the screen of the handle, which means that the transmitter is in dormant state, no data is transmitted then. Note: the transmitter shall be in the Sendoff model after the testing for each sample. For the Canadian market, please make sure the following regulatory text is placed in the user documentation before marketing the device in Canada: CANADA Industry Canada Statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device. IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. Avis d’Industrie Canada: Cet appareil est conforme à la norme CNR-210 des règlements d’Industrie Canada. Son fonctionnement est sujet aux deux conditions suivantes: 1) Cet appareil ne doit pas provoquer d’interférences et 2) Cet appareil doit accepter toutes les interférences, y compris celles pouvant entraîner son dysfonctionnement. Avis d’Industrie Canada sur l’exposition aux Rayonnements: Cet appareil est conforme aux limites d’exposition aux rayonnements d’Industrie Canada pour un environnement non contrôlé.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 2015/8/20 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name Z9F-TPMSC TPMS-C For the product stated above, we request permanent confidentiality for exhibits which contain Operational Description, Block Diagram, Schematics, Parts Lists or Tune Up Information. The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (signed) signed) Name: Changwu Xu Company: SHANGHAI BAOLONG AUTOMOTIVE CORPORATION Address: 5500, Shenzhuan Rd., Songjiang District, Shanghai 201619, China Phone: +15000737466 Email: [email protected]

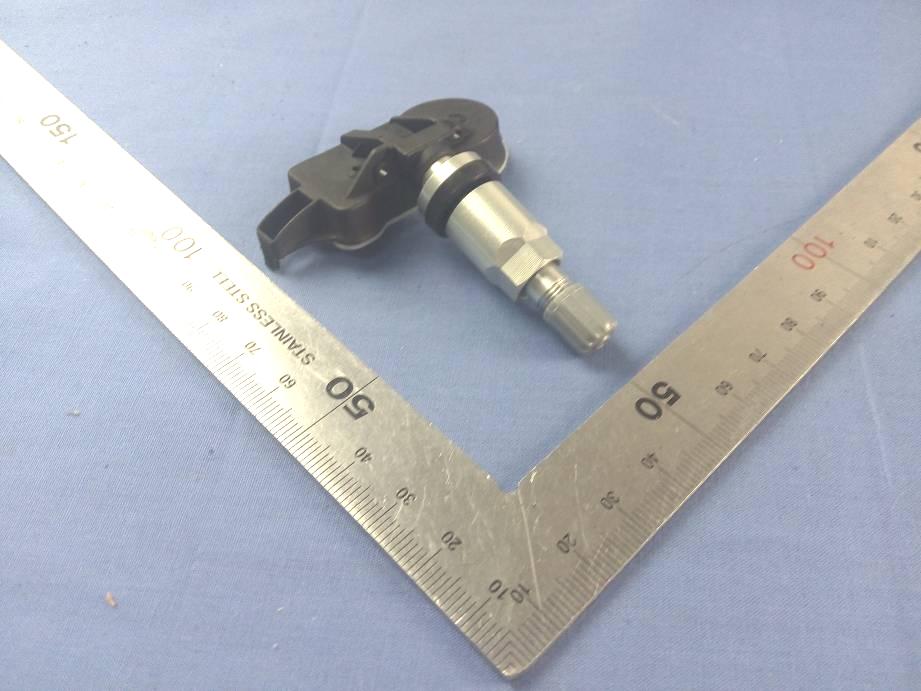

Report No.: C150429Z03 1 / 1 External Photos of EUT

Report No.: C150429Z03 1 / 4 Internal Photos of EUT Report No.: C150429Z03 Page 2 / 4 RF Module Antenna Report No.: C150429Z03 Page 3 / 4 Report No.: C150429Z03 Page 4 / 4

ReportNo.:C150429Z03-RP1 FCCID:Z9F-TPMSCPage1of21 FCC47CFRPART15SUBPARTC TESTREPORT for TPMSSensor Model:TPMS-C Brand:VALOR/DigiTire TestReportNumber: C150429Z03-RP1 Issuedfor SHANGHAIBAOLONGAUTOMOTIVECORPORATION 5500,ShenzhuanRd.,Songjiang,District,Shanghai201619,China IssuedBy Note:Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalof ComplianceCertificationServices(Shenzhen)Inc.Thisdocumentmaybealteredor revisedbyComplianceCertificationServices(Shenzhen)Inc.personnelonly,andshall benotedintherevisionsectionofthedocument.Theclientshouldnotuseittoclaim productendorsementbyTAF,A2LA,NVLAP,NISToranygovernmentagencies.The testresultofthisreportrelateonlytothetestedsampleidentifiedinthisreport. ComplianceCertificationServices(Shenzhen)Inc. No.10-1MingkedaLogisticspark,No.18HuanguanSouthRd., GuanLanTown,BaoanDistrict,Shenzhen,China TEL:86-755-28055000 FAX:86-755-28055221 IssuedDate:July21,2015 检测 CNASL4818 ReportNo.:C150429Z03-RP1 FCCID:Z9F-TPMSCPage2of21 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. RevisionHistory Rev.IssueDateRevisions Effect PageRevisedBy 00July21,2015 InitialIssueALLSabrinaWang ReportNo.:C150429Z03-RP1 FCCID:Z9F-TPMSCPage3of21 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. TABLEOFCONTENTS 1.TESTRESULTCERTIFICATION...............................................................................................4 2.EUTDESCRIPTION......................................................................................................................5 3.TESTMETHODOLOGY...............................................................................................................6 3.1DESCRIPTIONOFTESTMODES............................................................................................6 4.FACILITIESANDACCREDITATIONS......................................................................................7 4.1FACILITIES....................................................................................................................................7 4.2ACCREDITATIONS......................................................................................................................7 4.3MEASUREMENTUNCERTAINTY............................................................................................7 5.SETUPOFEQUIPMENTUNDERTEST...................................................................................8 5.1SETUPCONFIGURATIONOFEUT.........................................................................................8 5.2SUPPORTEQUIPMENT.............................................................................................................8 6.FCCPART15.231REQUIREMENTS........................................................................................9 6.120DBBANDWIDTH.....................................................................................................................9 6.2LIMITOFTRANSMISSIONTIME...........................................................................................11 6.3DUTYCYCLE..............................................................................................................................13 6.4RADIATEDEMISSIONS...........................................................................................................15 6.5POWERLINECONDUCTEDEMISSIONS............................................................................21 ReportNo.:C150429Z03-RP1 FCCID:Z9F-TPMSCPage4of21 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. 1.TESTRESULTCERTIFICATION ProductTPMSSensor ModelTPMS-C BrandVALOR/DigiTire TestedApril29~July21,2015 Applicant SHANGHAIBAOLONGAUTOMOTIVECORPORATION 5500,ShenzhuanRd.,Songjiang,District,Shanghai201619,China Manufacturer SHANGHAIBAOLONGAUTOMOTIVECORPORATION 5500,ShenzhuanRd.,Songjiang,District,Shanghai201619,China APPLICABLESTANDARDS STANDARDTESTRESULT FCC47CFRPart15SubpartCNonon-compliancenoted DEVIATIONFROMAPPLICABLESTANDARD None Weherebycertifythat: TheaboveequipmentwastestedbyComplianceCertificationServices(Shenzhen)Inc. Thetestdata,dataevaluation,testprocedures,andequipmentconfigurationsshownin thisreportweremadeinaccordancewiththeproceduresgiveninANSIC63.10andthe energyemittedbythesampleEUTtestedasdescribedinthisreportisincompliance withconductedandradiatedemissionlimitsofFCCRulesPart15.209andPart15.231. Thetestresultsofthisreportrelateonlytothetestedsampleidentifiedinthisreport. Approvedby:Reviewedby: SundayHu SupervisorofRFDept. ComplianceCertificationService (Shenzhen)Inc. RubyZhang SupervisorofReportDept. ComplianceCertificationService (Shenzhen)Inc. ReportNo.:C150429Z03-RP1 FCCID:Z9F-TPMSCPage5of21 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. 2.EUTDESCRIPTION ProductTPMSSensor ModelTPMS-C BrandVALOR/DigiTire ModelDifferenceN/A PowerSupplyDC3Vsuppliedbythebattery FrequencyRange433.92MHz TransmitPower Peak:72.73dBuV/m(Max.) Average:61.03dBuV/m(Max.) ModulationTechniqueFSK NumberofChannels1Channel AntennaDesignationPCBantennawith-2dBigain(Max) TemperatureRange-40°C~+125°C HardwareVersionQY1014-01-000BM-V09 SoftwareVersionQY1014-01-02PR-V1.8 Remark:Thissubmittal(s)(testreport)isintendedforFCCID:Z9F-TPMSCfilingto complywithSection15.209and15.231oftheFCCPart15,SubpartCRules. ReportNo.:C150429Z03-RP1 FCCID:Z9F-TPMSCPage6of21 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofComplianceCertificationServices. 3.TESTMETHODOLOGY 3.1DESCRIPTIONOFTESTMODES TheEUThasbeentestedunderengineeringtestmodeconditionandtheEUTstayingin continuoustransmittingmode. Thefollowingtestmode(s)werescannedduringthepreliminarytestbelow1G: TestItem TestmodeWorsemode ConductedEmission NotapplicablesincetheEUT suppliedbythebattery. RadiatedEmissionMode1:TX Above1G,TXmodewiththehighestdatarate(worstcase)arechosenforfulltesting. ReportNo.:C150429Z03-RP1 FCCID:Z9F-T…

Text truncated - open the document above for the full version.

Report No.: C150429Z03-RP1 FCC ID: Z9F-TPMSC Page 1 / 1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST Below 1GHz Above 1GHz
