Z9FTPMS201-JS18G1Tyre Pressure Monitoring System

User manual JS18G1 is the receiver module of TPMS. 1. Outside view and installation method: Outside view is as below; install the receiver module by the installation hole in the picture. 2. wiring diagram The communication mode between the receiver module and display module is CAN mode. The power supply is +12V, the wiring method is as below: Installation hole The touching side of the module to the chassis pin defination 1 GND 2 +12V 3 CANL 4 CANH 3. auto positioning The receiver module performs the auto positioning by the field strength and acceleration of the sensor, and transmits the data to the display by CAN mode. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 2011-11-09 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SHANGHAI BAOLONG AUTOMOTIVE CORPORATION hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (E．U．T)： Tyre Pressure Monitoring System (M/N)：JS18G1 We affirm that between SIEMIC and SHANGHAI BAOLONG AUTOMOTIVE CORPORATION, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature： Client’s name / title：Vivien Zheng/ Manager Contact information / address：SHANGHAI BAOLONG AUTOMOTIVE CORPORATION Address: 5500, Shenzhuan Rd., Songjiang District, Shanghai 201619, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 2011-11-09 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: Z9FTPMS201-JS18G1 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature： Client’s name / title：Vivien Zheng/ Manager Contact information / address：SHANGHAI BAOLONG AUTOMOTIVE CORPORATION Address: 5500, Shenzhuan Rd., Songjiang District, Shanghai 201619, China

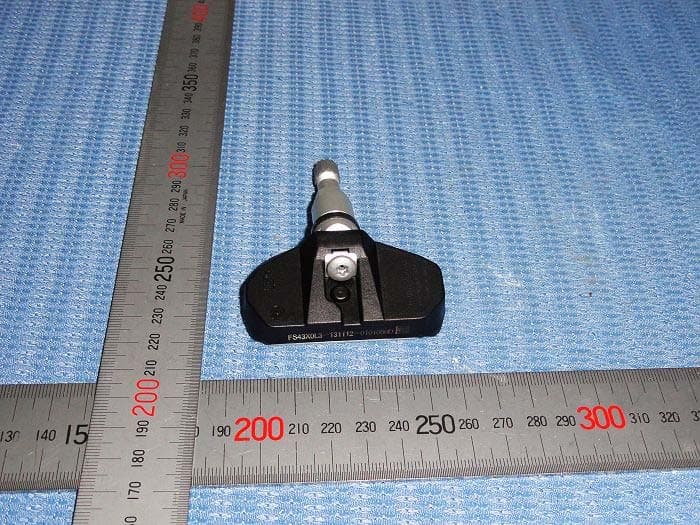

Appearance photograph of EUT Appearance photograph of EUT Appearance photograph the sides of the EUT Appearance photograph the sides of the EUT

FCC ID LABEL FCC ID: Z9FTPMS201-JS18G1 This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received,including interference that may cause undesired operation. Label Location on EUT EUT Bottom View/ FCC ID Label Location

Inside photograph of EUT PCB photograph of EUT PCB photograph of EUT

TMC Rheinland Testing Services Corp Limited Report No.: TMC20111921EC07 FCC ID: Z9FTPMS201-JS18G1 Page 1 FCC ID TEST REPORT for Tyre Pressure Monitoring System Trade Mark: N/A Model: JS18G1 Test Report Number: TMC20111921EC07 Issued Date: November 09, 2011 Issued for SHANGHAI BAOLONG AUTOMOTIVE CORPORATION 5500, Shenzhuan Rd., Songjiang District, Shanghai 201619, China Issued by: TMC Rheinland Testing Services Co., Ltd. 3F,Building 2,No.335 West of Zhuguang Road,Taoyuan Street,Nanshan District,Shenzhen,Guangdong,China TEL: +86-755-86642861 FAX: +86-755-86642853 Note: This report shall not be reproduced except in full, without the written approval of TMC Rheinland Testing Services Co., Ltd. This document may be altered or revised by TMC Rheinland Testing Services Co., Ltd. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. TMC Rheinland Testing Services Corp Limited Report No.: TMC20111921EC07 FCC ID: Z9FTPMS201-JS18G1 Page 2 of 15 . Revision History of report Rev. Issue No. Revisions Effect Page Revised By 00 TMC20111921EC07 Initial Issue ALL Kallen Wang TMC Rheinland Testing Services Corp Limited Report No.: TMC20111921EC07 FCC ID: Z9FTPMS201-JS18G1 Page 3 of 15 . TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION .............................................................................................. 4 2 TEST RESULT SUMMARY ....................................................................................................... 5 3 EUT DESCRIPTION ................................................................................................................... 6 4 TEST METHODOLOGY ............................................................................................................. 7 4.1 DECISION OF FINAL TEST MODE ......................................................................................................... 7 4.2 EUT SYSTEM OPERATION ................................................................................................................... 7 5 SETUP OF EQUIPMENT UNDER TEST ................................................................................... 8 5.1 DESCRIPTION OF SUPPORT UNITS ................................................................................................... 8 5.2 CONFIGURATION OF SYSTEM UNDER TEST .................................................................................... 8 6 FACILITIES AND MEASUREMENT UNCERTAINTY ............................................................... 9 6.1 FACILITIES ............................................................................................................................................. 9 6.2 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 7 CONDUCTED EMISSION MEASUREMENT ............................................................................. 10 7.4 TEST SETUP ......................................................................................................................................... 11 7.5. TEST RESULTS .................................................................................................................................... 11 8 RADIATED EMISSION MEASUREMENT ............................................................................... 12 8.1. LIMITS OF RADIATED EMISSION MEASUREMENT .......................................................................... 12 8.2. TEST INSTRUMENTS .......................................................................................................................... 12 8.3.TEST PROCEDURES ............................................................................................................................ 13 8.4. TEST SETUP ........................................................................................................................................ 14 8.5.TEST RESULTS ..................................................................................................................................... 15 TMC Rheinland Testing Services Corp Limited Report No.: TMC20111921EC07 FCC ID: Z9FTPMS201-JS18G1 Page 4 of 15 . 1 TEST RESULT CERTIFICATION Product: Tyre Pressure Monitoring System Model: JS18G1 Trade Mark: N/A Applicant: SHANGHAI BAOLONG AUTOMOTIVE CORPORATION 5500, Shenzhuan Rd., Songjiang District, Shanghai 201619, China Factory Shanghai Qunying Auto Electronics Co., Ltd. 5500, Shenzhuan Rd., Songjiang District, Shanghai 201619, China Tested Date: November 01, 2011~ November 09, 2011 Test Voltage: DC 12V APPLICABLE STANDARDS STANDARD TEST RESULT FCC PART 15B No non-compliance noted ANSI C63.4: 2003 No non-compliance noted Note: 1. The test result judgment is decided by the limit of measurement standard 2. The information of measurement uncertainty is available upon the customer’s request. The above equipment has been tested by TMC Rheinland Testing Services Co., Ltd. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: November 09, 2011 (Davis Ma) Check By: Date: November 09, 2011 (Merry Zhao) Approved By: Date: November 09, 2011 (Lisa Zhu) TMC Rheinland Testing Services Corp Limited Report No.: TMC20111921EC07 FCC ID: Z9FTPMS201-JS18G1 Page 5 of 15 . 2 TEST RESULT SUMMARY Test Item Test Result Conduct Emission N/A Radiation Emission Pass Note: 1. The test result judgment is decided by the limit of test standard 2. The information of measurement uncertainty is available upon the customer’s request. 3. N/A means to no applicable. TMC Rheinland Testing Services Corp Limited Report No.: TMC20111921EC07 FCC ID: Z9FTPMS201-JS18G1 Page 6 of 15 . 3 EUT …
