Z9O-FAS1503Tag

Bentley WiNET Tag User Guide FAS1503 DOC1036 Revision 0 Document Title UltraClenz, LLC Page 2 Table of Contents Revision History ................................................................................................................................................... 3 Box Contents ....................................................................................................................................................... 4 Overview ............................................................................................................................................................. 4 Installing the Batteries .......................................................................................................................................... 5 Step 1 – Open Tag Enclosure........................................................................................................................... 5 Step 2 – Removing Battery Insulators (Batteries preinstalled) ........................................................................... 5 Step 3 – Installing New Batteries (Batteries not preinstalled) ............................................................................. 5 Installing the Tag ................................................................................................................................................. 6 Step 1 – Tag Mounting Location ....................................................................................................................... 6 Step 2 – Attach the Cable to the Tag ................................................................................................................ 6 Step 3 – Fold Cable .......................................................................................................................................... 6 Step 4 – Mount the Tag to the Wall ................................................................................................................... 6 Connecting the Tag to the Dispenser ................................................................................................................... 7 Step 1 – Remove Touch-free Dispenser Gearbox ............................................................................................. 7 Step 2 – Install Cable ....................................................................................................................................... 7 Step 3 – Install Gearbox back into the Dispenser .............................................................................................. 8 Testing the Tag .................................................................................................................................................... 8 Step 1 – Setting up Test Equipment ................................................................................................................. 8 Step 2 – Configuring Terminal Emulation Software (HyperTeminal) .................................................................. 8 Step 3 – Conducting the Test ........................................................................................................................... 9 Maintenance ...................................................................................................................................................... 10 Cleaning ......................................................................................................................................................... 10 Changing the Batteries ................................................................................................................................... 10 Step 1 – Open Tag Enclosure......................................................................................................................... 10 Step 2 – Replacing Old Batteries .................................................................................................................... 10 Certification and Safety Approvals ..................................................................................................................... 11 FCC ............................................................................................................................................................... 11 Warranty ............................................................................................................................................................ 11 Document Title UltraClenz, LLC Page 3 Revision History Revision Date By Description 0 01/25/11 MJB Initial Release Document Title UltraClenz, LLC Page 4 Box Contents 1 WiNET Radio Tag 2 Coin Cell Batteries (CR2430 - Optional) 1 Detachable Cable 1 User’s Guide Overview The FAS1503 WiNet Tag, when used as a component of the WiNET wireless monitoring solution, relays radio transmissions to both the WiNET Hub (FASxxxx) and the WiNET Gateway (FASxxxx) (see Figure 1). Figure 1. – WiNET Network Topology Document Title UltraClenz, LLC Page 5 Installing the Batteries This procedure will require a small Phillips screwdriver. Step 1 – Open Tag Enclosure With a small Phillips screwdriver, remove the two screws located on the front of the Tag enclosure (see Figure 2). With the screw removed, separate the bottom half of the Tag enclosure from the top half. The Tag will be secured inside the Tag enclosure. Figure 2 – Location of Screws Step 2 – Removing Battery Insulators (Batteries preinstalled) Depending on the configuration ordered, batteries may be preinstalled in the Tag. To prevent power drainage during shipping, insulators may be inserted between the battery contacts and the battery (see figure 3). Remove the battery insulators by gently pulling the insulation away from the battery. Step 3 – Installing New Batteries (Batteries not preinstalled) Depending on the configuration ordered, batteries may not be preinstalled in the Tag. Insert a coin cell battery (CR2430) into the battery hold…

Text truncated - open the document above for the full version.

From: Joe Dichoso [mailto:[email protected]] Sent: Tuesday , December 14, 2010 8:55 AM To: Shannon Krause; Raymond Laforge; David Galosky; Rashmi Doshi; Joe Dichoso; Jim Szeliga Cc: [email protected]; Brad Cole; Ric Ogden Subject: KDB 796294, RE: Equipment Approval RE: Ultraclenz Hello Charlie, We have agreement that hospital hand cleansing is a “safety” application under 15.231(a)3 but please note that it is not a “safety of life” alarm condition under 15.231(a)4. Also note that there are different transmission requirements under 15.231(a)3 and 15.231(a)4. Regards, Joe From: Charles C. Johnston [mailto:[email protected]] On Behalf Of Shannon Krause Sent: Thursday , December 09, 2010 1:38 PM To: Joe Dichoso Cc: [email protected]; 'Brad Cole'; 'Ric Ogden' Subject: Equipment Approval RE: Ultraclenz Mr. Dichoso, I appreciate your attention to this matter. For your reference the tracking number is 796294. The equipment, as part of a safety system, is designed for hospitals to prevent the spread of germs and toxics by hand contamination. Government statistics indicate that approximately 300,000 patients die each year by the spread of bacteria due to inadequate hand hygiene – failure to wash or sanitize hands while coming in contact with patients. As discussed: We are preparing for certification testing of a product that we have developed and want to verify that its operation would fall under Section 15.231, paragraph (a). The product is used to protect the health and safety of healthcare workers and patients by reducing the spread of communicable diseases through hand contact . The product monitors the activation of hand cleansing stations to ensure compliance with corporate or government hand sanitization policies. Background Highly infectious communicable diseases transmitted through direct contact, propagated from patient to patient by contact with healthcare workers who are unwitting carriers are a serious problem in healthcare facilities . In the most serious cases this bacteria can be flesh-eating and resistant to antibiotics. The most effective approach to managing this is killing the bacteria on carriers before it can be exposed to the patient. Facilities have instituted hand sanitization policies to respond to this, but its effectiveness today relies on voluntary compliance. Improved performance requires that compliance be verified and enforced on a REAL TIME basis. Description of Product Hand sanitization stations are typically located throughout a healthcare facility . The product we have developed would add a 433.92MHz radio to each station (Tag) so that it can communicate its activity. The Tag transmits a message to a receiving Hub when the hand sanitizer is manually activated. The messages received by the Hub control an alarm when the usage characteristics of the dispenser are not consistent with the policies of the organization, such as when a person enters a room but does not clean his hands within a certain period of time . Since the product is manually activated and controls an alarm based on that activation , we believe it satisfies the requirements described in 15.231 paragraph (a). The intended recipient of the message from the Tag may not be the nearest Hub, so the message may need to be relayed to another Hub one or more hops away. Therefore, each Hub needs to know what other devices are nearby with which it can communicate. To determine this, the system occasionally polls to determine what nodes are within range of the radio. Since this product protects patients from injury by protecting them from being exposed to potentially harmful bacteria, we believe it satisfies the requirement in paragraph 15.231(a)(3) as a product "used in security or safety applications." The operation of the product complies with the technical performance described in paragraphs 15.231(b) and 15.231(c). Again, I thank you for your attention to this matter and any help you may provide. If there are any questions please do not hesitate to contact me. Very Truly Yours, Charles Johnston CEO Ultraclenz, LLC Charles C. Johnston 1440 W. Indiantown Road Suite 350 Jupiter, FL 33458 Tel: 561-354-6300 Fax: 561-354-6301 Email: charlesj@ ventextech.com This communication may contain confidential and/or proprietary information. If you are not the intended recipient of this communication, please notify sender and delete this communication.

Subject: Response to Inquiry to FCC (Tracking Number 796294) FCC Home | Search | RSS | Updates | E-Filing | Initiatives | Consumers | Find People Office of Engineering and Technology Inquiry: We are preparing for certification testing of a product we have developed and want to verify that it would fall under Section 15.231, paragraph (a). The product is used to reduce the spread of communicable diseases by ensuring compliance with corporate or government hand sanitization policies. A radio in a hand sanitization dispenser (Tag) transmits a message to a receiving Hub when the hand sanitizer is manually activated. The messages received by the Hub control an alarm when the usage characteristics of the dispenser are not consistent with the policies of the organization, such as when a person enters a room but does not clean his hands within a certain period of time. Since the product is manually activated and controls an alarm based on that activation, it would seem to fall under 15.231 paragraph (a). Can you confirm our interpretation of the rules under this section? Regards, Brad Cole Response: From your description, it appears that the device you describe can be certified under rule part 15.231(a). If it is manually activated, it would have to have a switch to initiate the transmission. The rule part is such that data with a control signal is permitted. The device would also to have to comply with the radiated field strength as specified in 15.231 (b). The device must not transmit in the restricted band of operation as shown in rule part 15.205. Rule part 15.231 is as follows; § 15.231 Periodic operation in the band 40.66?40.70 MHz and above 70 MHz. (a) The provisions of this section are restricted to periodic operation within the band 40.66?40.70 MHz and above 70 MHz. Except as shown in paragraph (e) of this section, the intentional radiator is restricted to the transmission of a control signal such as those used with alarm systems, door openers, remote switches, etc. Continuous transmissions, voice, video and the radio control of toys are not permitted. Data is permitted to be sent with a control signal. The following conditions shall be met to comply with the provisions for this periodic operation: (1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. (2) A transmitter activated automatically shall cease transmission within 5 seconds after activation. (3) Periodic transmissions at regular predetermined intervals are not permitted. However, polling or supervision transmissions, including data, to determine system integrity of transmitters used in security or safety applications are allowed if the total duration of transmissions does not exceed more than two seconds per hour for each transmitter. There is no limit on the number of individual transmissions, provided the total transmission time does not exceed two seconds per hour. (4) Intentional radiators which are employed for radio control purposes during emergencies involving fire, security, and safety of life, when activated to signal an alarm, may operate during the pendency of the alarm condition (5) Transmission of set-up information for security systems may exceed the transmission duration limits in paragraphs (a)(1) and (a)(2) of this section, provided such transmissions are under the control of a professional installer and do not exceed ten seconds after a manually operated switch is released or a transmitter is activated automatically. Such set-up information may include data. (b) In addition to the provisions of §15.205, the field strength of emissions from intentional radiators operated under this section shall not exceed the following: Fundamental frequency (MHz) Field strength of fundamental (microvolts/meter) Field strength of spurious emissions (microvolts/meter) 40.66?40.702,250225 70?1301,250125 130?174 1 1,250 to 3,750 1 125 to 375 174?2603,750375 260?470 1 3,750 to 12,500 1 375 to 1,250 Above 47012,5001,250 1 Linear interpolations. (1) The above field strength limits are specified at a distance of 3 meters. The tighter limits apply at the band edges. (2) Intentional radiators operating under the provisions of this section shall demonstrate compliance with the limits on the field strength of emissions, as shown in the above table, based on the average value of the measured emissions. As an alternative, compliance with the limits in the above table may be based on the use of measurement instrumentation with a CISPR quasi-peak detector. The specific method of measurement employed shall be specified in the application for equipment authorization. If average emission measurements are employed, the provisions in §15.35 for averaging pulsed emissions and for limiting peak emissions apply. Further, compliance with the provisions of §15.205 shall be demonstrated using the measurement instrumentation specified in that section. (3) The limits on the field strength of the spurious emissions in the above table are based on the fundamental frequency of the intentional radiator. Spurious emissions shall be attenuated to the average (or, alternatively, CISPR quasi-peak) limits shown in this table or to the general limits shown in §15.209, whichever limit permits a higher field strength. (c) The bandwidth of the emission shall be no wider than 0.25% of the center frequency for devices operating above 70 MHz and below 900 MHz. For devices operating above 900 MHz, the emission shall be no wider than 0.5% of the center frequency. Bandwidth is determined at the points 20 dB down from the modulated carrier. (d) For devices operating within the frequency band 40.66?40.70 MHz, the bandwidth of the emission shall be confined within the band edges and the frequency tolerance of the carrier shall be ±0.01%. This frequency tolerance shall be maintained for a temperature variation of ?20 degrees to +50 degrees C at normal supply voltage, and f…

Text truncated - open the document above for the full version.

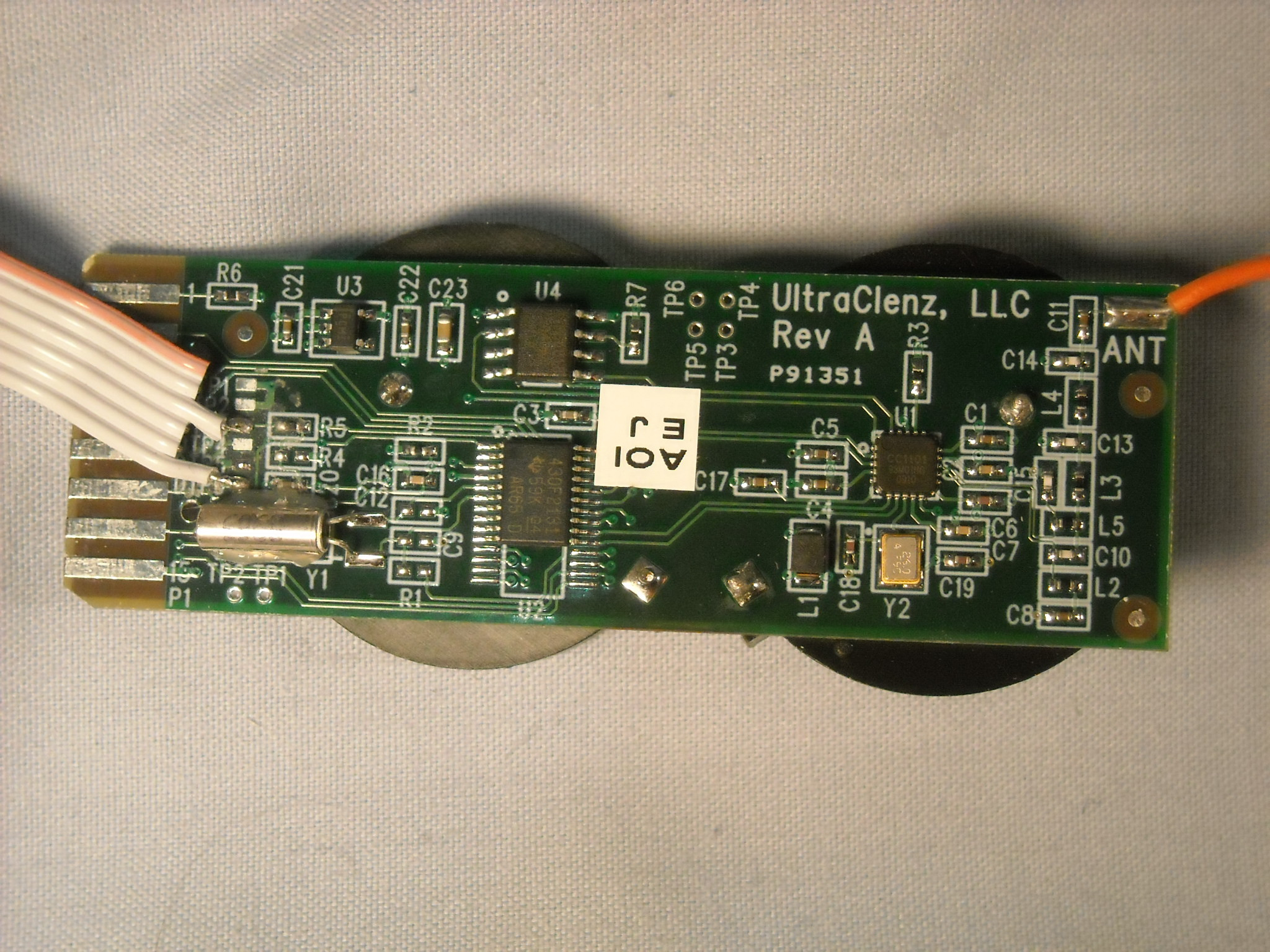

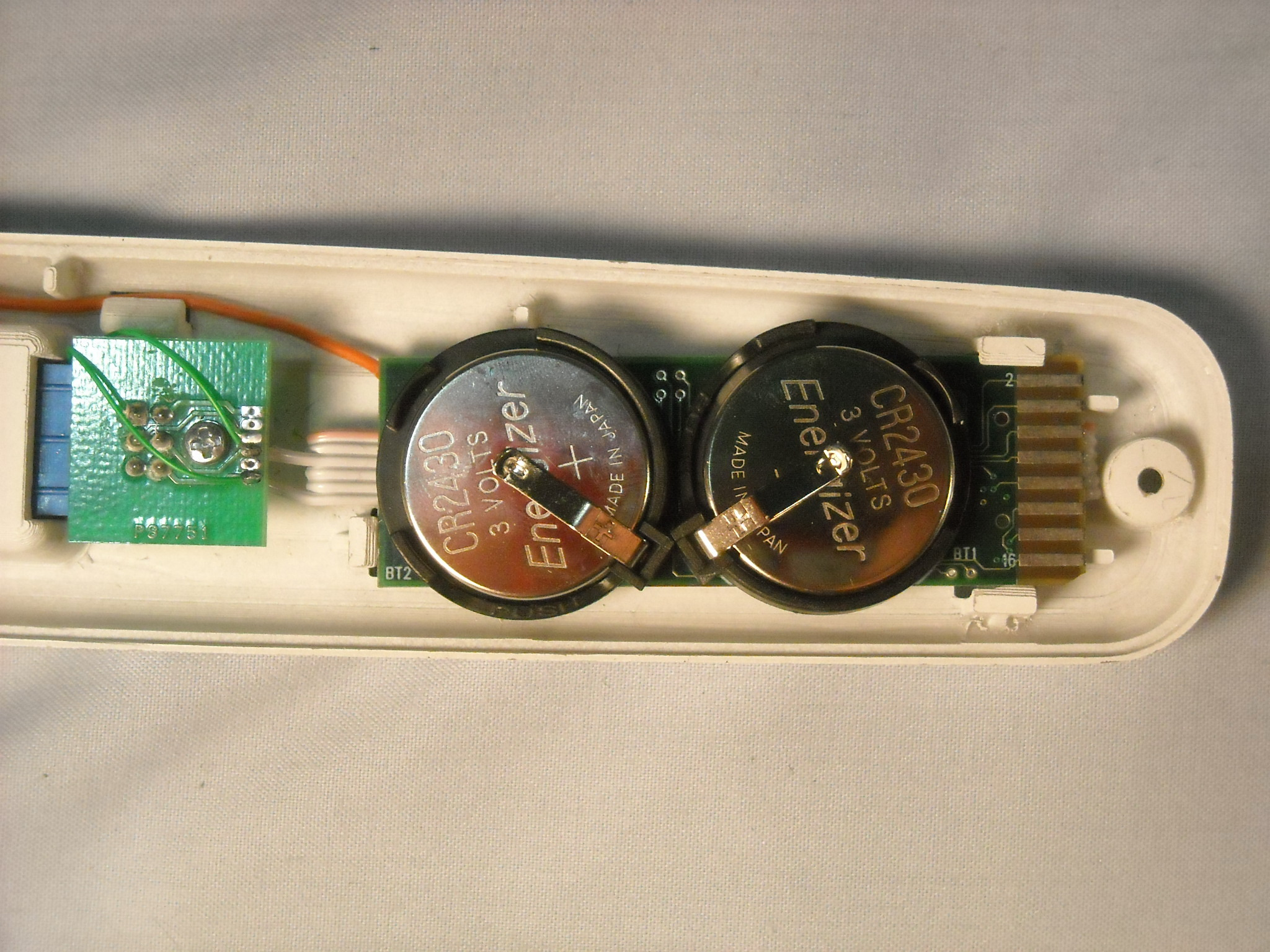

EK1442-2 UltraClenz, LLC Tag Assembly Internal Photographs EK1442-2 UltraClenz, LLC Tag Assembly Internal Photographs

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 1 of 13 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EK1442-2 Client UltraClenz, LLC Address 1440 W. Indiantown Rd. Suite 350 Jupiter, FL 33458 Phone 561-840-8405 Items tested Tag Assembly FCC ID Z9O-FAS1503 FRN 0021282710 Equipment Type Security Device Transceiver Equipment Code DSR FCC Rule Parts 47 CFR 15.231(a) Test Dates December 22, 2010, April 30, 2012 Results As detailed within this report Prepared by Matthew Burman – Test Engineer Authorized by Mairaj Hussain – EMC Supervisor Issue Date June 13, 2012 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page 12 of this report. Test Report for UltraClenz, LLC • •• • Report No. EK1442-2 June 13, 2012 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • FAX (978) 486-8828 page 2 of 13 Contents Contents..................................................................................................................................2 Summary.................................................................................................................................3 Test Methodology ....................................................................................................................3 Product Tested - Configuration Documentation .......................................................................4 Test Results ............................................................................................................................5 Fundamental Emission.........................................................................................................5 Bandwidth ............................................................................................................................6 Harmonics and Spurious Emissions.....................................................................................8 Timing Requirements ............................................................................................................10 Measurement Uncertainty......................................................................................................11 Conditions Of Testing ............................................................................................................12 Form Final Report REV 7-20-07 (DW) Test Report for UltraClenz, LLC • •• • Report No. EK1442-2 June 13, 2012 ______________________________________________________________________ Release Control Record Issue No. Reason for change Date Issued 1 Original Release _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 3 of 13 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 15.231(a). The product is the Tag Assembly. The operating frequency is 433.9MHz. It is powered by +3Vdc Coin cell batteries. Line Conducted Emissions was not performed. We found that the product met the requirements without modification. The test sample was received in good condition. Test Methodology Testing was perf ormed according to ANSI C63.4-2003 and ANSI C63.10-200 9. Radiated emissions were maximized by rotating the device around its three orthogonal axes, as well as varying the test antenna’s height and polarity. The EUT’s antenna cannot be maximized separately. Fresh batteries were used for testing. Frequency range investigated: 30MHz – 4.5GHz Measurement distance: 30-4500MHz 3m Test Report for UltraClenz, LLC • •• • Report No. EK1442-2 June 13, 2012 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 4 of 13 Product Tested - Configuration Documentation EUT Configuration Work Order:K1442 Company:UltraClenz, LLC Company Address:1440 W. Indiantown Rd. Suite 350 Jupiter, FL 33458 Contact: Marina Willis MNSN EUT: FAS-1503-00Sample 1 EUT Description:Tag Assembly EUT Tx Frequency: 433.9MHz Support Equipment:MNSN none------ EUT Ports: Port LabelPort Type No. of ports No. PopulatedCable TypeShieldedFerritesLength Max Length In/Out NEBS TypeUnpopulated Reason No Cables Are Under Test Software / Operating Mode Description: EUT continues to transmit Test Report for UltraClenz, LLC • •• • Report No. EK1442-2 June 13, 2012 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 5 of 13 Test Results Fundamental Emission LIMIT Fundamental Frequency Field Strength of Fundamental (microvolts/meter) Field Strength of Spurious Emission (microvolts/meter) 260-470MHz 3,750 to 12,500 375 to 1,250 [15.231(a)] Average Limit[dBμV/m] = 20log(41.6667(F[in MHz]) – 7083.3333) @ 3m Example Calculation: 20log(41.6667(433.9) – 7083.3333) = 80.8dBμV/m @ 3m MEASUREMENT Fundamental Field Strengt…

Text truncated - open the document above for the full version.

EK1442-2 UltraClenz, LLC Tag Assembly Test Setup Photographs Radiated Measurements Below 1GHz EK1442-2 UltraClenz, LLC Tag Assembly Test Setup Photographs Radiated Measurements Above 1GHz
