Z9O-FAS1526PSS Badge Configuration POD

Ecolab Inc.

Click to zoom

Application Details

Equipment Class: DXT - Part 15 Low Power Transceiver, Rx Verified
Date of Grant: May 19, 2014
Application Purpose: Original Equipment
Date of Application: May 19, 2014
Equipment Note: PSS Badge Configuration POD
Frequency Range: 2405.00000000 - 2405.00000000
Company: Ecolab Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Certification Exhibit FCC ID: Z9O-FAS1526 IC: 10060A-FAS1526 FCC Rule Part: 15.209, 15.249 IC Radio Standards Specification: RSS-210 ACS Project: 13-2146 Manufacturer: UltraClenz, LLC Model: FAS1526-00 User Manual 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 Patient Safeguard System Badge Application Directions for Use For Use with FAS1526 (Badge Configuration Pod) and FAS1527 (PSS Badge) Revision 0 UltraClenz, LLC ProClenz DSP2000 Performance UltraClenz, LLC Page 1 Table of Contents 1.0 Purpose ................................................................................................................................................................2 2.0 PSS Badge Application Main Screen ...................................................................................................................2 2.1 Menu .................................................................................................................................................................2 2.2 Pod Control .......................................................................................................................................................3 2.3 Badge Control ...................................................................................................................................................3 2.4 Badge Settings ..................................................................................................................................................4 2.5 Dashboard Settings ..........................................................................................................................................5 3.0 How the Application Works ...................................................................................................................................6 4.0 How to Use the Application ..................................................................................................................................6 4.1 Connecting the Pod to the PC ..........................................................................................................................6 4.2 Scanning for Badges .........................................................................................................................................6 4.3 Changing the Badge Settings ...........................................................................................................................6 4.4 Saving a Badge Configuration ..........................................................................................................................7 4.5 Downloading a configuration to a Badge ..........................................................................................................7 4.6 Setting a Badge or Badges to a New Sanitary State ........................................................................................7 4.7 Changing the Dashboard Settings ....................................................................................................................8 4.8 Changing the POD’s Mode ...............................................................................................................................8 Appendix A - System Component Care and Maintenance .........................................................................................8 Cleaning the Components ......................................................................................................................................8 Handling the Bed Kit Components ..........................................................................................................................8 Appendix B - FCC and Industry Canada Statements .................................................................................................8 Appendix C – Warranty ..............................................................................................................................................9 Revision History ....................................................................................................................................................... 10 Table of Figures Figure 1 Main Screen .................................................................................................................................................2 Figure 2 POD Control .................................................................................................................................................3 Figure 3 Badge Control ..............................................................................................................................................4 Figure 4 Badge Setting ...............................................................................................................................................4 Figure 5 Worker’s Information ....................................................................................................................................5 Figure 6 Full Badge Settings ......................................................................................................................................7 ProClenz DSP2000 Performance UltraClenz, LLC Page 2 1.0 Purpose The function of the PSS (Patient Safeguard System) Badge Application is to allow the hospital staff to quickly and efficiently manage both the settings of the Badge and the data related to the Badge normally accessed through the PSS Dashboard. The application consists of one main screen where most functions are accessible and a number of secondary screens used for specific functions. The application is used with the UltraClenz Badge Configuration Pod (FAS1526.) and one or more Badges (FAS1527). 2.0 PSS Badge Application Main Screen (see Figure 1) The main screen has a menu and five sections with related functions grouped together. Figure 1 Main Screen 2.1 Menu (see Figure 1) The Menu has three groups of item…

Text truncated - open the document above for the full version.

Cover Letter(s)

5015 B. U. Bowman Dr. Buford, GA 30518 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: Z9O-FAS1526 To Whom It May Concern: The following application is submitted on behalf of our client, UltraClenz LLC, for evaluation of their model FAS1526-00 for certification under FCC Parts 15.209 and 15.249. The FCC ID: Z9O-FAS1526, Ultraclenz Badge Configuration POD, model FAS1526-00, is a USB powered device for the configuration of the Ultraclenz patient safeguard system (PSS) badges. The product connects to a PC via USB and includes a 125 kHz and a 2405 MHz transceiver. The 125 kHz and 2405 MHz radios do not transmit simultaneously and therefore, no co-location evaluation was performed. The FCC ID: Z9O-FAS1526 was tested in full to the requirements of the aforementioned rules and was found to be in compliance. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

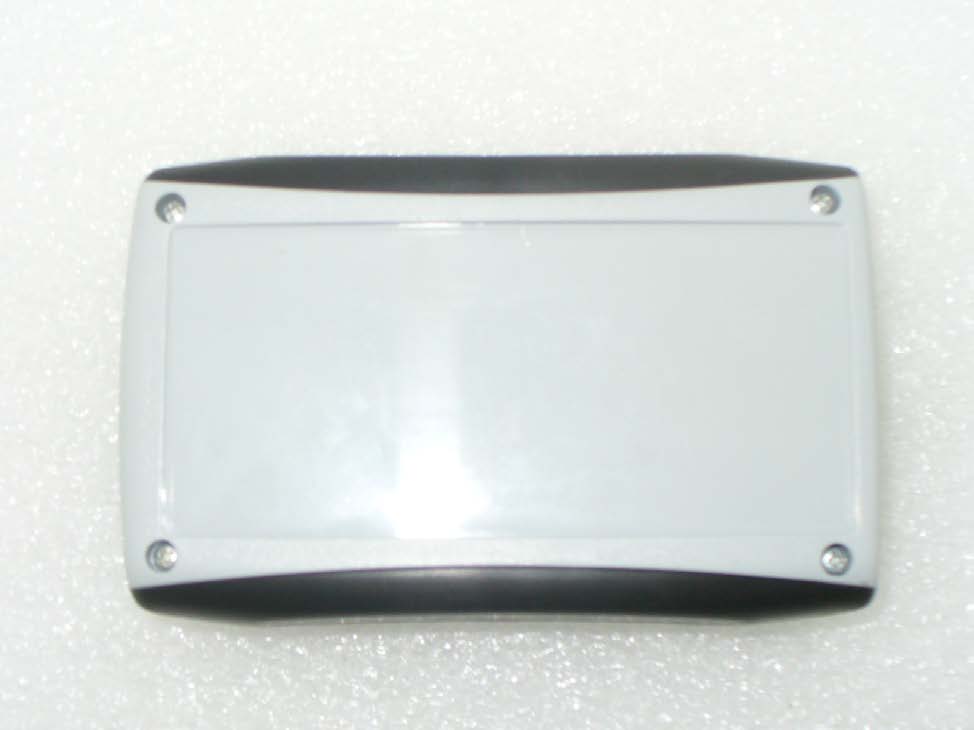

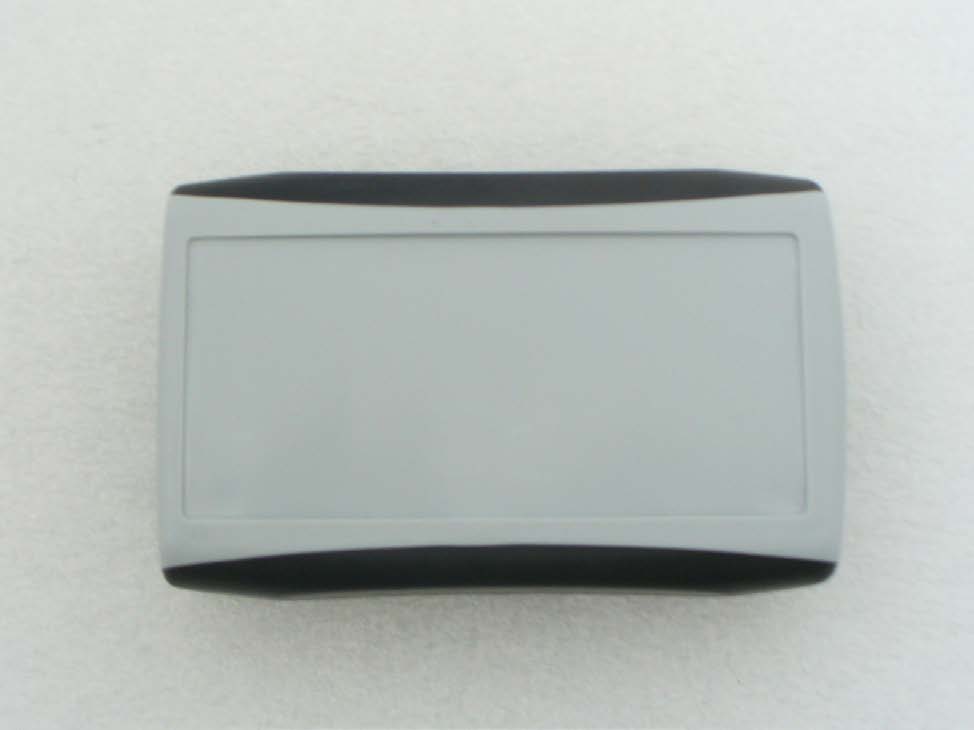

External Photos

ID Label/Location Info

Internal Photos

Test Report

Certification Test Report FCC ID: Z9O-FAS1526 IC: 10060A-FAS1526 FCC Rule Part: 15.249 IC Radio Standards Specification: RSS-210 ACS Report Number: 13-2146 .W06.1A Manufacturer: UltraClenz, LLC Model: FAS1526-00 Test Begin Date: February 24, 2014 Test End Date: April 2, 2014 Report Issue Date: May 7, 2014 FOR THE SCOPE OF ACCREDITATION UNDER CERTIFICATE NUMBER AT-1533 This report must not be used by the client to claim product certification, approval, or endorsement by ACLASS, ANSI, or any agency of the Federal Government. Project Manager: Reviewed by: Thierry Jean-Charles Kirby Munroe EMC Engineer Director, Wireless Certifications Advanced Compliance Solutions, Inc. Advanced Compliance Solutions, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 18 pages 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 TABLE OF CONTENTS 1 GENERAL ...................................................................................................... 3 1.1 Purpose .............................................................................................................................................. 3 1.2 Product description .......................................................................................................................... 3 1.3 Test Methodology and Considerations ........................................................................................... 3 2 TEST FACILITIES .......................................................................................... 4 2.1 Location ............................................................................................................................................. 4 2.2 Laboratory Accreditations/Recognitions/Certifications ............................................................... 4 2.3 Radiated & Conducted Emissions Test Site Description .............................................................. 5 3 APPLICABLE STANDARD REFERENCES................................................... 7 4 LIST OF TEST EQUIPMENT .......................................................................... 8 5 SUPPORT EQUIPMENT ................................................................................ 9 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM .............................. 9 7 SUMMARY OF TESTS ................................................................................. 10 7.1 Antenna Requirement – FCC: Section 15.203 ..............................................................................10 7.2 20dB / 99% Bandwidth: FCC: Section 15.215 (c), IC: RSS-Gen 4.6.1 ........................................10 7.3 Radiated Spurious Emissions - FCC Section 15.249 (a); IC: RSS-210 A2.9...............................12 7.4 Power Line Conducted Emissions – FCC: Section 15.207 IC: RSS-Gen 7.2.4 ...........................14 8 CONCLUSION .............................................................................................. 17 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 Model: FAS1526-00 FCC ID: Z9O-FAS1526 IC: 10060A-FAS1526 1 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15 Subpart C of the FCC’s Code of Federal Regulations and Industry Canada’s Radio Standards Specification RSS-210. 1.2 Product description The Ultraclenz Badge Configuration POD, model FAS1526-00, is a USB powered device for the configuration of the Ultraclenz patient safeguard system (PSS) badges. The product connects to a PC via USB and includes a 125 kHz and a 2405 MHz transceiver. Technical Details Frequency of Operation: 2405 MHz Number of Channels: 1 Modulation: GFSK Data Rate: 2 Mbps Antenna / Gain: Inverted-F PCB antenna, 6.3 dBi Input Voltage: 5 VDC USB Manufacturer Information: UltraClenz, LLC 1201 Jupiter Park Drive Jupiter, FL 33458 Test Sample Serial Number(s): ACS#1 Test Sample Condition: Good 1.3 Test Methodology and Considerations The EUT was evaluated for the 2405 MHz radio. Radiated and power line conducted emissions measurements were performed for the EUT powered through a laptop computer. The EUT was set in the orientation of typical use. The 125 kHz and 2405 MHz radios do not transmit simultaneously per the manufacturer. Therefore, the EUT was not evaluated for intermodulation products of the co-located radios. The 125 kHz radio was also evaluated and the results are reported in a separate report. Compliance for the unintentional emission requirements is documented in a Declaration of Conformity/Verification test report. ACS Report: 13-2146.W06.1A Advanced Compliance Solutions Page 3 of 18 Model: FAS1526-00 FCC ID: Z9O-FAS1526 IC: 10060A-FAS1526 2 TEST FACILITIES 2.1 Location The radiated and conducted emissions test sites are located at the following address: Advanced Compliance Solutions, Inc. 3998 FAU Blvd, Suite 310 Boca Raton, Florida 33431 Phone: (561) 961-5585 Fax: (561) 961-5587 www.acstestlab.com FCC Test Firm Registration #: 475089 Industry Canada Lab Code: 4175C 2.2 Laboratory Accreditations/Recognitions/Certifications ACS is accredited to ISO/IEC 17025 by ANSI-ASQ National Accreditation Board under their ACLASS program and has been issued certificate number AT-1533 in recognition of this accreditation. Unless otherwise specified, all test methods described within this report are covered under the ISO/IEC 17025 scope of accreditation. ACS Report: 13-2146.W06.1A Advanced Compliance Solutions Page 4 of 18 Model: FAS1526-00 FCC ID: Z9O-FAS1526 IC: 10060A-FAS1526 2.3 Radiated & Conducted Emissions Test Site Description 2.3.1 Semi-Anechoic Chamber Test Site The EMC radiated test facility consists of an RF-shielded enclosure. The interior dimensions of the indoor semi-anechoic chamber are approximately 48 feet (14.6 m) lon…

Text truncated - open the document above for the full version.

Test Setup Photos

3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 Certification Exhibit FCC ID: Z9O-FAS1526 IC: 10060A-FAS1526 FCC Rule Part: 15.209, 15.249 IC Radio Standards Specification: RSS-210 ACS Project: 13-2146 Manufacturer: UltraClenz, LLC Model: FAS1526-00 Test Setup Photos Model: FAS1526-00 FCC ID: Z9O-FAS1526 IC: 10060A-FAS1526 ACS Project: 13-2146 Advanced Compliance Solutions Page 2 Figure 1: Radiated Emissions – Front View – Below 1 GHz Model: FAS1526-00 FCC ID: Z9O-FAS1526 IC: 10060A-FAS1526 ACS Project: 13-2146 Advanced Compliance Solutions Page 3 Figure 2: Radiated Emissions – Back View 1 – Below 30 MHz Model: FAS1526-00 FCC ID: Z9O-FAS1526 IC: 10060A-FAS1526 ACS Project: 13-2146 Advanced Compliance Solutions Page 4 Figure 3: Radiated Emissions – Back View 2 – 30 MHz – 200 MHz Model: FAS1526-00 FCC ID: Z9O-FAS1526 IC: 10060A-FAS1526 ACS Project: 13-2146 Advanced Compliance Solutions Page 5 Figure 4: Radiated Emissions – Back View 3 – 200 MHz 1 GHz Model: FAS1526-00 FCC ID: Z9O-FAS1526 IC: 10060A-FAS1526 ACS Project: 13-2146 Advanced Compliance Solutions Page 6 Figure 5: Radiated Emissions – Front View – Above 1 GHz Model: FAS1526-00 FCC ID: Z9O-FAS1526 IC: 10060A-FAS1526 ACS Project: 13-2146 Advanced Compliance Solutions Page 7 Figure 6: Radiated Emissions – Back View – Above 1 GHz Model: FAS1526-00 FCC ID: Z9O-FAS1526 IC: 10060A-FAS1526 ACS Project: 13-2146 Advanced Compliance Solutions Page 8 Figure 7: Power Line Conducted Emissions – Front View Model: FAS1526-00 FCC ID: Z9O-FAS1526 IC: 10060A-FAS1526 ACS Project: 13-2146 Advanced Compliance Solutions Page 9 Figure 8: Power Line Conducted Emissions – Side View
