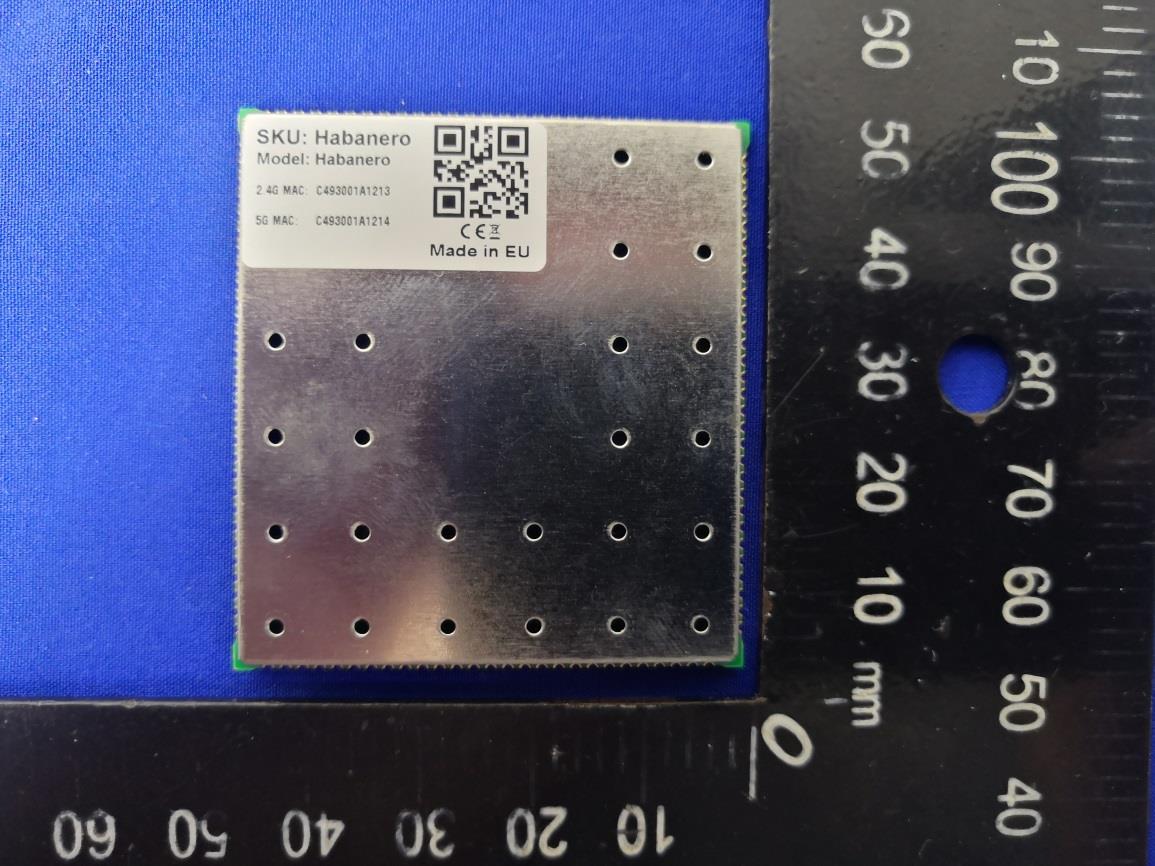

Z9W-HABHabanero

Habanero Data Sheet • Wi-Fi 5 (802.11a/n/ac Wave2) 5GHz with 2x2 MU-MiMo, 866.7Mbps data-rate • Wi-Fi 5 (802.11b/g/n/ac) 2.4GHz, 400Mbps data-rate • MIPI DBI v2.0 type B interface • CPU - IPQ4019/IPQ4029 ( 716.8MHz) • OpenWRT Linux flash image • 24-25 dBm per chain RF output power • Size - 45 by 49 mm • Available interfaces – 46 x GPIO, 1 x PCie 2.0, 1 x USB3.0, 1 x USB2.0, 2 x UART, 1 x SPI, 2 x I2C, 4 x PWM, 1 x JTAG, 1 x I2S/TDM, 5 x 1000/100/10 ethernets, 1 x RGMII, 1 x SDIO3.0/eMMC and parallels for NAND flash memory and LCD controller Quick specs Habanero system on module (SOM) is based on an IPQ4019/IPQ4029 SoC from Qualcomm, which incorporates a powerful quad-core ARM Cortex A7 processor with NEON and FPU. It is ideal for resource demanding applications including routers, gateways and access points. Habanero comes with a high-power, dual-band concurrent radio supporting 802.11ac Wave2 technology (2x2 MiMo). QCA8075C PHY gives support to 5 x Gigabit Ethernet ports. It also has 1 x USB3.0 and 1 x USB2.0 ports and supports other miscellaneous interfaces, which can be configured as general- purpose I/O pins. Hardware based NAT engine and security features like crypto engine, secure boot make it ideal for high-end, fast and secure networking applications. Habanero comes in commercial and industrial temperature versions. Commercial temperature range: 0-65°C, industrial temperature range: -40-85°C. 2 Datasheet Habanero Table of Contents 1. Product Overview3 1.1 Features3 2. Block diagram4 3. Module pinout and Pin description5 4. Electrical characteristics16 5. Power management16 5.1. Power consumption16 6. Radio characteristics17 7. Mechanical characteristics18 8. Design considerations18 8.1. Ethernet interface19 8.2. USB19 8.3. Parallel NAND flash / LCD20 8.4. I2C21 8.5. SD/eMMC22 8.6. PCIe23 8.7. JTAG24 9. Thermal considerations24 10. Development board25 10.1 DVK dimensions25 10.2 DVK interfaces26 10.3 LEDs27 10.4 BOOTSTRAP switch27 10.5 DVK header pinout28 10.6 DVK heatsink29 11. Habanero packaging and ordering info30 12. Document Revision History31 3 Datasheet Habanero 1. Features 1.1. Features TABLE 1-1. 8DEV6000 HABANERO FEATURES Feature list8DEV6000 Habanero Integrated core Core type ARM Cortex-A7 IPQ4019/IPQ4029 Core clock frequency716.8MHz Cache256KB L2 Memory DRAMDDR3L 512MB (up to 1GB) NOR FLASH32MB NAND FLASH (external)1GB(tested) WIFI IEEE 802.11 b/g/n/ac 2x2 MU-MIMO 2.4GHz 20/40 MHz 256 QAM2402-2482MHz 25dBm IEEE 802.11 b/g/n/ac 2x2 MU-MIMO 5GHz 20/40/80 MHz 256 QAM4920-5920MHz 24dBm RF pin RF signal is fed to 2 external module pins2 Display LCD controller1 MIPI DBI v2.0 type B interface (Intel 8080 9bit parallel)1 Peripherals PCIePCIe 2.01 USB USB 3.01 USB 2.0 1 UARTUniversal asynchronous receiver transmitter serial ports2 SPISerial peripheral interface port1 I2CInter-integrated circuit interfaces for peripheral devices2 GPIOIN/OUT/INT46 PWMAudio Pulse Width Modulation interface4 JTAGDebug interface1 I2S/TDMMultichannel interfaces for digital audio support1 Parallel For parallel NAND flash memory1 For parallel LCD controller1 Ethernet Copper 10BASE-Te/100BASE-TX/1000BASE-T5 Fiber 100BASE-FX/1000BASE-X1 RGMIIReduced gigabit media independent interface1 ResetReset button controlled via voltage monitor1 SDIO3.0/eMMCSecure Digital Input Output / Embedded Multi Media Card1 4 Datasheet Habanero 2. Block diagram PCIe USB 3.0 USB 2.0 JTAG RGMII UART I2C SPI Master PWM 2x RFFM8528 (5GHz Wi-fi PA) 2x RFFM8228 (2.4GHz Wi-fi PA) QCA8075C (5 port GEth PHY) DDR3L 512MB 48MHz Clock NOR FLASH 32MB Qualcomm IPQ4019/ IPQ4029 8DEV6000 Habanero Module I2S/TDM SDIO3.0/eMMC GPIO Ethernet SFP 2.4GHz Wi-FI 2x2 11n 5GHz Wi-FI 2x2 11ac Parallel lines for NAND/LCD The following figure provides a basic overview of the 8DEV6000 Habanero module. FIGURE 2-1. 8DEV6000 HABANERO MODULE BLOCK DIAGRAM 5 Datasheet Habanero 3. Module pinout and Pin description A112 A1 B1 B80 B79 B78 B77 B76 B75 B74 B73 B72 B71 B70 B69 B68 B67 B66 B65 B64 B63 B62 B61 B60 B59 B58 B57 B56 B55 B54 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29B30B31B32B33B34B35B36B37B38B39B40B41B42B43B44B45B46B47B48B49B50B51B52 B53 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30A31A32A33A34A35A36A37A38A39A40A41A42A43A44A45A46A47A48A49A50A51A52A53A54A55A56 A111A110A109A108A107A106A105A104A103A102A101A100A99A98A97A96A95A94A93A92A91A90A89A88A87A86 A85 A84 A83 A82 A81 A80 A79 A78 A77 A76 A75 A74 A73 A72 A71 A70 A69 A68 A67 A66 A65 A64 A63 A62 A61 A60 A59 A58 A57 FIGURE 3-1. PIN ASSIGNMENTS 6 Datasheet Habanero TABLE 3-1. I/O DESCRIPTION (PAD TYPE) PARAMETERS SymbolDescription AIAnalog input AOAnalog output GNDGround RF In/OutRF input/output IDigital input signal ODigital output signal IODigital bidirectional signal ODOpen drain TABLE 3-2. POWER, GROUND AND RESET Pin IDPin nameTypeDescription A1, A7, A27, A54, A86, B52, B70DVDD33I3.3V digital power B49DVDD_2.7V_MalibuO2.7V digital power output A12, A20, A29, A30, A38, A47, A55, A57, A75, A87, A88, A89, A90, A91, A92, A93, A94, A95, A97, A98, A99, A100, A101, A102, A104, A105, A106, A107, A108, A109, A110, A111, A112, B1, B2, B3, B4, B5, B6, B7, B16, B31, B40, B76, B77, B78, B79, B80 GNDGNDGround A6RESET_SOCIReset SoC B9CHIP_RST_OUTIReset GEPHY TABLE 3-3. RADIO Pin IDPin nameTypeDescription A103TX0RF In/OutSignal line for antenna A96TX1RF In/OutSignal line for antenna TABLE 3-4. PCIE 2.0 Pin IDPin nameTypeDescription B57PE_CLKNAOClock to PCIe endpoint - negative A61PE_CLKPAOClock to PCIe endpoint - positive B51PERXNAIPCIe receive lane - negative A53PERXPAIPCIe receive lane - positive B50PETXNAOPCIe transmit lane - negative A52PETXPAOPCIe transmit lane - positive 7 Datasheet Habanero TABLE 3-5. USB 3.0 Pin IDPin nameTypeDescription A60USB1_DPAI, AOUSB HS data positive B56USB1_DMAI, AOUSB HS data negative A59USB1_SS_RX_PAIUSB SS receive data positive B55USB1_SS_RX_NAIUSB SS receive data ne…

Text truncated - open the document above for the full version.

Declaration Dear Sirs, This letter is in reference to our company’s products, Broadband Digital Transmission System FCC ID: Z9W-HAB Please be advised that due to the unique Market and function targeted by this product, this product will need special trained professional in configuring and installing the product. We hereby declare that the product will be distributed through controlled distribution channel which has special trained professional to install this product and will not be sold to the general public through retail store. The professional installer must be ensured the below application: 1. 2.09/4.32dBi Ceramic antenna used for 2.4GHz, 5150~5250 indoor and 5745MHz ~5850MHz operation; 2. 4.5/5.0dBi whip antenna used for 2.4 GHz and 5150MHz~5250MHz and 5745MHz ~5850MHz operation. 3. -3.6/-5.5dBi Planare WLAN antenna used for 2.4 GHz and 5150MHz~5250MHz and 5745MHz ~5850MHz operation. Thank you for your attention. Regards, Name：Jonas Sabaliauskas Title: Director Telephone: +37061444116 Company：8devices

UAB “8devices”, Antakalnio str.17, Vilnius, Lithuania. Phone +370 614 44116, email [email protected] Registered at Lithuanian Centre of Registers, company code 302580277 DATE : 2020-07-03 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent On our behalf, I appoint Shenzhen Zhongjian Nanfang Testing Co.,Ltd.; 1st Floor, Block No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China；Bruce.Zhang, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with 8devices / Gedimino 47, Kaunas, LT-44242, Lithuania Dated this 2020-7-3 By: Jonas Sabaliauskas Signature Printed Title: Director On behalf of: 8devices Telephone: +37061444116

UAB “8devices”, Antakalnio str.17, Vilnius, Lithuania. Phone +370 614 44116, email [email protected] Registered at Lithuanian Centre of Registers, company code 302580277 DATE: 2020-07-03 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Z9W-HAB Product Name: Habanero Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operation description • BOM • Turn up These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2020-7-3 By: Jonas Sabaliauskas Signature Printed Title: Director On behalf of: 8devices Telephone: +37061444116

Modular approval Declaration letter We, 8devices apply single modular approval for Product Name: Habanero Model: Habanero FCC ID: Z9W-HAB According to 996369 D01 Module Equip Auth Guide v01r04 and 15.212 requirements: 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; Answer: Yes, the radio elements shielded by cover.The cover is metal. 2) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; Answer: Yes, All inputs to the modules are buffered through logic or microprocessor inputs. 3) The modular transmitter must have its own power supply regulation. Answer: Yes, A low drop out regulator is used for modular power supply regulation. 4) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer: Yes, Device has permanently attached ceramic chip antenna,version without antenna has unique HSC connector. 5) The module must demonstrate compliance in a stand-alone configuration; Answer: Yes, the module demonstrates compliance in a stand-alone configuration. 6) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); Answer: Yes, The modular has a permanent fixed label, and below statement was listed in the User’s Manual. The host device must be labelled to display the FCCID of the module Contains Z9W-JLP 7) The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Answer: Yes, The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual. 8) The module must comply with RF exposure requirements Answer: Yes, Transmitter meets MPE calculation of 47 CFR 1.1307. Refer to MPE Reports and Refer to modular installation manual Dated this 2020-7-3 By: Jonas Sabaliauskas Signature Printed Title: Director On behalf of : 8devices Telephone: +37061444116

RESTRICTED ACCESS OF EQUIPMENT AND DOCUMENTATION NOTICE This Restricted Access of Equipment and Documentation Notice is to inform FCC that access to equipment and related documentation supplied by 8 devices is to be restricted to only authorized users by means to ensure the security of the equipment and confidentiality of related documentation at all times, and only designated professionals shall be allowed to maintain or service the equipment. This notice includes, but is not limited to, OEM Instructions to be held confidential and out of the public domain. The modular can be installed or integrated in mobile or portable devices. This modular complies with FCC RF radiatio n exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in c onjunction with any other antenna or transmitter. If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: Contains FCC ID: Z9W-HAB Dated this 2020-7-3 By: Jonas Sabaliauskas Signature Printed Title: Director On behalf of : 8devices Telephone: +37061444116
