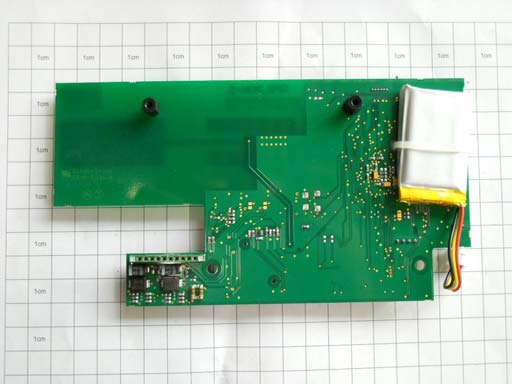

ZAS-GPSMODULEELECTRONIC CARD FOR ROBOTIC LAWN MOWER WITH GSM MODULE

Label Sample - Location page 1 Model No.: GPS_MOW_5 FCC ID: ZAS-GPSMODULE Project No.: E7M-1105-1115

61 Page 1 of 6 Prima Ricerca & Sviluppo S.r.l. – Capitale Sociale € 50.000 i.v. Codice Fiscale e Partita IVA 02635860139 – Uff. registro di COMO - n.REA CO270979 Sede: I-22020 Faloppio (Co) – Via Campagna, 92 – Tel +39 031.3500011 Fax +39 031.991309 www.primaricerca.it; [email protected] MPETR_110442-1 MPE CALCULATION APPLICANT: HUSQVARNA AB 561 82 HUSQVARNA, SWEDEN Phone +46 36 1466362 [email protected] EUT DESCRIPTION Electronic card for Robotic Lawn Mower whit GSM Module EUT TRADEMARK Husqvarna EUT MODEL GPS_MOW_5 REFERENCE STANDARDS : FCC RULES PART 22 and 24 TEST REPORT NUMBER FCCTR_110442-1 DATE OF ISSUE 19/04/2011 LABORATORY Prima Ricerca & Sviluppo S.r.l. Via Campagna, 92 -22020 Faloppio (Co) –Italy ISSUED BY Andrea Bortolotti APPROVED BY Massimo Maltempi The calculation results reported in this document shall refer only to Test Report above indicated and relevant tested sample 62 Page 2 of 6 Prima Ricerca & Sviluppo S.r.l. – Capitale Sociale € 50.000 i.v. Codice Fiscale e Partita IVA 02635860139 – Uff. registro di COMO - n.REA CO270979 Sede: I-22020 Faloppio (Co) – Via Campagna, 92 – Tel +39 031.3500011 Fax +39 031.991309 www.primaricerca.it; [email protected] MPETR_110442-1 0. CONTENTS Page 0. CONTENTS ..................................................................................................................2 1. Reference Data.............................................................................................................3 2. Calculation result ..........................................................................................................4 3. EUT Photographic DOCUMENTATION ........................................................................6 63 Page 3 of 6 Prima Ricerca & Sviluppo S.r.l. – Capitale Sociale € 50.000 i.v. Codice Fiscale e Partita IVA 02635860139 – Uff. registro di COMO - n.REA CO270979 Sede: I-22020 Faloppio (Co) – Via Campagna, 92 – Tel +39 031.3500011 Fax +39 031.991309 www.primaricerca.it; [email protected] MPETR_110442-1 1. Reference Data Test Report reference
FCCTR_110442-1 issued 15/04/2011 by Prima Ricerca & Sviluppo GSM 850 Power Control Level = 5 Channel Frequency (MHz) ERP Output Power(dBm) 128 824,12 17.30 188 836,58 13.80 251 848,798 23.30 PCS 1900 Power Control Level = 0 Channel Frequency (MHz) EIRP Output Power(dBm) 512 1850,335 6.80 661 1880,24 21.00 810 1909,738 27.50 64 Page 4 of 6 Prima Ricerca & Sviluppo S.r.l. – Capitale Sociale € 50.000 i.v. Codice Fiscale e Partita IVA 02635860139 – Uff. registro di COMO - n.REA CO270979 Sede: I-22020 Faloppio (Co) – Via Campagna, 92 – Tel +39 031.3500011 Fax +39 031.991309 www.primaricerca.it; [email protected] MPETR_110442-1 2. Calculation result GSM 850 Integral Antenna ch 251 (worst case) Calculation Results Conducted Antenna Connector Radiated Power at the Antenna n.a 0.214 watts Antenna Gain in dB n.a 1.5 dBi Distance to the Area of Interst n.a 0.6545 feet 0.1995 metres Frequency of Operation n.a 848.80 MHz Are Ground reflections Calculated Yes No Estimated RF Power Density n.a 0.0605 mW/cm 2 n.a.= not applicable - Controlled Environment Uncontrolled Environment Controlled Environment Uncontrolled Environment Maximum Permissible Exposure (MPE) n.a n.a 2.8343 mW/cm 2 0.5709 mW/cm 2 Distance to Compliance From Centre of Antenna n.a n.a 0.153 feet 0.0444 metres 0.2803 feet 0.0804 metres Does the Area of Interest Appear to be in Compliance n.a n.a yes yes 65 Page 5 of 6 Prima Ricerca & Sviluppo S.r.l. – Capitale Sociale € 50.000 i.v. Codice Fiscale e Partita IVA 02635860139 – Uff. registro di COMO - n.REA CO270979 Sede: I-22020 Faloppio (Co) – Via Campagna, 92 – Tel +39 031.3500011 Fax +39 031.991309 www.primaricerca.it; [email protected] MPETR_110442-1 PCS 1900: Channel 810 Integral Antenna (worst case) Calculation Results Conducted Antenna Connector Radiated Power at the Antenna n.a 0.562 watts Antenna Gain in dB n.a 1.5 dBi Distance to the Area of Interst n.a 0.6545 feet 0.1995 metres Frequency of Operation n.a 1909.74 MHz Are Ground reflections Calculated Yes No Estimated RF Power Density n.a 0.1588 mW/cm 2 n.a.= not applicable Controlled Environment Uncontrolled Environment Controlled Environment Uncontrolled Environment Maximum Permissible Exposure (MPE) n.a n.a 5.005 mW/cm 2 1.005 mW/cm 2 Distance to Compliance From Centre of Antenna n.a n.a 0.755 feet 0.0508 metres 0.3307 feet 0.0947 metres Does the Area of Interest Appear to be in Compliance n.a n.a yes yes 66 Page 6 of 6 Prima Ricerca & Sviluppo S.r.l. – Capitale Sociale € 50.000 i.v. Codice Fiscale e Partita IVA 02635860139 – Uff. registro di COMO - n.REA CO270979 Sede: I-22020 Faloppio (Co) – Via Campagna, 92 – Tel +39 031.3500011 Fax +39 031.991309 www.primaricerca.it; [email protected] MPETR_110442-1 3. EUT Photographic DOCUMENTATION PHOTO N° 1 – SYSTEM IDENTIFICATION

TRFCC_15.22_24 Page 1 of 28 FCCTR_110442-1 Prima Ricerca & Sviluppo S.r.l. – Capitale Sociale € 50.000 i.v. Codice Fiscale e Partita IVA 02635860139 – Uff. registro di COMO - n.REA CO270979 Sede: I-22020 Faloppio (Co) – Via Campagna, 92 – Tel +39 031.3500011 Fax +39 031.991309 www.primaricerca.it; [email protected] TEST REPORT APPLICANT: HUSQVARNA AB 561 82 HUSQVARNA, SWEDEN Phone +46 36 146365 [email protected] EUT DESCRIPTION Electronic card for Robotic Lawn Mower whit GSM Module EUT TRADEMARK Husqvarna EUT MODEL GPS_MOW_5 REFERENCE STANDARDS : 47 CFR FCC part 22, 24 TEST REPORT NUMBER FCCTR_110442-1 TEST REPORT ISSUE DATE 15/04/2011 TESTING LABORATORY Prima Ricerca & Sviluppo S.r.l. Via Campagna, 92 -22020 Faloppio (Co) –Italy TESTING LOCATION As Above DATE OF TEST SAMPLE RECEIPT 14/04/2011 DATE OF TEST 14-15/04/2011 TESTED BY Andrea Bortolotti APPROVED BY Massimo Maltempi The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have be obtained. Reproduction of this Test Report, should not be reproduced, except in full, without the written authorization of the Laboratory TRFCC_15.22_24 Page 2 of 28 FCCTR_110442-1 Prima Ricerca & Sviluppo S.r.l. – Capitale Sociale € 50.000 i.v. Codice Fiscale e Partita IVA 02635860139 – Uff. registro di COMO - n.REA CO270979 Sede: I-22020 Faloppio (Co) – Via Campagna, 92 – Tel +39 031.3500011 Fax +39 031.991309 www.primaricerca.it; [email protected] 0. CONTENTS Page 0. CONTENTS ..............................................................................................................2 1. TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT).....................3 1.1 Identification ......................................................................................................3 1.2 Technical data ...................................................................................................3 1.3 Modifications incorporated in E.U.T...................................................................4 1.4 Ports identification..............................................................................................4 1.5 Auxiliary equipment ...........................................................................................4 2. TEST CONDITIONS .................................................................................................5 2.1 Operating test modes and test conditions .........................................................5 3. Summary of test results ............................................................................................6 3.1 Tests..................................................................................................................6 4. TEST RESULTS.......................................................................................................7 5. LIST OF EQUIPMENT USED.................................................................................26 6 .Photographic documentation .................................................................................27 TRFCC_15.22_24 Page 3 of 28 FCCTR_110442-1 Prima Ricerca & Sviluppo S.r.l. – Capitale Sociale € 50.000 i.v. Codice Fiscale e Partita IVA 02635860139 – Uff. registro di COMO - n.REA CO270979 Sede: I-22020 Faloppio (Co) – Via Campagna, 92 – Tel +39 031.3500011 Fax +39 031.991309 www.primaricerca.it; [email protected] 1. TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) 1.1 Identification Brand name: Husqvarna Manufacturer: ALGODUE ELETTRONICA SRL VIA PASSERINA 3/A - 28010 FONTANETO D'AGOGNA - NO Equipment : GSM-GPS CONTROL UNIT Model name : GPS_MOW_5 Country of manufacturer: ITALY 1.2 Technical data FCC class: FCC RULES PART 22 and 24 FCC ID: ZAS-GPSMODULE Supply voltage: 18 Vdc EUT standing: floor EUT single or system: Single EUT dimensions : See photographic documentation GSM module manufacturer TELIT Module type : GE864-QUAD Type of antenna : Integral External Dedicated Frequency range TX - GSM 850 824.2 – 848.80 MHz Frequency range TX - PCS 1850.2 – 1909.8 MHz Frequency range RX – GSM 850 869.2 – 893.8 MHz Frequency range RX – PCS 1930.2 – 1989.8 MHz Integral Antenna gain 810 - 960 MHz → 1.5dBi 1710 – 1990 MHz → 1.5dBi GSM module Power supply 3.22 – 4.5 Vdc (3,8 Vdc recommended) Operating mode Duplex Type of modulation GMSK (GSM modulation) Emission GXW Software Fully GSM software Stack Temperature range Operating: -40°C to +85°C Storage: -40°C to +85°C TRFCC_15.22_24 Page 4 of 28 FCCTR_110442-1 Prima Ricerca & Sviluppo S.r.l. – Capitale Sociale € 50.000 i.v. Codice Fiscale e Partita IVA 02635860139 – Uff. registro di COMO - n.REA CO270979 Sede: I-22020 Faloppio (Co) – Via Campagna, 92 – Tel +39 031.3500011 Fax +39 031.991309 www.primaricerca.it; [email protected] 1.3 Modifications incorporated in E.U.T. The following items are the modifications introduced in the equipment under test : • None 1.4 Ports identification This section contains descriptions of all signal ports and AC/DC power input/output ports, the length and the type of the cable provided by manufacturer needed for the tests. Moreover it is specified if the ports are ever or optionally connected. Port Description Connection 1 Enclosure Free electronic card Screw 2 AC power input/output ports Port not present ---- 3 DC power input/output ports 18Vdc Cable 4 Signals ports Cable Note: During the tests all cables must be what provided the manufacturer or the same that used in the real employment of the EUT. 1.5 Auxiliary equipment • No auxiliary equipment TRFCC_15.22_24 Page 5 of 28 FCCTR_110442-1 Prima Ricerca & Sviluppo S.r.l. – Capitale Sociale € 50.000 i.v. Codice Fiscale e Partita IVA 02635860139 – Uff. registro di COMO - n.REA CO270979 Sede: I-22020 Faloppio (Co) – Via Campagna, 92 – Tel +39 031.3500011 Fax +39 031.991309 www.primaricerca.it; [email protected] 2. TEST CONDITIONS 2.1 Operating test m…

Text truncated - open the document above for the full version.

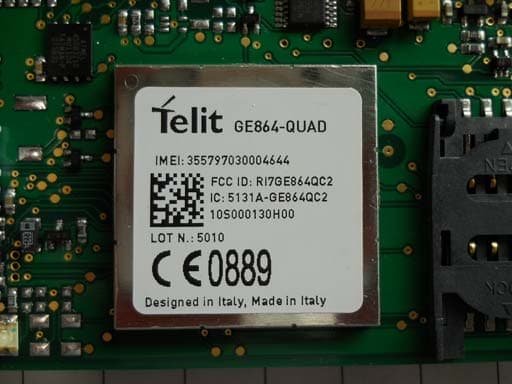

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: GE864-QUAD To: FCC Part 22: 2009 Subpart H, FCC Part 24: 2009 Subpart E, RSS 132 Issue 2 September 2005 and RSS-133 Issue 5 February 2009 Test Report Serial No: RFI/RPT4/RP76660JD03A Supersedes Test Report Serial No: RFI/RPT3/RP76660JD03A This Test Report Is Issued Under The Authority Of Brian Watson, COO Payments and Consultancy: Checked By: Nigel Davison Signature: Date of Issue: 20 April 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI/RPT4/RP76660JD03A ISSUE DATE: 20 APRIL 2010 Page 2 of 56 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI/RPT4/RP76660JD03A ISSUE DATE: 20 APRIL 2010 RFI Global Services Ltd Page 3 of 56 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 3. Equipment Under Test (EUT) ....................................................................................................... 9 4. Operation and Monitoring of the EUT during Testing ............................................................. 12 5. Measurements, Examinations and Derived Results ................................................................ 13 6. Measurement Uncertainty .......................................................................................................... 54 Appendix 1. Test Equipment Used ................................................................................................55 TEST REPORT SERIAL NO: RFI/RPT4/RP76660JD03A ISSUE DATE: 20 APRIL 2010 Page 4 of 56 RFI Global Services Ltd 1. Customer Information Company Name: Telit Communications S.p.A. Address: Via Stazione di Prosecco, 5/B Sgonico TS 34010 Italy TEST REPORT SERIAL NO: RFI/RPT4/RP76660JD03A ISSUE DATE: 20 APRIL 2010 RFI Global Services Ltd Page 5 of 56 2. Summary of Testing 2.1. General Information – FCC Part 22 Specification Reference: 47CFR22 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 22 Subpart H (Public Mobile Services) Specification Reference: RSS-GEN Issue 2 June 2007 Specification Title: General Requirements and Information for the Certification of Radio communication Equipment Specification Reference: RSS-132 Issue 2 Sep 2005 Specification Title: Cellular Telephones Employing New Technologies Operating in the Bands 824-849 MHz and 869-894 MHz Specification Reference: RSS-133 Issue 5 Feb 2009 Specification Title: GHz Personal Communications Services Specification Reference: SRSP-510 Issue 4 Feb 2008 Specification Title: Technical Requirements for Personal Communications Services in the Bands 1850-1915 MHz and 1930-1995 MHz Specification Reference: SRSP-503 Issue 6 Jun 2003 Specification Title: Technical Requirements for Cellular Radiotelephone Systems Operating in the Bands 824 – 849 MHz and 869 – 894 MHz Site Registration: FCC: 209735 Industry Canada: 3245B-2 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 02 March 2010 to 19 April 2010 TEST REPORT SERIAL NO: RFI/RPT4/RP76660JD03A ISSUE DATE: 20 APRIL 2010 Page 6 of 56 RFI Global Services Ltd 2.2. Summary of Test Results – FCC Part 22 FCC Reference (47CFR ) IC Reference Measurement Result FCC Part 15.109 RSS-Gen 4.10/6.0 RSS-132 4.6 Receiver/Idle Mode Radiated Spurious Emissions FCC Part 22.913(a) RSS-132 4.4 SRSP-503 5.1.3 Transmitter Carrier Output Power and Effective Radiated Power (ERP) FCC Part 22.355 RSS-132 4.3 RSS Gen 4.7 Transmitter Frequency Stability (Temperature Variation) FCC Part 22.355 RSS-132 4.3 RSS Gen 4.7 Transmitter Frequency Stability (Voltage Variation) FCC Part 2.1049 RSS-Gen 4.6.1 Transmitter Occupied Bandwidth FCC Part 2.1051/22.917 RSS-132 4.5 Transmitter Out of Band Conducted Emissions FCC Part 2.1051/22.917 RSS-132 4.5 Transmitter Conducted Emissions at Band Edges FCC Part 2.1053/22.917 RSS-132 4.5 Transmitter Out of Band Radiated Emissions FCC Part 2.1053/22.917 RSS-132 4.5 Transmitter Band Edge Radiated Emissions *Note Key to Results = Complied = Did not comply Note(s): 1. Transmitter Band Edge Radiated Emissions was not performed for GSM850, as the residual carrier power seen on the emissions plot is lower than the specified -13.0dBm limit and therefore complies with the band edge limit by inspection. TEST REPORT SERIAL NO: RFI/RPT4/RP76660JD03A ISSUE DATE: 20 APRIL 2010 RFI Global Services Ltd Page 7 of 56 2.3. General Information – FCC Part 24 Specification Reference: 47CFR24 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 24 Subpart E (Personal Communication Services) Specification Reference: RSS-GEN Issue 2 June 2007 Specification Title: General Requirements and Information for the Certification of Radiocommunication Equipment Specification Reference: RSS-133 Issue 5 Feb 2009 Specification Title: GHz Personal Communications Services Specification Reference: SRSP-510 Issue 4 Feb 2008 Specification Title: Technical Requirements for Personal Communications Services (PCS) in the Bands 1850-1915 MHz and 1930-1995 MHz Site Registration: FCC: 209735 Industry Canada: 3245B-2 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 02 March to 19 April 2010 TEST REPORT SERIAL NO: RFI/RPT4/RP76660JD03A ISSUE DATE: 20 APRIL 2010 Page 8 of 56 RFI …
