ZAZIR6X5WAPIndustrial Cellular Router

InRouter 6X5 Series Compact Design: 4 Ethernet LAN switch ports, RS232/485 (DB9), Wi-Fi (2.4GHz 802.11b/g/n),3G/UMTS or Ethernet WAN connection Power supply: 9-26V DC Power Terminal High security: Advanced VPN (IPSec/SSL/GRE/L2TP/PPTP) Centralized management platform: InHand Device Manager Cloud Reliable for almost all industrial conditions Smart 4 Ethernet LAN/Wi-Fi/ Serial to Ethernet WAN/HSPA+/UMTS Router Ove r vi ew InRouter6X5 series are compact designed industrial cellular routers which can help users to quickly access to high-speed Internet and support secure and reliable data transmission. The products combine together with the functions of unmanaged switch, serial server, 3G Router, IP modem, Advanced VPN client and even WIFI and provide with high cost-effective solution for applications in industrial automation and control, fleet monitoring, video surveillance, advertising media, and outlets networking. You can even configure it easily through the browser on your IOS or Android terminals without connection to the router by cable. Besides flexibility, InRouter6X5 series can provide reliable data link. For example, the multi-level linkage detection ensures linkage stability especially for applications in unattended areas. The outstanding performance under wide temperature and harsh electromagnetic field enables the capability to work under harsh conditions. The most amazing thing is InRouter6x5 support almost the VPN security protocols which only exist in advanced VPN Routers. It is compatible with the major VPN routers including the brands of Cisco, HuaWei, Juniper etc. S p ec if ica t i on Interfaces WAN Interfaces Ethernet WAN: Static IP/PPPoE/DHCP Client Cellular WAN: HSPA+: 21Mbps (DL)/5.76Mbps (UL) GSM/GPRS/EDGE: 850/900/1800/1900 MHz UMTS /HSPA/HSPA+: 850/900/1900/2100 MHz Authentication: CHAP/PAP/MS-CHAP/MS-CHAPV2 LAN Interfaces Auto Adaption: 4 10M/100M Ethernet ports, auto-adaptive MDI/MDI-X auto crossover Isolation Protection: 1.5KV isolation protection Power supply 9-26V DC 5.08mm 2pin Terminal power supply Serial ports Number: 1 RS232/RS485 DB9 Protocol: Modbus RTU, Transparent TCP, Virtual COM Wi-Fi (Optional) Environmental Operating temperature: -20°C~70°C Storage temperature:-40°C ~85°C Humidity: 5%~95%, no-condensing Protection grade: IP40 EMC ESD: EN61000-4-2 Surge: EN61000-4-5 EFT: EN61000-4-4 RF: EN61000-4-3 RC: EN61000-4-6 Oscillatory Wave Immunity: EN61000-4-12 Variation Magnetic Field Immunity: EN61000-4-8 Safety Anti-shock:IEC60068-2-27 Anti-drop: IEC60068-2-32 Anti-vibration: IEC60068-2-6 Wireless: 150Mbps 802.11b/g/n Work mode: AP/Client Authentication:open,WEP,WPA/WPA-2(Personal),PA/WPA2(Enterprise) Firewall security service State Packet Inspection, anti-DoS attacks, Filter multicast Filter ping, Access control list Configuration DB9 Console port, Telnet, and Web configuration Upgrade Remote upgrade and web upgrade, utilizing redundant backup mechanism for worry-free upgrade Network Function Network Address Translation (NAT) and Port Address Translation (PAT) Deny illegitimate host access Reliable Network Link Built-in hardware watchdog, self-recovery PPP link detection disaster self-recovery Professional upgrades mechanism, assure upgrade safety TCP/IP Protocols ICMP, IP, TCP, UDP, DHCP, PPP, ARP, Telnet, DNS, VRRP, HTTP, HTTPS, VPN (IPSec/SSL/PPTP/L2TP/GRE) Installation Optional Wall mounting kits or DIN mounting Kits Warranty Warranty Period: 1 year, for more period please contact InHand sales Dimensions (Unit: mm) Side View Front View Back View DB9 RS232 /RS485 Port RS232 RS485 Device Manager Cloud FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one Model IR6x5 Part Number IR6<X>5-<N>-<P>-<S> X (Option VPN) 0: no VPN; 1: standard VPN (IPSec/PPTP/L2TP/GRE); 9: advanced VPN(IPSec/PPTP/L2TP/GRE/OpenVPN) + X.509 CA support N （Network） UE00: No wireless module WH01: UMTS/HSDPA (850/900/1900/2100 MHz) VZ16:CDMA2000 EVDO\1X( 800MHz/1900MHz/2100MHz) VZ01: EVDO(800MHz/1900MHz. for China/India only) PH01:HSPA+ (850/900/1900/2100 MHz) S (Serial port) <NA> : RS232 485 : RS485 Example IR6 1 5 WH01-AP: Standard VPN (IPSec/PPTP/L2TP/GRE) WH01: UMTS/HSDPA (850/900/1900/2100 MHz) Wi-Fi : AP mode RS232 serial port O rde r I nf or ma t io n F C C War n in g St at em e nt Connecting Devices, Enabling Services [email protected] or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm bet…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Beijing InHand Networks Technology Co,. Ltd. _________________________________________________ 2013.4.11 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____Beijing InHand Networks Technology Co,. Ltd._____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Industrial Cellular Router model name: IR615WH01-AP IR605WH01-STA IR605WH01-AP IR615WH01-STA IR695WH01-AP IR695WH01-STA IG605WH01-AP IG605WH01-STA IG615WH01-AP IG615WH01-STA IG695WH01-AP IG695WH01-STA FCC ID: ZAZIR6X5WAP We affirm that between SIEMIC and ____ Beijing InHand Networks Technology Co,. Ltd. ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : Jason Hu/Technology Engineer Contact information / address : Beijing InHand Networks Technology Co,. Ltd. West Wing, 11th Floor, Building G, Wang Jing Science Park, Chaoyang District, Beijing, China

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 3.0 Beijing InHand Networks Technology Co,. Ltd. _________________________________________________ 2013.4.11 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: ZAZIR6X5WAP We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Tune up Procedure - Bom The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : Jason Hu/Technology Engineer Contact information / address : Beijing InHand Networks Technology Co,. Ltd. West Wing, 11th Floor, Building G, Wang Jing Science Park, Chaoyang District, Beijing, China

Declaration letter Beijing InHand Networks Technology Co., Ltd To: SIEMIC Nanjing (China) Laboratories No.2-1,Longcang Dadao Yuhua Economic Development Zone Nanjing,P.R.China Dear Sir， For our business issue and marketing requirement, we would like to list different models numbers on the CE/FCC certificates and reports, as following: Model No.: IR615WH01-AP IR605WH01-AP IR605WH01-STA IR695WH01-AP IR615WH01-STA IG605WH01-AP IR695WH01-STA IG615WH01-AP IG605WH01-STA IG695WH01-AP IG615WH01-STA IG695WH01-STA The twelve models are the same in these: appearance,PCB layout,and basic software function;The differences are as follows: Ia6b5WH01-c 【a】 【b】 【c】 R:router G:gateway 0：basic SW function 1：support VPN (IPsec/PPTP/L2TP) 9：support VPN\CA certificate\SSL AP：Wi-Fi AP STA：Wi-Fi client 【a】, 【b】, 【c】 is software different only; Thank you! Signature: Printed name/title:Wangbiao/ EMC engineer Address: WestWing 11th Floor, Buiding G, Wangjing Science Park, Chaoyang District, Beijing

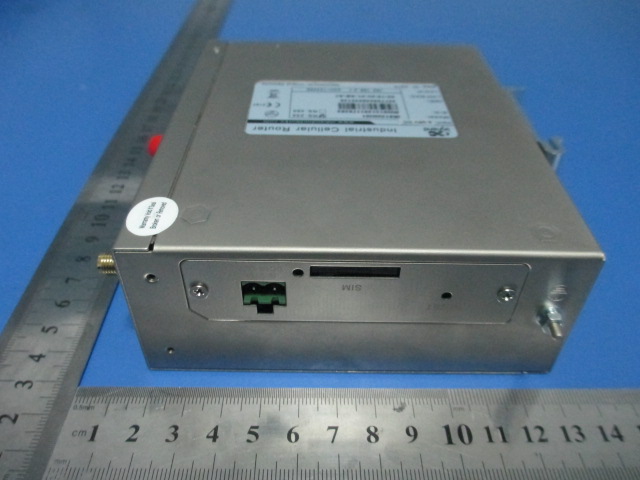

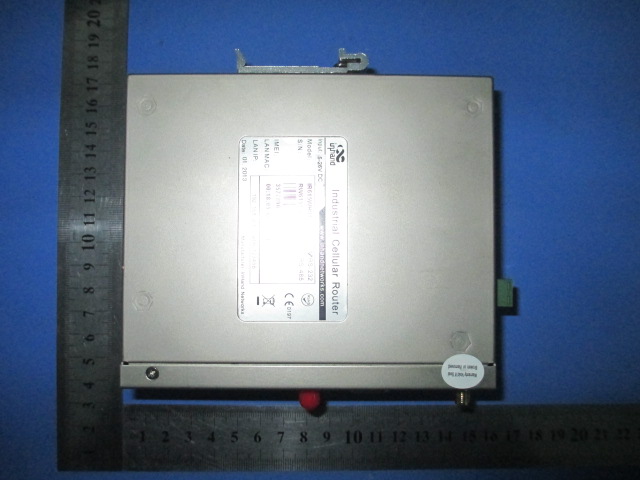

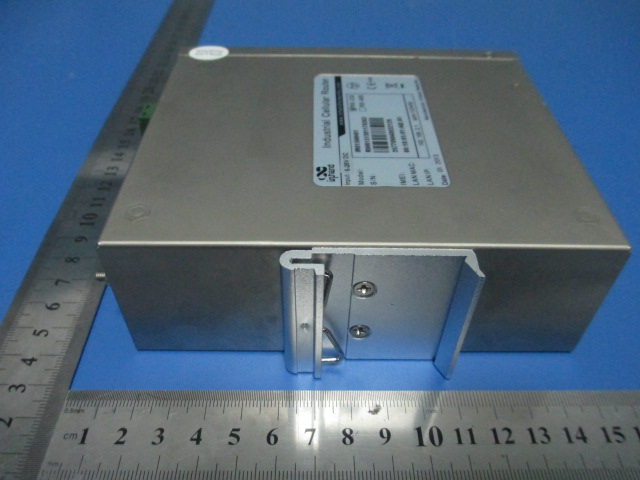

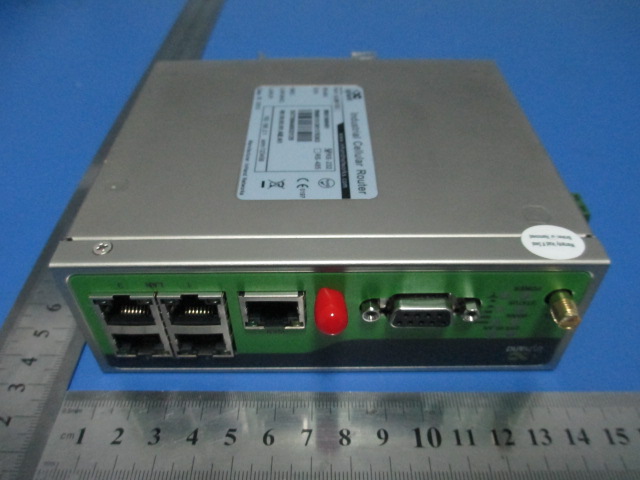

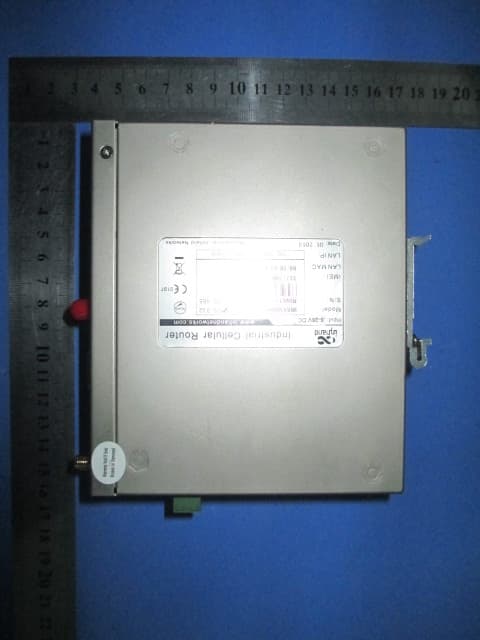

Title: EMC Test Report for Industrial Cellular Router Main Model: IR615WH01-AP To: FCC Part 15 Subpart B: 2012, ANSI C63.4: 2009 Report No: 13020108-1-FCC-E1-V1 Issue Date: March 20, 2013 Page: 19 of 33 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph 1: EUT External Photo Whole Package View Top View of EUT Title: EMC Test Report for Industrial Cellular Router Main Model: IR615WH01-AP To: FCC Part 15 Subpart B: 2012, ANSI C63.4: 2009 Report No: 13020108-1-FCC-E1-V1 Issue Date: March 20, 2013 Page: 20 of 33 www.siemic.com.cn Bottom View of EUT Front View of EUT Title: EMC Test Report for Industrial Cellular Router Main Model: IR615WH01-AP To: FCC Part 15 Subpart B: 2012, ANSI C63.4: 2009 Report No: 13020108-1-FCC-E1-V1 Issue Date: March 20, 2013 Page: 21 of 33 www.siemic.com.cn Rear View of EUT Left View of EUT Title: EMC Test Report for Industrial Cellular Router Main Model: IR615WH01-AP To: FCC Part 15 Subpart B: 2012, ANSI C63.4: 2009 Report No: 13020108-1-FCC-E1-V1 Issue Date: March 20, 2013 Page: 22 of 33 www.siemic.com.cn Right View of EUT

FCC ID Position FCC ID

Title: EMC Test Report for Industrial Cellular Router Main Model: IR615WH01-AP To: FCC Part 15 Subpart B: 2012, ANSI C63.4: 2009 Report No: 13020108-1-FCC-E1-V1 Issue Date: March 20, 2013 Page: 23 of 33 www.siemic.com.cn Annex B.ii. Photograph 2: EUT Internal Photo Cover Off - Front View Antenna View 2G/3G Antenna WIFI Antenna Title: EMC Test Report for Industrial Cellular Router Main Model: IR615WH01-AP To: FCC Part 15 Subpart B: 2012, ANSI C63.4: 2009 Report No: 13020108-1-FCC-E1-V1 Issue Date: March 20, 2013 Page: 24 of 33 www.siemic.com.cn 3GModule View for IR615WH01-AP Main Board Front View Title: EMC Test Report for Industrial Cellular Router Main Model: IR615WH01-AP To: FCC Part 15 Subpart B: 2012, ANSI C63.4: 2009 Report No: 13020108-1-FCC-E1-V1 Issue Date: March 20, 2013 Page: 25 of 33 www.siemic.com.cn Main Board Rear View

Beijing InHand Networks Technology Co,. Ltd. Industrial Cellular Router Main Model: IR615WH01-AP Serial Model: Please See Page5 March 20, 2013 Report No.: 13020108-1-FCC-H1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Deon Dai Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Exposure Evaluation Report for Industrial Cellular Router Main Model: IR615WH01-AP Serial Model: Please see page 5 To: FCC 2.1091: 2012 Report No: 13020108-1-FCC-H1 Issue Date: March 20, 2013 Page: 2 of 9 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Exposure Evaluation Report for Industrial Cellular Router Main Model: IR615WH01-AP Serial Model: Please see page 5 To: FCC 2.1091: 2012 Report No: 13020108-1-FCC-H1 Issue Date: March 20, 2013 Page: 3 of 9 www.siemic.com.cn This page has been left blank intentionally. Title: RF Exposure Evaluation Report for Industrial Cellular Router Main Model: IR615WH01-AP Serial Model: Please see page 5 To: FCC 2.1091: 2012 Report No: 13020108-1-FCC-H1 Issue Date: March 20, 2013 Page: 4 of 9 www.siemic.com.cn CONTENTS 1. EXECUTIVE SUMMARY & EUT INFORMATION...........................................................................................5 2. TECHNICAL DETAILS ..........................................................................................................................................6 3. MAXIMUM PERMISSIBLE EXPOSURE (MPE) ..................................................................................................7 FCC §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE)...................................................................................7 Title: RF Exposure Evaluation Report for Industrial Cellular Router Main Model: IR615WH01-AP Serial Model: Please see page 5 To: FCC 2.1091: 2012 Report No: 13020108-1-FCC-H1 Issue Date: March 20, 2013 Page: 5 of 9 www.siemic.com.cn 1. EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the Beijing InHand Networks Technology Co,. Ltd. Industrial Cellular Router and model: IR615WH01-APagainst the current Stipulated Standards. The Industrial Cellular Router has demonstrated compliance with the FCC 2.1091: 2012. EUT Information EUT Description : Industrial Cellular Router Main Model : IR615WH01-AP Serial Model IR605WH01-AP, IR605WH01-STA, IR615WH01-STA, IR695WH01-AP, IR695WH01-STA, IG605WH01-AP, IG605WH01-STA, IG615WH01-AP, IG615WH01-STA, IG695WH01-AP, IG695WH01-STA Antenna Gain : GSM/WCDMA: 0.8dBi WLAN: 3dBi Input Power : Adapter Model：AW018WR-1200 100CV Input：100-240V 50/60Hz 0.5A Output: 12V 1A EUT Power supply: 9-26V DC Power Terminal Maximum Conducted Peak Power to Antenna : GSM850:32.11dBm PCS1900:29.50dBm 802.11b:14.08dBm 802.11g:17.75dBm 802.11n (20M):18.56dBm 802.11n (40M):17.40dBm Classification Per Stipulated Test Standard : FCC 2.1091: 2012 Title: RF Exposure Evaluation Report for Industrial Cellular Router Main Model: IR615WH01-AP Serial Model: Please see page 5 To: FCC 2.1091: 2012 Report No: 13020108-1-FCC-H1 Issue Date: March 20, 2013 Page: 6 of 9 www.siemic.com.cn 2. TECHNICAL DETAILS Purpose Compliance testing of Industrial Cellular Router with stipulated standard Applicant / Client Beijing InHand Networks Technology Co,. Ltd. West Wing, 11th Floor, Building G, Wang Jing Science Park, Chaoyang District, Beijing, 100102 China Manufacturer Beijing InHand Networks Technology Co,. Ltd. West Wing, 11th Floor, Building G, Wang Jing Science Park, Chaoyang District, Beijing, 100102 China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 13020108-1-FCC-H1 Date EUT received March 06, 2013 Standard applied FCC 2.1091: 2012 Dates of test March 15, 2013 No of Units #1 Equipment Category Spread Spectrum System/Device Trade Name N/A RF Operating Frequency (ies) GSM850 TX : 824.2 ~ 848.8 MHz; RX : 869.2 ~ 893.8 MHz PCS1900 TX : 1850.2 ~ 1909.8 MHz; RX : 1930.2 ~ 1989.8 MHz WLAN:2.4GHz band: 802.11b/g/n(HT 20) : 2412-2462 MHz 802.11n( HT 40): 2422~2452MHz Number of Channels 299CH (PCS1900) and 124CH (GSM850) WiFi: 11CH Modulation GSM / GPRS: GMSK WLAN: DSSS/OFDM FCC ID ZAZIR6X5WAP Title: RF Exposure Evaluation Report for Industrial Cellular Router M…

Text truncated - open the document above for the full version.

Beijing InHand Networks Technology Co,. Ltd. Industrial Cellular Router Main Model: IR615WH01-AP Serial Model: See Page 5 March 20, 2013 Report No.: 13020108-1-FCC-R2 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Deon Dai Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for Industrial Cellular Router Model: IR615WH01-AP To: FCC Part 15.247: 2012 (KDB 558074) Report No.: 13020108-1-FCC-R2 Issue Date: March 20, 2013 Page: 2 of 82 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Test Report for Industrial Cellular Router Model: IR615WH01-AP To: FCC Part 15.247: 2012 (KDB 558074) Report No.: 13020108-1-FCC-R2 Issue Date: March 20, 2013 Page: 3 of 82 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for Industrial Cellular Router Model: IR615WH01-AP To: FCC Part 15.247: 2012 (KDB 558074) Report No.: 13020108-1-FCC-R2 Issue Date: March 20, 2013 Page: 4 of 82 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION ..........................................................................................5 2 TECHNICAL DETAILS .........................................................................................................................................6 3 MODIFICATION.....................................................................................................................................................7 4 TEST SUMMARY....................................................................................................................................................8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................63 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ...........................................................................................66 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT................................................................................66 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................66 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................66 Title: RF Test Report for Industrial Cellular Router Model: IR615WH01-AP To: FCC Part 15.247: 2012 (KDB 558074) Report No.: 13020108-1-FCC-R2 Issue Date: March 20, 2013 Page: 5 of 82 www.siemic.com.cn 1 Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of the Beijing InHand Networks Technology Co,. Ltd., Industrial Cellular Router and model: IR615WH01-AP against the current Stipulated Standards. The Industrial Cellular Router has demonstrated compliance with the FCC Part 15.247: 2012 (KDB 558074). EUT Information EUT Description : Industrial Cellular Router Main Model : IR615WH01-AP Serial Model IR605WH01-AP, IR605WH01-STA, IR615WH01-STA, IR695WH01-AP, IR695WH01-STA, IG605WH01-AP, IG605WH01-STA, IG615WH01-AP, IG615WH01-STA, IG695WH01-AP, IG695WH01-STA Antenna Gain : Wifi: 3.0 dBi GPRS/WCDMA: 0.8dBi Input Power : Adapter Model：AW018WR-1200 100CV Input：100-240V 50/60Hz 0.5A Output: 12V 1A EUT Power supply: 9-26V DC Power Terminal Classification Per Stipulated Test Standard : FCC Part 15.247: 2012 (KDB 558074) Title: RF Test Report for Industrial Cellular Router Model: IR615WH01-AP To: FCC Part 15.247: 2012 (KDB 558074) Report No.: 13020108-1-FCC-R2 Issue Date: March 20, 2013 Page: 6 of 82 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of Industrial Cellular Router with stipulated standar d Applicant / Client Beijing InHand Networks Technology Co,. Ltd. West Wing, 11th Floor, Building G, Wang Jing Science Park, Chaoyang District, Beijing, 100102 China Manufacturer Beijing InHand Networks Technology Co,. Ltd. West Wing, 11th Floor, Building G, Wang Jing Science Park, Chaoyang District, Beijing, 100102 China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 13020108-1-FCC-R2 Date EUT received March 06, 2013 Standard applied FCC…

Text truncated - open the document above for the full version.

Title: RF Test Report for Industrial Cellular Router Model: IR615WH01-AP To: FCC Part 15.247: 2012 (KDB 558074) Report No.: 13020108-1-FCC-R2 Issue Date: March 20, 2013 Page: 75 of 82 www.siemic.com.cn Annex B.iii. Photograph 3: Test Setup Photo Conducted Emissions Test Setup - Front View Conducted Emissions Test Setup - Side View Title: RF Test Report for Industrial Cellular Router Model: IR615WH01-AP To: FCC Part 15.247: 2012 (KDB 558074) Report No.: 13020108-1-FCC-R2 Issue Date: March 20, 2013 Page: 76 of 82 www.siemic.com.cn Radiated Emissions Test Setup Below 1GHz - Front View Radiated Emissions Test Setup Above 1GHz - Front View
