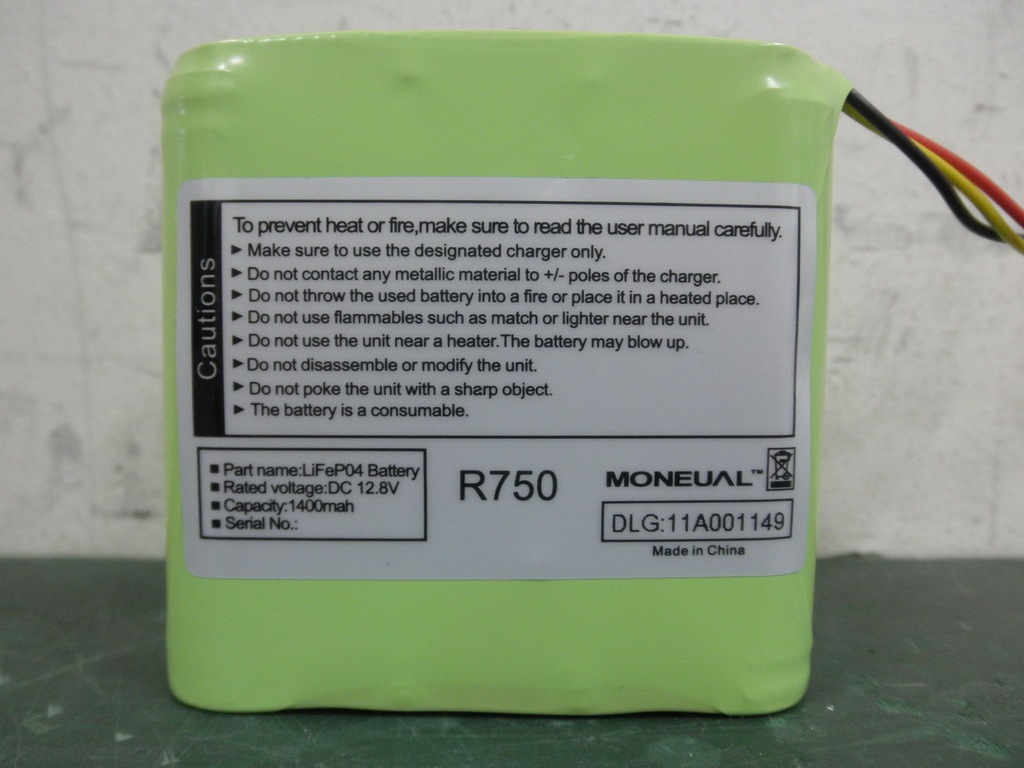

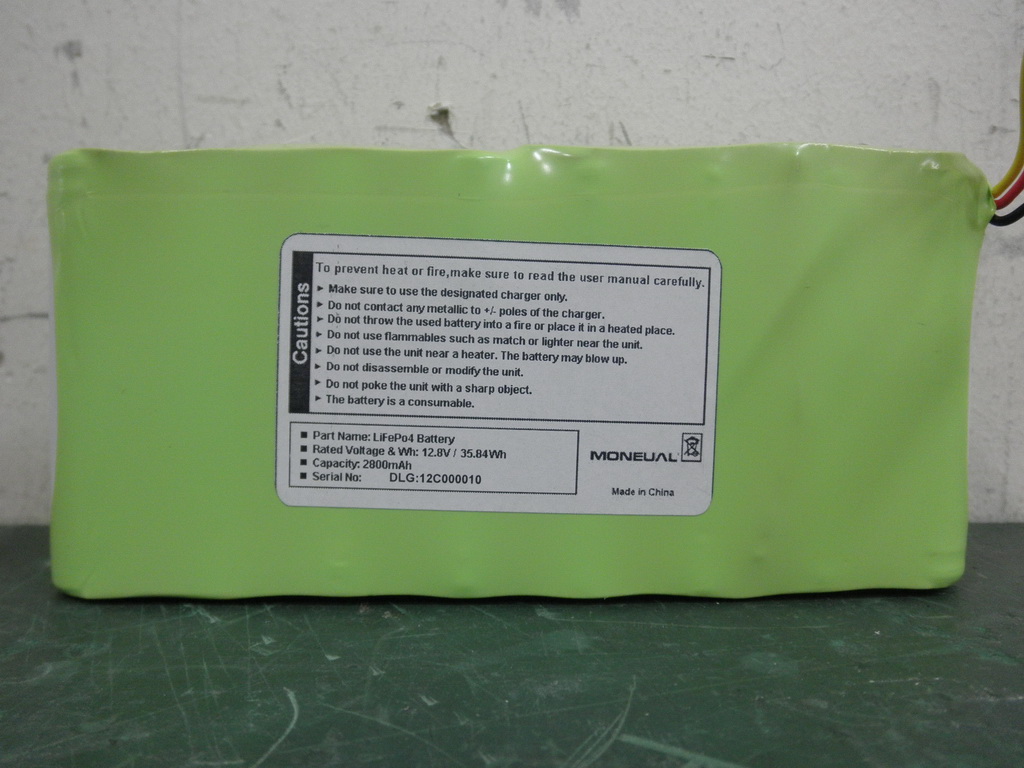

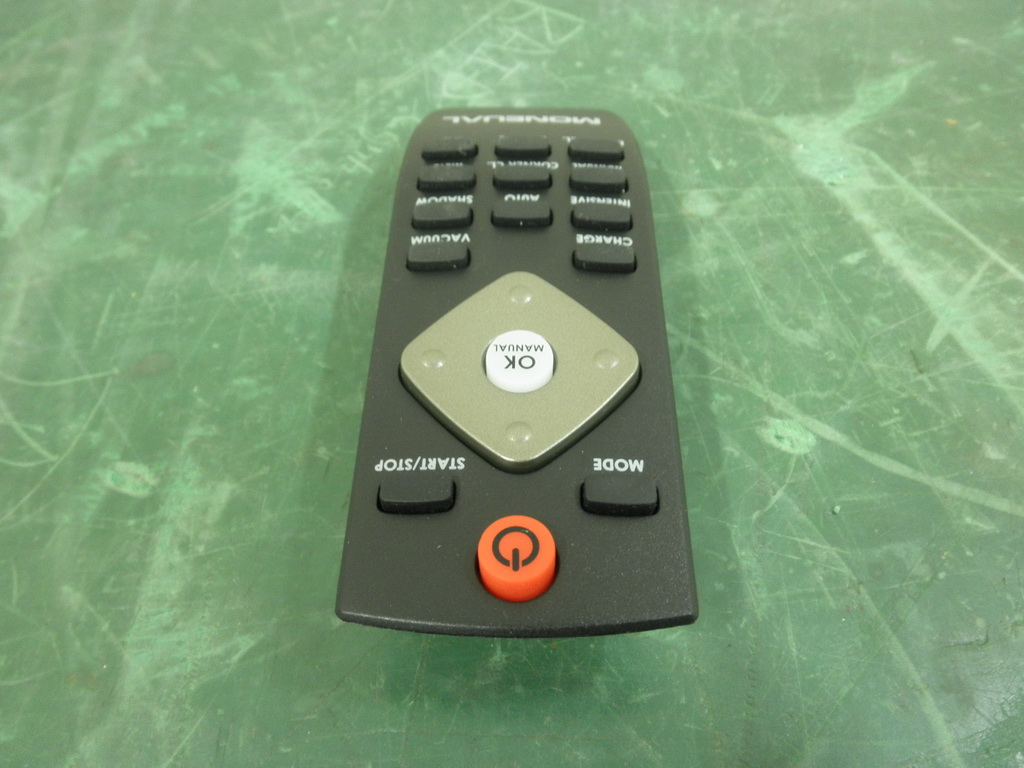

ZBTMR6550Robot Cleaner

User Manual Copyright ⓒ 2012 MONEUAL Inc. All rights reserved. The MONEUAL, MONCASO, MiNEW, RYDIS, SONAMU are trademarks, or registered trademarks of MONEUAL Inc. in the Republic of Korea and/or other countries. www.moneual.com Robot cleaner RYDIS MR6550 Robot cleaner RYDIS MR6550 Ver 1.0 RYDIS MR6550 User Manual 4 RYDIS MR6550 User Manual ENGLISH Product features Using the powerful BLDC(suction) motor, the product maximizes the cleaning capability. The BLDC motor has the performance of the 20~30% stronger output than that of DC motor of the same class and also has the lifetime of approximately 5,000 hours that is 10 times longer than that of a typical DC motor. Having a slim design with the height of 82mm, the prod- uct can clean the location that a hand cannot reach and is not easy to clean, such as under the bed, under the sofa, etc. As the function that mainly cleans the dark floor space with no light, Shadow cleaning mode allows the cleaning of the deep locations under a bed or a sofa that were impossible to clean with the existing vacuum cleaners. The product provides the most suitable cleaning function and performance for the cleaning environment and sage through various cleaning modes. Automatic cleaning Focused cleaning Corner cleaning Manual cleaning Reservation cleaning High-performance BLDC motor 82mm slim design Shadow cleaning mode Various cleaning modes 82mm RYDIS MR6550 User Manual 5 ENGLISH Once being mounted on the left/right of the body of the cleaner, the twin side brushes allow the cleaning of the deep locations that are difficult to clean only with a vacuum suc- tion system The product uses a environment-friendly battery that does not contain the harmful heavy metals and acids to human body and complies with the environment protection. The lithium iron phosphate battery has the lifetime of approximately three times longer (1,000 times of charging/discharging) than that of the existing lithium-family or nickel-family batteries and provides the high safety because it is strong against high temperature and has almost no risk of explosion. The room indicator allows the user to set various cleaning zones. It has, not only a virtual wall function that blocks the cleaner from entering a space, but also the function to divide the cleaning space into up to three sections for convenient cleaning. ※ Indicator is included in certain models. ※ Mopping guard and cloth are included in cetain models. With the mounting/dismounting microfiber dustcloth mounted, the cleaner can remove even fine dusts conveniently. Twin side brushes Environment-friendly lithium iron phosphate Room indicator system Mounting/dismounting microfiber dustcloth cleaning 6 RYDIS MR6550 User Manual ENGLISH Table of Contents Cautions for safety Product composition Cautions before using the product Name of each part of the product Robot cleaner Charger Indicator Installing the product Descriptions for remote controller buttons Basic cleaning (Automatic cleaning) Using advanced cleaning functions Focused cleaning Cleaning corners Shadow cleaning Selecting a room for cleaning Mop cleaning Cleaning through manual control Setup of time and reservation Setting reservation Using the indicator Using the product in the room assortment mode Using through setup of cleaning areas Managing the product Language Selection Cleaning the dust box Replacing the filter Cleaning the Sensor Cleaning wheels Cleaning the dust inlet Battery usage and management Voice announcement list System check Code List Checkpoints before request for after-sales service Product specifications 7 11 12 13 13 14 15 16 19 20 21 21 22 23 24 25 26 27 27 28 28 30 32 32 33 34 35 35 36 38 41 42 44 45 RYDIS MR6550 User Manual 7 ENGLISH Meanings of caution icons Before using the product Refers to important information, definitions, general knowledge, and references. If you do not follow the instruction with this warning icon, a serious injury or property loss may occur. If you do not follow the instruction with this danger icon, a serious injury, death, or property loss may occur. Important Warning Danger Cautions for Safety The instructions with the following caution marks must be carefully read and followed in order to use the product properly and to prevent accident or damage which may occur during the operation of the product. Remove light clothes or fragile materials from the floor. It may prevent robot cleaner from moving or cause a trouble. Remove obstacles on the floor where robot cleaner operates. The product is unable to travel to areas which are blocked by obstacles of certain height. Do not install the product in a place exposed to direct sunlight. Direct sunlight may cause discoloration of the product. Adapters may cause electric shock or fire due to overheating during charging. Do not install the charger on an inclined floor, and do not cause impact to the charger. The charger may become damaged or broken. Install the charger at the location where robot cleaner can be easily found. If the site is in a corner or has many obstacles around it, automatic charging may not be possible. Do not use the product in the room with an unattended child or an elderly person. A child or an elderly person can become frightened or injured. Make sure that the charger is always plugged into a power source. If no power is supplied to the charger, you cannot use the function of robot cleaner charging after automatically returning to the charger. 8 RYDIS MR6550 User Manual ENGLISH In using the product Do not stand or sit on the product. Movement of the product may cause an injury or the product can be damaged. Do not use the product on a narrow and elevated space such as on a desk. Robot cleaner can fall off and result in a person’s injury or some damage to the product. Make sure that no liquid enters or falls on the product. The product may malfunction or can be damaged. If the product happens to vacuum plastic bags or other such things, they should be immediately re…

Text truncated - open the document above for the full version.

MONEUAL INC. 1505, 15 th FI. Partners Tower I, 83, Gasandigital 1-ro, Geumcheon-gu, Seoul, Korea Pursuant to 47 CFR Part 0, section 0.459, we herewith submit a request for non-disclosure of the following exhibits, related to this application for FCC ID : ZBTMR6550 The contents of the exhibits as listed below under 1-4 may not be disclosed to any other party than company name and must be temporary with held from public inspection under 5 U.S.C552 (b)(4) and must be temporary kept confidential. 1. External photographs 2. Inter photographs 3. User manual 4. Test-setup photographs The short-term confidentiality is scheduled to terminate on 12. 31. 2012. The reason for this request for short-term confidentiality is that the information contained in the exhibits as listed above has been classified as being temporary company confidential (with reference to 47 CFR Part 0, section 0.457(d)). Disclosure of any portion of this information to other parties prior to the date of the actual marketing of the device would cause substantial competitive harm. I, as the applicant, understand and have taken notice of the following. (a) The maximum period for short-term confidentiality is 180 days, counting from the date of issue of the Grant (b) The applicant shall inform the TCB about the date on which the device will be actually marketed. Such a notification must be received by the TCB before the date of actual marketing. The short-term confidentiality will then terminate before or on the date of the actual marketing of the device. (c) If no request from the applicant is received by the TCB for releasing the short-term confidentiality, it will terminate automatically after 180 days, counting from the date of issue of the Grant Your sincerely Name: Myeong-do, Moon Position: Sytem R&D Dept., Director Tel: 82-70-4170-8990 Fax: 82-2-866-8380 Email: [email protected]

MONEUAL INC. 1505, 15 th FI. Partners Tower I, 83, Gasandigital 1-ro, Geumcheon-gu, Seoul, Korea Federal Communications Commission Authorization and Evaluation Division Confidentiality Request (FCC ID: ZBTMR6550) Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Parts List 3. Operational Description 4. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Contact us in case of any questions. Kind regards, Name: Myeong-do, Moon Position: Sytem R&D Dept., Director Tel: 82-70-4170-8990 Fax: 82-2-866-8380 Email: [email protected]

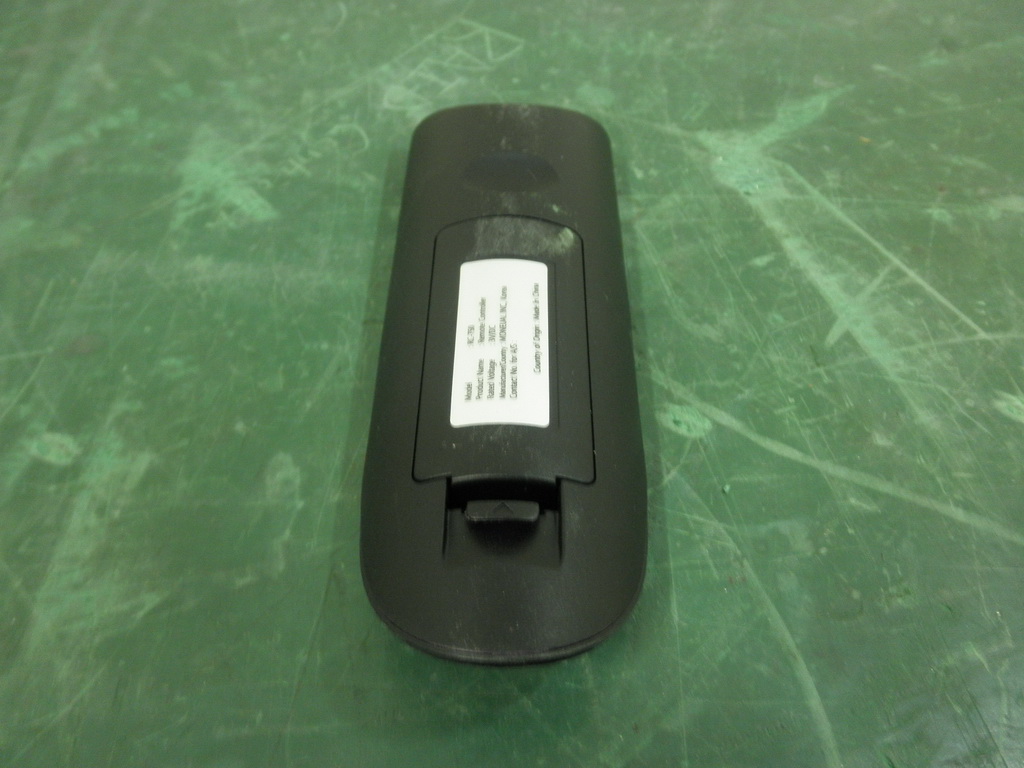

ID Label/Location Information

FCC MPE Calculation (Portable Device) EUT Description: Robot Cleaner Company: Moneual INC. Model: RYDIS MR6550 FCC ID: ZBTMR6550 Frequency: 2403-2479 MHz (11 channels) Mid-Channel: 2.441 GHz (channel 39) Mid-Channel Peak Power, Conducted: -0.06 dBm == 0.99 mW Antenna Gain: G = -2.43 dBi For devices intended for the General Population and used in an uncontrolled manner, routine evaluation (SAR) for this device is not required, because the source-based time-averaged power (average conducted power or average radiated EIRP, whichever is the highest). Calculation: Limit = 60/2.441 = 24.58 mW P radiated, max = P conducted, dBm + G dBi = -0.06 dBm + -2.43 dBi == -2.49 dBm = 0.56 mW Conclusion: The emitted power appears to be (far) below the required limit, so PASS. Note 1: f shall be the mid-band frequency expressed in GHz; the limit calculated with this mid-band frequency applies to all channels. For PTT with body-worn or face-held modes, d is the distance from the device case to a parson’s body; for modules with antennas inside laptops, d is the distance from the antenna to the person’s body. Note 2: Average Power levels are always equal or below the measured Peak Power levels, which means that calculating the EIRP using the Peak power can be considered as worst case.)

IST Co., Ltd. TEST REPORT NO. : 12-IST-0419 1 of 28 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. CERTIFICATION TEST REPORT FCC CFR47 PART 15 SUBPART C Test Report File No. 12-IST-0419 ■ Basic □ Alternate Date of Receipt June 15, 2012 Begin of test date June 19, 2012 Date of Issue July 02, 2012 End of test date June 29, 2012 Kind of Product Robot Cleaner Basic Model(s) RYDIS MR6550 Applicant MONEUAL INC. Address 1501, 15 th FL. Partners Tower I, 83, Gasandigital1-ro, Geumcheon-gu, Seoul, Korea Manufacturer MONEUAL INC. Address 1501, 15 th FL. Partners Tower I, 83, Gasandigital1-ro, Geumcheon-gu, Seoul, Korea Test Result ■ Positive Negative Tested By Reviewed By B.O.KO S.J.CHO Comment(s) - Investigations requested : Measurement to the relevant clauses of FCC rules and regulations Part 15 Subpart C - The test report is consists of 28 pages - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST Co., Ltd. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 - I assume full responsibility for accuracy and completeness of these data. IST Co., Ltd. TEST REPORT NO. : 12-IST-0419 2 of 28 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. TABLE OF CONTENTS Table of contents 2 Information of test laboratory 3 Description of the Equipment uder Test 3 Measurement Uncertainty, 4 Summary of the test results 5 - Conducted Emission 6 - Radiated Emission 13 - Peak Power Output 19 - Band edge 21 - 6dB Bandwidth 24 - Power Density 26 - Antenna Requirements 28 IST Co., Ltd. TEST REPORT NO. : 12-IST-0419 3 of 28 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. INFORMATION OF TEST LABORATORY IST Co., Ltd. 400-19, Singal-dong, Giheung-gu, Yongin-si, Gyeonggi-do, 446-599, Korea TEL : +82 31 326 6700 FAX : +82 31 326 6797 KOLAS Testing No. : 118 RRA Designation No. : KR0018 FCC Registration No. : 400603 FCC(DoC) Registration No. : 801060 VCCI Member No. : 1739 Description of the Equipment under Test Model RYDIS MR6550 Dimension Diameter 347 mm X Height 82 mm Weight 2.674kg Max. Speed Cleaning Mode: 25cm/sec.; Moving Mode: 20cm/sec. Operating Noise Maximum 60dB(2800mA Battery, Maximum 70dB) Power Consumption Maximum 20W(2800mA Battery, Maximum 25W) Battery LiFePo4, 12.8V DC Capacity of the Dust Box 600 ml Charging Time Around 60 min.(2800mA Battery, 120 min.) Operating Time Typical suction power: Normal: 60min. and turbo: 40min.(2800mA Battery, Normal: 100 min. and turbo: 70min) Frequency alignment range ISM band 2.4GHz ~ 2483.5MHz Specification(s) FCC CFR47 PART 15 SUBPART C Number of Channel 11(2403~2479MHz) Note: All the testing were performed according to the procedures in FCC CFR47 PART 15 SUBPART C IST Co., Ltd. TEST REPORT NO. : 12-IST-0419 4 of 28 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. Measurement Uncertainty Calculations The measurement uncertainties stated were calculated in accordance with the requirements of NIST Technical Note 1297 and NIS 81 (1994). TYPE Contribution Probability Distribution Uncertainty Remark B AMN Impedance Triangular +2.6/-2.7 dB CISPR Voltage Division Factor normal(k=2) ±0.2 Attenuation : AMN to Receiver normal(k=2) ±0.1 Receiver(ESCI(S/N:100374)) Sine-Wave Voltage Accuracy normal(k=2) ±1.0 dB CISPR Pulse Amplitude Response Rectangular ±1.5 dB Pulse Repetition Rate Response Rectangular ±1.5 dB Mismatch AMN to Receiver U-Shaped +0.7/-0.8 dB CISPR Reading normal(k=1) ±0.1 Combined Standard Uncertainty normal ± 1.8 dB Expanded Uncertainty U normal(k=2) ± 3.6 dB 95 % U = -3.70 / +3.42 (k=2, 95.45% confidence level) T Y P E Contribution Probability Distribution Uncertainty Remark B Antenna AF factor Normal(k=2) ±0.56 CAL. AF frequency interpolation Rectangular ±0.30 dB CISPR AF height deviations Rectangular ±0.50 dB CISPR ±0.30 dB directivity difference Rectangular +1.0/-0.0 dB CISPR phase center location(3 m) phase center location(10 m) Rectangular ±1.0 dB ±0.30 dB CISPR Receiver Sine Wave Voltage Accuracy Normal(k=2) ±0.20 dB CAL. Pulse Amplitude Sensibility Normal(k=2) ±0.40 dB CAL. Pulse Frequency Response Normal(k=2) ±0.57 dB CAL. Random Noise Normal(k=2) ±0.35 dB CAL. Mismatch : Antenna – receiver U-Shaped +0.9/-1.0 dB CISPR Table height Normal(k=2) ±0.01 dB CISPR Separation distance(3 m ) Separation distance(10 m ) Rectangular ±0.30 dB ±0.10 dB CISPR Combined standard Uncertainty Normal ± 1.13 Expanded Uncertainty U Normal(k=2) ± 2.26 dB 95 % U = ±2.26 (k=2, 95% confidence level) IST Co., Ltd. TEST REPORT NO. : 12-IST-0419 5 of 28 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. SUMMARY ( 2403 MHz ~ 2479 MHz) Applied Standard : FCC CRF Part 15 Subpart C Standard Section Description result remark 15.207 AC Conducted Emission Pass Meet the requirements 15.209 Field Strength of Harmonics Pass Meet the requirements 15.247(b) Peak Power Output Pass Meet the requirements 15.247(d) Band Edge Pass Meet the requirements 15.247(a) 6dB Bandwidth Pass Meet the requirements 15.247(d) Power Density Pass Meet the requirements 15.203 Antenna requirement - Meet the requirements * The EUT is compliance with Part 15.212 IST Co., Ltd. TEST REPORT NO. : 12-IST-0419 6 of 28 IST(02) 029 A4 모(101025) The test …

Text truncated - open the document above for the full version.

IST Co., Ltd. TEST REPORT NO. : 12-IST-0419 1 of 28 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. CERTIFICATION TEST REPORT FCC CFR47 PART 15 SUBPART C Test Report File No. 12-IST-0419 ■ Basic □ Alternate Date of Receipt June 15, 2012 Begin of test date June 19, 2012 Date of Issue July 02, 2012 End of test date June 29, 2012 Kind of Product Robot Cleaner Basic Model(s) RYDIS MR6550 Applicant MONEUAL INC. Address 1501, 15 th FL. Partners Tower I, 83, Gasandigital1-ro, Geumcheon-gu, Seoul, Korea Manufacturer MONEUAL INC. Address 1501, 15 th FL. Partners Tower I, 83, Gasandigital1-ro, Geumcheon-gu, Seoul, Korea Test Result ■ Positive Negative Tested By Reviewed By B.O.KO S.J.CHO Comment(s) - Investigations requested : Measurement to the relevant clauses of FCC rules and regulations Part 15 Subpart C - The test report is consists of 28 pages - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST Co., Ltd. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 - I assume full responsibility for accuracy and completeness of these data. IST Co., Ltd. TEST REPORT NO. : 12-IST-0419 2 of 28 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. TABLE OF CONTENTS Table of contents 2 Information of test laboratory 3 Description of the Equipment uder Test 3 Measurement Uncertainty, 4 Summary of the test results 5 - Conducted Emission 6 - Radiated Emission 13 - Peak Power Output 19 - Band edge 21 - 6dB Bandwidth 24 - Power Density 26 - Antenna Requirements 28 IST Co., Ltd. TEST REPORT NO. : 12-IST-0419 3 of 28 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. INFORMATION OF TEST LABORATORY IST Co., Ltd. 400-19, Singal-dong, Giheung-gu, Yongin-si, Gyeonggi-do, 446-599, Korea TEL : +82 31 326 6700 FAX : +82 31 326 6797 KOLAS Testing No. : 118 RRA Designation No. : KR0018 FCC Registration No. : 400603 FCC(DoC) Registration No. : 801060 VCCI Member No. : 1739 Description of the Equipment under Test Model RYDIS MR6550 Dimension Diameter 347 mm X Height 82 mm Weight 2.674kg Max. Speed Cleaning Mode: 25cm/sec.; Moving Mode: 20cm/sec. Operating Noise Maximum 60dB(2800mA Battery, Maximum 70dB) Power Consumption Maximum 20W(2800mA Battery, Maximum 25W) Battery LiFePo4, 12.8V DC Capacity of the Dust Box 600 ml Charging Time Around 60 min.(2800mA Battery, 120 min.) Operating Time Typical suction power: Normal: 60min. and turbo: 40min.(2800mA Battery, Normal: 100 min. and turbo: 70min) Frequency alignment range ISM band 2.4GHz ~ 2483.5MHz Specification(s) FCC CFR47 PART 15 SUBPART C Number of Channel 11(2403~2479MHz) Note: All the testing were performed according to the procedures in FCC CFR47 PART 15 SUBPART C IST Co., Ltd. TEST REPORT NO. : 12-IST-0419 4 of 28 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. Measurement Uncertainty Calculations The measurement uncertainties stated were calculated in accordance with the requirements of NIST Technical Note 1297 and NIS 81 (1994). TYPE Contribution Probability Distribution Uncertainty Remark B AMN Impedance Triangular +2.6/-2.7 dB CISPR Voltage Division Factor normal(k=2) ±0.2 Attenuation : AMN to Receiver normal(k=2) ±0.1 Receiver(ESCI(S/N:100374)) Sine-Wave Voltage Accuracy normal(k=2) ±1.0 dB CISPR Pulse Amplitude Response Rectangular ±1.5 dB Pulse Repetition Rate Response Rectangular ±1.5 dB Mismatch AMN to Receiver U-Shaped +0.7/-0.8 dB CISPR Reading normal(k=1) ±0.1 Combined Standard Uncertainty normal ± 1.8 dB Expanded Uncertainty U normal(k=2) ± 3.6 dB 95 % U = -3.70 / +3.42 (k=2, 95.45% confidence level) T Y P E Contribution Probability Distribution Uncertainty Remark B Antenna AF factor Normal(k=2) ±0.56 CAL. AF frequency interpolation Rectangular ±0.30 dB CISPR AF height deviations Rectangular ±0.50 dB CISPR ±0.30 dB directivity difference Rectangular +1.0/-0.0 dB CISPR phase center location(3 m) phase center location(10 m) Rectangular ±1.0 dB ±0.30 dB CISPR Receiver Sine Wave Voltage Accuracy Normal(k=2) ±0.20 dB CAL. Pulse Amplitude Sensibility Normal(k=2) ±0.40 dB CAL. Pulse Frequency Response Normal(k=2) ±0.57 dB CAL. Random Noise Normal(k=2) ±0.35 dB CAL. Mismatch : Antenna – receiver U-Shaped +0.9/-1.0 dB CISPR Table height Normal(k=2) ±0.01 dB CISPR Separation distance(3 m ) Separation distance(10 m ) Rectangular ±0.30 dB ±0.10 dB CISPR Combined standard Uncertainty Normal ± 1.13 Expanded Uncertainty U Normal(k=2) ± 2.26 dB 95 % U = ±2.26 (k=2, 95% confidence level) IST Co., Ltd. TEST REPORT NO. : 12-IST-0419 5 of 28 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. SUMMARY ( 2403 MHz ~ 2479 MHz) Applied Standard : FCC CRF Part 15 Subpart C Standard Section Description result remark 15.207 AC Conducted Emission Pass Meet the requirements 15.209 Field Strength of Harmonics Pass Meet the requirements 15.247(b) Peak Power Output Pass Meet the requirements 15.247(d) Band Edge Pass Meet the requirements 15.247(a) 6dB Bandwidth Pass Meet the requirements 15.247(d) Power Density Pass Meet the requirements 15.203 Antenna requirement - Meet the requirements * The EUT is compliance with Part 15.212 IST Co., Ltd. TEST REPORT NO. : 12-IST-0419 6 of 28 IST(02) 029 A4 모(101025) The test …

Text truncated - open the document above for the full version.

IST Co., Ltd. TEST REPORT NO. : 12-IST-0417 1 of 28 IST(02) 029 A4 모(101025) EMC TEST REPORT (Certification of Compliance) CFR 47 Part 15 Subpart C Test Report File No. 12-IST-0417 ■ Basic □ Alternate Date of Receipt June 14, 2012 Begin of test date June 20, 2012 Date of Issue June 30, 2012 End of test date June 21, 2012 Kind of Product Robot Cleaner Basic Model(s) RYDIS MR6550 Buyer Model(s) - Applicant / Manufacturer MONEUAL INC. Address 1501, 15 th FL. Partners Tower I, 83, Gasandigital1-ro, Geumcheon-gu, Seoul, Korea Standard Section 15.207, Section 15.209 [Class B Equipment] Test Result ■ Positive Negative Tested By Reviewed By J.H.CHOI S.J.CHO Comment(s) - Investigations requested : Measurement to the relevant clauses of FCC rules and regulations Part 15 Subpart C – Intentional Radiators, Class B. - The test report with appendix consists of 28 pages. - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST EMC Laboratory. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 2003. IST Co., Ltd. TEST REPORT NO. : 12-IST-0417 2 of 28 IST(02) 029 A4 모(101025) TABLE OF CONTENTS Table of contents 2 Information of test laboratory, Power Supply system used, Measurement Uncertainty, Product information 3 Descriptions of test 4-5 Conducted Emission 4 Radiated Emission 5 Equipment Under Test 6-7 Summary 8 Sample Calculation 9 ■ Test Conditions and Data – Emissions ◆ Conducted Emissions 0.15 MHz - 30 MHz Applicable Test Conditions / Data and Plots 10-14 ◆ Radiated Emissions(Limits Below 1 GHz) 30 MHz - 6 GHz Applicable Test Conditions / Data and Plots 15-20 Appendix A. The Photos of Test Setup 21-23 B. The Photos of Equipment Under Test 24-28 Note: IST Co., Ltd. TEST REPORT NO. : 12-IST-0417 3 of 28 IST(02) 029 A4 모(101025) INFORMATIONS OF TEST LABORATORY IST Co., Ltd. 400-19, Singal-dong, Giheung-gu, Yongin-si, Kyonggi-Do, 446-599, Korea TEL : +82 31 326 6700 FAX : +82 31 326 6797 KOLAS Testing No. : 118 RRA & FCC(DoC) Designation No. : KR0018 FCC Registration No. : 400603 VCCI Member No. : 1739 POWER SUPPLY SYSTEM USED Power supply system AC 120 V, 60 Hz (Refer to the product information) Measurement Uncertainty Conducted Emissions U = 2.98 [dB] (Confidence level approximately 95 %, k = 2) Radiated Emissions (Antenna - Horizontal) U = 3.83 [dB] (Confidence level approximately 95 %, k = 2 ) Radiated Emissions (Antenna - Verical) U = 4.50 [dB] (Confidence level approximately 95 %, k = 2 ) PRODUCT INFORMATION Battery LiFePO4 Battery capacity standard battery : 1400 mAh High-capacity battery : 2800 mAh Power consumption Maximum 20W (2800mA Battery, Maximum 25W) maximum current 20 W Operating time Typical suction power: Normal: 60 min. and turbo:40min. (2800mA Battery, Normal: 100 min. and turbo: 70 min Adapter Input Voltage : (100~240) Vac, 50/60 Hz, 1.7 A Output Voltage : 18 Vdc, 2.78 A CLK Frequency Internal clock frequency : 72 Mhz Remote Control frequency : 2.5 GHz - EMC suppression device is not used during the test. - Please refer to user’s manual. IST Co., Ltd. TEST REPORT NO. : 12-IST-0417 4 of 28 IST(02) 029 A4 모(101025) < Concept Drawing > 215 >150 >40 80 Receiver EUT LISN 80  80 80 40  80 Measuring apparatus Mains Filter Mains Equipment under test Coaxial cable Artificial mains network Screened room Non-metallic support 80 DESCRIPTIONS OF TEST Conducted Emissions: The measurement were performed over the frequency range of 0.15 MHz to 30 MHz using a 50 Ω /50uH LISN as the input transducer to a Spectrum Analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak" amplitude within a bandwidth of 10KHz or for "quasi-peak" & “Average” within a bandwidth of 9 KHz. - Procedure of Test The line-conducted facility is located inside a shielded room No.1. A 1 m X 1.5 m wooden table 80 cm height is placed 40 cm away from the vertical wall and 1.5 m away from the other wall of the shielded room. The R/S ESH3-Z5 and Hyup-Rip KNW-407 LISN are bonded to bottom of the shielded room. The EUT is located on the wooden table with distance more than 80 cm from the LISN and powered from the Hyup-Rip LISN. The peripheral equipment is powered from the other LISN. Power to the LISNs are filtered by a noise cut power line filters. All electrical cables are shielded by braided tinned steel tubing with inner  1.2 cm. If the EUT is a DC-powered device, power will be derived from the source power supply it normally will be powered from and this supply lines will be connected to the Hyup-Rip LISN. All interconnected cables more than 1 m were shortened by non-inductive bundling to a 1 m length. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up to their normal operating conditions. The RF output of the LISN was connected to the R/S receiver to determine the frequency producing the maximum emission from the EUT. The frequency producing the maximum level was reexamined using Quasi-Peak mode by manual measurement, after scanned by automatic Peak mode for frequency range from 0.15 to 30 MHz. The bandwidth of the receiver was set to 10 kHz. The EUT, peripheral equipment, and interconnecting cables were arranged and manipulated to maximize each EME emission. < Side View > IST Co., Ltd. TEST REPORT NO. : 12-IST-0417 5 of 28 IST(02) 029 A4 모(101025) DESCRIPTION OF TEST Radiated Emissions: The measurement was performed over the frequency range of 30 MHz to 1 GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurement was made with the detector set for "quasi-peak" within a bandwidth of 120 KHz. - Procedure of Test Preliminary measurements were made at 3 meter using bi-log antennas, and spectrum analyzer to determine the fr…

Text truncated - open the document above for the full version.

IST Co., Ltd. TEST REPORT NO. : 12-IST-0417 1 of 28 IST(02) 029 A4 모(101025) EMC TEST REPORT (Certification of Compliance) CFR 47 Part 15 Subpart C Test Report File No. 12-IST-0417 ■ Basic □ Alternate Date of Receipt June 14, 2012 Begin of test date June 20, 2012 Date of Issue June 30, 2012 End of test date June 21, 2012 Kind of Product Robot Cleaner Basic Model(s) RYDIS MR6550 Buyer Model(s) - Applicant / Manufacturer MONEUAL INC. Address 1501, 15 th FL. Partners Tower I, 83, Gasandigital1-ro, Geumcheon-gu, Seoul, Korea Standard Section 15.207, Section 15.209 [Class B Equipment] Test Result ■ Positive Negative Tested By Reviewed By J.H.CHOI S.J.CHO Comment(s) - Investigations requested : Measurement to the relevant clauses of FCC rules and regulations Part 15 Subpart C – Intentional Radiators, Class B. - The test report with appendix consists of 28 pages. - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST EMC Laboratory. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 2003. IST Co., Ltd. TEST REPORT NO. : 12-IST-0417 2 of 28 IST(02) 029 A4 모(101025) TABLE OF CONTENTS Table of contents 2 Information of test laboratory, Power Supply system used, Measurement Uncertainty, Product information 3 Descriptions of test 4-5 Conducted Emission 4 Radiated Emission 5 Equipment Under Test 6-7 Summary 8 Sample Calculation 9 ■ Test Conditions and Data – Emissions ◆ Conducted Emissions 0.15 MHz - 30 MHz Applicable Test Conditions / Data and Plots 10-14 ◆ Radiated E…

Text truncated - open the document above for the full version.
