ZBTRC-750ROBOT CONTROL

RYDIS R750 User Manual Copyright ⓒ 2010 MONEUAL Inc. All rights reserved. The MONEUAL, MONCASO, MiNEW, RYDIS, SONAMU are trademarks, or registered trademarks of MONEUAL Inc. in the Republic of Korea and/or other counties. RYDIS R750 User Manual KOREAN 4 RYDIS R750 User Manual Table of Contents Cautions for Safety 5 Parts 9 Before using the product 10 Name of parts 11 Robot cleaner 11 Indicator 12 Charger 13 Installing Product 14 Basic cleaning (automatic cleaning) 17 Using advanced cleaning functions 18 Focused cleaning 18 Cleaning corners 18 Cleaning under the bed 19 Selecting a room for cleaning 19 Cleaning through manual control 20 Cleaning through manual control 2- control of the motion 20 Setup of time and reservation 23 Setting current time 23 Setting reservation 24 Setup and execution of macros 25 Setting macros 25 Executing macros 26 Using the indicator 27 Using the product for the room assortment mode 27 Using through setup of cleaning areas 28 Descriptions for remote controller buttons 30 Managing the product 32 Cleaning the dust box 32 Replacing the filter 33 Cleaning the falling point-detecting sensor 34 Cleaning wheels 34 Cleaning the dust intake 35 Battery usage and management 37 Voice announcement list 40 System error codes list 41 Checkpoints before request for after-sales service 42 Specifications 43 KOREAN RYDIS R750 User Manual 5 Meanings of caution icons Before using the product Warning It refers to important information, definitions, general knowledge and references. If you do not follow the instruction with this warning icon, a serious injury or property loss may occur. If you do not follow the instruction with this danger icon, a serious injury, death, or property loss may occur. Important Warning Danger Cautions for Safety The instructions with the following caution marks must be carefully read and fol- lowed in order to use the product properly and to prevent accident or damage which may occur during the operation of the product. Remove light clothes or fragile materials from the floor. These matters may obstruct movement of the product or cause a breakdown of the product. Remove any obstacle from the floor in the space where the product travels about. The product can’t travel the area which is blocked with an obstacle of certain height. Do not install the product in the place under direct sunlight. Direct sunlight may cause discoloration of the product. Adapters may cause electric shock or fire due to overheat during charging. Do not install the charger on an inclined floor, and do not give an impact to the charger. The charger may be damaged or broken. Install the charger in a place that can be easily detected by the robot. If the site is in a corner or has many obstacles around it, automatic charging is not possible. Do not use the product in the room with a child or an elderly person who is left alone. A child or an elderly person can be frightened or injured. Make sure that the power of the charger is always supplied. Otherwise, you cannot use the function of making the robot go back to the charger for automatic charging after it finishes cleaning. KOREAN 6 RYDIS R750 User Manual In using the product Do not stand or sit on the product. Movement of the product may cause an injury or the product can be damaged. Do not use the product in a narrow and elevated place such as a desk. The product may fell down, causing an injury to people or damage to the product. Make sure that no liquid enters the product. The product may malfunction or can be damaged. If the product happens to inhale plastic bags or others, they should be immediately removed. If the dust intake gets clogged and the product is used for a long time with the internal motor over- heated, the product will be damaged. Do not use the enclosed battery charger for charging of any other product. The charger or other products can be damaged. Make sure that clothes, hair, fingers or other body parts are not caught by the wheels. An injury may occur. Do not press the bumper of the product severely or give excessive shock. The bumper sensor can be damaged and then work abnormally. Do not keep or use the product at too low or high temperature. Do not use the product at the temperature of - 5°C or lower or 35°C or higher. Do not make the robot perform cleaning with the dust box filled with dust. It can cause reduction in sucking power. Check if the filer is inserted into the dust box. If the robot gets activated with no filter, it can cause product failure. Prevent the main brush and the side brush from being clogged with hairs or other foreign substances. It can cause noise and reduction in sucking power or damage to the product. Before using the product, clear away stuffs from the floor and make arrangement nearby. Small dish towels, bath towels, pads, telephone lines, power cables, strings or belts can be en- tangled with the operating wheels or the brushes. Make sure to remove stuffs that can be broken (ceramic wares, glass cups, etc.). Do not use the product in a site whose walls or floor is made of mirror or glass. The obstacle sensor of the robot cleaner uses an infrared sensor and so it may not see glass or mirrors as obstacle. Do not use the product in a utility room, on a wet floor, in stairs, on a table or shelf, in an un- derground room, a warehouse, a commercial building or the outdoors. If you have dropped the product or caused an impact to the product, contact the designated service center immediately. KOREAN RYDIS R750 User Manual 7 Electrical cautions Make sure to use the specified voltage and current. Power supply outside the specifications ranges may cause a serious damage to the product. The battery can be discharged if the product is not used for a long time. If the battery is fully discharged, charge it manually. Do not use a damaged power cord or plug. You can get shocked or seriously injured. If the power cord of the charger is damaged, contact the service center immediately. Make sure t…

Text truncated - open the document above for the full version.

Moneual Inc. 14 th FL Partners Tower 1 Cha, 345-13 Gasan-dong, Geumcheon-gu, Seoul, Korea Date: May 23, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ZBTRC-750 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Part List CONF APPENDIX – RC-750- Part List.PDF Schematics Diagram(s) CONF APPENDIX - RC-750– Schemetics.PDF Block diagram CONF APPENDIX - RC-750– Block diagram.PDF Operation description CONF APPENDIX - RC-750– Operation description.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Moon, Myung Do / Manager Moneual Inc.

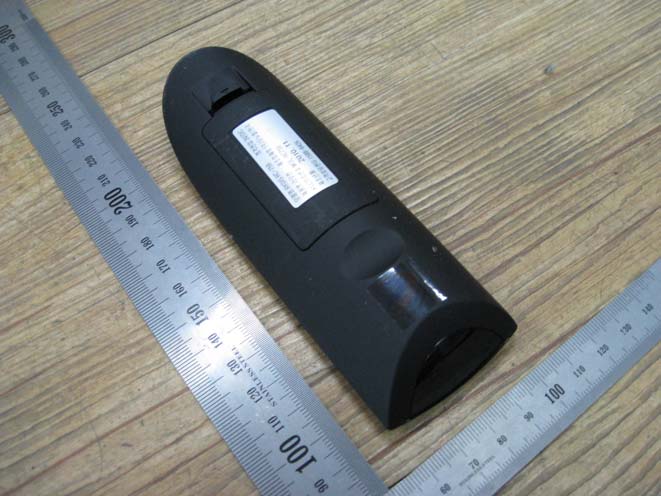

www.kes.co.kr Model No.: RC-750 Page 1 of 1 EUT External photographs

www.kes.co.kr Model No: RC-750 Page 1 of 1 FCC ID label and Location Moneual Inc. FCC ID: ZBTRC-750 Model: RC-750 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

www.kes.co.kr Model No: RC-750 Page 1 of 1 EUT Internal photographs PCB Antenna

CK.(Boorr .loyer.1).a coleK3.01..Tue.a ep.1B.1C:23:18.2010

www.kes.co.kr Te s t Re p o r t No.: TK-FR11029 Model Name: RC-750 Page 1 of 14 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. RF TEST REPORT Test Report No. : TK-FR11029 Standards : Part 15 Subpart C 15.249 FCC ID : ZBTRC-750 Description of Product : Remote Control Applicant : Moneual Inc. Manufacturer : Moneual Inc. Model Name : RC-750 Date of test(s) : 2011.03.28 ~ 2011.03.30 Date of issue : 2011.05.23 The test results relate only to the items tested. Test and Report Completed by : Report Approval by : Jeff Do Test Engineer Gyu-cheol Shin Technical Manager THRU-KES CO., LTD. 477-6, Hageo-ri, Yeoju-eup, Yeoju-gun, Gyeonggi-do, 469-803, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Te s t Re p o r t No.: TK-FR11029 Model Name: RC-750 Page 2 of 14 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. Revision history Revision Date of issue Test report No. Description - Initial www.kes.co.kr Te s t Re p o r t No.: TK-FR11029 Model Name: RC-750 Page 3 of 14 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. TABLE OF CONTENTS 1.0 General product description .................................................................................... 4 1.1 Test frequency .................................................................................................... 4 1.2 Test mode ......................................................................................................... 4 1.3 Model differences ................................................................................................ 4 1.4 Device modifications ............................................................................................ 4 1.5 Peripheral devices ............................................................................................... 4 1.6 Test facility ........................................................................................................ 5 1.7 Laboratory accreditations and listings ........................................................................ 5 2.0 Summary of tests ................................................................................................ 6 2.1 Technical characteristic test .................................................................................... 7 2.1.1 Fundamental, spurious emission and band edge radiated emission ............................... 7 Appendix A – Test equipment used for test ............................................................................ 13 Test setup photo and configuration ..................................................................................... 14 www.kes.co.kr Te s t Re p o r t No.: TK-FR11029 Model Name: RC-750 Page 4 of 14 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. 1.0 General product description Equipment model name : RC-750 Serial number : Prototype EUT condition : Pre-production, not damaged Antenna type & gain : PCB antenna / Gain -2.43 ㏈i Frequency Range : 2403 ~ 2479 ㎒ Number of channels : 11 Type of Modulation : GFSK Power Source : DC 3V 1.1 Test frequency Low channel Middle channel High channel Frequency (㎒) 2403 2441 2479 1.2 Test mode - Pre-Scan has been conducted to determine the worst-case mode from all possible combinations between available modulations, data rates and antenna ports (if EUT with antenna diversity architecture). 1.3 Model differences Not applicable 1.4 Device modifications The following modifications were necessary for compliance: Not applicable manufacturer 1.5 Peripheral devices Device Manufacturer Model No. Serial No. N/A www.kes.co.kr Te s t Re p o r t No.: TK-FR11029 Model Name: RC-750 Page 5 of 14 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. 1.6 Test facility The measurement facility is located at 477-6, Hageo-ri, Yeoju-eup, Yeoju-gun, Gyeonggi-do, 469- 803, Korea. Tel: +82-31-883-5092/Fax: +82-31-883-5169. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 1.7 Laboratory accreditations and listings Country Agency Scope of accreditation Logo USA FCC 3 & 10 meter Open Area Test Sites and one conducted site to perform FCC Part 15/18 measurements. 343818 KOREA KCC EMI (10 meter Open Area Test Site and two conducted sites) Radio (3 & 10 meter Open Area Test Sites and one conducted site) KR100 Canada IC 3 & 10 meter Open Area Test Sites and one conducted site 4769B-1 www.kes.co.kr Te s t Re p o r t No.: TK-FR11029 Model Name: RC-750 Page 6 of 14 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. 2.0 Summary of tests Section in FCC Part 15 Parameter Status 15.209(a) 15.249(a) 15.249(d) 15.205 Fundamental, spurious emission and band edge radiated emission C Note 1: C=Complies NC=Not complies NT=Not tested NA=Not applicable Note 2: The data in this test report are traceable to the national or international standards. Note 3: The sample was tested according to the following specification: FCC Part 15.249, ANSI C63.4-2003 www.kes.co.kr Te s t Re p o r t No.: TK-FR11029 Model Name: RC-750 Page 7 of 14 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. 2.1 Technical characteristic test 2.1.1 Fundamental, spurious emission and band edge radiated emission Test location Testing was performed at a test distance of 3 meter Open Area Test Site Test procedures The height of the measuring antenna was varied between 1 to 4 m and the table was rotated a full revolution in order to obtain maximum values of the electric field intensity. The measurement was made in both the vertical and horizontal polarization, and the maximum value is presented in the report. The spectrum analyzer is set to: 1. The resolution bandwidth and video ban…

Text truncated - open the document above for the full version.

www.kes.co.kr Te s t Re p o r t No.: TK-FR11029 Model Name: RC-750 Page 14 of 14 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. Test setup photo and configuration Radiated field emissions
