150M Wireless-N USB Adaptor User Manual REV: V1.0 RECYCLABLE Certification FCC CE FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices) This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. Package Contents The following items should be found in your package: ► 150M USB Wireless Adapter ► Quick Installation Guide ► CD-Rom Make sure that the package contains above items. If any of the above items is missing or damaged, please contact the store you bought this product from. Content 1. Introduction ......................................................................................... 1 1.1. Product Overview ................................................................................................................................... 1 1.2. Main Features ......................................................................................................................................... 1 1.3. Standards ................................................................................................................................................ 1 1.4. Working Environment ............................................................................................................................ 1 1.5. System Requirements ............................................................................................................................. 2 2. Hardware and Driver Installation ........................................................ 3 2.1. Insert the Adapter ................................................................................................................................... 3 2.2. Driver and Software Installation ............................................................................................................. 3 3. System configuration ........................................................................... 6 3.1. General ................................................................................................................................................... 6 3.2. Profile ..................................................................................................................................................... 6 3.3. Link Information .................................................................................................................................. 14 3.4. Advanced .............................................................................................................................................. 15 4. Troubleshooting ................................................................................ 17 150M Wireless USB Adaptor User Manual 1 1. Introduction 1.1. Product Overview This USB Wireless adapter is a powerful USB 2.0 Adapter that installs quickly and easily with PCs. The Adapter can be used in ad hoc mode to connect directly with other wireless adapters for peer-to-peer file sharing, or in infrastructure mode to connect with a wireless access point or router. The adapter connects with 802.11n networks at up to 150Mbps, and is backwards compatible with 54Mbps 802.11g or 11Mbps 802.11b devices. In every mode, your wireless connection can be protected so your data stays secure. 1.2. Main Features ► Supports 150Mbps transmission rates ► Complies with IEEE 802.11b, 802.11g and 802.11n standards for 2.4GHz Wireless LAN ► USB 2.0 ► Meets 64/128-bit WEP, WPA, and WPA2 security standards ► Compatible with Windows 2000/XP/Vista/7 ► Low power consumption ► Easy to install and configure ► WPS enabled 1.3. Standards ► 802.11b/g/n ► 802.11i 1.4. Working Environment Temperature： ► 0° to 40° C (operating) ► -20° to 70° C (storage) Humidity： ► 10% to 90 % non-condensing (operating) ► 5% to 95% non-condensing (storage) 150M Wireless USB Adaptor User Manual 2 1.5. System Requirements ► Available USB 1.1 or USB 2.0 slot ► 300 MHz processor and 32 MB of memory ► CD-ROM drive ► An 802.11b/g/n access point (for Infrastructure Mode) or another 802.11b/g/n wireless adapter (for Ad Hoc; Peer-to-Peer networking mode.) ► Microsoft® Windows® 7, Vista™, XP, 2000 SP4 …

Text truncated - open the document above for the full version.

150M Wireless USB Adaptor User Manual 8 Click to connect the wireless network. 3.2.2. Add to profile Select a wireless network and click the “red” button to create this profile (the following picture). Input the profile name and select Network Type, you should select “Infrastructure-connection to AP”, then click . 150M Wireless USB Adaptor User Manual 9 If it is encrypted, you need to enter Network Key to confirm it and then click next.(Note: profile will detect the Authentication and Encryption of current wireless network, you don‟t need to change it .) You can select “Use Pre-logon Connection” and click . The wireless network connection be added to the profile list. 150M Wireless USB Adaptor User Manual 10 3.2.3. Profile Management Select a profile and you can delete, edit and export to computer as a Wireless profile file. Also you can click the “Red” button to display the Profile list. Select a profile and click the “red” button to save the current profile as a profile to your computer. Give the saved profile file a name and click save. 150M Wireless USB Adaptor User Manual 11 3.2.4. Wi-Fi protect setup Wi-Fi Protect Setup (WPS) function can let you create a safety network easily. You can through PIN Input Config (PIN) ‟or ‟Push Button (PBC)‟to encrypt your network. You only need to push the WPS button in the router which support WPS function and click the functions in this adapter, then the router will be encrypted to WPA2-AES mode automatically. Note:  The status of WPS in the router must be enabled  If you have configured encryption mode in your router, then when you use this WPS function, please configure encryption mode to NONE, then it will be encrypted to WPA2-AES mode automatically. If you don‟t want to change your encryption mode, then when you use this function, the router will be encrypted to the mode that you have configured Click the “Red” button to add a WPS Profile in profile list; Method 1: PBC Select “Push-Button” in WPS Method then click next. 150M Wireless USB Adaptor User Manual 12 Click “Start PBC” and click the WPS button of your wireless router at the same time, Please wait a moment, the connection between the adapter and the router will be established automatically. Method 2: PIN Select “PIN” in WPS Method then click next. Select the appropriate configuration mode, and you will get a number in PIN Code, then click next. 150M Wireless USB Adaptor User Manual 13 Click “Start PIN” button, then Input the PIN code of the adapter’s WPS page into the router’s WPS configure page, then click “connect”, please wait a moment, the connection between the adapter and the router will be established automatically. 3.2.5. Available Network The Available Network tab, displays a list of infrastructure and ad-hoc networks available for connection. 150M Wireless USB Adaptor User Manual 14 The section of the window displays the Available Networks. Double-click the network to which you wish to connect. 3.3. Link Information Click the “Red” button to show the link information. The Status tab displays the detailed information of current device and wireless connection. 150M Wireless USB Adaptor User Manual 15 Click to empty the statistics. 3.4. Advanced Click “Red” button to change the advanced configuration. Here you can change “Wireless Mode” and select your country’s region code.(Country Code Selection feature is disabled by firmware - device marketed in the US and Canada is firmware limited to channel 1 ~11 ) 150M Wireless USB Adaptor User Manual 16 Here you can install certif icate, including “User certificate” and “Issuer certificate”. Click button to select certificate file, and click button to install. 150M Wireless USB Adaptor User Manual 17 4. Troubleshooting This chapter provides solutions to problems that may occur during the installation and operation of the USB Wireless Adapter. Read the descriptions below to solve your problems. 1. The USB Wireless Adapter does not work properly? Reinsert the USB Wireless Adapter into your PC’s USB slot. Right click My Computer and select Properties. Select the device manager and click on the Network Adapter. You will find the Adapter if it is installed successfully. If you see the yellow exclamation mark, the resources are conflicting. You will see the status of the Adapter. If there is a yellow question mark, please check the following: Make sure that your PC has a free IRQ (Interrupt ReQuest, a hardware interrupt on a PC.) Make sure that you have inserted the right adapter and installed the proper driver. If the Adapter does not function after attempting the above steps, remove the adapter and do the following: Uninstall the driver software from your PC. Restart your PC and repeat the hardware and software installation as specified in this User Guide. 2. I cannot communicate with the other computers linked via Ethernet in the Infrastructure Configuration? Make sure that the PC to which the Adapter is associated is powered on. Make sure that your Adapter is configured on the same channel and with the same security options as with the other computers in the Infrastructure configuration. 3. What should I do when the computer with the Adapter installed is unable to connect to the wireless network and/or the Internet? Check that the LED indicators for the broadband modem are indicating normal activity. If not, there may be a problem with the broadband connection. Check that the LED indicators on the wireless router are functioning properly. If not, check that The AC power and Ethernet cables are firmly connected. Check that the IP address, subnet mask, gateway, and DNS settings are correctly entered for the network. In Infrastructure mode, make sure the same Service Set Identifier (SSID) is specified on the settings for the wireless clients and access points. In Ad-Hoc mode, both wireless clients will need to have the same SSID. Please note that it might be necessary to set up one client to establish a BSS (Basic Service Set) and wait bri…

Text truncated - open the document above for the full version.

Date:2012-11-16 FCC ID: ZBXMTO-WN711SND Subject: Ad Hoc Mode Function Declaration To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Yours sincerely, Signatory Signature Name: Shuangyun Qin Title: Manager Tel: (86) 755-89585920 Fax: (86) 755-89584975

Authorization Letter We, (the approval holder) Company name SHENZHEN MTN ELECTRONICS CO.,LTD. Addresss MTN Industrial Park, No.3 Fuhua Road ,Pingxi Neighborhood, Pingdi Town, Longgang Distric City Shenzhen, Guangdong Country China declare that the following representative (agent): Name (person) Bovey.yang Company name NTEK Testing Technology Co., Ltd. Addresss 1/F, Building E, Fenda Science Park Sanwei Community, Xixiang Street, Baoan District City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Description 150M Wireless Adaptor Type or Model(s) MTO-WN711SND Tradename or Brand(s) N/A Attestation: City and Country: Date:Name: (this must be a person) Function:Signature: (or official company stamp) Shenzhen 2012.11.10 Shuangyun Qin Manager

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name SHENZHEN MTN ELECTRONICS CO.,LTD. Addresss MTN Industrial Park, No.3 Fuhua Road ,Pingxi Neighborhood, Pingdi Town, Longgang Distric City Shenzhen, Guangdong Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: ZBX MTO-WN711SND of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Shenzhen 2012.11.10 Shuangyun Qin Manager

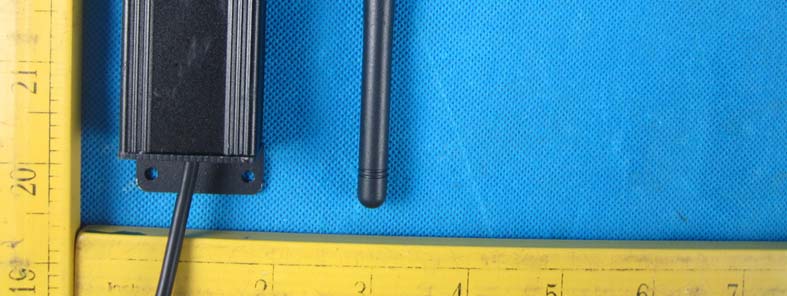

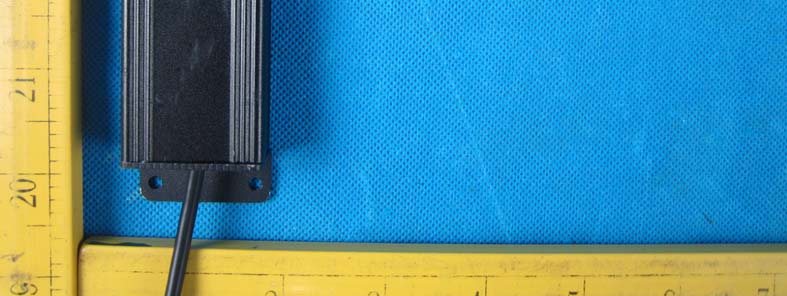

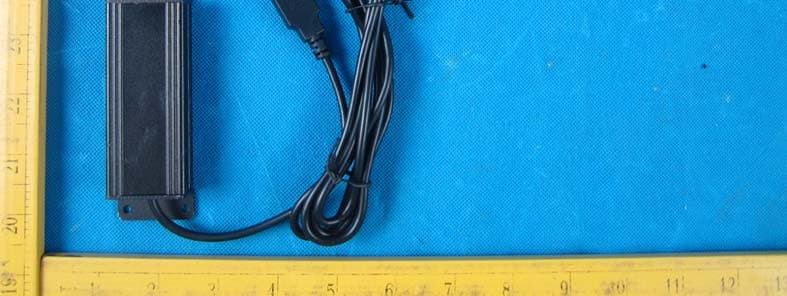

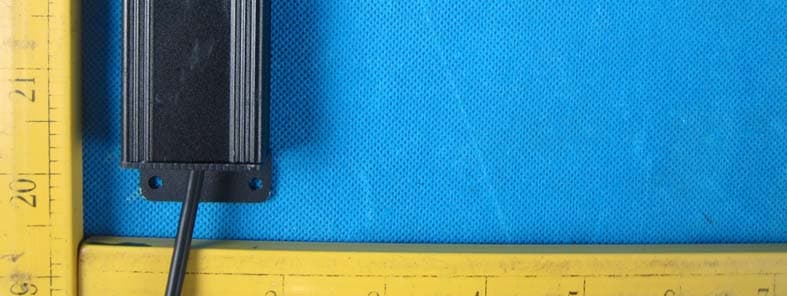

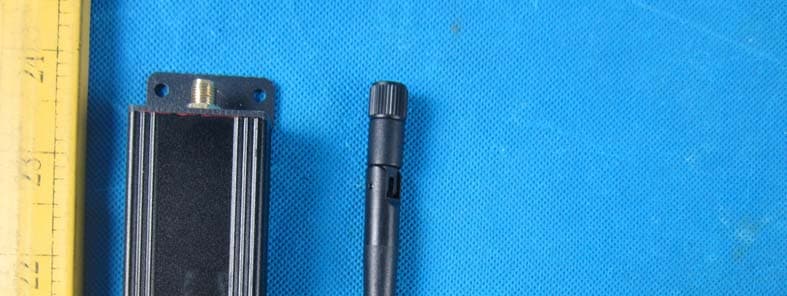

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

1.5*4.5cm

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13

RF EXPOSURE TEST Applied procedures / limit These devices are not exempted from compliance does not exceed the Commission’s RF exposure guidelines.Unless a device operates at substantially low power levels,with a low gain antenna(s),supporting information is generally needed to establish the various potential operating configurations and exposure conditions of a transmitter and its antenna(s) in order to determine compliance with the RF exposure guidelines. In order to demonstrate compliance with MPE requirement(see Section 2.1091),the following information is typically needed: Calculation that estimates the minimum separation distance(20 cm or more)between an antenna and persons required to satisfy power density limits defined for free space. Antenna installation and device operating instructions for installers(professional/unskilled users),and the parties responsible for ensuring compliance with the RF exposure requirement Any caution statements and/or warming labels that are necessary in order to comply with the exposure limits Any other RF exposure related issues that may affect MPE compliance. FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency(RF) radiation as specified in 1.1307(b). (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density MPE CALCULATION METHOD Calculation Method of RF Safety Distance: P :power input to the antenna in Mw EIRP :Equivalent(effective) isotropic radiated power. S :power density mW/ cm 2 G ;numeric gain of antenna relative to isotropic radiator R :distance to centre of radiation in cm FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device EIRP=10 ( Antenna Gain+Peak Output Power/10) Note: 1. s=1.0 mW /cm 2 for limits for General Population/Uncontrolled Exposures. 2. The time averaged power over 30 minutes will be equaled Output Power. 3. The Power Density at a distance of 20cm calculated from the formula is far below the limit of 1MW/ cm 2 TEST RESULTS NOTE: (For mobile or fixed location transmitters, the maximum power density is 1.0mW/cm 2 even if the calculation indicates that the power density would be larger) Operating Mode Average output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 802.11 b 22.95 197.24 1.58(2dBi) 0.062 1 Pass 802.11 g 20.88 122.46 1.58(2dBi) 0.038 1 Pass 802.11 n(20) 19.86 96.82 1.58(2dBi) 0.030 1 Pass 802.11 n(40) 19.79 95.27 1.58(2dBi) 0.029 1 Pass

FCC RADIO TEST REPORT FCC ID: ZBXMTO-WN711SND Product： 150M Wireless Adaptor Trade Name： N/A Model Name： MTO-WN711SND Serial Model： N/A Report No.： NTEK- 2012NT1023030F Prepared for SHENZHEN MTN ELECTRONICS CO.,LTD. MTN Industrial Park, No.3 Fuhua Road ,Pingxi Neighborhood, Pingdi Town Longgang Distric,Shenzhen, Guangdong, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 86 Report No.: NTEK-2012NT1023030F TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Mtn Electronics Co., Ltd. Address ................................. : MTN Industrial Park, No.3 Fuhua Road ,Pingxi Neighborhood, Pingdi Town, Longgang Distric,Shenzhen, Guangdong, China Manufacture's Name ............ : Shenzhen Mtn Electronics Co., Ltd. Address ................................. : MTN Industrial Park, No.3 Fuhua Road ,Pingxi Neighborhood, Pingdi Town, Longgang Distric,Shenzhen, Guangdong, China Product description Product name ........................... : 150M Wireless Adaptor Model and/or type reference : MTO-WN711SND Serial Model .............................. : N/A Standards ............................. : FCC Part15.247 Test procedure .............................. ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 23 Oct. 2012 ~14 Nov. 2012 Date of Issue ........................................... : 15 Nov. 2012 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 86 Report No.: NTEK-2012NT1023030F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . POWER SPECTRAL DENSITY TEST 64 4.1 APPLIED PROCEDURES / LIMIT 64 4.1.1 TEST PROCEDURE 64 4.1.2 DEVIATION FROM STANDARD 64 4.1.3 TEST SETUP 64 4.1.4 EUT OPERATION CONDITIONS 64 4.1.5 TEST RESULTS 65 5 . BANDWIDTH TEST 73 5.1 APPLIED PROCEDURES / LIMIT 73 5.1.1 TEST PROCEDURE 73 Page 4 of 86 Report No.: NTEK-2012NT1023030F Table of Contents Page 5.1.2 DEVIATION FROM STANDARD 73 5.1.3 TEST SETUP 73 5.1.4 EUT OPERATION CONDITIONS 73 5.1.5 TEST RESULTS 74 6 . PEAK OUTPUT POWER TEST 82 6.1 APPLIED PROCEDURES / LIMIT 82 6.1.1 TEST PROCEDURE 82 6.1.2 DEVIATION FROM STANDARD 82 6.1.3 TEST SETUP 82 6.1.4 EUT OPERATION CONDITIONS 82 6.1.5 TEST RESULTS 83 7 . ANTENNA REQUIREMENT 84 7.1 STANDARD REQUIREMENT 84 7.2 EUT ANTENNA 84 8 . EUT TEST PHOTO 85 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 86 Report No.: NTEK-2012NT1023030F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 86 Report No.: NTEK-2012NT1023030F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 86 Report No.: NTEK-2012NT1023030F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment 150M Wireless Adaptor Trade Name N/A Model Name MTO-WN711SND Serial Model N/A Model Difference N/A Product Description The EUT is a 150M Wireless Adaptor Operation Frequency: 802.11b/g/n 20:2412~2462 MHz 802.11n 40: 2422~2452MHz Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6 Mbps 802.11n(20/40MHz):150/144.44/130 /117/115.56/104/86.67/78/52/6.5 Mbps Number Of Channel 802.11b/g/n20: 11CH 802.11n 40: 7CH Antenna Designation: Please see Note 3. Output Power(Conducted): 802.11b: 22.95 dBm (Max.) 802.11g: 20.88 dBm (Max.) 802.11n20: 19.86 dBm (Max.) 802.11n40: 19.79 dBm (Max.) …
