ZBXMTO-WN820NM300Mbps Wireless USB Adapter

300M Wireless-N USB Adaptor User Manual REV: V1.0 RECYCLABLE Certification FCC CE FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices) FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. Package Contents The following items should be found in your package: ► 300M USB Wireless Adapter ► Quick Installation Guide ► CD-Rom Make sure that the package contains above items. If any of the above items is missing or damaged, please contact the store you bought this product from. FCC ID: ZBXMTO-WN820NM 1. Antennas must be installed to provide 20 cm separation distance from the transmitting antenna to the body of user during normal operating condition. This device must not be co-located or operating in conjunction with any other antenna or transmitter. 2. Only those antennas filed under FCC ID:ZBXMTO-WN820NM can be used with this device. 3. When the Minicard is installed in a system where the antenna location is less than 20 cm separation distance to the body of the user, additional equipment authorization is required. 4. The regulatory label on the final system must include the statement:“Contains FCC ID:ZBXMTO-WN820NM “. 5. The final system integrator must ensure there is no instruction provided in the user manual or customer documentation indicating how to install or remove the transmitter module. 6. ZBXMTO-WN820NM must be installed and used in strict accordance with the manufacturer’s instructions as described in the user documentation that comes with the product. Thisdevice complies with the following radio frequency and safety standards. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID:ZBXMTO-WN820NM”. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. The user’s manual for OEM Integrators must include the following information in a prominent location “IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements. The antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Caution: The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems. Because high power radars are allocated as primary users (meaning they have priority) in 5250-5350 MHz and 5650-5850 MHz, these radars could cause interference and/or damage to license exempt LAN devices. 300M Wireless USB Adaptor User Manual 1 1. Introduction 1.1. Product Overview This USB Wireless adapter is a powerful USB 2.0 Adapter that installs quickly and easily with host devices. Possible usage is within WLAN Access Point. Bridge, Router, Repeater for host devices . The adapter connects with 802.11n netw…

Text truncated - open the document above for the full version.

SHENZHEN MTN ELECTRONICS CO.,LTD. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2013-2-21 SUBJECT: FCC Application for ( FCCID: ZBXMTO-WN820NM) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signatory Client’s signature Client’s name / title : Shuangyun Qin / Manager Contact information / address : MTN Industrial Park, No.3 Fuhua Road ,Pingxi Neighborhood, Pingdi Town, Longgang Distric, Shenzhen, Guangdong, China

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 SHENZHEN MTN ELECTRONICS CO.,LTD. 2013-2-19 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SHENZHEN MTN ELECTRONICS CO.,LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (300Mbps Wireless USB Adapter,Model: MTO-WN820NM, FCC ID: ZBXMTO-WN820NM) We affirm that between SIEMIC and SHENZHEN MTN ELECTRONICS CO.,LTD., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : Shuangyun Qin / Manager Contact information / address : MTN Industrial Park, No.3 Fuhua Road ,Pingxi Neighborhood, Pingdi Town, Longgang Distric, Shenzhen, Guangdong, China

To whom it may concern: 300 WIRELESS USB MODULE (FCC ID: ZBXMTO-WN820NM) meets the requirements asset forth in DA 00-1407: 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The module has own shielding. In this case the integrator must ensure that shielding will provided by the final device. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Max 300Mbps . CCK/OFDM/DBPSK/DAPSK modulation. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip RT5572 3. The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. The module has a voltage regulator circuit as well as instructions as to the proper supply voltages required for operation. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through a Class II permissive change. The “professional installation” provision of Section 15.203 may not be applied to modules. The EUT antenna is PCB antenna. It comply with the standard requirement 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). As shown in the test setup photos, the module was tested in the open with an antenna attached directly to the antenna port. It was powered the PC. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The instructions provided to the user provide information as to how to properly apply the FCC ID to the finished product. The module is labeled with the FCC ID and the artwork is provided. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The operational description and users guides provide this detail. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule Shuangyun Qin 2013.1.10

SHENZHEN MTN ELECTRONICS CO.,LTD. MTN Industrial Park, No.3 Fuhua Road ,Pingxi Neighborhood, Pingdi Town, Longgang Distric, Shenzhen, Guangdong, China Date:2013-01-20 FCC ID: ZBXMTO-WN820NM Subject: Ad Hoc Mode Function Declaration To Whom it may concern, We, declare that the EUT (Model Name: MTO-WN820NM) doesn’t have Ad Hoc function on “non-US frequencies” and/or “on DFS frequencies”. In non-associated mode, that software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. Regards, Yours sincerely, Signatory Signature Name: Shuangyun Qin Title: Manager Tel: (86) 755-89585920 Fax: (86) 755-89584975

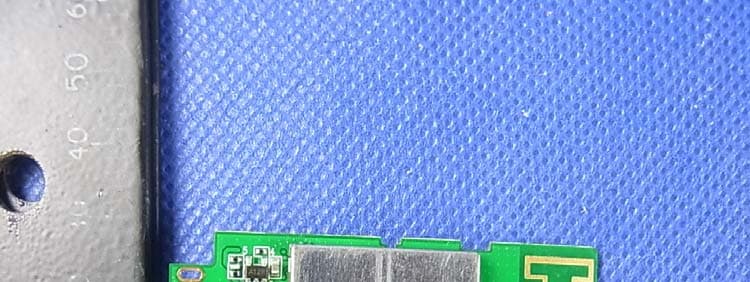

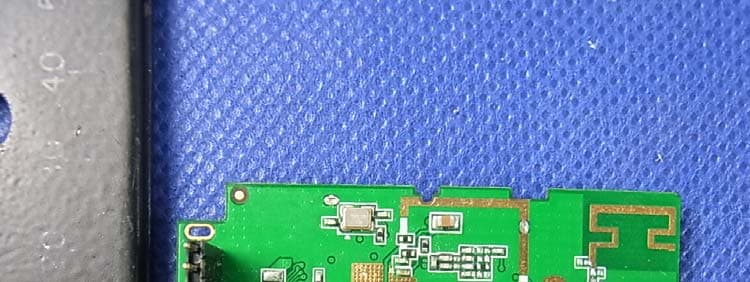

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3

1.4*1.2cm

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3

RF EXPOSURE Applied procedures / limit These devices are not exempted from compliance does not exceed the Commission’s RF exposure guidelines.Unless a device operates at substantially low power levels,with a low gain antenna(s),supporting information is generally needed to establish the various potential operating configurations and exposure conditions of a transmitter and its antenna(s) in order to determine compliance with the RF exposure guidelines. In order to demonstrate compliance with MPE requirement(see Section 2.1091),the following information is typically needed: Calculation that estimates the minimum separation distance(20 cm or more)between an antenna and persons required to satisfy power density limits defined for free space. Antenna installation and device operating instructions for installers(professional/unskilled users),and the parties responsible for ensuring compliance with the RF exposure requirement Any caution statements and/or warming labels that are necessary in order to comply with the exposure limits Any other RF exposure related issues that may affect MPE compliance. FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency(RF) radiation as specified in 1.1307(b). (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density MPE CALCULATION METHOD Calculation Method of RF Safety Distance: P :power input to the antenna in Mw EIRP :Equivalent(effective) isotropic radiated power. S :power density mW/ cm 2 G ;numeric gain of antenna relative to isotropic radiator R :distance to centre of radiation in cm FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device EIRP=10 ( Antenna Gain+Peak Output Power/10) Note: 1. s=1.0 mW /cm 2 for limits for General Population/Uncontrolled Exposures. 2. The time averaged power over 30 minutes will be equaled Output Power. 3. The Power Density at a distance of 20cm calculated from the formula is far below the limit of 1MW/ cm 2 TEST RESULTS 2.4GHz: 802.11b Mode Te s t Channe Frequency Output Power/AOutput Power/B Total Output Power LIMIT (MHz) dBm dBm dBm dBm CH01 2412 17.78 16.43 N/A 30 CH06 2437 17.56 16.21 N/A 30 CH11 2462 17.73 16.14 N/A 30 802.11g Mode CH01 2412 14.55 13.54 N/A 30 CH06 2437 14.68 13.42 N/A 30 CH11 2462 14.76 13.31 N/A 30 802.11n(20) Mode CH01 2412 13.69 12.45 16.12 30 CH06 2437 13.79 12.52 16.21 30 CH11 2462 13.54 12.19 15.93 30 802.11n(40) Mode CH03 2422 11.88 10.67 14.33 30 CH06 2437 11.37 10.54 13.99 30 CH09 2452 11.67 10.32 14.06 30 Frequency (MHz) Max. output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 2412~2462 17.78 59.97 1.25(1dBi) 0.014 1 Pass 2412~2462 16.21 41.78 2.51(4.01dbi) 0.020 1 Pass 2422-2452 14.33 27.10 2.51(4.01dbi) 0.0135 1 Pass 5.8GHz: 802.11a Mode Te s t Channe Frequency Output Power/AOutput Power/B Total Output Power LIMIT (MHz) dBm dBm dBm dBm CH149 5745 MHz 10.06 9.53 12.81 30 CH157 5785 MHz 10.06 9.42 12.76 30 CH165 5825 MHz 10.78 9.33 13.13 30 802.11n(20) Mode CH149 5745 MHz 10.34 9.32 12.87 30 CH157 5785 MHz 10.19 9.21 12.74 30 CH165 5825 MHz 10.40 9.22 12.86 30 802.11n(40) Mode CH151 5755 MHz 9.69 9.45 12.58 30 CH159 5795 MHz 9.79 9.52 12.66 30 Frequency (MHz) Max. output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 5745-5825 13.13 20.55 3.16(5.01dBi) 0.0129 1 Pass 5755-5795 12.66 18.45 3.16(5.01dBi) 0.0116 1 Pass 5.2GHz 802.11a Mode Te s t Channe Frequency Output Power/AOutput Power/B Total Output Power LIMIT (MHz) dBm dBm dBm dBm 36 5180 9.34 8.43 11.92 17 40 5200 9.59 8.21 11.96 17 46 5240 9.02 8.14 11.61 17 802.11n(20) Mode 36 5180 9.51 8.54 12.06 17 40 5200 9.70 8.42 12.12 17 46 5240 9.30 8.31 11.84 17 NOTE: 1.For 802.11b/g mode, when antenna A is transmitting, antenna B closed, when antenna B is transmitting, antenna A closed. 2.For 802.11n/a mode ,two antennas simultaneously transmit. 3.(For mobile or fixed location transmitters, the maximum power density is 1.0mW/cm2 even if the calculation indicates that the power density would be larger) This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Frequency (MHz) Max. output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 5180-5240 12.12 16.29 3.16(5.01dBi) 0.0102 1 Pass

FCC RADIO TEST REPORT FCC ID: ZBXMTO-WN820NM IC ID: 10926AMTO-WN820NM Product： 300Mbps Wireless USB Adapter Trade Name： N/A Model Name： MTO-WN820NM Serial Model： N/A Report No.： NTEK- 2012NT1220137F1 Prepared for Shenzhen MTN Electronics Co., Ltd. MTN Industrial Park, No.3, Fuhua Road, Pingxi Neighborhood, Longgang District, Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 115 Report No.: NTEK-2012NT1220137F1 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen MTN Electronics Co., Ltd. Address ................................. : MTN Industrial Park, No.3, Fuhua Road, Pingxi Neighborhood, Longgang District, Shenzhen, China Manufacture's Name ............ : Shenzhen MTN Electronics Co., Ltd. Address ................................. : MTN Industrial Park, No.3, Fuhua Road, Pingxi Neighborhood, Longgang District, Shenzhen, China Product description Product name ........................... : 300Mbps Wireless USB Adapter Model and/or type reference : MTO-WN820NM Serial Model .............................. : N/A Standards ............................. : FCC Part15.247, IC RSS-210 Issue 8, IC RSS-Gen Issue 3 Test procedure ..............................ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 20 Dec. 2012 ~30 Dec. 2012 Date of Issue ........................................... : 31 Dec. 2012 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 115 Report No.: NTEK-2012NT1220137F1 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 10 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 12 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 3 . EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 3.1.2 TEST PROCEDURE 15 3.1.3 DEVIATION FROM TEST STANDARD 15 3.1.4 TEST SETUP 15 3.1.5 EUT OPERATING CONDITIONS 15 3.1.6 TEST RESULTS 16 3.2 RADIATED EMISSION MEASUREMENT 18 3.2.1 RADIATED EMISSION LIMITS 18 3.2.2 TEST PROCEDURE 19 3.2.3 DEVIATION FROM TEST STANDARD 19 3.2.4 TEST SETUP 20 3.2.5 EUT OPERATING CONDITIONS 21 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 22 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 23 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 25 4 . POWER SPECTRAL DENSITY TEST 81 4.1 APPLIED PROCEDURES / LIMIT 81 4.1.1 TEST PROCEDURE 81 4.1.2 DEVIATION FROM STANDARD 81 4.1.3 TEST SETUP 81 4.1.4 EUT OPERATION CONDITIONS 81 4.1.5 TEST RESULTS 82 5 . BANDWIDTH TEST 96 5.1 APPLIED PROCEDURES / LIMIT 96 5.1.1 TEST PROCEDURE 96 Page 4 of 115 Report No.: NTEK-2012NT1220137F1 Table of Contents Page 5.1.2 DEVIATION FROM STANDARD 96 5.1.3 TEST SETUP 96 5.1.4 EUT OPERATION CONDITIONS 96 5.1.5 TEST RESULTS 97 6 . PEAK OUTPUT POWER TEST 111 6.1 APPLIED PROCEDURES / LIMIT 111 6.1.1 TEST PROCEDURE 111 6.1.2 DEVIATION FROM STANDARD 111 6.1.3 TEST SETUP 111 6.1.4 EUT OPERATION CONDITIONS 111 6.1.5 TEST RESULTS 112 7 . ANTENNA REQUIREMENT 113 7.1 STANDARD REQUIREMENT 113 7.2 EUT ANTENNA 113 8 . EUT TEST PHOTO 114 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 115 Report No.: NTEK-2012NT1220137F1 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C IC RSS-210 Issue 8 Standard Section Test Item Judgment Remark 15.207 &7.2.4 Conducted Emission PASS 15.247 (a)(2) & A8.2 6dB Bandwidth PASS 15.247 (b) & A8.4 Peak Output Power PASS 15.247 (c) &A8.5 Radiated Spurious Emission PASS 15.247 (d) & A8.2 Power Spectral Density PASS 15.205 &A8.5 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 115 Report No.: NTEK-2012NT1220137F1 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 115 Report No.: NTEK-2012NT1220137F1 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment 300Mbps Wireless USB Adapter Trade Name N/A Model Name MTO-WN820NM Serial Model N/A Model Difference N/A Product Description The EUT is a 300Mbps Wireless USB Adapte r Operation Frequency: 2412MHz~2462MHz 5725 MHz ~ 5825 MHz Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g/a:54/48/36/24/18/12/9/6Mbps 802.11n(20/40MHz):300/270/150/144. 44/130/117/115.56/104/86.67/78/52/6. 5 Mbps Number Of Channel Refer to Note 2 Antenna Designation: Please see Note 3. Max.Output Power(Conducted): 17.78 dBm Operation …

Text truncated - open the document above for the full version.

Page 85 of 86 Report No.: NTEK-2012NT1220137F1 8. EUT TEST PHOTO Radiated Measurement Photos Page 86 of 86 Report No.: NTEK-2012NT1220137F1 Conducted Measurement Photos
