ZBXWR-150WIRELESS ROUTER

1 Wireless Router WR-150 Quick Installation Guide RECYCLABLE 2 Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device should be installed and operated with a minimum distance of 20 cm between the antenna and all persons. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by may void the FCC authorization to operate this device. 3 LEDS Description The Router's LEDs are located on the front panel(View from left to right). Name Status Indication Off No Power PWR On Power on Off The Router has an error On The Router is initializing Status Flashing The Router is working properly Off The Wireless function is disabled WLAN Flashing The Wireless function is enabled Off There is no device linked to the corresponding port On There are devices linked to the corresponding ports but no data transmitted or received. WAN/LAN(1~4) Flashing Sending or receiving data over corresponding port Reset Button There are two ways to reset the router's factory defaults: 1) Use the Factory Defaults function on Management -> Save/Reload Settings page in the router's Web-based Utility. 2) Use the Factory Default Reset button: With the router powered on, use a pin to press and hold the Reset button(about 5 seconds) until the SYS LED becomes quick-flash from slow-flash. And then release the button and wait the router to reboot to its factory default settings. Configuring the Router In the IE browser,type "192.168.1.1" into the login screen. Enter you username and password,the default username is "admin",and the default password is "admin". After your successful login,you can see the interface as follows: 4 You can configure and manage the router. There are seven main menus on the left of the Site contents. Submenus will be available after you click one of the main menus. The seven main menus are: Setup Wizard,Operation Mode,Wireless,TCP/IP Settings,Firewall,Management,Logout. To apply any settings you have altered on the page, please click the Apply Change button. 1. Setup Wizard The setup wizard will guide you to configure access point for first time. Please follow the setup wizard step by step. 5 1.1 Operation Mode You can setup different modes to LAN and WLAN interface for NAT and bridging function. Click the "cancle" button to cancle the setting. Click the "Back" button to return to top-level directory. Click the "Next" button to get into the next-level directory. 1.2 Time Zone Setting You can maintain the system time by synchronizing with a public time server over the Internet. 6 Click the "cancle" button to cancle the setting. Click the "Back" button to return to top-level directory. Click the "Next" button to get into the next-level directory. 1.3 LAN Interface Setup You can configure the parameters for local area network which connects to the LAN port of your Access Point.Here you may change the setting for IP address,subnet mask,DHCP,etc. IP Address - Enter the IP address of your router in dotted-decimal notation (factory default: 192.168.1.1). Subnet Mask - An address code that determines the size of the network. Normally use 255.255.255.0 as the subnet mask. Click the "cancle" button to cancle the setting. Click the "Back" button to return to top-level directory. Click the "Next" button to get into the next-level directory. Note: If you change the IP Address of LAN, you must use the new IP Address to login the router. 7 1.4 WAN Interface Setup a. If you choose the DHCP Client, you must have another DHCP server within your network or else you must manually configure the computer. b. If you choose Static IP, you should have fixed IP Parameters specified by your ISP. You should type the following parameters into the spaces provided: IP Address - Enter the IP address in dotted-decimal notation provided by your ISP. Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP, usually is 255.255.255.0. Default Gateway - (Optional) Enter the gateway IP address in dotted-decimal notation provided by your ISP. MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks is 1500 Bytes. For some ISPs you may need to modify the MTU. But this is rarely required, and should not be done unless you are sure it is necessary for your ISP connection. DNS 1 - (Optional) Enter the DNS address in dotted-decimal notation provided by your ISP. DNS 2 - (Optional) Type another DNS address in dotted-decimal notation provided by your ISP if provided. DNS 3 - (Optional) Type the third DNS address in dotted-decimal notation provided by your ISP if provided. c. If you choose PPPoE, you should enter the following parameters. User …

Text truncated - open the document above for the full version.

SHENZHEN MTN ELECTRONICS CO.,LTD. MTN Industrial Park, No. 3 Fuhua Road, Pingxi Neighborhood,Pingdi Town , Longgang District, Shenzhen Attestation for FCC DoC FCC ID: ZBXWR-150 Date: March 8, 2011 Please be notified that we, the undersigned, SHENZHEN MTN ELECTRONICS CO., LTD. declare that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 11B03022F. Testing in regards to this report was done by Interocean EMC Technology Corp., located at No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County 244, Taiwan, R.O.C., which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Shuangyun Qin / Manager

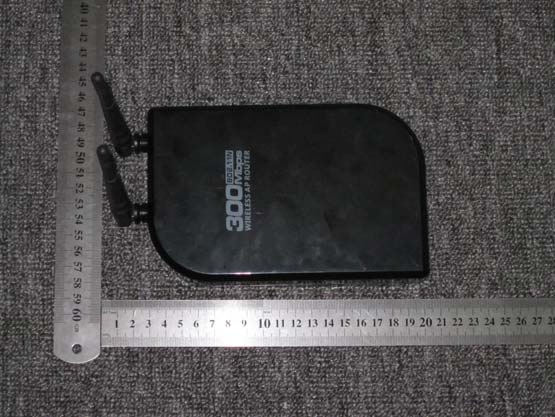

V1.0 Page 100 of 103 Report No.: CTL11038096-S-WF 6. External and Internal Photos of the EUT External Photos

FCC ID Label Information 1. Label location: 2. FCC ID Label: SHENZHEN MTN ELECTRONICS CO.,LTD. Model: WR-150 FCC ID: ZBXWR-150 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

V1.0 Page 101 of 102 Report No.: CTL11038096-S-WF Internal Photos V1.0 Page 102 of 102 Report No.: CTL11038096-S-WF ......................End of Report........................

Product Description Overview This device is a 300Mbps AP Router, which operates in the 2.4GHz ISM band. The system is compliant with IEEE 802.11b/g and IEEE 802.11n draft 2.0. It uses OFDM technique that the maximum data rate could up to 300Mbps. If the signal to noise ratio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. System Structure The RTL8196C integrates a media access control (MAC), a baseband processor, analog-to-digital and digital-to-analog converters, USB2.0 client controller and transceiver in one package. Together with multiple input/ output (MIMO) radio chip RTL8188CE/RTL8192CE for 2.4GHz to enable 802.11b/g/n solution. The RTL8196C implements multiple inputs, multiple output (MIMO),half-duplex OFDM, CCK, and DSSS baseband processing, supporting 150 Mbps and 300 Mbps for 20 MHz and 40 MHz channel operations respectively, and all IEEE 802.11b/g data rates. The RTL8196C supports two simultaneous traffic streams using up to two integrated transmit chains and receive chains for high throughput and range performance. Transmit chains combine baseband in-phase (I) and quadrature (Q) signals, convert them to the desired frequency, and drive the RF signal to multiple antennas. Receiver chains use integrated dual conversion architecture and require no off-chip intermediate frequency (IF) filters. The frequency synthesizer supports one-MHz steps to match frequencies defined by IEEE 802.11b/g/n specification.The 40MHz crystal oscillator feeds to the RTL8196C. The antennas are dipole antenna with reverse SMA connector. Power Supply The EUT is powered by 9Vdc from the host equipment. For more detailed information, please refer to the user’s manual.

Shenzhen CTL Electromagnetic Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-89486187 MPE TEST REPORT FCC PART 2.1091(b) Report Reference No......................: CTL11038096-S-WM Compiled by ( position+printed name+signature)..: File administrators Andy Zhang Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Kendy Wang Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: March 11, 2011 Testing Laboratory Name..............: Shenzhen CTL Electromagnetic Technology Co., Ltd. Address.............................................: Zone B，4/F, Block 20，Guangqian Industrial Park, Longzhu Road,Nanshan,Shenzhen 518055 China. Test Firm..........................................: Bontek Compliance Testing Laboratory Ltd Address.............................................: 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Applicant’s name............................: SHENZHEN MTN ELECTRONICS CO.,LTD. Address.............................................: MTN Industrial Park, No. 3 Fuhua Road, Pingxi Neighborhood, Pingdi Town , Longgang District, Shenzhen Test specification: Standard ...........................................: FCC Part 15C ANSI C63.4: 2003 TRF Originator ..................................: Shenzhen CTL Electromagnetic Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Electromagnetic Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Electromagnetic Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Electromagnetic Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description.................... : Wireless Router FCC ID............................................. : ZBXWR-150 Operation Frequency........................: From 2412 MHz to 2462 MHz Modulation mode: ............................: DSSS, OFDM Trade Mark .......................................: / Model/Type reference.......................: WR-150 Power Supply..............................: DC 9V from adapter Anttenna Type..............................: Undetachable Result................................................: Positive V1.0 Page 2 of 7 Report No.: CTL11038096-S-WM T E S T R E P O R T Test Report No. : CTL11038096-S-WM Februay 28, 2011 ______________________________________________________________________________________________ Date of issue Equipment under Test : Wireless Router Model /Type : WR-150 Listed Models : / Applicant : SHENZHEN MTN ELECTRONICS CO.,LTD. Address : MTN Industrial Park, No. 3 Fuhua Road, Pingxi Neighborhood,Pingdi Town , Longgang District, Shenzhen Manufacturer : SHENZHEN MTN ELECTRONICS CO.,LTD. Address : MTN Industrial Park, No. 3 Fuhua Road, Pingxi Neighborhood,Pingdi Town , Longgang District, Shenzhen Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 7 Report No.: CTL11038096-S-WM Contents 1. SUMMARY............................................................................. 4 1.1. EUT configuration 4 1.2. Note 4 2. TEST ENVIRONMENT............................................................... 5 2.1. Address of the test laboratory 5 2.2. Test Facility 5 2.3. Environmental conditions 5 2.4. Statement of the measurement uncertainty 5 3. METHOD OF MEASUREMENT .................................................... 6 3.1. Applicable Standard 6 3.2. Limit 6 3.3. MPE Calculation Method 6 3.4. Test Results 7 4. CONCLUSION ........................................................................ 7 V1.0 Page 4 of 7 Report No.: CTL11038096-S-WM 1. SUMMARY 1.1. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ○ Power Cable Length (m) :/ Shield :/ Detachable :/ ○ Multimeter Manufacturer :/ Model No. :/ ● AC Adapter MODEL: GP301E-090-080 INPUT: 100-240V～50/60Hz 0.3A OUTPUT: 9.0V 0.8A Power Cable: 150cm ◇ Shield ◆ Unshield 1.2. Note 1. The EUT is an 802.11b/g/n Home Gateway, The functions of the EUT listed as below: Test StandardsReference Report WLAN 802.11b/g, 802.11n FCC Part 15 Subpart C (Section15.247) CTL11038096-S-WF WLAN 802.11b/g, 802.11n FCC Part 2.1091(b) CTL11038096-S-WM 2. The frequency bands used in this EUT are listed as follows: Frequency Band(MHz)2400-2483.55150-53505470-5725 5725-5850 802.11b √ －－ － 802.11g √ －－ － 802.11n(20MHz) √ －－ － 802.11n(40MHz) √ －－ － 3. The EUT incorporates a MIMO function, Physically, the EUT provides two completed transmitter and two completed receivers. Modulation Mode TX Function 802.11b 1TX 802.11g 1TX 802.11n (20MHz) 2TX 802.11n (40MHz) 2TX V1.0 Page 5 of 7 Report No.: CTL11038096-S-WM 2. TEST ENVIRONMENT 2.1. Address of the test laboratory Bontek Compliance Testing Laboratory Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China There is one 3m semi-anechoic chamber and two line conducted labs for final test. The Test Sites meet the requirements in documents ANSI C63.4 and CISPR 22/EN 55022 requirements 2.2. Test Facility The test facility is recognized, certified, or accredited by the following organizations: FCC-Registration No.: 338263 Bontek Compliance Testing Laboratory Ltd EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registration 338263, March 24, 2008. IC Regi…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A RTL8192CE LED SDRAM 10/100PORT 4 DC POWER 1x1 PJ RTL8196C 10/100 PORT 0~3 1X4 PHONEJACK SPIflash RTL8196C pin pin 100pin 98pin 96Pin 97pin 99pin 109pin 108 GOIPA3GPIOB7GPIOC0GPIOA2GOIPA4GPIOA6GPIOA5 IIIOOOI WPSWAKE#CLKREQ#PD#WPSLEDSYSTEMLED Reset/Default pin 67 Cannot use RTL8196C GPIO definition GPIO Name I/O Function TitleSize Document Number Rev Date: Sheet of PLACEMENT V121 Realtek 802.11n 10/100M Wireless Router A 18 Wednesday, June 02, 2010 TitleSize Document Number Rev Date: Sheet of PLACEMENT V121 Realtek 802.11n 10/100M Wireless Router A 18 Wednesday, June 02, 2010 TitleSize Document Number Rev Date: Sheet of PLACEMENT V121 Realtek 802.11n 10/100M Wireless Router A 18 Wednesday, June 02, 2010 55 44 33 22 11 D D C C B B A A 0.8V*(1+1.1K/4.02K)=1.02V 0.8V*(1+6.19K/1.96K)=3.33V 0.8V*(1+7.5K/1.4K)=5.09V 3.3V_FB SW1 3.3EN 1.0V_FB 1.0EN SW2 GND VINUSB5V 5.0V_FB SW3 5.0ENVIN GND VIN VDD33 VIN VDD33 VDD10 VDD33 VDD5_ATX VIN TitleSize Document Number Rev Date: Sheet of POWER/LEDs V121 Realtek 802.11n 10/100M Wireless Router B 28 Friday, June 04, 2010 TitleSize Document Number Rev Date: Sheet of POWER/LEDs V121 Realtek 802.11n 10/100M Wireless Router B 28 Friday, June 04, 2010 TitleSize Document Number Rev Date: Sheet of POWER/LEDs V121 Realtek 802.11n 10/100M Wireless Router B 28 Friday, June 04, 2010 R1236.19K(1%)R1236.19K(1%) + C144470uF/6.3V + C144470uF/6.3V C1610.1uFC1610.1uF C148 10uF(X5R0805) C148 10uF(X5R0805) C2700.1uFC2700.1uF C1870.1uFC1870.1uF R233 4.7K R233 4.7K 1 2 C1810.1uFC1810.1uF L105 33uH/3A L105 33uH/3A C256 NC/10uF(X5R0805) C256 NC/10uF(X5R0805) C139 NC/100pF(0603) C139 NC/100pF(0603) R221 NC/10(0603) R221 NC/10(0603) R1131.1KR1131.1K C218NC/10uF(0805)C218NC/10uF(0805) C1790.1uFC1790.1uF C1710.1uFC1710.1uF C14510uF(0805)C14510uF(0805) C215 NC/100pF(0603) C215 NC/100pF(0603) C1620.1uFC1620.1uF R229 100K R229 100K U21 AP1513/SOP-8 U21 AP1513/SOP-8 Output 5 OSCET 3 Vss 7 Vss 8 FB 1 EN 2 Output 6 Vcc 4 R232 4.7K R232 4.7K 1 2 C186 10uF(1206) C186 10uF(1206) C141NCC141NC L107 0(1206) L107 0(1206) R1164.02KR1164.02K R1261.96K(1%)R1261.96K(1%) C1890.1uFC1890.1uF SD12SK14SD12SK14 C260 0.1uF/NI C260 0.1uF/NI 12 R118 20K R118 20K C165NCC165NC C1600.1uFC1600.1uF L110 0(1206) L110 0(1206) C152 NC/10uF(0805) C152 NC/10uF(0805) SD13 NC/SK14 SD13 NC/SK14 R230100KR230100K C1550.1uFC1550.1uF C1560.1uFC1560.1uF + C203NC/470uF/16V + C203NC/470uF/16V C153 10uF(0805) C153 10uF(0805) C173NCC173NC C15910uF(0805)C15910uF(0805) R119100KR119100K R223NC/7.5K(1%)R223NC/7.5K(1%) + C177 220uF/25V + C177 220uF/25V L1030(1206)L1030(1206) U16 AP1513/SOP-8 U16 AP1513/SOP-8 Output 5 OSCET 3 Vss 7 Vss 8 FB 1 EN 2 Output 6 Vcc 4 C16910uF(X5R1206)C16910uF(X5R1206) C1460.1uFC1460.1uF C163NCC163NC C257NCC257NC C174 10uF(0805) C174 10uF(0805) L113 NC/33uH/3A L113 NC/33uH/3A C178 100pF(0603) C178 100pF(0603) R114 NC/10(0603) R114 NC/10(0603) + C271220uF/25V + C271220uF/25V C172100pFC172100pF SD11 SK14 SD11 SK14 R125 10(0603) R125 10(0603) C15810uF(0805)C15810uF(0805) C150NC/0.1uFC150NC/0.1uF C18010uF(0805)C18010uF(0805) C254NC/0.1uFC254NC/0.1uF C1750.1uFC1750.1uF + C188220uF/25V + C188220uF/25V C1420.1uFC1420.1uF C1670.1uFC1670.1uF C164NCC164NC C1490.1uFC1490.1uF C151 10uF(0805) C151 10uF(0805) + C176470uF/10V + C176470uF/10V R226 100K R226 100K 1 2 R234 4.7K R234 4.7K 1 2 C14310uF(0805)C14310uF(0805) L102 33uH/3A L102 33uH/3A J14PowerJack (DIP)J14PowerJack (DIP) 12 3 R224NC/1.4K(1%)R224NC/1.4K(1%) U22 AP1513/SOP-8 U22 AP1513/SOP-8 Output 5 OSCET 3 Vss 7 Vss 8 FB 1 EN 2 Output 6 Vcc 4 55 44 33 22 11 D D C C B B A A Descrpition 000:001:010:011:100:101:110:111: 0: default1: pll_cpu divide by 2 BOOTSEL MA1 0: NOR Flash(default)1: SPI Flash (CPU SEL CLK) MA4 (DRAM SEL CLK) CPU SEL CLK 390MHz CPUClkSel[2:0]SDRAMClkSel[2:0] 0: 1 port AP mode1: 5 port router mode(default) Clklx_from_clkm MA5 0: disable (default)1: enable SDRAM SEL CLK SYNC_LX_OC en_router_mode MA3MA[6:8] MA13 250 MHz270 MHz 290 MHz310 MHz330 MHz350 MHz370 MHz390 MHz 000:001:010:011:100:101:110:111: clk_m2x_freq_Sel[0:2] Signal Enable external reset clk_cpu_freq_Sel[1:3] 0: default1: Clk_lx come from clk_m Function H/W strap can set 3 bits[1:3] 65.625 MHz78.125 MHz125 MHz150 MHz156.25 MHz(default)168.75 MHz193.75 MHz237.5 MHz ck_cpu_div_sel 0: default1: set SYNC_OC=SYNC_LX=SYNC_LX_OC for testing MA[9:11]MA12 H/W strap can set3 bits[0:2] C214 10K pull down forsaving power R201 49.9 ohms forlowing EMI USB#0 Mark on board MA3MA11MA13MA1MA6MA7MA5MA8MA2MA10MA14MA9MA12MA4 TDON3 JTGTRST A17_SPIO3 TDOP[4:0] 40M_SEL MD3 JTGTDI MD4 A19_SPIO1 MA3 HSOP HSOP AVDD10USB MA13 LED_PORT1 MA14 ATEST MSD_CS0B MA16 A18_SPIO2 SDRAM_CLK MCASB MA0 CASB WPSLED WAKE# MA16 MD7 MD4 WAKEn TDOP1 MD5 RDIP4 MA7 SD_CLOCK TDOP4 D11 MD10 MD15 CLKREQ# CLK+_HOST CLK+_HOST D4 MRASB USBLED1 RDIN3 MA5 CLKREQn MD5 TDON1 A2 MCASB RDIN2 D9 PD# D7 LED_PORT3 TDON2 RDIP0 TDON[4:0] A14A5A16 LED_PORT0 USBLED RDIP1 D13 MD14 MD6 PERSTB LED_PORT1 A11 MA12 D5 MWEB MA9 U0TXD U0TXD HSIP AVDD33USB CLK-_HOST CLK-_HOST SF_CSB MD8 RDIN4 TDOP3 D15 RDIN0 JTGCLK A4 MD6 HSON HSON MD8 MA15 TDOP2 MD1 MA10 HSIP_EHSIN_E AVDD33USB MD13 USB0_DP RDIP[4:0] A0 MA4 D10D1 SD_CLOCK RDIP2 MD2 RDIP3 RASB MD3 A12 VDD33_A SF_SCK MD7 HSIN MD0 A9 LED_PORT0 MA15 TDON4 MA2 D2 MD15 AVDDBG AVDD10PCIE D6 U0RXD U0RXD AVDD10PCIE VDD10_A MA11 MD2 TDON0 RDIN1 AVDD10USB MWEBMD9 SYSLED USB0_DN MD11 A15 MD12 A6 MD14 A13 MD0 MA6 CK_40M JTGTDI CKE MD10 JTGCLK MD11 A10A7 A20_SPIO0 SD_CS0B LED_PORT4 D0 DEFAULT RDIN[4:0] MD13 D12D8 MD9 MD1 VDD33 D14 MD12 25M_XO A8 WEB TDOP0 LED_PORT2 MA8 D3 25M_XI SF_SCK1 MA1 A3A1 MRASB AVDDX AGND_USB USB0_DNAGND_USB AGND_CHASSIS USB0_DP WPS VDD33 VDD10 VDD33 VDD33 VDD33 VDD33 VDD33 VDD10 VDD10 VDD10 VDD10 VDD33 VDD33 VDD33 VDD33 VDD33 VDD33 VDD10 VDD33 VDD10 VDD33 VDD33 VDD5_ATX VDD33 VDD10 SF_CSB 4 CLK-_HOST 6 WPS 7 RASB 4 D[15:0] 4 CLK+_HOST 6 SD_CS0B 4 RDIP[4:0] 5 HSON 6 A20_SPIO0 4 HSIN 6 HSIP 6 A17_SPIO3 4 CKE 4 WPSLED 7 RDIN[4:0] 5 CASB 4 CLKREQ# 6 SDRAM_CLK 4 HSOP 6 CK_40M …

Text truncated - open the document above for the full version.

Shenzhen CTL Electromagnetic Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-89486187 FCC PART 15 SUBPART C TEST REPORT FCC Part 15.247 Report Reference No...................... : CTL11038096-S-WF Compiled by ( position+printed name+signature).. : File administrators Andy Zhang Name of the organization performing the tests ( position+printed name+signature).. : Test Engineer Kendy Wang Approved by ( position+printed name+signature).. : Manager Tracy Qi Date of issue..................................... : March 11, 2011 Representative Laboratory Name.: Shenzhen CTL Electromagnetic Technology Co., Ltd. Address ............................................ : Zone B，4/F, Block 20，Guangqian Industrial Park, Longzhu Road,Nanshan,Shenzhen 518055 China. Test Firm......................................... : Bontek Compliance Testing Laboratory Ltd Address ............................................ : 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Applicant’s name............................ : SHENZHEN MTN ELECTRONICS CO.,LTD. Address ............................................ : MTN Industrial Park, No. 3 Fuhua Road, Pingxi Neighborhood, Pingdi Town , Longgang District, Shenzhen Test specification: Standard ........................................... : FCC Part 15.247: Operation within the bands 902–928 MHz, 2400– 2483.5 MHz, and 5725–5850 MHz. TRF Originator.................................. : Shenzhen CTL Electromagnetic Technology Co., Ltd. Master TRF....................................... : Dated 2011-01 Shenzhen CTL Electromagnetic Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Electromagnetic Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Electromagnetic Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Wireless Router FCC ID.......................................: ZBXWR-150 Trade Mark ....................................... : / Model/Type reference ...................... : WR-150 Listed Models .................................. : / Modulation ....................................... : DSSS, OFDM Work Frequency Range..................: 2412~2462MHz Antenna Type..............................: Undetachable Result ............................................... : Positive V1.0 Page 2 of 102 Report No.: CTL11038096-S-WF T E S T R E P O R T Test Report No. : CTL11038096-S-WF Oct 18, 2010 ______________________________________________________________________________________________ Date of issue Equipment under Test : Wireless Router Model /Type : WR-150 Listed Models : / Applicant : SHENZHEN MTN ELECTRONICS CO.,LTD. Address : MTN Industrial Park, No. 3 Fuhua Road, Pingxi Neighborhood,Pingdi Town , Longgang District, Shenzhen Manufacturer SHENZHEN MTN ELECTRONICS CO.,LTD. Address MTN Industrial Park, No. 3 Fuhua Road, Pingxi Neighborhood,Pingdi Town , Longgang District, Shenzhen Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 102 Report No.: CTL11038096-S-WF Contents 1. TEST STANDARDS ................................................................ 3 2. SUMMARY ........................................................................... 3 2.1. General Remarks 3 2.2. Equipment Under Test 3 2.3. Short description of the Equipment under Test (EUT) 3 2.4. EUT operation mode 3 2.5. EUT configuration 3 2.6. NOTE 3 2.7. Related Submittal(s) / Grant (s) 3 2.8. Modifications 3 3. TEST ENVIRONMENT ............................................................. 3 3.1. Address of the test laboratory 3 3.2. Test Facility 3 3.3. Environmental conditions 3 3.4. Configuration of Tested System 3 3.5. Statement of the measurement uncertainty 3 3.6. Equipments Used during the Test 3 3.7. Summary of Test Result 3 4. TEST CONDITIONS AND RESULTS ........................................... 3 4.1. Conducted Emissions Test 3 4.2. Radiated Emission Test 3 4.3. 6dB Bandwidth Measurement 3 4.4. Maximum Peak Output Power 3 4.5. Band Edge Measurement 3 4.6. Power Spectral Density Measurement 3 4.7. Spurious RF Conducted Emission 3 4.8. Antenna Requirement 3 5. TEST SETUP PHOTOS OF THE EUT .......................................... 3 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 3 V1.0 Page 4 of 102 Report No.: CTL11038096-S-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.4-2003 KDB Publication No. 558074 Guidance on Measurements for Digital Transmission Systems ANSI C63.10-2009: American National Standard for Testing Unlicensed Wireless Devices. V1.0 Page 5 of 102 Report No.: CTL11038096-S-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : March 2, 2011 Testing commenced on : March 3, 2011 Testing concluded on : March 8, 2011 2.2. Equipment Under Test Power supply system utilised Power supply voltage : z 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC z Other (specified in blank below) DC 9V from adapter Description of the test mode IEEE 802.11b/g/n: Thirteen channels are provided to the EUT,but only eleventh channels used for USA. Channel Frequency(MHz)ChannelFrequency(MHz) 1 241282447 2 241792452 3 2422102457 4 2427112462 5 2432 6 2437 7 2442 2.3. Short description of the Equipment under Test (EUT) 2.4GHz (Wireless Lite N ADSL2+ Modem Router) For more details, refer to the user’s manual of the EUT. Serial …

Text truncated - open the document above for the full version.

V1.0 Page 60 of 102 Report No.: CTL11038096-S-WF Note : For 802.11n (40MHz) Mode: Note: 1. The field strength of any emissions which appear outside of this band shall not exceed the general radiated emission limits in Section 15.209, the peak radiated field strength shall blow 74dBμv/m. 2. Antenna Polarization vertical. Note: 1. The field strength of any emissions which appear outside of this band shall not exceed the general radiated emission limits in Section 15.209, the average radiated field strength shall blow 54dBμv/m. 2. Antenna Polarization vertical. V1.0 Page 61 of 102 Report No.: CTL11038096-S-WF Note: 1. The field strength of any emissions which appear outside of this band shall not exceed the general radiated emission limits in Section 15.209, the peak radiated field strength shall blow 74dBμv/m. 2. Antenna Polarization horizontal. Note: 1. The field strength of any emissions which appear outside of this band shall not exceed the general radiated emission limits in Section 15.209, the average radiated field strength shall blow 54dBμv/m. 2. Antenna Polarization horizontal. V1.0 Page 62 of 102 Report No.: CTL11038096-S-WF Note: 1. The field strength of any emissions which appear outside of this band shall not exceed the general radiated emission limits in Section 15.209, the peak radiated field strength shall blow 74dBμv/m. 2. Antenna Polarization vertical. Note: 1. The field strength of any emissions which appear outside of this band shall not exceed the general radiated emission limits in Section 15.209, the average radiated field strength shall blow 54dBμv/m. 2. Antenna Polarization vertical. V1.0 Page 63 of 102 Report No.: CTL11038096-S-WF Note: 1. The field strength of any emissions which appear outside of this band shall not exceed the general radiated emission limits in Section 15.209, the peak radiated field strength shall blow 74dBμv/m. 2. Antenna Polarization horizontal. Note: 1. The field strength of any emissions which appear outside of this band shall not exceed the general radiated emission limits in Section 15.209, the average radiated field strength shall blow 54dBμv/m. 2. Antenna Polarization horizontal. V1.0 Page 64 of 102 Report No.: CTL11038096-S-WF 4.6. Power Spectral Density Measurement TEST CONFIGURATION EUT SPECTRUM ANALYZER TEST PROCEDURE 1. The testing follows the FCC KDB Publication No. 558074 (Measurement Guidelines of DTS). 2. Set SPAN = 20 MHz (For devices with a nominal 40 MHz BW, 50 MHz span will be needed) 3. Set REFERENCE LEVEL = 20 dBm 4. Set ATTENUATION = 0 dB (add internal attenuation, if necessary) 5. Set SWEEP TIME = Coupled 6. Set RBW = 3 kHz 7. Set VBW = 10 kHz 8. Set DETECTOR = Peak 9. Set MKR = Center Frequency 10. Set TRACE = CLEAR WRITE Place the radio in continuous transmit mode. Set the TRACE to MAX HOLD, an…

Text truncated - open the document above for the full version.
