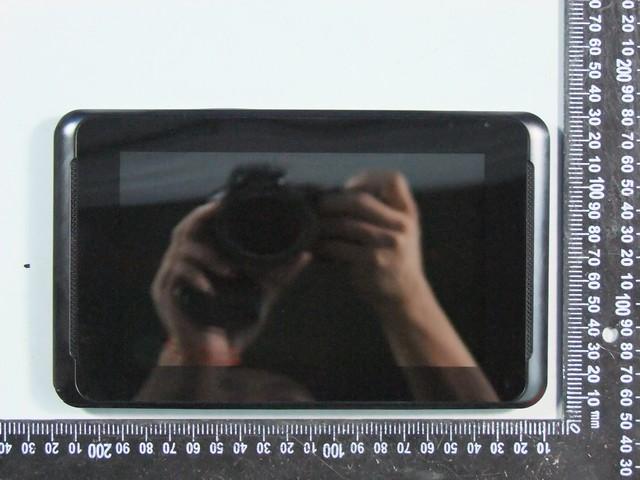

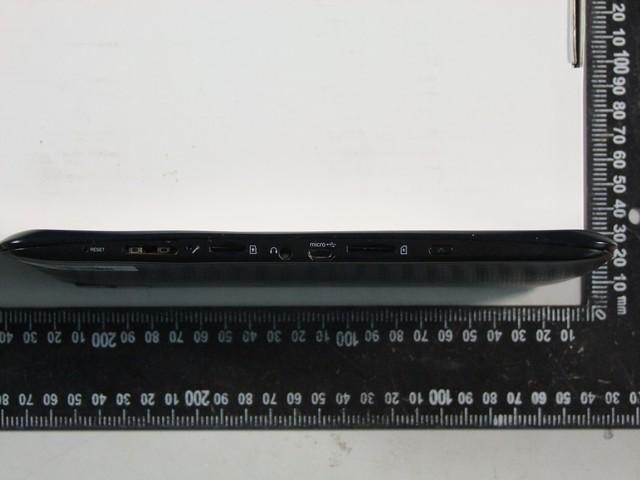

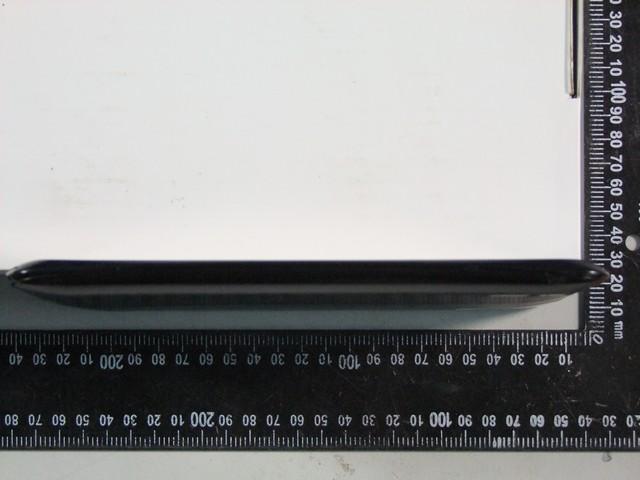

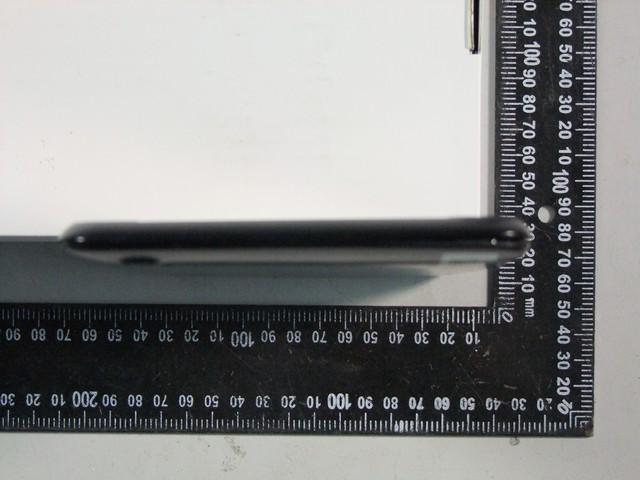

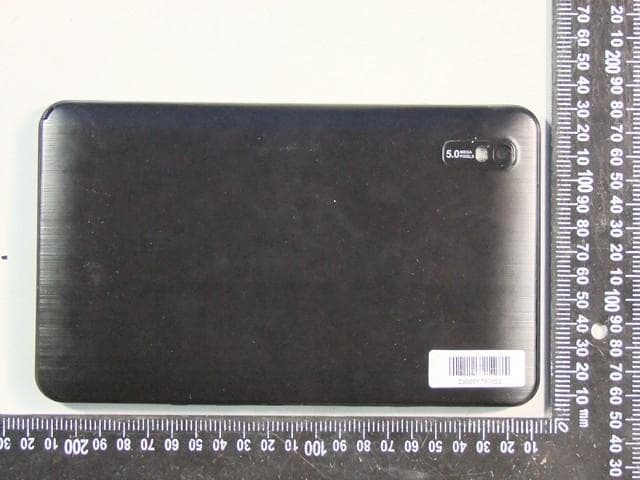

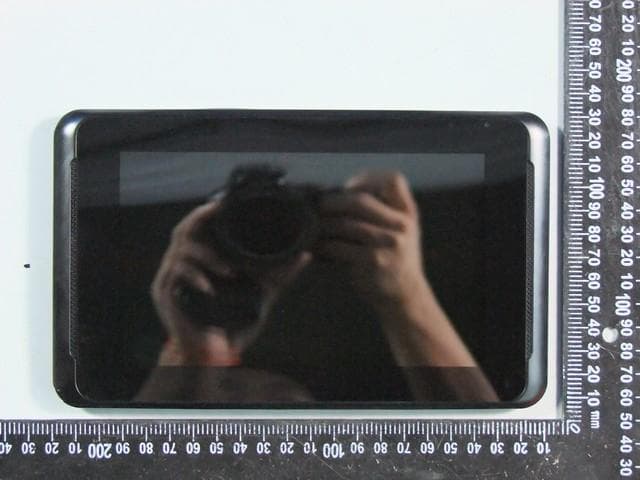

ZC4E7TABLET PC

Please read this guide before using. Welcome: Thank you for choosing this product from Skyworth By reading this manual, you can not only appreciate its perfect functions & brief operation introduction, but also have a comprehensive understanding of how to use this machine. Statement: This manual is provided just to guide you about the functionality of the product, and it does not make any explanation for its hardware/software configurations. Products and fittings may vary depending on where you purchase them. The product is available for network environment GSM/GPRS/EDGE/WCDMA/HSDPA. Certain functions may require the support of network operator or service provider, please refer to the user guide for related details. No part of this document can be reproduced without permission. The machine recommends you to use the preinstalled Android operating system. Install non-preinstalled operating systems or other operating systems which are not covered in this user guide are not forbidden, however, we can neither ensure their stability, Page 1 reliability or safety when running in this machine owing to lack of strict testing, nor guarantee to provide drivers of other operating systems. The mentioned non-preinstalled operating systems include upgrade version or prior version of the preinstalled operating system and other different operating systems. For this machine, preinstalled operating system or any internet application functions are separable to the functions of the machine itself. Interpret any preinstalled software functions as the functions of the machine itself are incorrect. For any hardware or software provided by third party, Skyworth does not make any promise or service for its usability or reliability. For your safety, please read “Safety Precautions” carefully. Icon illustration: Indicatingwarning information which you need to pay special attention to. Caution. Page 2 Indicates special illustration or prompt about usage of the product. [ ] Indicates operation of a key Boldface Indicates an interface menu or icon operation. Content Safety Precautions Disobey these rules may bring danger or violate law. Driving:Do not use the machine while you are driving. Please use earphone or pull over and stop your automobile to dial or listen to a call. Medical devices:Follow any special regulations in force in any area such as hospitals and always switch off your machine whenever it is forbidden to use it. Airplane:Wireless devices can cause interference in aircraft. Please strictly obey the relevant regulations. Page 3 Oil station:Turn off your machine before entering a place susceptible to explosion, such as an oil station, oil tank or chemical plant Avoid interfering blasting:Turn off your machine in a place where a blasting process is under way, and obey any relevant rules. Interference: All wireless phones may be subject to interference, which could affect theirperformance. Accessories: To ensure best performance, please use approved accessories and battery & do not connect your machine to an incompatible product. Waterproof: The machine does not possess waterproof function, please keep it dry andget it stay away from water. Environmental recycling: Dispose used batteries in accordance with local regulations. Always recycle. Do not dispose usedbatteries in a fire. Connection: When connecting to other devices, please read user manual of target device to ensure safety. Children’s safety: Keep the machine and all its fittings beyond children’s reach to avoid potential danger. Page 4 Data backup: Please backup important information stored in your device in case of unexpected losing.Not all video files are supported by the machine. SOS:With the device, you can dial an emergency call under power on status when you are inservice zone. Dial the emergency number and tell your location. Page 5 1. Get to know PAD Page 6 Page 7 Power key:Press it for about 3sec can power on/off the machine; under power on status, press it can turn off screen backlight. Home key: In any interfaces, press it can exit the current function and return to the home screen; in any interfaces, long press it can open the most recently used applications screen. Menu key: Press it to obtain more options. Return key: Press it to return to last menu. Getting started Install UIM/SIM card Please make sure the machine is powered off before installing or taking out UIM/SIM card. Insert or withdraw UIM/SIM card while it is in using, the machine would automatically power off for protecting UIM/SIM card! UIM/SIM card is provided by service provider, it can store some basic data, e.g. contact name and phone number. Note: Some UIM/SIM cards may not be compatible with this machine, under these circumstances, please consult service provider to replace Page 8 them. The machine has an internal rechargeable battery. The battery isn’t user accessible and should only be replaced by an Authorized Service Provider. The performance of a battery is subject to multiple factors: radio network configuration, signal strength, ambient temperature, and the voice, data or other application mode you choose to use. To avoid self-ignition and burning: - Do not unpack or maintain battery on your own. - Do not disassemble, extrude or perforate battery; do not short-circuit the battery; - do not dispose used batteries in a fire or water. - Do not place your device in temperatures above 60 C (140 F). - Use only approved batteries. - Please dispose battery correctly & do not discard it casually. Install UIM/SIM card Insert UIM/SIM card into card slot as the image indicates. (Note: please pay attention to the notch of UIM/SIM card and do not Page 9 install it in a wrong direction.) Install storage card Install storage card to expand its storage space. (This machine use MicroSD storage card). 1. Install storage card: Place its golden contactor side downward and insert it into card slot as the image indicates, then press it downward gently till you hear a click sound. 2…

Text truncated - open the document above for the full version.

SAR TEST REPORT For Tablet Model Number: ilium PAD E7 3G FCC ID: ZC4E7 Report Number : WT138003308 Test Laboratory : Shenzhen Academy of Metrology and Quality Inspection National Testing Center for Digital Electronic Products Site Location : Bldg. Metrology and Quality Inspection, Longzhu Road, Shenzhen, Guangdong, China Tel : 0086-755-26941599 Fax : 0086-755-26941545 Web : www.smq.com.cn Report No.: WT138003308 Page 2 of 140 Test report declaration Applicant : : Corporativo LANIX S.A de C.V. Address : : Carretera International a Nogales Km8.5,Colonia:SAN LUIS Hermosillo ,Sonora ,C.P. 83160 Mexico Manufacturer : : Shenzhen Skyworth Wireless Technology Limited Address : : Unit3A01, Block A Skyworth Building, Gaoxin Ave.1.S., Nanshan District, Shenzhen, China. EUT Description : : Tablet Model No. : : ilium PAD E7 3G Trade mark : : / Serial Number : : / FCC ID : : ZC4E7 Test Standards: IEEE 1528-2003 FCC KDB 865664 D01 v01 The EUT described above is tested by Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory to determine the compliance of the applicable standards stated above. Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory is assumed full responsibility for the accuracy of the test results. The results documented in this report only apply to the tested sample, under the conditions and modes of operation as described herein. The test report shall not be reproduced in part without written approval of the laboratory. Project Engineer: Date: Nov.19,2013 (Liu Zheng) Checked by: Date: Nov.19,2013 (Yang Dongping) Approved by: Date: Nov.19,2013 (Lin Bin) Report No.: WT138003308 Page 3 of 140 TABLE OF CONTENTS TEST REPORT DECLARATION ......................................................................................................... 2 1. REPORTED SAR SUMMARY ................................................................................................. 5 2. GENERAL INFORMATION ...................................................................................................... 7 2.1. Report information .......................................................................................................... 7 2.2. Laboratory Accreditation and Relationship to Customer ......................................... 7 3. DESCRIPTION OF THE DEVICE UNDER TEST（DUT） ............................................... 9 3.1. DUT Description ............................................................................................................. 9 3.2. RF output power Tune up limit ................................................................................... 10 3.3. Applied Standards ........................................................................................................ 11 3.4. SAR Limit ....................................................................................................................... 11 4. TEST CONDITIONS ................................................................................................................ 12 4.1. Temperature and Humidity ......................................................................................... 12 4.2. Introduction of SAR ...................................................................................................... 12 4.3. Test Configuration ........................................................................................................ 12 5. DESCRIPTION OF THE TEST EQUIPMENTS ................................................................. 14 5.1. Measurement System and Components .................................................................. 14 5.2. Isotropic E-field Probe Type ES3DV3 ....................................................................... 15 5.3. Phantoms....................................................................................................................... 15 5.4. Tissue-equivalent Liquids ........................................................................................... 16 5.5. Device Holder ............................................................................................................... 20 5.6. Test Position ................................................................................................................. 21 5.7. Scan Procedures .......................................................................................................... 23 5.8. SAR Averaging Methods ............................................................................................. 23 6. MEASUREMENT UNCERTAINTY ....................................................................................... 24 6.1. Uncertainty for SAR Test ............................................................................................ 24 6.2. Uncertainty for System Validation ............................................................................. 25 7. CONDUCTED TEST RESULTS ........................................................................................... 26 8. EXPOSURE POSITIONS CONSIDERATION .................................................................... 30 9. SAR TEST RESULTS ............................................................................................................. 32 Report No.: WT138003308 Page 4 of 140 9.1. GSM 850 SAR results ................................................................................................. 32 9.2. GSM 1900 SAR results ............................................................................................... 33 9.3. WCDMA 850 SAR results ........................................................................................... 34 9.4. WCDMA 1900 SAR results ......................................................................................... 34 9.5. WIFI SAR results .......................................................................................................... 35 9.6. Repeated SAR results ........................................…

Text truncated - open the document above for the full version.

Report No.: WT138003308 Page 114 of 140 Report No.: WT138003308 Page 115 of 140 Report No.: WT138003308 Page 116 of 140 D835V2, serial No. 4d141 Extended Dipole Calibrations Referring to KDB 865664, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Justification of the extended calibration ʳ 835 Head Date of Measurement Return-Loss (dB) Delta(%) Real Impedance(ohm) Delta (ohm) Imaginary Impedance(ohm) Delta (ohm) 2012-9-24 -28.714 52.572 -2.7344 2013-9-23 -27.731 -3.42% 50.59 -1.98 -5.0718 -2.34 835 Body Return-Loss (dB) Delta(%) Real Impedance(ohm) Delta (ohm) Imaginary Impedance(ohm) Delta (ohm) 2012-9-24 -34.633 50.082 -1.8672 2013-9-23 -34.222 -1.19% 50.985 0.90 -5.5300 -3.66 Report No.: WT138003308 Page 117 of 140 835 Head Report No.: WT138003308 Page 118 of 140 835 Body Report No.: WT138003308 Page 119 of 140 Report No.: WT138003308 Page 120 of 140 Report No.: WT138003308 Page 121 of 140 Report No.: WT138003308 Page 122 of 140 Report No.: WT138003308 Page 123 of 140 Report No.: WT138003308 Page 124 of 140 Report No.: WT138003308 Page 125 of 140 Report No.: WT138003308 Page 126 of 140 Report No.: WT138003308 Page 127 of 140 D1900V2, serial No. 5d162 Extended Dipole Calibrations Referring to KDB 865664, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Justification of the extended calibration ʳ 1900 Head Date of Measurement Return-Loss (dB) Delta(%) Real Impedance(ohm) Delta (ohm) Imaginary Impedance(ohm) Delta (ohm) 2012-9-21 -26.119 53.156 4.0098 2013-9-20 -25.719 -1.53 49.881 -3.28 2.5487 -1.46 1900 Body Return-Loss (dB) Delta(%) Real Impedance(ohm) Delta (ohm) Imaginary Impedance(ohm) Delta (ohm) 2012-9-21 -28.393 52.982 2.543 2013-9-20 -25.438 -10.41 50.253 -2.73 4.354 1.81 Report No.: WT138003308 Page 128 of 140 1900 Head Report No.: WT138003308 Page 129 of 140 1900 Body Report No.: WT138003308 Page 130 of 140 Report No.: WT138003308 Page 131 of 140 Report No.: WT138003308 Page 132 of 140

Report No.: WT138003308 Page 133 of 140 Report No.: WT138003308 Page 134 of 140 Report No.: WT138003308 Page 135 of 140 Report No.: WT138003308 Page 136 of 140 Report No.: WT138003308 Page 137 of 140 Report No.: WT138003308 Page 138 of 140 D2450V2, serial No. 818 Extended Dipole Calibrations Referring to KDB 865664, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Justification of the extended calibration ʳ 2450 Head Date of Measurement Return-Loss (dB) Delta(%) Real Impedance(ohm) Delta (ohm) Imaginary Impedance(ohm) Delta (ohm) 2012-10-18 -28.393 52.982 2.543 2012-10-17 -28.585 0.68 51.312 -1.67 2.950 0.41 2450 Body Return-Loss (dB) Delta(%) Real Impedance(ohm) Delta (ohm) Imaginary Impedance(ohm) Delta (ohm) 2012-10-18 -27.110 50.055 4.4121 2012-10-17 -26.329 -2.88 51.434 1.38 5.9356 1.52 Report No.: WT138003308 Page 139 of 140 2450 Head Report No.: WT138003308 Page 140 of 140 2450 Body

Report No.: WT138003319 Page 11 of74 FCC TEST REPORT For Tablet Model Number: ilium PAD E7 3G FCC ID: ZC4E7 Report Number : WT138003319 Test Laboratory : Shenzhen Academy of Metrology and Quality Inspection National Digital Electronic Product Testing Center Site Location : No.4 Tongfa Road, Xili Town, Nanshan District, Shenzhen, Guangdong, China Tel : 0086-755-86928965 Fax : 0086-755-86009898-31396 Web : www.smq.com.cn Report No.: WT138003319 Page 2 of Re report No.: WT138003319 Page 2 of Re port No.: WT138003319 Page 2 of74 Test report declaration Applicant : : Corporativo LANIX S.A de C.V. Address : : Carretera International a Nogales Km8.5,Colonia:SAN LUIS Hermosillo ,Sonora ,C.P. 83160 Mexico Manufacturer : : Shenzhen Skyworth Wireless Technology Limited Address : : Unit3A01, Block A Skyworth Building, Gaoxin Ave.1.S., Nanshan District, Shenzhen, China. EUT Description : : Tablet Model No : : ilium PAD E7 3G Trade mark : : / Serial Number : : / FCC ID : : ZC4E7 Test Standards: FCC PART 22H AND 24E (2012) The EUT described above is tested by Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory to determine the maximum emissions from the EUT. Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory is assumed full responsibility for the accuracy of the test results. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with FCC Rules Part 22H AND 24E. The test report is valid for above tested sample only and shall not be reproduced in part without written approval of the laboratory. Project Engineer: Date: Oct.31,2013 (Liu Zheng) Checked by: Date: Oct.31.,2013 (Yang Dongping) Approved by: Date: Oct.31,2013 (Lin Bin) Report No.: WT138003319 Page 3 of Re report No.: WT138003319 Page 3 of Re port No.: WT138003319 Page 3 of74 TABLE OF CONTENTS TEST REPORT DECLARATION ......................................................................................................... 2 1. TEST RESULTS SUMMARY ................................................................................................... 4 2. GENERAL INFORMATION ...................................................................................................... 5 2.1. Report information.......................................................................................................... 5 2.2. Laboratory Accreditation and Relationship to Customer ......................................... 5 2.3. Measurement Uncertainty ............................................................................................. 6 3. PRODUCT DESCRIPTION ....................................................................................................... 7 3.1. EUT Description ............................................................................................................. 7 3.2. Related Submittal(s) / Grant (s) ................................................................................... 8 3.3. Block Diagram of EUT Configuration .......................................................................... 8 3.4. Operating Condition of EUT ......................................................................................... 8 3.5. Support Equipment List ................................................................................................. 9 3.6. Test Conditions ............................................................................................................... 9 3.7. Special Accessories ..................................................................................................... 10 3.8. Equipment Modifications ............................................................................................. 10 4. TEST EQUIPMENT USED ..................................................................................................... 11 5. TEST RESULTS ....................................................................................................................... 12 5.1. RF Power Output .......................................................................................................... 12 5.2. Peak to Average Radio ............................................................................................... 14 5.3. Modulation Characteristics ......................................................................................... 15 5.4. Occupied Bandwidth/Emission Bandwidth ............................................................... 18 5.5. Spurious Emission at Antenna Terminal .................................................................. 26 5.6. Spurious Emissions Radiated .................................................................................... 63 5.7. Frequency Stability ....................................................................................................... 69 Report No.: WT138003319 Page 4 of Re report No.: WT138003319 Page 4 of Re port No.: WT138003319 Page 4 of74 1. TEST RESULTS SUMMARY Table 1 Test Results Summary FCC Measuremen t Specification FCC Limits Part(s) Description Result 2.1046 22.913 24.232 Effective Radiated Power of Transmitter PASS 2.1046 22.913 24.232(b) Conducted Power of Transmitter PASS 2.1046 24.232(d) Peak to Average Radio PASS 2.1047 / Modulation Characteristics PASS 2.1049 22.917(b) 24.238(b) Occupied Bandwidth PASS 2.1051 22.917 24.238 Spurious Emission at Antenna Terminal PASS 2.1053 22.917 24.238 Radiated Spurious Emissions PASS 2.1055 22.355 24.235 Frequency Stability PASS CFR 47 (FCC) part 24 subpart E Remark: “N/A” means “Not applicable.” The tests documented in this report were performed in accordance with TIA-603-C, FCC CFR 47 Part 2, FCC CFR 47 Part 22 Part 24. Report No.: WT138003319 Page 5 of Re report No.: WT138003319 Page 5 of Re port No.: WT138003319 Page 5 of74 2. GENERAL INFO…

Text truncated - open the document above for the full version.

Test Position Photos Faceup position with 0cm gap Facedown position with 0cm gap Right side 1.0cm Left side 1.0cm Top side 0cm Bottom side 0cm

APPENDIX C. SETUP PHOTOGRAPHS ERP and EIRP Test Setup FCC Part 22H/24E Radiated Emission below 1GHz -Front -Rear FCC Part 22H/24E Radiated Emission above 1GHz -Front -Rear
