ZDED4ZQHD Wireless IP Camera

U U s s e e r r M M a a n n u u a a l l Outdoor IP Security Camera Model: D4Z V1.0 Table of Contents Security Warning .................................................................................................................................................. 1 1 Overview ........................................................................................................................................................... 2 1.1 Key Features ........................................................................................................................................... 2 1.2 Read before Use ..................................................................................................................................... 3 1.3 Packing Contents .................................................................................................................................... 3 1.4 Physical Description................................................................................................................................ 3 1.5 SD Card Management ............................................................................................................................ 4 1.6 Wall Installation ....................................................................................................................................... 4 2 Access the IP Camera in Foscam App .............................................................................................................. 6 2.1 Setting Up Your Camera:Wired Connection via Foscam App ................................................................ 6 2.2 Foscam APP Surveillance Window ........................................................................................................ 7 2. 3 Watch Live ............................................................................................................................................. 8 3 Access the Camera in the Web ......................................................................................................................... 9 3.1 Hardware Connection & Software Installation ........................................................................................ 9 3.2 Access the Camera in LAN ................................................................................................................... 10 3.3 Access the Camera in WAN.................................................................................................................. 11 3.4 Using the VLC Player ........................................................................................................................... 12 3.5 IP Camera Connection to the Server .................................................................................................... 14 3.6 Surveillance Software GUI .................................................................................................................... 14 3.7 Advanced Camera Settings .................................................................................................................. 23 3.8 Playback ................................................................................................................................................ 56 4 Surveillance Software Foscam VMS ............................................................................................................... 59 4.1 Hardware Connection & Software Installation ...................................................................................... 59 4.2 Software Installation .............................................................................................................................. 59 4.3 Create Acount ....................................................................................................................................... 60 4.4 Add Device ............................................................................................................................................ 61 4.5 Surveillance Software GUI .................................................................................................................... 64 4.6 Advanced Camera Settings .................................................................................................................. 70 5 Appendix ........................................................................................................................................................ 104 5.1 Frequently Asked Questions ............................................................................................................... 104 5.2 Default Parameters ............................................................................................................................. 110 5.3 Specification ........................................................................................................................................ 110 5.4 CE & FCC ............................................................................................................................................ 111 5.5 WARRANTY ........................................................................................................................................ 112 5.6 Statement ............................................................................................................................................ 114 6 Obtaining Technical Support ......................................................................................................................... 116 1 Security Warning  Please change the password of your camera regularly, using a combination of numbers, letters and special characters.  We recommend that you regularly update your camera to the latest available software and firmware versions to help ensure the best experience for your camera. 1 Overview Foscam Outdoor IP Security Camera is an integrated IP Camera with a color CMOS sensor ena…

Text truncated - open the document above for the full version.

FCC Software Configuration Control Declaration Rev1.1 ShenZhen Foscam Intelligent Technology Co., Limited FCC Software Configuration Control Declaration Date: 2020-05-06 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product Name: QHD Wireless IP Camera Model Numbers: D4Z, D4Z VX, MDS2040, MDS2040 VX, MDS2041, MDS2041VX, MDS2042 VX, MDS2043 VX, MDS2044VX, MDS2045 VX, Genie 3 VX, Foscam Genie 3 VX, D2*, D2* VX, D4* , D4* VX, PS4X** MDS4010, MDS4010VX, MDS4011 VX, MDS4012 VX, MDS4013VX, MDS4014 VX, MDS4015VX (Notes: V indicates the software version, x = 0, 1, 2, 3, 4, 5, 6, 7, 8, 9. When x = 0, V0 is blank by default, and * indicates the small version is identified by letters.) Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 Software Configuration Control v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: David Tu Date: 2020-05-06 Title: Manager Signature of applicant

ShenZhen Foscam Intelligent Technology Co., Limited Agent Authorization Company: ShenZhen Foscam Intelligent Technology Co., Limited Address: 9/F, Block F5, TCL International E City, No.1001 ZhongShanyuan Rd., NanShan District, Shenzhen, China Product Name: QHD Wireless IP Camera Trade Mark: FOSCAM Model Numbers: D4Z, D4Z VX, MDS2040, MDS2040 VX, MDS2041, MDS2041VX, MDS2042 VX, MDS2043 VX, MDS2044VX, MDS2045 VX, Genie 3 VX, Foscam Genie 3 VX, D2*, D2* VX, D4* , D4* VX, PS4X** MDS4010, MDS4010VX, MDS4011 VX, MDS4012 VX, MDS4013VX, MDS4014 VX, MDS4015VX (Notes: V indicates the software version, x = 0, 1, 2, 3, 4, 5, 6, 7, 8, 9. When x = 0, V0 is blank by default, and * indicates the small version is identified by letters.) FCC ID: ZDED4Z We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-05-06 Name: David Tu Title: Manager Company: ShenZhen Foscam Intelligent Technology Co., Limited

ShenZhen Foscam Intelligent Technology Co., Limited Add: 9/F, Block F5, TCL International E City, No.1001 ZhongShanyuan Rd., NanShan District, Shenzhen, China Tel: +86 0755-26745668-8230 Fax: +86 0755-26745668 Date: 2020-05-06 Dear Sir/Madam, We, ShenZhen Foscam Intelligent Technology Co., Limited Hereby declares the following statement , PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for marketing purpose: Product name: QHD Wireless IP Camera Models No.: D4Z, D4Z VX, MDS2040, MDS2040 VX, MDS2041, MDS2041VX, MDS2042 VX, MDS2043 VX, MDS2044VX, MDS2045 VX, Genie 3 VX, Foscam Genie 3 VX, D2*, D2* VX, D4* , D4* VX, PS4X** MDS4010, MDS4010VX, MDS4011 VX, MDS4012 VX, MDS4013VX, MDS4014 VX, MDS4015VX (Notes: V indicates the software version, x = 0, 1, 2, 3, 4, 5, 6, 7, 8, 9. When x = 0, V0 is blank by default, and * indicates the small version is identified by letters.) Sincerely, Client’s name / title : David Tu / Manager Contact information / address: 9/F, Block F5, TCL International E City, No.1001 ZhongShanyuan Rd., NanShan District, Shenzhen, China Tel: +86 0755-26745668-8230 Fax: +86 0755-26745668 E-Mail: [email protected]

ShenZhen Foscam Intelligent Technology Co., Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-05-06 Subject; Request for Confidentiality FCC ID: ZDED4Z To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: David Tu Title: Manager

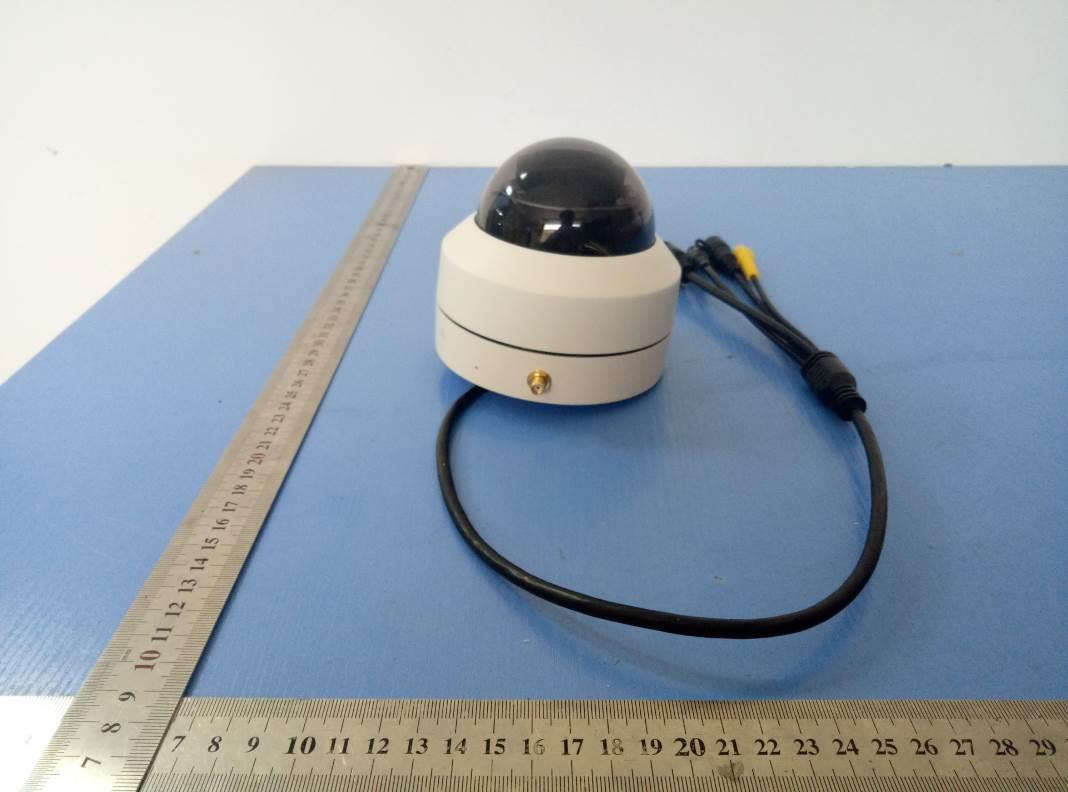

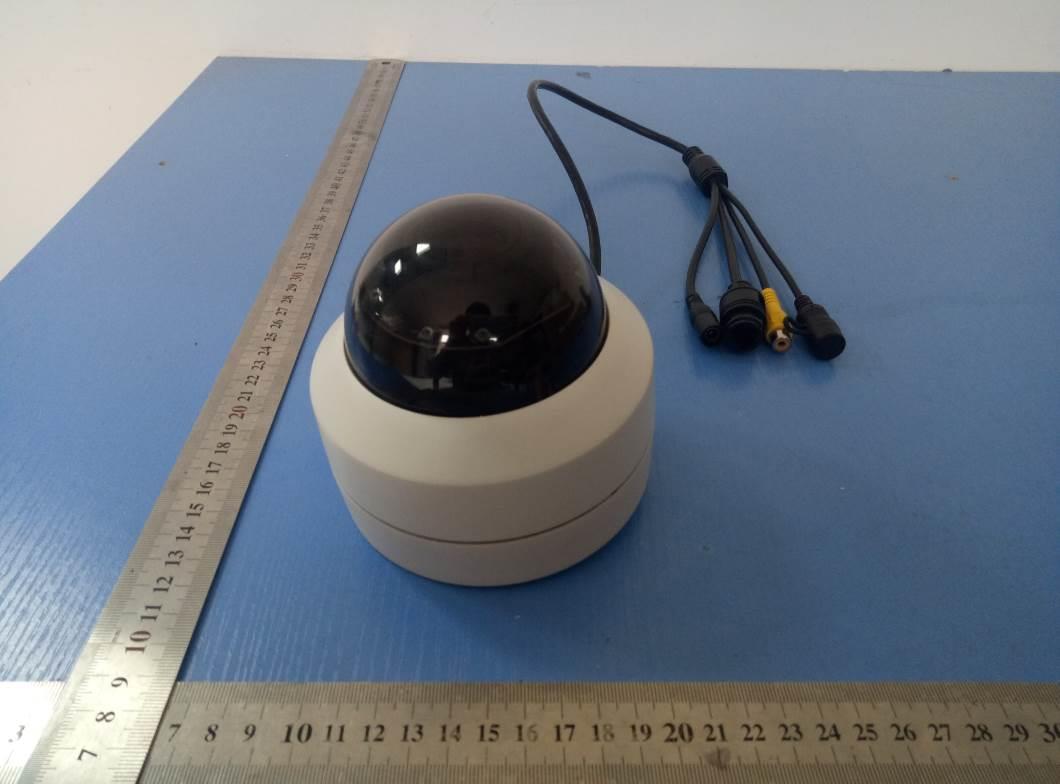

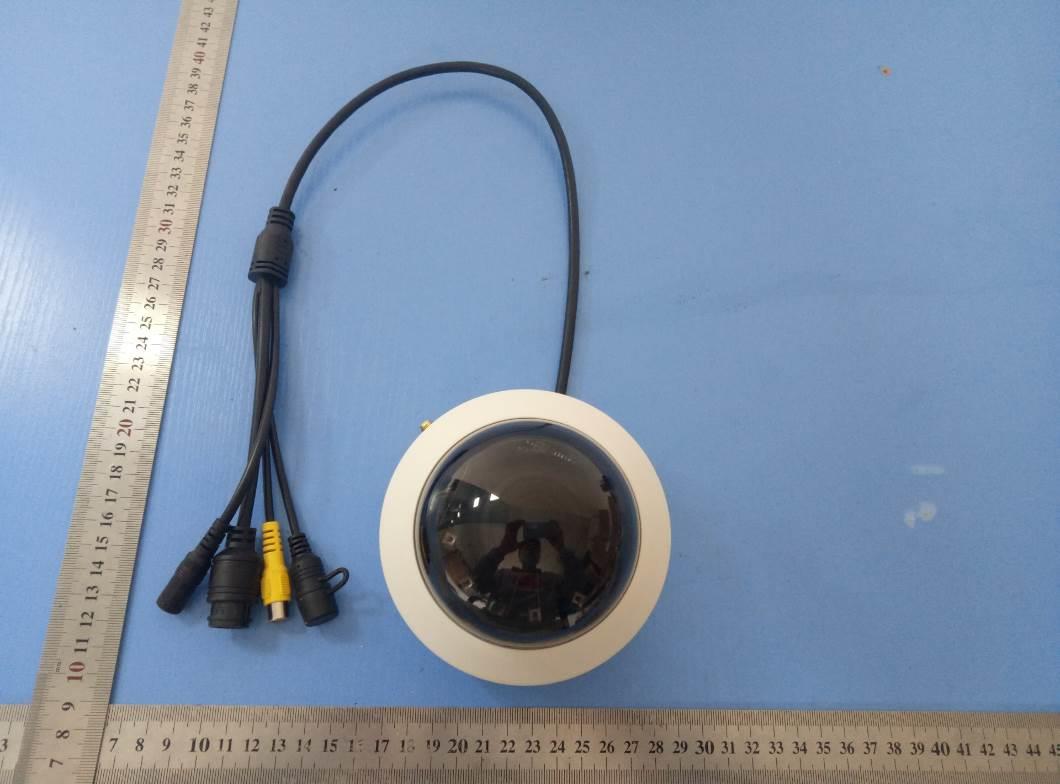

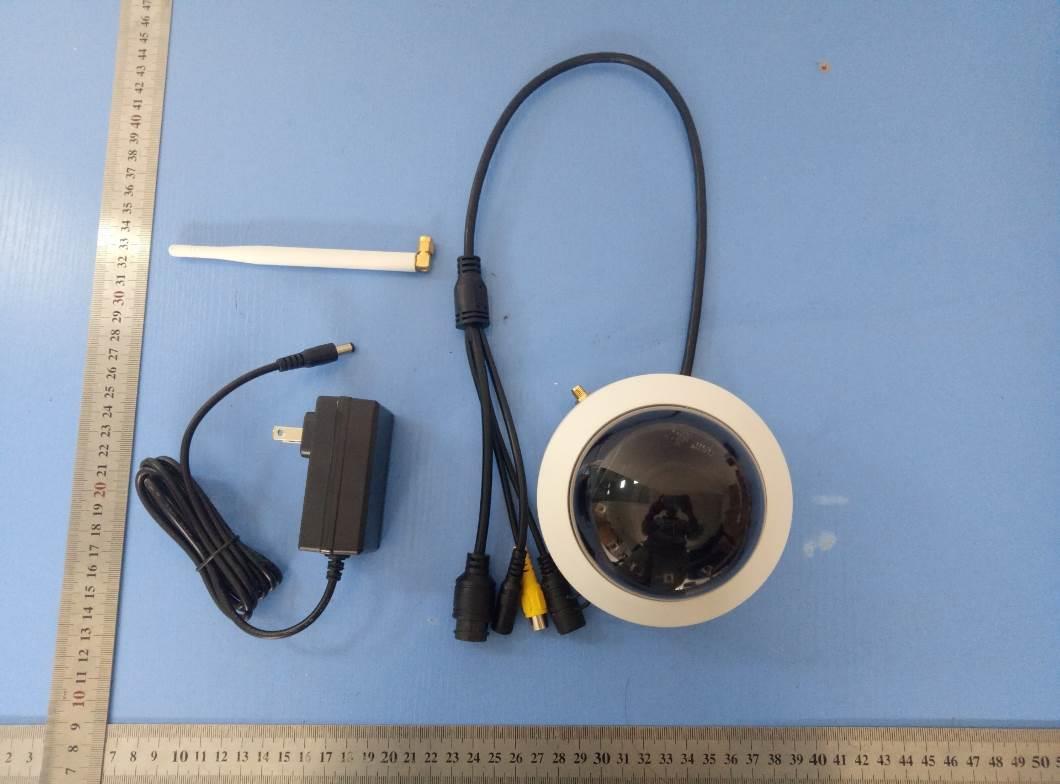

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 External Photos of the EUT Fig. 1 Fig. 2 WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 5 Fig. 9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L30mm x 25mm) Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 Internal Photos of the EUT Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 5 Fig. 9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 7 Maximum Permissible Exposure Report 1. Product Information FCC ID: ZDED4Z Product name QHD Wireless IP Camera Test Model D4Z Additional Model No. D4Z VX, MDS2040, MDS2040 VX, MDS2041, MDS2041VX, MDS2042 VX, MDS2043 VX, MDS2044VX, MDS2045 VX, Genie 3 VX, Foscam Genie 3 VX, D2*, D2* VX, D4* , D4* VX, PS4X** MDS4010, MDS4010VX, MDS4011 VX, MDS4012 VX, MDS4013VX, MDS4014 VX, MDS4015VX (Notes: V indicates the software version, x = 0, 1, 2, 3, 4, 5, 6, 7, 8, 9. When x = 0, V0 is blank by default, and * indicates the small version is identified by letters.) Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power supply For AC Adapter Input:100-240V~, 50/60Hz , 0.8A Max Output: 12V2A Operation frequency IEEE 802.11b:2412-2462MHz IEEE 802.11g:2412-2462MHz IEEE 802.11n HT20:2412-2462MHz IEEE 802.11n HT40:2422-2452MHz 5.2GHz Band:5180~5240MHz 5.8GHz Band:5745~5825MHz Modulation Type IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK) IEEE 802.11g: OFDM(64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK,BPSK) IEEE 802.11a/n/ac: OFDM(64QAM, 16QAM, QPSK, BPSK) Channel Number 11 Channels for 20MHz bandwidth(2412~2462MHz) 7 Channels for 40MHz bandwidth(2422~2452MHz) 4 channels for 20MHz bandwidth(5180MHz-5240MHz) 2 channels for 40MHz bandwidth(5190MHz~5230MHz) 1 channels for 80MHz bandwidth(5210MHz) 5 channels for 20MHz bandwidth(5745MHz-5825MHz) 2 channels for 40MHz bandwidth(5755MHz~5795MHz) 1 channels for 80MHz bandwidth(5775MHz) Antenna Type External Antenna Antenna Gain 2.0dBi (Max.) Hardware version / Software version / Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Fixed Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 7 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: Fixed devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 7 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information ES-D4 can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Notes Antenna External Antenna 2400~5850MHz 2.0 dBi WiFi Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Pa…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 1 of 41 Appendix B RF Test Data for 5.2G WLAN (Conducted Measurement) Product Name: QHD Wireless IP Camera Trade Mark: FOSCAM Test Model: D4Z Environmental Conditions Temperature: 22.8  C Relative Humidity: 54.5% ATM Pressure: 100.0 kPa Test Engineer: SCOUT WU Supervised by: Tom.Liu B.1 Duty Cycle Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5200 100 0.00 0.01 11N20 SISO 5200 100 0.00 0.01 11N40 SISO 5190 100 0.00 0.01 11AC20 SISO 5200 100 0.00 0.01 11AC40 SISO 5190 100 0.00 0.01 11AC80 SISO 5210 100 0.00 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 2 of 41 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 3 of 41 IEEE 802.11n HT40 IEEE 802.11AC20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 4 of 41 IEEE 802.11 AC40 IEEE 802.11AC80 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 5 of 41 B.2 Maximum Conduct Output Power Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor( dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 36 5180 11.02 0 11.02 24 Pass 40 5200 10.94 0 10.94 Pass 48 5240 10.28 0 10.28 Pass 11N20 SISO 36 5180 11.34 0 11.34 24 Pass 40 5200 12.56 0 12.56 Pass 48 5240 11.15 0 11.15 Pass 11N40 SISO 38 5190 11.43 0 11.43 24 Pass 46 5230 10.83 0 10.83 Pass 11AC20 SISO 36 5180 11.23 0 11.23 24 Pass 40 5200 11.37 0 11.37 Pass 48 5240 10.12 0 10.12 Pass 11AC40 SISO 38 5190 11.39 0 11.39 24 Pass 46 5230 10.56 0 10.56 Pass 11AC80 SISO 42 5210 11.33 0 11.33 24 Pass Maximum Conducted Output Power IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 6 of 41 IEEE 802.11a / Channel 40 / 5200MHz IEEE 802.11a / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 7 of 41 Maximum Conducted Output Power IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 8 of 41 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 9 of 41 Maximum Conducted Output Power IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 10 of 41 IEEE 802.11ac20 / Channel 36 / 5180MHz IEEE 802.11ac20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 11 of 41 IEEE 802.11ac20 / Channel 48 / 5240MHz IEEE 802.11ac40 / Channel 38 / 5190MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 12 of 41 IEEE 802.11ac40 / Channel 46 / 5230MHz IEEE 802.11ac80 / Channel 42 / 5210MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 13 of 41 B.3 Power Spectral Density Test Mode Channe l Frequenc y (MHz) Power Density (dBm/MHz) Duty Cycle Factor(d B) Report Power Density (dBm/MHz) Limit (dBm/MH z) Verdic t 11A 36 5180 0.17 0 0.17 11 Pass 40 5200 0.00 0 0.00 Pass 48 5240 -0.61 0 -0.61 Pass 11N2 0 SISO 36 5180 -0.24 0 -0.24 11 Pass 40 5200 1.82 0 1.82 Pass 48 5240 -0.29 0 -0.29 Pass 11N4 0 SISO 38 5190 -2.82 0 -2.82 11 Pass 46 5230 -3.44 0 -3.44 Pass 11AC 20 SISO 36 5180 0.06 0 0.06 11 Pass 40 5200 0.07 0 0.07 Pass 48 5240 -0.82 0 -0.82 Pass 11AC 40 SISO 38 5190 -2.68 0 -2.68 11 Pass 46 5230 -3.33 0 -3.33 Pass 11AC 80 SISO 42 5210 -4.80 0 -4.80 11 Pass Power Spectral Density IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 14 of 41 IEEE 802.11na / Channel 40 / 5200MHz IEEE 802.11na / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 15 of 41 Power Spectral Density IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 16 of 41 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 17 of 41 Power Spectral Density IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 18 of 41 IEEE 802.11ac20 / Channel 36 / 5180MHz IEEE 802.11ac20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 19 of 41 IEEE 802.11ac20 / Channel 48 / 5240MHz IEEE 802.11ac40 / Channel 38 / 5190MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 20 of 41 IEEE 802.11ac40 / Channel 46 / 5230MHz IEEE 802.11ac80 / Channel 42 / 5210MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 21 of 41 B.4 Emission Bandwidth Test Mode Channel Frequency (MHz) 26dB Bandwidth (MHz) Limit (MHz) Verdict 11A 36 5180 20.36 No Limit Pass 40 5200 20.68 Pass 48 5240 20.79 Pass 11N20 SISO 36 5180 21.31 No Limit Pass 40 5200 21.04 Pass 48 5240 21.44 Pass 11N40 SISO 38 5190 42.32 No Limit Pass 46 5230 41.82 Pass 11AC20 SISO 36 5180 21.21 No Limi Pass 40 5200 21.23 Pass 48 5240 21.21 Pass 11AC40 SISO 38 5190 41.76 No Limi Pass 46 5230 41.94 Pass 11AC80 SISO 42 5210 83.07 No Limi Pass 26dB Bandwidth IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEB Page 22 of 41 IEEE 802.11a / Channel…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEC Page 1 of 43 Appendix C RF Test Data for 5.8G WLAN (Conducted Measurement) Product Name: QHD Wireless IP Camera Trade Mark: FOSCAM Test Model: D4Z Environmental Conditions Temperature: 22.8  C Relative Humidity: 54.5% ATM Pressure: 100.0 kPa Test Engineer: Scout Wu Supervised by: Tom.Liu C.1 Duty Cycle Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5785 100 0.00 0.01 11N20 SISO 5785 100 0.00 0.01 11N40 SISO 5755 100 0.00 0.01 11AC20 SISO 5785 100 0.00 0.01 11AC40 SISO 5755 100 0.00 0.01 11AC80 SISO 5775 100 0.00 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEC Page 2 of 43 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEC Page 3 of 43 IEEE 802.11n HT40 IEEE 802.11AC20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEC Page 4 of 43 IEEE 802.11AC40 IEEE 802.11AC80 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEC Page 5 of 43 C.2 Maximum Conduct Output Power Test Mode Channe l Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor(dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 149 5745 10.22 0 10.22 30 Pass 157 5785 10.23 0 10.23 Pass 165 5825 10.53 0 10.53 Pass 11N20 SISO 149 5745 11.68 0 11.68 30 Pass 157 5785 11.45 0 11.45 Pass 165 5825 10.82 0 10.82 Pass 11N40 SISO 151 5755 10.58 0 10.58 30 Pass 159 5795 11.00 0 11.00 Pass 11AC20 SISO 149 5745 11.23 0 11.23 30 Pass 157 5785 11.37 0 11.37 Pass 165 5825 10.12 0 10.12 Pass 11AC40 SISO 151 5755 11.39 0 11.39 30 Pass 159 5795 10.56 0 10.56 Pass 11AC80 SISO 155 5775 10.56 0 10.56 30 Pass Maximum Conducted Output Power IEEE 802.11a / Channel 149 / 5745MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEC Page 6 of 43 IEEE 802.11a / Channel 157 / 5785MHz IEEE 802.11a / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEC Page 7 of 43 Maximum Conducted Output Power IEEE 802.11n20 / Channel 149 / 5745MHz IEEE 802.11n20 / Channel 157 / 5785MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEC Page 8 of 43 IEEE 802.11n20 / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEC Page 9 of 43 Maximum Conducted Output Power IEEE 802.11n40 / Channel 151 / 5755MHz IEEE 802.11n40 / Channel 159 / 5795MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEC Page 10 of 43 IEEE 802.11ac20 / Channel 149 / 5745MHz IEEE 802.11ac20 / Channel 157 / 5785MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEC Page 11 of 43 IEEE 802.11ac20 / Channel 165/ 5825MHz IEEE 802.11ac40 / Channel 151 / 5755MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEC Page 12 of 43 IEEE 802.11ac40 / Channel 159 / 5795MHz IEEE 802.11ac80 / Channel 155 / 5775MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZDED4Z Report No.: LCS200225105AEC Page 13 of 43 C.3 Power Spectral Density Test Mode Channel Frequency (MHz) Power Density (dBm/300KHz) Duty Cycle Factor (dB) RBW Factor (dB) Report Power Density (dBm/500KHz) Limit (dBm/500KHz) Verdict 11A 149 5745 -4.84 0 2.218 -2.62 30 Pass 157 5785 -3.83 0 2.218 -1.61 Pass 165 5825 -4.42 0 2.218 -2.20 Pass 11N20 SISO 149 5745 …

Text truncated - open the document above for the full version.
