ZDEFI8919WWireless Outdoor Pan/Tilt IP Camera

User User Manual Manual Model: FI8919W Outdoor Pan/Tilt Wireless IP Camera 1 w w ww.foscam.co ww.foscam.co m m Shenzhen Shenzhen Foscam Foscam Intelligent Intelligent Technology Technology Co., Co., Limited Limited Tel: Tel: 86 86 755 755 2674 2674 5668 5668 Fax: Fax: 86 86 755 755 2674 2674 5168 5168 1 Table of Contents 1 1 Overviews Overviews................................................................................................................................................2 1.1 1.1 Key Key Features Features.......................................................................................................................................................................3 1.2 1.2 Read Read Before Before Use Use................................................................................................................................................................3 1.3 1.3 Packing Packing Contents Contents...............................................................................................................................................................4 1.4 1.4 Physical Physical Description Description..........................................................................................................................................................4 2 2 Surveillance Surveillance Software Software GUI GUI..................................................................................................................7 2.1 2.1 Login Login Window Window.....................................................................................................................................................................7 2.2 Surveillance Window.........................................................................................................................................................9 3 3 Advanced Advanced Camera Camera Settings Settings..............................................................................................................16 3.1 Device Status....................................................................................................................................................................16 3.2 3.2 Alias Settings....................................................................................................................................................................18 3.3 3.3 Date & Time Settings.......................................................................................................................................................18 3.4 3.4 User User Settings Settings....................................................................................................................................................................19 3.5 Multi-Device Settings.......................................................................................................................................................20 3.6 3.6 Basic Network Settings...................................................................................................................................................26 3.7 3.7 Wireless Wireless Settings Settings.............................................................................................................................................................29 3.8 3.8 ADSL ADSL..................................................................................................................................................................................33 3.9 3.9 UPnP Settings..................................................................................................................................................................34 3.10 DDNS Service Settings.................................................................................................................................................35 3.11 Mail Service Settings.....................................................................................................................................................40 3.12 MSN Setting....................................................................................................................................................................41 3.13 FTP Service Settings.....................................................................................................................................................43 3.14 Alarm Service Settings..................................................................................................................................................46 3.15 PT Settings.....................................................................................................................................................................52 3.16 Upgrade Device Firmware............................................................................................................................................53 3.17 Backup & Restore Settings..........................................................................................................................................55 3.18 Restore Factory Settings..............................................................................................................................................55 3.19 Reboot Device................................................................................................................................................................56 3.20 Log...................................................................................................................................................................................56 3.21 Back.................................................................................................................................................................................56 4 4 APPENDIX APPENDIX...............................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Heng Xing Long Metal Product Co., LTD Plant 8, Tangkou Road, Shanxia Comm, Pinghu Street, Longgang district, Shenzhen, China ----------------------------------------------------------------------------------------------------------------------------------- Date: Sep 24, 2014 Federal Communications Commission Authorization and Evaluation Division FCC ID: ZDEFI8919W ATTESTATION FCC ID: ZDEFI8919W Product: Wireless SD Outdoor IP Camera Model: FI8919W, FC8315W We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Model Difference: The different of models only for marketing different client, the other was the same. Sincerely, Date: 2014-09-24

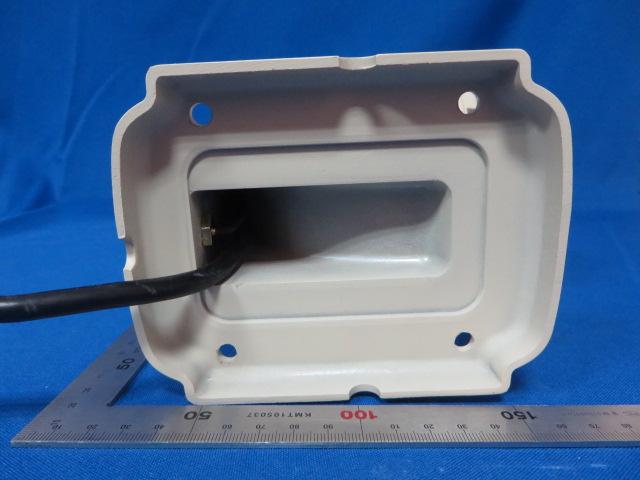

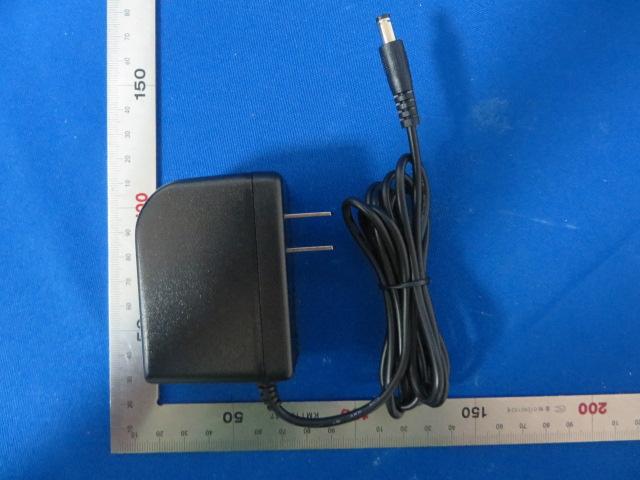

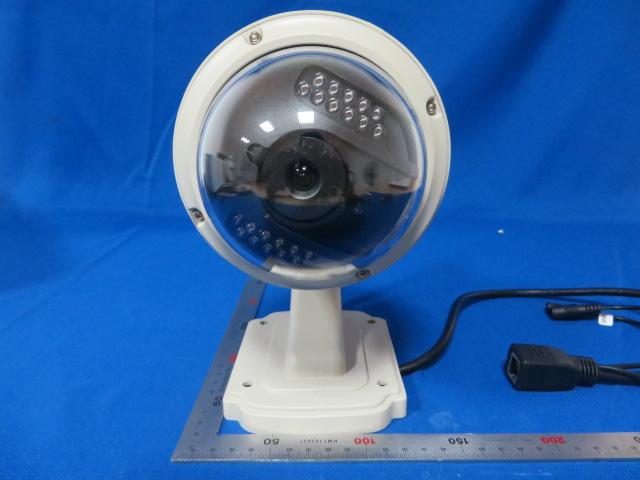

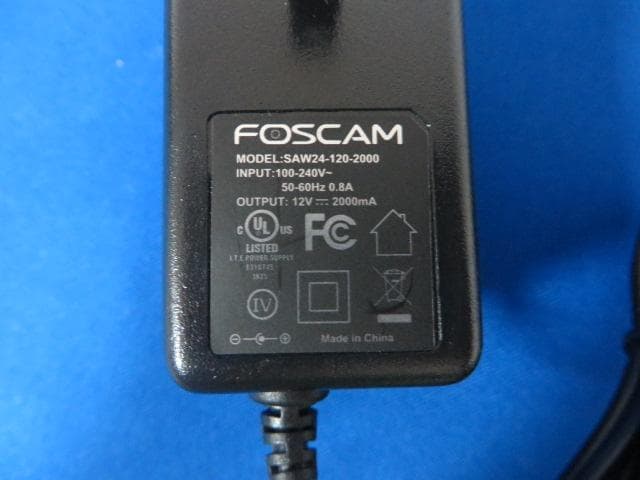

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo

Label Label Location M/N: FI8919W Made in china FCC ID: ZDEFI8919W

Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo (13) EUT Photo (14) EUT Photo (15) EUT Photo (16) EUT Photo (17) EUT Photo (18) EUT Photo (19) EUT Photo (20) EUT Photo (21) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1409RSU03302 Phone: +86-512-66308358 Report Version: V02 Fax: +86-512-66308368 Issue Date: 10-08-2014 Web: www.mrt-cert.com FCC ID: ZDEFI8919W Page Number: 1 of 4 RF Exposure Evaluation Declaration FCC ID: ZDEFI8919W APPLICANT: ShenZhen Foscam Intelligent Technology Co., Ltd. Application Type: Certification Product: Wireless Outdoor Pan/Tilt IP Camera Model No.: FI8919W, FC8315W Brand Name: FCC Classification: Digital Transmission System (DTS) Test Date: Sept. 22 ~ 29, 2014 Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1409RSU03302 FCC ID: ZDEFI8919W Page Number: 2 of 4 Revision History Report No. Version Description Issue Date 1409RSU03302 Rev. 01 Initial report 09-29-2014 1409RSU03302 Rev. 02 Update the product name 10-08-2014 Report No.: 1409RSU03302 FCC ID: ZDEFI8919W Page Number: 3 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1409RSU03302 FCC ID: ZDEFI8919W Page Number: 4 of 4 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°C and 78% RH. 1.3. Test Result of RF Exposure Evaluation Product Wireless Outdoor Pan/Tilt IP Camera Test Item RF Exposure Evaluation Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.1dBi for 2.4GHz in logarithm scale. Output Power into Antenna: Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) 802.11b 2412 ~ 2462 9.44 0.0028 1 802.11g 2412 ~ 2462 9.51 0.0029 1 802.11n-HT20 2412 ~ 2462 9.54 0.0029 1 802.11n-HT40 2422 ~ 2452 9.34 0.0028 1 CONCULISON: So the EUT complies with the requirement. The End

Report No.: 1409RSU03301 FCC ID: ZDEFI8919W Page Number: 28 of 60 7.5. Conducted Band Edge and Out-of-Band Emissions 7.5.1. Test Limit The limit for out-of-band spurious emissions at the band edge is 20dB below the fundamental emission level, as determined from the in-band power measurement of the DTS channel performed in a 100kHz bandwidth per the PSD procedure (Section 9.1). 7.5.2. Test Procedure Used KDB 558074 D01v03r02 - Section 11.2 & Section 11.3 7.5.3. Test Settitng 1. Reference level measurement (a) Set instrument center frequency to DTS channel center frequency (b) Set the span to ≥ 1.5 times the DTS bandwidth (c) Set the RBW = 100 kHz (d) Set the VBW ≥ 3 x RBW (e) Detector = peak (f) Sweep time = auto couple (g) Trace mode = max hold (h) Allow trace to fully stabilize 2. Emission level measurement (a) Set the center frequency and span to encompass frequency range to be measured (b) RBW = 100kHz (c) VBW = 300kHz (d) Detector = Peak (e) Number of sweep points ≥ 2 x Span/RBW (f) Trace mode = max hold (g) Sweep time = auto couple Report No.: 1409RSU03301 FCC ID: ZDEFI8919W Page Number: 29 of 60 (h) The trace was allowed to stabilize 7.5.4. Test Setup Report No.: 1409RSU03301 FCC ID: ZDEFI8919W Page Number: 30 of 60 7.5.5. Test Result Test Mode Data Rate (Mbps) Channel No. Frequency (MHz) Limit Result 802.11b 1 01 2412 20dBc Pass 802.11b 1 06 2437 20dBc Pass 802.11b 1 11 2462 20dBc Pass 802.11g 6 01 2412 20dBc Pass 802.11g 6 06 2437 20dBc Pass 802.11g 6 11 2462 20dBc Pass 802.11n-HT20 6.5 01 2412 20dBc Pass 802.11n-HT20 6.5 06 2437 20dBc Pass 802.11n-HT20 6.5 11 2462 20dBc Pass 802.11n-HT40 13.5 03 2422 20dBc Pass 802.11n-HT40 13.5 06 2437 20dBc Pass 802.11n-HT40 13.5 09 2452 20dBc Pass 802.11b Out-of-Band Emissions Channel 01 (2412MHz) 100kHz PSD reference Level Low Band Edge Report No.: 1409RSU03301 FCC ID: ZDEFI8919W Page Number: 31 of 60 Spurious Emission 30MHz ~ 25GHz Channel 06 (2437MHz) 100kHz PSD reference Level Spurious Emission 30MHz ~ 25GHz Channel 11 (2462MHz) 100kHz PSD reference Level High Band Edge Report No.: 1409RSU03301 FCC ID: ZDEFI8919W Page Number: 32 of 60 Spurious Emission 30MHz ~ 25GHz 802.11g Out-of-Band Emissions Channel 01 (2412MHz) 100kHz PSD reference Level Low Band Edge Spurious Emission 30MHz ~ 25GHz Report No.: 1409RSU03301 FCC ID: ZDEFI8919W Page Number: 33 of 60 Channel 06 (2437MHz) 100kHz PSD reference Level Spurious Emission 30MHz ~ 25GHz Channel 11 (2462MHz) 100kHz PSD reference Level High Band Edge Spurious Emission 30MHz ~ 25GHz Report No.: 1409RSU03301 FCC ID: ZDEFI8919W Page Number: 34 of 60 802.11n-HT20 Out-of-Band Emissions Channel 01 (2412MHz) 100kHz PSD reference Level Low Band Edge Spurious Emission 30MHz ~ 25GHz Channel 06 (2437MHz) 100kHz PSD reference Level Spurious Emission 30MHz ~ 25GHz Report No.: 1409RSU03301 FCC ID: ZDEFI8919W Page Number: 35 of 60 Channel 11 (2462MHz) 100kHz PSD reference Level High Band Edge Spurious Emission 30MHz ~ 25GHz 802.11n-HT40 Out-of-Band Emissions Channel 03 (2422MHz) 100kHz PSD reference Level Low Band Edge Report No.: 1409RSU03301 FCC ID: ZDEFI8919W Page Number: 36 of 60 Spurious Emission 30MHz ~ 25GHz Channel 06 (2437MHz) 100kHz PSD reference Level Spurious Emission 30MHz ~ 25GHz Channel 09 (2452MHz) 100kHz PSD reference Level High Band Edge Report No.: 1409RSU03301 FCC ID: ZDEFI8919W Page Number: 37 of 60 Spurious Emission 30MHz ~ 25GHz Report No.: 1409RSU03301 FCC ID: ZDEFI8919W Page Number: 38 of 60 7.6. Radiated Spurious Emission Measurement 7.6.1. Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [V/m] Measured Distance [Meters] 0.009 – 0.490 2400/F (kHz) 300 0.490 – 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.6.2. Test Procedure Used KDB 558074 D01v03r02 – Section 12.2.3 (quasi-peak measurements) KDB 558074 D01v03r02 – Section 12.2.4 (peak power measurements) KDB 558074 D01v03r02 – Section 12.2.5 (average power measurements) 7.6.3. Test Setting Peak Field Strength Measurements per Section 12.2.4 of KDB 558074 D01v03r02 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = as specified in Table 1 3. VBW = 3MHz 4. Detector = peak 5. Sweep time = auto couple Report No.: 1409RSU03301 FCC ID: ZDEFI8919W Page Number: 39 of 60 6. Trace mode = max hold 7. Trace was allowed to stabilize Table 1—RBW as a function of frequency Frequency RBW 9 ~ 150 kHz 200 ~ 300 Hz 0.15 ~ 30 MHz 9 ~ 10 kHz 30 ~ 1000 MHz 100 ~ 120 kHz > 1000 MHz 1 MHz Average Field Strength Measurements per Section 12.2.5.1 of KDB 558074 D01v03r02 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW ≥ 1/T 4. De As an alternative, the instrument may be set to linear detector mode. Ensure that video filtering is applied in linear voltage domain (rather than in a log or dB domain). Some instruments require linear display mode in order to accomplish this. Others have a setting for Average-VBW Type, which can be set to “Voltage” regardless of the display mode 5. Detector = Peak 6. Sweep time = auto 7. Trace mode = max hold 8. Allow max hold to run for at least 50 times (1/duty cycle) traces Report No.: 1409RSU03301 FCC ID: ZDEFI8919W Page Number: 40 of 60 7.6.4. Test Setup 9kHz ~ 30MHz Test Setup: 30MHz ~ 1GHz Test Setup: Report No.: 1409RSU03301 FCC ID: ZDEFI8919W Page Number: 41 of 60 1GHz ~ 25GHz Test Setup: Report No.: 1409RSU03301 FCC ID: ZDEFI8919W Page Number: 42 of 60 7.6.5. Test Result Test Mode: 802.11b Test Site: AC1 Test Channel: 01 Test Engineer: Milo Li Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. The worst case of Radiated Spurious Emission. 3. Other frequency was 20dB below limit line within 1-18GHz, the…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 1409RSU03301 Phone: +86-512-66308358 Report Version: V02 Fax: +86-512-66308368 Issue Date: 10-08-2014 Web: www.mrt-cert.com FCC ID: ZDEFI8919W Page Number: 1 of 60 FCC ID: ZDEFI8919W APPLICANT: ShenZhen Foscam Intelligent Technology Co., Ltd. Application Type: Certification Product: Wireless Outdoor Pan/Tilt IP Camera Model No.: FI8919W, FC8315W Brand Name: FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): ANSI C63.10-2009, KDB 558074 D01v03r02 Test Date: Sep. 22 ~ 29, 2014 MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11b/g/n Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 D01v03r02. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1409RSU03301 FCC ID: ZDEFI8919W Page Number: 2 of 60 Revision History Report No. Version Description Issue Date 1409RSU03301 Rev. 01 Initial report 09-29-2014 1409RSU03301 Rev. 02 Update the product name 10-08-2014 Report No.: 1409RSU03301 FCC ID: ZDEFI8919W Page Number: 3 of 60 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .................................................................................................. 7 2.2. Device Capabilities ....................................................................................................... 8 2.3. Test Configuration ........................................................................................................ 8 2.4. EMI Suppression Device(s)/Modifications ..................................................................... 8 2.5. Labeling Requirements ................................................................................................. 8 2.6. Test Software ............................................................................................................... 8 2.7. Description of Support Units ......................................................................................... 9 3. DESCRIPTION OF TEST ...................................................................................................... 10 3.1. Evaluation Procedure ................................................................................................. 10 3.2. AC Line Conducted Emissions ................................................................................... 10 3.3. Radiated Emissions ..................................................................................................... 11 4. ANTENNA REQUIREMENTS ................................................................................................ 12 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 13 6. MEASUREMENT UNCERTAINTY ......................................................................................... 14 7. TEST RESULT ...................................................................................................................... 15 7.1. Summary .................................................................................................................... 15 7.2. 6dB Bandwidth Measurement ..................................................................................... 16 7.2.1. Test Limit ................................................................................................................ 16 7.2.2. Test Procedure used ............................................................................................... 16 7.2.3. Test Setting ............................................................................................................. 16 7.2.4. Test Setup ............................................................................................................... 16 7.2.5. Test Result .............................................................................................................. 17 7.3. Output Power Measurement ....................................................................................... 21 7.3.1. Test Limit ................................................................................................................ 21 7.3.2. Test Procedure Used .............................................................................................. 21 7.3.3. Test Setting ............................................................................................................. 21 7.3.4. Test Setup ............................................................................................................... 21 7.3.5. Test Result of Output Power ................................................................................... 22 Report No.: 1409RSU03301 FCC ID: ZDEFI8919W Page Number: 4 of 60 7.4. Power Spectral Density Measurement ........................................................................ 23 7.4.1. Test Limit ........................................................................................…

Text truncated - open the document above for the full version.

1 of 3 Test Setup Photo Description: Front View of the Conducted Emission Test Setup for 0.15kHz ~ 30MHz Description: Back View of the Conducted Emission Test Setup for 0.15kHz ~ 30MHz Description: Radiated Emission Test Setup for 9kHz ~ 30MHz Description: Radiated Emission Test Setup for 30MHz ~ 1GHz Description: Radiated Emission Test Setup for 1GHz ~ 18GHz Description: Radiated Emission Test Setup for 18GHz ~ 40GHz
