ShenZhen Foscam Intelligent Technology Co., Ltd. 5/F, Block 1,Vision Business Park, Nanshan District, Shenzhen, PRC Date: 07/25/2013 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, The testing model of our ShenZhen Foscam Intelligent Technology Co., Ltd. brand of FCC approval is FI9821W and we have models or brands for listed. We hereby certify that the interior structure, electrical circuit and schematics of the listed models are the same as the testing model except the below list. And just for the marketing requirement. Our listed models is as follows: Product name: Indoor HD Pan/Tilt Wireless IP Camera Brand: Foscam Model: FI9821P/HD816W/HD816P/FI9831W/FI9831P/HD817W/HD817P FCC ID: ZDEFI9821W Your assistance on this mater is highly appreciated. Company Officer: XU YIDONG

信达电子技术(深圳)有限公司 SinTek Laboratory Co.,Ltd. TEL: 0755-27608353; 27604866; 27607544 FAX: 0755-27608359 Test Lab Attestation Letter This attestation is to confirm that the below listed device was tested at our Test Facilities located at: Test Lab Name: Test Lab Address: Test Lab Registration Number: Date of Test: Test Report Number: Applicant Name: FCC ID: Name of Engineer(s) Performing Test: Company Name of Engineer(s) Performing Test: SinTek Laboratory Co., Ltd. No.7, Xinshidai Industrial, Guantian Village,,Shiyan Town, Bao’an District, Shenzhen, Guangdong, 518108 China 963441 July 3~July 25, 2013 KSZ2013070201J & KSZ2013070201J01 ShenZhen Foscam Intelligent Technology Co., Ltd. ZDEFI9821W Eric Guo Ke Mei Ou Laboratory Co., Ltd. TEST LABORATORY: Signature of Authorized Representative of the Test Laboratory: Full Contact Name: Salon Ouyang Position/Title: Manager Address:深圳宝安区石岩镇官田村新时代工业区

FI9821W EUT top view EUT bottom view FI9831W EUT top view EUT bottom view

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper label. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location FCC ID: ZDEFI9821W

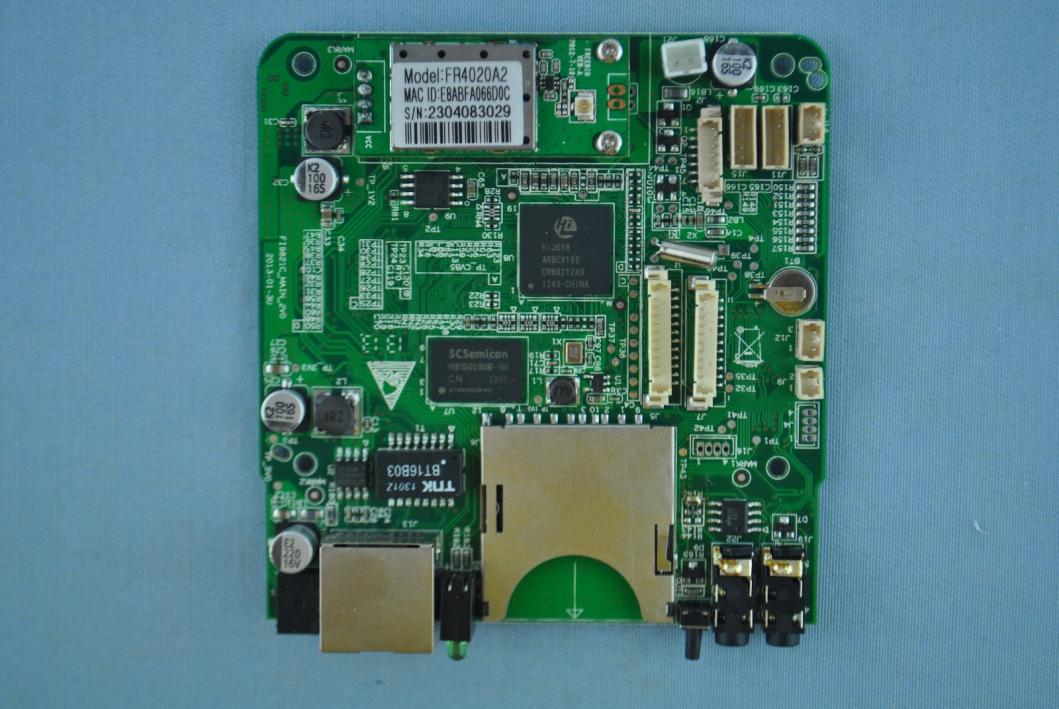

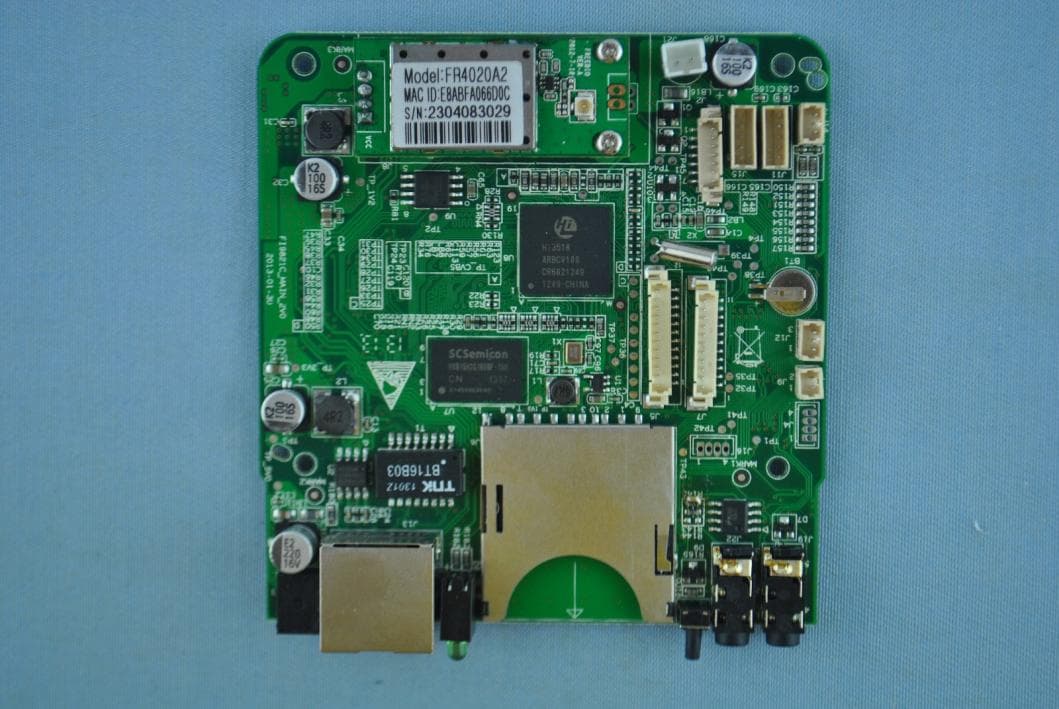

EUT inside whole view Main & RF board component side Crystal 1 Crystal 2 RF Module Main & RF board solder side Crystal 3

7. RF Exposure Requirements 7. 1 Test Equipment Please refer to Section 10 this report. 7. 2 Limit According to FCC 15.247(i), Systems operating under provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commissions guidelines. FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b)(1) of this chapter. 7. 3 Test Result Product : Indoor HD Pan/Tilt Wireless IP Camera Test Mode : IEEE 802.11b/g/n Test Item : RF Exposure Temperature : 25 °C Test Voltage : DC 5V (Power by DC Power Supply) Humidity : 56%RH Test Result : PASS FCC ID: ZDEFI9821W Evaluation of RF Exposure Compliance Requirements MPE Prediction of MPE according to equation from page 19 of OET Bulletin 65, Edition 97-01 RF Exposure Requirements Compliance with FCC Rules S=PG/4∏R2 Where: S=Power density P=Power input to antenna G=Power gain of the antenna relative to an isotropic radiator R=Distance to the center of radiation of the antenna Maximum output power at antenna input terminal: 7.16 dBm = 5.20 mW (802.11b/g, 2412MHz) 2.24 dBm = 1.67 mW (802.11n, 2437MHz) Prediction distance: 20 cm Antenna gain : 2.00 dBi MPE limit for uncontrolled exposure at prediction frequency: 10 W/m 2 Power density at 20 cm: 802.11b/g: 0.00164 mW/cm 2 802.11n : 0.00051mW/cm 2

The test report consists 56 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under FCC 15 Subpart C, Paragraph 15.247 Operating in 2400 ~ 2483.5 MHz Band Prepared For : ShenZhen Foscam Intelligent Technology Co.,Ltd 5/F, Block 1,Vision Business Park, Nanshan District, Shenzhen, China FCC ID: ZDEFI9821W EUT: Indoor HD Pan/Tilt Wireless IP Camera Model: FI9821W July 25, 2013 Issue Date: Original Report Report Type: Test Engineer: Eric Guo Review By: Apollo Liu / Manager Ke Mei Ou Laboratory Co., Ltd. E506, 5th Floor, No.39 Keji Middle 2nd Rd, Science & Technology Park, Nanshan District, Shenzhen, P. R. China Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com ShenZhen Foscam Intelligent Technology Co.,Ltd FCC ID: ZDEFI9821W KMO FCC ID Report Report #: KSZ2013070201J Page 2 of 56 TABLE OF CONTENTS 1. General Information ........................................................................................................................................................... 3 1. 1 Notes ............................................................................................................................................................................... 3 1. 2 Testing Laboratory .......................................................................................................................................................... 3 1. 3 Details of Applicant ........................................................................................................................................................ 3 1. 4 Application Details ......................................................................................................................................................... 3 1. 5 Test Item ......................................................................................................................................................................... 3 1. 6 Test Standards ................................................................................................................................................................. 3 2. Technical Test ....................................................................................................................................................................... 4 2. 1 Summary of Test Results ................................................................................................................................................ 4 2. 2 Antenna Requirement ..................................................................................................................................................... 4 3. EUT Modifications .............................................................................................................................................................. 4 4. Conducted Power Line Test ................................................................................................................................................ 5 4. 1 Test Equipment ............................................................................................................................................................... 5 4. 2 Test Procedure ................................................................................................................................................................ 5 4. 3 Test Setup ....................................................................................................................................................................... 5 4. 4 Configuration of the EUT ............................................................................................................................................... 6 4. 5 EUT Operating Condition ............................................................................................................................................... 8 4. 6 Conducted Power Line Emission Limits ........................................................................................................................ 8 4. 7 Conducted Power Line Test Result ................................................................................................................................. 9 5. FCC Part 15.247 Requirements for 802.11b/g/n Systems ................................................................................................ 11 5. 1 Test Equipment ..............................................................................................................................................................11 5. 2 Test Procedure ...............................................................................................................................................................11 5. 3 Test Setup ......................................................................................................................................................................11 5. 4 Configuration of the EUT ..............................................................................................................................................11 5. 5 EUT Operating Condition ..............................................................................................................................................11 5. 6 Limit ............................................................................................................................................................................. 12 5. 7 Test Result .................................................................................................................................................................... 13 6. Transmitter Spurious Radiated Emission at 3 Meters .............................................…

Text truncated - open the document above for the full version.

Conducted emission test view Radiated emission test view
