ZDEFI9826WHD Wireless IP Camera

U U s s e e r r M M a a n n u u a a l l Model: FI9826W Indoor HD Pan/Tilt/Zoom Wireless IP Camera （For Windows & Mac OS） www.foscam.com S S h h e e n n z z h h e e n n F F o o s s c c a a m m I I n n t t e e l l l l i i g g e e n n t t T T e e c c h h n n o o l l o o g g y y C C o o . . , , L L i i m m i i t t e e d d T T e e l l : : 8 8 6 6 7 7 5 5 5 5 2 2 6 6 7 7 4 4 5 5 6 6 6 6 8 8 F F a a x x : : 8 8 6 6 7 7 5 5 5 5 2 2 6 6 7 7 4 4 5 5 1 1 6 6 8 8 Table of Contents 1 1 O O v v e e r r v v i i e e w w s s .......................................................................................................................................................1 1.1 Key Features.........................................................................................................................................1 1.2 Read Before Use...................................................................................................................................2 1.3 Packing Contents ..................................................................................................................................2 1.4 Physical Description..............................................................................................................................2 1.5 SD Card ................................................................................................................................................4 2 2 A A c c c c e e s s s s i i n n g g t t h h e e N N e e t t w w o o r r k k C C a a m m e e r r a a ......................................................................................................................5 2.1 Access the Camera in LAN ...................................................................................................................5 2.2 Access the Camera in WAN ..................................................................................................................8 2.3 Using the VLC player ..........................................................................................................................13 3 Surveillance Software GUI ............................................................................................................................16 3.1 Login Window......................................................................................................................................17 3.2 Surveillance Window...........................................................................................................................19 4 Advanced Camera Settings...........................................................................................................................27 4.1 Device Status ......................................................................................................................................27 4.2 Basic Settings .....................................................................................................................................29 4 4 . . 3 3 N N e e t t w w o o r r k k ...............................................................................................................................................40 4.4 Video ...................................................................................................................................................57 4.5 Alarm ...................................................................................................................................................60 4.6 Record ................................................................................................................................................64 4.7 Pan/Tilt ................................................................................................................................................65 4.8 Path Settings.......................................................................................................................................69 4.9 Firewall................................................................................................................................................70 4.10 System ..............................................................................................................................................70 5 Playback........................................................................................................................................................74 6 APPENDIX ....................................................................................................................................................75 6.1 Frequently Asked Questions ...............................................................................................................75 6.2 Default Parameters .............................................................................................................................81 6.3 Specifications ......................................................................................................................................81 6.4 CE & FCC ...........................................................................................................................................82 6.5 WARRANTY........................................................................................................................................83 7 OBTAINING TECHNICAL SUPPORT .................................................................................................. .........86 www.foscam.com S S h h e e n n z z h h e e n n F F o o s s c c a a m m I I n n t t e e l l l l i i g g e e n n t t T T e e c c h h n n o o l l o o g g y y C C o o . . , , L L i i m m i i t t e e d d T T e e l l : : 8 8 6 6 7 7 5 5 5 5 2 2 6 6 7 7 4 4 5 5 6 6 6 6 8 8 F F a a x x : : 8 8 6 6 7 7 5 5 5 5 2 2 6 6 7 7 4 4 5 5 1 1 6 6 8 8 1 1 1 O O v v e e r r v v i i e e w w s s FOSCAM FI9826W is an integrated wireless IP Camera with a color CMOS sensor enabl…

Text truncated - open the document above for the full version.

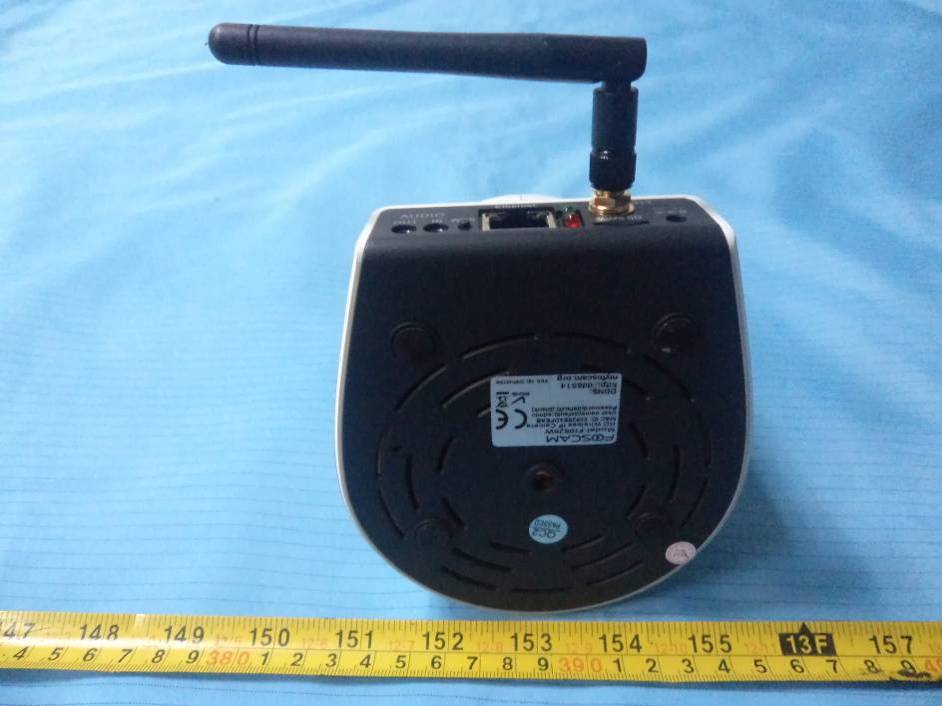

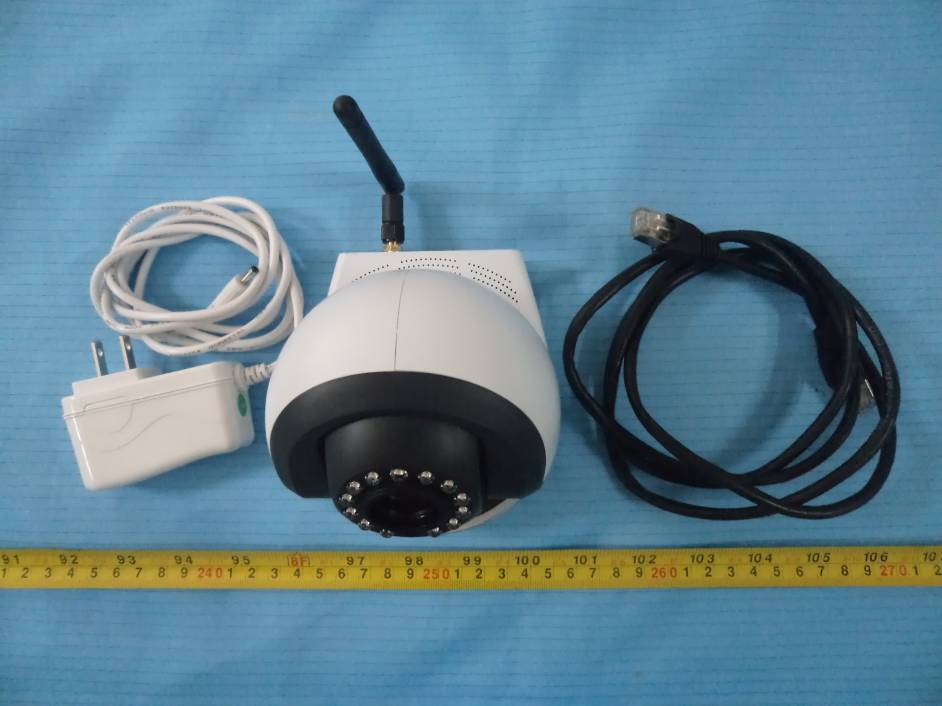

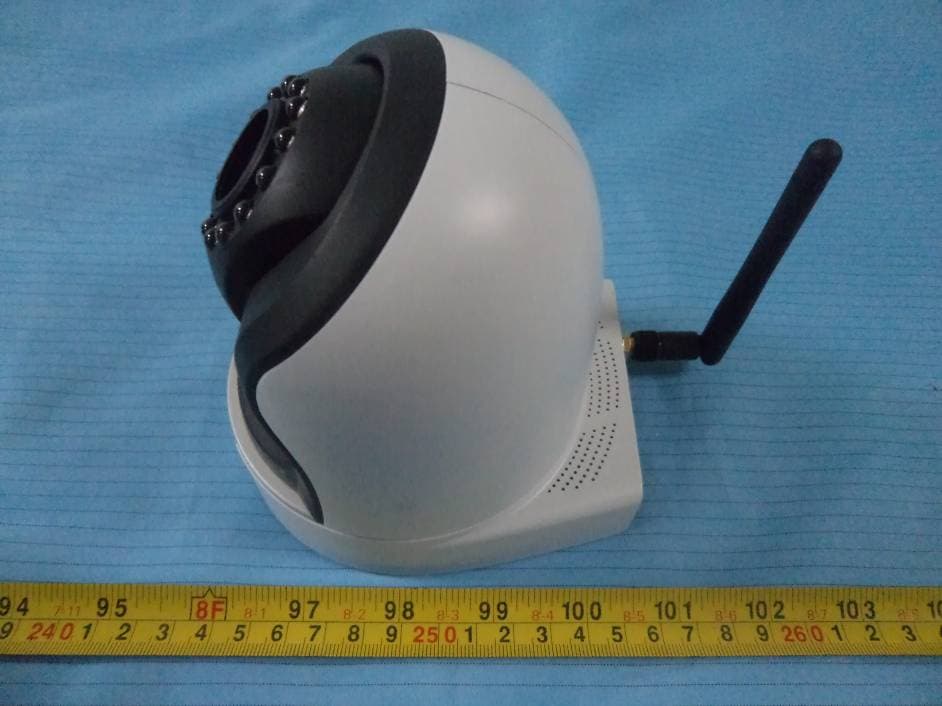

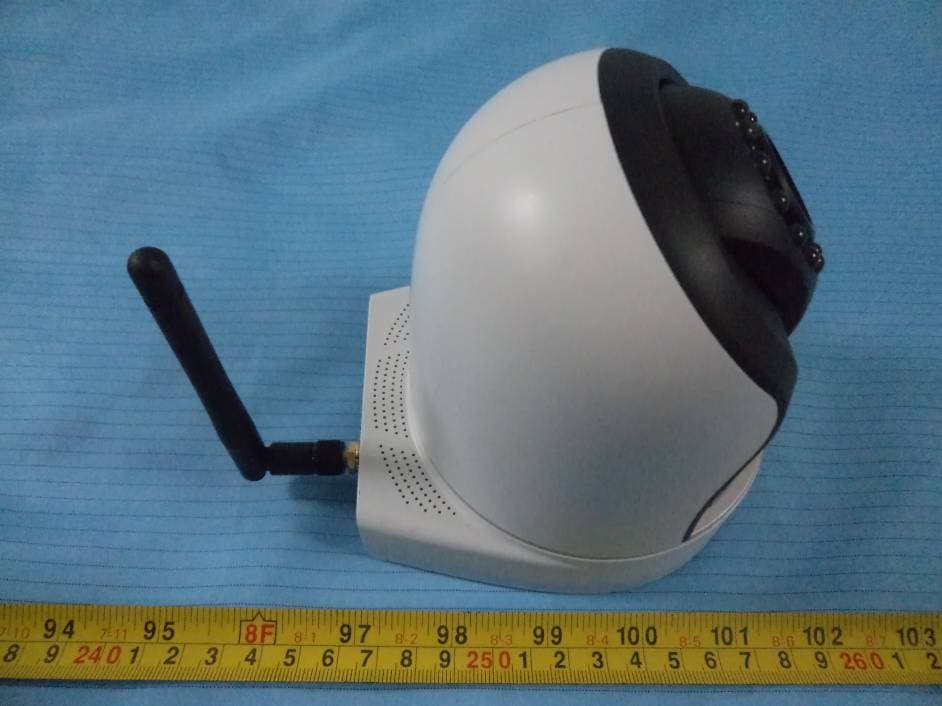

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Full View EUT – Top View EUT – Bottom View EUT – Front View EUT – Rear View EUT – Left Side View EUT – Right Side View EUT –Port View EUT –Adapter View EUT – Adapter Label View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board with WiFi Module Board Top View EUT – Main Board Top View EUT –Main Board Bottom View EUT – WiFi Module Board Top View EUT – WiFi Module Board Top Shielding off View EUT – WiFi Module Board Bottom View EUT – Antenna View EUT – Antenna Port View (with a reversed SMA port)

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ130719002-00B FCC Part 15.247 Page 10 of 31 FCC §15.247 (i) & §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 1.1307 (b)(1), 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG  S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Antenna Gain Conducted Power Frequency (MHz) (dBi) (numeric) (dBm) (mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) 2412 2 1.58 18.84 76.56 20 0.024 1.0 Note: To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20 cm from nearby persons. Result: Compliance

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15.247 TEST REPORT For Shenzhen Foscam Intelligent Technology Co., Ltd. 5/F, Block 1, Vision Business Park, Nanshan District, Shenzhen, China FCC ID: ZDEFI9826W Report Type: Original Report Product Type: HD Wireless IP Camera Test Engineer: Gardon Zhang Report Number: RSZ130719002-00B Report Date: 2013-11-13 Reviewed By: Alvin Huang RF Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ130719002-00B FCC Part 15.247 Page 2 of 31 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................7 EXTERNAL I/O CABLE..................................................................................................................................................7 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................8 SUMMARY OF TEST RESULTS...............................................................................................................................9 FCC §15.247 (i) & §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE)............................10 APPLICABLE STANDARD............................................................................................................................................10 RESULT......................................................................................................................................................................10 FCC §15.203 - ANTENNA REQUIREMENT...........................................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 ANTENNA CONNECTOR CONSTRUCTION....................................................................................................................11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS .....................................................................................12 APPLICABLE STANDARD............................................................................................................................................12 MEASUREMENT UNCERTAINTY..................................................................................................................................12 EUT SETUP................................................................................................................................................................12 EMI TEST RECEIVER SETUP.......................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST RESULTS SUMMARY..........................................................................................................................................13 TEST DATA................................................................................................................................................................14 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS.............................................................................16 APPLICABLE STANDARD............................................................................................................................................16 MEASUREMENT UNCERTAINTY..................................................................................................................................16 EUT SETUP..................................................…

Text truncated - open the document above for the full version.

TCB GRANT OF EQUIPMENT AUTHORIZATION TCB Certification Issued Under the Authority of the Federal Communications Commission By: Timco Engineering, Inc. 849 NW State Road 45 <BR>P.O. Box 370, Newberry, FL 32669 Date of Grant: 10/16/2012 Application Dated: 10/16/2012 Shenzhen FREEDIO Electronic Technology Co., Limited East Wing, 5/F, Block 2, Vision Business Park, No.9 Gaoxin 9th S. Rd., Hi-tech Ind. Park, Nanshan Shenzhen, 518057 China Attention: Dezhi Huang , Engineer NOT TRANSFERABLE EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. FCC IDENTIFIER: Q8Y-FR4020A2 Name of Grantee: Shenzhen FREEDIO Electronic Technology Co., Limited Equipment Class: Digital Transmission System Notes:WIFI MODULE Modular Type:Single Modular Grant Notes FCC Rule Parts Frequency Range (MHZ) Output Watts Frequency Tolerance Emission Designator 15C2412.0-2462.00.077 15C2422.0-2452.00.037 Single Modular Approval. Power output is conducted. Approval is limited to OEM integrator installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile and fixed applications. The antenna(s) provided for this transmitter must be installed to provide a separation distance of at least 20cm from all persons, and must not transmit simultaneously with any other antenna or transmitter. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. This device supports 20MHz and 40MHz bandwidth mode.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions – Front View Conducted Emissions – Side View Radiated Emissions – Front View (Below 1 GHz) Radiated Emissions – Rear View (Below 1 GHz) Radiated Emissions – Front View (Above 1 GHz) Radiated Emissions – Rear View (Above 1 GHz)
