User manual Product Name: Wireless Keyboard Brief introduction of keyboard : • Dimension: 400mm * 135mm* 22mm (L*W*H) • Material: outer shelf and keycaps all made of full bamboo material. • Keystroke life time over 5 million cycles, more durable • Energy multilevel saving mode • More than 12 channels frenquency hopping work, strong anti-interference ability • Support computer sleep wake up and automatic sleep awake • Receive and transmission will always be on-line mode. • Support low voltage alarm, with low voltage indication LED. • Compatible with WINDOWNS98/2000/ME/XP/VISTA/WIN7 • Transmission distance: 7～15 meters Power mangement function: Keyboard: Support 3 working stage of the battery energy saving mode > Working model: press button status >Standby mode: straight after stop pressing button >Sleep model: enter sleep mode after waiting 8 minutes waiting, or disconnected with receiver for 5 seconds to enter into sleep mode. When press button, then will wake up at once. How to use 1. Open the battery cover of keyboard, put in the battery, please notice the positive and negative pole. 2. Close the battery cover, then the keyboard is ready to be used. Change battery Keyboard: If the battery power is not enough, the mouse response will be very slow, even no function. When you change new batteries, please reference “how to use” FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.

JIANGXI TONGGU JIANGQIAO TIMBER&BAMBOO INDUSTRY COMPANY LTD. PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 8/10/2012 Authority to Act as an Agent We declare that the following representative (agent) Name Bovey Yang Position Manager Company Name NTEK Testing Technology Co., Ltd. Address 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’ an District, Shenzhen, Guangdong, China Tel / Fax +86-755- 61156588 / +86-755- 61156599 E-Mail [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name Wireless Keyboard Model Name KG201-N，XX-X (the first X can be made of 1-3 letters from A to Z, the second X can be made of 1-9999 numbers, the third X can be made of 1-2 letters from A to Z) Brand Name N/A. We also authorize BZT – TCP Certification GmbH, Ms.Wanida Patthanavoj (address: Hermann - Loens - Weg 6, 15859 Storkow b. Berlin Germany) to process the application. Yours sincerely, Signatory Name Rita Wu Position Engineer Company Name JIANGXI TONGGU JIANGQIAO TIMBER&BAMBOO INDUSTRY COMPANY LTD. Address XIA YAOPU INDUSTRIAL ZONE, TONGGU COUNTY, JIANGXI PROVINCE，CHINA Tel / Fax +86-795-8726641/+86-795-8690955 E-Mail [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

JIANGXI TONGGU JIANGQIAO TIMBER&BAMBOO INDUSTRY COMPANY.LTD XIA YAOPU INDUSTRIAL ZONE，TONGGU COUNTY，JIANGXI PROVINCE，CHINA Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: JIANGXI TONGGU JIANGQIAO TIMBER&BAMBOO INDUSTRY COMPANY.LTD FCC ID: ZEQJQKB FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Rita Wu Position Engineer Company Name JIANGXI TONGGU JIANGQIAO TIMBER&BAMBOO INDUSTRY COMPANY.LTD Address XIA YAOPU INDUSTRIAL ZONE，TONGGU COUNTY，JIANGXI PROVINCE，CHINA Tel / Fax +86-795-8726641/+86-795-8690955 E-Mail [email protected]

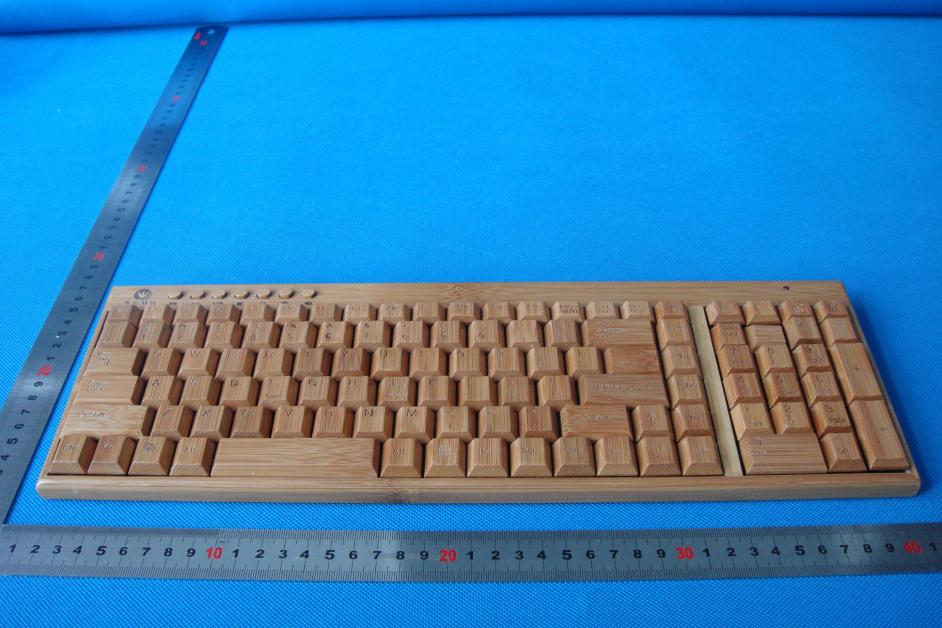

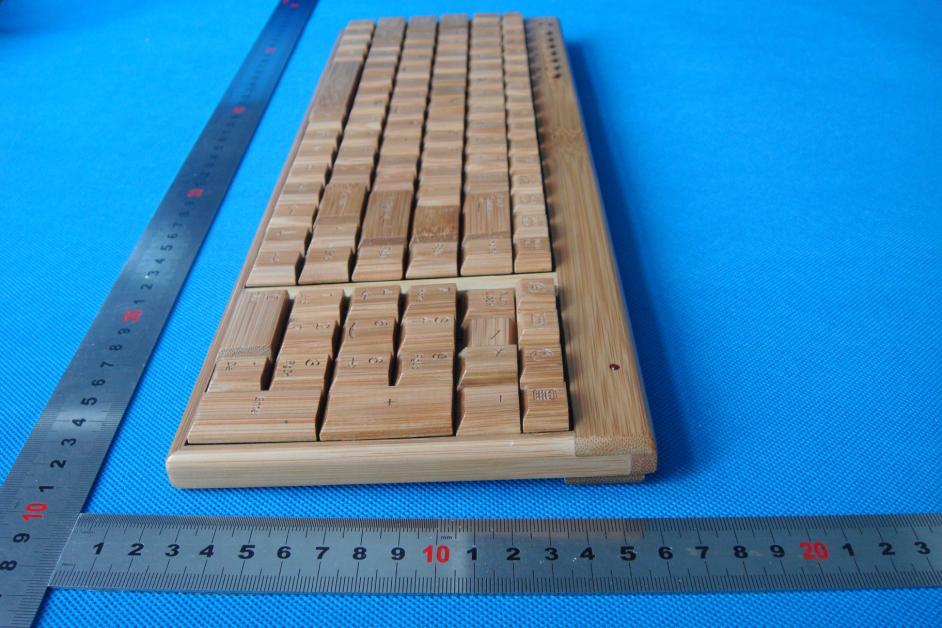

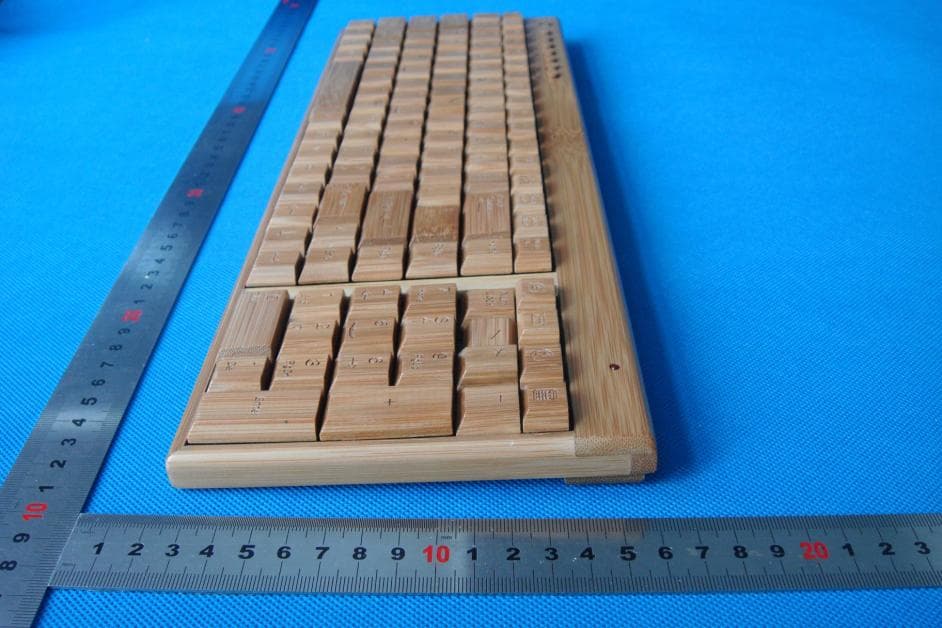

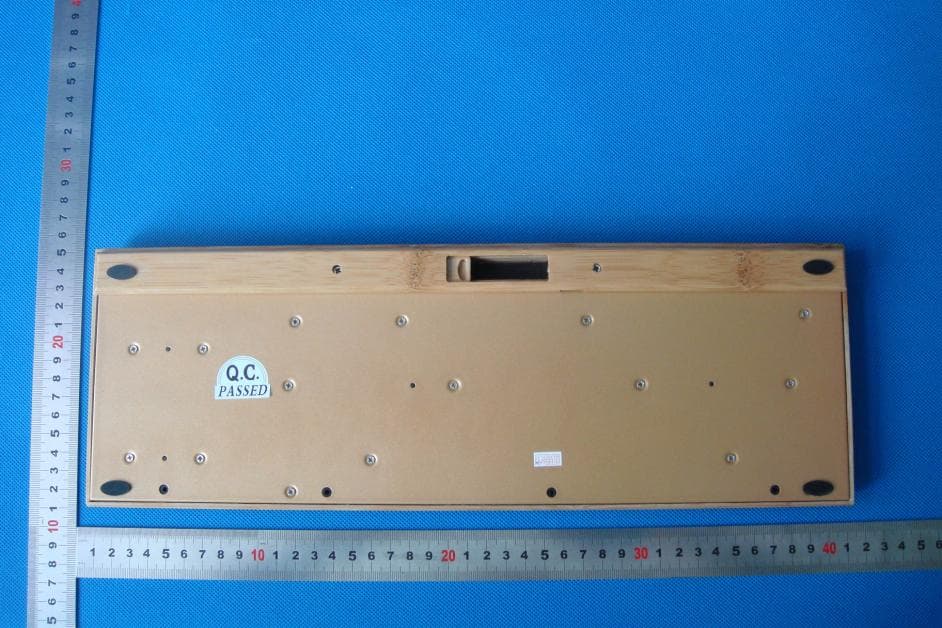

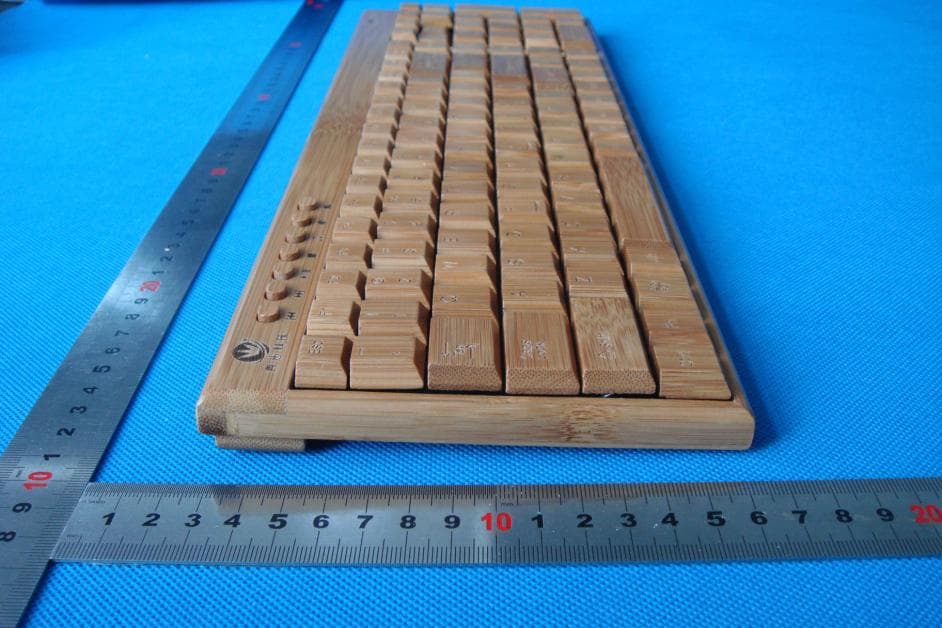

JIANGXI TONGGU JIANGQIAO TIMBER&BAMBOO INDUSTRY COMPANY.LTD Model: KG201-N APPENDIX B – External Photo EUT –Rear View 1 EUT – Rear View 2 JIANGXI TONGGU JIANGQIAO TIMBER&BAMBOO INDUSTRY COMPANY.LTD Model: KG201-N EUT – Rear View 3 EUT – Rear View 4 JIANGXI TONGGU JIANGQIAO TIMBER&BAMBOO INDUSTRY COMPANY.LTD Model: KG201-N EUT – Rear View 5 EUT – Rear View 6

JIANGXI TONGGU JIANGQIAO TIMBER&BAMBOO INDUSTRY OMPANY.LTD Model: KG201-N Proposed Label Location on EUT FCC ID Label Location -

JIANGXI TONGGU JIANGQIAO TIMBER&BAMBOO INDUSTRY COMPANY.LTD Model: KG201-N APPENDIX A - PRODUCT LABELING Proposed FCC ID Label Format Label size: 30mm*20mm 30mm 20mm Company:JIANGXI TONGGU JIANGQIAO TIMBER&BAMBOO INDUSTRY COMPANY.LTD Name: Wireless Keyboard Model Number: KG201-N FCC ID: ZEQJQKB This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received. including interference that may cause undesired operation. including interference that may cause undesired operation.

JIANGXI TONGGU JIANGQIAO TIMBER&BAMBOO INDUSTRY COMPANY.LTD Model: KG201-N APPENDIX C - EUT INTERNAL PHOTOGRAPHS EUT – Inside View EUT – Back View JIANGXI TONGGU JIANGQIAO TIMBER&BAMBOO INDUSTRY COMPANY.LTD Model: KG201-N EUT – PCB View 1 EUT – PCB View 2

. FCC Part 15C Measurement And Test Report For JIANGXI TONGGU JIANGQIAO TIMBER&BAMBOO INDUSTRY COMPANY.LTD XIA YAOPU INDUSTRIAL ZONE TONGGU COUNTY JIANGXI PROVINCE Model: KG201-N, KG101-N, XX-X August 3, 2012 T h i s Re p o r t C o n c e r n s : O r ig in a l Re p o r t Eq u i p m e n t T yp e : W ir e le s s Ke yb o a r d Report Number: MT I 1 2 0 7 1 3 0 0 1 RF Test Engineer: Bi l l Ch e n Reviewed By: J a s o n Z h e n g Approved & Authorized By: He b e L e e Test Date: J u l y. 2 5-Au g . 3, 2 0 12 Prepared By: MTI Technology Laboratory Ltd． 10F, Yinxing Business Hotel, Xixiang Road, Bao’an District, Shenzhen, P,R.China. Tel: +86-755-8885 0135 Fax: +86-755-8885 0136 Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior written consent of MTI Technology Laboratory Ltd． Report No.: MTI120713001RF Page 2 of 24 TABLE OF CONTENTS 1. GENERAL INFORMATION ......................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ................................................................................... 3 1.2 RELATED SUBMITTAL(S) / GRANT (S) ............................................................................................................................. 3 1.3 TEST METHODOLOGY................................................................................................................................................... 4 1.4 TEST FACILITY ............................................................................................................................................................ 4 2. SYSTEM TEST CONFIGURATION ............................................................................................................ 5 2.1 EUT CONFIGURATION .................................................................................................................................................. 5 2.2 EUT EXERCISE ........................................................................................................................................................... 5 2.3 GENERAL TEST PROCEDURES ...................................................................................................................................... 5 2.4 LIST OF MEASURING EQUIPMENTS USED........................................................................................................................ 6 3. SUMMARY OF TEST RESULTS ................................................................................................................ 7 3.1 SUMMARY OF TEST RESULT .......................................................................................................................................... 7 3.2 ASSISTANT EQUIPMENT USED FOR TEST ......................................................................................................................... 7 3.3 BLOCK DIAGRAM ......................................................................................................................................................... 7 4. ANTENNA REQUIREMENT ....................................................................................................................... 8 4.1 STANDARD APPLICABLE ............................................................................................................................................... 8 4.2 ANTENNA CONNECTED CONSTRUCTION ......................................................................................................................... 8 5. CONDUCTED DISTURBANCES ................................................................................................................ 9 5.1. MEASUREMENT UNCERTAINTY ..................................................................................................................................... 9 5.2. LIMIT OF CONDUCTED DISTURBANCES (CLASS B) .......................................................................................................... 9 5.3. EUT SETUP ............................................................................................................................................................... 9 5.4. INSTRUMENT SETUP ................................................................................................................................................... 9 5.5. TEST PROCEDURE .................................................................................................................................................... 10 5.6. SUMMARY OF TEST RESULTS ..................................................................................................................................... 10 5.7. TEST RESULT ........................................................................................................................................................... 10 6. 20-DB BANDWIDTH ................................................................................................................................. 11 6.1 LIMITS OF 20-DB BANDWIDTH MEASUREMENT .............................................................................................................. 11 6.2 EUT SETUP .............................................................................................................................................................. 11 6.3 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 11 6.4 TEST PROCEDURE ..................................................................................................................................................... 11 6.5 TEST RESULT /PLOTS ................................................................................................................................................ 11 7. FIELD STRENGTH OF SPURIOUS EMISSION…
