ZERBGR135Boarding Gate Reader

Page 1 of 12 Revision 1  Access Limited 2011 - All Rights Reserved BGR135 1D and 2D BCBP Boarding Gate Reader Product Specification Revision 1 Page 2 of 12 Revision 1  Access Limited 2011 - All Rights Reserved About this manual BGR135 - Installation and Use First Edition (Jan 2011) (c) 2011 Access Ltd. Part No. BGR135 www.access-is.com All rights reserved. Whilst every precaution has been taken in the preparation of this manual, Access Ltd assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. We reserve the right to change the specifications, functions and circuitry of the product without notice. All trademarks acknowledged. Warnings This manual contains important information regarding the installation and operation of the BGR135 Boarding Gate Reader. For safe and reliable operation of the product, all users must ensure that they are familiar with and fully understand all instructions contained herein. Warranty Access Ltd warrants that this product shall be free from defects in workmanship and materials for a period of one year from the date of original purchase. If the product should fail to operate correctly in normal use during the warranty period, Access will replace or repair it free of charge. No liability can be accepted for damage due to misuse or circumstances outside Access control. Also Access will not be responsible for any loss, damage or injury arising directly or indirectly from the use of this product. Access total liability under the terms of this warranty shall in all circumstances be limited to the replacement value of this product. If any difficulty is experienced in the installation or use of this product that you are unable to resolve, please contact Access. Trademarks All trademarks mentioned in this manual are acknowledged to be the property of the respective trademark owners.Access Keyboards is a registered trademark of Access Keyboards Limited. IBM, PC/AT, PS/2 are registered trademarks of International Business Machines Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation. Page 3 of 12 Revision 1  Access Limited 2011 - All Rights Reserved Radio Frequency Energy European EMC directive 89/336/EEC This equipment has been tested and found to comply with the limits for a class A computing device in accordance with the specifications in the European standard EN55022. These limits are designed to provide reasonable protection against harmful interference. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio or television reception. However, there is no guarantee that harmful interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to correct the interference with one or more of the following measures (a) Reorient or relocate the receiving antenna. (b) Increase the separation between the equipment and the receiver. (c) Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. (d) Consult the supplier or an experienced radio / TV technician for help. FCC Compliance Statement (United States) This equipment generates, uses and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a class A computing device in accordance with the specifications in Subpart J of part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. Operation of this equipment in a residential area may cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Canadian Department of Communications RFI statement This equipment does not exceed the class A limits for radio noise emissions from digital apparatus set out in the radio interference regulations of the Canadian Department of Communications. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le règlement sur le brouillage radioélectriques publié par le ministère des Communications du Canada. Revision History Rev 1 Jan 2011 Original Page 4 of 12 Revision 1  Access Limited 2011 - All Rights Reserved Contents Contents 1. Overview .............................................................................................................................. 5 2. Specifications ....................................................................................................................... 6 2.1 BGR ................................................................................................................................................ 6 2.2 Bi-colour LEDs ............................................................................................................................... 6 2.3 Internal Sounder ............................................................................................................................. 6 3. Data Format Protocol ........................................................................................................... 8 4. Installation ............................................................................................................................ 9 4.1 BGR Connection ......................................................…

Text truncated - open the document above for the full version.

Access IS 18 Suttons Business Park Reading, Berkshire RG6 1AZ, United Kingdom Tel: +44 (0) 118 966 3333 Fax: +44 (0) 118 926 7281 Access (North America) inc Atlanta Georgia USA Tel: +1-770-645-2771 For further information email: [email protected] or visit our website: www.access-is.com All trademarks acknowledged. Specifications subject to change without prior notice. This literature is for outline information only. The BGR135C reading a contactless frequent flyer card Compact, rugged, 2D BCBP and NFC boarding gate solution with receipt printing port. BGR135C 2D BCBP and Contactless Boarding Gate Reader Description The BGR135C is a compact boarding gate reader for 2D barcoded boarding passes (BCBP’s), with contactless functionality for NFC-enabled phones, PDA’s and smart cards. In addition the BGR135C includes a receipt printing port and an integrated on/off switch. The BGR135C reads barcodes face up, enabling operators to more quickly align barcodes to the reader interface. Speed of transaction is also enhanced by near-zero latency in the omnidirectional imager, so that barcodes are read instantly on presentation. Additional features to ensure fast passenger processing include 2 x 16 character interface to clearly display passenger information, bright green and red LED visual indicators, and a user-programmable audio beep to confirm successful data capture. A wide range of emulations is available for connection to Common Use Terminal Equipment (CUTE®) or dedicated systems. Additionally, to ensure that the units are future- proof, new firmware can be remotely downloaded to them. Housed in an attractive ABS enclosure, the BGR135C is rugged, very compact and lightweight. Its quality-assured UK manufacture ensures it will withstand years of frontline use. Features • Fast, omnidirectional 1D/2D barcode imager • Contactless and NFC-enabled • Bright VFD 2 x 16 character display • Reads on presentation of a document • Reads IATA-recommended PDF417, 2D and linear symbologies • Large document throat allows A4/full-page documents to be read • Reads 2D barcode images on PDA and smartphone displays • Wide range of emulations available • Single RS-232 cable connection to host • FLASH upgradeable software • Green and red indicator beacons and audio beeper • Additional RJ45 port for receipt printer functionality • Integrated on/off switch Options • Quick release bracket • Integrated SAM module The BGR135C has NFC read capability Access IS 18 Suttons Business Park Reading, Berkshire RG6 1AZ, United Kingdom Tel: +44 (0) 118 966 3333 Fax: +44 (0) 118 926 7281 Access (North America) inc Atlanta Georgia USA Tel: +1-770-645-2771 For further information email: [email protected] or visit our website: www.access-is.com All trademarks acknowledged. Specifications subject to change without prior notice. This literature is for outline information only. BGR135C 2D BCBP and NFC boarding gate reader specifications Passenger/agent displays Display: Bright VFD 2 x 16 characters Visible/audible: Green (good read) and red (bad read) indicator beacons and audio beeper. Programmable capability Interface USB interface Host interface: RS-232C Baud rates 9600, 19200, 38400 & 115200 Other: RJ45 port for optional RP9000 receipt printer, keypad or auto boarding gate applications The receipt printer can print seat, flight and passenger data from M1 format bar code documents Physical characteristics Dimensions: 130W x 142H (excluding rubber feet 6 mm) x 185D mm Weight: 850 g Barcode reader Compliance: AEA2008 1D symbologies: Code 128, Code 2 of 5, Interleaved 2 of 5, IATA 2 of 5, Code 39, EAN 2D symbologies: IATA resolution 792, PDF417, Aztec, Datamatrix and QR codes. Will also read from PDA and smartphone displays Performance: Less than 1 second read capability Construction: Compact and durable ABS enclosure with no moving parts Contactless RF reader Compliance: Supports ISO 14443 and ISO 8092 protocols: ISO 14443 type A & B tags; MIFARE classic; FeliCa tags; NFC type 1 tags Operating frequency: 13.56 MHz Operating distance: 20 mm SAM support 1 x ISO 7816 T=0 protocol slot available Power supply Input voltage: 9-15 VDC; AC universal power adapter supplied Protocols supported (pending) ARINC Muse & iMuse ® RESA CREWS ® SABRE EGR ® SITA CUTE ® NT and APC Ultra CUSE ® Environmental Temperature: Operating 0 °C to +50 °C; storage 0 °C to +60 °C Humidity: 0 to 95%, non-condensing ® All trademarks acknowledged Ver: 1.6 November 2013 The BGR135C reads 2D barcodes from the screen of a mobile phone The BGR135C reads 2D barcodes from a home printed travel document The BGR135C reads NFC-enabled phones and NFC tags

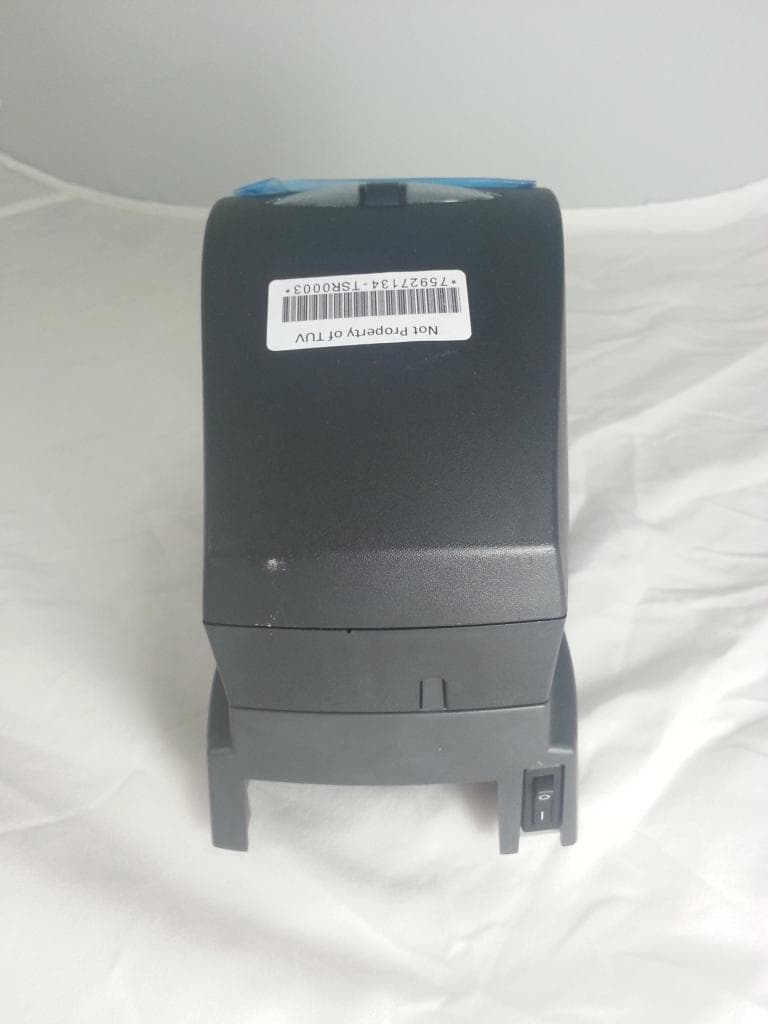

BGR135C External Pictures Front Back Top Bottom Printer Port Serial Link Side 1 Side 2 ON/OFF Switch Display Indicator LED’s

BGR135C Internal Pictures Base Electronics Base Controller Board NFC Module & Antenna Board In Plastics White line shows Antenna position on underside of board. NFC Module Top Bottom NFC Antenna NFC Antenna NFC Antenna Position NFC Antenna relative position Head Electronics RJ45 + Barcode scanner + Controller Board Display/ Indicator Board

Access Limited 18 Suttons Business Park Reading, Berkshire RG6 1AZ, United Kingdom Tel: +44 (0) 118 966 3333 Fax: +44 (0) 118 926 7281 eMail: [email protected] Web: www.access-is.com COMMERCIAL IN CONFIDENCE Page 1 of 1 SAR Exemption 31/07/14 TÜV SÜD Product Services Octagon House Concorde Way Fareham PO 15 5RL Subject : Certification Application FCC ID Number : ZERBGR135 SAR is exempt based on the following calculation from KDB 447498 D01General RF Exposure Guidance v05r02. Where in accordance with Clause 4.3.1 3 We have assumed a separation distance of <50mm 1 + log (100/13.56MHz) = 1.87 474mw x 1.87 x 0.5 = 443.19mW = Power Threshold The declared output power is 300mW, which is less than the calculated 443.19mW

Document 75927134 Report 03 Issue 1 July 2014 Report On FCC Testing of the Access Interfacing Solutions BGR135C In accordance with FCC CFR 47 Part 15C COMMERCIAL-IN-CONFIDENCE FCC ID: ZERBGR135 TÜV SÜD Product Service, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuv-sud.co.uk COMMERCIAL-IN-CONFIDENCE Document 75927134 Report 03 Issue 1 Page 1 of 21 COMMERCIAL-IN-CONFIDENCE REPORT ON FCC Testing of the Access Interfacing Solutions BGR135C In accordance with FCC CFR 47 Part 15C Document 75927134 Report 03 Issue 1 July 2014 PREPARED FOR Access Interfacing Solutions Unit 18 Suttons Business Park Suttons Park Avenue Reading RG6 1AZ PREPARED BY Natalie Bennett Senior Administrator, Technical Solutions APPROVED BY Mark Jenkins Authorised Signatory DATED 04 July 2014 ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47 Part 15C. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineer(s); G Lawler M Russell Document 75927134 Report 03 Issue 1 Page 2 of 21 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE CONTENTS Section Page No 1 REPORT SUMMARY ................................................................................................................... 3 1.1 Introduction ................................................................................................................................... 4 1.2 Brief Summary of Results ............................................................................................................. 5 1.3 Declaration of Build Status ........................................................................................................... 6 4.1 Product Information ...................................................................................................................... 7 4.2 Test Conditions ............................................................................................................................. 7 4.3 Deviations from the Standard ....................................................................................................... 7 4.4 Modification Record ...................................................................................................................... 7 2 TEST DETAILS ............................................................................................................................ 8 5.1 Field Strength of any Emission ..................................................................................................... 9 5.2 Occupied Bandwidth ................................................................................................................... 13 5.3 Frequency Stability Under Temperature Variations ................................................................... 15 3 TEST EQUIPMENT USED ......................................................................................................... 17 6.1 Test Equipment Used ................................................................................................................. 18 6.2 Measurement Uncertainty .......................................................................................................... 19 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT ............................................................ 20 7.1 Accreditation, Disclaimers and Copyright ................................................................................... 21 Document 75927134 Report 03 Issue 1 Page 3 of 21 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY FCC Testing of the Access Interfacing Solutions BGR135C In accordance with FCC CFR 47 Part 15C Document 75927134 Report 03 Issue 1 Page 4 of 21 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE 1.1 INTRODUCTION The information contained in this report is intended to show the verification of FCC Testing of the Access Interfacing Solutions BGR135C to the requirements of FCC CFR 47 Part 15C. Objective To perform FCC Testing to determine the Equipment Under Test's (EUT’s) compliance with the Test Specification, for the series of tests carried out. Manufacturer Access Interfacing Solutions Model Number(s) BGR135C Serial Number(s) Golden Sample #2 Number of Samples Tested 1 Test Specification/Issue/Date FCC CFR 47 Part 15C (2013) Incoming Release Date Declaration of Build Status 24 June 2014 Disposal Reference Number Date Held Pending Disposal Not Applicable Not Applicable Order Number Date AKP33425 12 June 2014 Start of Test 24 June 2014 Finish of Test 29 June 2014 Name of Engineer(s) G Lawler M Russell Related Document(s) ANSI C63.10: 2009 Document 75927134 Report 03 Issue 1 Page 5 of 21 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE 1.2 BRIEF SUMMARY OF RESULTS A brief summary of the tests carried out in accor dance with FCC CFR 47 Part 15C is shown below. Section Spec Clause Test Description Result Comments/Base Standard RFiD/NFC 2.1 15.225 (a)(b)(c)(d) Field Strength of any Emission Pass 2.2 15.225, 15.215 (c) Occupied Bandwidth Pass 2.3 15.225 (e) Frequency Stability Under Temperature Variations Pass Document 75927134 Report 03 Issue 1 Page 6 of 21 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE 1.3 DECLARATION OF BUILD STATUS MAIN EUT MANUFACTURING DESCRIPTION BGR135C MANUFACTURER Access IS TYPE Boarding Gate Reader PART NUMBER BGR135C SERIAL NUMBER BGR135C – Sample #1 BGR135C – Sample #2 HARDWARE VERSION PCBP3685 B PCBM3707 01 PCBM2999 04 PCBM1641 07 SOFTWARE VERSION RFID FW version – 0.08 BASE Board FW – 3090 Head Board FW - 2090 TRANSMITTER OPERATING RANGE Near Field ~5cm RECEIVER OPERATING RANGE Near Field ~5cm INTERMEDIATE FREQUENCIES NA EMISSION DESIGNATOR(S): (i.e. G1D, GXW) A2D 8K47 MODULATION TYPES: (i.e. GMSK, QPSK) AM HIGH…

Text truncated - open the document above for the full version.

FCC ID: ZERBGR135 Access Interfacing Solutions BGR135C 2014 Not to be reproduced, except in its entirety, Page 1 of 2 without the Permission of TÜV SÜD Product Service Ltd Reference: 75927134 PHOTOGRAPHS OF TEST SET UP Radiated Emissions 30MHz-1GHz FCC ID: ZERBGR135 Access Interfacing Solutions BGR135C 2014 Not to be reproduced, except in its entirety, Page 2 of 2 without the Permission of TÜV SÜD Product Service Ltd Reference: 75927134 Conducted Emissions
