ZF3-LTL-5210MMMobile Scouting Camera

-0- LtlAcorn MobileScoutingCamera Ltl-5210MSeries USERS MANUAL -1- TABLE OFCONTENTS GeneralInformation.......................................................................................................................2 1.1 Features...............................................................................................................................2 1.2Application..........................................................................................................................2 1.3Illustration...........................................................................................................................3 QuickStart.......................................................................................................................................6 2.1InsertSIMCard 2.2LoadBatteries.....................................................................................................................6 2.3InsertSDCard.....................................................................................................................6 2.4EnterTestMode..................................................................................................................6 2.5EnterLiveMode.................................................................................................................7 2.6Advantagesof PrepSensors Advanced Settings...........................................................................................................................9 3.1Parameter Settings...............................................................................................................9 3.2 FileFormat........................................................................................................................11 3.3 SetupCameraon PC 3.4 SetupMMSFunctiononPC 3.5CameraWorkingwithMMS 3.6ViewLocalMNOPNameand SignalStrengthonTFTdisplay Ltl-5210M SeriesProducts 4.1Parts 4.2ModelsforPurchase ImportantInformation 5.1Prevent From Short-Circuits 5.2 PowerSupplyandBatteryBox 5.3SDCard 5.4AutoAdjustmentonVideoLength 5.5850nmand940nmIRLED 5.6MountonTripod 5.7 FAQsonMMS Function FirmwareUpgrades 6.1FirmwareUpgrades WarrantyInformation..................................................................................................................12 AppendixITechnicalSpecifications............................................................................................13 AppendixIIPackageContents....................................................................................................15 AppendixIIIInstructiononInstallingBatteryBox..................................................................16 GeneralInformation -2- GENERALINFORMATION 1.1Introduction TheLtlAcornMSeries(ModelLtl-5210MCandLtl-5210MM)isthesecondgenerationofour Ltl-5210scoutingcamera.BundledwiththeMMS-module(MultimediaMessagingService) batterybox(Part#LTL-MM),thestandardscoutingcamera(Part#Ltl-5210M)canbeupgraded towork asaremotecellular camera.WithitshighlysensitivePassiveInfra-Red(PIR)sensor,the cameradetectsthesuddenchangeofambienttemperaturecausedbymovinggameinaregionof interest(ROI),triggerstotakepictures/videos,andsendstheimagesviaGSMnetworktothe user s cellphoneoremail account. Features: Programmable5or12-Megapixelhigh-qualityresolution. InfrarednightvisionLEDsforflashrangeasfaras65feet InCam+Videomode,cameratakesbothpicturesandvideoateverytriggerevent Ultralowstandbypowerconsumption.Extremelylongin-fieldlife(instandbymode,up to6monthswith8xAAbatteries) UniquesidePrepSensordesignprovideswidersensingangleandenhancescameras responsespeed Performinthemostextremetemperaturesfrom-22Fto158F Compactsize(5x3x2inches).Welldesignedtodeploy covertly Impressivelyquicktriggertime(1.2second) InTimeLapsesetting,thecameraautomaticallyandconstantlytakespictures/videosat specifiedinterval.Thisisveryusefulwhenobservingplantsflowering,birdsbuilding nest,orwhenmonitoringunattendedpropertiessuchasparkinglots WithTimersettingon,thecameracanbeprogrammedtoonlyworkinspecifiedperiod everyday.ThisfeaturecanworktogetherwithTimeLapsefeature Backpack-lookingtreegrabbermakesmountingand aimingasnap SerialNumbersettingenablesyoutocodelocationsinthephotos.Thishelps multi-camerausersidentifythelocationwhenreviewingthephotos Built-in2TFT colordisplaytoreviewimagesandvideos Date,time,temperatureandmoonphasecanbestampedinthepictures Lockableandpasswordprotected TwoMMSimagesizestochoose:640x480or320x240 UserscanconfiguretheCameraandMMSfunctioneitherbyrunningtheenclosedCD onthecomputer,ordirectlyonthebuilt-inTFTdisplay. SeparationoftheCameraandtheMMSmoduleprovidesusersflexibility:startingwith thevaluemodelasastandardscoutingcamera,andupgradingtothepremiummodel withMMSfunction. Iflocalareamobilesignalisbad,CouldnotsendMMS,Alsocanchoosetosendatext GeneralInformation -3- message(SMS).MessagecontentistakingpicturestimeandCameraserial number. OurAdvancedRemoteCellularTechnologytransmitsimagestoyourcellphoneand emailaccountconstantlyatlowerbatteryconsumptionandshortertransmissiontime, comparedtoproductsofitskindonthemarket. Automaticallysendtextalertwhenbatterypowerlevelgoeslow Checkcellularsignalinformationonthebuilt-inTFTdisplayinthefield AllMMSpicturessavedinSDcardaswellastheoriginalones Internalantennadesignmakesthecameraportablewhilestillemittingstrongsignal OperatesgloballyviaGSM/GPRSnetwork.Supportsfourbands:850/900/1800/ 1900MHz. 1.2Application Trailcameraforhunting Animaloreventobservation Motion-triggeredsecurity camera,forhome,officeandcommunity Allotherindoor/outdoorsurveillancewhereinvasion evidenceneeded 1.3Illustration Figure1.1showsthefrontviewofthecamera(Part#Ltl-5210M) Figure1.2showsthebottomviewofthe camera(Part#Ltl-5210M) Figure1.3showsthebackviewofthecamera(Part#Ltl-5210M)andfrontviewof thebatterybox(Part#LTL-BM1orLTL-MM1) GeneralInformation -4- Figure1.1: FrontViewofLtl-5210M Figure1.2:BottomViewofLtl-5210M GeneralInformation -5- Thecameraprovidesthefollowingconnectionsforexternaldevices:USB2.0port,SDcar…

Text truncated - open the document above for the full version.

Shenzhen Ltl Acorn Electronics Co., Ltd Date: April 12, 2011 To: Federal Communications Commission 7435 Oakland Mills Road Columbia,MD FCC ID: ZF3-LTL-5210MM To Whom It May Concern: This letter is to ascertain that Shenzhen Ltl Acorn Electronics Co., Ltd Product: Mobile Scouting Camera has been the units used for conducting FCC compliance testing, the DoC Part will be tested by FCC recognized test lab. If you have any question or concerns, pls, contact us. Sincerely, Signature Name: Wang zhengping /General Manager Title: General Manager Telephone: +86-755-18818794810 Email: [email protected] Date: April 12, 2011

Operation explanation seeUSER’S MANUAL

Shenzhen Ltl Acorn Electronics Co., Ltd ______________________________________________________ SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 Shenzhen Ltl Acorn Electronics Co., Ltd ______________________________________________________ SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 (April 12, 2011) To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Shenzhen Ltl Acorn Electronics Co., Ltd hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description, model name) FCC ID: ZF3-LTL-5210MM Product name: Mobile Scouting Camera Model: Ltl-5210MM; Ltl-5210MC; Ltl-5210M; LTL-MM1;LTL-BM1 We affirm that between SIEMIC and Shenzhen Ltl Acorn Electronics Co., Ltd, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature Wang zhengping /General Manager Title: General Manager Telephone: +86-755-18818794810 Email: [email protected] Date: April 12, 2011

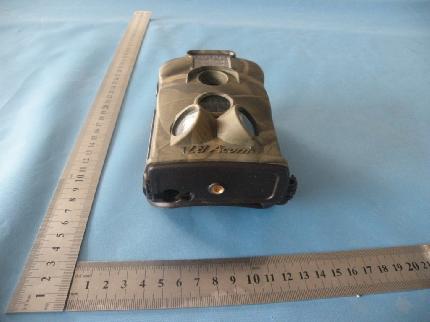

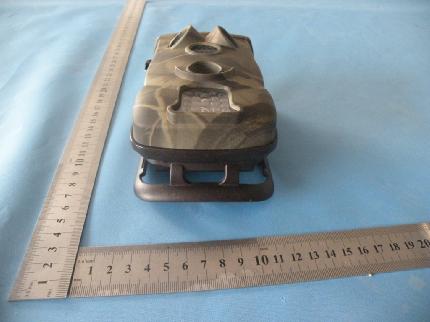

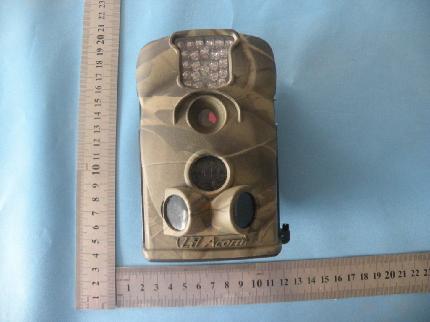

Top View Bottom View Front View Rear View Front View Left View

FCC ID: ZF3-LTL-5210MM Model No.: LTL-5210MM Manufacturer: Shenzhen Ltl Acorn Electronics Co., Ltd. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ANTENNA ANTENNA

2. Product Concept The M10 is a Quad-band GSM/GPRS engine that works at frequency bands of GSM850, EGSM 900, DCS1800 and PCS 1900. The M10 features GPRS multi-slot class 12(default)/ class 10/class8 and supports the GPRS coding schemes CS-1, CS-2, CS-3 and CS-4. The M10 is an SMD type module with 64-pin pads and a tiny profile of 29mm x 29mm x 3.6 mm (the thickness of PCB is 1.6mm), which can fit into almost all customers’ applications. It provides all hardware interfaces between the module and customer’s host board. z External controller can communicate with M10 through its main UART port. z Two audio channels include two microphone inputs and two speaker outputs, which can be easily configured by AT command. The module is designed with power saving technique so that the current consumption could be as low as 0.7mA in SLEEP mode. TCP/IP protocol stack has been integrated in the module. Moreover, extended TCP/IP AT commands have been developed for customer to use the internal TCP/IP protocol easily, which is very useful for data transfer application. The module is fully RoHS compliant to EU regulation.

Confidential for Shenzhen Ltl Acorn Electronic Co.Ltd 2010/4/18 Ordinal Product categoryName EncapsulateUsageposition 1BeadBeadL060314L3 L4 L5 L6 L7 L8 L9 LM1 LS1 LS2 LU1 LU2 LU3 LU4 21.8uHL06031LP1 34.7UHL4X4 h=2mm2L1 L2 422UHCD522L11 L12 515pFC04021C52 620PFC04026CM1 C32 C35 C38 C42 CU2 7270PFC04022C34 CU1 8330PFC04021CU3 9820pFC04024C1 C4 C7 C71 100.01uFC04024C54 C56 C64 C80 110.1uf/16VC040255 C65 C67 C69 C16 C17 C18 C21 C22 C23 C24 C25 C26 C28 C29 C30 C31 C36 C37 C39 C40 C41 C45 C46 C47 C49 C59 C66 C78 C83 C86 C97 C99 CM3 CM10 CM12 CR1 CR2 CR3 CR4 CR5 CR6 CR7 CR8 CR9 CR10 CS2 CS3 CS7 CS8 CS9 CS12 CS13 CS14 CS15 CS16 121uF/16VC040213C43 C55 C62 C85 C87 C88 C89 C90 C92 C93 C94 C95 C96 132.2uFC04027C9 C15 C27 C76 C98 CM2 CM13 144.7uFC04021C91 1510uFC08054C3 C6 C72 C100 1610uFC12069C51 C53 C60 C61 C63 C68 C70 C84 CM11 1710uF/6.3VC12062C2 C10 1822uF/6.3VC12069C5 C8 C11 C12 C20 C33 C57 C77 C81 1947uF/6.3VTANA4C58 C73 C75 C82 2047UF/6.3VTANB2C13 CS4 21100uF/6.3VTANB2C74 C79 220RR08054R18 R90 R91 R92 230RR04029R38 R40 R84 R86 R89 RU8 RU11 RU9 RM11 2410R_1%R04021R1 2515RR04021R33 2622RR04026R16 R17 RM1 RS4 RS5 RS6 2775RR04021RU1 28470RR04021R69 29560R 1%R04021R2 Ltl5210M bom Inductors Capacitor 1/3 Confidential for Shenzhen Ltl Acorn Electronic Co.Ltd Ordinal Product categoryName EncapsulateUsageposition 301KR040210R8 R10 R13 R14 R19 R21 R23 R29 R30 R94 311.5KR04022RS2 RS3 323.3KR04021R88 333.3K 1%R04021R3 344.7KR04024R4 R25 R26 RU3 3510KR040222 R6 R12 R20 R22 R24 R27 R35 R36 R44 R51 R59 R70 R78 R100 R104 R105 RB6 RR1 RR2 RM4 RM5 RM12 3612KR04021R32 3715KR04023R76 R79 R80 3847KR040212R9 R39 R41 R56 R57 R62 R63 R65 R66 R67 R87 RM2 3968KR04022R54 R103 4075KR04022R109 R110 4186.6K 1%R04021R81 42100KR040213R28 R31 R34 R43 R55 R60 R64 R71 R75 R77 R102 R107 RU6 43100K 1%R04022 R5 R11 44200KR04022R73 RU7 45200K_1%R04021R15 46220K 1%R04021R82 47310K 1%R04021R7 48330KR04023R53 R72 R101 49470KR04021RU2 50560KR04023R50 R74 R99 511MR040210R42 R46 R48 R49 R58 R61 R95 R97 R98 R108 522.2MR04022R47 R96 534*22RR0603-4R1RRP1 544*10KR0603-4R1RRP2 55 Light- sensitive resistance MJ5537-21QV1 56SPP3413S23RGSOT-234Q2 Q15 Q16 Q17 57SPN3414S23RGSOT-232Q6 Q7 581SS355SOD-3239D2 D15 D18 D19 D20 DD1 DU1 DU2 DU3 59MMBT3904SOT236Q1 Q3 Q4 Q9 Q10 Q13 Resistance MOS Diode Row of resistance 2/3 Confidential for Shenzhen Ltl Acorn Electronic Co.Ltd Ordinal Product categoryName EncapsulateUsageposition 60MMBT3906SOT233Q5 Q8 QD1 61IN5819DO-214A6D11 D12 D13 D14 D16 D21 62SGM321SOT-252U7 U12 63AP3406LSOT23-52U1 U2 64PIC16F690-I/SSSSOP201U9 65HY27US08561ATSOP_48A1IC4 66HY5DU561622FTP-D43DDR_TSOP661IC2 67MI-5100MT9P0011IC1 6896210LQFP_1761IC3 69XC6219B282MSOT23-52U4 U5 70XC6209B332MSOT23-51U11 71XC6219B332MSOT23-51U3 72PT1101E23ESOT-252U8 U10 73 Socket CON-2PINSIP2A1JD2 74 The spurs CON-2PINA2007-41JF2 75 Socket CON-3PINSIP3_1.5MM1JF1 76SwitchSwitchSK-23D121SW1 7740PINFPCFPC40UP1J11 787PINFPCFPC71CNUA1 79DC SocketDC JACK 3PINDC_JACK21JF3 80USB Socket10PIN USBUSB101JU1 81TV SocketTV OUT 1JU2 8212MHzOSC-3X8-DIP1YD2 8332.768KHzOSC-3X8-DIP1YD1 84PIRLHI7782J1 J8 85SD SocketSD_CARD_SOCKETSD-TAISOL-2MM1J12 86R LED 06031DV1 87Y LED 06031DV1 88BUZZERBUZZERSH09051BD1 89 MotorMotor 1M1 90PCBPCB60.6*106.91 Connector Crystals LED Diode Integrated 3/3

Shenzhen Ltl Acorn Electronics Co., Ltd Add: Site E, 5th floor, Chuangsheng Building, Sunshine Industrial Park, Nanshan District, Shenzhen, Guangdong, China Letter of Certification This is to formally certify that: The tune up procedures of Mobile Scouting Camera (Model: Ltl-5210MM; Ltl-5210MC; Ltl-5210M; LTL-MM1; LTL-BM1) the unit does not need not need tune up because all the setting was configured by firmware. The end user is not allowed to perform final tune. All the power and frequency set up were finished at the manufacturer stage. Signature: Wang zhengping /General Manager Title: General Manage Telephone: +86-755-18818794810 Email: [email protected] Date: April 18, 2011 Shenzhen Ltl Acorn Electronics Co., Ltd

RF Exposure Report 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 2. Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 824.2 0.55 30 836.6 0.56 30 848.8 0.57 30 1850.2 1.0 30 1880.0 1.0 30 1909.8 1.0 30 Note: F= Frequency in MHz 3. Result: This device is not portable device and for normal use, the operator will be 25cm away form the device.SAR measurement is not necessary. 4. MEP estimation at 25cm Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) antenna Gain (dBi) antenna Gain(linear) MPE 128 824.2 31.56 1432.19 3 2.00 0.3640 190 836.6 31.69 1475.71 3 2.00 0.3751 GSM 850 251 848.8 31.57 1435.49 3 2.00 0.3649 512 1850.2 29.10 812.83 3 2.00 0.2066 661 1880.0 29.11 814.70 3 2.00 0.2071 PCS 1900 810 1909.8 29.21 833.68 3 2.00 0.2119

Monday, March 15, 2010 C 1.0 AU 2.36" TFT 110 of Sheet Date: Rev Document Number SizeTitle ABC D 5 4 3 2 1 D CBA 1 2 3 4 5 1 3 2 Q17SOT23SPP3413 1 VCOM 2 VGLC 3 VGL 4 C4P 5 C4M 6 VGH 7 FRP 8 VCAC 9 VINT3 10 C3P 11 C3M 12 VINT2 13 C2P 14 C2M 15 VINT1 16 C1P 17 C1M 18 PGND 19 PVDD 20 DRV 21 LED_ANODE 22 GND 23 FB 24 AVDD 25 GND 26 VCC 27 CS 28 SDA 29 SCL 30 HSYNC 31 VSYNC 32 DCLK 33 D7 34 D6 35 D5 36 D4 37 D3 38 D2 39 D1 40 D0 J11 FPC40UPCON40 C99C04020.1uF R108R04021M R105R040210K C94C04021uF R40R04020 R36R040210K R35R040210K 21 D1 SOD123 NI IN5819 L10CD_2.0NI 4.7uH 12 R106R0603 NC C86C04020.1uF R37R0402NI 10K C52C040215pF 12 R38R0603 0R C97C04020.1uF R107R0402100K R104R040210K C50 C0402 NI 10uF 1 23 Q9SOT232N3904 C48C0402NI 10uF R33R040215R C100C080510uF 1 LX 6 VDD 2 GND 5 OVP 3 FB 4 EN U6SOT23_6_RT9284NI RT9284_B C85C0402 1uF C96C04021uF C95C04021uF C93C04021uF C89C04021uF C92C04021uF C87C04021uF C88C04021uF C90C04021uF C98C04022.2uF C91 C0603 22uF VDD_3.3V VCC_LCD VCC_LCD VCC_LCD VCC_LCD GND GND GND GND GND GND GND GND GND VCC_LCD V_LED GND GND GND GND GND GND GNDGND GND LCD_PCTL LCD_DCLK LCD_CS LCD_SCL LCD_VD LCD_HD LCD_SDA BL_PCTL BL_PWM BL_PCTL LCD_DCLK LCD_D3 C4M LCD_D5 VCOM VGLC VINT1 LCD_DCLK1 VINT3 LCD_D1 LCD_SCL VGL VGH VCAC C3M C2P C1P VINT2 FB C1M LCD_D0 C3P LCD_D2LCD_D7 FRP LCD_D4 LCD_CSLCD_SDA C2M LEDVCC C4P LCD_D6 LCD_HDLCD_VD BL_PCTL LCD_DCLK GNDC4MVCOMVGLCVINT1 LCD_DCLK1 VCC_LCDVINT3 LCD_SCL VGLVGHVCACC3MC2PC1PVINT2 FB C1MC3PFRP LCD_CSLCD_SDA C2M LEDVCC C4P LCD_HDLCD_VD D 2345 CBA of Sheet PathDateTitleSize 0_NT96211 10 2 C 5000 NT96211_MI5M 1 45 3 2 1 E D CBA E <SD_CMD><SD_D0> <S_DI> <SD_D1> <S_DO> <SD_D3><SD_D2> <S_CLK> C35 20pF C42 20pF C38 20pF C32 20pF R2710K R34 100K R93 NI L8 Bead L7 Bead L9 Bead L4 Bead C29 0.1uF C46 0.1uF C36 0.1uF C21 0.1uF C22 0.1uF C39 0.1uF C26 0.1uF C23 0.1uF C47 0.1uF C24 0.1uF C31 0.1uF C37 0.1uF C44 NI R32 12K C40 0.1uF C19 NI C25 0.1uF C41 0.1uF C45 0.1uF C14 NI TV A/D IN PWM SERIAL I/F ICE DEBUG SENSOR I/F MEMORY CARD I/F LCD I/F DGPIO USB I/F SYSTEM I/FRTC & PWBC DDR I/F AUDIO NT96210 176-PIN TOP TQFP 156 XTAL_SYSI 157 XTAL_SYSO 82 TV_FSADJ 46 IDI/AGPIO45 47 GOICE/AGPIO46 48 IMS/AGPIO47 49 ICK/AGPIO48 53 SN_D0/AGPIO17 54 SN_D1/AGPIO18 55 SN_D2 56 SN_D3 57 SN_D4 58 SN_D5 59 SN_D6 61 SN_D7 62 SN_D8 63 SN_D9 50 SN_PXCLK 51 SN_VD 52 SN_HD 64 SN_MCLK/AGPIO19 65 SN_MES0/AGPIO20 66 SN_MES1/AGPIO21 67 SN_FLCTR/AGPIO22 169 I2CSDA/AGPIO23 91 AUD_MICBIAS 14 UART_TX/AGPIO32 15 UART_RX/AGPIO33 175 LCD0/AGPIO34/BS0 176 LCD1/AGPIO35/BS1 1 LCD2/AGPIO36/BS2 2 LCD3/AGPIO37/BS3 4 LCD4/AGPIO38/BS4 5 LCD5/AGPIO39/BS5 6 LCD6/AGPIO40/BS6 7 LCD7/AGPIO41/BS7 8 LCD8/AGPIO42/BS8 9 LCD9/AGPIO43 10 LCD10/AGPIO44 83 AVDD_DAC 78 AD_IN1 79 AD_IN2 80 AD_IN3 26 MC0/AGPIO0 27 MC1/AGPIO1 28 MC2/AGPIO2 29 MC3/AGPIO3 30 MC4/AGPIO4 32 MC5/AGPIO5 33 MC6/AGPIO6 34 MC7/AGPIO7 35 MC8/AGPIO8 36 MC9/AGPIO9 37 MC10/AGPIO10 38 MC11/AGPIO11 39 MC12/AGPIO12 40 MC13/AGPIO13 41 MC14/AGPIO14 42 MC15/AGPIO15 43 MC16/AGPIO16 158 AVCC33_HSRT 114 DR_CKE 112 DR_CS# 98 DR_A1 96 DR_A2 94 DR_A3 95 DR_A4 97 DR_A5 99 DR_A6 102 DR_A7 104 DR_A8 106 DR_A9 103 DR_A10 110 DR_A11 115 DR_CAS# 113 DR_RAS# 116 DR_WE# 121 DR_DQM0 122 DR_DQM1 125 DR_D7 130 DR_D6 132 DR_D5 135 DR_D4 137 DR_D3 139 DR_D2 142 DR_D1 144 DR_D0 145 DR_D15 143 DR_D14 141 DR_D13 138 DR_D12 136 DR_D11 133 DR_D10 131 DR_D9 129 DR_D8 162 USB_DP 161 USB_DM 170 I2CSCL/AGPIO24 168 USB_VBUSI 69 PWM0/AGPIO29 70 PWM1/AGPIO30 71 PWM2/AGPIO31 149 XTAL_RTCI 148 XTAL_RTCO 150 PWR_SW 152 PWR_EN 107 VCC1_8V 45 VCC1_8V 155 VCC1_8V 44 GND 60 VCC3_3V 31 VCC3_3V 3 VCC3_3V 154 AGND_PLL2 120 GND 93 GND 119 DR_CLK# 118 DR_CLK 117 VDD_DDR 147 TESTN 81 AVDD_ADC 77 GND 108 GND 151 VDD_RTC 92 AUD_MICINP 159 AGND_HSRT 16 GND 109 DR_BA0 85 AGND_DAC 90 AUD_VMIDX 111 DR_A12/AGPIO50 68 DGPIO0/SN_PICNT 72 DGPIO12 11 DGPIO1 12 DGPIO2 13 DGPIO3 18 DGPIO4 19 DGPIO5 20 DGPIO6 21 DGPIO7 22 DGPIO8 23 DGPIO9 24 DGPIO10 25 DGPIO11 73 DGPIO13 74 DGPIO14 75 DGPIO15 165 DGPIO16 166 DGPIO17 76 VCC1_8V 124 DR_DQS1 123 DR_DQS0 128 VCC1_8V 100 VDD_DDR 17 VCC1_8V 84 TV_CVBS 86 AUD_SPKL 87 AUD_SPKR 88 AVDD3_3V 89 AVDD33_CODEC 101 DR_A0 105 DR_BA1 126 VDD_DDR 127 VDD_REF 134 GND 140 VDD_DDR 146 GND 153 PWBC_VBAT 160 USB_RREF 163 AVCC33_PLL 164 GND 167 RESET# 171 SBCK0/AGPIO25 172 SBDAT0/AGPIO26 173 SBCS0/AGPIO27 174 SBCS1/AGPIO28 IC3 C43 1.0uF C34 270pF 3 1 2 QD12N3906 R10 1K R883.3K BD1 BUZZER TP11 TP12 TP9 21 DD1 YD2 12MHz YD1 32.768KHz GND GND GND VDD_3.3V GND AGND_AUD VDD_DDR VDD_1.8V VDD_3.3V VCC3_3_AUD AVDD_DAC VCC3_3_USB AGND_HSRT VCC3_3_USB AGND_HSRT AGND_AD/DA AGND_PLL2 AGND_PLL2 GND AGND_AD/DA F_3.3V VDD_RTC AGND_HSRT AGND_AUD AUD_MICBIAS AUD_MICBIAS AGND_AD/DA NAND_WP# SN_D[0:9] DR_DQM[0:1]DR_A[0:12]DR_DQS[0:1] NAND_D[0:7] DR_BA[0:1] DR_D[0:15] SN_D1NAND_D4 NAND_D4 DR_D7 RESET# DR_A12DR_DQM1 NAND_D0 NAND_D0 DR_DQS0 XTAL_SYSI XTAL_SYSO DR_A5DR_A1 NAND_D6 NAND_D6 F_3.3V DR_A10 AVDD_DACAVDD_DAC NAND_D1 NAND_D1 TV_DET TV_DET DR_D3 DR_A2 SN_D8 DR_D2 DR_D14 DR_A8DR_A9 SN_D3 VDD_RTC DR_D5 AGND_HSRTVCC3_3_USBVCC3_3_USB DR_A6 SN_STANDBY SN_STANDBY DR_D6 AUD_MICBIAS DR_D15 XTAL_RTCI SN_RESET SN_RESET DR_D12 DR_D0 DR_D1 XTAL_RTCO AUD_VMIDX DR_DQM0 SN_D4 DR_D4 SN_D7 VDD_REF DR_D10 DR_BA0DR_A7 SN_D9 DR_A11 SN_D5SN_D6 USB_RREF DR_D8 DR_D11 NAND_D5 NAND_D5 DR_A0 DR_D13 DR_D9 NAND_D3 NAND_D3 DR_BA1 SN_D2 DR_DQS1 PWR_SW DR_A3 NAND_D2 NAND_D2 SN_D0 DR_A4RESET#XTAL_SYSIXTAL_SYSO NAND_RDY# NAND_RDY# AGND_AD/DA DR_CLK#DR_RAS# SD_CLK SD_CLK USB_DPUSB_VBUSI SD_WP# SD_WP# VCC3_3_AUDVCC3_3_AUD NAND_CLE NAND_CLE GOICE SN_MCLKNAND_CS# NAND_CS# XTAL_RTCI VDD_1.8V VDD_1.8V VDD_1.8V VDD_1.8V VDD_1.8V VDD_1.8V XTAL_RTCO AUD_VMIDX NAND_RE# NAND_RE# AGND_PLL2 VDD_DDR VDD_DDR VDD_DDR VDD_DDR VDD_REF SN_VD VDD_3.3V VDD_3.3V VDD_3.3V NAND_ALE NAND_ALE DR_CAS# SD_CD SD_CD DR_CS# GND DR_CLK AUD_MICINP SN_HD USB_RREFDR_WE# SN_PCLK PWR_SW NAND_WE# NAND_WE# USB_DM DR_CKE AD2 VDD_3.3V #ONOFF #MODE TMR4 TMR4 LCD_CS# LCD_WR# LCD_DAT# FLSON P_SDAP_SCKP_SDO NAND_D7 IR_N SD_PWR SR_ON IR_P TV_FSADJ TV_FSADJ TV_CVBS B…

Text truncated - open the document above for the full version.

Shenzhen Certification Technologh Service Co., Ltd 3F, Bldg27,Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, ShenZhen, Guang dong, P.R. China. FCC ID: ZF3-LTL-5210MM Page 1 of 42 TEST REPORT FCC ID: ZF3-LTL-5210MM Applicant：Shenzhen Ltl Acorn Electronics Co.,Ltd Address : Site E,5th floor, Chuangsheng Building, Sunshine Industrial Park, Nanshan District, Shenzhen, Guangdong, China Equipment Under Test(EUT): Name : Mobile Scouting Camera Model : Ltl-5210MM; Ltl-5210MC; Ltl-5210M ; LTL-MM1; LTL-BM1 In Accordance with: FCC PART 2; FCC PART 22H; FCC PART PART 24E Report No : STE110329222 Date of Test : Apr. 02---04, 2011 Date of Issue : Apr. 05, 2011 Test Result: PASS In the configuration tested, the EUT complied with the standards specified above Authorized Signature ___________________________ (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.:STE110329222 FCC ID: ZF3-LTL-5210MM Page 2 of 42 Contents 1. General Information...............................................................................................................4 1.1. Description of Device (EUT)..........................................................................................4 1.2. Test Lab information.......................................................................................................4 2. Summary of test......................................................................................................................5 2.1. Summary of test result....................................................................................................5 2.2. Assistant equipment used for test....................................................................................5 2.3. Test mode........................................................................................................................6 2.4. Test Environment Conditions..........................................................................................6 2.5. Measurement Uncertainty (95% confidence levels, k=2)...............................................6 2.6. Test Equipment...............................................................................................................7 3. Conducted Output power.......................................................................................................8 3.1. Block Diagram of Test Setup..........................................................................................8 3.2. Limit................................................................................................................................8 3.3. Test Procedure.................................................................................................................8 3.4. Test Result.......................................................................................................................8 4. Radiated Output power..........................................................................................................9 4.1. Block Diagram of Test Setup..........................................................................................9 4.2. Limit................................................................................................................................9 4.3. Test Procedure.................................................................................................................9 4.4. Test Result.....................................................................................................................10 5. Occupied Bandwidth............................................................................................................11 5.1. B lock Diagram of Test Setup.......................................................................................11 5.2. Limit..............................................................................................................................11 5.3. Test Procedure...............................................................................................................11 5.4. Test Result.....................................................................................................................11 5.5. Orginal test data............................................................................................................12 6. Frequency stability...............................................................................................................15 6.1. Block Diagram of Test Setup........................................................................................15 6.2. Limit..............................................................................................................................15 6.3. Test Procedure...............................................................................................................15 6.4. Test Result.....................................................................................................................16 7. Conducted spurious emissions.............................................................................................18 7.1. Block Diagram of Test Setup........................................................................................18 7.2. Limit.................................................................................................................…

Text truncated - open the document above for the full version.
