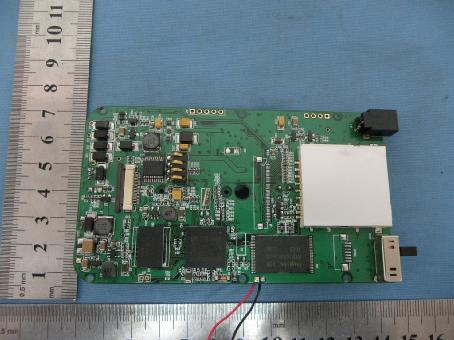

ZF3-LTL-6210MMMobile HD Video Scouting Camera

M10 Quectel Cellular Engine M10 User Guide M10_User_Guide_V1.00 - 1 - Document Title M10 User Guide Version 1.00 Date 2009-07-07 Status Release Document Control ID M10_User_Guide_V1.00 General Notes Quectel offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Quectel. The information provided is based upon requirements specifically provided to Quectel by the customers. Quectel has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession. Furthermore, system validation of this product designed by Quectel within a larger electronic system remains the responsibility of the customer or the customer’s system integrator. All specifications supplied herein are subject to change. Copyright This document contains proprietary technical information which is the property of Quectel Limited., copying of this document and giving it to others and the using or communication of the contents thereof, are forbidden without express authority. Offenders are liable to the payment of damages. All rights reserved in the event of grant of a patent or the registration of a utility model or design. All specification supplied herein are subject to change without notice at any time. Copyright © Shanghai Quectel Wireless Solutions Co., Ltd. 2009 M10_User_Guide_V1.00 - 2 - 1 .EVB kit introduction 1.1 EVB top and bottom view EVB top view EVB bottom view M10_User_Guide_V1.00 - 3 - A: Debug port B: Main UART port C: Test points D: Adapter interface E: Module operating status indication LEDs F: PWRKEY button G: EMERG_OFF button H: VBAT switch I: VCHG switch (charge function) J: Download switch K: Connector for M10-TE-A board L: Screw holes for fixing the M10-TE-A M: Headset socket N: Handset socket of audio channel 2 O: Handset socket of audio channel 1 P: Antenna connector fixing hole Q: Screw holes for EVB placement R: SIM card socket 1.2 EVB accessory Accessory introduction A: 5V DC switching adapter B: USB to UART converter cable C: Antenna D: RF cable E: Headset F: Bolts and nuts for fixing module and EVB M10_User_Guide_V1.00 - 4 - EVB and accessories 2. Operational description 2.1 Tune up procedure Firstly，please equip the module and accessories as the figure 4. M10_User_Guide_V1.00 - 5 - Then ,switching the H switch to ON state, J switch to ON state； Press the F button PWRKEY for about 2 second, then the LED glint，and the module is tuningup successfully；( the location of All Switches and buttons please see the Figure 1) 2.2 Serial interfaces The module provides two unbalanced asynchronous serial ports. One is the serial port ,the other is the debug port. The module is designed as a DCE (Data Communication Equipment), following the traditional DCE-DTE (Data Terminal Equipment) connection. The module and the client (DTE) are connected through the following signal (as following figure shows). Autobauding supports baud rate from 4800bps to 115200bps. Serial port z TXD: Send data to the RXD signal line of the DTE z RXD: Receive data from the TXD signal line of the DTE M10_User_Guide_V1.00 - 6 - TXD RXD RTS CTS DTR DCD RI TXD RXD RTS CTS DTR DCD /RING DBG_TX DBG_RX /TXD /RXD MODULE (DCE) CUSTOMER (DTE) Serial port1 Serial port Debug port Serial port2 Connection of serial interfaces Note: The RTS PIN must be connected to the GND in the customer circuit when only the TXD and RXD are used in the Serial Port communication. 2.3 Antenna interface The Pin 43 is the RF antenna pad. The RF interface has an impedance of 50Ω. 2.3.1 Antenna installation M10 provides an RF antenna PAD for customer’s antenna installation. The customer’s antenna should be located in the customer’s main board and connect to module’s antenna pad through microstrip line or other type RF trace which the impendence must be controlled in 50Ω. To help the customer to ground the antenna, M10 comes with 2 grounding pads located close to the antenna pad. Pin definition of the RF_ANT Name Pin Function RF_ANT 43 RF antenna pad GND 42 GND 44 If the customer installs the antenna via a soldered microwave coaxial cable, we would suggest the customer to choose RF cable carefully so as to minimize the loss on the RF cable. And the recommended insertion loss should try to meet the following requirements: z GSM850/EGSM900<0.5dB z DCS1800/PCS1900<1dB M10_User_Guide_V1.00 - 7 - 2.3.2 RF output power The module conducted RF output power Frequency Max Min GSM850 33dBm ±2dB 5dBm±5dB EGSM900 33dBm ±2dB 5dBm±5dB DCS1800 30dBm ±2dB 0dBm±5dB PCS1900 30dBm ±2dB 0dBm±5dB 2.3.3 RF receiving sensitivity The module conducted RF receiving sensitivity Frequency Receive sensitivity GSM850 < -107dBm EGSM900 < -107dBm DCS1800 < -107dBm PCS1900 < -107dBm 2.3.4 Operating frequencies The module operating frequencies Frequency Receive Transmitting channel GSM850 869 ～ 894MHz 824 ～ 849MHz 128 ～ 251 EGSM900 925 ～ 960MHz 880 ～ 915MHz 0～124, 975～1023 DCS1800 1805 ～ 1880MHz 1710 ～ 1785MHz 512 ～ 885 PCS1900 1930 ～ 1990MHz 1850 ～ 1910MHz 512 ～ 810 2.3.5 Recommended impedance matching circuit The impedance of M10’s RF_ANT port is 50Ω. If the impedance of antenna is close to 50Ω in all working frequency bands, the antenna could be connected to the RF_ANT port directly via 50Ω transmission line. But if the impedance of antenna is not close to 50Ω, a T-type or π-type matching circuit should be inserted between transmission line and antenna. The matching components should be placed as close as possible to the antenna’s feed point. The following 2 figures show the reference designs of T-type and π-type matching circuits. M10_User_Guide_V1.00 - 8 - T‐type matching circuit π‐type matching circuit NOTE: The impedance of traces in Bold type must be 50Ω. M10_User_Guide_V1.00 - 9 - 3. M10 features 3.2.1 General specification M10 is a Quad-band GSM/GPRS module delivers GSM/GPRS 850/900/1800/1900MHz performance for voice, SMS, Data, and Fax in a smal…

Text truncated - open the document above for the full version.

Ltl Acorn® Mobile HD Video Scouting Camera Ltl-6210M Series USER’S MANUAL TABLE OF CONTENTS General Information 1.1 Features 1.2 Application 1.3 Illustration Quick Start 2.1 Insert SIM Card 2.2 Load Batteries 2.3 Insert SD Card 2.4 Enter Test Mode 2.5 Enter Live Mode 2.6 Advantages of Prep Sensors Advanced Settings 3.1 Parameter Settings 3.2 File Format 3.3 Set up MMS Function on Camera 3.4 Set up Camera on PC 35 Set up MMS Function on PC 3.6 Camera Working with MMS 3.7 View Local MNOP Name and Signal Strength on TFT Display Ltl-6210M Series Products 4.1 Parts 4.2 Models for Purchase Important Information 5.1 Power Supply 5.2 SD Card 5.3 Auto Adjustment on Video Length 5.4 850nm and 940nm IR LED 5.5 Mount on Tripod 5.6 FAQs on MMS Function Firmware Upgrades 6.1 Firmware Upgrades Warranty Information Appendix I Technical Specifications Appendix II Package Contents GENERAL INFORMATION 1.1 Introduction The Ltl Acorn M Series (Model Ltl-6210MC and Ltl-6210MM) is the first generation of our HD video scouting camera. Bundled with the MMS-module (Multimedia Messaging Service) LTL- MM2, the standard scouting camera (Ltl-6210M) can be upgraded to work as a remote cellular camera. With its highly sensitive Passive Infra-Red (PIR) sensor, the camera detects the sudden change of ambient temperature caused by moving game in a region of interest (ROI), triggers to take pictures/videos, and sends the images via GSM network to the user’s cell phone or email account. Features: • Programmable 2/5/12-Megapixel high-quality resolution. • HD video with sound:H.264/AVC format 1080 and 720P • Infrared night vision LEDs flash range: 850nm—82 feet; 940nm—43 feet. • In “Cam + Video” mode, camera takes both pictures and video at every trigger event • Continuous shooting interval time about 0.5 seconds (stamp off) • Ultra low standby power consumption. Extremely long in-field life (in standby mode, up to 6 months with 12 x AA batteries) • Unique side Prep Sensor design provides wider sensing angle and enhances camera’s response speed • Perform in the most extreme temperatures from -22°F to 158°F • Compact size (5 ½ x 3 ½ x 2 ½ inches). Well designed to deploy covertly • Impressively quick trigger time (1.2 second) • In Time Lapse setting, the camera automatically and constantly takes pictures/videos at specified interval. This is very useful when observing plants flowering, birds building nest, or when monitoring unattended properties such as parking lots • With Timer setting on, the camera can be programmed to only work in specified period every day. This feature can work together with Time Lapse feature • Backpack-looking tree grabber makes mounting and aiming a snap • Serial Number setting enables you to code locations in the photos. This helps multi-camera users identify the location when reviewing the photos • Built-in 2.0” TFT color display located at the bottom cover to review images and videos • Date, time, temperature and moon phase can be stamped in the pictures • Lockable and password protected • MMS image sizes : 640 x 480 • Users can configure the Camera and MMS function either by running the enclosed CD on the computer, or directly on the built-in TFT display. • Can change several language of the menu through setting country in MMS menu or in PC setup. • Separation of the Camera and the MMS module provides users flexibility: starting with the value models a standard scouting camera, and upgrading to the premium model with MMS function. • SD card can be set in “Cycling Save” mode, which automatically deletes the earliest photos or videos and makes room for new ones. • If local area mobile signal is too weak to send MMS, user may let the camera send text message(SMS) instead. Message content includes the time the picture is taken and the Camera serial number. • Our Advance Remote Cellular Technology transmits images to your cell phone and email account constantly at lower battery consumption and shorter transmission time, compared with products of its kind on the market. • Automatically send text alert when battery power level goes low • Check cellular signal information on the built-in TFT display in the field • All sent MMS pictures will be saved in the MMS folder in the SD card • Internal antenna design makes the camera portable while still emitting strong signal. When using the iron security box, user can choose the external antenna design. • Operates globally via GSM/GPRS network. Supports four bands: 850 / 900 / 1800 /1900MHz. 1.2 Application • Trail camera for hunting • Animal or event observation • Motion-triggered security camera, for home, office and community • All other indoor/outdoor surveillance where invasion evidence needed 1.3 Illustration • Figure 1.1 shows the front view of the camera (Part # Ltl-6210M) • Figure 1.2 shows the bottom view of the camera (Part # Ltl-6210M) • Figure 1.3 shows the back view of the camera (Part # Ltl-6210M) and front view of LTL- MM2 Figure 1.1: Front View of Ltl-6210M Figure 1.2: Bottom View of Ltl-6210M The camera provides the following connections for external devices: USB 2.0 port, SD card slot, TV out jack, and external DC power in jack. The 3-way Power/Mode Switch is used to select the main operation modes: OFF, ON and TEST. To power up the camera, install four NEW high-performance alkaline or lithium AA batteries in the camera. FOR BETTER PERFORMANCE, WE RECOMMEND USING ENERGIZER LITHIUM AA BATTERIES. To achieve longer in-field life, always install 12 AA alkaline batteries. Figure 1.3: Back View of Ltl-6210M CAUTION: If you are not using the camera for an extended period of time, it is highly recommended that you remove the batteries from the camera to avoid possible acid leak that may damage the camera which would void the warranty. QUICK START 2.1 Insert SIM Card (Only for Model Ltl-6210MM) You need to purchase the SIM card from your local Mobile Phone Network perators(MPNO), making sure they provide Multimedia Messaging Service (MMS). Ask them for…

Text truncated - open the document above for the full version.

DATE : March 28, 2012 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:_ ZF3-LTL-6210MM ___ ____ Product Name:_ Mobile HD Video Scouting Camera __ _ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics Long-term confidential • Block diagram Long-term confidential • Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this March 28, 2012 By: Wang zhengping Signature Printed Title: General Manager On behalf of : (Company Name) Shenzhen Ltl Acorn Electronics Co., Ltd Telephone: +86-755-18818794810

Shenzhen Lianxinxing Technology Co., Ltd Date: March 28, 2012 To: Federal Communications Commission 7435 Oakland Mills Road Columbia,MD FCC ID: ZF3-LTL-6210MM To Whom It May Concern: This letter is to ascertain that Shenzhen Ltl Acorn Electronics Co., Ltd Product: Mobile HD Video Scouting Camera Model: Ltl-6210MC, Ltl-6210MM, Ltl-MM2 The EUT is in the process of being granted under the FCC DOC. All the test will be performed at the FCC recognized test lab. If you have any question or concerns, pls, contact us. Sincerely, Signature Wang zhengping / General Manager Title: General Manager Telephone: +86-755-18818794810 Email: [email protected] Date: March 28, 2012

March 28, 2012 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Certification Technology Service Co.,Ltd, Address: 3F, Bldg.27, Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, Shenzhen 518055, Guangdong, P.R. China Person: Mark Zhu (Name and address，person). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Shenzhen Ltl Acorn Electronics Co., Ltd Address: 2th floor, Building 8, ShiLing Industrial Park, XinWei, XiLi Town, Nanshan District, Shenzhen ( applicant name and address). Dated this March 28, 2012 20 Agency agreement expiration date: Usually Give 8 - 12 Months By: Wang zhengping Signature Printed Title: General Manager On behalf of : (Company Name) Shenzhen Ltl Acorn Electronics Co., Ltd Telephone: +86-755-18818794810

FCC ID: ZF3-LTL-6210MM Model No.: LTL-6210MM Manufacturer: Shenzhen Ltl Acorn Electronics Co., Ltd

Label location

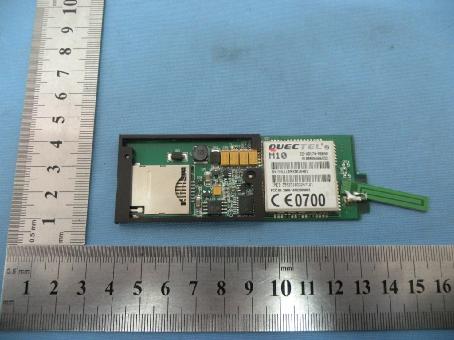

GPS ANTENNA GSM ANTENNA

6210 BOM Item Part Name PCB DECAL Qty 1BEAD L0603 8 21.8uH L0603 3 34.7UH L4X4 2 422UH CD52 2 50.01uF C0402 4 60.1uF/16V C0402 66 71uF/16V C0402 17 82.2uF/6.3V C0402 5 94.7uF R0603 1 1010uF/16V C0805 5 1110uF/16V C1206 9 1210uF/50V 1210 TTK 2 1322uF/16V C1206 12 1447uF/6.3V TANA 4 1547uF/6.3V TANB 1 16100uF/6.3V TANB 9 1710PF C0402 1 1815PF C0402 1 1920PF C0402 1 2022pF C0402 5 21220pF C0402 1 22270PF C0402 1 23330PF C0402 1 24820pF C0402 3 251500PF C0402 1 260R R0805 5 270R R0402 14 280.47R R0402 2 291K R0402 11 BillOfMaterials 6210 BOM Item Part Name PCB DECAL Qty 301.5KR04021 312.2KR04022 323.3KR04021 334.7KR040212 344.99K 1%R04021 3510R_1%R04021 3610KR0402 34 3712KR04022 3815RR04021 3915KR04022 4022RR04029 4126.1K-1%R04021 4247KR04025 4351R_1%R04021 4468KR04022 4575RR04021 46100RR04021 4775KR04022 4886.6K 1%R04021 49100K,5%R040212 50100K_1%R04022 51110K_1%R04021 52200K_1%R04021 53200K,5%R04022 54220K 1%R04021 55330KR04023 56470KR04021 57470RR04026 58560KR04023 59100K 1% R08051 BillOfMaterials 6210 BOM Item Part Name PCB DECAL Qty 601MR040211 612.2MR04022 624*22RR0603 1 634*10KR0603-4R 1 64IN4148D-12061 65IN5819DO-2143 66SS310DO-2141 67SPP3413SOT-235 68SPN3414SOT-232 691N4149SOT-231 701SS355SOD-3239 712N3906SOT232 722N3904SOT237 73XC6219B332MSOT23-51 74XC6219B282MSOT23-53 75XC6219B332MSOT23-51 76PT1101SOT-251 77SOP8 SOP81 78AP3406LSOT23-52 79LM321SOT-252 80IN4149DO-2142 81UESD64BSC89-51 82H5PS5162FFR -Y5CDDR2-512M1 83 16F690SSOP201 84DSP-6210TFBGA-2971 85HY27US08561ATSSOP-481 86MI-5100 MT9P001MT9P0011 87FPC 40PIN FPC401 88FPC 7PIN FPC71 89FPC 40PIN 1 90FPC22Pin CON221 91FPC22Pin 1 92USB-10P USB10 1 93SD SD-TAISOL-2MM 1 94TV TV_JACK_5P 1 95Y_LED 红灯/蓝灯 R06032 96DC_JACK_DC座DC_JACK21 97NPN-PHOTO1 BillOfMaterials 6210 BOM Item Part Name PCB DECAL Qty 98LH778PIR2 99SPEAKER,SPEAKER R0805A 1 100MICROPHONE,MICROPHONE SIP2_2MM1 101SK-23D12 1 102CON-3PINSIP3_1.5MM 2 10312.MHz XT011 10432.768KHz XT011 1051 1061 107BL4P-2.54PH-5.2H1 BillOfMaterials

RF Exposure Report 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 2. Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 824.2 0.55 30 836.6 0.56 30 848.8 0.57 30 1850.2 1.0 30 1880.0 1.0 30 1909.8 1.0 30 Note: F= Frequency in MHz 3. Result: This device is not portable device and for normal use, the operator will be 20cm away form the device. SAR measurement is not necessary. 4. MPE estimation at 25cm Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) antenna Gain (dBi) antenna Gain(linear) MPE GSM 850 190 836.6 33.59 2285.60 2.5 1.78 0.5365 GPRS 850 190 836.6 29.93 984.01 2.5 1.78 0.2309 PCS 1900 810 1909.8 32.36 1721.87 2.5 1.78 0.4042 GPRS 1900 810 1909.8 29.45 881.05 2.5 1.78 0.2068

Page 1 of 61 47 CFR PART 22 SUBPART H & 24 SUBPART E TEST REPORT of GSM/GPRS 850/900/1800/1900 Module Model Name: M10 Brand Name: QUECTEL Report No.: SH09070021AR02 FCC ID: XMR-16182009002 prepared for Quectel Wireless Solutions Co.,Ltd Room 801, Building E,No 1618 Yishan Road, Shanghai,China,201103 prepared by Shenzhen Electronic Product Quality Testing Center Morlab Laboratory 3/F, Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055 P. R. China Tel: +86 755 86130398 Fax: +86 755 86130218 NOTE: This test report can be duplicated completely for the legal use with the approval of the applicant; it shall not be reproduced except in full, without the written approval of Shenzhen Electronic Product Quality Testing Center Morlab Laboratory. Any objections should be raised to us within thirty workdays since the date of issue. Report No.: SH09070021AR02 Page 2 of 61 TABLE OF CONTENTS 1. TEST CERTIFICATION ........................................................................................................... 4 2.GENERAL INFORMATION .................................................................................................... 5 2.1EUT Description ........................................................................................................................... 5 2.2Test Standards and Results ........................................................................................................... 7 2.3Facilities and Accreditations ......................................................................................................... 8 2.3.1Facilities .................................................................................................................................... 8 2.3.2Test Environment Conditions .................................................................................................... 8 3.47 CFR PART 2, PART 22H REQUIREMENTS .................................................................... 9 3.1Frequencies ................................................................................................................................... 9 3.1.1Requirement .............................................................................................................................. 9 3.1.2Test Description ........................................................................................................................ 9 3.1.3Test Result ............................................................................................................................... 10 3.2Conducted RF Output Power ...................................................................................................... 15 3.2.1Requirement ............................................................................................................................ 15 3.2.2Test Description ...................................................................................................................... 15 3.2.3Test Result ............................................................................................................................... 15 3.320dB Occupied Bandwidth ......................................................................................................... 22 3.3.1Definition ................................................................................................................................ 22 3.3.2Test Description ...................................................................................................................... 22 3.3.3Test Verdict .............................................................................................................................. 22 3.4Frequency Stability ..................................................................................................................... 29 3.4.1Requirement ............................................................................................................................ 29 3.4.2Test Description ...................................................................................................................... 29 3.4.3Test Verdict .............................................................................................................................. 29 3.5Conducted Out of Band Emissions ............................................................................................. 31 3.5.1Requirement ............................................................................................................................ 31 3.5.2Test Description ...................................................................................................................... 31 3.5.3Test Result ............................................................................................................................... 31 3.6Band Edge ................................................................................................................................... 44 3.6.1Requirement ............................................................................................................................ 44 3.6.2Test Description ...................................................................................................................... 44 Report No.: SH09070021AR02 Page 3 of 61 3.6.3Test Result ............................................................................................................................... 44 3.7Transmitter Radiated Power (EIRP/ERP)................................................................................... 49 3.7.1Requirement ............................................................................................................................ 49 3.7.2Test Description ...................................................................................................................... 49 3.7…

Text truncated - open the document above for the full version.

Report No.: SH09070021AR02 Page 31 of 61 3.5Conducted Out of Band Emissions 3.5.1Requirement According to FCC section 22.717(a) and FCC section 24.235(a), the power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43+10*log(P)dB. This calculated to be -13dBm. 3.5.2Test Description See section 3.1.2 of this report. 3.5.3Test Result The measurement frequency range is from 30MHz to the 10 th harmonic of the fundamental frequency. The lowest, middle and highest channels are tested to verify the out of band emissions. 1. Test Verdict: BandChannel Frequency (MHz) Measured Max. Spurious Emission (dBm) Refer to Plot Limit (dBm) Ve r d i c t GSM 850MHz 128 824.2 -24.66 Plot A1/A2 -13 PA S S 190 836.6 -24.87 Plot B1/B2 PASS 251 848.8 -24.94 Plot C1/C2 PASS GSM 1900MHz 512 1850.2 -24.45 Plot D1/D2 -13 PA S S 661 1880.0 -24.70 Plot E1/E2 PASS 810 1909.8 -27.71 Plot F1/F2 PASS GPRS 850MHz 128 824.2 -26.37 Plot A3/A4 -13 PA S S 190 836.6 -25.05 Plot B3/B4 PASS 251 848.8 -26.08 Plot C3/C4 PASS GPRS 1900MHz 512 1850.2 -24.43 Plot D3/D4 -13 PA S S 661 1880.0 -24.45 Plot E3/E4 PASS 810 1909.8 -25.04 Plot F3/F4 PASS 2. Test Plot for the Whole Measurement Frequency Range: Note: the power of the EUT transmitting frequency should be ignored. Report No.: SH09070021AR02 Page 32 of 61 Test Plot of GSM (Plot A1:GSM 850MHz Channel = 128, 30MHz to 1GHz) (Plot A2: GSM 850MHz Channel = 128, 1GHz to 9GHz) Report No.: SH09070021AR02 Page 33 of 61 (Plot B1: GSM 850MHz Channel = 190, 30MHz to 1GHz) (Plot B2:GSM 850MHz Channel = 190, 1GHz to 9GHz) Report No.: SH09070021AR02 Page 34 of 61 (Plot C1:GSM 850MHz Channel = 251, 30MHz to 1GHz) (Plot C2:GSM 850MHz Channel = 251, 1GHz to 9GHz) Report No.: SH09070021AR02 Page 35 of 61 (Plot D1:GSM 1900MHz Channel = 512, 30MHz to 2GHz) (Plot D2:GSM 1900MHz Channel = 512, 2GHz to 20GHz) Report No.: SH09070021AR02 Page 36 of 61 (Plot E1:GSM 1900MHz Channel = 661, 30MHz to 2GHz) (Plot E2:GSM 1900MHz Channel = 661, 2GHz to 20GHz) Report No.: SH09070021AR02 Page 37 of 61 (Plot F1:GSM 1900MHz Channel = 810, 30MHz to 2GHz) (Plot F2:GSM 1900MHz Channel = 810, 2GHz to 20GHz) Report No.: SH09070021AR02 Page 38 of 61 Test Plot of GPRS: (Plot A3: GPRS 850MHz Channel = 128, 30MHz to 1GHz) (Plot A4: GPRS 850MHz Channel = 128, 1GHz to 9GHz) Report No.: SH09070021AR02 Page 39 of 61 (Plot B3: GPRS 850MHz Channel = 190, 30MHz to 1GHz) (Plot B4: GPRS 850MHz Channel = 190, 1GHz to 9GHz) Report No.: SH09070021AR02 Page 40 of 61 (Plot C3: GPRS 850MHz Channel = 251, 30MHz to 1GHz) (Plot C4: GPRS 850MHz Channel = 251, 1GHz to 9GHz) Report No.: SH09070021AR02 Page 41 of 61 (Plot D3: GPRS 1900MHz Channel = 512, 30MHz to 2GHz) (Plot D4: GPRS 1900MHz Channel = 512, 2GHz to 20GHz) Report No.: SH09070021AR02 Page 42 of 61 (Plot E3: GPRS 1900MHz Channel = 661, 30MHz to 2GHz) (Plot E4: GPRS 1900MHz Channel = 661, 2GHz to 20GHz) Report No.: SH09070021AR02 Page 43 of 61 (Plot F3: GPRS 1900MHz Channel = 810, 30MHz to 2GHz) (Plot F4: GPRS 1900MHz Channel = 810, 2GHz to 20GHz) Report No.: SH09070021AR02 Page 44 of 61 3.6Band Edge 3.6.1Requirement According to FCC section 22.717(b) and FCC section 24.235(b), in the 1MHz bands immediately outside and adjacent to the frequency block a resolution bandwidth of at least one percent of the emission bandwidth (26dB emission bandwidth) of the fundamental emission of the transmitter may be employed. 3.6.2Test Description See section 3.1.2 of this report. 3.6.3Test Result The lowest and highest channels are tested to verify the band edge emissions. 1. Test Verdict: BandChannel Frequency (MHz) Measured Max. Band Edge Emission (dBm) Refer to Plot Limit (dBm) Ve r d i c t GSM 850MHz 128 824.2 -14.24 Plat A1 -13 PA S S 251 848.8 -14.05 Plot B1 PASS GSM 1900MHz 512 1850.2 -14.65 Plat C1 -13 PA S S 810 1909.8 -14.07 Plot D1 PASS GPRS 850MHz 128 824.2 -13.43 Plat A2 -13 PA S S 251 848.8 -13.81 Plot B2 PASS GPRS 1900MHz 512 1850.2 -16.34 Plat C2 -13 PA S S 810 1909.8 -14.97 Plot D2 PASS Report No.: SH09070021AR02 Page 45 of 61 2.Test Plot of GSM: (Plot A1:GSM 850MHz Channel = 128) (Plot B1:GSM 850MHz Channel = 251) Report No.: SH09070021AR02 Page 46 of 61 (Plot C1: GSM 1900MHz Channel = 512) (Plot D1: GSM 1900MHz Channel = 810) Report No.: SH09070021AR02 Page 47 of 61 3.Test Plot of GPRS: (Plot A2:GPRS 850MHz Channel = 128) (Plot B2:GPRS 850MHz Channel = 251) Report No.: SH09070021AR02 Page 48 of 61 (Plot C2:GPRS 1900MHz Channel = 512) (Plot D2:GPRS 1900MHz Channel = 810) Report No.: SH09070021AR02 Page 49 of 61 3.7Transmitter Radiated Power (EIRP/ERP) 3.7.1Requirement According to FCC section 22.713, the Effective Radiated Power (ERP) of mobile transmitters and auxiliary test transmitters must not exceed 7Watts, and FCC section 24.232, the broadband PCS mobile station is limited to 2Watts e.i.r.p. peak power. 3.7.2Test Description 1.Test Setup: The EUT, which is powered by the Battery charged with the AC Adapter, is located in a 3m Full-Anechoic Chamber; the cable loss, air loss and so on of the site as factors are pre-calibrated using the "Substitution" method, and calculated to correct the reading. The EUT is commanded by the SS to operate at the maximum output power i.e. GSM550MHz band Power Control Level (PCL) = 5 and Power Class = 4 and GSM1700MHz band Power Control Level (PCL) = 0 and Power Class = 1. A call is established between the EUT and the SS via a Common Antenna. The Test Antenna is a Bi-Log one (used for 30MHz to 1GHz) or a Horn one (used for above 3GHz), and it’s located at the same height as the EUT. The Filters consists of Notch Filters and High Pass Filter. Spectrum Analyzer <3 m> Test Antenna EUT Co…

Text truncated - open the document above for the full version.
