uBoard Hardware Installation Guide (V2.2) All contents of this publication are subject to change. 2011.01 uBoard Hardware Installation Guide (V2.2) 2 INDEX 1. Verify Components before Installation ---- 3 2. Station Installation ---- 3 2.1 Connecting USB cable properly ---- 4 2.2 Connection VGA cable properly ---- 4 3. Digital Pen ---- 5 3.1 Key features ---- 5 3.2 Digital pen operation ---- 6 uBoard Hardware Installation Guide (V2.2) 3 1. Verify Components before Installation. Before hardware installation, firstly, please check if components listed below are included in the package. If you find missed one, please contact the store you purchased. . Item Quantity Remarks 1 Station 1 2 Digital Pen 1 3 Active Link 1 Including Calibration & Board SW 4 USB Cable 1 5M 5 Recharging battery Cable 1 1M 6 Station Holder 4 7 Pen tip 5 2. Station Installation. 2.1 Connecting USB Cables properly. 2.1.1 Connect Micro USB connector to Micro USB port of Station. Connects USB cable to micro USB port of uBoard station and adhere station holder to whiteboard or flat surface.  Attach Station holder to the backside of station. As magnet is included in the back side of station, it can be easily attached.  Connect micro USB connector of USB cable to micro USB port of Station.  Take off masking tape of station holder.  Place Station in the middle of whiteboard or working area and press Station to adhere station holder.  Make sure station position with screen without tilting vertically. uBoard Hardware Installation Guide (V2.2) 4 2.1.2 Connect USB connector to USB port of Computer. Connect USB connector, the other end of USB cable, to the USB port on the computer. If cable length is not enough, please use USB extension cable. 2.2 Connecting VGA cable properly. After connecting USB cable between uBoard station and computer, connect VGA cable between Beam project and the computer. It is the last step for hardware installation. When this step is completed successfully, you are ready to use uBoard in hardware side. However, in order to use uBoard, Software installation is additionally required. As for SW installation, Please refer to the software installation guide. uBoard Hardware Installation Guide (V2.2) 5 NOTICE: . Notice 1 Avoid using this device in the environment that air is blown directly to receiver from air conditioner or heater. 2 Place Station in the middle of whiteboard or working area in the left side if possible, and make sure station position with screen without tilting vertically 3 Position station to keep 2 cm at the least away from left vertical line of projected screen 4 Recommend to use USB repeater in case that USB extension cable is exceeding 10m. 3. Digital pen Digital pen for uBoard is ideally designed to support upto120 inches as effective working area. It adopted many key features to maximize user convenience. 3.1 Key features 3.1.1 Button functions uBoard digital pen has 2 buttons executing different functions depending working environment. a. In MINT Interactive mode (Board software). - Low button (close to pen tip): executes the right button of mouse. - Upper button: switching eraser mode to writing mode or vice versa. b. In Window mode. uBoard Hardware Installation Guide (V2.2) 6 - Low button: executes the right button of mouse. - Upper button: executes window Exit when to push it during a couple of seconds. (This function is only available during MINT control is active.) 3.2 Digital Pen operation uBoard digital pen is using rechargeable battery to avoid environment contamination with maximizing user convenience. a. Recharging time & continuous operating time: It takes about 1 hour for full recharge and lasts 20 hours for continuous operating time. b. Automatic power save function: When the pen is idle for 10 seconds since last click, it will automatically enter sleep mode to save battery. Pen can be in active mode again by pressing any button or click pen tip. c. 2 level battery monitoring indicator: Let user know current battery status by turning on red LED light for low battery. 3.2.1 The way to recharge digital pen In order to recharge digital pen safely, please use recharging cable enclosed in the package. Connect the recharging terminal of the cable to the recharging hole at the end of pen body and plug USB knob to computer. uBoard Hardware Installation Guide (V2.2) 7 3.2.2 How to check the pen status. Press pen tip or pen button, then you can hear low beep sound generated by the pen when it works properly. . 3.2.3 Pen tip change When pen tip is worn-out, it can be replaced with new one. 10 sec uBoard Hardware Installation Guide (V2.2) 8 [To remove] Turn pen-tip to right or left direction by 90 degrees and then pull it out carefully [To insert] Insert pen-tip into pen cage and turn it to right or left direction by 90 degrees to lock it. Notice: Possible to overheat, explode, fire or etc.  Do not expose to heat(130°F), imapct, chops or etc  Careful of inhaled or bited case by children or pets  Prohivits to insert metals to charger connector or sink in water.

PENANDFREE Co.,Ltd # 801,Keumkang Hitech Valley 2 nd , Sangdaewon 1-dong, Junwon-gu Seongnam-city, Gyeonggi-do, KOREA Date: April. 15, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize Technical Manager KT Kang of THRU-KES CO., LTD. and hereafter referred to as THRU-KES CO., LTD , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by KT Kang of THRU-KES CO., LTD. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing THRU-KES CO., LTD. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; PENANDFREE Co.,Ltd # 801,Keumkang Hitech Valley 2 nd , Sangdaewon 1-dong, Junwon-gu Seongnam-city, Gyeonggi-do, KOREA g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Chun-gu Kim/ Manager PENANDFREE Co.,Ltd REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

PENANDFREE Co.,Ltd # 801,Keumkang Hitech Valley 2 nd , Sangdaewon 1-dong, Junwon-gu Seongnam-city, Gyeonggi-do, KOREA Date: April. 15, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ZGB-WB-859-02T Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Part List CONF APPENDIX -WB-859-02T_Part List. PDF Schematics Diagram(s) CONF APPENDIX -WB-859-02T_Schematics. PDF Block diagram CONF APPENDIX -WB-859-02T_Block diagram. PDF Operation description CONF APPENDIX -WB-859-02T_Operation description.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Chun-gu Kim/ Manager PENANDFREE Co.,Ltd

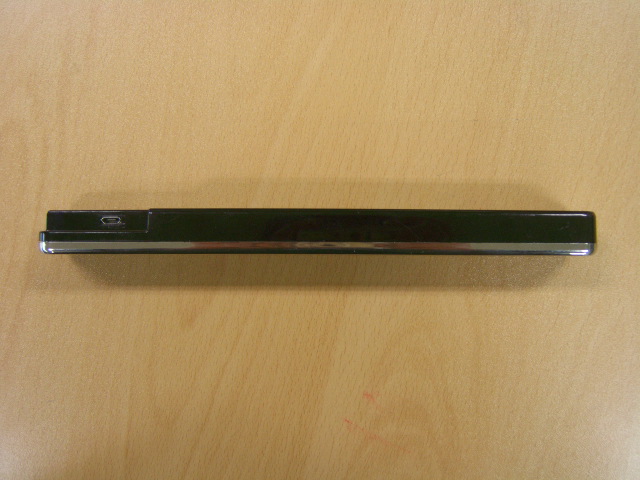

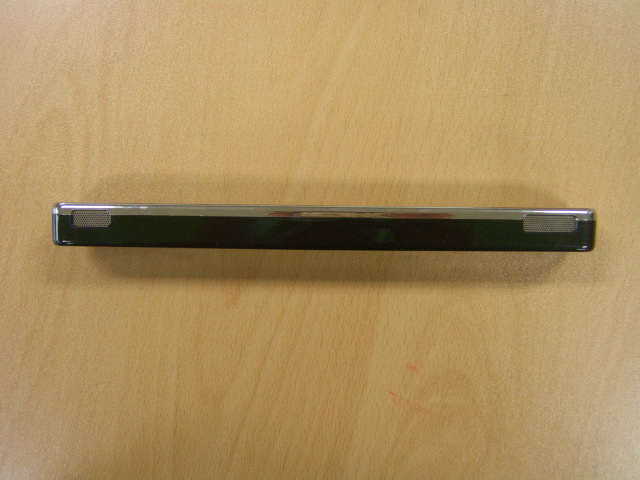

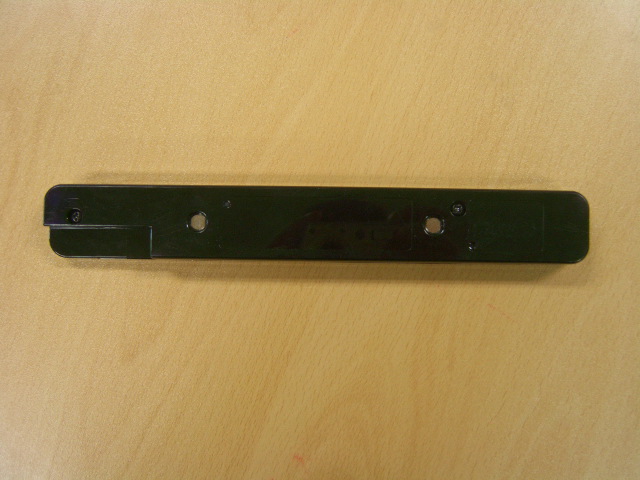

www.kes.co.kr Model No.: WB-859-02T Page 1 of 2 EUT External photographs www.kes.co.kr Model No.: WB-859-02T Page 2 of 2

www.kes.co.kr Model No: WB-859-02T Page 1 of 1 FCC ID label and Location Label PENANDFREE CO., LTD FCC ID: ZGB-WB-859-02T Model: WB-859-02T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

www.kes.co.kr Model No: WB-859-02T Page 1 of 3 EUT Internal photographs www.kes.co.kr Model No: WB-859-02T Page 2 of 3 www.kes.co.kr Model No: WB-859-02T Page 3 of 3 Chip Antenna

P/N : ABM6020B1 Features These ABM6020B1is specially designed for Bluetooth. High dielectric, Low lossantenna was achieved by new material. By utilizing PCB assembly line, it can be mass produced at low cost Part Numbering(P/N) ABM6020B1 ①②③④⑤⑥ Chip Antenna Real Product Mechanical Dimension ( unit : mm , tolerance : ±0.1) L6.0 W2.0 T1.5 A4.3 B1.0 C2.0 B'1.1 C'2.2 Chip Antenna Dimension Chip Antenna Soldering Pad Dimension Top Bottom ①Product company : A-ARRO ②Application : B -Bluetooth ③Antenna Type : M-Monopole ④Chip antenna size : 6020 -6.0x 2.0 ⑤Product thickness : B -1.5 T ⑥Revision number : 1–first product VSWR & SMITH CHART 3D RADIATION PATTERN Specification Electrical Characteristics ItemSpecification Frequency range2400~2483G VSWR2:1 under PolarinzationLinear RadiationOmni-directional Impedance50Ω Frequency [MHz]24002420244024602480 Gain[dBi] Peak3.13.12.82.62,4 Average-1.4-1.5-1.7-1.7-1.6 Efficiency(%)71.970.467.667.969.3 *상기특성은전체보드사이즈가85x40 mm로측정한결과임. Top Bottom Standard PCB Design & Matching Circuit Matching Circuit Standard PCB Design( unit : mm , tolerance : ±0.05) 3.9nH < Default Condition Equivalent Circuit >

www.kes.co.kr Test Report No.: TK-FR11015 Model Name: WB-859-02T Page 2 of 36 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. Revision history Revision Date of issue Test report No. Description - 2011.04.18 TK-FR11015 Initial www.kes.co.kr Test Report No.: TK-FR11015 Model Name: WB-859-02T Page 3 of 36 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. TABLE OF CONTENTS 1.0 General product description .................................................................................... 4 1.1 Test frequency .................................................................................................... 4 1.2 Test mode ......................................................................................................... 4 1.3 Model differences ................................................................................................ 4 1.4 Device modifications ............................................................................................ 4 1.5 Peripheral devices ............................................................................................... 4 1.6 Calibration details of equipment used for measurement ................................................... 5 1.7 Test facility ........................................................................................................ 5 1.8 Laboratory accreditations and listings ........................................................................ 5 2.0 Summary of tests ................................................................................................ 6 2.1 Technical characteristic test .................................................................................... 7 2.1.1 Frequency separation ..................................................................................... 7 2.1.2 Number of hopping frequency ............................................................................ 9 2.1.3 20 dB bandwidth ......................................................................................... 11 2.1.4 Time of occupancy (Dwell time) ........................................................................ 14 2.1.5 Maximum peak power output power .................................................................. 17 2.1.6 Conducted spurious emission & band edge ......................................................... 20 2.1.7 Radiated spurious emission & band edge ............................................................ 26 2.1.8 AC conducted emissions ................................................................................ 31 Appendix A – Test equipment used for test ............................................................................ 34 Test setup photo and configuration ..................................................................................... 35 www.kes.co.kr Test Report No.: TK-FR11015 Model Name: WB-859-02T Page 4 of 36 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. 1.0 General product description Equipment model name : WB-859-02T Serial number : Prototype EUT condition : Pre-production, not damaged Antenna type & gain : Chip antenna(3.1dBi) Frequency Range : 2402MHz ~ 2480MHz Number of channels : 79 Type of Modulation : GFSK Power Source : 3.7V DC 1.1 Test frequency Low channel Middle channel High channel Frequency (MHz) 2402 2441 2480 1.2 Test mode - Pre-Scan has been conducted to determine the worst-case mode from all possible combinations between available modulations, data rates and antenna ports (if EUT with antenna diversity architecture). 1.3 Model differences Not applicable 1.4 Device modifications The following modifications were necessary for compliance: Not applicable manufacturer 1.5 Peripheral devices Device Manufacturer Model No. Serial No. Notebook Samsung R159 ZKPA93AS900167D www.kes.co.kr Test Report No.: TK-FR11015 Model Name: WB-859-02T Page 5 of 36 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. 1.6 Calibration details of equipment used for measurement Test equipment and test accessories are calibrated on regular basis. The maximum time between calibrations is one year or what is recommended by the manufacturer, whichever is less. All test equipment calibrations are traceable to the Korea Research Institute of Standards and Science (KRISS), therefore, all test data recorded in this report is traceable to KRISS. 1.7 Test facility The measurement facility is located at 477-6, Hageo-ri, Yeoju-eup, Yeoju-gun, Gyeonggi-do, 469- 803, Korea. Tel: +82-31-883-5092/Fax: +82-31-883-5169. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 1.8 Laboratory accreditations and listings Country Agency Scope of accreditation Logo USA FCC 3 & 10 meter Open Area Test Sites and one conducted site to perform FCC Part 15/18 measurements. 343818 KOREA KCC EMI (10 meter Open Area Test Site and two conducted sites) Radio (3 & 10 meter Open Area Test Sites and one conducted site) KR0100 Canada IC 3 & 10 meter Open Area Test Sites and one conducted site 4769B-1 www.kes.co.kr Test Report No.: TK-FR11015 Model Name: WB-859-02T Page 6 of 36 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. 2.0 Summary of tests Section in FCC Part 15 Parameter Status 15.247(a)(1) Frequency separation C 15.247(a)(1)(iii) Number of hopping frequency C 15.247(a)(1) 20 dB bandwidth C 15.247(a)(1)(iii) Time of occupancy(Dwell time) C 15.247(b)(1) Maximum peak output power C 15.247(d) Conducted spurious emission & band edge C 15.247(d) Radiated spurious emission & band edge C 15.207 AC conducted emission C Note 1: C=Complies NC=Not complies NT=Not tested NA=Not applicable Note 2: The data in this test report are traceable to the national or international standards.…

Text truncated - open the document above for the full version.

www.kes.co.kr Test Report No.: TK-FR11015 Model Name: WB-859-02T Page 35 of 36 This Report shall not be reproduced except in full without the written approval of THRU-KES CO.,LTD. Test setup photo and configuration Radiated field emissions
