ZJLKOBON905eReader

Regulatory Compliance Statements guide 1． ．． ．European Union Kobo declares that this product conforms to all applicable European Directives and Standards, including by way of example, 1999/5/EC. For France use: This product may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10mW EIRP in the frequency range of 2454-2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. 2． ．． ．Waste Electrical and Electronic Equipment (WEEE) In accordance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), the presence of the above symbol on the product or on its packaging indicates that this item must not be disposed of in the normal unsorted municipal waste stream. Instead, it is the user’s responsibility to dispose of this product by returning it to a collection point designated for the recycling of electrical and electronic equipment waste. Separate collection of this waste helps to optimize the recovery and recycling of any reclaimable materials and also reduces the impact on human health and the environment. For more information concerning the correct disposal of this product, please contact your local authority or the retailer where this product was purchased. 3． ．． ．Federal Communication Commission Interference Statement This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Radiation Exposure Statement: The product comply with the US/Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 4． ．． ．Canada This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. IMPORTANT NOTE: (For Portable device use) Radiation Exposure Statement: The product comply with the US/Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. NOTE IMPORTANTE: (Pour l'utilisation des appareils portables) Déclaration d'exposition aux radiations: Le produit est conforme aux limites d'exposition pour les appareils portables RF pour les Etats-Unis et le Canada établies pour un environnement non contrôlé. Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction aux expositions RF peut être augmentée si l'appareil peut être conservé aussi loin que possible du corps de l'utilisateur ou que le dispositif est réglé sur la puissance de sortie la plus faible si une telle fonction est disponible. 5 ． ．． ．Safety Information Observe the following guidelines when performing any work on product: 1. Follow all instructions marked on the product and in the documentation. 2. Do not use the product near water. Do not spill liquid on or into the product. 3. Do not place the product near or on a radiator or heat register. 4. There is a danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Dispose of used batteries according to local, state, regional, and federal regulations.

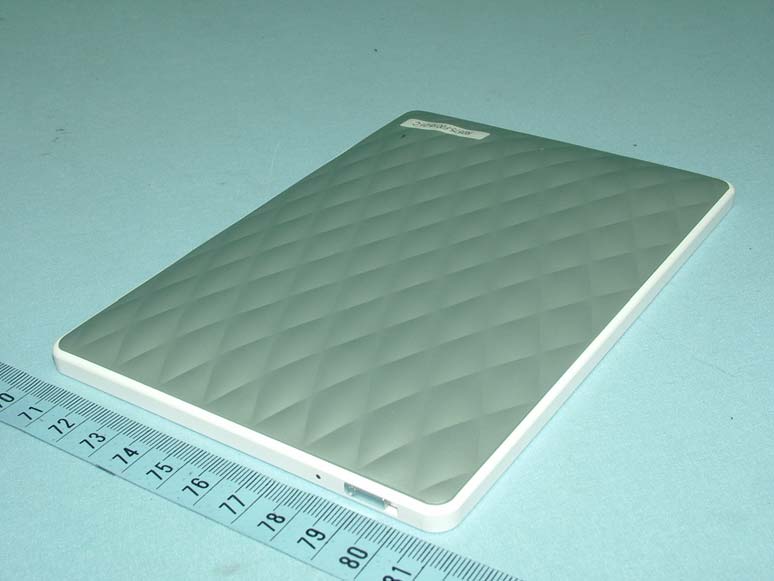

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

A. FRONT PANEL COLOUR B. REAR PANEL COLOUR C. POWER BUTTON D. POWER INDICATOR LIGHT E. HOME BUTTON F. CERTIFICATIONS G. SERIAL NUMBER H. KOBO LOGO KOBO TRILOGY /SPRING 2011 BLACK / BLACK 05.16.2011 SCALE: 100% COLOUR PROCESS FINISH BLACK PAINTED SOFT TOUCH BLACK PAINTED SOFT TOUCH SILVER PAINTED CHROME LED LIGHT SILVER PAINTED CHROME PMS 430CSCREENEDFLAT LASER ETCHED 114 R5.9 10.65 6.51 165.4 11.01 A B C D E F G WHITE SCREENED MATTE N136 ZJLKOBON905 8912A-KOBON905 N905 I. RESET BUTTON I

114 F G N136 ZJLKOBON905 8912A-KOBON905 N905

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: ZJLKOBON905 Report No.: RF110505C11 Operational Description This device is a eReader, which operates in the 2.4GHz frequency spectrum with throughput of up to 150Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment and battery. The antenna is printed antenna without antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA110505C11 1 Report Format Version 4.0.0 SAR TEST REPORT REPORT NO.: SA110505C11 MODEL NO.: N905 FCC ID: ZJLKOBON905 IC ID: 8912A-KOBON905 RECEIVED: May 05, 2011 TESTED: May 19, 2011 ISSUED: May 23, 2011 APPLICANT: Kobo Inc. ADDRESS: 135 Liberty St. Suite 101, Toronto, Ontario, Canada, M6K1A7 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 27 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: SA110505C11 2 Report Format Version 4.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD.................................................................................................. 3 1. CERTIFICATION .............................................................................................................. 4 2. GENERAL INFORMATION .............................................................................................. 5 2.1 GENERAL DESCRIPTION OF EUT................................................................................. 5 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .................................................. 6 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ........................................................ 7 2.4 TEST EQUIPMENT ........................................................................................................ 10 2.5 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ..................... 11 2.6 DESCRIPTION OF SUPPORT UNITS........................................................................... 14 3. DESCRIPTION OF ANTENNA LOCATION .................................................................... 15 4. RECIPES FOR TISSUE SIMULATING LIQUIDS ........................................................... 16 5. SYSTEM VALIDATION................................................................................................... 19 5.1 TEST PROCEDURE ...................................................................................................... 19 5.2 VALIDATION RESULTS ................................................................................................. 20 5.3 SYSTEM VALIDATION UNCERTAINTIES ..................................................................... 21 6. TEST RESULTS ............................................................................................................. 22 6.1 TEST PROCEDURES .................................................................................................... 22 6.2 CONDUCTED POWER .................................................................................................. 24 6.3 DESCRIPTION OF TEST CONDITION.......................................................................... 24 6.4 MEASURED SAR RESULT............................................................................................ 25 6.5 POWER DRIFT TABLE .................................................................................................. 26 6.6 SAR LIMITS ................................................................................................................... 26 7. INFORMATION ON THE TESTING LABORATORIES ................................................... 27 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report No.: SA110505C11 3 Report Format Version 4.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA May 23, 2011 Report No.: SA110505C11 4 Report Format Version 4.0.0 1. CERTIFICATION PRODUCT: eReader MODEL: N905 BRAND: kobo APPLICANT: Kobo Inc. TESTED: May 19, 2011 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093) FCC OET Bulletin 65, Supplement C (01-01) RSS-102 Issue 4 (2010-03) The above equipment (model: N905) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :May 23, 2011 Polly Chien / Specialist APPROVED BY : , DATE :May 23, 2011 Gary Chang / Assistant Manager Report No.: SA110505C11 5 Report Format Version 4.0.0 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT EUT eReader MODEL NO. N905 FCC ID ZJLKOBON905 IC ID 8912A-KOBON905 POWER SUPPLY 5Vdc (host equipment) 3.7Vdc (battery) MODULATION TYPE CCK, DQPSK, DBPSK for DSSS 64QAM, 16QAM, QPSK, BPSK for OFDM MODULATION TECHNOLOGY DSSS, OFDM TRANSFER RATE 802.11b:11.0/ 5.5/ 2.0/ 1.0Mbps 802.11g: 54.0/ 48.0/ 36.0/ 24.0/ 18.0/ 12.0/ 9.0/ 6.0Mbps 802.11n (20MHz): up to 150.0Mbps OPERATING FREQUENCY 2412 ~ 2462MHz NUMBER OF CHANNEL 11 for 802.11b, 802.11g, 802.11n (20MHz) MAXIMUM SAR (1g) 0.456W/kg ANTENNA TYPE Printed antenna on with 3dBi gain ANTENNA CONNECTOR NA DATA CABLE 0.8m shielded USB cable without core I/O PORTS Refer to users’ manual ACCESSORY DEVICES Battery NOTE: 1. The EUT provides one completed transmitter and one receiver. MODULATION MODE TX FUNCTION 802.11b 1TX 802.11g 1TX 802.11n (20MHz) 1TX 2. The above EUT information is declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or user's manual. Report No.:…

Text truncated - open the document above for the full version.

Report No.: RF110505C11 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF110505C11 MODEL NO.: N905 FCC ID: ZJLKOBON905 RECEIVED: May 05, 2011 TESTED: May 12 ~ May 17, 2011 ISSUED: May 19, 2011 APPLICANT: Kobo Inc. ADDRESS: 135 Liberty St. Suite 101, Toronto, Ontario, Canada, M6K1A7 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 59 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Report No.: RF110505C11 2 Report Format Version 4.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD...........................................................................................4 1. CERTIFICATION .......................................................................................................5 2. SUMMARY OF TEST RESULTS ...............................................................................6 2.1 MEASUREMENT UNCERTAINTY ............................................................................6 3. GENERAL INFORMATION........................................................................................7 3.1 GENERAL DESCRIPTION OF EUT ..........................................................................7 3.2 DESCRIPTION OF TEST MODES ............................................................................8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ......................................... 11 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................... 11 4. TEST TYPES AND RESULTS .................................................................................12 4.1 RADIATED EMISSION MEASUREMENT ...............................................................12 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT.............................................12 4.1.2 TEST INSTRUMENTS.............................................................................................13 4.1.3 TEST PROCEDURES .............................................................................................14 4.1.4 DEVIATION FROM TEST STANDARD ...................................................................14 4.1.5 TEST SETUP...........................................................................................................15 4.1.6 EUT OPERATING CONDITIONS ............................................................................15 4.1.7 TEST RESULTS ......................................................................................................16 4.2 CONDUCTED EMISSION MEASUREMENT ..........................................................26 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................26 4.2.2 TEST INSTRUMENTS.............................................................................................26 4.2.3 TEST PROCEDURES .............................................................................................27 4.2.4 DEVIATION FROM TEST STANDARD ...................................................................27 4.2.5 TEST SETUP...........................................................................................................28 4.2.6 EUT OPERATING CONDITIONS ............................................................................28 4.2.7 TEST RESULTS ......................................................................................................29 4.3 6dB BANDWIDTH MEASUREMENT.......................................................................31 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................31 4.3.2 TEST INSTRUMENTS.............................................................................................31 4.3.3 TEST PROCEDURE................................................................................................31 4.3.4 DEVIATION FROM TEST STANDARD ...................................................................31 4.3.5 TEST SETUP...........................................................................................................32 4.3.6 EUT OPERATING CONDITIONS ............................................................................32 4.3.7 TEST RESULTS ......................................................................................................33 4.4 MAXIMUM OUTPUT POWER .................................................................................36 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT .................................36 4.4.2 INSTRUMENTS.......................................................................................................36 Report No.: RF110505C11 3 Report Format Version 4.0.0 4.4.3 TEST PROCEDURES .............................................................................................36 4.4.4 DEVIATION FROM TEST STANDARD ...................................................................37 4.4.5 TEST SETUP...........................................................................................................37 4.4.6 EUT OPERATING CONDITIONS ............................................................................37 4.4.7 TEST RESULTS ..........................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST 3 (SAR Test Set Up Photos) BODY POSITION: BOTTOM TOP One plane of appearance is an arc, so the test distance looks like > 5mm. But the test distance is 5mm. Test distance is 5mm. TEST SET UP PHOTO DESCRIPTION OF ANTENNA LOCATION EUT PHOTO (ARC PLANE) NOTE: The EUT face to the phantom with 5mm-separation distance.
