ZJR90152-49MTRC Toy Transmitter

INSTRUCTION MANUAL #90130 R/C Car Batteries Installation : The operation requires Four “AA” size batteries for the car and Two “AA” size batteries for the transmitter. Install batteries to the car : • Carefully remove product from package. • Locate the battery compartment on the bottom of the car. • Unscrew the lock as in indicated in Diagram A point #1. • Then take the battery compartment out for filling 4 “AA” size batteries in. Diagram A Install batteries to the transmitter: • Unscrew the battery compartment door on the back of the transmitter. • Slide out the door from the battery compartment. • Insert 2 pieces of “AA” size batteries to the battery compartment according to the polarity direction as engraved inside. • Close the battery compartment door by the screw. Running the R/C Car : Step 1 : Install the batteries on both the car and transmitter as mentioned above. Step 2 : Extend the telescope antenna on the transmitter. Step 3 : Turn on the switch on the car. The switch is located at the bottom of the car as illustrated in Diagram A. Step 4 : Control the car from the transmitter by the joysticks as indicated in Diagram B below. Diagram B CAUTION: · Do not mix old and new batteries. · Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. · Do not dispose of batteries in fire as batteries may explode or leak. Battery requirement: 6 X AA Size Alkaline batteries (not included) Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

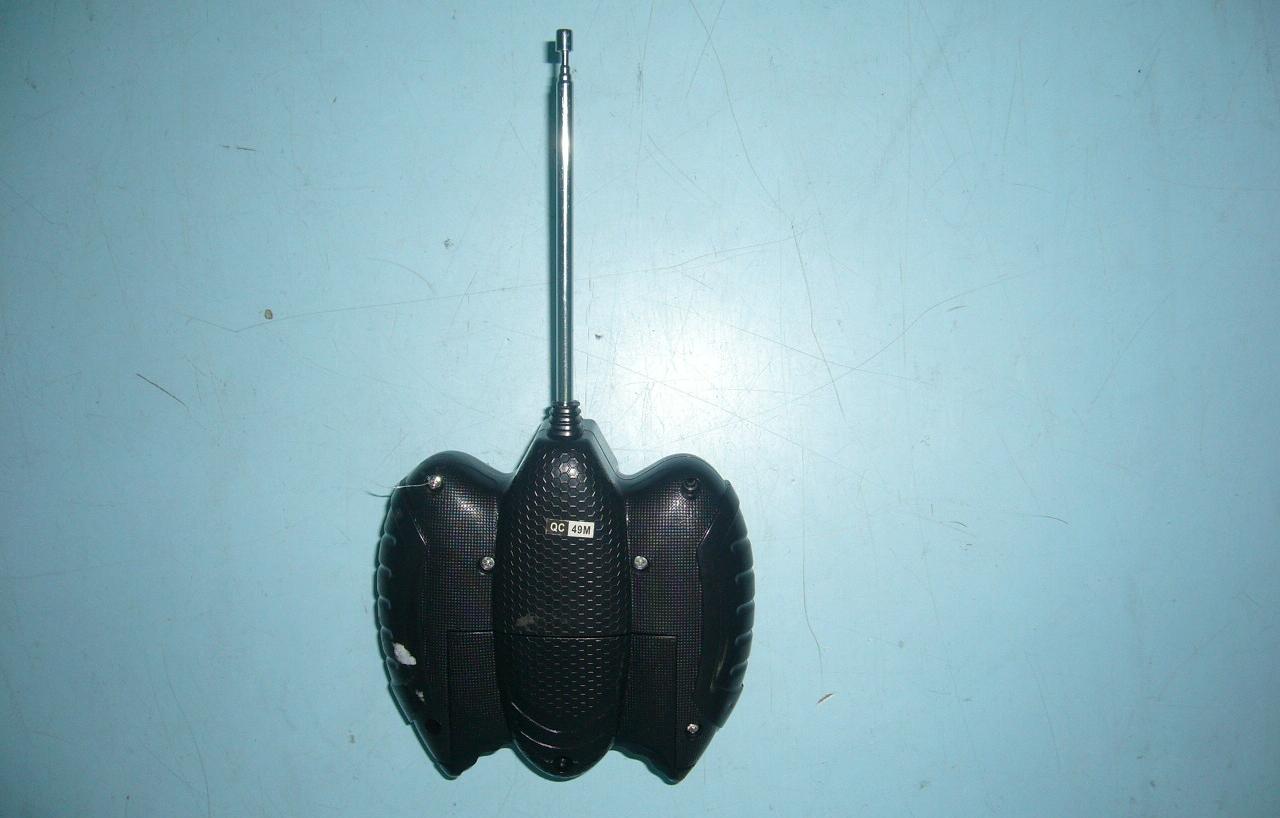

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT

STC Test Report Date : 2011-06-07 Page 1 of 20 No. : HM166648 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (MAT024): MAGIC TIME INTERNATIONAL LIMITED. ROOM 618, INTERNATIONAL PLAZA, 20 SHEUNG YUET ROAD, KOWLOON BAY, HONG KONG Manufacturer: A.S. PLASTIC TOYS CO., LTD. OF CHENGHAI SHANTOU 3RD FLOOR, BLOCK 8, GUANGHUA INDUSTRIAL ZONE, LONGTIAN, CHENGHAI DISTRICT, SHANTOU, GUANGDONG PROVINCE, CHINA Description of Sample(s): Submitted samples(s) said to be Product: R/C CAR Brand Name: MAGIC TIME Model Number: 90130 FCC ID: ZJR90152-49MT Date Sample(s) Received: 2011-05-04 Date Tested: 2011-05-19 to 2011-06-07 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2010 and ANSI C63.4:2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): ---- Dr. LEE Kam Chuen, Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2011-06-07 Page 2 of 20 No. : HM166648 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 20 Content Page 2-3 of 20 1.0 General Details 1.1 Test Laboratory Page 4 of 20 1.2 Equipment Under Test [EUT] Page 4 of 20 Description of Sample(s) 1.3 Description of EUT operation Page 4 of 20 1.4 Date of Order Page 4 of 20 1.5 Submitted Sample(s) Page 4 of 20 1.6 Test Duration Page 4 of 20 1.7 Country of Origin Page 4 of 20 2.0 Technical Details 2.1 Investigations Requested Page 5 of 20 2.2 Test Standards and Results Summary Page 5 of 20 3.0 Test Results 3.1 Emission Page 6-9 of 20 3.2 Bandwidth Measurement Page 10-12 of 20 3.3 Duty Cycle Correction During 100 msec Page 13-16 of 20 STC Test Report Date : 2011-06-07 Page 3 of 20 No. : HM166648 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 17 of 20 Appendix B Duty Cycle Correction During 100 msec Page 18-20 of 20 STC Test Report Date : 2011-06-07 Page 4 of 20 No. : HM166648 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Equipment Under Test [EUT] Description of Sample(s) Submitted sample(s) said to be Product: R/C CAR Manufacturer: A.S. PLASTIC TOYS CO., LTD. OF CHENGHAI SHANTOU 3RD FLOOR, BLOCK 8, GUANGHUA INDUSTRIAL ZONE, LONGTIAN, CHENGHAI DISTRICT, SHANTOU, GUANGDONG PROVINCE, CHINA Brand Name: MAGIC TIME Model Number: 90130 Input Voltage: 3Vd.c. (“AA” size battery x 2) 1.3 Description of EUT Operation The Equipment Under Test (EUT) is MAGIC TIME INTERNATIONAL LIMITED., R/C CAR. The EUT is a transmitter of radio control toy. The transmitter was operating with 2 buttons, the EUT continues to transmit while button is being on, It is pulse transmitter, Modulation by IC, and type is pulse modulation. 1.4 Date of Order 2011-05-04 1.5 Submitted Sample(s): 1 sample 1.6 Test Duration 2011-05-19 to 2011-06-07 1.7 Country of Origin China STC Test Report Date : 2011-06-07 Page 5 of 20 No. : HM166648 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2010 and ANSI C63.4:2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2009 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2009 N/A Note: N/A - Not Applicable STC Test Report Date : 2011-06-07 Page 6 of 20 No. : HM166648 The Hong Kong Standards and Testing Centre Ltd. 10 Da…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
