INSTRUCTION MANUAL R/C Hyper Wake Batteries Installation : The operation requires rechargeable battery pack for the boat and One “V9” size batteries for the transmitter. Install batteries to the boat:  Carefully remove product from package.  Locate the battery compartment in the boat body.  Unlock and open the battery cover as in indicated in Diagram A point #1.  Then connect the battery pack with the boat.  Close the battery compartment door. Diagram A Install batteries to the transmitter:  Unscrew the battery compartment door on the back of the transmitter.  Slide out the door from the battery compartment.  Insert 1 piece of “9V” size battery to the battery compartment according to the polarity direction as engraved inside.  Close the battery compartment door by the screw. Running the R/C Boat: OFF/ ON Switch 1. Unlock and open the battery cover. 2. Connect the battery pack with the boat.  Step 1 : Install the batteries on both the boat and transmitter as mentioned above.  Step 2 : Turn on the switch on the boat. The switch is located at the tail of the boat body as illustrated in Diagram A.  Step 3 : Control the boat from the transmitter by the bottoms as indicated in Diagram B below. Diagram B CAUTION:  Do not mix old and new batteries.  Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.  Do not dispose of batteries in fire as batteries may explode or leak. Battery requirement: Rechargeable Batteries Pack (included). Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. Move Forward Move Backward Using One “V9” Battery Hold the joystick to the Left/ Right and move Forward, then it move Forward Left turn/ Forward Right turn. Also hold the joystick to the Left/ Right and move Backward, then it move Backward Left turn/ Backward Right turn. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.

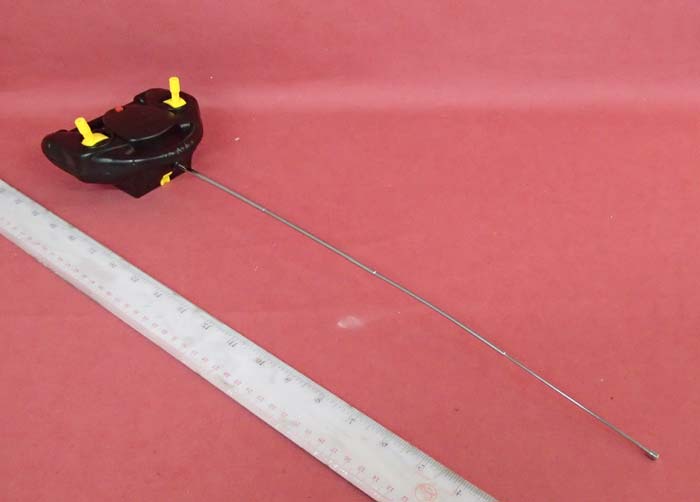

INTERTEK TESTING SERVICE Report No.: 14060103HKG-001 Equipment Photographs Model : 90513 (External) FCC ID : ZJR90513-27MT

4.5cm 1.7 cm )&&6WLFNHUV±5&7R\ 7UDQVPLWWHU±0+] 䓐㕤±0+]ᷳ䘤⮬☐

INTERTEK TESTING SERVICE Report No.: 14060103HKG-001 Equipment Photographs Model : 90513 (Internal) FCC ID : ZJR90513-27MT INTERTEK TESTING SERVICE Report No.: 14060103HKG-001 Equipment Photographs Model : 90513 (Internal) FCC ID : ZJR90513-27MT INTERTEK TESTING SERVICE Report No.: 14060103HKG-001 Equipment Photographs Model : 90513 (Internal) FCC ID : ZJR90513-27MT INTERTEK TESTING SERVICE Report No.: 14060103HKG-001 Equipment Photographs Model : 90513 (Internal) FCC ID : ZJR90513-27MT

FCC ID: ZJR90513-27MT Model: 90513 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: IC (TX-2) 2. Control buttons Consisting: K1, K2, K3, K4 3. A RF Oscillator (27.145MHz) Consisting: X1, Q2 4. A Filter Network Consisting: L1, C1, C7, C8 5. A RF Modulator and Amplifier Consisting: Q1 6. A Power Supply Consisting: 9VDC (1 X 9V Block size battery) Antenna Gain: 0dBi Nominal rated field strength: 68.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external, telescope type antenna with unique antenna connector.

Analysis Report Report No.: 14060103HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC boat operating at 27.145 MHz as dictated by a crystal. The EUT is powered by 1 x 9V block size battery. The EUT has two control keys to control forward / backward and left / right movement of the receiver. After switching ON the EUT and the receiver of the RC boat, activating the control keys on the EUT can control the receiver moving forward, backward, left and right. Antenna Type: External, telescope type antenna with unique antenna connector Antenna Gain: 0dBi Nominal rated field strength: 68.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 71.5dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00424mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00424mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.
