ZJR90505-27MTR/C Dinosaur

INSTRUCTION MANUAL #90505 R/C Carnivolt Batteries Installation : The operation requires TWO “AA” size batteries for the dinosaur and Two “AA” size batteries for the transmitter. Install batteries to the dinosaur:  Carefully remove product from package.  Locate the battery compartment on the bottom of the dinosaur.  Unscrew and remove the battery cover as in indicated in Diagram A point #1.  Then fill TWO “AA” size batteries in. Diagram A Install batteries to the transmitter:  Unscrew the battery compartment door on the back of the transmitter.  Slide out the door from the battery compartment.  Insert 2 pieces of “AA” size batteries to the battery compartment according to the polarity direction as engraved inside.  Close the battery compartment door by the screw. Running the R/C dinosaur:  Step 1 : Install the batteries on both the dinosaur and transmitter as mentioned above.  Step 2 : Turn on the switch on the dinosaur. The switch is located at the bottom of the dinosaur as illustrated in OFF/ ON Switch 1. Unscrew and remove the battery cover. Diagram A.  Step 3 : Control the dinosaur from the transmitter by the bottoms as indicated in Diagram B below. Diagram B CAUTION:  Do not mix old and new batteries.  Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.  Do not dispose of batteries in fire as batteries may explode or leak. Battery requirement: 4 X AA Size Alkaline batteries (not included). Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Move Forward Move Backward It will be light up when pressing the bottom. Using TWO “AA” Batteries

27.145MHz

INTERTEK TESTING SERVICE Report No.: 14041832HKG-001R1 Equipment Photographs Model : 90505 (External) FCC ID: ZJR90505-27MT

FCC Stickers – 90505 R/C Dinosaur Transmitter – 27MHz 用於 90505 – 27MHz之發射器 34mm 8mm 8mm 34mm

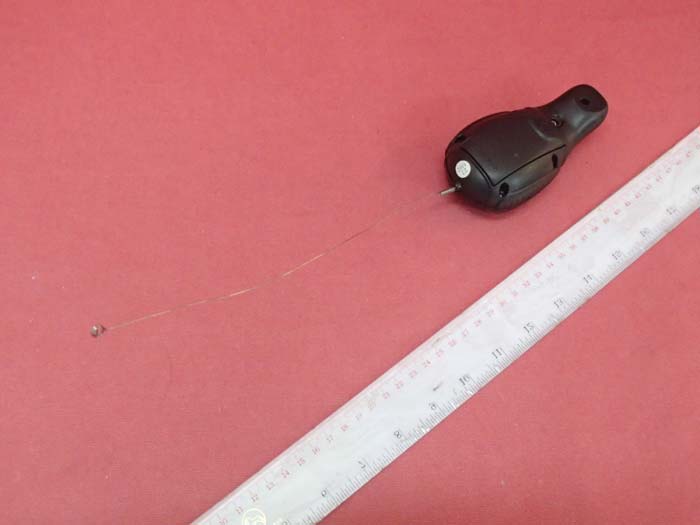

INTERTEK TESTING SERVICE Report No.: 14041832HKG-001R1 Equipment Photographs Model : 90505 (Internal) FCC ID: ZJR90505-27MT INTERTEK TESTING SERVICE Report No.: 14041832HKG-001R1 Equipment Photographs Model : 90505 (Internal) FCC ID: ZJR90505-27MT INTERTEK TESTING SERVICE Report No.: 14041832HKG-001R1 Equipment Photographs Model : 90505 (Internal) FCC ID: ZJR90505-27MT

FCC ID: ZJR90505-27MT Model: 90505 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: IC (TX2) 2. Control buttons Consisting: S1, S2 3. A RF Oscillator (27.145MHz) Consisting: TX, Q3 4. A Filter Network Consisting: L3, C8 5. A RF Modulator and Amplifier Consisting: Q5 6. A Power Supply Consisting: 3VDC (2 X “1.5V” AA batteries) Antenna Gain: 0dBi Nominal rated field strength: 64.6dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and integral antenna.

Analysis Report Report No.: 14041832HKG-001R1 The Equipment Under Test (EUT) is a portable transmitter of a dinosaur operating at 27.145 MHz as dictated by a crystal. The EUT is powered by 2 x 1.5V "AA" batteries. The EUT has two control keys to control forward and backward movement of the receiver. After switching ON the EUT and the receiver of the RC dinosaur, activating the control keys on the EUT can control the receiver moving forward and backward. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 64.6dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 67.6dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00173mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00173mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Valued Quality. Delivercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited Hong Kong Accreditat¡on Serv¡ce (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditat¡on Scheme (HOKI-AS) for spec¡fic laboratory activities as listed in the HOKLAS d¡rectory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with ¡ts terms of accreditation. TEST REPORT alE= nqt *-*r#' Report No.: I 4041832HKG-001Rl Magic Time lnternational Limited Application For Certification (Original Grant) (FCC lD: 2JR90505-27MT) 001 dated May 21,2014, no appl¡c€rtion is required and no certificate will issue. Prepared and Checked by:Approved by: I 44/ ' Tse Ying, Cathy Senior Lead Engineer Lead Engineer Date: June 06, 2014 Transmitter This report supersedes previous report with report number(s) 14041832HKG- Thê test roport only allws to be revised within the retention period unless further standard or the requ¡rement wâs not¡cêd. This report ¡s ftr the exclus¡ve use of lntertek's Client and is prcvided pursuant to the agreement between lntertek and ¡ls Client. lnterteks responsibility and liab¡lity are l¡m¡ted to the terms and condit¡ons of the agreement. lntertek assumes no l¡ab¡lity to any party, other than to the Cl¡ent in accordanæ with the agreement, for any loss, expense or damàge oc¿5s¡oned by ths use of this report. Only the Clisnt ¡s authorized to porm¡t æpy¡ng or distribution of this report and then only ¡n ¡ts ent¡Ety. Any use of the lntertek name or one of its marl(s for thê sals or advertisement of the tested material, product or æru¡æ must first b€ approved ¡n wit¡ng by lntertek. The obseruations and test results in th¡s report ars relêvanl only to the sample tested. Th¡s rsport by ¡tself does rct ¡mply that the materiâ|, product, or service ¡s or has êver bæn under an lntertek certification prcgEm. lntertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Far (852) 2785 5487 Website: wm¡v.hk.intertek€tlsemko.com Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14041832HKG-001R1 i FCC ID: ZJR90505-27MT Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Magic Time International Limited Grantee Address: Room 618, 6/F., International Plaza, 20 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong. Contact Person: John Law Tel: (852) 3590 6387 Fax: (852) 3590 6395 e-mail: [email protected] Manufacturer: Guangdong Jiaqi Plastic Co., Ltd. Manufacturer Address: BaTou Xingda Industry Zone, Chenghai, Shantou, Guangdong, China. Brand Name: MAGIC TIME Model: 90505 Additional Model: 90506, 90513, 90514, 90130, 90269, 90491, 90487, 90521, 70364, 90377 Type of EUT: Transmitter Description of EUT: R/C Dinosaur (90505, 90506) R/C Boat (90513) R/C Formula 1 Racer (90514) R/C Cyclone (90130) R/C Mini Cyclone (Tornado) (90269) R/C Devastator (90491) R/C Vortex (90487, 90521) R/C Spider (70364, 90377) Serial Number: N/A FCC ID: ZJR90505-27MT Date of Sample Submitted: April 30, 2014 Date of Test: April 30, 2014 to May 13, 2014 Report No.: 14041832HKG-001R1 Report Date: June 06, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14041832HKG-001R1 ii FCC ID: ZJR90505-27MT Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14041832HKG-001R1 iii FCC ID: ZJR90505-27MT Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14041832HKG-001R1 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 90505 FCC ID: ZJR90505-27MT INTERTEK TESTING SERVICE Report No: 14041832HKG-001R1 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 90505 FCC ID: ZJR90505-27MT
