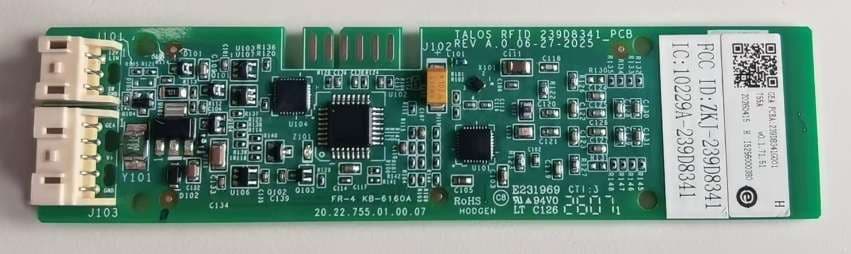

ZKJ-239D8341RFID Module

• This module meets all required modular approval justification except having its own RF shielding and therefore is limited. The grantee will be required to file a Class II Permissive Change for each host specific installation. The following tests should be preformed to demonstrate continued compliance for the module within the host. MODLIM PAG TEST PLAN Test DescriptionFCC Part 15 Clause AC Power Line Conducted Emissions§ 15.207 Field Strength of the Fundamental§ 15.225 a) Field strength of spurious emissions§ 15.225 d) Field strength of spurious emissions§ 15.209 •This module, when installed in a host, utilizes the same electrical and mechanical configuration, including identical module design, grounding scheme, and enclosure type. While the physical location of the module within the host may vary, the placement differences do not affect the overall RF characteristics of the module. •The module is installed using consistent integration practices, and the surrounding host conditions remain equivalent across all configurations. This ensures that RF exposure, emissions performance, and compliance characteristics are maintained. MODLIM COMPLIANCE METHOD 3 This module is intended for use solely within the beneficiary's equipment and is not intended for sale to other OEMs. It is not intended for users to add or remove this device. Installation is restricted to our manufacturing plants or service technicians. The diagram below illustrates the integration of the module into the housing. DETAILED MODULE INTEGRATION INSTRUCTIONS Module in enclosure, bottom view Module in enclosure, bottom/side view Module in enclosure, top view, no cover 4 The enclosure is then installed into the host. Module has its own power supply regulation for the transceiver. The antenna is built into the PCB layout and cannot be interchanged with other antennas. DETAILED MODULE INTEGRATION INSTRUCTIONS CONT. Module in enclosure FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development, Canada’s license-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation Notice: Changes or modifications to this unit not expressly approved by the manufacturer could void the user’s authority to operate the equipment. RF Exposure – This equipment complies with FCC and ISED RF exposure limits for an uncontrolled environment. Modular transmitter is only FCC authorized for the specific rule parts listed on the grant. Integration of this module into a host requires continued compliance to FCC and ISED rules for labeling by providing a physical or e-label stating, “Contains FCC ID: 239D8341 IC: 10229A-239D8341”. REGULATORY INFORMATION FCC ID: ZKJ-239D8341 IC: 10229A-239D8341 • Ce module satisfait à toutes les exigences de justification pour une homologation modulaire, à l'exception de la présence d'un blindage RF propre ; son homologation est donc limitée. Le titulaire de l'homologation devra déposer une demande de modification autorisée de classe II pour chaque installation spécifique dans un équipement hôte. Les essais suivants doivent être réalisés afin de démontrer le maintien de la conformité du module une fois intégré à l'équipement hôte. PLAN DE TEST MODLIM PAG Test DescriptionFCC Part 15 Clause AC Power Line Conducted Emissions§ 15.207 Field Strength of the Fundamental§ 15.225 a) Field strength of spurious emissions§ 15.225 d) Field strength of spurious emissions§ 15.209 • Lorsqu'il est installé dans un équipement hôte, ce module utilise la même configuration électrique et mécanique, incluant une conception de module, un schéma de mise à la masse et un type de boîtier identiques. Bien que l'emplacement physique du module au sein de l'équipement hôte puisse varier, ces différences de positionnement n'affectent pas les caractéristiques RF globales du module. • Le module est installé selon des pratiques d'intégration cohérentes, et les conditions de l'équipement hôte environnant demeurent équivalentes pour toutes les configurations. Cela garantit le maintien de l'exposition aux radiofréquences, des performances en matière d'émissions et des caractéristiques de conformité. MÉTHODE DE CONFORMITÉ MODLIM Ce module est destiné à être utilisé uniquement dans les équipements du bénéficiaire et n'est pas destiné à la vente à d'autres fabricants d'équipements d'origine (OEM). Il n'est pas prévu que les utilisateurs ajoutent ou retirent ce dispositif. Son installation est réservée à nos usines de fabrication ou aux techniciens de maintenance. Le schéma ci- dessous illustre l'intégration du module dans le boîtier. INSTRUCTIONS DÉTAILLÉES POUR L'INTÉGRATION DU MODULE Module en boîtier, vue de dessous Module en boîtier, vue de dessous/de côté Module en boîtier, vue de dessus, sans couvercle Le boîtier est ensuite installé dans l'équipement hôte. Le module dispose de sa propre régulation d'alimentation pour l'émetteur-récepteur. L'antenne est intégrée à la conception du circuit imprimé et ne peut être remplacée par d'autres antennes. INSTRUCTIONS DÉTAILLÉES POUR L'INTÉGRATION DU MODULE Module en boîtier FCC ID: ZKJ-239D8341 IC: 10229A-239D8341 Cet appareil est conforme aux prescriptions de la partie 15 des règles de la FCC. Cet appareil contient un ou plusieurs émetteurs/récepteurs exempts de licence conformes aux normes RSS d’Innovation, science et développement économique Canada relatives aux dispositifs exempts de licence. Le fonctionnement de cet appareil est assujetti aux deux conditions suivantes : 1. Cet appareil ne doit pas causer de brouillage préjudiciable. 2. Cet appareil doit accepter tout brouillage qu’il reçoit, y compris celui pouvant entraîner un fonctionnement indésirable. Avis: Les modifications non explicitement approu…

Text truncated - open the document above for the full version.

DOCUMENT CONTROL NUMBER Non-Specific Radio Report Shell Rev. December 2017 © 2017 INTERTEK HAIER US APPLIANCE SOLUTIONS, INC. SAR EXEMPTION REPORT SCOPE OF WORK SAR EXEMPTION – RFID MODULE (239D8341) REPORT NUMBER 106491368ATL-004 ISSUE DATE REVISION DATE 06 March 2026 N/A PAGES 8 RF EXPOSURE REPORT Report Number: 106491368ATL-004 Project Number: G106491368 Issue Date: 06 March 2026 PMN: Next Gen RFID Board Model(s) Tested: 239D8341 FCC ID: ZKJ-239D8341 IC: 10229A-239D8341 Standards: FCC Title 47 CFR Parts 1.1307 RSS-102, Issue 6 Test Location Client Intertek 1950 Evergreen Blvd., Suite 100 Duluth, GA 30096 USA FCC Designation: US1046 CAB Designator: US0128 Haier US Appliance Solutions, Inc. Appliance Park AP5-2N-65 Louisville, KY 40225 USA Report prepared by Report reviewed by Jeremy Pickens / Senior Staff Engineer Uri Spector / Sr. EMC Staff Engineer This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Report Number: 106491368ATL-004 Issued: 06 March 2026 Non-Specific Radio Report Shell Rev. January 2025 Page 3 of 8 Haier US Appliance Solutions, Inc. / Model 239D8341 Table of Contents 1 Introduction and Conclusion .............................................................................................................. 4 2 Evaluation Summary ........................................................................................................................... 4 3 Client Information ................................................................................................................................ 5 4 Description of Equipment Under Test ............................................................................................... 5 5 Maximum Permissible Exposure Criteria .......................................................................................... 6 6 ISED Routine Evaluation Exemption Criteria .................................................................................... 7 7 Revision History ................................................................................................................................... 8 Intertek Report Number: 106491368ATL-004 Issued: 06 March 2026 Non-Specific Radio Report Shell Rev. January 2025 Page 4 of 8 Haier US Appliance Solutions, Inc. / Model 239D8341 1 Introduction and Conclusion RF Exposure measurements were performed on the product constructed as described in Section 4. Based on the results of our investigation, we have concluded the product under evaluation complies with the standard(s) indicated. The results obtained in this test report pertain only to the item(s) evaluated. Intertek does not make any claims of compliance for samples or variants which were not evaluated. 2 Evaluation Summary Section Test full name Result 5 SAR Exemption (FCC Title 47 CFR Part 1.1307) Compliant 6 SAR Exemption (RSS-102 Issue 6) Compliant Intertek Report Number: 106491368ATL-004 Issued: 06 March 2026 Non-Specific Radio Report Shell Rev. January 2025 Page 5 of 8 Haier US Appliance Solutions, Inc. / Model 239D8341 3 Client Information This evaluation was performed at the request of Client: Haier US Appliance Solutions, Inc. Appliance Park AP5-2N-65 Louisville, KY 40225 USA Contact: Maegan Williams Email: [email protected] 4 Description of Equipment Under Test Manufacturer: Haier US Appliance Solutions, Inc. Appliance Park AP5-2N-65 Louisville, KY 40225 USA Equipment Under Test Description Manufacturer Model Number Serial Number RFID Module Haier US Appliance Solutions, Inc. 239D8341 11705000551 Receive Date: 11 February 2026 Received Condition: Good Type: Production Description of Equipment Under Test (provided by client) The RFID module is a 13.56MHz transceiver for use in appliances. Certification Purpose Original Limited Modular Approval Certification: The RFID radio is based on a chip down design. Radio/Receiver Characteristics Frequency Range 13.56MHz Field Strength (3m): 67.11dBμV/m (measured) Antenna Type Loop 4.1 Justification For this evaluation, the fundamental field strength measured at 3 meters was used to calculate the resultant power density at a distance of 20cm. Field strength data was obtained from Intertek test report 106491368ATL-003. Intertek Report Number: 106491368ATL-004 Issued: 06 March 2026 Non-Specific Radio Report Shell Rev. January 2025 Page 6 of 8 Haier US Appliance Solutions, Inc. / Model 239D8341 5 Maximum Permissible Exposure Criteria Per 447498 D01 General RF Exposure Guidance v06 Section 4.3.1, for frequencies below 100 MHz, the following may be considered for SAR test exclusion (also illustrated in Appendix C): 1) For test separation distances > 50 mm and < 200 mm, the power threshold at the corresponding test separation distance at 100 MHz in step b) is multiplied by [1 + log(100/f(MHz))] 2) For test separation distances ≤ 50 mm, the power threshold determined by the equation in c) 1) for 50 mm and 100 MHz is multiplied by ½. 5.1 Calculations Using linear interpolation on the table in Appendix C, the SAR exclusion at 13.56MHz at a distance of <50mm = 459mW FS MEA = 67.11dBμV/m @3 meters = 2267.25μV/m = 0.002267 V/m TP W…

Text truncated - open the document above for the full version.

Haier US Appliance Solutions, Inc. Test Setup Photographs FCC ID: ZKJ-239D8341 IC: 10229A-239D8341 Radiated Spurious Emissions <30MHz Radiated Spurious Emissions <30MHz Radiated Spurious Emissions <30MHz Radiated Spurious Emissions 30MHz-1GHz Radiated Spurious Emissions 30MHz-1GHz AC Conducted Emissions AC Conducted Emissions

Haier US Appliance Solutions, Inc. Test Setup Photographs FCC ID: ZKJ-239D8341 IC: 10229A-239D8341 Frequency Stability Frequency Stability Radiated Spurious Emissions <30MHz Radiated Spurious Emissions <30MHz Radiated Spurious Emissions <30MHz Radiated Spurious Emissions 30MHz-1GHz Radiated Spurious Emissions 30MHz-1GHz Radiated Spurious Emissions Orientations X-AxisY-AxisZ-Axis AC Conducted Emissions AC Conducted Emissions

DOCUMENT CONTROL NUMBER Non-Specific Radio Report Shell Rev. January 2025 © 2025 INTERTEK HAIER US APPLIANCE SOLUTIONS, INC. TEST REPORT SCOPE OF WORK RADIO TESTING – SIDE BY SIDE REFRIGERATORS HOST REPORT NUMBER 106491368ATL-011 ISSUE DATE REVISED DATE 29 June 2026 04 August 2026 PAGES 17 RADIO TEST REPORT Report Number: 106491368ATL-011 Project Number: G106491368 Issue Date: 29 June 2026 Revised Date: 04 August 2026 HMN: Side by Side Refrigerators PMN: Talos RFID HVIN/Model: 239D8341 FCC ID: ZKJ-239D8341 IC: 10229A-239D8341 Standards: 47 CFR Part 15 Subpart C, 15.225 RSS-210, Issue 11 ANSI C63.10-2020+Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024 Test Location Client Intertek 1950 Evergreen Blvd., Suite 100 Duluth, GA 30096 USA FCC Designation: US1046 CAB Designator: US0128 Haier US Appliance Solutions, Inc. Appliance Park AP5-2N-65 Louisville, KY 40225 USA Report prepared by Report reviewed by Jeremy Pickens / Senior Staff Engineer Troy Ihle / Project Engineer This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Report Number: 106491368ATL-011 Revised: 04 August 2026 Non-Specific Radio Report Shell Rev. January 2025 Page 3 of 17 Haier US Appliance Solutions, Inc. / Model 239D8341 integrated into Side by Side Refrigerators Table of Contents 1 Introduction and Conclusion .............................................................................................................. 4 2 Test Summary ...................................................................................................................................... 4 3 Client Information ................................................................................................................................ 5 4 Description of Equipment Under Test ............................................................................................... 5 5 Field Strength of the Fundamental / Radiated Spurious Emissions .............................................. 7 6 AC Mains Conducted Emissions ...................................................................................................... 14 7 Measurement Uncertainty ................................................................................................................. 16 8 Revision History ................................................................................................................................. 17 Intertek Report Number: 106491368ATL-011 Revised: 04 August 2026 Non-Specific Radio Report Shell Rev. January 2025 Page 4 of 17 Haier US Appliance Solutions, Inc. / Model 239D8341 integrated into Side by Side Refrigerators 1 Introduction and Conclusion The tests indicated in Section 2 were performed on the product constructed as described in Section 4. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complies with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. Intertek does not make any claims of compliance for samples or variants which were not tested. 2 Test Summary Section Test Description Test Specification Result FCC ISED -- Bandwidth 15.215(c) RSS-GEN S6.7 NS 1 5 Field Strength / Spurious Emissions 15.225(a)(b)(c)(d) 15.209 RSS-210 B.6(a) RSS-GEN S8.9 Compliant 6 AC Mains Conducted Emissions 15.207 RSS-GEN S8.8 Compliant -- Frequency Stability 15.225(e) RSS-210 B.6(b) NS 1 -- Antenna Requirement 15.203 RSS-GEN S6.8 Compliant 2 1) .Not in the scope of evaluation. Limited testing was performed to show compliance of the limited module integrated into a host device. 2) The antenna is a PCB loop which is not removable by the end user. Intertek Report Number: 106491368ATL-011 Revised: 04 August 2026 Non-Specific Radio Report Shell Rev. January 2025 Page 5 of 17 Haier US Appliance Solutions, Inc. / Model 239D8341 integrated into Side by Side Refrigerators 3 Client Information This evaluation was performed at the request of: Client: Haier US Appliance Solutions, Inc. Appliance Park AP5-2N-65 Louisville, KY 40225 USA Contact: Maegan Williams Email: [email protected] 4 Description of Equipment Under Test Manufacturer: Haier US Appliance Solutions, Inc. Appliance Park AP5-2N-65 Louisville, KY 40225 USA Equipment Under Test Description Manufacturer Model Number Serial Number RFID Module Haier US Appliance Solutions, Inc. 239D8341 11705000466 Refrigerator (Host) Haier US Appliance Solutions, Inc. Side by Side Refrigerators FD491884 Receive Date: 25 June 2026 Received Condition: Good Type: Production Description of Equipment Under Test (provided by client) The RFID module is a 13.56MHz transceiver for use in appliances. The host device was a side by side refrigerator/freezer. Certification Purpose Original Limited M…

Text truncated - open the document above for the full version.

DOCUMENT CONTROL NUMBER Non-Specific Radio Report Shell Rev. January 2025 © 2025 INTERTEK HAIER US APPLIANCE SOLUTIONS, INC. TEST REPORT SCOPE OF WORK RADIO TESTING – RFID MODULE (239D8341) REPORT NUMBER 106491368ATL-003 ISSUE DATE REVISED DATE 06 March 2026 04 August 2026 PAGES 23 RADIO TEST REPORT Report Number: 106491368ATL-003 Project Number: G106491368 Revision Date: 04 August 2026 PMN: Talos RFID Model(s) Tested: 239D8341 FCC ID: ZKJ-239D8341 IC: 10229A-239D8341 Standards: 47 CFR Part 15 Subpart C, 15.225 RSS-210, Issue 11 ANSI C63.10-2020+Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024 Test Location Client Intertek 1950 Evergreen Blvd., Suite 100 Duluth, GA 30096 USA FCC Designation: US1046 CAB Designator: US0128 Haier US Appliance Solutions, Inc. Appliance Park AP5-2N-65 Louisville, KY 40225 USA Report prepared by Report reviewed by Jeremy Pickens / Senior Staff Engineer Uri Spector / Sr. EMC Staff Engineer This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Report Number: 106491368ATL-003 Issued: 04 August 2026 Non-Specific Radio Report Shell Rev. January 2025 Page 3 of 23 Haier US Appliance Solutions, Inc. / Model 239D8341 Table of Contents 1 Introduction and Conclusion .............................................................................................................. 4 2 Test Summary ...................................................................................................................................... 4 3 Client Information ................................................................................................................................ 5 4 Description of Equipment Under Test ............................................................................................... 5 5 Bandwidth ............................................................................................................................................. 7 6 Field Strength of the Fundamental / Radiated Spurious Emissions .............................................. 9 7 AC Mains Conducted Emissions ...................................................................................................... 18 8 Frequency Stability ............................................................................................................................ 21 9 Measurement Uncertainty ................................................................................................................. 22 10 Revision History ............................................................................................................................. 23 Intertek Report Number: 106491368ATL-003 Issued: 04 August 2026 Non-Specific Radio Report Shell Rev. January 2025 Page 4 of 23 Haier US Appliance Solutions, Inc. / Model 239D8341 1 Introduction and Conclusion The tests indicated in Section 2 were performed on the product constructed as described in Section 4. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complies with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. Intertek does not make any claims of compliance for samples or variants which were not tested. 2 Test Summary Section Test Description Test Specification Result FCC ISED 5 Bandwidth 15.215(c) RSS-GEN S6.7 Compliant 6 Field Strength / Spurious Emissions 15.225(a)(b)(c)(d) 15.209 RSS-210 B.6(a) RSS-GEN S8.9 Compliant 7 AC Mains Conducted Emissions 15.207 RSS-GEN S8.8 Compliant 8 Frequency Stability 15.225(e) RSS-210 B.6(b) Compliant NA Antenna Requirement 15.203 RSS-GEN S6.8 Compliant 1 1) The antenna is an PCB loop which is not removable by the end user. Intertek Report Number: 106491368ATL-003 Issued: 04 August 2026 Non-Specific Radio Report Shell Rev. January 2025 Page 5 of 23 Haier US Appliance Solutions, Inc. / Model 239D8341 3 Client Information This evaluation was performed at the request of: Client: Haier US Appliance Solutions, Inc. Appliance Park AP5-2N-65 Louisville, KY 40225 USA Contact: Maegan Williams Email: [email protected] 4 Description of Equipment Under Test Manufacturer: Haier US Appliance Solutions, Inc. Appliance Park AP5-2N-65 Louisville, KY 40225 USA Equipment Under Test Description Manufacturer Model Number Serial Number RFID Module Haier US Appliance Solutions, Inc. 239D8341 11705000551 Receive Date: 11 February 2026 Received Condition: Good Type: Production Description of Equipment Under Test (provided by client) The RFID module is a 13.56MHz transceiver for use in appliances. Certification Purpose Original Limited Modular Approval Certification: The RFID radio is based on a chip down design. Radio/Receiver Characteristics Frequency Range 13.56MHz Field Strength (3m)…

Text truncated - open the document above for the full version.

The antenna for this device is integrated into the reader. This is the only antenna used and it cannot be changed. Antenna Factor: 7.4 dB/m Amplifier Gain: 29.0 dB ANTENNA UNDER TEST Antenna located here ANTENNA UNDER TEST

Form: RFT-AMER-TCB-OP-19o Revision: 1 Page 1 of 1 Date: 1/25/2023 Attention: Application Examiner Re: Certification designating a U.S. agent for service of process pursuant to 47 CFR part §2.911(d)(7) of the FCC rules To whom it may concern, This letter is to certify that Haier US Appliance Solutions, Inc. (“Applicant”) accepts responsibilities to act as its own agent pursuant to 47 CFR part §2.911(d)(7) of the FCC rules for service of process. I consent to the obligation to accept service of process on behalf of the applicant in regard to the FCC ID designated below. I HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Applicant. I further acknowledge the requirement to maintain an agent extends for no less than one year after the termination of all marketing and importation or the conclusion of and commission-related proceeding involving the equipment and agree to immediately notify the FCC and Intertek if there is any change in the status identified above. Applicant Company Name : Haier US Appliance Solutions, Inc. Contact Name : Steven Recio Address : Appliance Park AP2-226 Louisville, KY 40225 Telephone No : 305 479-3857 Email : [email protected] FCC ID : ZKJ-293D8341 Applicant FRN : 0020821252 Signature: Date: 5/29/2026

1 INTERNAL - SIDE BY SIDE REFRIGERATORS Module in enclosure, in host Power harness to module from host INTERNAL - SIDE BY SIDE REFRIGERATORS Power to the module is routed internally along the back of the host to the host power supply.

1 INTERNAL PHOTOS Top Of Board 2 INTERNAL PHOTOS Bottom Of Board Antenna Location, Made from traces On back of board

This module will be on refrigeration platforms. The module mounting and positioning for each model will be the same for each platform. Any future platforms that adopt this design will have a similar concept. EXTERNAL PHOTOS Side-by-Side Refrigerators FCC AND IC LABEL – HOST LABEL TO SHOW END USER MODULE IS CONTAINED IN HOST The following label with be accessible to the end user. This device is for limited modular approval as the module will not be for sale and only sold as part of our host refrigerators. The location of the following ID Label is shown on Page 4. 3 MODULE LOCATION IN HOUSING Module in housing, bottom view Module in housing, bottom/side view Module in housing, top view, no cover Example of Module Housing SIDE BY SIDE – HOST ID LABEL LOCATION On Side-by-Side platform, the module is located in the fresh food compartment with ID Label on top of the module housing Module is located in housing from Page 3 in the bottom right corner of the refrigerator under bottom drawer Module is located in housing, ID label from page 2 is located on front of housing to show end user the device is contained in host ID label on top of module housing

1 LABEL LOCATIONS ON MODULE Top Of Board (Detailed locations) PMN FCC and IC ID’s HVIN

EXTERNAL - SIDE BY SIDE REFRIGERATORS EXTERNAL - SIDE BY SIDE REFRIGERATORS

EXTERNAL PHOTOS Top Of Board 2 EXTERNAL PHOTOS Top Of Board (Detailed locations) PMN FCC and IC ID’s HVIN 3 EXTERNAL PHOTOS Bottom Of Board Antenna Location, Made from traces On back of board

RE FCC ID: ZKJ-239D8341 To the certification reviewer: We are hereby applying for limited modular approval of the above-referenced FCC ID, based on compliance with most of the criteria as detailed below. Sincerely, Steve Recio Executive Director, Hardware and Power Electronics Part 15 Unlicensed Single Modular Transmitter Approval Justification per 15.212 Requirement per 15.212 YES/NO reference (i) The radio elements of the modular transmitter must have their own RF shielding. NO There is not shielding for the transmitter - Requesting limited modular approval (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided. YES All modulation and data inputs are buffered by circuitry on the transmitter chip (iii) The modular transmitter must have its own power supply regulation. YES Power supply regulation is provided by circuitry on the module regulated to 5V+/- 5% (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). YES The antenna is built into the PCB layout and cannot be interchanged with other antenna’s. Only this antenna can be used per it’s design. (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 parameters. YES Module was tested stand alone (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. YES The FCC identification number will be on the silkscreen of the PCB of the board and/or a …
