ZKJ-BLEA002Bluetooth 4.0 Module

Bluetooth4.0BLEModule Section1:Overview TheBB1737-25isaBluetooth4.0modulebasedontheBroadcomBCM20737specificationbasic rate-compliantstandalonebasebandprocessorwithanintegrated2.4GHztransceiver. ThemoduleincludesFlash,crystalandPCBantenna. 1.1Applications ThefollowingprofilesaresupportedinROM: •Batterystatus •Bloodpressuremonitor •Findme •Heartratemonitor •Proximity •Thermometer •Weightscale •Time Additionalprofilesthatcanbesupportedfrom RAMinclude: •Bloodglucosemonitor •Temperaturealarm •Location 1.2Features •Bluetoothlowenergy(BLE)-compliant •SupportsAdaptiveFrequencyHopping •Excellentreceiversensitivity •10-bitauxiliaryADCwithnineanalogchannels •On-chipsupportforserialperipheralinterface(SPI,UART) (masterandslavemodes) •Programmableoutputpowercontrol •IntegratedARMCortex™-M3basedmicroprocessorcore •AutomationProfile •SupportforsecureOTA •On-chippower-onreset(POR) •Integratedlow-dropoutregulator(LDO) •On-chipsoftwarecontrolledpowermanagementunitq •Packagetype: 20.5*12.5*2mmFR4PCBwith25padslocatedaroundtheperimeter. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The transmitter module can not be co-located with any other transmitter or antenna. The module shall be only used with the intergral antenna(s) that has been originally tested and certified with this module. End product labeling: The final end product must be labeled in a visible area with the following: Contains FCC ID: ZKJ-BLEA002 The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user's manual of the end product which integrates this module and in the final product/host user manual must include the regulatory information of FCC part 15.19, 15.21 and 15.105 as above.

To whom it may concern, Letter of Agency I, an officer of GE Appliance & Lighting do hereby authorize Intertek Testing Services (Mr. Shawn Xing )to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Henry Kobraei Design Engineer

Re: Request for confidentiality Applicant: GE Appliance & Lighting FCC ID: ZKJ-BLEA002 To whom it may concern, Permanent Confidentiality Request is hereby submitted by GE Appliance & Lighting to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Short-term Confidentiality Request is hereby submitted by GE Appliance & Lighting to withhold from public review for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept confidential for a period of 45 days from the date of Authorization: • Test setup photos • External photos • Internal photos • User manual Rationale for request for confidentiality: GE Appliance & Lighting has invested considerable time and materials in research and development to produce the referenced product. Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Short term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development. If you have questions or need further information, please contact the undersigned. Sincerely, [ Signature] henry.kobraei [Title] Manager [Company name] GE Appliance & Lighting

RE FCC ID: ZKJ-BLEA002 To the certification reviewer: We are hereby applying for [full] modular approval of the above-referenced FCC ID, based on compliance with [all] of the criteria as detailed below. Sincerely, Part 15 Unlicensed Single Modular Transmitter Approval Justification per 15.212 Requirement per 15.212 reference (i) The radio elements of the modular transmitter must have their own RF shielding. Yes. Shielding is provided by a metal cover over the circuitry and by a ground plane on the bottom. The holes in the shield is significantly smaller than the wavelength of the radiation that is being blocked. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided. Yes. The modular data inputs are buffered through log or microcontroller connections. All modulation and data inputs are buffered by circuitry on the transmitter chip. (iii) The modular transmitter must have its own power supply regulation. Yes. Power supply regulation is provided by circuitry on the transmitter chip. (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). Yes The modular with permanently antenna. The antenna is integral antenna. (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 parameters. Yes. The modular during testing with a USB adapter power supply and the distance is greater than 10cm between modular and supporting equipment. (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Yes. GE Appliance & Lighting Applicant: GE Appliance & Lighting Address: AP35-1403-02 Appliance Park, Louisville, Kentucky, United States (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Yes. Please refer to the modular installation manual. (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Yes.

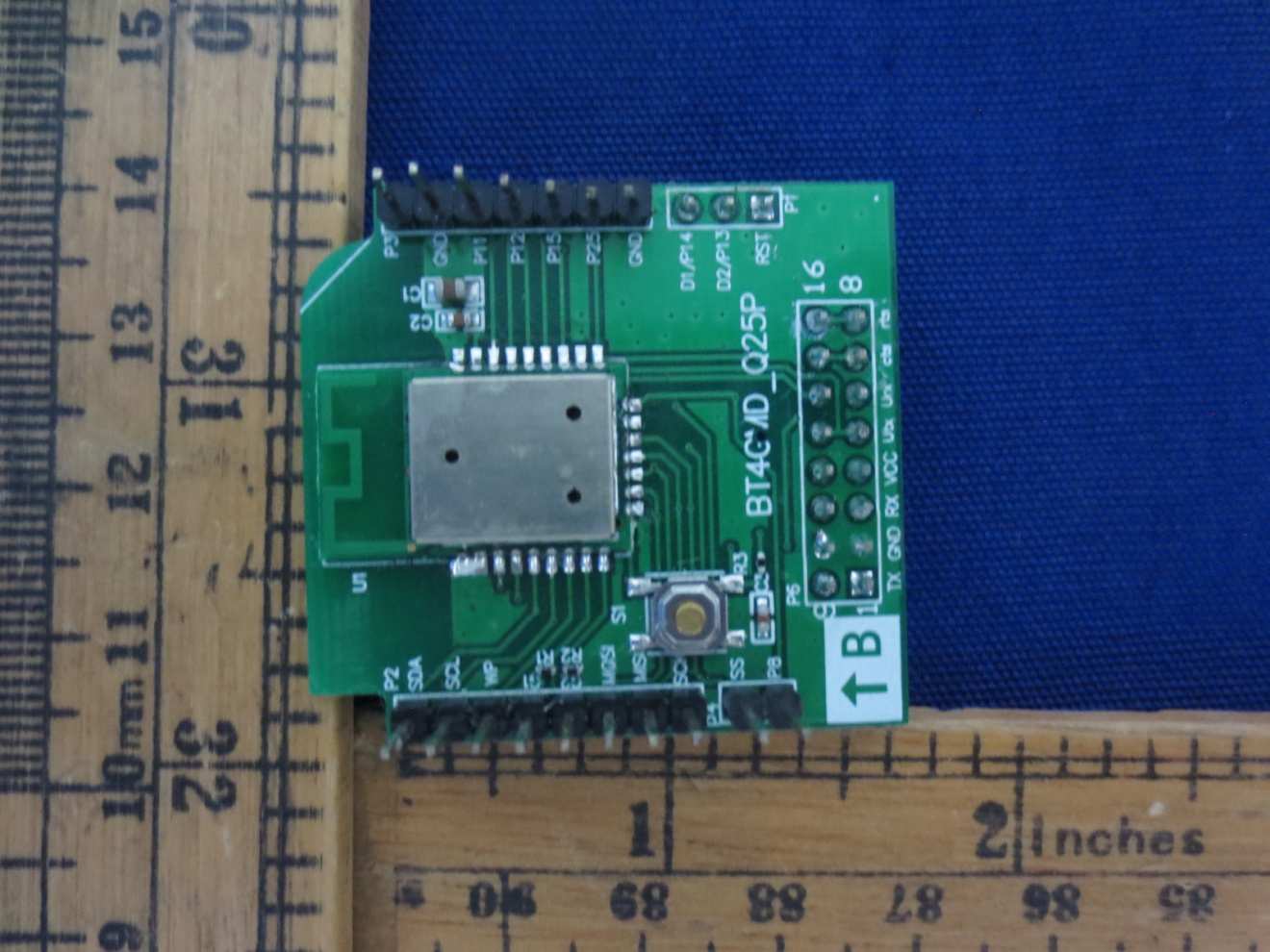

External Photos

FC C ID: ZKJ-BLEA002 INTERTEK TESTING SERVICES RF Exposure report The Equipment Under Test (EUT) is a Bluetooth Module with Bluetooth function operating at 2402-2480MHz, 40 channels with 2MHz channel spacing. The EUT was powered by DC 3.8V. For more detailed features description, please refer to the user’s manual. Antenna Type: Integral antenna. Antenna Gain: 1.0dBi Modulation Type: GFSK. The nominal conducted output power specified: dBm +/-3dB. The maximum tested radiated output power for the EUT is -1.43dBm in the frequency 2.402GHz which is within the production variation. The minimum tested radiated output power for the EUT is -2.33dBm in the frequency 2.440GHz mode which is within the production variation. According to the KDB 447498, the simple calculation as below: The maximun conducted output power specified is dBm = 0. mW The source- based time-averaging conducted output power = 0.* Duty Cycle mW = mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.5 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The test signal of the EUT is Continuous emission, so the Duty Cycle is 100%. -5.4 -1.4 7 7 0. 7 The nominal radiated output power specified: -4.4dBm +/-3dB. (EIRP)

Date: 29.JUN.2015 12:02:31 Date: 29.JUN.2015 12:04:05

Date: 29.JUN.2015 12:01:33 Date: 29.JUN.2015 12:03:15

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com GE Appliance & Lighting Application For Certification FCC ID: ZKJ-BLEA002 Bluetooth 4.0 Module Model: BB1737-25 Brand name: GE 2.4GHz Transceiver Report No.: 150611018SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-13] Prepared and Checked by: Approved by: Sign on file Wu RangLin Project Engineer Andy Yan Senior Project Engineer Date: August 19, 2015 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_c FCC ID: ZKJ-BLEA002 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_c FCC ID: ZKJ-BLEA002 ii MEASUREMENT/TECHNICAL REPORT GE Appliance & Lighting MODEL: BB1737-25 Brand name: GE FCC ID: ZKJ-BLEA002 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-13 Edition] provision. Report prepared by: Wu RangLin Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8601 0684 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_c FCC ID: ZKJ-BLEA002 iii Table of Contents 1.0 General Description ............................................................................................................................................ 2 1.1 Product Description ........................................................................................................................................... 2 1.2 Related Submittal(s) Grants ............................................................................................................................. 2 1.3 Test Methodology .............................................................................................................................................. 2 1.4 Test Facility ....................................................................................................................................................... 2 2.0 System Test Configuration ................................................................................................................................ 4 2.1 Justification ......................................................................................................................................................... 4 2.2 EUT Exercising Software .................................................................................................................................. 4 2.3 Special Accessories .......................................................................................................................................... 4 2.4 Equipment Modification ..................................................................................................................................... 4 2.5 Measurement Uncertainty ................................................................................................................................. 5 2.6 Support Equipment List and Description ......................................................................................................... 5 3.0 Emission Results ................................................................................................................................................ 7 3.1 Radiated Test Results ....................................................................................................................................... 8 3.1.1 Field Strength Calculation .............................................................................................................................. 8 3.1.2 Radiated Emission Configuration Photograph............................................................…

Text truncated - open the document above for the full version.

Radiated Emission
