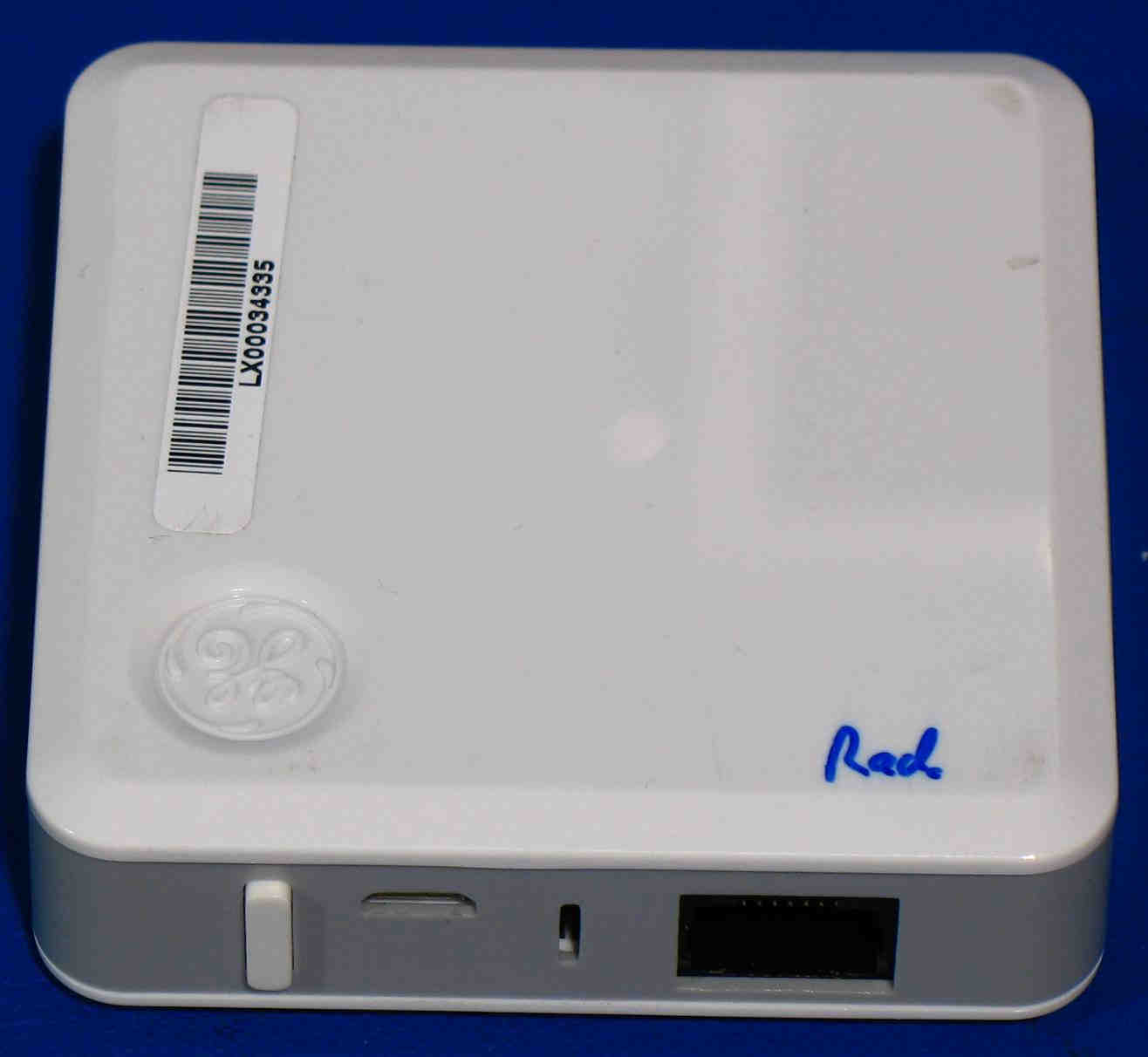

ZKJ-DSM03R01Appliance Communication Module

GEbrillion.com Appliance Communication Module (ACM) 49-50284-1 01-12 GE Safety Information. . . . . . . . . . . . . . .2 Operating Instructions. . . . . . . . . .3 Installation Instructions. . . . . . .4–9 Troubleshooting Tips. . . . . . .10,.11 Consumer Support Warranty. . . . . . . . . . . . . . . . . . . . . . .14-15 Consumer.Support. . . . . . . . .back.cover DRM1E3 Owner’s Manual and Installation Instructions IMPORTANT SAFETY INSTRUCTIONS 2 • . .Before you begin –.Read.these.instructions.completely.and.carefully . • .For your safety -.Read.and.observe.all.warning.and.cautions . • ..IMPORTANT –.Save.these.instructions.for.local.inspector’s.use ..Observe. all.governing.codes.and.ordinances . •. Note to Installer.–.Be.sure.to.leave.these.instructions.with.the. Consumer . •. .Note to Consumer –.Keep.these.instructions.for.future.reference . •.Completion time.–..about.1.hour WARNING: RISK OF ELECTRICAL SHOCK. •..Do .not .drill .into .electrical.wiring .inside .walls .or .cabinets.when .drilling .holes . SAVE THESE INSTRUCTIONS Notice:. •..The.ACM.shall.only.be.used.for.its.intended.purpose.as.described.in.this. Owner’s.Manual . •..Never.force.a.connector.into.the.Ethernet.port ...If.the.connector.does. not.attach.with.a.reasonable.amount.of.force,.they.do.not.match ...Verify. the.connector.matches.the.port.and.that.it.is.orientated.correctly . •..Extended.exposure.to.high.temperature.may.cause.premature.failure.of. electronic.components ...Do.not.place.the.ACM.on.the.back.of.a.clothes. dryer.or.range . •..The.only.way.to.turn.off.power.to.this.ACM.is.to.unplug.it.from.the. appliance . 3 Operating Instructions FEATURES ACM 03-09-11 DSM gen III 3 03-09-11 DSM gen III ElliottKoehler USB Button Indicator. Light Connection. Location BUTTON The .button .is.used .for .ACM .control . USB The .USB .connection.is.used .for .factory.programming.and .diagnostics ..There. are .no .consumer.accessible.features.provided.by .the .USB .connection . INDICATOR LIGHT The .indicator.light .blinks .at .different.rates .to .indicate.network.status .or .the .cur- rent .utility .energy.value . CONNECTION LOCATION This .is.the .location.for .inserting.the .interconnect.cable .on .the .module ... The .other .end .is.attached.to .the .appliance ... This .connection.is.not .designed.to. be .used .with .a.computer.or .network.cable . 4 Installation Instructions PARTS SUPPLIED Mounting.Bracket 1’.Interconnect.Cable 2.Mounting.Screws 6’.Interconnect.Cable NOTE: .Use .either .1’ .or .6’ .Interconnect.cable .based .on .how. close.to.appliance.connector.you.want.to.place.the.module . Owner’s.Manual.and. Installation.Instructions GEbrillion.com Appliance Communication Module 49-55072-1 09-10 GE Safety Information ............2, 3 Operating Instructions .......4, 5 Installation Instructions ......6–9 Troubleshooting Tips ..........10 Consumer Support Consumer Support ........back cover Warranty ..........................11 DRMU1 Owner’s Manual and Installation Instructions TOOLS YOU MAY NEED Phillips-Head.Screwdriver Drill.and.Bits For Wall or Cabinet Mounting Only: OTHER PARTS YOU MAY NEED Profile™.Laundry.“Y”.Adaptor.DR07X10003 For.Interconnect. Cable 10’.Cable.Extension.Kit DR07X10010 NOTE: .If.attaching.to.a.front.load.Profile™.laundry.pair.adaptor.DR07X10003.sold. separately.is.necessary . 5 Installation Instructions SELECT LOCATION TO INSTALL THE ACM. 1 ... The.ACM.can.be.placed.on.the.cabinet.near.the.appliance . 2 ... The.ACM.can.be.placed.on.the.side.of.the.appliance ..The.magnetic.feet.will.stick. to.most.appliances . 3 ... The.ACM.can.be.placed.inside.of.non-metallic.cabinets . 4 ... Using.the.supplied.bracket,.the.module.can.be.mounted.to.the.inside.of.the. cabinet.or.on.the.wall . Read. the. instructions.that. accompany.the. appliance.for. specific.recommendations . 1 3 4 2 1 ATTACH PROFILE™ LAUNDRY “Y” ADAPTOR (DR07X10003)(WASHER OR DRYER ONLY) For.washer/dryer.pairs,.attach.the.“Y”.adaptor. cable.to.the.serial.port.on.the.back.of.either.the. washer.or.dryer ..Attach.the.serial.cable.(supplied. with.the.dryer).to.the.“Y”.adaptor ..Attach.the. other.end.of.the.serial.cable.to.the.remaining. appliance ..The.third.leg.of.the.“Y”.adaptor.has.a. socket.for.installing.the.interconnect.cable . 6 Installation Instructions Interconnect.Cable Serial .Cable 2 SELECT LOCATION TO INSTALL THE ACM (continues): NOTE: If module needs to be placed farther from appliance extension kit DR07X10010 sold separately is available. To.mount.inside.cabinets,.drill.3/4”.diameter.holes.in.inconspicuous.locations.for. routing.the.interconnect.cable ..For.built-in.appliances,.see.the.template.with.the. appliance.for.precise.locations . WARNING: RISK OF ELECTRICAL SHOCK - .Do.not.drill.into. electrical.wiring.inside.walls.or.cabinets.when.drilling.holes . ..Tip:.For.dishwasher.installation,.it.is.easiest.to.route.the.interconnect.cable.at.the. time.of.installation.through.the.same.hole.as.the.drain.line ..Locate.the.module. under.the.sink . NOTE: To avoid water damage to the module do not place near washer hose connections or under sink near water connections. NOTE: To avoid interference, run interconnect cable through a separate hole than the power cable to the appliance. 1 7 Installation Instructions ...ATTACH MOUNTING BRACKET (OPTIONAL) If.using.the.mounting.bracket,.attach. to.the.cabinet.or.wall.with.the.screws. provided ..Wall.anchors.(not.included). may.be.used.for.mounting.to.drywall,.tile,. concrete.or.other.surfaces . 3 ..ATTACH INTERCONNECT CABLE 1).. Attach.one.end.of.the.interconnect.cable.to.the.appliance ..(Electric.ranges.are. shipped.from.the.factory.with.the.cable.connected .).See.the.instructions.on.the. appliance.for.the.exact.location ..Either.a.long.or.a.short.cable.may.be.used.to. work.with.your.specific.installation . If.a.longer.cable.is.desired,.you.will.need.to.purchase.a.standard.CAT5.patch. cable.or.use.GE.Kit.DR07X10010 ...The.maximum.cable.length.should.not.exceed. 20’ . NOTE: Do not use cables labeled “Crossov…

Text truncated - open the document above for the full version.

Top Side Bottom Side TBD

Bottom Side TBD

Component Side Components Under Shield Solder Side

Intertek Report Number: 100596650LEX-002 Issued: 2/21/2012 EMC Report for GE Appliance & Lighting on the Appliance Communication Module (ACM) FCCID:ZKJ-DSM03R01; ICID:10229A-DSM03R01 1 RF Exposure Requirements (MPE Calculations) 1.1 Test Limits § 1.1310: The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. Part 1.1310 Limits for Maximum Permissible Exposure (MPE) Intertek Report Number: 100596650LEX-002 Issued: 2/21/2012 EMC Report for GE Appliance & Lighting on the Appliance Communication Module (ACM) FCCID:ZKJ-DSM03R01; ICID:10229A-DSM03R01 1.2 Test Procedure The maximum equivalent isotropic radiated output power was calculated using the peak conducted output power (measured) and the manufacturer’s peak declared antenna gain in dBi. Calculation of EIRP: Peak conducted output power = 21.2dBm Peak declared antenna gain = 0.5dBi Peak EIRP = 21.2dBm + 0.5dBi = 21.7dBm (EIRP) Converting EIRP to milliwatts: EIRP(mW) = 10^(21.7/10) = 147.9mW The EIRP in milliwatts was used to calculate the maximum RF exposure at a 20 cm distance as follows: Calculation of Maximum RF Exposure at 20cm: Maximum RF Exposure at 20cm = (EIRP in mW) / (4Pi(20cm) 2 ) Maximum RF Exposure at 20cm = 147.9mW / (4Pi(20cm) 2 ) Maximum RF Exposure at 20cm = 147.9mW / (4Pi(20cm) 2 ) Maximum RF Exposure at 20cm = 147.9mW / 5025.6cm 2 Maximum RF Exposure at 20cm = 0.03mW/cm 2 1.3 Results: The maximum RF exposure level (0.03mW/cm 2 ) is well below the limits for the general population described in the table above at a distance of 20cm (1 mW/cm 2 ).

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report for GE Appliance & Lighting on the Appliance Communication Module (ACM) Page 1 of 40 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com TEST REPORT Report Number: 100596650LEX-001 Project Number: G100596650 Report Issue Date: 2/21/2012 Product Name: Appliance Communication Module (ACM) Model Number: DRM1E3000T0 FCCID: ZKJ-DSM03R01 FCC Standards: Title 47 CFR Part 15 Subpart B and C Tested by: Client: Intertek Testing Services NA, Inc. 731 Enterprise Drive Lexington, KY 40510 GE Appliance & Lighting AP35-1403-02 Louisville, KY 40225 Report prepared by Report reviewed by Bryan Taylor, Team Leader James Sudduth, Assistant Chief Engineer Intertek Report Number: 100596650LEX-001 Issued: 2/21/2012 EMC Report for GE Appliance & Lighting on the Appliance Communication Module (ACM) FCCID:ZKJ-DSM03R01 Page 2 of 40 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Description of Equipment Under Test ............................................................................................... 4 4 Peak Conducted Power ....................................................................................................................... 6 5 Occupied Bandwidth ........................................................................................................................... 7 6 Conducted Spurious Emissions....................................................................................................... 13 7 Power Spectral Density ..................................................................................................................... 18 8 Radiated Spurious Emissions (Transmitter) ................................................................................... 22 9 Radiated Spurious Emissions (Receiver)........................................................................................ 31 10 AC Powerline Conducted Emissions ........................................................................................... 34 11 Antenna Requirement per FCC Part 15.203 ................................................................................. 37 12 Measurement Uncertainty.............................................................................................................. 39 13 Revision History ............................................................................................................................. 40 Intertek Report Number: 100596650LEX-001 Issued: 2/21/2012 EMC Report for GE Appliance & Lighting on the Appliance Communication Module (ACM) FCCID:ZKJ-DSM03R01 Page 3 of 40 1 Introduction and Conclusion The tests indicated in section 2 were performed on the product constructed as described in Section 3. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test method, a list of the actual test equipment used, documentation photos, results and raw data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complied with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. All testing was performed at the Intertek office located at 731 Enterprise Drive, Lexington Kentucky, 40510. The radiated emission test site is a 10-meter semi-anechoic chamber. The chamber meets the characteristics of CISPR 16-1 and ANSI C63.4. For measurements, a remotely controlled flush-mount metal-top turntable is used to rotate the EUT a full 360 degrees. A remote controlled non-conductive antenna mast is used to scan the antenna height from one to four meters. The test site is listed with the FCC under Registration Number 485103. The test site is listed with Industry Canada under Site Number IC 2042M-1. 2 Test Summary Page Test full name FCC Reference IC Reference Result 6 Peak Conducted Power § 15.247(b)(3)(4) RSS210 A8.4 (4) Pass 7 Occupied Bandwidth § 15.247(a)(2) RSS210 A8.2(A) Pass 13 Conducted Spurious Emissions § 15.247(d) RSS210 (A8.5) Pass 18 Power Spectral Density § 15.247(e) RSS210 A8.2(B) Pass 22 Radiated Spurious Emissions (Transmitter) § 15.247(d), § 15.209, and § 15.205 RSS-210 (2.2) Pass 31 Radiated Spurious Emissions (Receiver) § 15.109 RSS-Gen (7.2.3) Pass 34 AC Powerline Conducted Emissions § 15.207 RSS-Gen (7.2.2) Pass 37 Antenna Requirement per FCC Part 15.203 § 15.203 RSS-Gen (7.1.4) Pass Intertek Report Number: 100596650LEX-001 Issued: 2/21/2012 EMC Report for GE Appliance & Lighting on the Appliance Communication Module (ACM) FCCID:ZKJ-DSM03R01 Page 4 of 40 3 Description of Equipment Under Test Equipment Under Test Man…
