  3. ZKJ-RANGA001

ZKJ-RANGA001GE RC15 Range Control

Haier US Appliance Solutions, Inc.
GE RC15 Range Control - FCC ID ZKJ-RANGA001 - Haier US Appliance Solutions, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 04, 2015
Application Purpose
Original Equipment
Date of Application
Jun 02, 2015
Equipment Note
GE RC15 Range Control
Frequency Range
2402.00000000 - 2480.00000000
Company
Haier US Appliance Solutions, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗
↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

  Ŷ                           !" #!"$%&       &        '  %            Ŷ &     (   (    (             Ŷ &                              Ŷ )        *        (             +               ( IDFHDQGRUH\HV Ŷ &          % ,                             -           .                   /   (     #0 %//1       2 345                  .      (  (      .     (             (                 +  (                6  .                     (           .   (                       2 Ŷ5HRULHQWRUUHORFDWHWKHUHFHLYLQJDQWHQQD Ŷ,QFUHDVHWKHVHSDUDWLRQEHWZHHQWKHHTXLSPHQW     Ŷ&RQQHFWWKHHTXLSPHQWLQWRDQRXWOHWRQD                   Ŷ&RQVXOWWKHGHDOHURUDQH[SHULHQFHGUDGLR79        375         (                      89:;                          ,             <       .    =>?@>ABA>CBD@E =>?@>ABA>CBD@E          #0 %//1  *  F     2 G #H              ( G 'H             (

External Photos

EUT Front EUT Back

Internal Photos

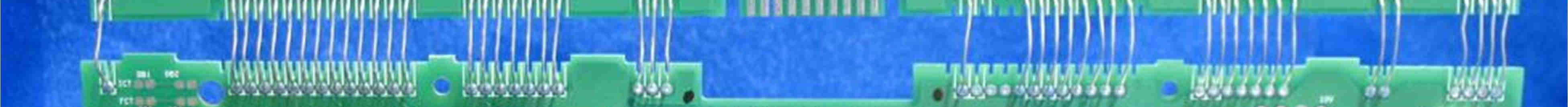

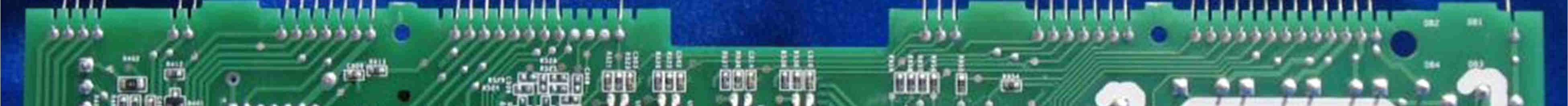

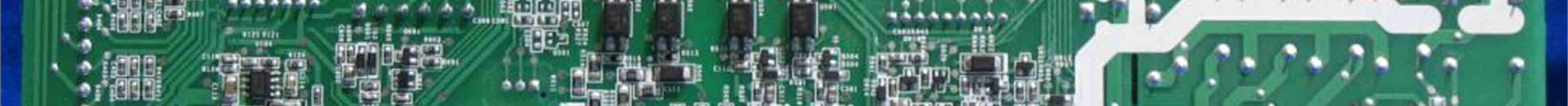

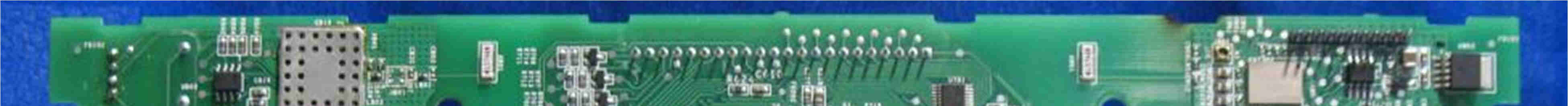

EUT Front EUT Back Bluetooth Low Energy Module WiFi Module

RF Exposure Info

731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com MPE Calculation § 1.1310: The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. Part 1.1310 Limits for Maximum Permissible Exposure (MPE) 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com RSS-102 Issue 5 Exposure Limits: 1.1 Test Procedure An MPE evaluation for was performed in order to show that the device was compliant with FCC §2.1091 and IC RSS-102. The maximum power density was calculated for simultaneous transmission at a separation distance of 20cm. For each transmitter the maximum RF exposure at a 20 cm distance using the formula: 10/)( 10 dBmowerConductedP mW PowerConducted= 2 )20(4 . cm mW GainAntPowerConducted tyPowerDensi × × = π 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com 1.2 Results: • WiFi Maximum Conducted Output Power = 275 mW • BTLE Maximum Conducted Output Power = 1 mW • Maximum Antenna Gain = 1.47dBi. • Maximum EIRP for simultaneous transmission 387.2 mW Power Density = 387.2 / 5025.6 = 0.08 mW/cm 2 = = 0.8 W/m 2 FCC MPE Limit at 2.4 GHz = 1 mW/cm 2 IC RSS-102 (Issue 5) MPE Limit at 2.4 GHz = 5.35 W/m 2 The calculated maximum power density at 20cm distance is less that the limit for general population / uncontrolled exposure.

RF Exposure Info

`Dielectric Chip Antenna - 1 - ■ MECHANICAL DIMENSION (unit : mm, tolerance : +/- 0.15) A1.2 B2.0 C1.0 D4.0 E6.0 ■ ELECTRICAL CHARACTERISTICS This specification covers the dielectricchip antenna ACS2450HFXX used in Bluetooth, WLAN and Jigbee etc ■ P/N : ACS2450HFXX ITEMSPEC Frequency Range2400 ~ 2485 MHz. VSWR2.0 Max. PolarizationLinear Gain Azimuth Theta Peak-1.09 Average-3.00 Phi Peak-3.26 Average-7.81 Elevation 1 Theta Peak-6.18 Average-10.35 Phi Peak1.00 Average-3.31 Elevation 2 Theta Peak-7.61 Average-12.50 Phi Peak1.47 Average-2.15 B E C ` CD Top Side Bottom A `Dielectric Chip Antenna - 2 - ■ FEEDING METHOD (unit : mm, tolerance : +/- 0.05) ■ MEASUREMENT A1.2 B4.0 C2.4 D6.0 E6.4 `Dielectric Chip Antenna - 3 - ThetaPhi Azimuth Elevation1 Elevation2 ■ RADIATION PATTERN

Test Report

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report for GE Digital Energy on the RC15 Range Control Page 1 of 41 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com WLAN TEST REPORT Report Number: 102052915LEX-001 Project Number: G102052915 Report Issue Date: 5/26/2015 Product Name: RC15 Range Control FCC Standards: Title 47 CFR 15 Subpart B and C Industry Canada Standards: RSS-210 Issue 8 & RSS-GEN Issue 4 Tested by: Client: Intertek Testing Services NA, Inc. 731 Enterprise Drive Lexington, KY 40510 GE Digital Energy AP2-315, AP6-1NW Appliance Park Louisville, KY 40225 Report prepared by Report reviewed by Toby Carrier, Technician Bryan Taylor, Team Leader – EMC Intertek Report Number: 102052915LEX-001 Issued: 5/26/2015 EMC Report for GE Digital Energy on the RC15 Range Control Page 2 of 41 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Description of Equipment Under Test ............................................................................................... 4 4 Peak Conducted Power ....................................................................................................................... 6 5 Occupied Bandwidth ........................................................................................................................... 8 6 Conducted Spurious Emissions ....................................................................................................... 15 7 Power Spectral Density ..................................................................................................................... 19 8 Radiated Spurious Emissions (Transmitter) ................................................................................... 25 9 Radiated Spurious Emissions (Receiver) ........................................................................................ 31 10 AC Powerline Conducted Emissions ........................................................................................... 34 11 Antenna Requirement per FCC Part 15.203 ................................................................................. 39 12 Measurement Uncertainty.............................................................................................................. 40 13 Revision History ............................................................................................................................. 41 Intertek Report Number: 102052915LEX-001 Issued: 5/26/2015 EMC Report for GE Digital Energy on the RC15 Range Control Page 3 of 41 1 Introduction and Conclusion The tests indicated in section 2 were performed on the product constructed as described in section 3. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test method, a list of the actual test equipment used, documentation photos, results and raw data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complied with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. The INTERTEK-Lexington is located at 731 Enterprise Drive, Lexington Kentucky, 40510. The radiated emission test site is a 10-meter semi-anechoic chamber. The chamber meets the characteristics of CISPR 16-1 and ANSI C63.4. For measurements, a remotely controlled flush-mount metal-top turntable is used to rotate the EUT a full 360 degrees. A remote controlled non-conductive antenna mast is used to scan the antenna height from one to four meters. The test site is listed with the FCC under registration number 485103. The test site is listed with Industry Canada under site number IC 2042M-1. 2 Test Summary Page Test full name FCC Reference IC Reference Result 6 Peak Conducted Power § 15.247(b)(3)(4) RSS-210 (A8.4) Pass 8 Occupied Bandwidth § 15.247(a)(2) RSS-210 (A8.2), RSS-GEN (4.6.1) Pass 15 Conducted Spurious Emissions § 15.247(d) RSS-210 (A8.5) Pass 19 Power Spectral Density § 15.247(e) RSS-210 A8.2(B) Pass 25 Radiated Spurious Emissions (Transmitter) § 15.247(d), § 15.209, and § 15.205 RSS-210 (2.2) Pass 31 Radiated Spurious Emissions (Receiver) § 15.109 RSS-Gen (6.1) Pass 34 AC Powerline Conducted Emissions § 15.107, § 15.207 RSS-Gen (7.2.4) Pass 39 Antenna Requirement per FCC Part 15.203 § 15.203 RSS-Gen (7.1.2) Pass Intertek Report Number: 102052915LEX-001 Issued: 5/26/2015 EMC Report for GE Digital Energy on the RC15 Range Control Page 4 of 41 3 Description of Equipment Under Test Equipment Under Test Manufacturer GE Digital Energy Model Number RC15 Serial Number Test Sample #1 Receive Date 4/1/2015 Test Start Date 4/1/2015 Test End Date 5/15/2015 D…

Text truncated - open the document above for the full version.

Test Report

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report for GE Digital Energy on the RC15 Range Control Page 1 of 31 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com BTLE TEST REPORT Report Number: 102052915LEX-002 Project Number: G102052915 Report Issue Date: 5/26/2015 Model Number: RC15 Range Control FCC Standards: Industry Canada Standards: Title 47 CFR 15 Subpart B and C RSS-210 Issue 8 & RSS-GEN Issue 4 Tested by: Client: Intertek Testing Services NA, Inc. 731 Enterprise Drive Lexington, KY 40510 GE Digital Energy AP2-315, AP6-1NW Appliance Park Louisville, KY 40225 Report prepared by Report reviewed by Toby Carrier, Technician Bryan Taylor, Team Leader – EMC Intertek Report Number: 102052915LEX-002 Issued: 5/26/2015 EMC Report for GE Digital Energy on the RC15 Range Control Page 2 of 31 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Description of Equipment Under Test ............................................................................................... 4 4 Peak Conducted Power ....................................................................................................................... 6 5 Occupied Bandwidth ........................................................................................................................... 9 6 Conducted Spurious Emissions ....................................................................................................... 12 7 Power Spectral Density ..................................................................................................................... 14 8 Radiated Spurious Emissions (Transmitter) ................................................................................... 17 9 Radiated Spurious Emissions (Receiver) ........................................................................................ 21 10 AC Powerline Conducted Emissions ........................................................................................... 24 11 Antenna Requirement per FCC Part 15.203 ................................................................................. 29 12 Measurement Uncertainty.............................................................................................................. 30 13 Revision History ............................................................................................................................. 31 Intertek Report Number: 102052915LEX-002 Issued: 5/26/2015 EMC Report for GE Digital Energy on the RC15 Range Control Page 3 of 31 1 Introduction and Conclusion The tests indicated in section 2 were performed on the product constructed as described in section 3. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test method, a list of the actual test equipment used, documentation photos, results and raw data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complied with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. The INTERTEK-Lexington is located at 731 Enterprise Drive, Lexington Kentucky, 40510. The radiated emission test site is a 10-meter semi-anechoic chamber. The chamber meets the characteristics of CISPR 16-1 and ANSI C63.4. For measurements, a remotely controlled flush-mount metal-top turntable is used to rotate the EUT a full 360 degrees. A remote controlled non-conductive antenna mast is used to scan the antenna height from one to four meters. The test site is listed with the FCC under registration number 485103. The test site is listed with Industry Canada under site number IC 2042M-1. 2 Test Summary Page Test full name FCC Reference IC Reference Result 6 Peak Conducted Power § 15.247(b)(3)(4) RSS-210 (A8.4) Pass 9 Occupied Bandwidth § 15.247(a)(2) RSS-210 (A8.2), RSS-GEN (4.6.1) Pass 12 Conducted Spurious Emissions § 15.247(d) RSS-210 (A8.5) Pass 14 Power Spectral Density § 15.247(e) RSS-210 (A8.2b) Pass 17 Radiated Spurious Emissions (Transmitter) § 15.247(d), § 15.209, and § 15.205 RSS-210 (2.2) (A8.5) Pass 21 Radiated Spurious Emissions (Receiver) § 15.109 RSS-Gen (6.1) Pass 24 Conducted Voltage Emissions on the AC Mains Terminals § 15.107, § 15.207 RSS-Gen (7.2.4) Pass 29 Antenna Requirement per FCC Part 15.203 § 15.203 RSS-Gen (7.1.2) Pass Intertek Report Number: 102052915LEX-002 Issued: 5/26/2015 EMC Report for GE Digital Energy on the RC15 Range Control Page 4 of 31 3 Description of Equipment Under Test Equipment Under Test Manufacturer GE Digital Energy Model Number RC15 Range Control Serial Number Test Sample #1 Receive Date 4/1/2015 Test Sta…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jeff Drake(Director, Engineering - Kitchen Hub)
[email protected]502-452-5135Fax: 502-452-0371

Technical Contact

GE AppliancesJeremy Mahaney
[email protected]502-452-4243

4000 Buechel Bank Rd. · Louisville · United States

Non-Technical Contact

GE AppliancesSteve Recio
[email protected]502-452-4571

Test Firm

Intertek Testing Services NAJames Sudduth
[email protected]859-226-1037Fax: 859 226 1040

Technical Specifications

#Rule PartsFrequency RangePower Output
415C2.40 GHz - 2.48 GHz1.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Single Modular Approval. Power Output listed is conducted. Approval is limited to OEM installation only. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except as described in this filing and/or in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with transmitter operating conditions for satisfying RF exposure compliance.
