ZKWFPV15082801Radio Control Toy Quadcopter (2.4GHz)

www.tuv.com Test Report No.: 14041372 001 Appendix 4 page 9 of 17 1.6 User Manual www.tuv.com Test Report No.: 14041372 001 Appendix 4 page 10 of 17 www.tuv.com Test Report No.: 14041372 001 Appendix 4 page 11 of 17 www.tuv.com Test Report No.: 14041372 001 Appendix 4 page 12 of 17 www.tuv.com Test Report No.: 14041372 001 Appendix 4 page 13 of 17 www.tuv.com Test Report No.: 14041372 001 Appendix 4 page 14 of 17 www.tuv.com Test Report No.: 14041372 001 Appendix 4 page 15 of 17 www.tuv.com Test Report No.: 14041372 001 Appendix 4 page 16 of 17 www.tuv.com Test Report No.: 14041372 001 Appendix 4 page 17 of 17

Page 1 / 1 CHENGHAI UDIRC TOYS CO.,LTD Dengfeng Industrial Zone,Chenghai District,Shantou City,Guangdong,China To Whom It May Concern: Please be advised that Applicant Name: CHENGHAI UDIRC TOYS CO.,LTD Address: Dengfeng Industrial Zone City: Chenghai District,Shantou City Country: Guangdong,China authorizes, Joey Leung, Project Engineer at TÜV Rheinland Hong Kong Ltd. to act on our behalf, until otherwise notified, for applications submitted to a Telecommunication Certification Body (TCB) recognized by the FCC. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signature: Name: Title: Manager

Page 1 / 1 CHENGHAI UDIRC TOYS CO.,LTD Dengfeng Industrial Zone,Chenghai District,Shantou City,Guangdong,China Applicant Name: CHENGHAI UDIRC TOYS CO.,LTD Address: Dengfeng Industrial Zone City: Chenghai District,Shantou City Country: Guangdong,China Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to 47 CFR Section 0.457 and 0.459, the applicant hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: ZKWFPV15082801 Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Name: Title: Manager Date: 2015-9-5

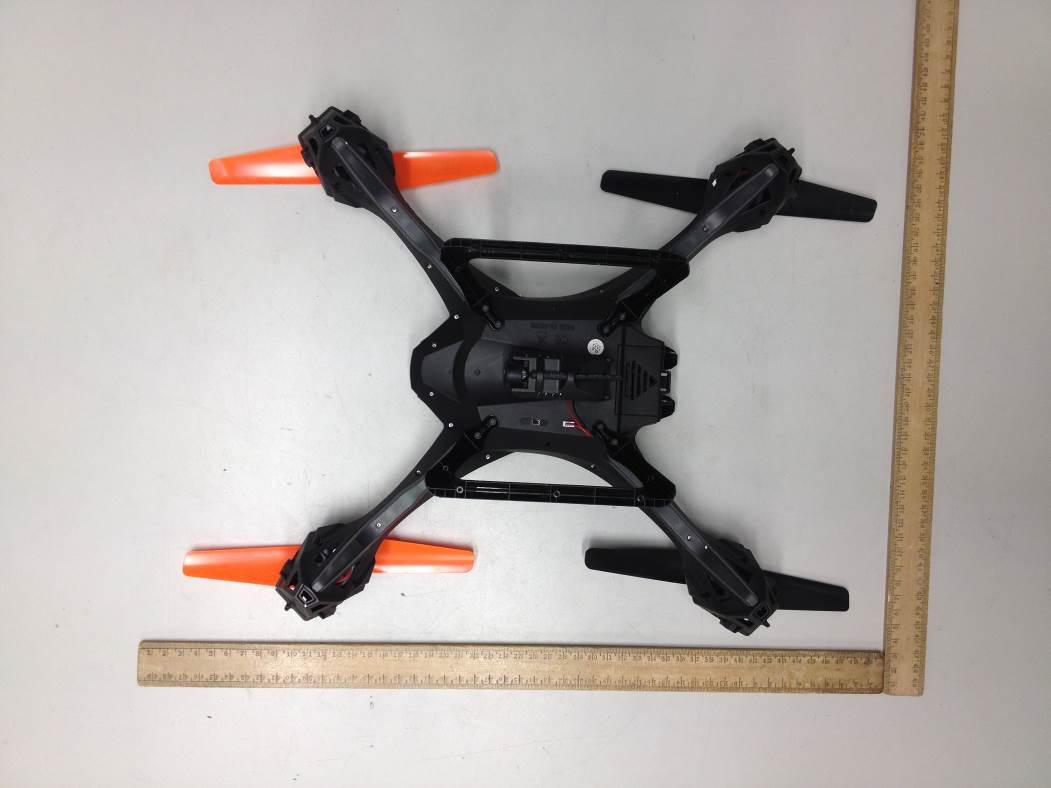

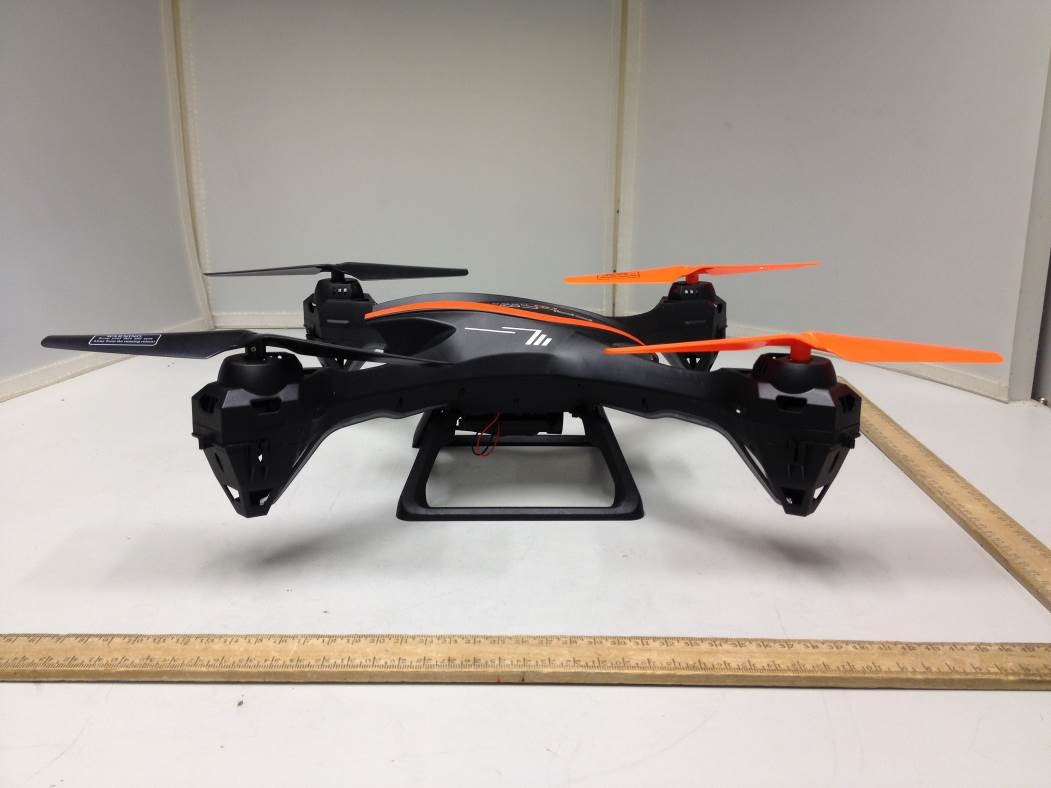

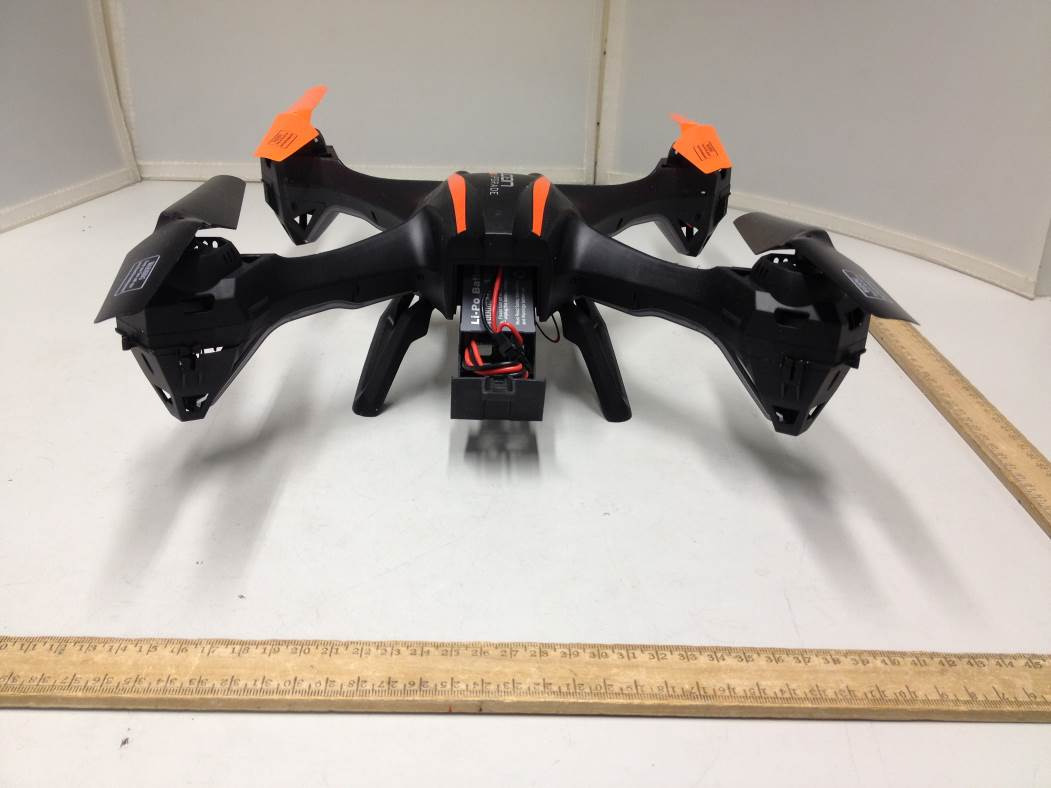

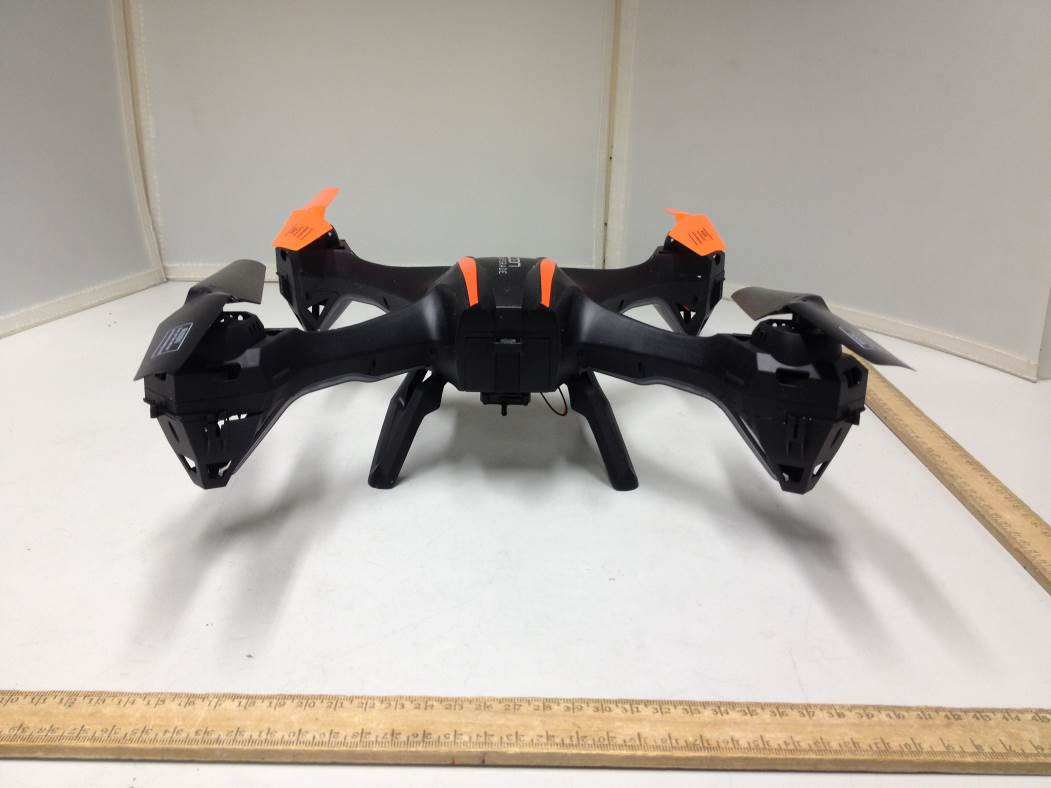

www.tuv.com Test Report No.: 14041372 001 Appendix 3 page 2 of 11 External View External View www.tuv.com Test Report No.: 14041372 001 Appendix 3 page 3 of 11 External View External View www.tuv.com Test Report No.: 14041372 001 Appendix 3 page 4 of 11 External View External View www.tuv.com Test Report No.: 14041372 001 Appendix 3 page 5 of 11 External View External View

www.tuv.com Test Report No.: 14041372 001 Appendix 4 page 2 of 17 1.1 FCCID Label Artwork

www.tuv.com Test Report No.: 14041372 001 Appendix 3 page 6 of 11 Internal View Internal View www.tuv.com Test Report No.: 14041372 001 Appendix 3 page 7 of 11 Internal View Internal View www.tuv.com Test Report No.: 14041372 001 Appendix 3 page 8 of 11 Internal View Internal View www.tuv.com Test Report No.: 14041372 001 Appendix 3 page 9 of 11 Internal View Internal View www.tuv.com Test Report No.: 14041372 001 Appendix 3 page 10 of 11 Internal View Internal View www.tuv.com Test Report No.: 14041372 001 Appendix 3 page 11 of 11 Internal View

www.tuv.com Test Report No.: 14041372 001 Date: 18.09.2015 page 2 of 11 Table of Content Page Cover Page ..................................................................................................................... 1 Table of Content ............................................................................................................ 2 Product information....................................................................................................... 3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use ........................................................................................................... 3 Submitted documents ................................................................................................................................. 3 Special accessories and auxiliary equipment .......................................................................................... 3 Independent Operation Modes .................................................................................................................. 4 Related Submittal(s) Grants ....................................................................................................................... 4 List of Test and Measurement Instruments ................................................................. 5 Results FCC Part 15 – Subpart C ................................................................................. 6 Subclause 15.203 – Antenna Information ............................................................................ Pass ........... 6 Subclause 15.204 – Antenna Information ............................................................................ Pass ........... 6 Subclause 15.207 – Disturbance Voltage on AC Mains ......................................................... N/A ........... 6 Subclause 15.215 (c) – 20 dB Bandwidth ............................................................................. Pass ........... 6 Subclause 15.249 (a) – Field Strength of Fundamental and Harmonics ........................... Pass ........... 7 Subclause 15.249 (d) – Spurious Emissions – Band edge ................................................. Pass ........... 9 Subclause 15.249 (d) – Emissions radiated outside of the specified frequency bands . Pass ......... 10 Appendix 1 – Test Results 3 pages Appendix 2 – Test Setup Photos 3 pages Appendix 3 – Photo documentation 11 pages Appendix 4 – Product documentation 17 pages Appendix 5 – RF Exposure Information 2 pages www.tuv.com Test Report No.: 14041372 001 Date: 18.09.2015 page 3 of 11 Product information Manufacturers declarations Transmitter Operating frequency range 2448 - 2472 MHz Type of modulation GFSK Number of channels 4 Type of antenna Wire Antenna Power level fix Connection to public utility power line No Nominal voltage 7.4 V Product function and intended use The equipment under test (EUT) is a radio control toy quadcopter operating at 2.4GHz. It is powered by battery only. FCCID: ZKWFPV15082801 Models Product description U842-1, U842, U842Wifi, U842-2, U842 FPV, U818A, U818A-1, U818A HD, U818AW, U818A WIFI, U818A FPV, U818A-2, U816A, U27, U27-1, U845, U845Wifi, U845A, U845 FPV, U845-1, U846, U839, U39, U841, U841-1, U841W, U829A, U829A FPV, U829AWiFi, U829A-1, U830, U830A, U843, U820, U12, U12A, U13, U13A, U36, U37, U38, U39, U40, U41, U42, U43, U44, U45, U46, U47, U48, U49, U50, U51, U52, U53, U54, U55, U56, U57, U58, U59, U60, U28, U28W, U28-1, U29, U29W, U30, U30-1, U30W, U30F, U30-2, U31, U31-1, U31W, U31F, U31-2, U32, U33, U34, U34-1, U34W, U34F, U34-2, U35, U35-1, U35W, U35F, U35-2 Radio Controlled Quadcopter Submitted documents Circuit Diagram Block Diagram Bill of material User manual Rating Label Special accessories and auxiliary equipment The product has been tested together with the following additional accessory: - Camera with TF card slot provided by client. The FCC ID of that camera is ZKWFPV15082803. www.tuv.com Test Report No.: 14041372 001 Date: 18.09.2015 page 4 of 11 Independent Operation Modes The basic operation mode are - Transmitting current status to the associate controller; - Receiving control signal from the associate controller. For further information refer to User Manual Related Submittal(s) Grants This is a single application for certification of the transmitter. www.tuv.com Test Report No.: 14041372 001 Date: 18.09.2015 page 5 of 11 List of Test and Measurement Instruments Global United Technology Services Co., Ltd. (Registration number: 600491) Equipment Manufacturer Type S/N Cal. interval Last cal. 3m Semi- Anechoic Chamber ZhongYu Electron 9.0(L)*6.0(W)* 6.0(H) --- 2 year 05 Apr 2015 Control Room ZhongYu Electron 6.2(L)*2.5(W)* 2.4(H) --- N/A N/A ESU EMI Test Receiver R&S ESU26 --- 1 year 08 Jun 2015 Loop Antenna Zhinan ZN30900A --- 1 year 08 Jun 2015 Bi-log Hybrid Antenna SCHWARZBECK VULB9163 --- 1 year 09 Mar 2015 Double-ridged horn antenna SCHWARZBECK 9120D --- 1 year 09 Mar 2015 RF Amplifier HP 8347A --- 1 year 08 Jun 2015 RF Amplifier HP 8349B --- 1 year 08 Jun 2015 EMI Test Software AUDIX E3 --- 1 year N/A Coaxial cable GTS N/A --- 1 year 08 Jun 2015 Coaxial Cable GTS N/A --- 1 year 08 Jun 2015 Thermo meter N/A N/A --- 1 year 08 Jun 2015 Spectrum Analyzer Rohde & Schwarz FSP30 100007 1 year 12 Jan 2015 www.tuv.com Test Report No.: 14041372 001 Date: 18.09.2015 page 6 of 11 Results FCC Part 15 – Subpart C Subclause 15.203 – Antenna Information Pass Requirement: No antenna other than that furnished by the responsible party shall be used with the device Results: Permanent attached antenna Verdict: Pass Subclause 15.204 – Antenna Information Pass Requirement: Provide information for every antenna proposed for the use with the EUT Results: a) Antenna type: Wired antenna b) Manufacturer and model no: N.A. c) Gain with reference to an isotropic rad…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14041372 001 Appendix 1 page 1 of 3 Appendix 1 Test Results www.tuv.com Test Report No.: 14041372 001 Appendix 1 page 2 of 3 20dB Bandwidth Tx frequency: 2448MHz A 2.44749 GHz Ref 10 dBm 2.44749 GHz Att 40 dB 2.44749 GHz 2.44749 GHz 2.44749 GHz 2.44749 GHz 2.44749 GHz 2.44749 GHz 2.44749 GHz 2.44749 GHz 2.44749 GHz 2.44749 GHz 1 PK 2.44749 GHz MAXH 2.44749 GHz Center 2.448 GHz 2.44749 GHz Span 5 MHz 2.44749 GHz 500 kHz/ 2.44749 GHz * 2.44749 GHz RBW 100 kHz 2.44749 GHzVBW 300 kHz 2.44749 GHz SWT 2.5 ms 2.44749 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.44749 GHz 1 Marker 1 [T1 ] -11.46 dB m 2.447490000 GHz 2 Delta 2 [T1 ] -20.54 dB -870.000000000 kHz 3 Delta 3 [T1 ] -20.18 dB 1.410000000 MHz MARKER 1 2.44749 GHz Comment: test print Date: 10.SEP.2015 14:45:22 Tx frequency: 2456MHz A 2.45549 GHz Ref 10 dBm 2.45549 GHz Att 40 dB 2.45549 GHz 2.45549 GHz 2.45549 GHz 2.45549 GHz 2.45549 GHz 2.45549 GHz 2.45549 GHz 2.45549 GHz 2.45549 GHz 2.45549 GHz 1 PK 2.45549 GHz MAXH 2.45549 GHz Center 2.456 GHz 2.45549 GHz Span 5 MHz 2.45549 GHz 500 kHz/ 2.45549 GHz * 2.45549 GHz RBW 100 kHz 2.45549 GHzVBW 300 kHz 2.45549 GHz SWT 2.5 ms 2.45549 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.45549 GHz 1 Marker 1 [T1 ] -11.41 dBm 2.455490000 GHz 2 Delta 2 [T1 ] -20.60 dB -830.000000000 kHz 3 Delta 3 [T1 ] -20.47 dB 1.430000000 MHz MARKER 1 2.45549 GHz Comment: test print Date: 10.SEP.2015 14:57:26 www.tuv.com Test Report No.: 14041372 001 Appendix 1 page 3 of 3 Tx frequency: 2472MHz A 2.47148 GHz Ref 10 dBm 2.47148 GHz Att 40 dB 2.47148 GHz 2.47148 GHz 2.47148 GHz 2.47148 GHz 2.47148 GHz 2.47148 GHz 2.47148 GHz 2.47148 GHz 2.47148 GHz 2.47148 GHz Center 2.472 GHz 2.47148 GHz Span 5 MHz 2.47148 GHz 500 kHz/ 2.47148 GHz * 2.47148 GHz RBW 100 kHz 2.47148 GHzVBW 300 kHz 2.47148 GHz SWT 2.5 ms 2.47148 GHz 1 PK 2.47148 GHz MAXH 2.47148 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.47148 GHz 1 Marker 1 [T1 ] -10.36 dBm 2.471480000 GHz 2 Delta 2 [T1 ] -21.69 dB -910.000000000 kHz 3 Delta 3 [T1 ] -20.08 dB 1.480000000 MHz MARKER 1 2.47148 GHz Comment: test print Date: 10.SEP.2015 14:53:05

www.tuv.com Test Report No.: 14041372 001 Appendix 5 page 1 of 2 Appendix 5 RF Exposure Information www.tuv.com Test Report No.: 14041372 001 Appendix 5 page 2 of 2 Maximum transmitter power: Frequency (MHz) Maximum peak field strength (dBuV/m) Output power (mW) 2.448 74.93 0.0093 2.456 74.58 0.0086 2.472 75.65 0.0110 According to KDB 447498 D01: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [ √f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below Result: (0.0093/5)* √2.448 = 0.0029 <3.0 (0.0086/5)*√2.456 = 0.0027 <3.0 (0.0110/5)*√2.472 = 0.0035 <3.0 Conclusion: No SAR is required.

www.tuv.com Test Report No.: 14041372 001 Appendix 2 page 2 of 3 Setup for radiated emission Setup for radiated emission www.tuv.com Test Report No.: 14041372 001 Appendix 2 page 3 of 3 Setup for radiated emission
