ZKWFPV15082804Radio Control LCD Display (2.4GHz)

www.tuv.com Test Report No.: 14041371 001 Appendix 4 page 16 of 24 1.6 User Manual 2 www.tuv.com Test Report No.: 14041371 001 Appendix 4 page 17 of 24 3 www.tuv.com Test Report No.: 14041371 001 Appendix 4 page 18 of 24 4 www.tuv.com Test Report No.: 14041371 001 Appendix 4 page 19 of 24 5 www.tuv.com Test Report No.: 14041371 001 Appendix 4 page 20 of 24 6 www.tuv.com Test Report No.: 14041371 001 Appendix 4 page 21 of 24 7 www.tuv.com Test Report No.: 14041371 001 Appendix 4 page 22 of 24 8 www.tuv.com Test Report No.: 14041371 001 Appendix 4 page 23 of 24 9 www.tuv.com Test Report No.: 14041371 001 Appendix 4 page 24 of 24 10

Page 1 / 1 CHENGHAI UDIRC TOYS CO.,LTD Dengfeng Industrial Zone,Chenghai District,Shantou City,Guangdong,China To Whom It May Concern: Please be advised that Applicant Name: CHENGHAI UDIRC TOYS CO.,LTD Address: Dengfeng Industrial Zone City: Chenghai District,Shantou City Country: Guangdong,China authorizes, Joey Leung, Project Engineer at TÜV Rheinland Hong Kong Ltd. to act on our behalf, until otherwise notified, for applications submitted to a Telecommunication Certification Body (TCB) recognized by the FCC. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signature: Name: Title: Manager

Page 1 / 1 CHENGHAI UDIRC TOYS CO.,LTD Dengfeng Industrial Zone,Chenghai District,Shantou City,Guangdong,China Applicant Name: CHENGHAI UDIRC TOYS CO.,LTD Address: Dengfeng Industrial Zone City: Chenghai District,Shantou City Country: Guangdong,China Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to 47 CFR Section 0.457 and 0.459, the applicant hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: ZKWFPV15082804 Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Name: Title: Manager Date: 2015-9-5

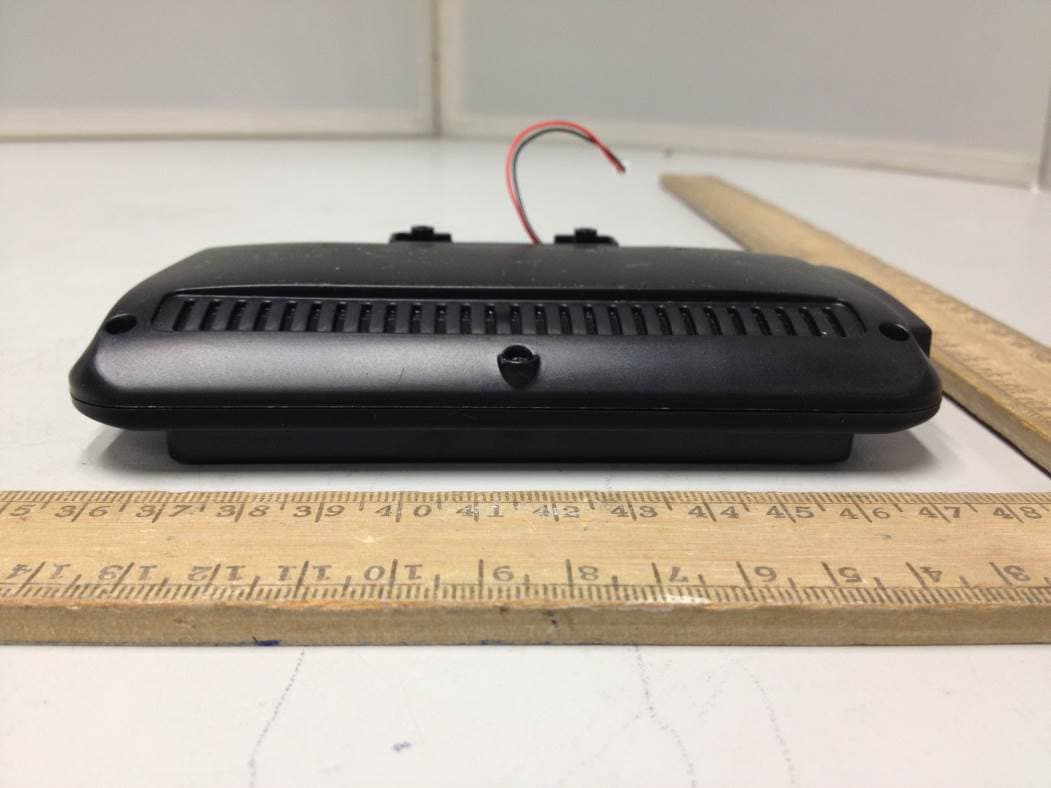

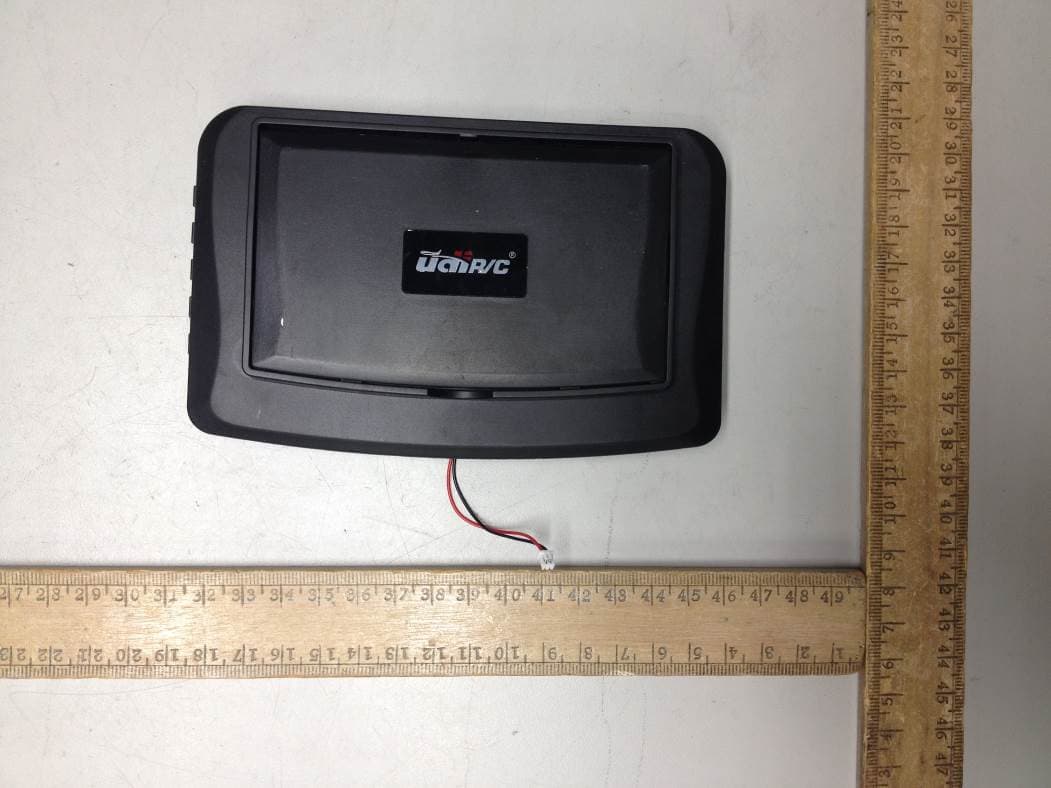

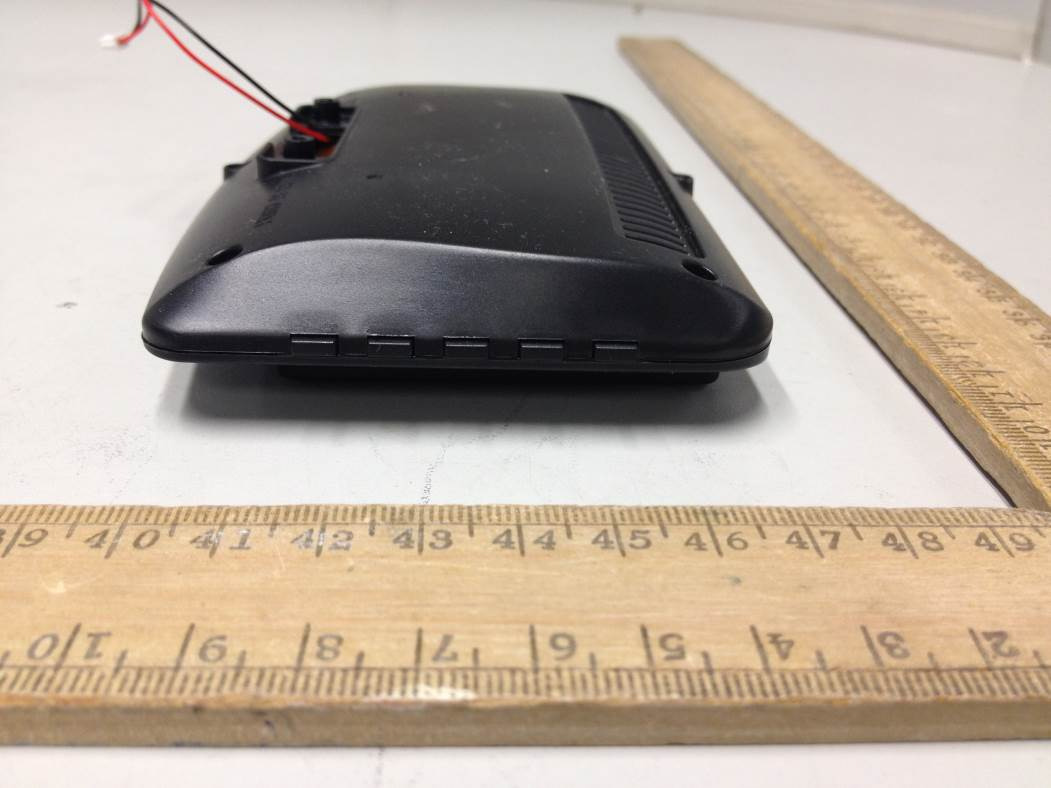

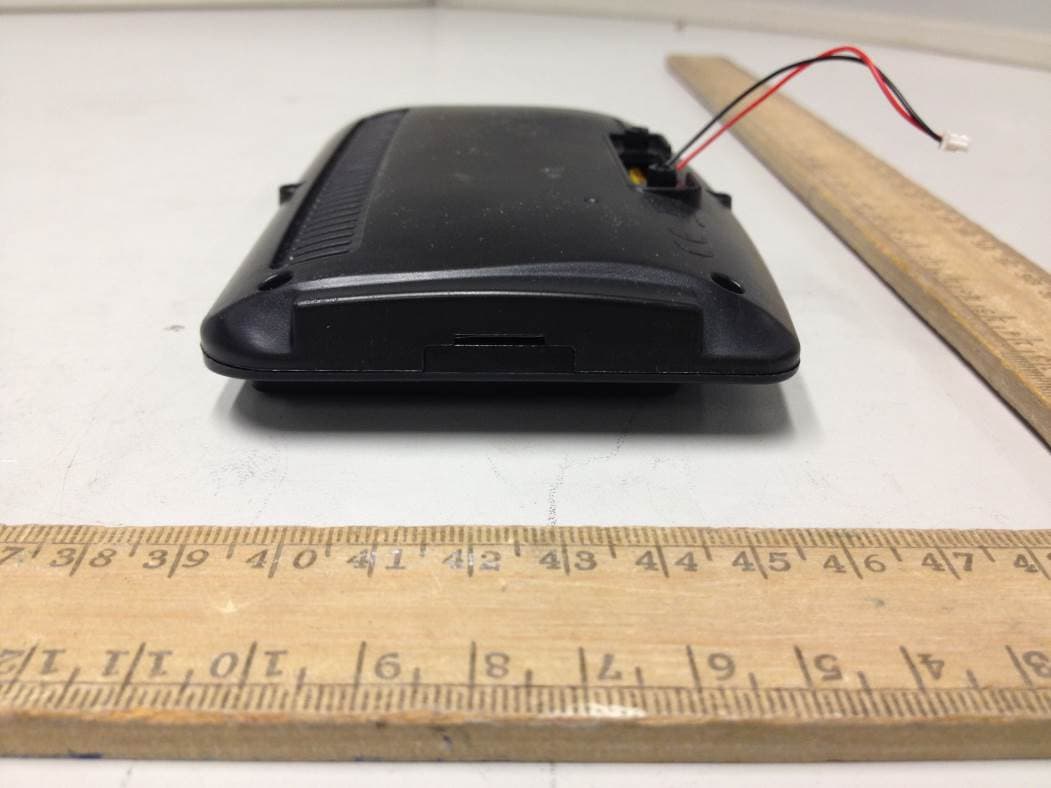

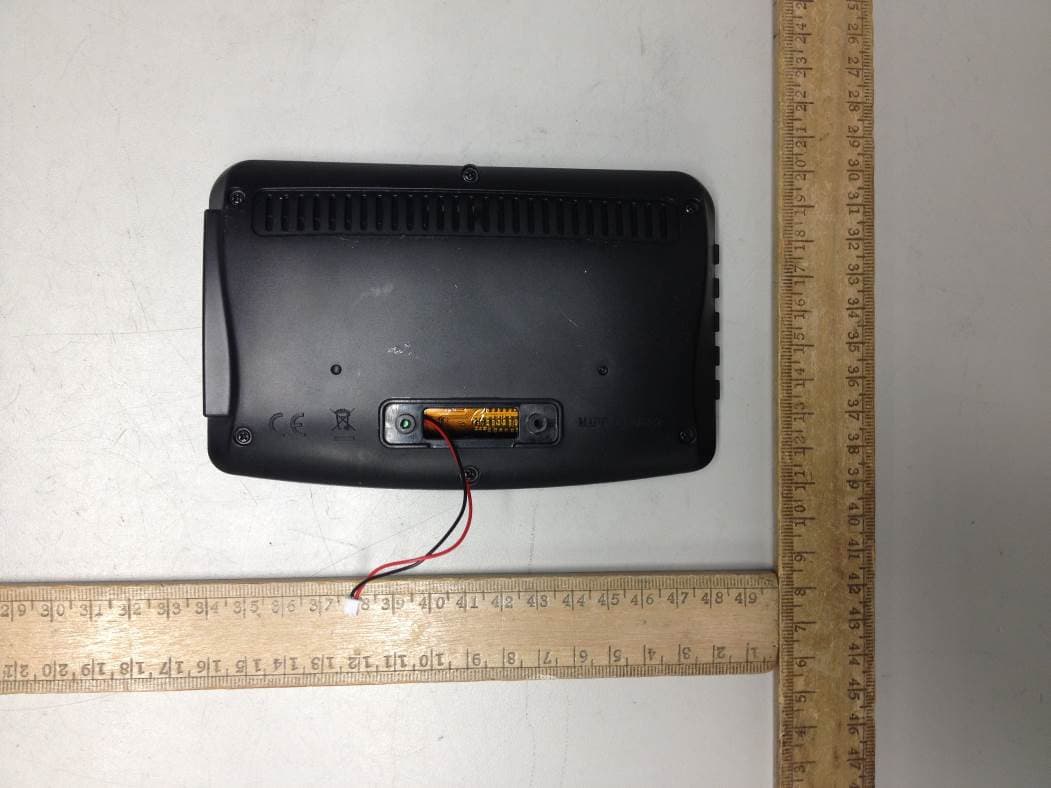

www.tuv.com Test Report No.: 14041371 001 Appendix 3 page 2 of 6 External View External View www.tuv.com Test Report No.: 14041371 001 Appendix 3 page 3 of 6 External View External View www.tuv.com Test Report No.: 14041371 001 Appendix 3 page 4 of 6 External View External View

www.tuv.com Test Report No.: 14041371 001 Appendix 4 page 2 of 24 1.1 FCCID Label Artwork

www.tuv.com Test Report No.: 14041371 001 Appendix 3 page 5 of 6 Internal View Internal View www.tuv.com Test Report No.: 14041371 001 Appendix 3 page 6 of 6 Internal View Internal View

www.tuv.com Test Report No.: 14041371 001 Date: 22.09.2015 page 2 of 12 Table of Content Page Cover Page ..................................................................................................................... 1 Table of Content ............................................................................................................ 2 Product information....................................................................................................... 3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use ........................................................................................................... 3 Submitted documents ................................................................................................................................. 3 Special accessories and auxiliary equipment .......................................................................................... 3 Independent Operation Modes .................................................................................................................. 4 Related Submittal(s) Grants ....................................................................................................................... 4 List of Test and Measurement Instruments ................................................................. 5 Results FCC Part 15 – Subpart B ................................................................................. 6 Subclause 15.107 – Conducted Emission on AC Mains ........................................................ N/A ........... 6 Subclause 15.109 – Radiated Emissions ............................................................................. Pass ........... 6 Results FCC Part 15 – Subpart C ................................................................................. 7 Subclause 15.203 – Antenna Information ............................................................................ Pass ........... 7 Subclause 15.204 – Antenna Information ............................................................................ Pass ........... 7 Subclause 15.207 – Disturbance Voltage on AC Mains ......................................................... N/A ........... 7 Subclause 15.215 (c) – 20 dB Bandwidth ............................................................................. Pass ........... 7 Subclause 15.249 (a) – Field Strength of Fundamental and Harmonics ........................... Pass ........... 8 Subclause 15.249(d) – Spurious Emissions – Band edge ................................................. Pass ......... 10 Subclause 15.249 (d) – Emissions radiated outside of the specified frequency bands . Pass ......... 11 Appendix 1 – Test Results 3 pages Appendix 2 – Test Setup Photos 3 pages Appendix 3 – Photo documentation 6 pages Appendix 4 – Product documentation 24 pages Appendix 5 – RF Exposure Information 2 pages www.tuv.com Test Report No.: 14041371 001 Date: 22.09.2015 page 3 of 12 Product information Manufacturers declarations Transmitter Operating frequency range 2421 - 2446 MHz Type of modulation GFSK Number of channels 3 Type of antenna Integral Antenna Power level fix Connection to public utility power line No Nominal voltage 3.7 V Product function and intended use The equipment under test (EUT) is a radio control LCD display operating at 2.4GHz. It is powered by battery only. FCCID: ZKWFPV15082804 Models Product description U842-1, U842, U842Wifi, U842-2, U842 FPV, U818A, U818A-1, U818A HD, U818AW, U818A WIFI, U818A FPV, U818A-2, U816A, U27, U27-1, U845, U845Wifi, U845A, U845 FPV, U845-1, U846, U839, U39, U841, U841-1, U841W, U829A, U829A FPV, U829AWiFi, U829A-1, U830, U830A, U843, U820, U12, U12A, U13, U13A, U36, U37, U38, U39, U40, U41, U42, U43, U44, U45, U46, U47, U48, U49, U50, U51, U52, U53, U54, U55, U56, U57, U58, U59, U60, U28, U28W, U28-1, U29, U29W, U30, U30-1, U30W, U30F, U30-2, U31, U31-1, U31W, U31F, U31-2, U32, U33, U34, U34-1, U34W, U34F, U34-2, U35, U35-1, U35W, U35F, U35-2 Radio Controlled LCD Display Submitted documents Circuit Diagram Block Diagram Bill of material User manual Rating Label Special accessories and auxiliary equipment The product has been tested together with the following additional accessory: - Remote controller provided by client. The FCC ID of that remote controller is ZKWFPV15082802. www.tuv.com Test Report No.: 14041371 001 Date: 22.09.2015 page 4 of 12 Independent Operation Modes The basic operation modes are - transmitting control signal for the RC camera; - display a real time image captured from the associate camera; - reading data from TF card. For further information refer to User Manual Related Submittal(s) Grants This is a single application for certification of the transmitter. Remarks Pre-scan has been conducted to determine the worst-case mode from all possible combinations of available channels. Simultaneous transmission was investigated, no additional spurious emission was found from 9kHz to 25GHz. www.tuv.com Test Report No.: 14041371 001 Date: 22.09.2015 page 5 of 12 List of Test and Measurement Instruments Global United Technology Services Co., Ltd. (Registration number: 600491) Equipment Manufacturer Type S/N Cal. interval Last cal. 3m Semi- Anechoic Chamber ZhongYu Electron 9.0(L)*6.0(W)* 6.0(H) --- 2 year 05 Apr 2015 Control Room ZhongYu Electron 6.2(L)*2.5(W)* 2.4(H) --- N/A N/A ESU EMI Test Receiver R&S ESU26 --- 1 year 08 Jun 2015 Loop Antenna Zhinan ZN30900A --- 1 year 08 Jun 2015 Bi-log Hybrid Antenna SCHWARZBECK VULB9163 --- 1 year 09 Mar 2015 Double-ridged horn antenna SCHWARZBECK 9120D --- 1 year 09 Mar 2015 RF Amplifier HP 8347A --- 1 year 08 Jun 2015 RF Amplifier HP 8349B --- 1 year 08 Jun 2015 EMI Test Software AUDIX E3 --- 1 year N/A Coaxial cable GTS N/A --- 1 year 08 Jun 2015 Coaxial Cable GTS N/A --- 1 year 08 Jun 2015 Thermo meter N/A N/A --- …

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14041371 001 Appendix 1 page 1 of 3 Appendix 1 Test Results www.tuv.com Test Report No.: 14041371 001 Appendix 1 page 2 of 3 20dB Bandwidth Tx frequency: 2421MHz A 2.421 GHz 1 PK 2.421 GHz MAXH 2.421 GHz Ref 10 dBm 2.421 GHz Att 40 dB 2.421 GHz Center 2.421 GHz 2.421 GHz Span 10 MHz 2.421 GHz 1 MHz/ 2.421 GHz * 2.421 GHz RBW 100 kHz 2.421 GHzVBW 300 kHz 2.421 GHz SWT 2.5 ms 2.421 GHz 2.421 GHz 2.421 GHz 2.421 GHz 2.421 GHz 2.421 GHz 2.421 GHz 2.421 GHz 2.421 GHz 2.421 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.421 GHz 1 Marker 1 [T1 ] -8.22 dB m 2.421000000 GHz 2 Delta 2 [T1 ] -20.82 dB -2.540000000 MHz 3 Delta 3 [T1 ] -20.19 dB 2.480000000 MHz MARKER 1 2.421 GHz Comment: test print Date: 10.SEP.2015 13:55:13 Tx frequency: 2424MHz A 2.42402 GHz 1 PK 2.42402 GHz MAXH 2.42402 GHz Ref 10 dBm 2.42402 GHz Att 40 dB 2.42402 GHz 2.42402 GHz 2.42402 GHz 2.42402 GHz 2.42402 GHz 2.42402 GHz 2.42402 GHz 2.42402 GHz 2.42402 GHz 2.42402 GHz Center 2.424 GHz 2.42402 GHz Span 10 MHz 2.42402 GHz 1 MHz/ 2.42402 GHz * 2.42402 GHz RBW 100 kHz 2.42402 GHzVBW 300 kHz 2.42402 GHz SWT 2.5 ms 2.42402 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.42402 GHz 1 Marker 1 [T1 ] -3.57 dBm 2.424020000 GHz 2 Delta 2 [T1 ] -20.67 dB -2.540000000 MHz 3 Delta 3 [T1 ] -20.56 dB 2.460000000 MHz MARKER 1 2.42402 GHz Comment: test print Date: 10.SEP.2015 14:04:26 www.tuv.com Test Report No.: 14041371 001 Appendix 1 page 3 of 3 Tx frequency: 2446MHz A 2.44548 GHz 1 PK 2.44548 GHz MAXH 2.44548 GHz Ref 10 dBm 2.44548 GHz Att 40 dB 2.44548 GHz 2.44548 GHz 2.44548 GHz 2.44548 GHz 2.44548 GHz 2.44548 GHz 2.44548 GHz 2.44548 GHz 2.44548 GHz 2.44548 GHz Center 2.446 GHz 2.44548 GHz Span 10 MHz 2.44548 GHz 1 MHz/ 2.44548 GHz * 2.44548 GHz RBW 100 kHz 2.44548 GHzVBW 300 kHz 2.44548 GHz SWT 2.5 ms 2.44548 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.44548 GHz 1 Marker 1 [T1 ] -11.28 dBm 2.445480000 GHz 2 Delta 2 [T1 ] -20.07 dB -1.520000000 MHz 3 Delta 3 [T1 ] -20.21 dB 3.480000000 MHz MARKER 1 2.44548 GHz Comment: test print Date: 10.SEP.2015 11:54:57

www.tuv.com Test Report No.: 14041371 001 Appendix 5 page 1 of 2 Appendix 5 RF Exposure Information www.tuv.com Test Report No.: 14041371 001 Appendix 5 page 2 of 2 According to KDB 447498 D01 section 4.3.1, 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [ √f(GHz)] ≤3.0 for 1-g SAR, and ≤7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison Maximum power of transmitter: Frequency (GHz) Maximum peak output power (dBuV/m) Output power (mW) 2.448 80.46 0.0334 2.456 81.26 0.0401 2.472 78.98 0.0237 Result: (0.0334/5)*√2.448 = 0.0104 <3.0 (0.0401/5)* √2.456 = 0.0126 <3.0 (0.0237/5)*√2.472 = 0.0075 <3.0 Maximum power of LCD display: Frequency (GHz) Maximum peak output power (dBuV/m) Output power (mW) 2.421 82.46 0.0529 2.424 82.57 0.0542 2.446 82.68 0.0556 Result: (0.0529/5)*√2.421 = 0.0164 <3.0 (0.0542/5)* √2.424 = 0.0169 <3.0 (0.0556/5)* √2.446 = 0.0174 <3.0 Conclusion: According to KDB 447498 D01 section 4.3.2, the sum of all simultaneously transmitting antennas in an operating mode and exposure condition combination is within the SAR limit, SAR test exclusion applies to that simultaneous transmission configuration. Hence, no SAR is required.
