ZKWGPS200600025G WIFI FPV DRONE

The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiator & your body.

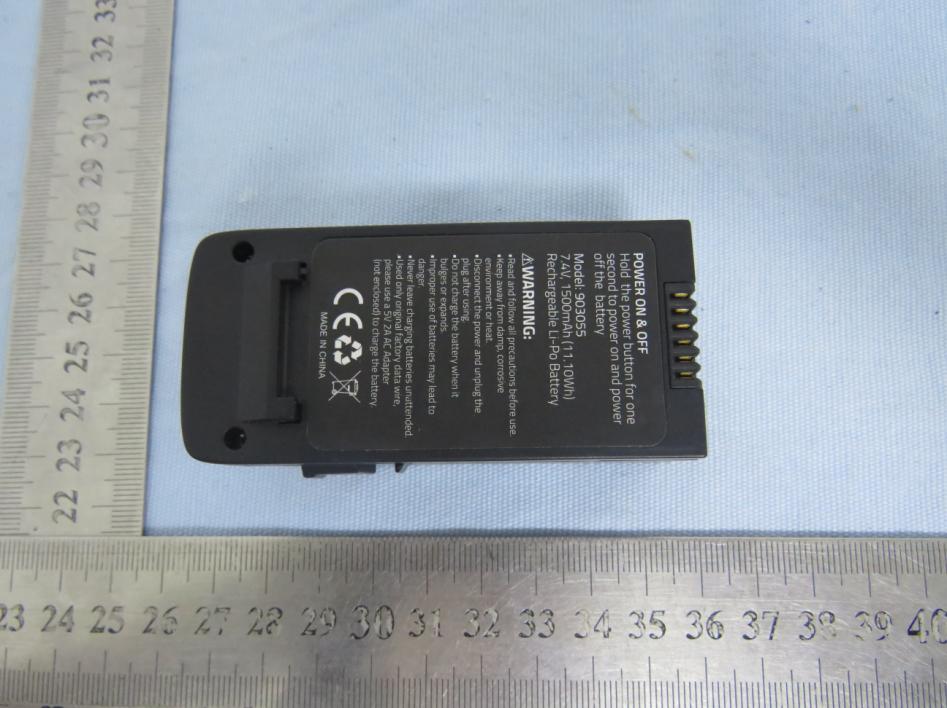

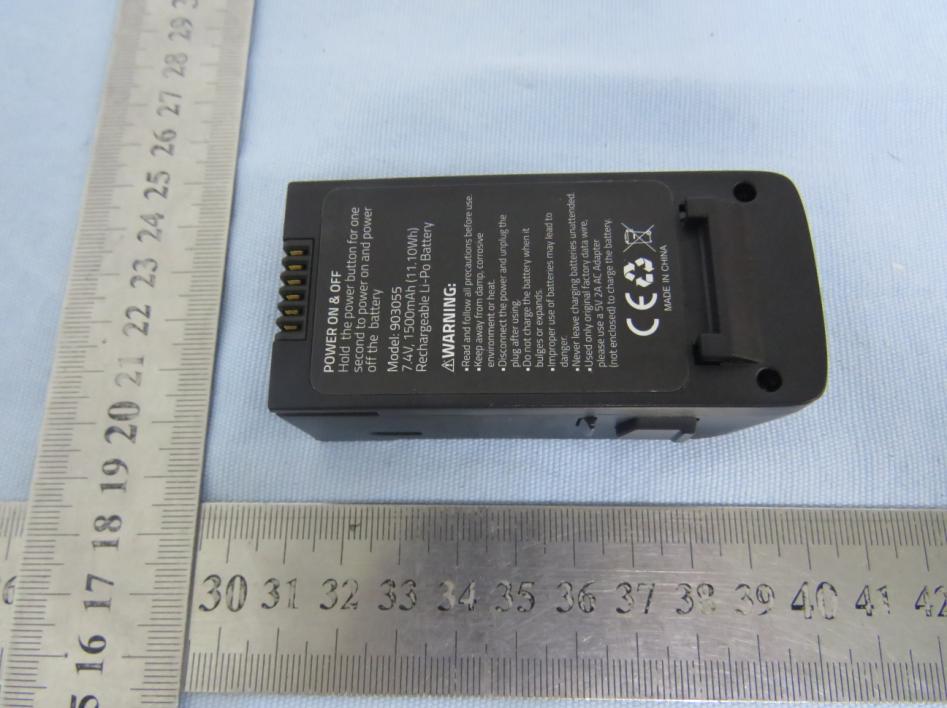

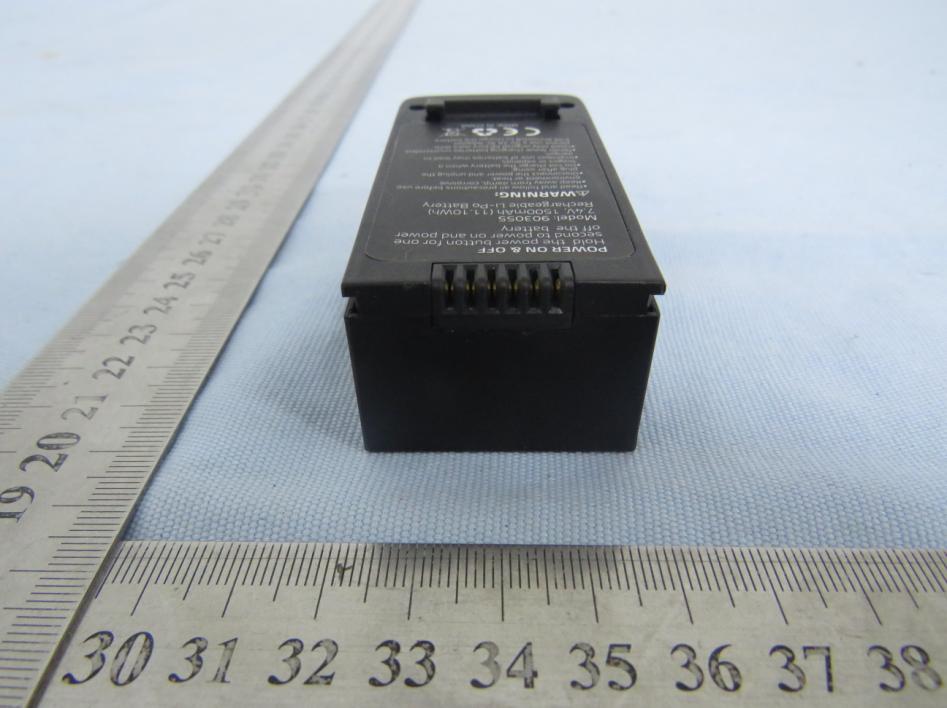

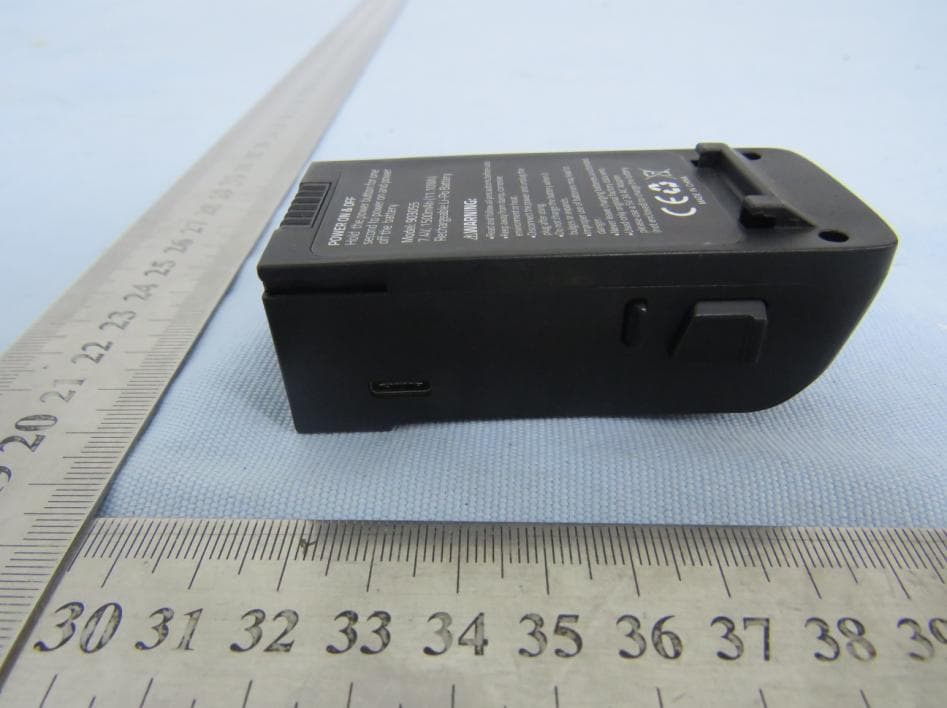

FCC ID: ZKWGPS20060002 External photo FCC ID: ZKWGPS20060002 FCC ID: ZKWGPS20060002 FCC ID: ZKWGPS20060002 FCC ID: ZKWGPS20060002 FCC ID: ZKWGPS20060002 FCC ID: ZKWGPS20060002 FCC ID: ZKWGPS20060002

Label & location 5.8G WIFI FPV DRONE M/N : U62 FCC ID: ZKWGPS20060002 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: ZKWGPS20060002 Internal photo RF Antenna FCC ID: ZKWGPS20060002 FCC ID: ZKWGPS20060002 FCC ID: ZKWGPS20060002 FCC ID: ZKWGPS20060002 FCC ID: ZKWGPS20060002 FCC ID: ZKWGPS20060002 5G ANT 5G CHIP FCC ID: ZKWGPS20060002 2.4G RX ANT FCC ID: ZKWGPS20060002 FCC ID: ZKWGPS20060002

Chenghai Udirc Toys Co., Ltd. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: U62/ For additional models see model list. FCC ID: ZKWGPS20060002 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Integral antenna type(s) described below: Model No. of antenna: 5G antenna 1 Type of antenna: PCB antenna Gain of the antenna: 2.5 dBi Frequency range: U-NII-1: 5180-5240MHz U-NII-3: 5745-5825MHz Model No. of antenna: 5G antenna 2 Type of antenna: PCB antenna Gain of the antenna: 2.5 dBi Frequency range: U-NII-1: 5180-5240MHz U-NII-3: 5745-5825MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Chenghai Udirc Toys Co., Ltd. Address: Dengfeng Industrial Zone, Chenghai District, Shantou, City: Guangdong ZIP / Postal code: Country: China Place: China Date: 2020-07-28 Signature Model List: UA24 U01,U01S,UDI001,VR1,VR-1,I-18MT, U02,U02S,UDI002,VR2,VR-2,I-18SC, U03,U03S,UDI003,VR3,VR-3,MT18, U04,U04S,UDI004,VR4,VR-4,SC18, U05,U05S,UDI005,VR5,VR-5,B18, U06,U06S,UDI006,VR6,VR-6,T18, U07,U07S,UDI007,VR7,VR-7,TC18, U08,U08S,UDI008,VR8,VR-8,D18, U09,U09S,UDI009,VR9,VR-9 C18, U10 U10S,UDI010,VR10,VR-10,B18, U11,U11S,UDI011, U12,U12S,UDI012, U13,U13S,UDI013, U14,U14S,UDI014, U15,U15S,UDI015, U16,U16S,UDI016, U17,U17S,UDI017, U18,U18S,UDI018, U19,U19S,UDI019, U20,U20S,UDI020, U21,U21S,UDI021, U22,U22S,UDI022,UA22 U23,U23S,UDI023, U24,U24S,UDI024, U25,U25S,UDI025, U26,U26S,UDI026, U27,U27S,UDI027, U28,U28S,U28W,U28-1,UDI028, U29,U29S,U29D,U29W,U29S,U29S-E,U29Plus,U29Plus-G,UDI029, U30,U30S,UDI030, U31,U31S,U31W,U31R,U31D, U32,U32S, U33,U33S, U34,U34S,U34W, U35,U35S,U818A Plus,U818A Plus-C,U818A Plus-G, U36,36S,U36W,U36D, U37,U37S, U38,U38S, U39,U39S, U40,U40S,U40W, U41,U41S,U41W, U42,U42S,U42W,U42HW, U43,U43S,U43W, U44,U44S,U44W, U45,U45S,U45W, U46,U46S,U46W,U46C,U46C-W, U47,U47S,U47B,U47W, U48,U48S,U48W, U49,U49S,U49C,U49W, U50,U50S, U51,U51S,U51W, U52,U52S,U52G,U52W, U53,U53S, U54,U54S,U54W,U54Plus, U55,U55S, U56,U56S, U57,U57S, U58,U58S, U59,U59S, U60,U60S, U61W, U61,U61S, U62,U62S, U63,U63S, U64,U64S, U65,U65S, U66,U66S, U67,U67S, U68,U68S, U69,U69S, U70,U70S, U71,U71S, U72,U72S, U73,U73S, U74,U74S, U75,U75S, U76,U76S, U77,U77S, U78,U78S, U79,U79S, U80,U80S, U81,U81S, U82,U82S, U83,U83S, U84,U84S, U85,U85S, U86,U86S, U87,U87S, U88,U88S,U88Plus,U88Plus-G, U89,U89S, U90,U90S, U91,U91S, U92,U92S, U93,U93S, U94,U94S, U95,U95S, U96,U96S, U97,U97S, U98,U98S, U99,U99S, U100,U100S, U101,U101S, U102,U102S, U103,U103S, U104,U104S, U105,U105S, U106,U106S, U107,U107S, U108,U108S, U109,U109S, U110,U110S, U111,U111S, U112,U112S, U113,U113S, U114,U114S, U115,U115S, U116,U116S, U117,U117S, U118,U118S, U119,U119S, U120,U120S, U121,U121S, U122,U122S, U123,U123S, U124,U124S, U125,U125S, U126,U126S, U127,U127S, U128,U128S, U129,U129S, U130,U130S, U131,U131S, U132,U132S, U133,U133S, U134,U134S, U135,U135S, U136,U136S, U137,U137S, U138,U138S, U139,U139S, U140,U140S, U141,U141S, U142,U142S, U143,U143S, U144,U144S, U145,U145S, U146,U146S, U147,U147S, U148,U148S, U149,U149S, U150,U150S, U151,U151S, U152,U152S, U153,U153S, U154,U154S, U155,U155S, U156,U156S, U157,U157S, U158,U158S, U159,U159S, U160,U160S, U161,U161S, U162,U162S, U163,U163S, U164,U164S, U165,U165S, U166,U166S, U167,U167S, U168,U168S, U169,U169S, U170,U170S, U171,U171S, U172,U172S, U173,U173S, U174,U174S, U175,U175S, U176,U176S, U177,U177S, U178,U178S, U179,U179S, U180,U180S, U181,U181S, U182,U182S, U183,U183S, U184,U184S, U185,U185S, U186,U186S, U187,U187S, U188,U188S, U189,U189S, U190,U190S, U191,U191S, U192,U192S, U193,U193S, U194,U194S, U195,U195S, U196,U196S, U197,U197S, U198,U198S, U199,U199S, U200,U200S, 6182-7SN,6182-7S DIL,6182-7S,6182-7RC DIL,6182-7RC,6182-7RC STE, 6182-7SN MCE,6182-7S BI,6182-7RCHA WAL,6182-7RCH MCE,6182-7SH, ACDRVR,Archos Drone VR,U818A,U818A HD,U818A WIFI,U842-1, U842 WIFI,U845,U841-1,U841-1,Xerall,X-TankCopter,3A-U46-BL,SYRIO, DRAKO,U829A,U842,U845WIFI,U835,U28-1,U28W,U42,U42W,VR-2, Falcon Pro,U820,U843,D2,ZX-TTN,ZX-ATL,ZXRHD,ZXNVA,ZXRAP, ZXSPT,6182-7RB TM1,_titan,_hydra,ZX-HRA,ARCHOS DRONE WW, ARCHOS PICO DRONE,A15W,CW4,U48A,U48HW,TDFT0019, TDFT0014,TDLB0010,RC60706,RC49581,RC46892,DRONE 200, DRONE 400,25197,25163,T5176,T5177,AA108,AA818,AA101. AA102.AA200.A20,A20W,A30,A30W,D20,D50,D60,D35,D58,D65, D68,D52 ,25196,25194,25159,25160,23938,NT.SS9,NT.SF1M,RC18167, RC18168,RC15771,RC46892,RC49580,T5147,T5170,RGR3000,TDFT0005, TDFT0006,EC16238,EC16242,EC16241,EC16239,EC16243,6182-7RC AEO, 6182-7SN AEO,6182-7RB TM1,6182-7SC BUR,ACPIDR,ACDRONE,CW10, U88WIFI,6182-7RCHA,6182-1GH,6182-1GHB,6182-1GXA,6182-1GE, 6182-1GB,8073472,8073473,RC60706,TDFT0020,TDFT0021,TDFT0027, TDFT0028,TDFT0031,TDLB0002,Robin FPV,U60Pro-WCH,U61W,U48, A15,T20,D28,6182-7RCHB

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2006064FV00-1 FCC ID: ZKWGPS20060002 RF EXPOSURE EVALUATION EUT Specification EUT 5G WIFI FPV DRONE Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.24GHz WLAN: 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others(Bluetooth: 2.402GHz ~ 2.480GHz) Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 18.08 dBm 16.03dBm (64.27mW) for U-NII-1 (40.09mW) for U-NII-3 Antenna gain 2.5 dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) 300-1500 -- -- F/1500 1500-100000 -- -- 1 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2006064FV00-1 FCC ID: ZKWGPS20060002 Friis transmission formula: Pd=(Pout*G)\(4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Channel Gain Channel Frequency (MHz) Max Output power (dBm) Tolerance Max Tune-UP power (mW) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 5G WIFI Band1 Test Mode: 802.11a Low 2.5 5180 15.18 ± 0.5 36.98 0.0131 1 Middle 2.5 5200 15.11 ± 0.5 36.39 0.0129 1 High 2.5 5240 15.45 ± 0.5 39.36 0.0139 1 Test Mode: 802.11n(HT20) Low 2.5 5180 18.08 ± 0.5 72.11 0.0255 1 Middle 2.5 5200 17.98 ± 0.5 70.47 0.0249 1 High 2.5 5240 17.95 ± 0.5 69.98 0.0248 1 5G WIFI Band4 Test Mode: 802.11a Low 2.5 5745 13.48 ± 0.5 25.00 0.0088 1 Middle 2.5 5785 13.09 ± 0.5 22.86 0.0081 1 High 2.5 5825 12.53 ± 0.5 20.09 0.0071 1 Test Mode: 802.11n(HT20) Low 2.5 5745 16.03 ± 0.5 44.98 0.0159 1 Middle 2.5 5785 15.91 ± 0.5 43.75 0.0155 1 High 2.5 5825 15.38 ± 0.5 38.73 0.0137 1

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2006064FV00 FCC ID: ZKWGPS20060002 Page 2 of 62 Table of Contents 1. GENERAL INFORMATION ................................................................................................ 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST................................................................. 5 1.2 R ELATED SUBMITTAL(S)/GRANT (S) .......................................................................................... 10 1.3 T EST METHODOLOGY................................................................................................................ 10 1.4 E QUIPMENT MODIFICATIONS...................................................................................................... 10 1.5 S UPPORT DEVICE..................................................................................................................... 10 1.6 T EST FACILITY AND LOCATION................................................................................................... 11 1.7 S UMMARY OF TEST RESULTS..................................................................................................... 12 2. SYSTEM TEST CONFIGURATION .................................................................................. 13 2.1 EUT CONFIGURATION............................................................................................................... 13 2.2 S PECIALACCESSORIES............................................................................................................. 13 2.3 D ESCRIPTION OF TEST MODES................................................................................................... 13 2.4 EUT E XERCISE......................................................................................................................... 13 2.5 D UTY CYCLE............................................................................................................................. 14 3. CONDUCTED EMISSIONS TEST .................................................................................... 19 3.1 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 19 3.2 T EST CONDITION....................................................................................................................... 19 3.3 M EASUREMENT RESULTS.......................................................................................................... 19 4. MAX. CONDUCTED OUTPUT POWER ........................................................................... 20 4.1 LIMITS...................................................................................................................................... 20 4.2 T EST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 20 4.3 T EST PROCEDURE.................................................................................................................... 20 4.4 M EASUREMENT RESULTS.......................................................................................................... 20 5. 6DB BANDWIDTH ............................................................................................................ 23 5.1 LIMITS...................................................................................................................................... 23 5.2 T EST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 23 5.3 T EST PROCEDURE.................................................................................................................... 23 5.4 M EASUREMENT RESULTS........................................................................................................ 23 6. 26DB BANDWIDTH & 99% OCCUPIED BANDWIDTH ................................................... 30 6.1 LIMITS...................................................................................................................................... 30 6.2 T EST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 30 6.3 T EST PROCEDURE.................................................................................................................... 30 6.4 M EASUREMENT RESULTS........................................................................................................ 30 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2006064FV00 FCC ID: ZKWGPS20060002 Page 3 of 62 7. POWER SPECTRAL DENSITY ....................................................................................... 36 7.1 LIMITS...................................................................................................................................... 36 7.2 T EST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 36 7.3 T EST PROCEDURE.................................................................................................................... 36 7.4 T EST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 36 7.5 M EASUREMENT RESULTS.......................................................................................................... 36 8. BAND EDGE .................................................................................................................... 43 8.1 LIMITS...................................................................................................................................... 43 8.2 T EST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 43 8.3 T EST PROCEDURE.................................................................................................................... 43 8.4 M EASUREMENT RESULTS.......................................................................................................... 43 9. FREQUENCY STABILIT…

Text truncated - open the document above for the full version.

FCC ID: ZKWGPS20060002 Test photo Radiated emission Below 30MHz 30MHz-1GHz FCC ID: ZKWGPS20060002 Above 1GHz
