ZL9-SP6020Tablet

1 Index 1.1 Foreword (2) 1.2 SmartPhoneHandling (2) 1.3 Safety Instructions (2) 1.4 Abbreviations and Terminology(2) 1.5 SmartPhoneOperation&Setup (3) 1.6 Phablet Status and Messages (3) 2. Quick Start Guide (3) 2.1 Key Functions (3) 2.2 Key Functions (3) 3. Startup and Shutdown (3) 3.1 Open and Close Screen (4) 3.2 Touch Screen (4) 3.3 Home Page (5) 3.4 Application Procedures (6) 3.5 USB Connection (7) 3.6 Virtual Keypad (7) 3.7 Management (8) 4. Basic Settings (8) 4.1 SIM Management (8) 4.2 Wireless and Internet (11) 4.3 Bluetooth (13) 4.4 Data Management (16) 4.5 Additional Options (17) 4.6 Contextual Model (20) 4.7 Display (22) 4.8 Storage (24) 4.9 Battery (25) 4.10 Application Program (26) 4.11 Account and Sync (27) 4.12 Location Service (28) 4.13 Securing your Phablet (28) 4.14 Language & Input (29) 4.15 Backup and Reset Function (31) 4.16 Date and Time (31) 4.17 Fixed-time Startup and Shutdown (32) 4.18 Assistance Function (32) 4.19 Engineer Selection (33) 4.20 About Your Phablet (34) 5 Multimedia (34) 5.1 Music (34) 5.2 Video (35) 5.3 Photo Gallery (36) 5.4 Camera (37) 6. Communications (37) 6.1 Phone (37) 6.2 Text Messages (38) 6.3 Contact List (39) 7. Internet (40) 7.1 Browser (40) 7.2 Email (41) 8. Other Applications (42) 8.1 Clock (42) 8.2 Calculator (43) 8.3 File Manager (44) 8.4 Recorder (46) 9. Installation (47) 9.1 Uninstall (47) 10. Troubleshooting (47) 2 1.1 Foreword Thank you for choosing our SmartPhone Model M66AYG-P high definition Phablet with a 6” LCD Screen. This manual introduces you to the features and functions of your new Phablet. This manual also includes recommendations which we encourage you to follow such in order to assure proper operation of y our Smartphone. 1.2 SmartPhone Smart Handling •Please make sure to keep the Phablet in a dry and proper place. To avoid circuitry and hardware damage do not expose the phone, battery and charger to direct sunlight, wet or moist environments. •Please avoid sudden shake or shock since it may permanently damage the Smartphone. •If your phone has been running for long periods of time, especially in hot environments, heat may be pushed to the surface of the phone. If your phone is overheating, cease using it immediately and unplug it from any power source to let it cool down. Do not hold on to the phone for too long to avoid burn injuries. •Under any circumstance attempt to repair or change parts, otherwise this will render the manufacturer’s warranty void. 1.3 Safety Instructions •Never use the PHABLETwhile driving a car, in order to ensure safe driving. The primary responsibility of every driver is the safe operation of his or her vehicle. Responsible drivers understand that no secondary task should be performed while operating a vehicle whether it be eating, drinking, talking to passengers, or using a mobile device — unless the driver has measured the driving conditions and i s confident that the secondary task will not interfere with their primary responsibility. •Do not engage in any activity while driving a moving vehicle which may cause you to take your eyes off the road or become so absorbed in the activity that your ability to concentrate on the act of driving becomes compromised. Our commitment is aimed at responsible driving and giving drivers the tools they need to understand the potential hazards of distractions. •Switch your mobile device off in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be usin g equipment that could be sensitive to cellular signal interference. •Switch your mobile device off before boarding an aircraft. The use of wireless portable devices in aircraft is prohibited and may be dangerous to the aircraft’s operation. Check with appropriate authorities before using any function of a mobile device while on an aircraft. •Always follow any special regulations applicable, and always switch your mobile device off whenever it is forbidden to use it, or when it may cause interference or hazard. When connecting the mobile device or any accessory to another device, read its user’s manual. •Switch your mobile device off when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Users are advised to switch the mobile device off while fueling or other area where you would normally be advised to shut down your vehicle engine. •Your SmartPhone is not a toy. Do not allow children to play with it because they could hurt themselves and others, damage the mobile device. Keep the mobile device and all its parts and accessories out of the reach of small children. Your mobile device is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for Radio Frequency (RF) energy set by your local authority. 3 1.4 Abbreviations and Terminology Abbs/ Terminology Device Name Description PHABLET Mobile Internet Device Mobile Internet Terminal WIFI Wireless Fidelity Based on standard Nº IEEE802.11b wireless Lan TF TransFlash Alternate name for Micro SD, Super Miniature Memory Card RF Radio Frequency A frequency or band of frequencies suitable for telecommunications 1.5SmartPhone Operation and Set Up Battery Charging Your Smartphone is powered by rechargeable standard li-ion battery. A Wall/ USB charger is included with your SmartPhone for charging the battery. 1.6 Phablet Status and Messages Message Icons When message icons appears or pops up on the screen, click on the message column and slide across the screen to open the selection list. Choose the menu you need, and confirm the information. You may close the message window by clicking on the option and sliding up. Below you will find status icons: Incoming Message (Email) Airplane Mode Connected to USB Port Debugging Via USB Return Download in Process Current Battery Level Start Button Conectado al WIFI, disponibil…

Text truncated - open the document above for the full version.

ELECTRONICS TECHNOLOGY(DONG GUAN) COMPANY LIMITED Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 10/23/2014 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: ZL9- SP6020 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature [Xiaona Liu] [QA Manger] [ELECTRONICS TECHNOLOGY(DONG GUAN) COMPANY LIMITED]

ELECTRONICS TECHNOLOGY(DONG GUAN) COMPANY LIMITED Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 10/23/2014 Request for Confidentiality Company name: ELECTRONICS TECHNOLOGY(DONG GUAN) COMPANY LIMITED FCC ID: ZL9- SP6020 FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.457 and CFR 47 § 0.459 ELECTRONICS TECHNOLOGY(DONG GUAN) COMPANY LIMITED hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) parts lists. These documents contain detailed system and equipment description and related information about the product which ELECTRONICS TECHNOLOGY(DONG GUAN) COMPANY LIMITED considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, ELECTRONICS TECHNOLOGY(DONG GUAN) COMPANY LIMITED considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature [Xiaona Liu] [QA Manger] ELECTRONICS TECHNOLOGY(DONG GUAN) COMPANY LIMITED No.161, Xin Min Road, Tong Luo Wei Industrial Zone

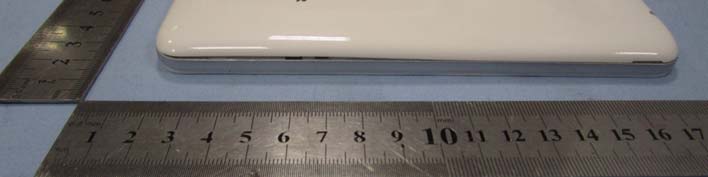

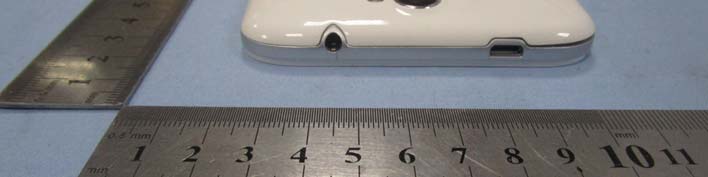

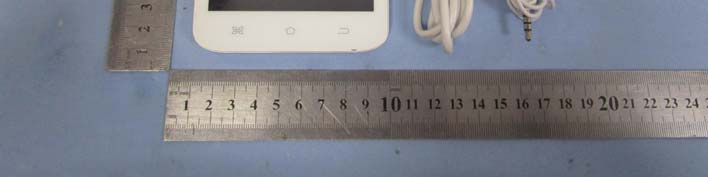

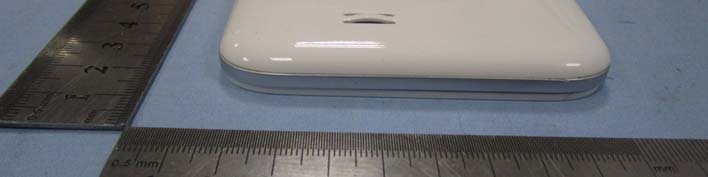

PCSmart S.A. Model: M66AYG-P REPORT NO.: STR14108021I-2/3/4 FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 PCSmart S.A. Model: M66AYG-P REPORT NO.: STR14108021I-2/3/4 FCC PART 15.247 EUT View 3 EUT View 4 PCSmart S.A. Model: M66AYG-P REPORT NO.: STR14108021I-2/3/4 FCC PART 15.247 EUT View 5 EUT View 6 PCSmart S.A. Model: M66AYG-P REPORT NO.: STR14108021I-2/3/4 FCC PART 15.247 EUT View 7

PCSmart S.A. Model: M66AYG-P REPORT NO.: STR14108021I-1 FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: ZL9-SP6020 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Model: M66AYG-P REPORT NO.: STR14108021I-2/3 FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 1 GSM/WCDMA Ant. WIFI/BT Ant. Model: M66AYG-P REPORT NO.: STR14108021I-2/3 FCC PART 15.247 Solder Board-Component View 1 Solder Board-Component View 2 Model: M66AYG-P REPORT NO.: STR14108021I-2/3 FCC PART 15.247 Solder Board-Component View 3 Solder Board-Component View 4 Model: M66AYG-P REPORT NO.: STR14108021I-2/3 FCC PART 15.247 Solder Board-Component View 5 Solder Board-Component View 6

ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITED Model: M66AYG-P Report No.: STR14108021H Page 1 of 171 SAR Report FCC SAR Measurement and Test Report For ELECTRONICS TECHNOLOGY(DONG GUAN) COMPANY LIMITED No. 161, Xin Min Road, Tong Luo Wei Industrial Zone, Dong Guan City, China FCC ID: ZL9-SP6020 FCC Rules: FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 KDB 865664 D01 v01r03 KDB 865664 D02 v01r01 Product Description: Tablet Tested Model: M66AYG-P Report No.: STR14108021H Tested Date: 2014-10-13 to 2014-10-18 Issued Date: 2014-10-21 Tested By: Silin Chen / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy So / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM. Test Technology Co., Ltd. ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITED Model: M66AYG-P Report No.: STR14108021H Page 2 of 171 SAR Report TABLE OF CONTENTS 1. General Information ................................................................................................................................................... 3 1.1 Product Description for Equipment Under Test (EUT) ......................................................................................... 3 1.2 Test Standards .................................................................................................................................................... 5 1.3 Test Methodology ................................................................................................................................................ 5 1.4 Test Facility ......................................................................................................................................................... 5 2. Summary of Test Results .......................................................................................................................................... 6 3. Specific Absorption Rate (SAR) ................................................................................................................................ 7 3.1 Introduction .......................................................................................................................................................... 7 3.2 SAR Definition ..................................................................................................................................................... 7 4. SAR Measurement System ........................................................................................................................................ 8 4.1 The Measurement System .................................................................................................................................. 8 4.2 Probe ................................................................................................................................................................... 8 4.3 Probe Calibration Process ................................................................................................................................. 10 4.4 Phantom ............................................................................................................................................................ 11 4.5 Device Holder .................................................................................................................................................... 11 4.6 Test Equipment List ........................................................................................................................................... 12 5. Tissue Simulating Liquids ....................................................................................................................................... 13 5.1 Composition of Tissue Simulating Liquid ........................................................................................................... 13 5.2 Tissue Dielectric Parameters for Head and Body Phantoms ............................................................................. 14 5.3 Tissue Calibration Result ................................................................................................................................... 15 6. SAR Measurement Evaluation ................................................................................................................................ 16 6.1 Purpose of System Performance Check ............................................................................................................ 16 6.2 System Setup .................................................................................................................................................... 16 6.3 Validation Results .............................................................................................................................................. 17 7. EUT Testing Position ............................................................................................................................................... 18 7.1 Define Two Imaginary Lines on The Handset .................................................................................................... 18 7.2 Cheek Position .................................................................................................................................................. 19 7.3 Tilted Position .................................................................................................................................................... 19 7.4 Body Position ...........................................................................................................................................…

Text truncated - open the document above for the full version.

ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITEDModel: M66AYG-P Report No.: STR14108021H Page 85 of 171 SAR Report MEASUREMENT 16 T ype: Phone measurement (Complete) Date of measurement: 10/13/2014 Measurement duration: 12 minutes 3 seconds E-field Probe: SSE5 - SN 09/13 EP168; ConvF: 6.30; Calibrated: 03/21/2014 A. Experimental conditions Area Scan sam_direct_droit2_surf8mm.txt Phantom Flat Plane Device Position Back(Body-worn) Band GSM1900 Channels Low Signal Duty Cycle 1:8.3 B. SAR Mea surement Results Frequency (MHz) 1850.199951 Relative Permittivity (real part) 52.420415 Conductivity (S/m) 1.501966 Power Variation (%) 0.541872 Ambient Temperature 21.1 Liquid Temperature 21.3 S URFACE SAR VOLUME SAR ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITEDModel: M66AYG-P Report No.: STR14108021H Page 86 of 171 SAR Report Maximum location: X=-6.00, Y=-16.00 SAR 10g (W/Kg) 0.136695 SAR 1g (W/Kg) 0.267957 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.00000.24130.11590.05290.0238 3D scr een shot Hot spot position ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITEDModel: M66AYG-P Report No.: STR14108021H Page 87 of 171 SAR Report MEASUREMENT 17 T ype: Phone measurement (Complete) Date of measurement: 10/13/2014 Measurement duration: 12 minutes 3 seconds E-field Probe: SSE5 - SN 09/13 EP168; ConvF: 6.30; Calibrated: 03/21/2014 A. Experimental conditions Area Scan sam_direct_droit2_surf8mm.txt Phantom Flat Plane Device Position Front(Body-worn) Band GSM1900 Channels Low Signal Duty Cycle 1:8.3 B. SAR Mea surement Results Frequency (MHz) 1850.199951 Relative Permittivity (real part) 52.420415 Conductivity (S/m) 1.501966 Power Variation (%) 0.541872 Ambient Temperature 21.1 Liquid Temperature 21.3 S URFACE SAR VOLUME SAR ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITEDModel: M66AYG-P Report No.: STR14108021H Page 88 of 171 SAR Report Maximum location: X=-25.00, Y=0.00 SAR 10g (W/Kg) 0.079342 SAR 1g (W/Kg) 0.153062 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.00000.13720.06180.02730.0132 3D scr een shot Hot spot position ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITEDModel: M66AYG-P Report No.: STR14108021H Page 89 of 171 SAR Report MEASUREMENT 18 T ype: Phone measurement (Complete) Date of measurement: 10/13/2014 Measurement duration: 12 minutes 3 seconds E-field Probe: SSE5 - SN 09/13 EP168; ConvF: 6.30; Calibrated: 03/21/2014 A. Experimental conditions Area Scan sam_direct_droit2_surf8mm.txt Phantom Flat plane Device Position Back Band GPRS1900_4TX Channels High Signal Duty Cycle 1:2 B. SAR Mea surement Results Frequency (MHz) 1909.800049 Relative Permittivity (real part) 52.420415 Conductivity (S/m) 1.501966 Power Variation (%) 0.541872 Ambient Temperature 21.1 Liquid Temperature 21.3 S URFACE SAR VOLUME SAR ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITEDModel: M66AYG-P Report No.: STR14108021H Page 90 of 171 SAR Report Maximum location: X=-6.00, Y=-16.00 SAR 10g (W/Kg) 0.145988 SAR 1g (W/Kg) 0.292000 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.00000.30720.13510.05660.0247 3D scr een shot Hot spot position ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITEDModel: M66AYG-P Report No.: STR14108021H Page 91 of 171 SAR Report MEASUREMENT 19 T ype: Phone measurement (Complete) Date of measurement: 10/13/2014 Measurement duration: 12 minutes 3 seconds E-field Probe: SSE5 - SN 09/13 EP168; ConvF: 6.30; Calibrated: 03/21/2014 A. Experimental conditions Area Scan sam_direct_droit2_surf8mm.txt Phantom Flat plane Device Position Front Band GPRS1900_4TX Channels High Signal Duty Cycle 1:2 B. SAR Mea surement Results Frequency (MHz) 1909.800049 Relative Permittivity (real part) 52.420415 Conductivity (S/m) 1.501966 Power Variation (%) 0.541872 Ambient Temperature 21.1 Liquid Temperature 21.3 S URFACE SAR VOLUME SAR ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITEDModel: M66AYG-P Report No.: STR14108021H Page 92 of 171 SAR Report Maximum location: X=-25.00, Y=-6.00 SAR 10g (W/Kg) 0.066877 SAR 1g (W/Kg) 0.128721 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.00000.13430.06010.02620.0124 3D scr een shot Hot spot position ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITEDModel: M66AYG-P Report No.: STR14108021H Page 93 of 171 SAR Report MEASUREMENT 20 T ype: Phone measurement (Complete) Date of measurement: 10/13/2014 Measurement duration: 12 minutes 3 seconds E-field Probe: SSE5 - SN 09/13 EP168; ConvF: 6.30; Calibrated: 03/21/2014 A. Experimental conditions Area Scan sam_direct_droit2_surf8mm.txt Phantom Flat plane Device Position Bottom Band GPRS1900_4TX Channels High Signal Duty Cycle 1:2 B. SAR Mea surement Results Frequency (MHz) 1909.800049 Relative Permittivity (real part) 52.420415 Conductivity (S/m) 1.501966 Power Variation (%) 0.541872 Ambient Temperature 21.1 Liquid Temperature 21.3 S URFACE SAR VOLUME SAR ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITEDModel: M66AYG-P Report No.: STR14108021H Page 94 of 171 SAR Report Maximum location: X=3.00, Y=41.00 SAR 10g (W/Kg) 0.095480 SAR 1g (W/Kg) 0.188299 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.00000.20070.09490.04340.0204 3D scr een shot Hot spot position ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITEDModel: M66AYG-P Report No.: STR14108021H Page 95 of 171 SAR Report MEASUREMENT 21 T ype: Phone measurement (Complete) Date of measurement: 10/13/2014 Measurement duration: 12 minutes 3 seconds E-field Probe: SSE5 - SN 09/13 EP168; ConvF: 6.30; Calibrated: 03/21/2014 A. Experimental conditions Area Scan sam_direct_droit2_surf8mm.txt Phantom Flat plane Device Position Right side Band GPRS1900_4TX Channels High Signal Duty Cycle 1:2 B. SAR Mea surement Results Frequency (MHz) 1909.800049 Relative Permittivity (real part) 52.420415 Conductivity (S/m) 1.501966 Power Variation (%) 0.541872 Ambient Temperature 21.1 Liquid Temperature 21.3 S URFACE SAR VOLUME SAR ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITEDModel: M66AYG-P Report No.: STR14108021H Page 96 of 171 SAR Report Maximum location: X=7.00, Y=20.00 SAR 10g (W/Kg) 0.029321 SAR 1g (W/Kg) 0.056383 Z (mm) …

Text truncated - open the document above for the full version.

Ref : ACR.88.1.13.SATU.A Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C. (518101), CHINA SATIMO COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 09/13 EP168 Calibrated at SATIMO US 2105 Barrett Park Dr. - Kennesaw, GA 30144 03/21/2014 Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed in SATIMO USA using the CALISAR / CALIBAIR test bench, for use with a SATIMO COMOSAR system only. All calibration results are traceable to national metrology institutions. COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.88.1.13.SATU.A Page: 2/10 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. Name Function Date Signature Prepared by : Jérôme LUC Product Manager 3/28/2014 Checked by : Jérôme LUC Product Manager 3/28/2014 Approved by : Kim RUTKOWSKI Quality Manager 3/28/2014 Customer Name Distribution : SEM Test Compliance Service Co., Ltd. Issue Date Modifications A 3/28/2014 Initial release COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.88.1.13.SATU.A Page: 3/10 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. TABLE OF CONTENTS 1 Device Under Test ................................................................................................. 4 2 Product Description ................................................................................................ 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ............................................................................................. 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.5 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty ...................................................................................... 5 5 Calibration Measurement Results ........................................................................... 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 7 5.4 Isotropy _________________________________________________________________ 8 6 List of Equipment ................................................................................................ 10 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.88.1.13.SATU.A Page: 4/10 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer Satimo Model SSE5 Serial Number SN 09/13 EP168 Product Condition (new / used) new Frequency Range of Probe 0.7 GHz-3GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.225 M Dipole 2: R2=0.235 M Dipole 3: R3=0.229 M A yearly calibration interval is recommended. 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION Satimo’s COMOSAR E field Probes are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. Figure 1 – Satimo COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 4.5 mm Maximum external diameter 8 mm Probe Tip External Diameter 5 mm Distance between dipoles / probe extremity 2.7 mm 3 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C, CENELEC EN50361 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.88.1.13.SATU.A Page: 5/10 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4 ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 - 360 degrees in 15 degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled with tissue-equivalent liquid, with …

Text truncated - open the document above for the full version.

PCSmart S.A. Model: M66AYG-P REPORT NO.: STR14108021I-1 PAGE 1 OF 107 FCC PART 22H&24E FCC Part 22H & 24E Measurement and Test Report For ELECTRONICS TECHNOLOGY(DONG GUAN) COMPANY LIMITED No.161, Xin Min Road, Tong Luo Wei Industrial Zone, Dong Guan City, China FCC ID: ZL9-SP6020 FCC Rules: FCC Part 22H, FCC Part 24E Product Description: Tablet Tested Model: M66AYG-P Report No.: STR14108021I-1 Tested Date: 2014-10-10 to 2014-10-17 Issued Date: 2014-10-17 Tested By: Lebron Wang Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM. Test Technology Co., Ltd. PCSmart S.A. Model: M66AYG-P REPORT NO.: STR14108021I-1 PAGE 2 OF 107 FCC PART 22H&24E TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 2. SUMMARY OF TEST RESULTS ......................................................................…

Text truncated - open the document above for the full version.
