ZLZ-ALXC29Wireless Flat Panel Wireless Module

Shenzhen Mindray BIO-Medical electronics Co.,LTD.
Wireless Flat Panel Wireless Module - FCC ID ZLZ-ALXC29 - Shenzhen Mindray BIO-Medical electronics Co.,LTD.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Aug 29, 2024
Application Purpose
Original Equipment
Date of Application
Aug 29, 2024
Equipment Note
Wireless Flat Panel Wireless Module
Frequency Range
2412.00000000 - 2462.00000000
Company
Shenzhen Mindray BIO-Medical electronics Co.,LTD.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Manual-Integration Instructions Highlights ⚫ IEEE 802.11 Key Feature  TX and RX low-density parity check (LDPC) support for improved range and power efficiency.  802.11 a/b/g/n/ac,Dual-stream spatial multiplexing up to 867 Mbps data rate.  20, 40, 80 MHz channels with optional SGI (256 QAM modulation)  Real simultaneous dual-band Applications  Health & fitness equipment including heart rate monitors, blood pressure, weight scales, thermometers  Control, automation, security and Alliance for Wireless Power wireless charging  Consumer: toys, robots, remote controls  Location, proximity detection  And more... Contents 1. Introduction ............................................................................................................ 3 1.1 Overview ................................................................................................................... 3 1.2 Product Features ...................................................................................................... 3 2. General Specification ............................................................................................. 3 2.1 General Specification ............................................................................................... 3 2.2 DC Characteristics ................................................................................................... 4 2.2.1 Absolute Maximum Ratings ................................................................................................. 4 2.2.2 Recommended Operating Rating ......................................................................................... 4 3. W i-Fi RF Specification ........................................................................................... 4 3.1 2.4GHz RF Specification .......................................................................................... 4 3.2 5GHz RF Specification ............................................................................................. 6 4. Pin Definition ........................................................................................................... 9 4.1 Pin Outline ................................................................................................................ 9 4.2 Pin Assignment .......................................................................................................10 5. Dimensions............................................................................................................ 12 5.1 Module Dimensions ................................................................................................12 5.2 Recommended footprint .........................................................................................12 6. External clock reference ...................................................................................... 13 7. Host Interface Timing Diagram ............................................................................ 13 7.1 Power-up Sequence Timing Diagram ....................................................................13 7.2 SDIO Interface Description .....................................................................................15 7.3 SDIO Default Mode Timing Diagram .....................................................................15 7.4 SDIO High Speed Mode Timing Diagram ...............................................................17 7.5 SDIO Bus Timing Specifications in SDR Modes ...................................................17 7.6 SDIO Bus Timing Specifications in DDR50 Mode .................................................20 8. Recommended Reflow Profile ............................................................................. 22 1. Introduction 1.1 Overview The Alinket ALXC29 is a fully Wi-Fi functionalities module with seamless roaming capabilities and advance security, also it could interact with different vendors’ 802.11a/b/g/n/ac 2x2 Access Points with MIMO standard and can accomplish up to speed of 867Mbps with dual stream in 802.11n to connect the wireless LAN. Furthermore ALXC29 included SDIO interface for Wi-Fi. In addition, this compact module is a total solution for a combination of Wi-Fi technologies. The module is specifically developed for tablet, OTT box and portable devices. 1.2 Product Features IEEE 802.11 Key Feature ⚫ Lead Free design which is compliant with ROHS requirements. ⚫ TX and RX low-density parity check (LDPC) support for improved range and power efficiency. ⚫ Dual-stream spatial multiplexing up to 867 Mbps data rate. ⚫ 20, 40, 80 MHz channels with optional SGI (256 QAM modulation) ⚫ Real simultaneous dual-band ⚫ Supports 2 antennas for WLAN port. ◼ Supports standard SDIO v3.0, compatible with SDIO v2.0 HOST interfaces. 2. General Specification 2.1 General Specification Model Name ALXC29 Product Description 2T2R 802.11 a/b/g/n/ac Wi-Fi 5.0 Module Dimension L x W : 15 x 13 (typical) mm, H : 1.6 (Maximum) mm WiFi Interface Support SDIO V3.0/2.0 Operating temperature -30°C to 75°C Storage temperature -40°C to 85°C Humidity Operating Humidity 10% to 95% Non-Condensing Note: The optimal RF performance specified in the data sheet, however, is guaranteed only -10 °C to +55 °C and 3.2V < VBAT <3.8V without derating performance. 2.2 DC Characteristics 2.2.1 Absolute Maximum Ratings Symbol Description Min. Max. Unit VBAT Input supply Voltage -0.5 4.5 V VDDIO Digital/SDIO/ I/O Voltage -0.5 3.8 V 2.2.2 Recommended Operating Rating The module requires two power supplies: VBAT and VDDIO. Voltage rails Min. Typ. Max. Unit VBAT 3.0 3.3 3.8 V VDDIO 1.7 1.8,3.3 3.6 V VBAT current consumption 1200mA(Peak), when VBAT = 3.3V 3. W i-Fi RF Specification 3.1 2.4GHz RF Specification Conditions : VBAT=3.3V ; VDDIO=3.3V ; Temp:25°C Feature Description WLAN Standard IEEE 802.11b/g/n & Wi-Fi compliant Frequency Range 2.400 GHz ~ 2.497 GHz (2.4GHz ISM Band) Number of Channels 2.4GHz:Ch1 ~ Ch14 Modulation 802.11b : DQPSK、DBPSK、CCK 802.11 g/…

Text truncated - open the document above for the full version.

Cover Letter(s)

Shenzhen Mindray BIO-Medical electronics Co.,LTD. Date: Apr. 07, 2024 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ZLZ-ALXC29 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Block Diagram Operational Description SOFTWARE SECURITY REQUIREMENTS FOR U- NII DEVICES Schematics.pdf Block Diagram.pdf Operational Description.pdf U-NII Device Security Statement.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Shenzhen Mindray BIO-Medical electronics Co.,LTD. Signature Luo jihao / Manager Typed name and Title

External Photos

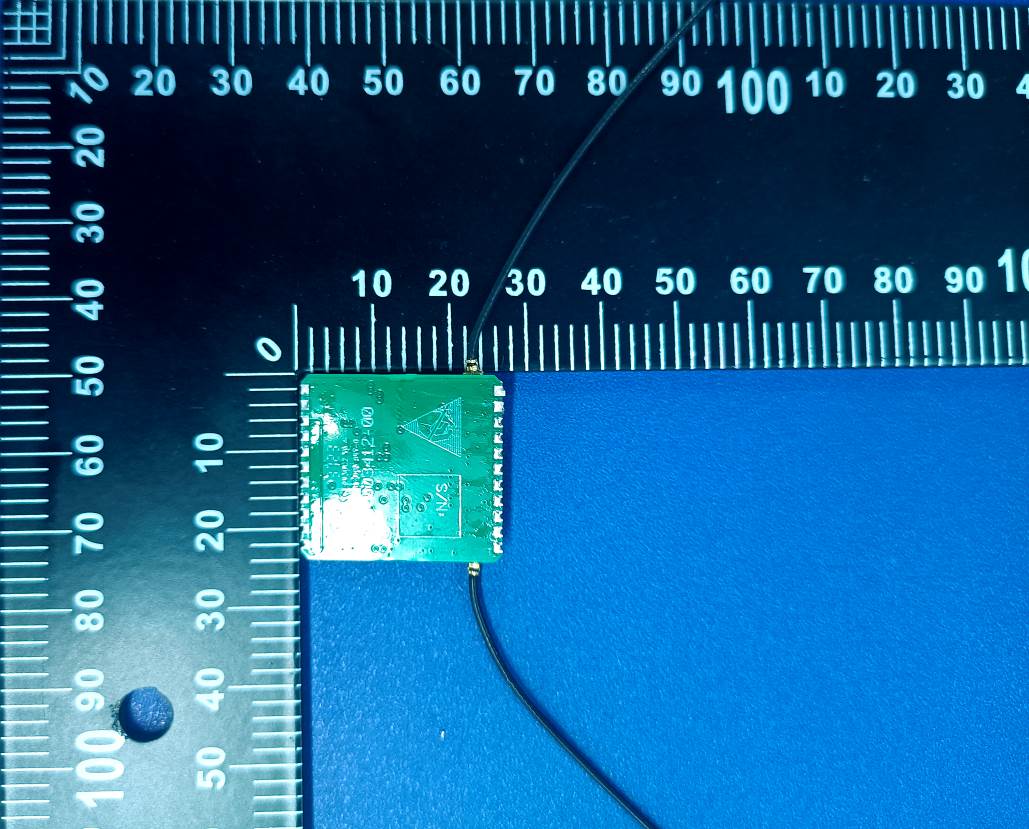

Appendix-ALXC29-Photos Page 3 of 5 2. Photographs –Constructional Details 2.1. EUT – External View Model ALXC29 FCC ID: ZLZ-ALXC29 Ant. Appendix-ALXC29-Photos Page 4 of 5

ID Label/Location Info

Label sample Location

Internal Photos

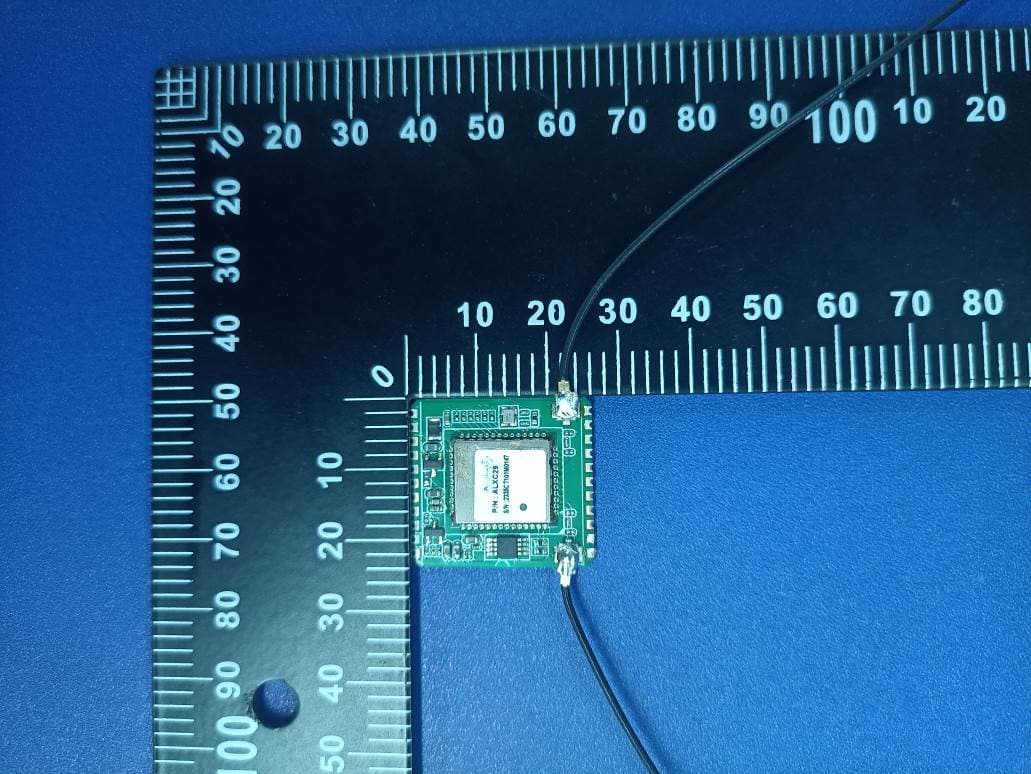

Appendix-ALXC29-Photos Page 5 of 5 2.2. EUT – Internal View Model ALXC29 FCC ID: ZLZ-ALXC29

RF Exposure Info

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 9 TEST REPORT Referen ce No. .................... : WTD24D03066052W003 FCC ID ................................ : ZLZ-ALXC29 Applicant ............................ : Shenzhen Mindray Bio-Medical Electronics Co., Ltd. Address .............................. : Mindray Building, Keji 12th Road South, Hi-tech Ind, Shenzhen China Manufacturer .................... : Shenzhen Mindray Bio-Medical Electronics Co., Ltd. Address .............................. : Mindray Building, Keji 12th Road South, Hi-tech Ind, Shenzhen China Product ............................... : Wireless Flat Panel Wireless Module Model(s). ............................ : ALXC29 Standards........................... : FCC 47CFR Part 2 Subpart J Section 2.1091 Date of Receipt sample .... : 2024-03-28 Date of Test ....................... : 2024-03-28 to 2024-04-12 Date of Issue ...................... : 2024-08-27 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Estel Qian / Project Engineer Deval Qin / Designated Reviewer Reference No.: WTD24D03066052W003 Page 2 of 9 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2. Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2. CONTENTS ............................................................................................................................................................ 2 3. REVISION HISTORY ............................................................................................................................................ 3 4. GENERAL INFORMATION .................................................................................................................................. 4 4.1. GENERAL DESCRIPTION OF E.U.T. ............................................................................................................ 4 4.2. DETAILS OF E.U.T. ..................................................................................................................................... 4 4.3. TEST FACILITY ............................................................................................................................................ 5 4.4. SUBCONTRACTED ....................................................................................................................................... 5 4.5. ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................... 5 5. TEST SUMMARY .................................................................................................................................................. 6 6. RF EXPOSURE ...................................................................................................................................................... 7 6.1. DEFINITIONS ............................................................................................................................................... 7 6.2. METHOD OF EVALUATION ........................................................................................................................... 7 6.3. EVALUATION RESULTS ............................................................................................................................... 9 Reference No.: WTD24D03066052W003 Page 3 of 9 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 3. Revision History Test Report No. Date of Receipt Sample Date of Test Date of Issue Purpose Comment Approved WTD24D03066052W003 2024-03-28 2024-03-28 to 2024-04-12 2024-08-27 Original - Valid Reference No.: WTD24D03066052W003 Page 4 of 9 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 4. General Information 4.1. General Description of E.U.T. Product: Wireless Flat Panel Wireless Module Model(s): ALXC29 Test Sample No.: 1-1/2 Model Description: N/A Wi-Fi Specification: 2.4G-802.11b/g/n HT20/n HT40 5G-802.11a/n(HT20/40)/ac(VHT20/40/80) Hardware Version: V1.0 Software Version: V1.0 4.2. Details of E.U.T. Operation Frequency: 2.4G Wi-Fi: 802.11b/g/n (HT20), 2412-2462MHz 11CH 802.11n (HT40), 2422-2452MHz 7CH 5G Wi-Fi: U-NII-1 802.11a/n(HT20)/ac(VHT20), 5180-5240MHz 4CH 802.11n(HT40)/ac(VHT40), 5190-5230MHz 2CH 802.11ac(VHT80), 5210MHz 1CH U-NII-3 802.11a/n(HT20)/ac(VHT20), 5745-5825MHz 5CH 802.11n(HT40)/ac(VHT40), 5755-5795MHz 2CH 802.11ac(VHT80), 5775MHz 1CH Max. conducted RF power: 2.4G Wi-Fi: Ant 0: 13.76dBm, Ant 1: 13.17dBm, Total: 16.45dBm 5G Wi-Fi: U-NII-1 Ant. 0: 15.87dBm, Ant. 1: 15.98 dBm, Total: 18.94 dBm U-NII-3: Ant. 0: 13.98dBm, Ant. 1: 13.95 dBm, Total: 17.10 dBm Modulation Technology: 802.11b: DBPSK, DQPSK, CCK 802.11a/g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) Antenna installation: FPC antenna Antenna Gain: Ant. Operation Frequencies (MHz) /Antenna Gain (dBi) 2412~2462 5150~5250 5725~5850 0 1.93 2.25 1.81 1 1.93 2.25 1.81 Note: #: The antenna gain is provided by the applicant, and the applicant should be responsible for its authenticit y, WALTEK lab has not verified the authenticity of its information. Ratings: 3.3VDC Reference No.: WTD24D03066052W003 Page 5 of 9 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 4.3. Test Facility The test facility has a test site registered with the following organizations: ISED CAB identifier: CN0013. Test Firm Registration No.: 7760A. Waltek Testing Group Co., Ltd. Ha…

Text truncated - open the document above for the full version.

Test Report

Page 1 / 3 YICHUANG TECHNOLOGY Mobile DR Project - Built-in antenna (WLAN) Page 2 / 3 Specification No. P/N Description ANT1 AZM24510-3 Freq. ranges: 2.4G+5G Dimension No. P/N Dimension ANT1 AZM24510-3 13.3*37mm Type No. P/N Type ANT1 AZM24510-3 FPC Connector No. P/N Wire diameter Length Connector ANT1 AZM24510-3 1.13mm 330mm Soldered connection Installation No. P/N Mode ANT1 AZM24510-3 PSA Enclosure N/A Picture Page 3 / 3 VSWR 2400 2480 5.1 5.8 VSWR(:1.0) 2.0 1.76 2.1 1.9 Antenna polarization Liner Radiation pattern Maximum gain Frequency (MHz) 2400 2480 5100 5800 Gain (dBi) 1.05 1.93 2.25 1.81 Radiation efficiency 2400 2480 5100 5800 Efficiency (%) 45.5 38.7 46.7 53.4 Frequency (MHz) Frequency (MHz)

Test Report

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 84 TEST REPORT Referen ce No. .................... : WTD24D03066052W001 FCC ID ................................ : ZLZ-ALXC29 Applicant ............................ : Shenzhen Mindray Bio-Medical Electronics Co., Ltd. Address .............................. : Mindray Building, Keji 12th Road South, Hi-tech Ind, Shenzhen China Manufacturer .................... : Shenzhen Mindray Bio-Medical Electronics Co., Ltd. Address .............................. : Mindray Building, Keji 12th Road South, Hi-tech Ind, Shenzhen China Product ............................... : Wireless Flat Panel Wireless Module Model(s). ............................ : ALXC29 Standards........................... : FCC 47CFR Part 15.247 Date of Receipt sample .... : 2024-03-28 Date of Test ....................... : 2024-03-28 to 2024-04-12 Date of Issue ...................... : 2024-08-27 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Estel Qian / Project Engineer Deval Qin / Designated Reviewer Reference No.: WTD24D03066052W001 Page 2 of 84 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 CONTENTS ............................................................................................................................................... 2 3 REVISION HISTORY ................................................................................................................................. 3 4 GENERAL INFORMATION ....................................................................................................................... 4 4.1 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................... 4 4.2 DETAILS OF E.U.T. .............................................................................................................................. 4 4.3 CHANNEL LIST ..................................................................................................................................... 4 4.4 TEST FACILITY .................................................................................................................................... 5 4.5 SUBCONTRACTED ................................................................................................................................ 5 4.6 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................... 5 4.7 TEST MODE ........................................................................................................................................ 6 5 TEST SUMMARY ...................................................................................................................................... 7 6 EQUIPMENT USED DURING TEST ......................................................................................................... 8 6.1 EQUIPMENTS LIST ............................................................................................................................... 8 6.2 DESCRIPTION OF SUPPORT UNITS ........................................................................................................ 9 6.3 MEASUREMENT UNCERTAINTY ............................................................................................................. 9 6.4 TEST EQUIPMENT CALIBRATION ........................................................................................................... 9 7 DUTY CYCLE .......................................................................................................................................... 10 8 RADIATED EMISSIONS ......................................................................................................................... 13 8.1 EUT OPERATION ............................................................................................................................... 13 8.2 TEST SETUP ..................................................................................................................................... 14 8.3 SPECTRUM ANALYZER SETUP ............................................................................................................ 15 8.4 TEST PROCEDURE ............................................................................................................................. 16 8.5 CORRECTED AMPLITUDE & MARGIN CALCULATION .............................................................................. 16 8.6 SUMMARY OF TEST RESULTS ............................................................................................................. 17 9 CONDUCTED SPURIOUS EMISSIONS ................................................................................................. 20 9.1 TEST PROCEDURE ............................................................................................................................. 20 9.2 TEST RESULT .................................................................................................................................... 21 10 BAND EDGE MEASUREMENT .............................................................................................................. 45 10.1 TEST PRODUCE ...........................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Appendix-ALXC29-Photos Page 1 of 5 1. Test Setup photos Model ALXC29 FCC ID: ZLZ-ALXC29 1.1 Photograph – Radiated Emissions For 9kHz-30MHz Test Site 2# For 30MHz-1000MHz Test Site 2# Appendix-ALXC29-Photos Page 2 of 5 For Above 1GHz Test Site 1#

Contact Information

Applicant

Luo jihao(Manager)
[email protected]18927404012Fax: 86-755-26582680

Test Firm

WALTEK TESTING GROUP CO., LTD.Joy Zhou
[email protected]0769-22676998

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz44.16 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Single Modular Approval. Power listed is conducted. This device is to be used only for mobile and fixed applications. The module antenna(s) must be installed to meet the RF exposure compliance separation distance of 20 cm and any additional testing and authorization process as required. Co-location of this module with other transmitters that operate simultaneously is required to be evaluated using the FCC multi-transmitter procedures. OEM integrators and end-Users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. This device supports 20 and 40 MHz bandwidth modes.
