ZNFV600TMPortable Handset

Copyright ©2019 LG Electronics Inc. All rights reserved. MFLXXXXXXXXX (1.0) www.lg.com ENGLISH USER GUIDE LM-V600TM 1 About this user guide Thank you for choosing this LG product. Please carefully read this user guide before using the device for the first time to ensure safe and proper use. • Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices. • Descriptions are based on the device default settings. • Default apps on the device are subject to updates, and support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact an LG Service Center. For user-installed apps, please contact the relevant service provider. • Modifying the device’s operating system or installing software from unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG licence agreement and void your warranty. • Some content and illustrations may differ from your device, depending on the area, service provider, software version, or OS version, and are subject to change without prior notice. • Software, audio, wallpaper, images, and other media supplied with your device are licenced for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are fully responsible for the illegal use of media. • Additional charges may incur for data services, such as messaging, uploading, downloading, auto-syncing and location services. To avoid additional charges, select a data plan suitable to your needs. Contact your service provider to obtain additional details. • Failure to follow the instructions in this guide and improper use may damage the device. 2About this user guide Instructional notices WARNING: Situations that could cause injury to the user and third parties. CAUTION: Situations that may cause minor injury or damage to the device. NOTE: Notices or additional information. 3 Table of contents 01 Custom-designed Features 7 Camera features 10 Gallery features 16 Floating Bar 19 Google Assistant 21 HD Audio R ecorder 23 Finger print recognition 27 Multi- tasking feature 28 AOD (alw ays-on display) 29 No tes on Water Resistant Properties 02 Basic Functions 33 Product components and accessories 34 P arts overview 38 Turning the power on or off 39 Installing the SIM c ard and memory card 41 R emoving the memory card 41 Battery 45 T ouch screen 49 Home scr een 59 Scr een lock 63 Memor y card encryption 65 Ent ering text 72 Cont ent sharing 74 D o not disturb 4Table of contents 03 Useful Apps 76 Installing and uninstalling apps 78 App Shor tcuts 79 Phone 84 Messages 91 Camera 120 Gallery 124 Chrome 124 Google apps 127 Contacts 130 QuickMemo+ 132 Clock 133 Music 134 Calculator 134 Game Launcher 135 LG Health 137 FM Radio 137 LG Mobile Switch 138 App trash 138 SmartWorld 04 Settings 140 Settings 140 Network & internet 148 Connected devices 153 Sound 155 Display 157 Lock screen & security 159 Extensions 163 Digital W ellbeing 163 Apps & no tifications 163 Battery 164 Storage 164 Accounts 165 Google 168 Accessibility 5Table of contents 05 Appendix 172 LG Language Settings 172 LG Bridge 173 Phone software update 175 Anti- Theft Guide 176 Open Source Software Notice Information 176 Regulatory information (FCC ID number, etc.) 177 Trademarks 178 Laser safety statement 179 More information 181 FAQ 06 For Your Safety 07 LIMITED WARRANTY STATEMENT 08 LG Dual Screen (LM-V515N) 220 Getting to Know LG Dual Screen 221 Guidelines for safe and efficient use 226 Product components and accessories 227 Parts overview 228 Inserting the mobile phone to Dual Screen 230 R emoving the mobile phone from Dual Screen 233 Using Char ging Adapter 235 Using the Dual Scr een 256 More Dual Screen information 257 Trademarks Custom-designed Features 01 Custom-designed Features7 Camera features Main features This chapter describes the main features that the camera app provides. Open the camera and explore various features. 1 Tap . Switch between front and rear cameras Switch between standard angle and wide-angle cameras Take photos Open Gallery Set camera options Apply filter/sticker effects Change flash settings Change timer settings 2 Tap More on the camera screen to view various camera modes. • Select a desire mode from Night view, Panorama, Story shot, Manual Video, Slo-mo, Time-lapse, Jump-Cut, YouTube Live and AR Stickers. Tap More Custom-designed Features8 Dual cameras The dual cameras, which are located on the back of the device, allow you to take photos or record videos with two different angles of view. Tap , and select / while taking photos or recording videos with the rear camera. Rear Camera Steady recording Use Steady recording to prevent the camera from shaking when recording a video while walking or making large movements. Activate Anti-shake to reduce or eliminate motion blur in videos. 1 Tap Video. 2 Tap . 3 Tap to record a video. Recording ASMR With the high-sensitivity microphone installed on the device, you can pick up even the softest sound to record an ASMR video with vivid and clear sound quality. 1 Tap Video. 2 Tap to activate the function. 3 Tap to start recording an ASMR video. Custom-designed Features9 Portrait You can create an artistic portrait photo, whereby the subject is in focus and the background is blurred. You can also edit the image by applying lighting or color effect to the background. • While taking a photo, keep the distance to your subject to 1.3 ~ 5 feet. • This feature is not available if the surroundings are too dark. 1 Tap , and tap Portrait. 2 Drag the slide bar to the left or right to adjust the blur strength. Adjust blur strength. 3 When Portrait is available. appears on the screen, tap or to take a photo. • The Portrait feature may not work if the camera cannot recognize the subject. Custom-designed Features10 Gallery featur…

Text truncated - open the document above for the full version.

Date: Jan. 28, 2020 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Electronics USA, Inc. FCC ID: ZNFV600TM Part 20.19 Certification Gentlemen: We, LG Electronics USA, Inc. hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Kyung-Su Han Director LG Electronics USA, Inc. LG Electronics Inc. LGE LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

          !"# Date: Jan. 28#20 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE:  Request of Confidentiality for FCC ID: ZNFV600TM Equipment Class:B&Citizens Band EnUser Devices To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  , Inc.hereby requests confidentiality and confidentail treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  , Inc.temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Kyung-Su Han Director LG Electronics USA, Inc. LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

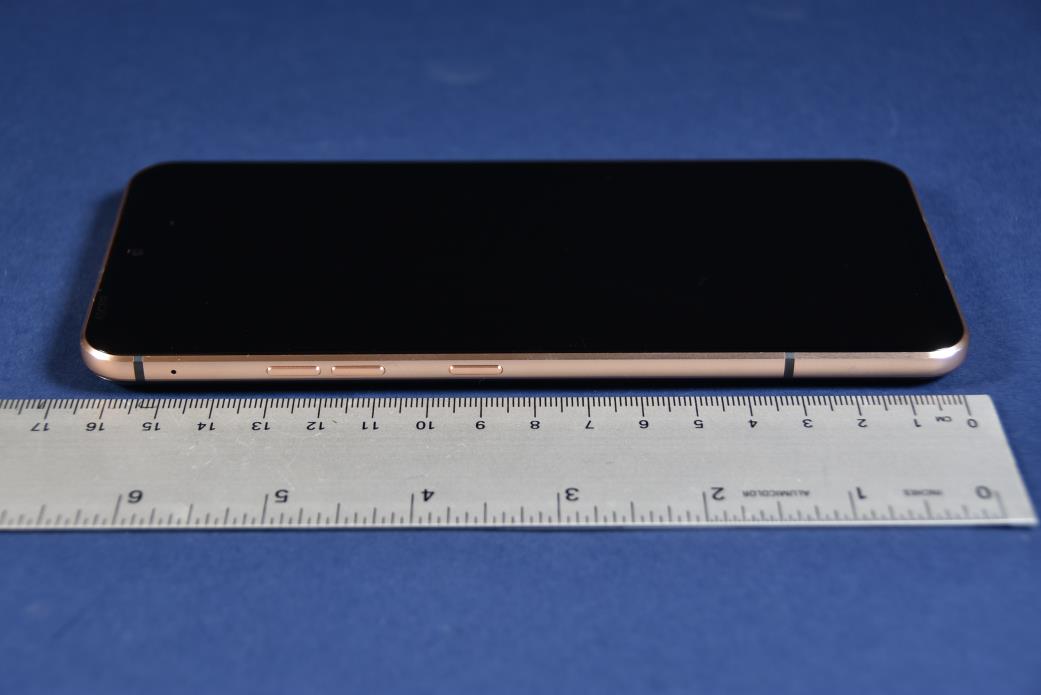

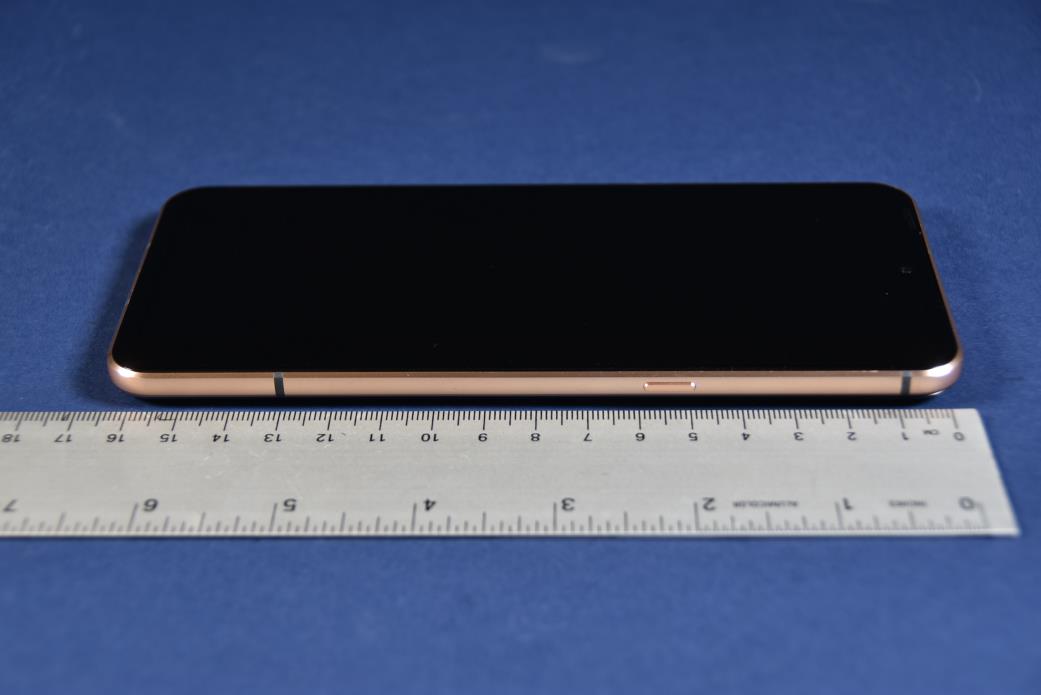

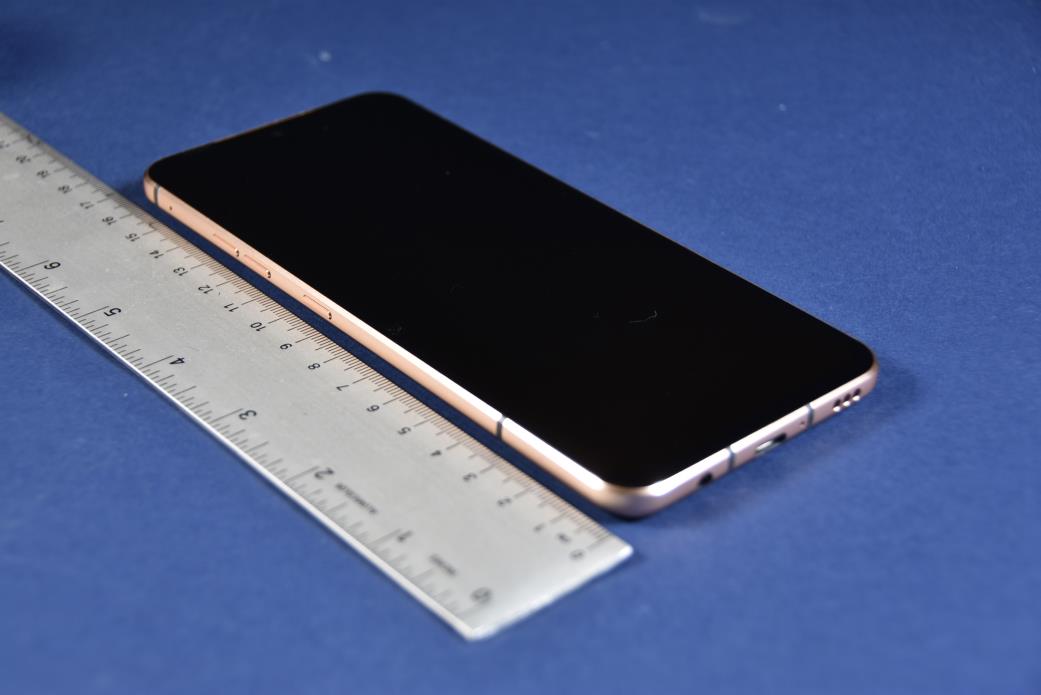

LG Electronics USA, Inc. FCC ID: ZNFV600TM Model: LM-V600TM External Photos EUT Type: Portable Handset Page 1 of 5 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 E X T E R N A L P H O T O G R A P H S LG Electronics USA, Inc. FCC ID: ZNFV600TM Model: LM-V600TM External Photos EUT Type: Portable Handset Page 2 of 5 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600TM Model: LM-V600TM External Photos EUT Type: Portable Handset Page 3 of 5 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600TM Model: LM-V600TM External Photos EUT Type: Portable Handset Page 4 of 5 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600TM Model: LM-V600TM External Photos EUT Type: Portable Handset Page 5 of 5 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019

LGE Internal Use Only Description of E-Label for ZNFV600TM ※FCC ID is applied by E-Label on the device Settings Menu Step1Select “Setting” Step 2Select“System” Step 3Select “Regulatory& safety” ※FCC ID is applied on the packaging Label FCC ID: ZNFV600TM ※Instruction of E-Label on the User Manual

LG Electronics USA, Inc. FCC ID: ZNFV600TM Model: LM-V600TM Internal Photos EUT Type: Portable Handset Page 1 of 7 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600TM Model: LM-V600TM Internal Photos EUT Type: Portable Handset Page 2 of 7 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600TM Model: LM-V600TM Internal Photos EUT Type: Portable Handset Page 3 of 7 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600TM Model: LM-V600TM Internal Photos EUT Type: Portable Handset Page 4 of 7 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600TM Model: LM-V600TM Internal Photos EUT Type: Portable Handset Page 5 of 7 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600TM Model: LM-V600TM Internal Photos EUT Type: Portable Handset Page 6 of 7 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600TM Model: LM-V600TM Internal Photos EUT Type: Portable Handset Page 7 of 7 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019

A40 PCTEST DUT: ZNFV600TM; Type: Portable Handset; Serial: 03234 Communication System: UID 0, LTE Band 71; Frequency: 680.5 MHz; Duty Cycle: 1:1 Medium: 700 Body; Medium parameters used (interpolated): f = 680.5 MHz; σ = 0.915 S/m; ε r = 53.7; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 12-26-2019; Ambient Temp: 20.3°C; Tissue Temp: 19.8°C Probe: EX3DV4 - SN7410; ConvF(10.01, 10.01, 10.01) @ 680.5 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V5.0; Type: QD 000 P40 CD; Serial: 1630 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: LTE Band 71, Body SAR, Back side, Mid.ch, 20 MHz Bandwidth, QPSK, 1 RB, 99 RB Offset Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.07 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.395 W/kg SAR(1 g) = 0.257 W/kg 0 dB = 0.334 W/kg = -4.76 dBW/kg A41 PCTEST DUT: ZNFV600TM; Type: Portable Handset; Serial: 03234 Communication System: UID 0, LTE Band 71; Frequency: 680.5 MHz; Duty Cycle: 1:1 Medium: 700 Body; Medium parameters used (interpolated): f = 680.5 MHz; σ = 0.915 S/m; ε r = 53.7; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 12-26-2019; Ambient Temp: 20.3°C; Tissue Temp: 19.8°C Probe: EX3DV4 - SN7410; ConvF(10.01, 10.01, 10.01) @ 680.5 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V5.0; Type: QD 000 P40 CD; Serial: 1630 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: LTE Band 71, Body SAR, Right Edge, Mid.ch, 20 MHz Bandwidth, QPSK, 1 RB, 99 RB Offset Area Scan (9x14x1): Measurement grid: dx=5mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.26 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.511 W/kg SAR(1 g) = 0.354 W/kg 0 dB = 0.458 W/kg = -3.39 dBW/kg A42 PCTEST DUT: ZNFV600TM; Type: Portable Handset; Serial: 03234 Communication System: UID 0, LTE Band 12; Frequency: 707.5 MHz; Duty Cycle: 1:1 Medium: 700 Body; Medium parameters used (interpolated): f = 707.5 MHz; σ = 0.924 S/m; ε r = 53.671; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 12-26-2019; Ambient Temp: 20.3°C; Tissue Temp: 19.8°C Probe: EX3DV4 - SN7410; ConvF(10.01, 10.01, 10.01) @ 707.5 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V5.0; Type: QD 000 P40 CD; Serial: 1630 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: LTE Band 12, Body SAR, Back side, Mid.ch, 10 MHz Bandwidth, QPSK, 1 RB, 49 RB Offset Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.50 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.378 W/kg SAR(1 g) = 0.242 W/kg 0 dB = 0.314 W/kg = -5.03 dBW/kg A43 PCTEST DUT: ZNFV600TM; Type: Portable Handset; Serial: 03234 Communication System: UID 0, LTE Band 12; Frequency: 707.5 MHz; Duty Cycle: 1:1 Medium: 700 Body; Medium parameters used (interpolated): f = 707.5 MHz; σ = 0.924 S/m; ε r = 53.671; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 12-26-2019; Ambient Temp: 20.3°C; Tissue Temp: 19.8°C Probe: EX3DV4 - SN7410; ConvF(10.01, 10.01, 10.01) @ 707.5 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V5.0; Type: QD 000 P40 CD; Serial: 1630 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: LTE Band 12, Body SAR, Right Edge, Mid.ch, 10 MHz Bandwidth, QPSK, 1 RB, 49 RB Offset Area Scan (9x14x1): Measurement grid: dx=5mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.92 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.451 W/kg SAR(1 g) = 0.312 W/kg 0 dB = 0.405 W/kg = -3.93 dBW/kg A44 PCTEST DUT: ZNFV600TM; Type: Portable Handset; Serial: 03234 Communication System: UID 0, LTE Band 13; Frequency: 782 MHz; Duty Cycle: 1:1 Medium: 700 Body; Medium parameters used (interpolated): f = 782 MHz; σ = 0.953 S/m; ε r = 53.456; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 12-26-2019; Ambient Temp: 20.3°C; Tissue Temp: 19.8°C Probe: EX3DV4 - SN7410; ConvF(10.01, 10.01, 10.01) @ 782 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V5.0; Type: QD 000 P40 CD; Serial: 1630 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: LTE Band 13, Body SAR, Back side, Mid.ch, 10 MHz Bandwidth, QPSK, 1 RB, 0 RB Offset Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.56 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.545 W/kg SAR(1 g) = 0.338 W/kg 0 dB = 0.460 W/kg = -3.37 dBW/kg A45 PCTEST DUT: ZNFV600TM; Type: Portable Handset; Serial: 03234 Communication System: UID 0, LTE Band 26; Frequency: 831.5 MHz; Duty Cycle: 1:1 Medium: 835 Body; Medium parameters used (interpolated): f = 831.5 MHz; σ = 0.964 S/m; ε r = 53.951; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 12-18-2019; Ambient Temp: 21.1°C; Tissue Temp: 19.9°C Probe: EX3DV4 - SN7410; ConvF(9.79, 9.79, 9.79) @ 831.5 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V5.0; Type: QD 000 P40 CD; Serial: 1630 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: LTE Band 26 (Cell.), Body SAR, Back side, Mid.ch, 15 MHz Bandwidth, QPSK, 1 RB, …

Text truncated - open the document above for the full version.

FCC ID: ZNFV600TM SAR EVALUATION REPORT Approved by: Quality Manager Test Dates: DUT Type: Portable Handset APPENDIX C: Page 3 of 3 11/25/19 - 02/03/20 © 2020 PCTEST REV 21.4 M 09/11/2019 Figure C-3 600 – 5800 MHz Head Tissue Equivalent Matter FCC ID: ZNFV600TM SAR EVALUATION REPORT Approved by: Quality Manager Test Dates: DUT Type: Portable Handset APPENDIX D: Page 1 of 1 11/25/19 - 02/03/20 © 2020 PCTEST REV 21.4 M 09/11/2019 A P P E N D I X D : S A R S Y S T E M V A L I D A T I O N Per FCC KDB Publication 865664 D02v01r02, SAR system validation status should be documented to confirm measurement accuracy. The SAR systems (including SAR probes, system components and software versions) used for this device were validated against its performance specifications prior to the SAR measurements. Reference dipoles were used with the required tissue- equivalent media for system validation, according to the procedures outlined in FCC KDB Publication 865664 D01v01r04 and IEEE 1528-2013. Since SAR probe calibrations are frequency dependent, each probe calibration point was validated at a frequency within the valid frequency range of the probe calibration point, using the system that normally operates with the probe for routine SAR measurements and according to the required tissue-equivalent media. A tabulated summary of the system validation status including the validation date(s), measurement frequencies, SAR probes and tissue dielectric parameters has been included. Table D-1 SAR System Validation Summary – 1g Table D-2 SAR System Validation Summary – 10g NOTE: While the probes have been calibrated for both CW and modulated signals, all measurements were performed using communication systems calibrated for CW signals only. Modulations in the table above represent test configurations for which the measurement system has been validated per FCC KDB Publication 865664 D01v01r04 for scenarios when CW probe calibrations are used with other signal types. SAR systems were validated for modulated signals with a periodic duty cycle, such as GMSK, or with a high peak to average ratio (>5 dB), such as OFDM according to FCC KDB Publication 865664 D01v01r04. COND.PERM. (σ)(εr)SENSITIVITY PROBE LINEARITY PROBE ISOTROPY MOD. TYPE DUTY FACTORPAR E7509/12/20197417750Head0.9342.992PASSPASSPASSN/AN/AN/A L7509/24/20197410750Head0.87842.471PASSPASSPASSN/AN/AN/A D8354/12/20193914835Head0.93542.549PASSPASSPASSGMSKPASSN/A P175010/2/201975511750Head1.34639.45PASSPASSPASSN/AN/AN/A H175012/20/201974061750Head1.37939.702PASSPASSPASSN/AN/AN/A P190010/2/201975511900Head1.44439.26PASSPASSPASSGMSKPASSN/A L19009/24/201974101900Head1.44239.947PASSPASSPASSGMSKPASSN/A E23009/6/201974172300Head1.73739.748PASSPASSPASSN/AN/AN/A E24509/5/201974172450Head1.85539.542PASSPASSPASSOFDM/TDDPASSPASS E26009/5/201974172600Head1.97939.302PASSPASSPASSTDDPASSN/A H370012/5/201935893700Head2.97339.247PASSPASSPASSTDDPASSN/A H525012/7/201974065250Head4.70935.885PASSPASSPASSOFDMN/APASS H560012/7/201974065600Head5.1235.211PASSPASSPASSOFDMN/APASS H575012/7/201974065750Head5.30934.961PASSPASSPASSOFDMN/APASS L7508/20/20197410750Body0.94154.921PASSPASSPASSN/AN/AN/A K7509/13/20197547750Body0.96155.74PASSPASSPASSN/AN/AN/A D8356/18/20193914835Body0.94552.698PASSPASSPASSGMSKPASSN/A L8358/20/20197410835Body0.97454.739PASSPASSPASSGMSKPASSN/A I17505/21/201973571750Body1.44255.384PASSPASSPASSN/AN/AN/A P190010/8/201975511900Body1.54251.76PASSPASSPASSGMSKPASSN/A L23008/15/201974102300Body1.85552.705PASSPASSPASSN/AN/AN/A M245010/10/201973082450Body1.96251.23PASSPASSPASSOFDM/TDDPASSPASS L24508/15/201974102450Body2.01852.505PASSPASSPASSOFDM/TDDPASSPASS K24509/6/201975472450Body1.99651.898PASSPASSPASSOFDM/TDDPASSPASS L26008/16/201974102600Body2.16152.297PASSPASSPASSTDDPASSN/A D35006/12/201939143500Body3.37751.09PASSPASSPASSTDDPASSN/A D37006/12/201939143700Body3.59350.776PASSPASSPASSTDDPASSN/A G525010/4/201974095250Body5.22347.07PASSPASSPASSOFDMN/APASS G560010/7/201974095600Body5.88447.08PASSPASSPASSOFDMN/APASS G575010/7/201974095750Body6.11146.78PASSPASSPASSOFDMN/APASS CW VALIDATIONMOD. VALIDATION SAR SYSTEM # FREQ. [MHz]DATEPROBE SNPROBE CAL. POINT COND.PERM. (σ)(εr)SENSITIVITY PROBE LINEARITY PROBE ISOTROPY MOD. TYPE DUTY FACTORPAR I17505/21/201973571750Body1.44255.384PASSPASSPASSN/AN/AN/A P190010/8/201975511900Body1.54251.76PASSPASSPASSGMSKPASSN/A L24508/15/201974102450Body2.01852.505PASSPASSPASSOFDM/TDDPASSPASS L26008/16/201974102600Body2.16152.297PASSPASSPASSTDDPASSN/A D35006/12/201939143500Body3.37751.09PASSPASSPASSTDDPASSN/A D37006/12/201939143700Body3.59350.776PASSPASSPASSTDDPASSN/A G525010/4/201974095250Body5.22347.07PASSPASSPASSOFDMN/APASS G560010/7/201974095600Body5.88447.08PASSPASSPASSOFDMN/APASS G575010/7/201974095750Body6.11146.78PASSPASSPASSOFDMN/APASS CW VALIDATIONMOD. VALIDATION SAR SYSTEM # FREQ. [MHz]DATEPROBE SNPROBE CAL. POINT FCC ID: ZNFV600TM SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 9 11/25/19 - 02/03/20 Portable Handset © 2020 PCTEST REV 21.3 M 02/15/2019 1.1 LTE Downlink Only Carrier Aggregation Test Reduction Methodology SAR test exclusion for LTE downlink Carrier Aggregation is determined by power measurements according to the number of component carriers (CCs) supported by the product implementation. Per April 2018 TCBC Workshop Notes, the following test reduction methodology was applied to determine the combinations required for conducted power measurements. LTE DLCA Test Reduction Methodology: • The supported combinations were arranged by the number of component carriers in columns. • Any limitations on the PCC or SCC for each combination were identified alongside the combination (e.g. CA_2A-2A-4A-12A, but B12 can only be configured as a SCC). • Power measurements were performed for "supersets" (LTE CA combinations with multiple components carriers) and any "subsets" (LTE CA combinations with fewer component carriers) that were not completely covered by the supersets. • Only subsets that h…

Text truncated - open the document above for the full version.

Qualcomm Technologies, Inc. All Qualcomm products mentioned herein are products of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. Other product and brand names may be trademarks or registered trademarks of their respective owners. This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws. Diversion contrary to U.S. and international law is strictly prohibited. Qualcomm Technologies, Inc. 5775 Morehouse Drive San Diego, CA 92121 U.S.A. © 2020 Qualcomm Technologies, Inc. and/or its subsidiaries. All rights reserved. LGE portable handset (FCC ID: ZNFV600TM) RF Exposure Compliance Test Report (Part 2: Test Under Dynamic Transmission Condition) 80-W5674-2 Rev. C February 16, 2020 80-W5674-2 Rev. C MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 2 Revision history Revision Date Description A January 28, 2020 Initial release B February 14, 2020 Updated typos in Tables 4-1, 4-2 and 5-1 C February 16, 2020 Updated LTE B30/41(PC2)/41(PC3) Plimit values in Table 4-1 80-W5674-2 Rev. C MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 3 Contents 1 Introduction ........................................................................................................................... 7 2 Tx Varying Transmission Test Cases and Test Proposal .................................................. 8 3 SAR Time Averaging Validation Test Procedures .............................................................10 3.1 Test sequence determination for validation ............................................................................................. 10 3.2 Test configuration selection criteria for validating Smart Transmit feature ............................................... 10 3.2.1 Test configuration selection for time-varying Tx power transmission ...................................... 10 3.2.2 Test configuration selection for change in call ........................................................................ 11 3.2.3 Test configuration selection for change in technology/band ................................................... 11 3.2.4 Test configuration selection for change in antenna ................................................................ 12 3.2.5 Test configuration selection for change in DSI ....................................................................... 12 3.2.6 Test configuration selection for change in time window .......................................................... 12 3.2.7 Test configuration selection for SAR exposure switching ....................................................... 12 3.3 Test procedures for conducted power measurements ............................................................................. 13 3.3.1 Time-varying Tx power transmission scenario ........................................................................ 13 3.3.2 Change in call scenario .......................................................................................................... 15 3.3.3 Change in technology and band ............................................................................................. 16 3.3.4 Change in antenna ................................................................................................................. 17 3.3.5 Change in DSI ........................................................................................................................ 17 3.3.6 Change in time window........................................................................................................... 17 3.3.7 SAR exposure switching ......................................................................................................... 19 3.4 Test procedure for time-varying SAR measurements .............................................................................. 20 4 Test Configurations .............................................................................................................22 4.1 WWAN (sub-6) transmission .................................................................................................................... 22 5 Conducted Power Test Results for Sub-6 Smart Transmit Feature Validation ................25 5.1 Measurement setup ................................................................................................................................. 25 5.2 P limit and P max measurement results ......................................................................................................... 28 5.3 Time-varying Tx power measurement results .......................................................................................... 29 5.3.1 LTE Band 7 (test case 1 in Table 4-2) .................................................................................... 30 5.3.2 LTE Band 2 (test case 2 in Table 4-2) .................................................................................... 32 5.3.3 WCDMA Band 4 (test case 3 in Table 4-2) ............................................................................. 34 5.3.4 CDMA/EVDO BC1 (test case 4 in Table 4-2) ......................................................................... 36 5.3.5 Sub6 NR Band n66 (test case 5 in Table 4-2) ........................................................................ 38 5.4 Change in Call Test Results (test case 6 in Table 4-2) ............................................................................ 40 5.5 Change in technology/band test results (test case 7 in Table 4-2) .......................................................... 42 5.6 Change in DSI test results (test case 8 in Table 4-2) ............................................................................... 44 5.7 Change in Time window / antenna switch test results (test case 9 in Table 4-2) ..................................... 46 5.7.1 Test case 1: transition f…

Text truncated - open the document above for the full version.

LG Electronics Model : LM-V600TM PART 0 SAR CHAR REPORT Rev. H December 27, 2019 FCC ID : ZNFV600TM Report Type: Part 0 SAR Characterization DUT Type: Portable Handset Test Lab : LG MC R&D Lab Tested by Jun-Kyu Kim Reported by Tae-Yoon Kim 1 / 18 TABLE OF CONTENTS 1. INTRODUCTION 2 2. DEVICE UNDER TEST 2 2.1. Device Overview 2 2.2. Time-Averaging for SAR 3 2.3. Nomenclature for Part 0 Report 3 3. SAR CHARACTERIZATION 4 3.1. DSI and SAR Determination 4 3.2. SAR Design Target 4 3.3. SAR Char 5 APPENDIX A: SAR TEST RESULTS FOR PLimit CALCULATIONS 7 2 / 18 1. INTRODUCTION Qualcomm Smart Transmit cannot operate without SAR at the device level, beforehand. The parameters obtained from SAR (referred to as SAR char) will be used as input for Smart Transmit. SAR char will be entered via the Embedded File System (EFS) to enable the Smart Transmit feature. 2. DEVICE UNDER TEST 2.1. Device Overview Band & Mode Operating Modes Tx Frequency Cell. BC10 CDMA/EVDO Voice/Data 817 - 824MHz Cell. BC0 CDMA/EVDO Voice/Data 824 - 849 MHz PCS CDMA/EVDO Voice/Data 1850 - 1910 MHz GSM/GPR…
