ZNFV600VMPortable Handset

Copyright ©2019 LG Electronics Inc. All rights reserved. MFLXXXXXXXX (1.0) www.lg.com ENGLISH USER GUIDE LM-V600VM 1 About this user guide Thank you for choosing this LG product. Please carefully read this user guide before using the device for the first time to ensure safe and proper use. • Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices. • Descriptions are based on the device default settings. • Default apps on the device are subject to updates, and support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact an LG Service Center. For user-installed apps, please contact the relevant service provider. • Modifying the device’s operating system or installing software from unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG licence agreement and void your warranty. • Some content and illustrations may differ from your device, depending on the area, service provider, software version, or OS version, and are subject to change without prior notice. • Software, audio, wallpaper, images, and other media supplied with your device are licenced for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are fully responsible for the illegal use of media. • Additional charges may incur for data services, such as messaging, uploading, downloading, auto-syncing and location services. To avoid additional charges, select a data plan suitable to your needs. Contact your service provider to obtain additional details. • Failure to follow the instructions in this guide and improper use may damage the device. 2About this user guide Instructional notices WARNING: Situations that could cause injury to the user and third parties. CAUTION: Situations that may cause minor injury or damage to the device. NOTE: Notices or additional information. 3 Table of contents 01 Custom-designed Features 7 Camera features 10 Gallery features 16 Floating Bar 19 Google Assistant 21 HD Audio R ecorder 23 Finger print recognition 27 Multi- tasking feature 28 AOD (alw ays-on display) 29 No tes on Water Resistant Properties 02 Basic Functions 33 Product components and accessories 34 P arts overview 37 Getting to Know Stereo Ear Microphone 38 T urning the power on or off 39 Installing the SIM c ard and memory card 41 R emoving the memory card 41 Battery 45 T ouch screen 49 Home scr een 59 Scr een lock 63 Memor y card encryption 65 Ent ering text 72 Cont ent sharing 74 D o not disturb 4Table of contents 03 Useful Apps 76 Installing and uninstalling apps 78 App Shor tcuts 79 Phone 84 Messaging 85 Camera 114 Gallery 119 Contacts 122 QuickMemo+ 124 Clock 125 Music 126 Game Launcher 126 Calculator 127 LG Health 129 LG Mobile Switch 129 App trash 130 SmartWorld 130 Google apps 04 Settings 134 Settings 134 Network & internet 142 Connected devices 147 Sound 149 Display 151 Lock screen & security 153 Extensions 157 Digital W ellbeing 157 Apps & no tifications 157 Battery 158 Storage 158 Accounts 159 Google 162 Accessibility 5Table of contents 05 Appendix 166 LG Language Settings 166 LG Bridge 167 Phone software update 169 Anti-Theft Guide 170 Open Source Software Notice Information 170 Regulatory information (FCC ID number, etc.) 171 Trademarks 172 Laser safety statement 173 More information 175 FAQ 06 For Your Safety 07 LIMITED WARRANTY STATEMENT Custom-designed Features 01 Custom-designed Features7 Camera features Main features This chapter describes the main features that the camera app provides. Open the camera and explore various features. 1 Tap . Switch between front and rear cameras Switch between standard angle and wide-angle cameras Take photos Open Gallery Set camera options Apply filter/sticker effects Change flash settings Change timer settings 2 Tap More on the camera screen to view various camera modes. • Select a desire mode from Night view, Panorama, Story shot, Manual Video, Slo-mo, Time-lapse, Flash Jump-Cut and YouTube Live. Tap More Custom-designed Features8 Dual cameras The dual cameras, which are located on the back of the device, allow you to take photos or record videos with two different angles of view. Tap , and select / while taking photos or recording videos with the rear camera. Steady recording Use Steady recording to prevent the camera from shaking when recording a video while walking or making large movements. Activate Anti-shake to reduce or eliminate motion blur in videos. 1 Tap Video. 2 Tap . 3 Tap to record a video. Recording ASMR With the high-sensitivity microphone installed on the device, you can pick up even the softest sound to record an ASMR video with vivid and clear sound quality. 1 Tap Video. 2 Tap to activate the function. 3 Tap to start recording an ASMR video. Custom-designed Features9 Portrait You can create an artistic portrait photo, whereby the subject is in focus and the background is blurred. You can also edit the image by applying lighting or color effect to the background. • While taking a photo, keep the distance to your subject to 1.3 ~ 5 feet. • This feature is not available if the surroundings are too dark. 1 Tap , and tap Portrait. 2 Drag the slide bar to the left or right to adjust the blur strength. Adjust blur strength. 3 When Portrait is available. appears on the screen, tap or to take a photo. • The Portrait feature may not work if the camera cannot recognize the subject. Custom-designed Features10 Gallery features Related content You can edit and customize related content in the Gallery. 1 While viewing a picture preview, tap . 2 When the date or location icon appears with related contents, tap the desired icon. • A video clip is automatically created with related contents selected according to your choice. • Tap to access additional options. Making a GIF You can crea…

Text truncated - open the document above for the full version.

Date: Jan. 28, 2020 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Electronics USA, Inc. FCC ID: ZNFV600VM Part 20.19 Certification Gentlemen: We, LG Electronics USA, Inc. hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Kyung-Su Han Director LG Electronics USA, Inc. LG Electronics Inc. LGE LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

          !"# Date: Jan. 28#20 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE:  Request of Confidentiality for FCC ID: ZNFV600VM Equipment Class:B&Citizens Band EnUser Devices To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  , Inc.hereby requests confidentiality and confidentail treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  , Inc.temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Kyung-Su Han Director LG Electronics USA, Inc. LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

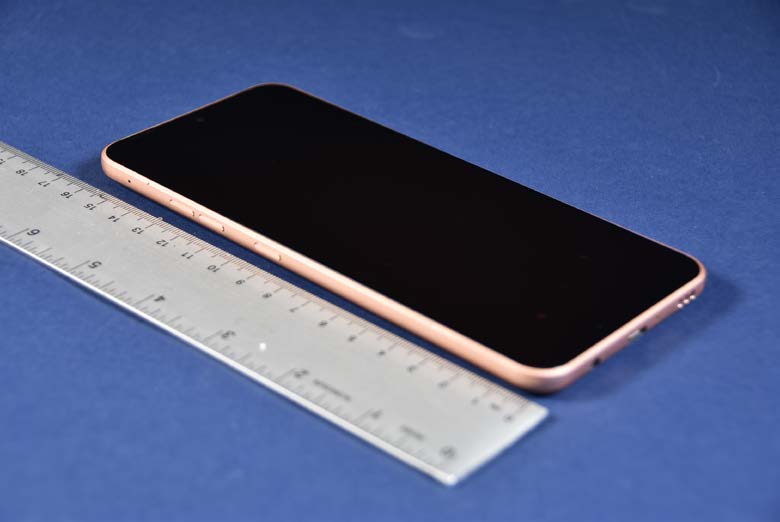

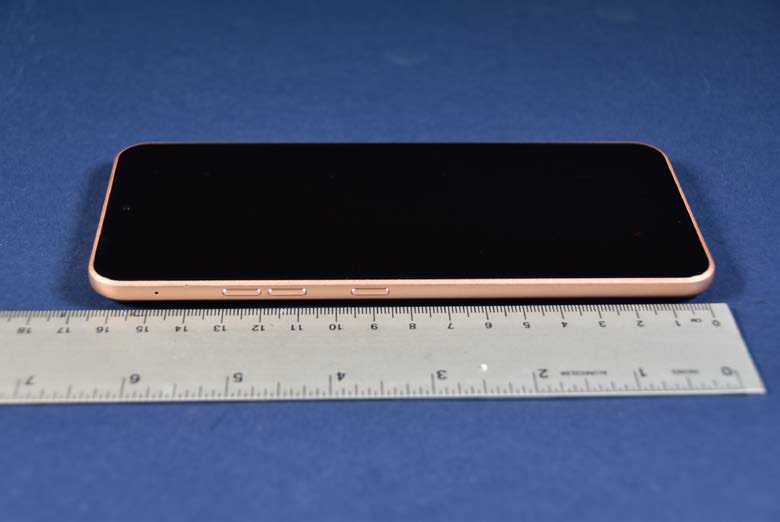

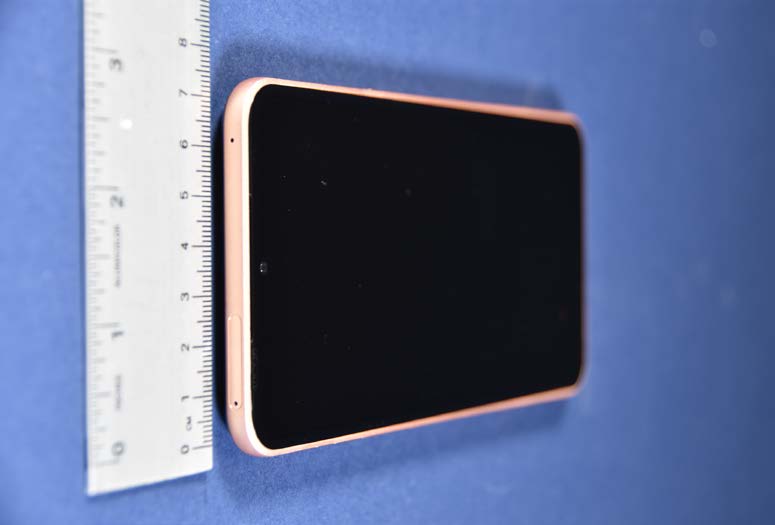

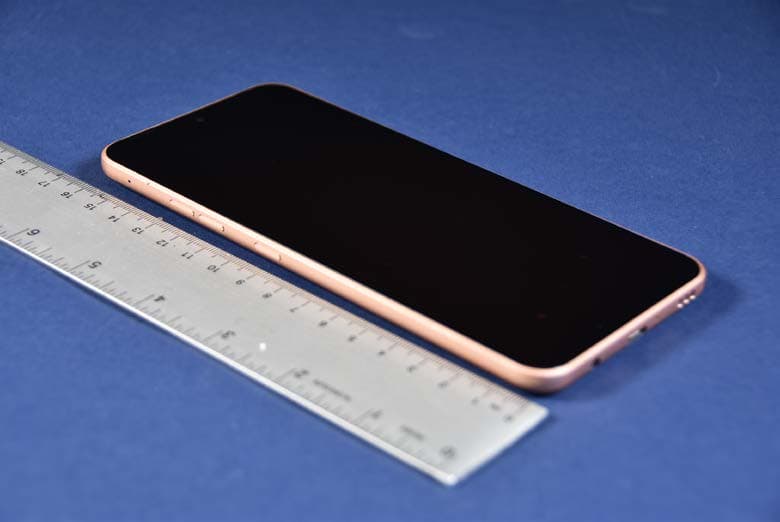

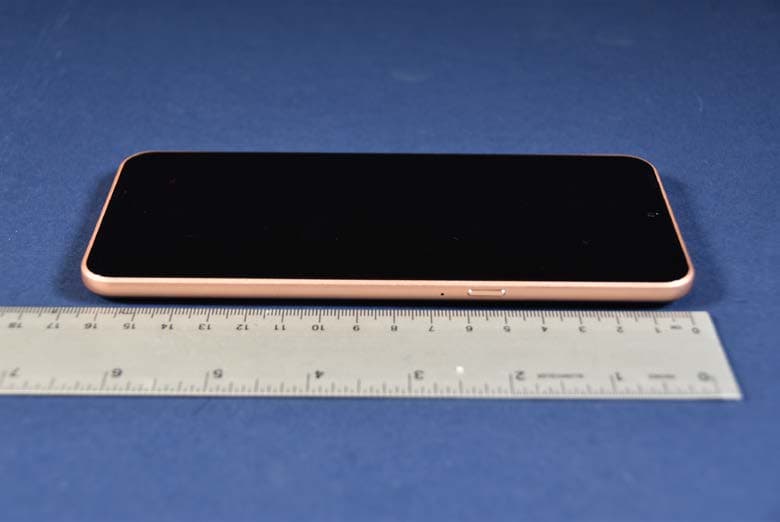

LG Electronics USA, Inc. FCC ID: ZNFV600VM Model: LM-V600VM External Photos EUT Type: Portable Handset Page 1 of 5 © 2020 PCTEST V 9.0 02/01/2019 EXTERNAL PHOTOGRAPHS LG Electronics USA, Inc. FCC ID: ZNFV600VM Model: LM-V600VM External Photos EUT Type: Portable Handset Page 2 of 5 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600VM Model: LM-V600VM External Photos EUT Type: Portable Handset Page 3 of 5 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600VM Model: LM-V600VM External Photos EUT Type: Portable Handset Page 4 of 5 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600VM Model: LM-V600VM External Photos EUT Type: Portable Handset Page 5 of 5 © 2020 PCTEST V 9.0 02/01/2019

LGE Internal Use Only Description of E-Label for ZNFV600VM ※FCC ID is applied by E-Label on the device Settings Menu Step1Select “Setting” Step 2Select“System” Step 3Select “Regulatory& safety” ※FCC ID is applied on the packaging Label FCC ID: ZNFV600VM ※Instruction of E-Label on the User Manual

LG Electronics USA, Inc. FCC ID: ZNFV600VM Model: LM-V600VM Internal Photos EUT Type: Portable Handset Page 1 of 7 © 2020 PCTEST V 9.0 02/01/2019 INTERNAL PHOTOGRAPHS LG Electronics USA, Inc. FCC ID: ZNFV600VM Model: LM-V600VM Internal Photos EUT Type: Portable Handset Page 2 of 7 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600VM Model: LM-V600VM Internal Photos EUT Type: Portable Handset Page 3 of 7 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600VM Model: LM-V600VM Internal Photos EUT Type: Portable Handset Page 4 of 7 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600VM Model: LM-V600VM Internal Photos EUT Type: Portable Handset Page 5 of 7 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600VM Model: LM-V600VM Internal Photos EUT Type: Portable Handset Page 6 of 7 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600VM Model: LM-V600VM Internal Photos EUT Type: Portable Handset Page 7 of 7 © 2020 PCTEST V 9.0 02/01/2019

© 2020 PCTEST APPENDIX A: SAR TEST DATA A1 PCTEST DUT: ZNFV600VM; Type: Portable Handset; Serial: 00338 Communication System: UID 0, Cellular CDMA; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium: 835 Head; Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.914 S/m; ε r = 40.137; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 01-13-2020; Ambient Temp: 21.9°C; Tissue Temp: 20.9°C Probe: EX3DV4 - SN7308; ConvF(9.87, 9.87, 9.87) @ 836.52 MHz; Calibrated: 8/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1450; Calibrated: 8/14/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1964 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: Cell. CDMA, BC 0, Left Head, Cheek, Mid.ch Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (6x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.26 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.168 W/kg SAR(1 g) = 0.127 W/kg 0 dB = 0.151 W/kg = -8.21 dBW/kg A2 PCTEST DUT: ZNFV600VM; Type: Portable Handset; Serial: 00338 Communication System: UID 0, _GSM GPRS; 2 Tx slots; Frequency: 836.6 MHz; Duty Cycle: 1:4.15 Medium: 835 Head; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.914 S/m; ε r = 40.137; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 01-13-2020; Ambient Temp: 21.9°C; Tissue Temp: 20.9°C Probe: EX3DV4 - SN7308; ConvF(9.87, 9.87, 9.87) @ 836.6 MHz; Calibrated: 8/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1450; Calibrated: 8/14/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1964 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: GPRS 850, Left Head, Cheek, Mid.ch, 2 Tx slots Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.615 V/m; Power Drift = -0.20 dB Peak SAR (extrapolated) = 0.270 W/kg SAR(1 g) = 0.079 W/kg 0 dB = 0.157 W/kg = -8.04 dBW/kg A3 PCTEST DUT: ZNFV600VM; Type: Portable Handset; Serial: 00338 Communication System: UID 0, UMTS; Frequency: 836.6 MHz; Duty Cycle: 1:1 Medium: 835 Head; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.914 S/m; ε r = 40.137; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 01-13-2020; Ambient Temp: 21.9°C; Tissue Temp: 20.9°C Probe: EX3DV4 - SN7308; ConvF(9.87, 9.87, 9.87) @ 836.6 MHz; Calibrated: 8/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1450; Calibrated: 8/14/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1964 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: UMTS 850, Left Head, Cheek, Mid.ch Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.23 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.173 W/kg SAR(1 g) = 0.128 W/kg 0 dB = 0.157 W/kg = -8.04 dBW/kg A4 PCTEST DUT: ZNFV600VM; Type: Portable Handset; Serial: 00338 Communication System: UID 0, UMTS; Frequency: 1732.4 MHz; Duty Cycle: 1:1 Medium: 1750 Head; Medium parameters used (interpolated): f = 1732.4 MHz; σ = 1.367 S/m; ε r = 39.17; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 12-02-2019; Ambient Temp: 23.7°C; Tissue Temp: 21.2°C Probe: EX3DV4 - SN7551; ConvF(8.34, 8.34, 8.34) @ 1732.4 MHz; Calibrated: 9/19/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1333; Calibrated: 9/17/2019 Phantom: Twin-SAM V5.0; Type: QD 000 P40 CD; Serial: 1792 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: UMTS 1750, Left Head, Cheek, Mid.ch Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.230 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.133 W/kg SAR(1 g) = 0.088 W/kg 0 dB = 0.114 W/kg = -9.43 dBW/kg A5 PCTEST DUT: ZNFV600VM; Type: Portable Handset; Serial: 00338 Communication System: UID 0, CDMA; Frequency: 1880 MHz; Duty Cycle: 1:1 Medium: 1900 Head; Medium parameters used: f = 1880 MHz; σ = 1.423 S/m; ε r = 39.364; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 01-04-2020; Ambient Temp: 23.2°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN7410; ConvF(8.11, 8.11, 8.11) @ 1880 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1966 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: PCS CDMA, Right Head, Tilt, Mid.ch Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.823 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.137 W/kg SAR(1 g) = 0.078 W/kg 0 dB = 0.117 W/kg = -9.32 dBW/kg A6 PCTEST DUT: ZNFV600VM; Type: Portable Handset; Serial: 00338 Communication System: UID 0, GSM GPRS; 2 Tx slots; Frequency: 1880 MHz; Duty Cycle: 1:4.15 Medium: 1900 Head; Medium parameters used: f = 1880 MHz; σ = 1.423 S/m; ε r = 39.364; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 01-04-2020; Ambient Temp: 23.2°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN7410; ConvF(8.11, 8.11, 8.11) @ 1880 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1966 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: GPRS 1900, Right Head, Cheek, Mid.ch, 2 Tx slots Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.991 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.0730 W/kg SAR(1 g) = 0.048 W/kg 0 dB = 0.0608 W/kg = -12.16 dBW/kg A7 PCTEST DUT: ZNFV600VM; Type: Portable Handset; Serial: 00338 Communi…

Text truncated - open the document above for the full version.

Object: Date Issued: Page 1 of 4 D1765V2 – SN: 1008 05/17/2019 Certification of Calibration Object D1765V2 – SN: 1008 Calibration procedure(s) Procedure for Calibration Extension for SAR Dipoles. Extension Calibration date: 5/17/2019 Description: SAR Validation Dipole at 1750 MHz. Calibration Equipment used: Measurement Uncertainty = ±23% (k=2) Name Function Signature Calibrated By: Brodie Halbfoster Test Engineer Approved By: Kaitlin O’Keefe Senior Technical Manager Manufacturer Model Description Cal Date Cal Interval Cal Due Serial Number Agilent 8753ES S-Parameter Network Analyzer 3/11/2019 Annual 3/11/2020 US39170122 Agilent N5182A MXG Vector Signal Generator 11/28/2018 Annual 11/28/2019 MY47420603 Amplifier Research 15S1G6 Amplifier CBTN/A CBT433971 Anritsu MA2411B Pulse Power Sensor 11/20/2018 Annual 11/20/2019 1027293 Anritsu MA2411B Pulse Power Sensor 10/30/2018 Annual 10/30/2019 1126066 Anritsu ML2495A Power Meter 10/21/2018 Annual 10/21/2019 941001 Control Company 4040Therm./ Clock/ Humidity Monitor 10/9/2018 Biennial 10/9/2020 181647811 Control Company 4352Ultra Long Stem Thermometer 6/6/2018 Biennial 6/6/2020 181334678 Keysight 772D Dual Directional Coupler CBTN/A CBT MY52180215 Keysight Technologies 85033E Standard Mechanical Calibration Kit (DC to 9GHz, 3.5mm) 6/4/2018 Annual 6/4/2019 MY53401181 MiniCircuits VLF-6000+ Low Pass Filter CBTN/ACBTN/A Mini-Circuits BW-N20W5+ DC to 18 GHz Precision Fixed 20 dB Attenuator CBTN/A CBTN/A Narda 4772-3 Attenuator (3dB) CBTN/A CBT9406 Pasternack PE2209-10 Bidirectional Coupler CBTN/A CBTN/A Seekonk NC-100 Torque Wrench 7/11/2018 Annual 7/11/2019 N/A SPEAG EX3DV4 SAR Probe 6/25/2018 Annual 6/25/2019 7409 SPEAG DAE4 Dasy Data Acquisition Electronics 6/18/2018 Annual 6/18/2019 1334 SPEAG EX3DV4 SAR Probe 2/19/2019 Annual 2/19/2020 3914 SPEAG DAE4 Dasy Data Acquisition Electronics 2/14/2019 Annual 2/14/2020 1272 SPEAG DAK-3.5 Dielectric Assessment Kit 9/11/2018 Annual 9/11/2019 1091 PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctest.com Object: Date Issued: Page 2 of 4 D1765V2 – SN: 1008 05/17/2019 DIPOLE CALIBRATION EXTENSION Per KDB 865664 D01, calibration intervals of up to three years may be considered for reference dipoles when it is demonstrated that the SAR target, impedance and return loss of a dipole have remained stable according to the following requirements: 1. The measured SAR does not deviate more than 10% from the target on the calibration certificate. 2. The return-loss does not deviate more than 20% from the previous measurement and meets the required 20dB minimum return-loss requirement. 3. The measurement of real or imaginary parts of impedance does not deviate more than 5Ω from the previous measurement. The following dipole was checked to pass the above 3 requirements to have 2-year calibration period from the calibration date: Calibration Date Extension Date Certificate Electrical Delay (ns) Certificate SAR Target Head (1g) W/kg @ 20.0 dBm Measured Head SAR (1g) W/kg @ 20.0 dBm Deviation 1g (%) Certificate SAR Target Head (10g) W/kg @ 20.0 dBm Measured Head SAR (10g) W/kg @ 20.0 dBm Deviation 10g (%) Certificate Impedance Head (Ohm) Real Measured Impedance Head (Ohm) Real Difference (Ohm) Real Certificate Impedance Head (Ohm) Imaginary Measured Impedance Head (Ohm) Imaginary Difference (Ohm) Imaginary Certificate Return Loss Head (dB) Measured Return Loss Head (dB) Deviation (%) PASS/FAIL 5/23/20195/17/20191.213.623.630.28%1.91.921.05%47.7470.7-6.5-60.5-23-23.3-1.20%PASS Calibration Date Extension Date Certificate Electrical Delay (ns) Certificate SAR Target Body (1g) W/kg @ 20.0 dBm Measured Body SAR (1g) W/kg @ 20.0 dBm Deviation 1g (%) Certificate SAR Target Body (10g) W/kg @ 20.0 dBm Measured Body SAR (10g) W/kg @ 20.0 dBm Deviation 10g (%) Certificate Impedance Body (Ohm) Real Measured I m pedance Body (Ohm) Real Difference (Ohm) Real Certificate Impedance Body (Ohm) Imaginary Measured Impedance Body (Ohm) Imaginary Difference (Ohm) Imaginary Certificate Return Loss Body (dB) Measured Return Loss Body (dB) Deviation (%) PASS/FAIL 5/23/20195/17/20191.213.743.955.61%1.992.084.52%43.344.61.3-6-71-20.3-20.5-0.90%PASS Object: Date Issued: Page 3 of 4 D1765V2 – SN: 1008 05/17/2019 Impedance & Return-Loss Measurement Plot for Head TSL Object: Date Issued: Page 4 of 4 D1765V2 – SN: 1008 05/17/2019 Impedance & Return-Loss Measurement Plot for Body TSL Object: Date Issued: Page 1 of 4 D2300V2 – SN: 1073 08/09/2019 Certification of Calibration Object D2300V2 – SN: 1073 Calibration procedure(s) Procedure for Calibration Extension for SAR Dipoles. Calibration date: 08/09/2019 Description: SAR Validation Dipole at 2300 MHz. Calibration Equipment used: Measurement Uncertainty = ±23% (k=2) Name Function Signature Calibrated By: Brodie Halbfoster Test Engineer Approved By: Kaitlin O’Keefe Senior Technical Manager Manufacturer Model Description Cal Date Cal Interval Cal Due Serial Number Agilent 8753ES S-Parameter Network Analyzer 10/2/2018 Annual 10/2/2019 US39170118 Agilent N5182A MXG Vector Signal Generator 6/27/2019 Annual 6/27/2020 US46240505 Amplifier Research 15S1G6 Amplifier CBTN/A CBT343972 Anritsu ML2495A Power Meter 10/21/2018 Annual 10/21/2019 941001 Anritsu MA2411B Pulse Power Sensor 10/30/2018 Annual 10/30/2019 1207470 Anritsu MA2411B Pulse Power Sensor 11/20/2018 Annual 11/20/2019 1339007 Control Company 4040Temperature / Humidity Monitor 2/28/2018 Biennial 2/28/2020 150761911 Control Company 4352Ultra Long Stem Thermometer 2/28/2018 Biennial 2/28/2020 170330160 Keysight 772D Dual Directional Coupler CBTN/A CBT MY52180215 Keysight Technologies 85033E Standard Mechanical Calibration Kit (DC to 9GHz, 3.5mm) 7/2/2019 Annual 7/2/2020 MY53401181 Mini-Circuits BW-N20W5+ DC to 18 GHz Precision Fixed 20 dB Attenuator CBTN/A CBTN/A Mini-Circuits NLP-2950+ Low Pass Filter DC to 2700 MHz CBTN/A CBTN/A Narda 4772-3 Attenuator (3dB) CBTN…

Text truncated - open the document above for the full version.

FCC RF Exposure Report Report No. : FA011602 Page 1 Issued Date : 02/23/2020 RF Exposure Report (Part 2: Test Under Dynamic Transmission Condition) FCC ID : ZNFV600VM Equipment : Portable Handset Base Model Name : LM-V600VM Additional Model Name : LMV600VM, V600VM, LM-V600QM5, LMV600QM5 V600QM5, LM-V600QM6, LMV600QM6, V600QM6 Applicant : LG Electronics U.S.A, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 United States We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. Sporton International Inc. No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan Approved by: Cona Huang / Deputy Manager FCC RF Exposure Report Report No. : FA011602 . Page 2 Issued Date : 02/23/2020 History of this test report Report No. Version Description Issued Date FA011602 01 Initial issue of report 01/27/2020 FA011602 02 Added descriptions for test modes in section 5 Added descriptions for verdict, in section 6~9 02/07/2020 FA011602 03 Added Test Equipment list in Appendix C 02/10/2020 FA011602 04 1. Updated Plimit in Section 5.0. 2. Updated antenna information in Section 5.2. 02/19/2020 FA011602 05 1. Added WCDMA 2 and sub-6NR n2 time-varying test cases 02/23/2020 FCC RF Exposure Report Report No. : FA011602 Page 3 Issued Date : 02/23/2020 Contents 1 Introduction ........................................................................................................................... 5 2 Tx Varying Transmission Test Cases and Test Proposal .................................................. 6 3 SAR Time Averaging Validation Test Procedures .............................................................. 9 3.1 Test sequence determination for validation ............................................................................................... 9 3.2 Test configuration selection criteria for validating Smart Transmit feature ................................................. 9 3.2.1 Test configuration selection for time-varying Tx power transmission ........................................ 9 3.2.2 Test configuration selection for change in call ........................................................................ 10 3.2.3 Test configuration selection for change in technology/band ................................................... 10 3.2.4 Test configuration selection for change in DSI ....................................................................... 10 3.2.5 Test configuration selection for SAR exposure switching ....................................................... 10 3.3 Test procedures for conducted power measurements ............................................................................. 11 3.3.1 Time-varying Tx power transmission scenario ........................................................................ 11 3.3.2 Change in call scenario .......................................................................................................... 13 3.3.3 Change in technology and band ............................................................................................. 14 3.3.4 Change in antenna ................................................................................................................. 15 3.3.5 Change in DSI ........................................................................................................................ 15 3.3.6 Change in time window........................................................................................................... 16 3.3.7 SAR exposure switching ......................................................................................................... 17 3.4 Test procedure for time-varying SAR measurements .............................................................................. 18 4 PD Time Averaging Validation Test Procedures ................................................................20 4.1 Test sequence for validation in mmW NR transmission ........................................................................... 20 4.2 Test configuration selection criteria for validating Smart Transmit feature ............................................... 20 4.2.1 Test configuration selection for time-varying Tx power transmission ...................................... 20 4.2.2 Test configuration selection for change in antenna configuration (beam) ............................... 20 4.2.3 Test configuration selection for SAR vs. PD exposure switch during transmission ...................................................................................................................... 20 4.3 Test procedures for mmW radiated power measurements ...................................................................... 20 4.3.1 Time-varying Tx power scenario ............................................................................................. 21 4.3.2 Switch in SAR vs. PD exposure during transmission .............................................................. 22 4.3.3 Change in antenna configuration (beam)................................................................................ 24 4.4 Test procedure for time-varying PD measurements ................................................................................ 26 5 Test Configurations .............................................................................................................28 5.1 WWAN (sub-6) transmission .................................................................................................................... 28 5.2 LTE + mmW NR transmission ...................................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/1/20 System Check_Head_1750MHz DUT: D1750V2-1112 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_200120 Medium parameters used: f = 1750 MHz; σ = 1.372 S/m; ε r = 40.969; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(8.66, 8.66, 8.66) @ 1750 MHz; Calibrated: 2019/9/26 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2019/5/21 - Phantom: SAM_RIGHT; Type: QD000P40CB; Serial: 1446 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.9 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 104.6 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 17.2 W/kg SAR(1 g) = 9.55 W/kg; SAR(10 g) = 5.09 W/kg Maximum value of SAR (measured) = 14.5 W/kg 0 dB = 14.9 W/kg = 11.73 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/2/23 System Check_Head_1750MHz DUT: D1750V2-1112 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_200221 Medium parameters used: f = 1750 MHz; σ = 1.369 S/m; ε r = 40.6; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Te…
