ZNL-PD1101-K318RADSL router

FOUR-PORT ADSL ROUTER PD1101- ADSL Router User Manual K318R ADSL ROUTER USER MANUAL NOTICE This document contains proprietary information protected by copyright, and this Manual and all the accompanying hardware, software, and documentation are copyrighted. All rights are reserved. No part of this document may be photocopied or reproduced by mechanical, electronic, or other means in any form. The manufacturer does not warrant that the hardware will work properly in all environments and applications, and makes no warranty or representation, either expressed or implied, with respect to the quality, performance, merchantability, or fitness for a particular purpose of the software or documentation. The manufacturer reserves the right to make changes to the hardware, software, and documentation without obligation to notify any person or organization of the revision or change. All brand and product names are the trademarks of their respective owners. © Copyright 2011 All rights reserved. Content 1 OVERVIEW ................................................................................................................................... 1 1.1 FEATURES .................................................................................................................................... 1 1.2 PACKET CONTENTS ..................................................................................................................... 2 1.3 SYSTEM REQUIREMENTS ............................................................................................................. 2 1.4 FACTORY DEFAULTS .................................................................................................................... 3 1.5 WARNINGS AND CAUTIONS .......................................................................................................... 3 2 HARDWARE DESCRIPTION ....................................................................................................... 4 3 HARDWARE INSTALLATION ..................................................................................................... 5 4 PC CONFIGURATION GUIDE ..................................................................................................... 6 4.1 LOCAL PC CONFIGURATION .......................................................................................................... 6 4.2 ACCESS THE PROGRAM ................................................................................................................. 7 4.3 INTERNET ACCESS CONFIGURATION ............................................................................................ 7 APPENDIX FREQUENT ASKED QUESTIONS ........................................................................... 14 ADSL ROUTER USER MANUAL 1 1 Overview Thank you for using this Asymmetric Digital Subscriber Line (ADSL) router. With the asymmetric technology, this device runs over standard copper phone lines. In addition, ADSL allows you to have both voice and data services in use simultaneously all over one phone line. It is an ideal solution for the small and medium size business environment. This ADSL router provides a 10/100BaseT interface for Ethernet connection .Computers can connect to the router via its Ethernet port to share its high-speed Internet access. You can connect to its port regardless of the operating system you are using. It receives adaptive rates up to 24Mbps and transmits 1Mbps upstream. 1.1 Features 1.1.1 ADSL Compliance  ANSI T1.413 issue 2  Downstream: Up to 24Mbps.  Max upstream speed: 3.5Mbps (With AnnexM enabled)  Rate Adaptive at 32 Kbps steps  Interoperable with all major DSLAM equipment  TR-069 compliant with ACS 1.1.2 Standards & Protocols Conformance  ITU G.994.1(G.hs) G.992.1(G.DMT) G.992.2(G.LITE)  ITU G.992.3(G.DMT.BIS)  ITU G.992.5  T1.413  EoA (PPPoE, IPoE, and Bridge)  PPPoA  IPoA 1.1.3 Operating System Support  WINDOWS 98/98 SE/ME/2000/XP/VISTA/7  Macintosh  LINUX ADSL ROUTER USER MANUAL 2 1.1.4 ATM Capabilities  ATM Connection  VPI Range: 0-255  VCI Range: 32-65535  AESA (E.164, DCC, ICD)  PVC Support  UNI 3.0 & 3.1 Signaling  Support AAL 5 1.1.5 Management Support  Web Based GUI  Upgrade or update via FTP/HTTP  Command Line Interface via Telnet  Diagnostic Test  Firmware upgrade-able for future feature enhancement 1.1.6 Environmental  Operating humidity: 10%-90% non-condensing  Non-operating storage humidity: 5%-95% non-condensing 1.2 Packet Contents The packet contents are as the following:  ADSL Router x 1  External Splitter x 1  Power Adapter x 1  Telephone Line x 1  Ethernet Cable x 1  CD x 1 1.3 System Requirements Before using this ADSL router, verify that you meet the following requirements: ADSL ROUTER USER MANUAL 3  Subscription for ADSL service. Your ADSL service provider should provide you with at least one valid IP address (static assignment or dynamic assignment via dial-up connection).  One or more computers, each contains an Ethernet 10/100M Base-T network interface card (NIC).  A hub or switch, if you are connecting the device to more than four computers.  For system configuration using the supplied web-based program: A web browser such as Internet Explorer v5.0 or later, or Netscape v4.7 or later. 1.4 Factory Defaults The device is configured with the following factory defaults:  IP Address: 192.168.1.1  Subnet Mask: 255.255.255.0  VPI/VCI: According to local information 1.5 Warnings and Cautions  Never install telephone wiring during storm. Avoid using a telephone during an electrical storm. There might be a risk of electric shock from lightening.  Do not install telephone jacks in wet locations and never use the product near water.  To prevent dangerous overloading of the power circuit, be careful about the designed maximum power load ratings. Not to follow the rating guideline could result in a dangerous situation.  Please note that telephone line on ADSL router must adopt the primary line that …

Text truncated - open the document above for the full version.

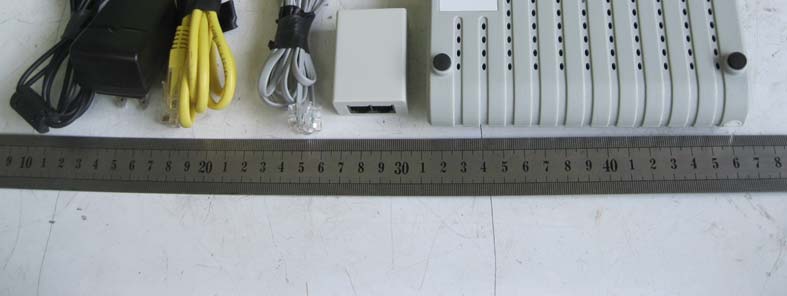

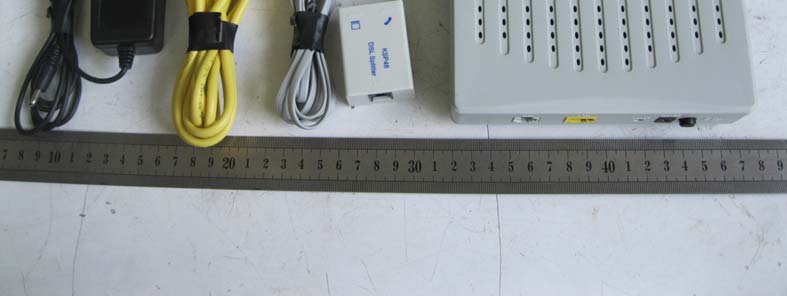

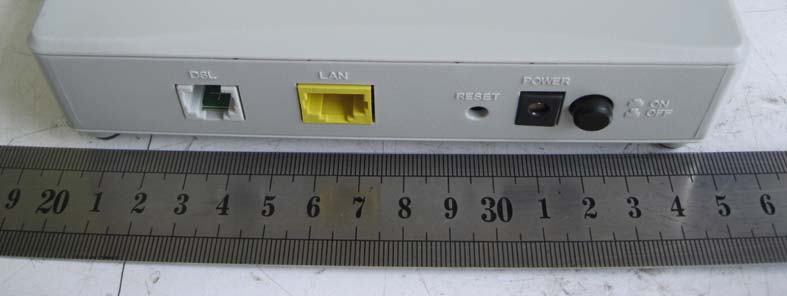

EXTERNAL PHOTOGRAPHS OF EUT External View of EUT-1 External View of EUT-2 External View of EUT-3 External View of EUT-4

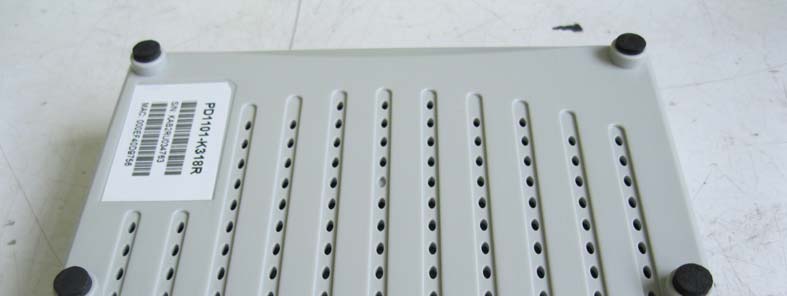

FCC ID Label Location

INTERNAL PHOTOGRAPHS OF EUT Internal View of EUT-1 Internal View of EUT-2 Internal View of EUT-3 Internal View of EUT-4

Report No. : EESZD05310009 Page 1 of 18 FCC TEST REPORT Product Name : ADSL router Trade Name : Model Name : PD1101-K318R Serial Number : Not Applicable Technical Data : AC 120V, 60Hz FCC ID : ZNL-PD1101-K318R Report Number : EESZD05310009 Date : June 20, 2011 Regulations : See below Test Standards Results FCC Part 15 Subpart B: 2010 PASS Prepared for: TelWorx Communications, LLC 239 welcome center BLVD, Lexington, North Carolina 27295, United States. Prepared by: CENTRE TESTING INTERNATIONAL (SHENZHEN) CORPORATION Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Check No.: 30000626 This report shall not be reproduced, except in full, without the written approval of CENTRE TESTING INTERNATIONAL (SHENZHEN) CORPORATION Report No. : EESZD05310009 Page 2 of 18 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ..........................................................................................3 2. TEST SUMMARY .........................................................................................................4 3. MEASUREMENT UNCERTAINTY ...............................................................................4 4. PRODUCT INFORMATION AND TEST SETUP ..........................................................4 5. SYSTEM TEST CONFIGURATION...............................................................................5 6. FACILITIES AND ACCREDITATIONS .........................................................................5 7. CONDUCTED EMISSION TEST ..................................................................................7 8. RADIATED EMISSION TEST.....................................................................................10 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP............................................................13 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT ......................................................15 APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT .......................................................17 (Note: N/A means not applicable) Report No. : EESZD05310009 Page 3 of 18 1. GENERAL INFORMATION TelWorx Communications, LLC Applicant: 239 welcome center BLVD, Lexington, North Carolina 27295, United States. Manufacturer: Not Applicable Equipment Authorization: Certification FCC ID: ZNL-PD1101-K318R Product Name: ADSL router Trade Name: Model Name: PD1101-K318R Serial Number: Not Applicable Report Number: EESZD05310009 Date of Test: May 31, 2011 to June 20, 2011 The results of this test report are only valid for the mentioned equipment under test. The test report with all its sub-reports, e.g. tables, photographs and drawings, is copyrighted. Unauthorized utilization, especially without permission of the test laboratory, is not allowed and punishable. For copying parts of the test report, a written permission by the test laboratory is needed. The test results of this report relate only to the tested sample identified in this report. Prepared by : Gavin Song Reviewed by : Louisa Lu Approved by : Jimmy Li Manager Date June 20, 2011 Report No. : EESZD05310009 Page 4 of 18 2. TEST SUMMARY The EUT has been tested according to the following specifications: Standard Test Item Test FCC 15.107 Conducted Emission Yes FCC 15.109 Radiated Emission Yes 3. MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Test item Value (dB) Conducted Emission 2.7 Radiated Emission 4.4 4. PRODUCT INFORMATION AND TEST SETUP 4.1. PRODUCT INFORMATION Technical Data: AC 120V, 60Hz Cable of EUT No. Cable Type Quantity Provider Length (m) SpecificationNote 1 RJ45 Cable 1 Applicant1.5 unshielded Detachable 2 RJ11 Cable 1 Applicant1.1 unshielded Detachable 3 DC Cable from adaptor 1 Applicant1.5 unshielded Detachable and with a ferrite ring near the jack 4.2. TEST SETUP CONFIGURATION See test photographs attached in Appendix 1 for the actual connections between EUT and support equipment. 4.3. SUPPORT EQUIPMENT No. Device Type Brand Model Series No. Data Cable Power Cord 1. PC IBM 8143 BD-241 N/A Un-shielded 1.2M 2. Monitor IBM 9205-AB6 VK-KZ133 Un-shielded 1M Un-shielded 1M 3. Mouse IBM M028UOL 23-468157 Un-shielded 1.2M N/A Report No. : EESZD05310009 Page 5 of 18 4. Keyboard IBM 89P8300 02284699 Un-shielded 1.2M N/A Notes: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. 5. SYSTEM TEST CONFIGURATION 5.1. JUSTIFICATION The system was configured for testing in a typical fashion (as a customer would normally use it), The EUT was placed on a turn table, which enabled the engineer to maximize emissions through its placement as outlined in ANSI C63.4 (2003). The EUT was powered by 120VAC/ 60Hz during test. For maximizing emissions, the EUT was rotated through 360°, the antenna height was varied from 1 meter to 4 meters above the ground plane, and the antenna polarization was changed. The rear of unit shall be flushed with the rear of the table. All readings are extrapolated back to the equivalent three meter reading using inverse scaling with distance. Analyzer resolution is 100 kHz or greater for frequencies below 1000 MHz. The spurious emissions more than 20 dB below the permissible value are not reported. 5.2. EUT EXERCISING SOFTWARE No Software was used during testing. 6. FACILITIES AND ACCREDITATIONS 6.1. TEST FACILITY All test facilities used to collect the test data are located at Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China. The site and apparatus are constructed in conformance with the requirements of ANSI C63.4, CISPR 16-1-1 and other equi…

Text truncated - open the document above for the full version.

Test Setup Photo CONDUCTED EMISSION TEST SETUP RADIATED EMISSION TEST SETUP
