PD1101-K5815 Wireless ADSL Router User Manual Wireless ADSL Router USER MANUAL NOTICE This document contains proprietary information protected by copyright, and this Manual and all the accompanying hardware, software, and documentation are copyrighted. All rights are reserved. No part of this document may be photocopied or reproduced by mechanical, electronic, or other means in any form. The manufacturer does not warrant that the hardware will work properly in all environments and applications, and makes no warranty or representation, either expressed or implied, with respect to the quality, performance, merchantability, or fitness for a particular purpose of the software or documentation. The manufacturer reserves the right to make changes to the hardware, software, and documentation without obligation to notify any person or organization of the revision or change. All brand and product names are the trademarks of their respective owners. © Copyright 2011 All rights reserved. Content 1 OVERVIEW ................................................................................................................................ 1 1.1 FEATURES................................................................................................................................ 1 1.2 PACKET CONTENTS ................................................................................................................. 3 1.3 SYSTEM REQUIREMENTS ......................................................................................................... 3 1.4 FACTORY DEFAULTS ............................................................................................................... 4 1.5 WARNINGS AND CAUTIONS ...................................................................................................... 4 2 HARDWARE DESCRIPTION ................................................................................................... 5 3 HARDWARE INSTALLATION ................................................................................................. 7 4 PC CONFIGURATION GUIDE ................................................................................................. 8 4.1 LOCAL PC CONFIGURATION IN WINDOWS 95, 98, ME, XP ...................................................... 8 4.2 LOCAL PC CONFIGURATION IN WINDOWS 2000 ....................................................................... 8 5 WEB-BASED MANAGEMENT GUIDE.................................................................................... 9 5.1 LAN SETTING PAGE ................................................................................................................. 9 5.2 INTERNET ACCESS CONFIGURATION ........................................................................................ 9 5.3 WIRELESS SETTING ............................................................................................................... 21 5.4 MANAGEMENT ....................................................................................................................... 28 APPENDIX: FREQUENT ASKED QUESTIONS...................................................................... 32 Wireless ADSL Router USER MANUAL 1 1 Overview Thank you for choosing our product. The Wireless ADSL Router uses Broadcom’s CPE solution that fully complies with ADSL, ADSL2，ADSL2+ and IEEE802.11b/g/n standards. It will provide your SOHO with convenient Internet access. 1.1 Features 1.1.1 Data rate  Downstream data rate up to 24 Mbps,  Upstream data rate up to 3.5Mbps (With AnnexM enabled) 1.1.2 ADSL Compliance  ITU G.992.1 (G.DMT)  ITU G.992.2 (G.Lite)  ITU G.994.1 (G.hs)  ITU G.992.3 (G.DMT.BIS)  ITU G.992.4 (G.lite.bis)  ITU G.992.5  Compatible with all T1.413 issue 2 (full rate DMT over analog POTS), and CO DSLAM equipment  TR-069 compliant with ACS 1.1.3 Wireless  Fully IEEE 802.11b & IEEE 802.11g&IEEE 802.11n compatible.  Wireless data rate up to 75 Mbps  Operating in the unlicensed 2.4 GHz ISM band  Supports 64/128 bits WEP, WPA, WPA2, WPA/WPA2-PSK, 802.1x 1.1.4 Network Protocol and Features  Ethernet to ADSL Self-Learning Transparent Bridging Wireless ADSL Router USER MANUAL 2  Internet Control Message Protocol (ICMP)  IP Static Routing  Routing Information Protocol (RIP, RIPv2)  Network Address Translation (NAT)  Virtual Server, Port Forwarding  Dynamic Host Configuration Protocol (DHCP)  DDNS  Simple Network Time Protocol (SNTP)  VPN pass-through (IPSec/PPTP/L2TP)  Parent control 1.1.5 ATM Capabilities  RFC 1483 Multi-protocol over ATM “Bridged Ethernet” compliant  RFC 2364 PPP over ATM compliant  RFC 2516 PPP over Ethernet compliant  ATM Forum UNI3.1/4.0 PVC  VPI Range: 0-255  VCI Range: 32-65535  UNI 3.0 & 3.1 Signaling  ATM AAL5 (Adaption Layer type 5)  OAM F4/F5 1.1.6 FIREWALL  Built-in NAT  MAC Filtering  Packet Filtering Wireless ADSL Router USER MANUAL 3  Stateful Packet Inspection (SPI)  Denial of Service Prevention (DoS)  DMZ 1.1.7 Management Support  Web Based GUI  Upgrade or update via FTP/HTTP  Command Line Interface via Telnet  Diagnostic Test  Firmware upgrade-able for future feature enhancement 1.1.8 Operating System Support  WINDOWS 98/SE/ME/2000/XP/VISTA/7  Macintosh  LINUX 1.1.9 Environmental  Operating humidity: 10%-90% non-condensing  Non-operating storage humidity: 5%-95% non-condensing 1.2 Packet Contents The packet contents are as the following:  ADSL ROUTER x 1  External Splitter x 1  Power Adapter x 1  Telephone Line x 1  Ethernet Cable x 1  CD x 1 1.3 System Requirements Before using this ROUTER, verify that you meet the following requirements: Wireless ADSL Router USER MANUAL 4  Subscription for ADSL service. Your ADSL service provider should provide you with at least one valid IP address (static assignment or dynamic assignment via dial-up connection).  One or more computers, each contains an Ethernet 10/100M Base-T network interface card (NIC).  A hub or switch, if you are co…

Text truncated - open the document above for the full version.

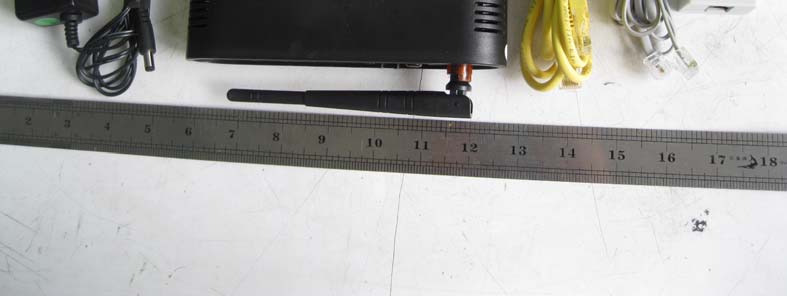

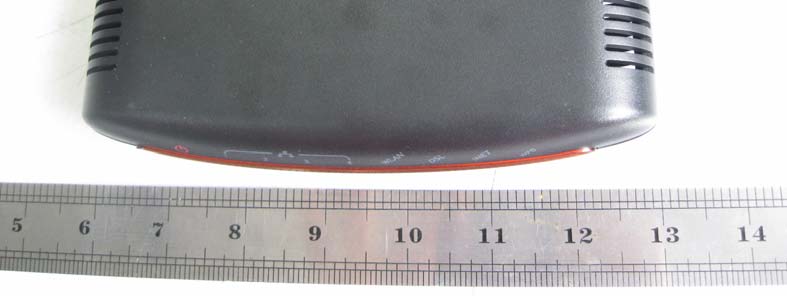

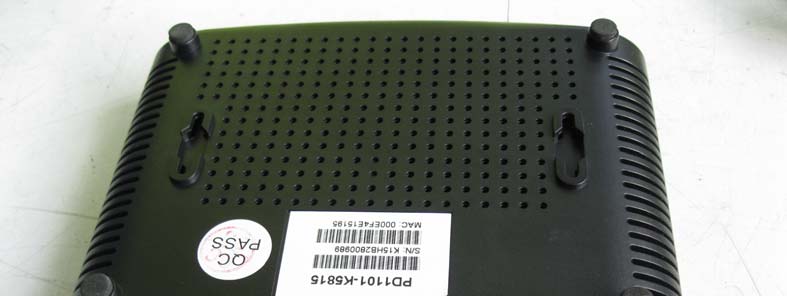

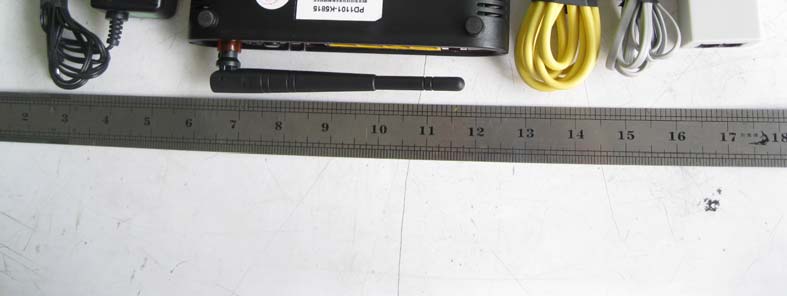

EXTERNAL PHOTOGRAPHS OF EUT External View of EUT-1 External View of EUT-2 External View of EUT-3 External View of EUT-4

FCC Label Location FCC Label Location & Label Size: 42mm*25mm Label Contents

INTERNAL PHOTOGRAPHS OF EUT Internal View of EUT-1 Internal View of EUT-2 Internal View of EUT-3 Internal View of EUT-4 Internal View of EUT-5

RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Max Peak output Power at antenna input terminal (dBm) 21.92 Max Peak output Power at antenna input terminal (mW) 155.6 Prediction distance (cm) 20 Prediction frequency (MHz) 2437 Antenna Gain(typical) (dBi) 3 Antenna Gain(numeric) 1.99 Power density at prediction frequency (mW/cm²) 0.062 MPE limit for uncontrolled exposure at prediction frequency(mW/cm²) 1.0 3. RESULT The power density level at 20 cm is 0.062 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at 2437 MHz for WIFI band.

Report No. : EESZD05310011-2 Page 1 of 64 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION Product Name : ADSL router Trade Name : Model Number : PD1101-K5815 Technical Data: AC 120V, 60Hz FCC ID : ZNL-PD1101-K5815 Report Number : EESZD05310011-2 Date : September 6, 2011 Prepared for: TelWorx Communications, LLC 239 welcome center BLVD, Lexington, North Carolina 27295, United States. Prepared by: CENTRE TESTING INTERNATIONAL (SHENZHEN) CORPORATION Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Check No.: 30000626 This report shall not be reproduced, except in full, without the written approval of CENTRE TESTING INTERNATIONAL Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen Standards Results 47 CFR FCC Part 15 Subpart C 15.247: 2010 PASS Report No. : EESZD05310011-2 Page 2 of 64 TABLE OF CONTENTS Description Page 1. CERTIFICATION INFORMATION ............................................................................................................... 4 2. TEST SUMMARY ........................................................................................................................................ 5 3. MEASUREMENT UNCERTAINTY .............................................................................................................. 5 4. PRODUCT INFORMATION ......................................................................................................................... 6 5. SYSTEM TEST CONFIGURATION............................................................................................................. 7 6. TEST EQUIPMENT LIST............................................................................................................................. 8 7. SUPPORT EQUIPMENT LIST .................................................................................................................... 8 8. 6DB BANDWIDTH MEASUREMENT ......................................................................................................... 9 8.1. LIMITS ................................................................................................................................................. 9 8.2. BLOCK DIAGRAM OF TEST SETUP.................................................................................................. 9 8.3. TEST PROCEDURE ........................................................................................................................... 9 8.4. TEST RESULT .................................................................................................................................... 9 9. POWER SPECTRAL DENSITY ................................................................................................................ 15 9.1. LIMITS ............................................................................................................................................... 15 9.2. BLOCK DIAGRAM OF TEST SETUP................................................................................................ 15 9.3. TEST PROCEDURE ......................................................................................................................... 15 9.4. TEST RESULT .................................................................................................................................. 15 10. MAXIMUM PEAK CONDUCTED OUTPUT POWER MEASUREMENT .............................................. 21 10.1. LIMITS ............................................................................................................................................... 21 10.2. BLOCK DIAGRAM OF TEST SETUP................................................................................................ 21 10.3. TEST PROCEDURE ......................................................................................................................... 21 10.4. TEST RESULT .................................................................................................................................. 21 11. BAND EDGE EMISSION MEASUREMENT ............................................................................................. 23 11.1. LIMITS ............................................................................................................................................... 23 11.2. BLOCK DIAGRAM OF TEST SETUP................................................................................................ 23 11.3. TEST PROCEDURE ......................................................................................................................... 24 11.4. TEST RESULT .................................................................................................................................. 25 Report No. : EESZD05310011-2 Page 3 of 64 12. SPURIOUS RF CONDUCTED EMISSIONS MEASUREMENT ........................................................... 29 12.1. LIMITS ............................................................................................................................................... 29 12.2. BLOCK DIAGRAM OF TEST SETUP................................................................................................ 29 12.3. TEST PROCEDURE ......................................................................................................................... 29 12.4. TEST RESULT .................................................................................................................................. 29 13. RADIATED EMISSIONS MEASUREMENT .......................................................................................... 44 13.1. LIMITS ............................................................................................................................................... 44 13.2. BLOCK DIAGRAM OF TEST SETUP.........................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photo CONDUCTED EMISSION TEST SETUP RADIATED EMISSION TEST SETUP
