AT-250 User’s Manual Plug In Your Device Watch your Discount Grow! Drive Safely Confirm Installation 888.665.9901 For more information, visit www.in-drive.com/sf Getting Started 1 Before you begin, make sure you: Verify all contents are in the box (as shown to the left). › In-Drive Communicator › In-Drive Visor Clip › In-Drive Visor Clip Car Charger › Quick Start Guide › Return Label Review the In-Drive Customer Agreement & Privacy Policy located at www.in-drive.com/sf. Installation and ongoing use of this device indicates your acknowledgement and acceptance of the In-Drive Customer Agreement & Privacy Policy found at www.in-drive.com/sf. Keep the Quick Start Guide in your glove box for future reference. Box Contents Quick Start Guide Plug In Your Device Watch your Discount Grow! Drive Safely Confirm Installation 888.665.9901 Quick Start Guide In-Drive Visor Clip Car Charger In-Drive Visor Clip In-Drive Communicator Return Label For more information, visit www.in-drive.com/sf 2 Important Time-Sensitive Steps Welcome to the In-Drive ® system from Verizon Telematics, a suite of connected services that are part of the State Farm ® Drive Safe & Save™ program. Central to the In-Drive solution is a simple device that you plug in to collect essential vehicle data and helps you earn a discount on your insurance. Getting started with the In-Drive program is easy. You’ve already taken the biggest step towards saving on your insurance premium by enrolling in the program. The In-Drive 12-month, FREE introductory offer began shortly after shipment of the device, so take full advantage of your service by completing the remaining three steps listed below. You have 30 days after the device has shipped to plug it in before your discount is removed which may result in a balance due. 1 2 3 Plug the device into your vehicle. See page 3 for detailed instructions. Installation is easy and only takes a few minutes! Locate the Quick Enroll number on the outside of the shipping box. This number will help to expedite your phone call. Final Step: Call 888.665.9901 to confirm your service choices and that the device has been successfully plugged in and is working properly. After this call, you’re done! Install your In-Drive Communicator (Figure A) › Locate your vehicle’s On-Board Diagnostic (OBD-II) Port. - This port is usually located under the dashboard, beneath the steering wheel column. If you can’t locate your OBD-II Port, refer to your vehicle’s Owner’s Manual. › Plug the In-Drive Communicator into the OBD-II Port. › Your In-Drive Communicator does NOT need to be charged. Install your In-Drive Visor Clip 1 (Figure B) › Place the In-Drive Visor Clip on the driver’s side visor. Charging Your In-Drive Visor Clip › Charge your In-Drive Visor Clip in your vehicle before you install; the battery indicator will be solid yellow while charging and turn solid green when the battery is fully charged. › Allow two hours to charge up to 75% battery life and about six hours to charge 100% when the battery is at zero capacity. › A fully charged Visor Clip offers approximately six weeks of standby time or 16 hours of hands-free talk time. › When the battery is low, the indicator will blink red. Please note: Switching your hands-free on/off button on the right hand side of the Visor Clip to the off position will extend battery life considerably while maintaining the availability of emergency and roadside calling features. 3 Installing Your Device 1 The In-Drive Visor Clip is optional for In-Drive Connect customers and can be paired with your Bluetooth ® capable mobile phone. Step Step 1 2 A B Tip: The Visor Clip can also be charged on a universal cell phone wall charger in your home. (Any time the visor clip is removed from the vehicle, Guardian services will not be available.) For more information, visit www.in-drive.com/sf For installation help, general service, and support, call the In-Drive Support Center at 888.270.0267. What To Expect Next: Take a Drive and Start Collecting Driving Statistics › During your first trip, the In-Drive Communicator will begin collecting your driving statistics, which will be shared with State Farm. › Most diagnostic information will be available immediately online. › Your MPG information will be available after a full calendar month of driving data has been collected (e.g. June 1 st through June 30 th equals a full calender month). View your Personal In-Drive Dashboard Login at www.statefarm.com, select your enrolled vehicle, then select “Manage Drive Safe & Save.” On this site you can: › learn safe driving tips › personalize your account › review your driving performance › calculate your potential premium discount › see your discount grow! 4 Confirm Installation Final Step: Call 888.665.9901 to confirm your service choices and that the device has been successfully plugged in and is working properly. Step 3 Service Package 5 1 Subscription fee applies after twelve months. 2 $35.94 plus applicable taxes billed every six months. 3 With compatible phones. In-Drive Connect Plug it in. Start saving! Insurance Discount In-Drive Connect provides the basic hardware and services necessary to earn an insurance discount from the Drive Safe & Save program. Stolen Vehicle Location Assistance If your car is stolen, In-Drive helps authorities find it, making it quicker and easier to return not only the car you love, but your possessions in it – keeping everyone’s insurance premiums lower. Hands-free Mobile Talking 3 Driver distraction is a leading cause of accidents and injuries on the road. In-Drive Connect allows you to connect via Bluetooth ® to your mobile phone, keeping your hands where they belong – on the steering wheel. Vehicle & Driving Reports Gain insights into your vehicle’s health as well as your driving habits through graphical, interactive displays you can access anywhere from the web. Perform maintenance before you end up at the side of the road. Learn how your driving habits affect your saf…

Text truncated - open the document above for the full version.

13811 Wireless Way Richmond, BC Main +1 604 231 1100 CANADA, V6V 3A4 Fax +1 604 231 1109 www.sierrawireless.com To Whom It May Concern: Subject: Authorization of the Validity of Test Results from Testing / Certification of the integrated Module for Host Device FCC/ IC Certification WE, Sierra Wireless Inc., 13811 Wireless Way, Richmond, BC V6V 3A4, Canada confirm to have provided the results from conducted testing applied for FCC/IC approval of the 3G radio module (GSM/GPRS/EDGE 850/1900, UMTS FDD2&5) Sierra Wireless SL8080T with FCC-ID: N7NSL8080 and IC: 2417C-SL8080; to be incorporated into the host equipment of Verizon Telematics Inc. model no. AT-250, with FCC ID: ZOQAT-250 and IC: 9734A-AT-250, and have provided the respective module’s test report Sierra Wireless SL8080 Modem Test Report “FCC Part 22, 24 / RSS 132, 133”, SL8080, July 21, 2010; to Cetecom Inc. for use of Verizon Telematics’ AT-250 certification. For Sierra Wireless Inc., Brad Teeter, Manager Field Applications Engineering 3/5/2014

Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 January 6, 2014 Dear FCC Examiner, Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Verizon Telematics requests temporary confidentiality for the following pro ducts: FCC ID Number Product Title/Model ZOQAT‐250 AT‐250 For the product stated above, we request that the following information be held confidential: 1) Block Diagram 2) Schematics 3) Parts List 4) Operational Description The above exhibits contain Verizon Telematics trade secrets and proprietary information that could be of benefit to our competitors regarding the desig n of our product. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Bryant Elliott Senior Director of Engineering Verizon Telematics 2002 Sum mit Blvd Suite 1800 Atlanta, GA 30319

Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 January 6, 2014 Dear FCC Examiner, Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Verizon Telematics requests temporary confidentiality for the following exhibits for 45 days from the date of the Grant of Equi pment Authorization: FCC ID Number Product Title/Model ZOQAT‐250 AT‐250 For the product stated above, we request that the following information be held confidential: 1) External Photos 2) Internal Photos 3) Users Manual 4) Test Setup Photos The above exhibits contain Verizon Telematics trade secrets and proprietary information that could be of benefit to our competitors regarding the desig n of our product. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Bryant Elliott Senior Director of Engineering Verizon Tele matics 2002 Summit Blvd Suite 1800 Atlanta, GA 30319

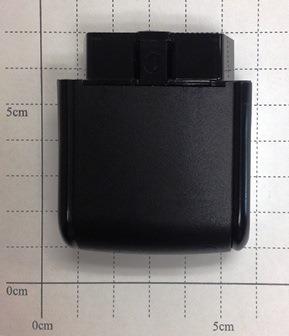

AT-250 Photos Exterior Photos Top View of EUT: Bottom View of EUT: Left View of EUT: Right View of EUT: Front View of EUT: Back View of EUT:

D C B A 4321 D C B A 4321 Title Unless Otherwise Specified, All Dimensions are in Millimeters. TOL on Angles +/- 1° 0 Place +/- 0.5 1 Place +/- 0.2 Per ASME Y14.5M-1994 Verizon Telematics Inc. 2002 Summit Blvd. Suite 1800 Atlanta, GA 30319 DrawnApprovedDrawing NumberRev ScaleSheet CONFIDENTIAL VERIZON TELEMATICS INC. owns this document and does not permit reproducing, copying, distributing, or divulging thereof without written consent. © Verizon Telematics Inc. 2014 Size LAJLAJ 11-10020A0 A 2 : 11 of 1 in-Drive AT-250 Label, Bar Code, Print Spec 29.8 21.8 Made in Mexico FCC ID: ZOQAT-250 IC: 9734A-AT250 Revision History DescriptionDateApp’d Initial Release131202LAJ 352083060000015 P/N 09-10137 Blank Label Fixed Content Contained in AT250_Label.ZPL AT-250 15-Digit S/N (IMEI) & Code 128 Bar Code Product Variant and Revision Level Model Number Notes: 1. Print Using Zebra Thermal Transfer Printer Model 110Xi4 with 5095 Resin Ribbon (or equivalent). Alternates Must be Approved in Writing by Verizon Telematics. 2. Print Content Controlled by the AT-250 Unit Labeling Software. ECO 0133 Rev A0 Verizon Telematics Inc. PVN-REV: 01-A0 AT-250 MODEL: 12V 2A Max Made in Mexico FCC ID: ZOQAT-250 IC: 9734A-AT250 Verizon Telematics Inc. PVN-REV: MODEL: 12V 2A Max

AT-250 Photos Internal Photos Open Top View of PCB: Bottom View of PCB: Open Top View of EUT:

Radio Frequency Exposure Evaluation Report for Manufacturer: Verizon Telematics Inc. Model number: AT-250 Product Description: GPS Navigation Device with 3G and Bluetooth FCC ID: ZOQAT-250 IC Certification Number: 9734A-AT-250 Applied Rules and Standards CFR Part Part 1 (1.1307 &1.1310), Part 2 (2.1091), FCC OET Bulletin 65 (1997-01) Supplement C (2001-01), FCC KDB 447498 D01 General 24 RF Exposure Guidance v05r01 Industry Canada RSS-102, Issue 4 of March 2010 Report number: EMC_VERIT-001-13001_AT_250_MPE DATE: 2014-03-18 Test Report #: EMC_VERIT-001-13001_AT_250_MPE FCC ID: ZOQAT-250 Date of Report: 2014-03-18 IC Cert. No.: 9734A-AT-250 Page 2 of 7 1 Administrative Data 1.1 Identification of the Testing Laboratory Issuing the Test Report Company Name: CETECOM Inc. Department: Compliance Address: 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Telephone: +1 (408) 586 6200 Fax: +1 (408) 586 6299 Acting Test Lab Manager Franz Engert 1.2 Identification of the Client / Manufacturer Applicant’s Name: Verizon Telematics Inc. Street Address: 2002 Summit Blvd., Suite 1800 City/Zip Code Atlanta, GA 30319 Country USA Contact Person: Bryant Elliott Phone No. +1 404 573 5800 e-mail: [email protected] Test Report #: EMC_VERIT-001-13001_AT_250_MPE FCC ID: ZOQAT-250 Date of Report: 2014-03-18 IC Cert. No.: 9734A-AT-250 Page 3 of 7 2 Equipment under Assessment Marketing Name: in-Drive Communicator AT-250 Model Number: AT-250 FCC ID: ZOQAT-250 IC Certification Number: 9734A-AT-250 Product Description: GPS Navigation Device with 3G and Bluetooth Transmitter information: 1. Sierra Wireless SL8080; FCC ID: N7NSL8080; IC ID: 2417C-SL8080  850/900/1800/1900MHz GSM/GPRS/EDGE; GPRS multislot class 10; EDGE multislot class 12  850/900/1900/2100 MHz WCDMA; 2. Bluetooth EDR radio, 2mW/3dBm; 3. GPS 1575.42 MHz; Antenna info (antenna as presented for testing with the development board): cellular: internal; -1.6 dBi at 850MHz; +1 dBi at 1900MHz; BT: ceramic chip; 0.4dBi peak gain; Co-located Transmitters/ Antennas?  Yes (Bluetooth and Cellular)  No Device Category:  Fixed Installation  Mobile  Portable Exposure Category:  Occupational/ Controlled  General Population/ Uncontrolled Rated Operating Voltage Range: +6 to +24Vdc Rated Operating Temperature Range: –40°C ~ +85°C Test Sample Status: Prototype Test Report #: EMC_VERIT-001-13001_AT_250_MPE FCC ID: ZOQAT-250 Date of Report: 2014-03-18 IC Cert. No.: 9734A-AT-250 Page 4 of 7 3 Assessment This RF Exposure evaluation report provides information about compliance of the below identified device with the RF Exposure limits for mobile or fixed devices as defined in FCC CFR Part 1 (1.1307 &1.1310), Part 2 (2.1091) and IC standard RSS-102 under given conditions (measured or rated RF output power, antenna gain, distance towards human body, multiple transmitter information as presented by the applicant). In addition, maximum antenna gain or minimum distance towards the human body is calculated, respectively, where relevant. The device meets the limits as stipulated by the above given FCC and IC rule parts based on available specifications. Company Description Model # Verizon Telematics, Inc. GPS Navigation Device with 3G and Bluetooth AT-250 Report reviewed by: 2014-03-18 Compliance Josie Sabado (Test Lab Manager) Signing on behalf of Franz Engert (Compliance Manager) Date Section Name Signature Responsible for the Report: 2014-03-18 Compliance Kenneth Reyes (EMC Engineer) Date Section Name Signature Test Report #: EMC_VERIT-001-13001_AT_250_MPE FCC ID: ZOQAT-250 Date of Report: 2014-03-18 IC Cert. No.: 9734A-AT-250 Page 5 of 7 4 RF Exposure Limits and FCC and IC Basic Rules For the specific described radio apparatus the following basic limits and rules apply for both, FCC and IC where not indicated differently. 4.1 Maximum Permissible Exposure (MPE) Limits acc. to FCC 1.1310(e) / RSS-102, cl. 4.2: Frequency Range (MHz) Power density (mW/cm 2 ) Averaging time (minutes) 300 – 1500 f (MHz) /1500 30 (IC:6) 1500 – 100.000 (IC:1500 – 150000) 1.0 30 (IC:6) 4.2 Routine Environmental Evaluation Categorical Exclusion Limits acc. to FCC 2.109(c) / RSS-102, cl. 2.5 (rounded to 1 decimal point): Operating frequency < 1.5GHz: excluded if ERP < 1.5W / 31.8dBm (IC: 2.5W / 34.0dBm EIRP); Operating frequency > 1.5GHz: excluded if ERP < 3.0W / 34.8dBm (IC: 5.0W / 37.0dBm EIRP); 4.3 EMC Output Power Limits (ERP/EIRP) acc. to FCC part 22/24/27 / IC RSS-132, RSS- 133, RSS-139 (to be additionally taken into account for maximum antenna gain considerations) part 22: 7W ERP / 38.5dBm (IC: 11.5W / 40.6dBm EIRP) part 24: 2W EIRP / 33.0dBm part 27: 1W EIRP / 30.0dBm Per KDB 447498 D01 FCC allows calculative estimation of RF exposure for mobile applications when routine environmental evaluation categorical exclusion applies and also for fixed applications. When categorical exclusion can not be claimed for mobile applications MPE measurement is required for TCB approval. RSS-102 of Industry Canada does generally not require RF exposure evaluation for fixed or mobile applications which stay below the given exclusion limits. 4.4 RF Exposure Estimation (MPE Estimation) Having available the source based average output power and peak antenna gain or the ERP/EIRP of the specified device and for a known minimum distance of it’s radiating structures from the body of persons according to it’s use cases (at least 20cm) the power density at that distance can be estimated by the following formula for plane-wave equivalent conditions (far-field conditions), when ground reflection is neglected. 2 4R PG S   where: S = power density (mW/cm 2 or W/m 2 ) P = power input to the antenna (mW or W) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (cm or m) Test Report #: EMC_VERIT-001-13001_AT_250_MPE FCC ID: ZOQAT-250 Date of Report: 2014-03-18 IC Cert. No.: 9734A-AT-250 Page 6 of 7 5 Evaluations The follow…

Text truncated - open the document above for the full version.

FCC: Accredited IC recognized # 3462B-1 CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V4.0 2012-09-24 © Copyright by CETECOM FCC/IC Partial Scope Test Report FOR Verizon Telematics Model Number: AT-250 Product Description: GPS Navigation Device with 3G and Bluetooth FCC ID: ZOQAT-250 IC Certification Number: 9734A-AT250 47 CFR Part 2, 22, 24 RSS-GEN Issue 3, RSS-132 Issue 3, RSS-133 Issue 6 TEST REPORT #: EMC_VERIT-001-13001_AT_250_FCC22_24 DATE: 2014-03-20 Test Report #: EMC_VERIT-001-13001_AT_250_FCC22_24 FCC ID: ZOQAT-250 Date of Report: 2014-03-20 IC Certification Number: 9734A-AT250 Page 2 of 78 Table of Contents 1 Assessment ............................................................................................................................... 3 2 Administrative Data ................................................................................................................. 4 2.1 Identification of the Testing Laboratory Issuing the Test Report .................................................. 4 2.2 Identification of the Client ............................................................................................................. 4 2.3 Identification of the Manufacturer ................................................................................................. 4 2.4 Dates of Testing: ............................................................................................................................ 4 3 Equipment under Test (EUT) ................................................................................................... 5 3.1 Specification of the Equipment under Test .................................................................................... 5 3.2 Identification of the Equipment under Test (EUT) ........................................................................ 6 3.3 Identification of Accessory equipment........................................................................................... 6 4 Summary of Measurement Results .......................................................................................... 7 5 Measurements........................................................................................................................... 9 5.7 RF Power Output ..................................................................................................................... 10 5.7.1 References ............................................................................................................................ 10 5.7.2 Limits: .................................................................................................................................. 10 5.7.3 Conducted Output Power Measurement .............................................................................. 11 5.7.4 Radiated Output Power Measurement ................................................................................. 12 6 Spurious Emissions Radiated ................................................................................................. 34 6.1.1 References ............................................................................................................................ 34 6.1.2 Limits: .................................................................................................................................. 34 6.1.3 Radiated out of band measurement procedure: ................................................................... 36 6.1.4 Sample Calculations for Radiated Measurements ............................................................... 37 6.1.5 Measurement Survey: ........................................................................................................... 37 6.1.6 Spectrum Analyzer Settings: ................................................................................................. 38 6.1.7 Test Results: ......................................................................................................................... 39 7 Test Equipment and Ancillaries used for tests ....................................................................... 75 8 Test Setup Diagrams .............................................................................................................. 76 9 Revision History ..................................................................................................................... 78 Test Report #: EMC_VERIT-001-13001_AT_250_FCC22_24 FCC ID: ZOQAT-250 Date of Report: 2014-03-20 IC Certification Number: 9734A-AT250 Page 3 of 78 1 Assessment The following equipment as further described in section 3 of this test report was evaluated against the applicable criteria specified in FCC CFR47 Parts 2, 22 and 24 & Industry Canada Radio Standard Specifications RSS-GEN Issue 3, RSS-132 Issue 3 and RSS-133 Issue 6. No deviations were ascertained during the course of the tests performed. Company Description Model # Verizon Telematics GPS Navigation Device with 3G and Bluetooth AT-250 Responsible for Testing Laboratory: 2014-03-20 Compliance Josie Sabado (Test Lab Manager) Signing on behalf of Franz Engert (Compliance Manager) Date Section Name Signature Responsible for the Report: 2014-03-20 Compliance Kenneth Reyes (EMC Engineer) Date Section Name Signature The test results of this test report relate exclusively to the test item specified in Section3. CETECOM Inc. USA does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of CETECOM Inc. USA. Test Report #: EMC_…

Text truncated - open the document above for the full version.

 2010 Sierra Wireless, Inc. This document contains information which is proprietary and confidential to Sierra Wireless, Inc. Disclosure to persons other than the officers, employees, agents, or subcontractors of the Company or licensee of this document without the prior written permission of Sierra Wireless, Inc. is strictly prohibited. SL8080 Modem Test Report FOR FCC and IC Certifications IC: 2417C-SL8080 FCC ID: N7NSL8080 SIERRA WIRELESS, INC. FCC Part 22, 24 / RSS 132, 133 SL8080 July 21, 2010 Page 2 of 72  2009 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. Table of Contents 1 Introduction and Purpose ......................................................................... 4 2 Test Summary .......................................................................................... 4 3 Description of Equipment under Test ...................................................... 4 4 RF Power Output ..................................................................................... 5 4.1 Test Procedure .................................................................................................... 5 4.2 Test Equipment.................................................................................................... 5 4.3 Test Results GSM/EDGE (GMSK: MCS4; 8-PSK: MCS9) ................................ 6 4.4 Test Results UMTS .............................................................................................. 6 4.4.1 Test 1: RF Output Power Results for WCDMA R99 ....................................... 6 4.4.2 Test 2: RF Output Power Results for HSDPA Rel6 ........................................ 7 4.5 Test Settings for UMTS Mode on CMU200 ........................................................ 9 5 Occupied Bandwidth .............................................................................. 13 5.1 Test Procedure .................................................................................................. 13 5.2 Test Equipment.................................................................................................. 13 5.3 Test Results ....................................................................................................... 13 5.3.1 GSM Results .................................................................................................. 14 5.3.2 WCDMA Results ........................................................................................... 14 5.4 Test Plots ........................................................................................................... 15 6 Out of Band Emissions at Antenna Terminals ...................................... 24 6.1 Test Procedure .................................................................................................. 24 6.2 Test Equipment.................................................................................................. 24 6.3 Test Results ....................................................................................................... 25 6.4 Test Plots ........................................................................................................... 26 7 Block Edge Compliance ........................................................................ 62 7.1 Test Procedure .................................................................................................. 62 7.2 Test Equipment.................................................................................................. 62 7.3 Test Results ....................................................................................................... 62 7.4 Test Plots ........................................................................................................... 63 8 Frequency Stability versus Temperature ............................................... 69 8.1 Summary of Results ........................................................................................... 69 8.2 Test Procedure .................................................................................................. 69 8.3 Test Equipment.................................................................................................. 69 8.4 Test Results ....................................................................................................... 70 8.4.1 GSM Frequency Error over Temperature .................................................... 70 8.4.2 UMTS Frequency Error over Temperature .................................................. 70 9 Frequency Stability versus Voltage ....................................................... 71 9.1 Summary of Results ........................................................................................... 71 9.2 Test Procedure .................................................................................................. 71 9.3 Test Equipment.................................................................................................. 71 9.4 Test Results ....................................................................................................... 72 9.4.1 GSM Frequency Error over Voltage............................................................. 72 SIERRA WIRELESS, INC. FCC Part 22, 24 / RSS 132, 133 SL8080 July 21, 2010 Page 3 of 72  2009 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. 9.4.2 UMTS Frequency Error over Voltage .......................................................... 72 SIERRA WIRELESS, INC. FCC Part 22, 24 / RSS 132, 133 SL8080 July 21, 2010 Page 4 of 72  2009 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. 1 Introduction and Purpose This document provides test data for the SL8080 modem intended for FCC and Industry Canada certifications. The tests included in this report are limited to all conducted tests required. The radiated tests were pe…

Text truncated - open the document above for the full version.

Project #: EMC_VERIT-001- 13001_AT_250_FCC22_24 FCC ID: ZOQAT-250 Date of Report : 2014-03-18 IC ID: 9734A-AT250 Page 1 of 6 Test Setup Photographs Model Number: AT-250 Product Description: in-Drive Communicator Manufacturer: Verizon Telematics, Inc. FCC ID: ZOQAT-250 IC ID: 9734A-AT250 Test Site Information: CETECOM Inc. Milpitas, CA USA Project #: EMC_VERIT-001- 13001_AT_250_FCC22_24 FCC ID: ZOQAT-250 Date of Report : 2014-03-18 IC ID: 9734A-AT250 Page 2 of 6 Radiated Spurious Emissions Test Setup: 9 kHz – 30 MHz measurement setup: Project #: EMC_VERIT-001- 13001_AT_250_FCC22_24 FCC ID: ZOQAT-250 Date of Report : 2014-03-18 IC ID: 9734A-AT250 Page 3 of 6 30M-1GHz measurement setup: Project #: EMC_VERIT-001- 13001_AT_250_FCC22_24 FCC ID: ZOQAT-250 Date of Report : 2014-03-18 IC ID: 9734A-AT250 Page 4 of 6 >1GHz measurement setup: Project #: EMC_VERIT-001- 13001_AT_250_FCC22_24 FCC ID: ZOQAT-250 Date of Report : 2014-03-18 IC ID: 9734A-AT250 Page 5 of 6 >18 GHz measurement setup: Project #: EMC_VERIT-001- 13001_AT_250_FCC22_24 FCC ID: ZOQAT-250 Date of Report : 2014-03-18 IC ID: 9734A-AT250 Page 6 of 6 ERP/EIRP Measurement setup:
