ZORNBM-3Bluetooth Module

ZORNBM-3 / 7847C-NBM3 Information to User Copyright  2011 novero. All rights reserved. Information to the User The NBM-3 Bluetooth Module is intended for integration into Novero products only. Therefore it has no User Manual. The following information will be included in the end product User Guide: FCC/Industry Canada notice This device complies with Part 15 of the FCC and Industry Canada Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference; and 2. This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. FCC Radiation Exposure Statement This equipment complies with FCC and Industry Canada radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: Changes or modifications not expressly approved by Novero could void the user’s authority to operate the equipment. Label Information FCC/Industry Canada: If the module is installed inside host devices, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label shall use wording such as the following: Contains FCC ID: ZORNBM-3 IC: 7847C-NBM3

ZORNBM-3 / 7847C-NBM3 Modular Approval Checklist Copyright  2011 novero. All rights reserved. We, the applicant, request modular approval for above mentioned application. The modular transmitter complies with each of the following conditions: Modular approval requirement (a) The radio elements must have the radio frequency circuitry must be shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. YES (b) The module shall have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS standard under conditions of excessive data rates or over-modulation. YES (c) The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. YES (d) The module shall comply with the provisions for external power amplifiers and antennas detailed in this standard. The equipment certification submission shall contain a detailed description of the configuration of all antennas that will be used with the module. YES (e) The module shall be tested for compliance with the applicable standard in a stand-alone configuration, i.e. the module must not be inside another device during testing. YES (f) The module shall comply with the Category I equipment labelling requirements. YES (g) The module shall comply with applicable RSS-102 exposure requirements, which are based on the intended use/configurations. YES (h) Is the modular device for an Industry Canada licensed exempt service? YES

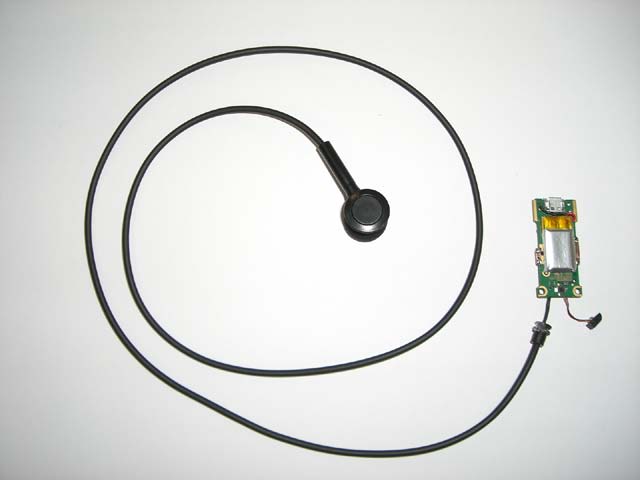

ZORNBM-3 / 7847C-NBM3 Internal Photographs Copyright  2011 novero. All rights reserved. Bottom View with shielding Top View with shielding Top View without shielding Buttom View without shielding Antenna Shielding Battery

ZORNBM-3 / 7847C-NBM3 Label drawing and location Copyright  2011 novero. All rights reserved. Bottom view of PWB Label

ZORNBM-3 / 7847C-NBM3 Internal Photographs Copyright  2011 novero. All rights reserved. Bottom View with shielding Top View with shielding Top View without shielding Buttom View without shielding Antenna Shielding Battery

novero Test Center _____________________________________________________________________________________________________ Project support engineer: Robert Müller Test Report for FCC Part 15C Date of issue: 27-Sep-2011 Template version 1.0 Report No.: EMC_BO_001670 Copyright  2011 novero. All rights reserved. 1 (37) FCC Part 15C Compliance Test Report This test report may not be reproduced, except in full, without written permission of testing laboratory. The test results in this test report relates only to the tested sample, which is mentioned in this test report. Novero GmbH cannot be made responsible for any generalisations or conclusions drawn from this test report. Modification of the tested sample is prohibited and leads to invalidity of this test report. Test Report no.: EMC_BO_001670 Date of Report: 27-Sep-2011 Number of pages: 37 Project support engineer: Robert Müller Customer: novero International GmbH, Parsevalstr. 7A, 40468 Düsseldorf, Germany Customers contact: Bernhard Bläcker Manufacturer Novero International GmbH EUT ident.: Bluetooth Headset Module, NBM-3 FCC ID ZORNBM-3 IC: 7347C-NBM3 Referred documents: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2009), Public Notice DA 00-705, IC standards RSS-GEN and RSS-210. Deviations or clarifications to these standards are noted in the related test result under “test method and limit”. Testing Laboratory: novero Test Center, Meesmannstr.103, 44807 Bochum, Germany Tel.: +49 234 51668-0 Fax.: +49 234 51668 4880 FCC listing no.: 881111 IC recognition no.: 7847A-1 Laboratory manager: Jürgen Mitterer Test result The EUT complies with the requirements made in the referred test documents. Date and signature: novero Test Center _____________________________________________________________________________________________________ Project support engineer: Robert Müller Test Report for FCC Part 15C Date of issue: 27-Sep-2011 Template version 1.0 Report No.: EMC_BO_001670 Copyright  2011 novero. All rights reserved. 2 (37) 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 20-Sep-2011 Testing completed 26-Sep-2011 The customer's contact person Bernhard Bläcker Notes none Document name NBM-3_FCC_Part_15C_Compliance_Test_Report_01.doc 1.1. EUT and Accessory Information The EUT is a Bluetooth device. Bluetooth is tested with maximum rated TX power. Product Type SN HW MV SW DUT Fashion Bluetooth Headset NBHF-1 LIA015 MP - 1.08 LIA015 Fashion Bluetooth Headset NBHF-1 LIA006 MP - 1.08 LIA006 1.2. Summary of Test Results Bluetooth: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8.4 (b) Conducted peak output power PASSED 15.247(d) A8.5 Band edge compliance of RF emissions PASSED 15.247(c) A8.5 Spurious RF conducted emissions PASSED 15.247(c), 15.209 A8.5 Spurious radiated emissions PASSED 15.207 7.2.2 AC powerline conducted emissions PASSED 15.247(a)(1) A8.1 (a) 20 dB bandwidth PASSED 15.247(a)(1) A8.1 (b) Carrier frequency separation PASSED 15.247(a)(1)(iii) A8.1 (d) Number of hopping frequencies PASSED 15.247(a)(1)(iii) A8.1 (d) Time of occupancy PASSED PASSED: The EUT complies with the essential requirements in the standard. FAILED: The EUT does not comply with the essential requirements in the standard. NP: The test was not performed. novero Test Center _____________________________________________________________________________________________________ Project support engineer: Robert Müller Test Report for FCC Part 15C Date of issue: 27-Sep-2011 Template version 1.0 Report No.: EMC_BO_001670 Copyright  2011 novero. All rights reserved. 3 (37) CONTENTS 1. SUMMARY FOR FCC PART 15C COMPLIANCE TEST REPORT........................................... 2 1.1. EUT AND ACCESSORY INFORMATION ............................................................................................. 2 1.2. S UMMARY OF TEST RESULTS .......................................................................................................... 2 2. TEST SETUPS .......................................................................................................................... 4 2.1. C ONDUCTED RF TEST SETUP ........................................................................................................... 4 2.2. AC POWER LINE CONDUCTED EMISSIONS TEST SETUP .................................................................. 4 2.3. S PURIOUS RADIATED EMISSIONS TEST SETUP ................................................................................ 4 3. CONDUCTED PEAK OUTPUT POWER (FCC §15.247(B)(1), RSS-210 A8.4 (2)) .................. 5 3.1. T EST METHOD AND LIMIT .................................................................................................................. 5 3.2. B LUETOOTH TEST RESULTS ............................................................................................................. 6 4. BAND EDGE COMPLIANCE OF RF EMISSIONS (FCC §15.247(D), RSS-210 A8.5) .............. 8 4.1. T EST METHOD AND LIMIT .................................................................................................................. 8 4.2. B LUETOOTH TEST RESULTS ............................................................................................................. 9 5. SPURIOUS RF CONDUCTED EMISSIONS (FCC §15.247(D), RSS-A8.5) ............................ 17 5.1. T EST METHOD AND LIMIT ................................................................................................................ 17 5.2. B LUETOOTH TEST RESULTS ........................................................................................................... 18 6. SPURIOUS RADIATED EMISSIONS (FCC §15.247(D), §15.209, RSS-210 A8.5) ................. 21 6.1. T EST METHOD AND LIMIT ................................................................................................................ 21 6.2. B LUETOOTH TEST RESULTS ...........................................................................................…

Text truncated - open the document above for the full version.

ZORNBM-3 / 7847C-NBM3 EMC Test Setup Photos Copyright  2011 novero. All rights reserved. FCC Part 15C Radiated Emissions Test Setup FCC Part 15C AC Line Conducted Emissions Test Setup
