ZORNBM-4Bluetooth Module

ZORNBM-4 / 7847C-NBM4 Information to User Copyright  2011 novero. All rights reserved. Information to the User The NBM-4 Bluetooth Module is intended for integration into Novero products only. Therefore it has no User Manual. The following information will be included in the end product User Guide: FCC/Industry Canada notice This device complies with Part 15 of the FCC and Industry Canada Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference; and 2. This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. FCC Radiation Exposure Statement This equipment complies with FCC and Industry Canada radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: Changes or modifications not expressly approved by Novero could void the user’s authority to operate the equipment. Label Information FCC/Industry Canada: If the module is installed inside host devices, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label shall use wording such as the following: Contains FCC ID: ZORNBM-4 IC: 7847C-NBM4

ZORNBM-4 Modular Approval Checklist Copyright  2011 novero. All rights reserved. We, the applicant, request modular approval for above mentioned application. The modular transmitter complies with each of the following conditions: Modular approval requirement (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. YES (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over- modulation. YES (iii) The modular transmitter must have its own power supply regulation. YES (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of §15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. YES (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with part 15 requirements. YES (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. YES (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. YES (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. YES

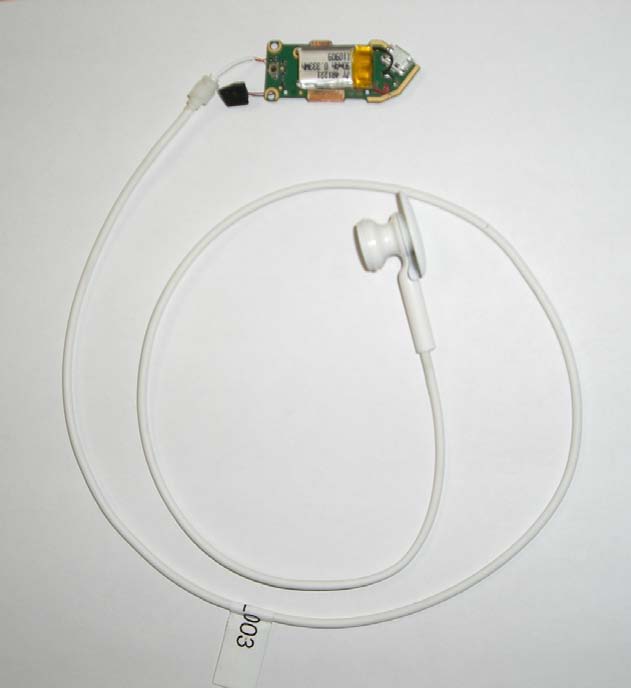

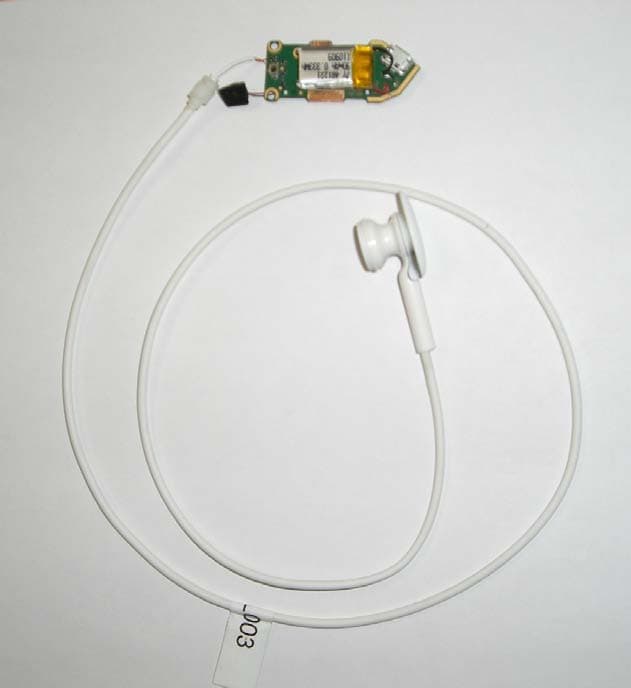

ZORNBM-4 / 7847C-NBM4 Antenna Information Copyright  2011 novero. All rights reserved. Antenna Information The earpiece wire is used as a monopol antenna. The antenna is a wired antenna type with max Gain of 0.5 dBi. Material of Antenna is copper AWG28 and Antenna is located in a necklace with earpiece. How the antenna is connected to the transmitting circuit Antenna connection to BT module

ZORNBM-4 / 7847C-NBM4 Internal Photographs Copyright  2011 novero. All rights reserved. Bottom View with shielding Top View with shielding Antenna Shielding Battery ZORNBM-4 / 7847C-NBM4 Internal Photographs Copyright  2011 novero. All rights reserved. Top View without shielding Buttom View without shielding

ZORNBM-4 / 7847C-NBM4 Label drawing and location Copyright  2011 novero. All rights reserved. Bottom view of PWB Label

ZORNBM-4 / 7847C-NBM4 Internal Photographs Copyright  2011 novero. All rights reserved. Bottom View with shielding Top View with shielding Antenna Shielding Battery ZORNBM-4 / 7847C-NBM4 Internal Photographs Copyright  2011 novero. All rights reserved. Top View without shielding Buttom View without shielding

novero Test Center _____________________________________________________________________________________________________ Project Support Engineer: Robert Müller Test Report for FCC Part 15C Date of Issue: 06-Oct-2011 Template version 1.0 Report No.: EMC_BO_001677 Copyright  2011 novero. All rights reserved. 1 (36) FCC Part 15C Compliance Test Report This test report may not be reproduced, except in full, without written permission of testing laboratory. The test results in this test report relates only to the tested sample, which is mentioned in this test report. Novero GmbH cannot be made responsible for any generalisations or conclusions drawn from this test report. Modification of the tested sample is prohibited and leads to invalidity of this test report. Test Report no.: EMC_BO_001677 Date of Report: 06-Oct-2011 Number of pages: 36 Project support engineer: Robert Müller Customer: novero International GmbH, Parsevalstr. 7A, 40468 Düsseldorf, Germany Customers contact: Bernhard Bläcker Manufacturer Novero International GmbH EUT ident.: Bluetooth Headset Module, NBM-4 FCC ID ZORNBM-4 IC: 7347C-NBM4 Referred documents: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, IC standards RSS-GEN and RSS-210. Deviations or clarifications to these standards are noted in the related test result under “test method and limit”. Testing Laboratory: novero Test Center, Meesmannstr.103, 44807 Bochum, Germany Tel.: +49 234 51668-0 Fax.: +49 234 51668 4880 FCC listing no.: 881111 IC recognition no.: 7847A-1 Laboratory manager: Jürgen Mitterer Test result The EUT complies with the requirements made in the referred test documents. Date and signature: novero Test Center _____________________________________________________________________________________________________ Project Support Engineer: Robert Müller Test Report for FCC Part 15C Date of Issue: 06-Oct-2011 Template version 1.0 Report No.: EMC_BO_001677 Copyright  2011 novero. All rights reserved. 2 (36) 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 28-Sep-2011 Testing completed 05-Oct-2011 The customer's contact person Bernhard Bläcker Notes none Document name NBM-3_FCC_Part_15C_Compliance_Test_Report_01.doc 1.1. EUT and Accessory Information The EUT is a Bluetooth device. Bluetooth is tested with maximum rated TX power. Product Type SN HW MV SW DUT Bluetooth Headset Module NBM-4 LIL003 MP - 1.08 LIL003 Bluetooth Headset Module NBM-4 LIL004 MP - 1.08 LIL004 1.2. Summary of Test Results Bluetooth: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8.4 (b) Conducted peak output power PASSED 15.247(d) A8.5 Band edge compliance of RF emissions PASSED 15.247(c) A8.5 Spurious RF conducted emissions PASSED 15.247(c), 15.209 A8.5 Spurious radiated emissions PASSED 15.207 7.2.2 AC powerline conducted emissions PASSED 15.247(a)(1) A8.1 (a) 20 dB bandwidth PASSED 15.247(a)(1) A8.1 (b) Carrier frequency separation PASSED 15.247(a)(1)(iii) A8.1 (d) Number of hopping frequencies PASSED 15.247(a)(1)(iii) A8.1 (d) Time of occupancy PASSED PASSED: The EUT complies with the essential requirements in the standard. FAILED: The EUT does not comply with the essential requirements in the standard. NP: The test was not performed. novero Test Center _____________________________________________________________________________________________________ Project Support Engineer: Robert Müller Test Report for FCC Part 15C Date of Issue: 06-Oct-2011 Template version 1.0 Report No.: EMC_BO_001677 Copyright  2011 novero. All rights reserved. 3 (36) CONTENTS 1. SUMMARY FOR FCC PART 15C COMPLIANCE TEST REPORT........................................... 2 1.1. EUT AND ACCESSORY INFORMATION ............................................................................................. 2 1.2. S UMMARY OF TEST RESULTS .......................................................................................................... 2 2. TEST SETUPS .......................................................................................................................... 4 2.1. C ONDUCTED RF TEST SETUP ........................................................................................................... 4 2.2. AC POWER LINE CONDUCTED EMISSIONS TEST SETUP .................................................................. 4 2.3. S PURIOUS RADIATED EMISSIONS TEST SETUP ................................................................................ 4 3. CONDUCTED PEAK OUTPUT POWER (FCC §15.247(B)(1), RSS-210 A8.4 (2)) .................. 5 3.1. T EST METHOD AND LIMIT .................................................................................................................. 5 3.2. B LUETOOTH TEST RESULTS ............................................................................................................. 6 4. BAND EDGE COMPLIANCE OF RF EMISSIONS (FCC §15.247(D), RSS-210 A8.5) .............. 8 4.1. T EST METHOD AND LIMIT .................................................................................................................. 8 4.2. B LUETOOTH TEST RESULTS ............................................................................................................. 9 5. SPURIOUS RF CONDUCTED EMISSIONS (FCC §15.247(D), RSS-A8.5) ............................ 17 5.1. T EST METHOD AND LIMIT ................................................................................................................ 17 5.2. B LUETOOTH TEST RESULTS ........................................................................................................... 18 6. SPURIOUS RADIATED EMISSIONS (FCC §15.247(D), §15.209, RSS-210 A8.5) ................. 21 6.1. T EST METHOD AND LIMIT ................................................................................................................ 21 6.2. B LUETOOTH TEST RESULTS ...............................................................................................…

Text truncated - open the document above for the full version.

ZORNBM-4 / 7847C-NBM4 EMC Test Setup Photos Copyright  2011 novero. All rights reserved. FCC Part 15C Radiated Emissions Test Setup FCC Part 15C AC Line Conducted Emissions Test Setup
