  1. Home/
  2. AMPAK Technology Inc./
  3. ZQ6-99PW020046R

ZQ6-99PW020046RWi-Fi USB Dongle

AMPAK Technology Inc.
Wi-Fi USB Dongle - FCC ID ZQ6-99PW020046R - AMPAK Technology Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 18, 2011
Application Purpose
Original Equipment
Date of Application
Sep 18, 2011
Equipment Note
Wi-Fi USB Dongle
Frequency Range
2422.00000000 - 2452.00000000
Company
AMPAK Technology Inc.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

WUBR-608GN User Manual I、 、、 、Installation 1. Insert USB dongle and it shows window as below 2. Select as below 3. Select as below 4. Select as below 5. Click “Browse” 6. Open “RT2870” 7. Select as below 8. Select as below 9. 10. Click “Finish” II、Product specification Interface USB2.0 Spec WLAN 802.11b/g/n Transmitting rate Up to 150 Mbps Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. IMPORTANT NOTE: Federal Communication Commission (FCC) Radiation Exposure Statement This EUT is compliance with SAR for general population/uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C. This equipment should be installed and operated with minimum distance 0.5 cm between the radiator & your body.

External Photos

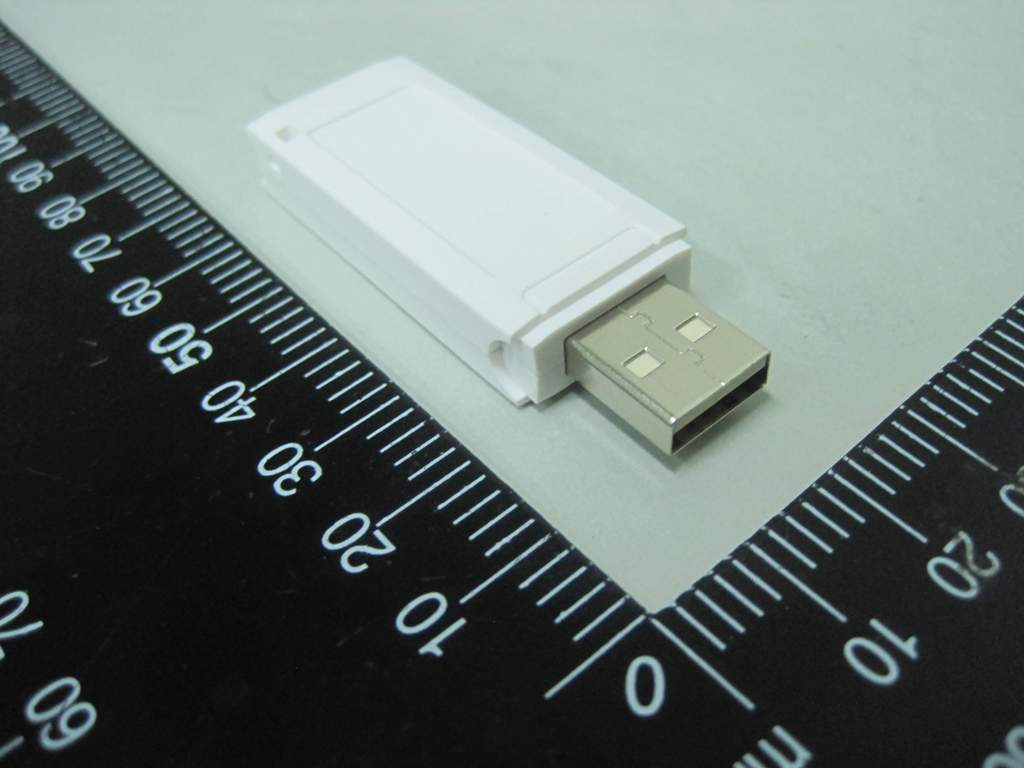

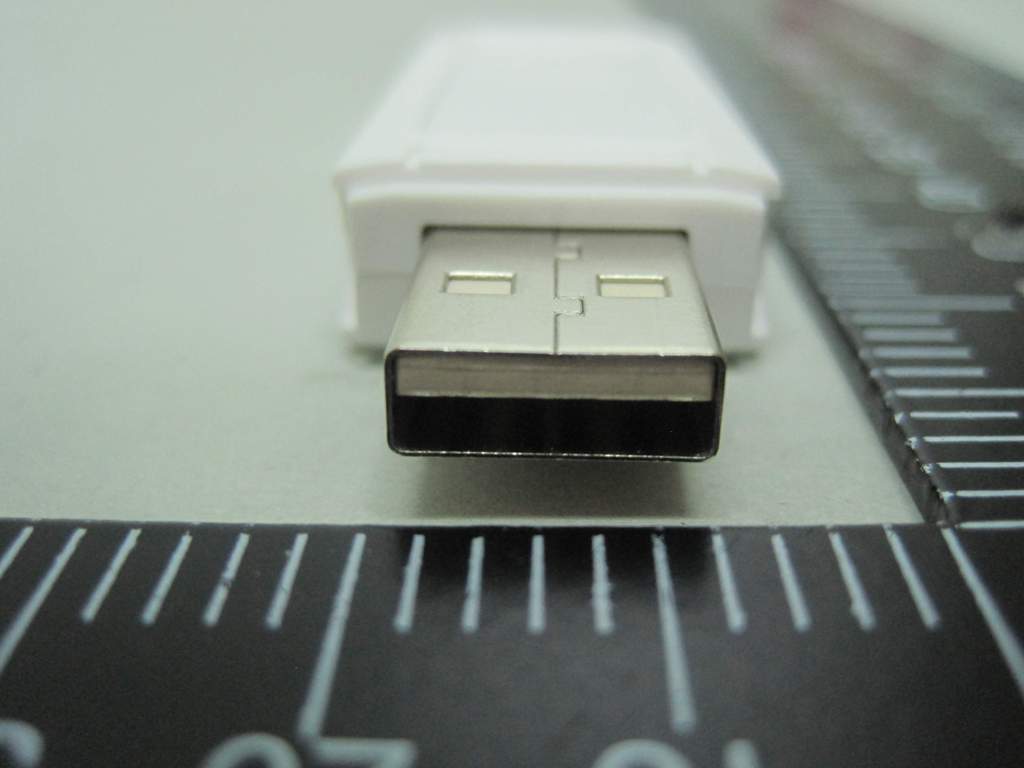

Report No.: 151919 SPORTON International Inc. PAGE NUMBER : 1 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 14, 2011 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 151919 SPORTON International Inc. PAGE NUMBER : 2 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 14, 2011 FAX : 886-2-2696-2255

ID Label/Location Info

Label siz e: 31*13.5 **R0.5mm

Internal Photos

Report No.: 151919 SPORTON International Inc. PAGE NUMBER : 1 OF 3 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 14, 2011 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 151919 SPORTON International Inc. PAGE NUMBER : 2 OF 3 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 14, 2011 FAX : 886-2-2696-2255 Report No.: 151919 SPORTON International Inc. PAGE NUMBER : 3 OF 3 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 14, 2011 FAX : 886-2-2696-2255

RF Exposure Info

SPORTON INTERNATIONAL INC. Page Number : 1 of 30 TEL : 886-3-327-3456 Report Issued Date : Aug. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : ZQ6-99PW020046R FCC SAR Test Report Report No. : FA151919 FCC SAR Test Report APPLICANT : AMPAK Technology Inc. EQUIPMENT : Wi-Fi USB Dongle MODEL NAME : WUBR-608GN FCC ID : ZQ6-99PW020046R STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on May 19, 2011 and completely tested on Jun. 29, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 30 TEL : 886-3-327-3456 Report Issued Date : Aug. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : ZQ6-99PW020046R FCC SAR Test Report Report No. : FA151919 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 8 4.1 Introduction ....................................................................................................................................................... 8 4.2 SAR Definition .................................................................................................................................................. 8 5. SAR Measurement System ........................................................................................................................................ 9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage ..............................…

Text truncated - open the document above for the full version.

Test Report

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company AMPAK Technology Inc. Applicant Address 3F,No. 1, Jen AI Road, Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, 30352 FCC ID ZQ6-99PW020046R Manufacturer’s company AMPAK Technology Inc. Manufacturer Address 3F,No. 1, Jen AI Road, Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, 30352 Product Name Wi-Fi USB Dongle Brand Name AMPAK Model Name WUBR-608GN Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date May 19, 2011 Final Test Date Jul. 13, 2011 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR151919 Report Format Version: 01 Page No. : iof ii FCC ID: ZQ6-99PW020046R Issued Date : Jul. 14, 2011 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................7 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................7 3.9. Test Configurations .............................................................................................................................................................................8 4. TEST RESULT ................................................................................................................................................... 11 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................11 4.2. Peak Output Power Measurement ....................................................................................................................................................15 4.3. Average Output Power Measurement ..............................................................................................................................................18 4.4. Power Spectral Density Measurement ..............................................................................................................................................21 4.5. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................26 4.6. Radiated Emissions Measurement ....................................................................................................................................................31 4.7. Band Edge Emissions Measurement .................................................................................................................................................49 4.8. Antenna Requirements .....................................................................................................................................................................60 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 61 6. TEST LOCATION.............................................................................................................................................. 63 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 64 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A7 APPENDIX B. MAXI…

Text truncated - open the document above for the full version.

Test Setup Photos

SPORTON INTERNATIONAL INC. Page Number : D1 of D1 TEL : 886-3-327-3456 Report Issued Date : Jul. 14, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZQ6-99PW020046R FCC SAR Test Report Report No. : FA151919 Appendix D. Product Photos SPORTON INTERNATIONAL INC. Page Number : E1 of E1 TEL : 886-3-327-3456 Report Issued Date : Jul. 14, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZQ6-99PW020046R FCC SAR Test Report Report No. : FA151919 Appendix E. Test Setup Photos Direct Laptop Plug-in for USB Configuration 1 (Horizontal Up with Phantom 5 mm Gap) USB Cable Plug-in for USB Configuration 2 (Horizontal Down with Phantom 5 mm Gap) Direct Laptop Plug-in USB Configuration 3 (Vertical Front with Phantom 5 mm Gap) USB Cable Plug-in for USB Configuration 4 (Vertical Back with Phantom 5 mm Gap) USB Cable Plug-in for USB Configuration 5 (Tip Mode with Phantom 5 mm Gap)

Test Setup Photos

Report No.: FR151919 FCC ID: ZQ6-99PW020046R Page No. : 1 of 7 Appendix A. Test Photos Report No.: FR151919 FCC ID: ZQ6-99PW020046R Page No. : 2 of 7 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR151919 FCC ID: ZQ6-99PW020046R Page No. : 3 of 7 SIDE VIEW Report No.: FR151919 FCC ID: ZQ6-99PW020046R Page No. : 4 of 7 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR151919 FCC ID: ZQ6-99PW020046R Page No. : 5 of 7 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR151919 FCC ID: ZQ6-99PW020046R Page No. : 6 of 7 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW Report No.: FR151919 FCC ID: ZQ6-99PW020046R Page No. : 7 of 7 SIDE VIEW

Contact Information

Applicant

Changyi Tsai(Manager)
[email protected]886-3-600-9666Fax: 886-3-600-3535

Test Firm

Sporton International Inc.Alex Chen
[email protected]886-3-327-3456Fax: 886-3-327-0973

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz320.00 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is conducted. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 1T1R Spatial Multiplexing MIMO configuration as described in this filing. When operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 2422 to 2452 MHz. SAR compliance has been established for direct laptop and USB cable plug-in configurations with a separation distance of 0.5 cm between the particular dongle orientation and flat phantom. The highest reported SAR value is: 0.258 W/kg
