ZQ6-AP6275SWi-Fi/Bluetooth Module

正基科技股份有限公司 SPECIFICATION PRODUCT NAME：AP6275S REVISION： 2.2 DATE：Dec. 6 th , 2022 Customer APPROVED Company Representative Signature PREPARED REVIEW APPROVED DCC ISSUE PM QA ET 保存期限:最新版本 C-RD-047F AP6275S Address: 8F, No.15-1, Zhonghua Road, Hsinchu Industril Park, Hukou, Hsinchu, Taiwan, 30352 Website: http://www.ampak.com.tw/ AP6275S Data Sheet AP6275S Datasheet AMPAK Technology Inc. 8F, No.15-1, Zhonghua Road, Hsinchu Industril Park, Hukou, Hsinchu, Taiwan, 30352 http://www.ampak.com.tw i Revision Revision Date Description Revised By 1.4 2020/09/21 --official release Ares 1.5 2021/02/23 --Modify Recommended Reflow Profile Richard 1.6 2021/05/26 --Modify Bluetooth Specification Richard 1.7 2021/07/15 --Remove the feature of Real simultaneous dual-band Richard 1.8 2021/07/23 --Updated 11 a/n/ac/ax low rate power Ares 1.9 2021/10/06 --Updated 11ax MIMO Rx performance Ares 2.0 2021/11/19 --Modify RF block diagram Ares 2.1 2022/10/27 --Modify 5GHz supported channel Richard 2.2 2022/12/06 --Modify Bluetooth Specification Richard AP6275S Datasheet AMPAK Technology Inc. 8F, No.15-1, Zhonghua Road, Hsinchu Industril Park, Hukou, Hsinchu, Taiwan, 30352 http://www.ampak.com.tw ii Contents Revision ........................................................................................................................... 1 1. Introduction ................................................................................................................ 2 1.1 Overview .................................................................................................................... 2 1.2 Product Features ........................................................................................................ 3 2. General Specification .................................................................................................. 4 2.1 General Specification.................................................................................................. 4 2.2 DC Characteristics ....................................................................................................... 4 2.2.1 Absolute Maximum Ratings .............................................................................. 4 2.2.2 Recommended Operating Rating ...................................................................... 5 3. Wi-Fi RF Specification ................................................................................................. 6 3.1 2.4GHz RF Specification .............................................................................................. 6 3.2 5GHz RF Specification ................................................................................................. 9 4. Bluetooth Specification ............................................................................................. 24 4.1 Bluetooth Specification ............................................................................................ 24 5. Pin Definition ............................................................................................................ 25 5.1 Pin Outline ................................................................................................................ 25 5.2 Pin Assignment ......................................................................................................... 26 6. Dimensions ............................................................................................................... 28 6.1 Module Dimensions ................................................................................................. 28 6.2 Recommended footprint .......................................................................................... 29 7. External clock reference ............................................................................................ 30 8. Host Interface Timing Diagram .................................................................................. 31 8.1 Power-up Sequence Timing Diagram ....................................................................... 31 8.2 SDIO Interface Description ....................................................................................... 34 8.3 PCM Interface Description ....................................................................................... 41 8.4 UART Interface Description ...................................................................................... 47 9. Recommended Reflow Profile ................................................................................... 49 10. Package Information ................................................................................................. 50 10.1 Label ....................................................................................................................... 50 10.2 Dimension .............................................................................................................. 51 10.3 MSL Level / Storage Condition ............................................................................... 53 AP6275S Datasheet AMPAK Technology Inc. 8F, No.15-1, Zhonghua Road, Hsinchu Industril Park, Hukou, Hsinchu, Taiwan, 30352 http://www.ampak.com.tw 2 1. Introduction 1.1 Overview The AMPAK Technology® AP6275S is a fully Wi-Fi and Bluetooth functionalities module with seamless roaming capabilities and advance security, also it could interact with different vendors’ 802.11a/b/g/n/ac/ax 2x2 Access Points with MIMO standard and can accomplish up to speed of 1200Mbps with dual stream in 802.1ax to connect the wireless LAN. Furthermore AP6275S included SDIO interface for Wi-Fi, UART/ PCM interface for Bluetooth. In addition, this compact module is a total solution for a combination of Wi-Fi + BT technologies. The module is specifically developed for tablet, OTT box and portable devices. AP6275S Datasheet AMPAK Technology Inc. 8F, No.15-1, Zhonghua Road, Hsinchu Industril Park, Hukou, Hsinchu, Taiwan, 30352 http://www.ampak.com.tw 3 1.2 Pr…

Text truncated - open the document above for the full version.

ANIPAK Technology Inc. 3F, No. 1, Jen Al Road, Hsinchu Industrial Park,Hsinchu City 30352 , Taiwan (R.O.c.) U.S. A�nation for Service of Process ATTEN'「ION: Federal Co111111u11icatio11s Corn11lissio11 Autho1·ization and Evalualilln Division 7435 Oaklancl Mills Road Columbia, MD 2104(i US/\ REGARDING: 「C C Certilicalion - Section 2.9丨I (c1)(7) l11forrnalion Dcs尼1Iarc d U.s. Agem Co111p:111y f\:;11ne: Approve-「l \l nc ConIdCI Namc NMhLm G mageI Strc:et Address: 8011 34'" Ave South. Suite 342 City/l'rnvince/Zip: 8!00111i11g1011, MN 55425 Telephone Nu: 651-247-1678 Em叫leam（J丶illl[Q_Ve-it. net FRN #: 0027533835 Th is letter is to con r五 m that we ("the Designated U.S. Agent) h ave accepted the 」esponsibilit y to act as the Designated U.S. Agent ic)I'S ervice or Process as required by section 47 C「R 2.91 l(cl)(7) on behalfofthe Applicant noted below U.S. Agc11t Siguaturc:: Date: September 11, 2024 Sig11cd by (l'riutcd Na111c/Titlc): Nath,111 Grinagcr / C o-President *This letter is valid indelinitely for all applications submitted within the period of 0 9 / 1 1 / 2 0 2 4 - 0 9 / 1 0 / 2 0 2 9 . The ,'\pplica111 cunl1rms its e、plici tco11sc1ll and acknowleclges tltat they must maintain an a gent for no le吣t ha n one yeal d lICI lCl mmaun呂 all marketing and i111po1·tarion OR the conclusion of any Coinmissiun-rclatccl proceeding involving the equipment. The :ipplic1111 l't1rl11cr a cknowledges rheir rcsponsib巾t y to inform the FCC whenever the Designated U.S. /\gent information above changes 苫芷j \;\\ l ,tmune AMPAkl ec hno loJy I n L sc- 24 O 2 7 Snvice Type: migi1w丨 npplication. c區s 2 permissive change i'CC ID LQ6-A! J 6275S G l an lCc F RN • 0O2 I O l 3 693 Module type· singlc-moduL1r 11·a11s111 it1c1 Co11t,1cl Na111e: Changyi T 戍 U Su eeI A(kh es 丶 3F, No. I, kn 1\l Ro�1cl. Hsinchu Industrial J )ark City/Pmvince/Zip: I lsinchu City 30352 丨-aiwan (R.O.C.) Telephone No: 886-3-600-9666 Email: cyt、;[email protected] Appli,·:lill Siguaturl'.: t ＇ 禱 嚳 `Rn- 忌隠圄 Date: 三 S堪ned by (Pri111cd Nallll'「l'itlr): Ch.. 1ngyi Tsai/ l\/la11ager *Hy signing ll,i.、 letter, the client 吣l.I I l 丶 and agrees that 1h11 sci-、·ice provided by Approve-IT, 111c. will only be applicable for rhc module rnodd dcs..:rihed above. Tile client also declares and accepts tlrnt the service wo11't be applicaule in auy丶vay to any hos1 dcvires that could contain the module for which the service has been contracted.

Module Approval Request Letter Date: 2024/9/25 Subject: Module Approval FCC ID: ZQ6-AP6275S To Whom It May Concern: We, Sporton International Inc. Hsinchu Laboratory, are authorized by AMPAK Technology Inc. to have their state-of-the-art device approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in CFR47 Part 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip SYN43752. 3. The requirement of power supply regulation: The part number of the power regulator is SYN43752. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Hsinchu Laboratory Company Address : No.8, Ln. 724, Bo’ai St., Zhubei City, Hsinchu County 302010, Taiwan (R.O.C.) Signature : Name : Leo Huang Job Title : Manager

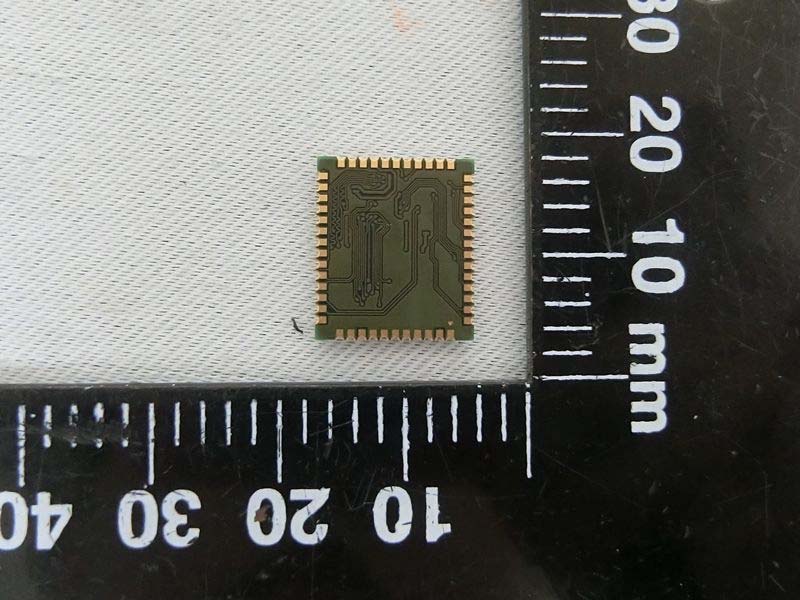

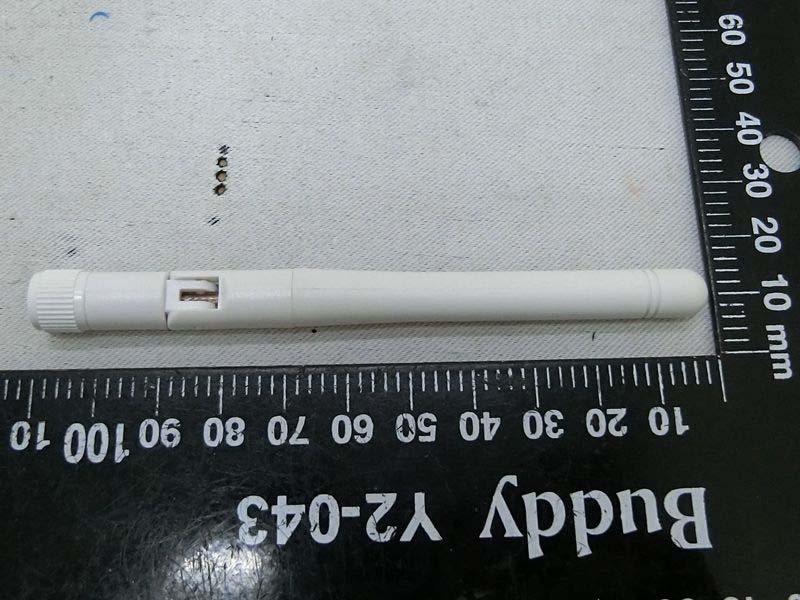

PHOTOGRAPHS OF EUT EP412214 Sporton International Inc. Page No. : 1 of 5 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 19, 2024 Report Version : 01 Brand Name: AMPAK Technology Inc. Model Name: AP6275S PHOTOGRAPHS OF EUT EP412214 Sporton International Inc. Page No. : 2 of 5 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 19, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP412214 Sporton International Inc. Page No. : 3 of 5 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 19, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP412214 Sporton International Inc. Page No. : 4 of 5 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 19, 2024 Report Version : 01 Antenna PHOTOGRAPHS OF EUT EP412214 Sporton International Inc. Page No. : 5 of 5 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 19, 2024 Report Version : 01

Label and location

PHOTOGRAPHS OF EUT EP412214 Sporton International Inc. Page No. : 1 of 2 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 19, 2024 Report Version : 01 Brand Name: AMPAK Technology Inc. Model Name: AP6275S PHOTOGRAPHS OF EUT EP412214 Sporton International Inc. Page No. : 2 of 2 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 19, 2024 Report Version : 01

RADIO EXPOSURE TEST REPORT Report No. : FA412214 TEL : 886-3-656-9065 Page Number : 2 of 10 FAX : 886-3-656-9085 Issued Date : Sep. 19, 2024 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Antenna Information ............................................................................................................................... 6 1.3 Accessories ............................................................................................................................................ 7 1.4 Applicable Standards ............................................................................................................................. 7 1.5 Testing Location ..................................................................................................................................... 7 2 Maximum Permissible Exposure ........................................................................................................ 8 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 8 2.2 MPE Calculation Method ........................................................................................................................ 8 2.3 MPE Exemption ...................................................................................................................................... 9 2.4 Calculated Result and Limit .................................................................................................................. 10 Photographs of EUT v01 RADIO EXPOSURE TEST REPORT Report No. : FA412214 TEL : 886-3-656-9065 Page Number : 3 of 10 FAX : 886-3-656-9085 Issued Date : Sep. 19, 2024 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 History of this test report Report No. Version Description Issued Date FA412214 01 Initial issue of report Sep. 19, 2024 RADIO EXPOSURE TEST REPORT Report No. : FA412214 TEL : 886-3-656-9065 Page Number : 4 of 10 FAX : 886-3-656-9085 Issued Date : Sep. 19, 2024 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PA SS - Conformity Assessment Condition: 1. The test results (PASS/FAIL) with all measurement uncertainty excluded are presented against the regulation limits or in accordance with the requirements stipulated by the applicant/manufacturer who shall bear all the risks of non-compliance that may potentially occur if measurement uncertainty is taken into account. 2. The measurement uncertainty please refer to each test result in the chapter "Measurement Uncertainty". Disclaimer: The product specifications of the EUT presented in the test report that may affect the test assessments are declared by the manufacturer who shall take full responsibility for the authenticity. Reviewed by: Sam Chen Report Producer: Sophia Shiung RADIO EXPOSURE TEST REPORT Report No. : FA412214 TEL : 886-3-656-9065 Page Number : 5 of 10 FAX : 886-3-656-9085 Issued Date : Sep. 19, 2024 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 5GHz WLAN 5150-5250 5250-5350 5470-5725 5725-5850 5180-5240 5260-5320 5500-5720 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM) Bluetooth 2400-2483.5 2402-2480 BR / EDR: FHSS (GFSK / π/4-DQPSK / 8DPSK) LE: GFSK RADIO EXPOSURE TEST REPORT Report No. : FA412214 TEL : 886-3-656-9065 Page Number : 6 of 10 FAX : 886-3-656-9085 Issued Date : Sep. 19, 2024 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 1.2 Antenna Information Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 PULSE ELECTRONICS PTE LTD TZ2412W Dipole Reversed-SMA Note 1 2 Note 1: Ant. Port Gain (dBi) WLAN 2.4GHz WLAN 5GHz Bluetooth WLAN 2.4GHz WLAN 5GHz Bluetooth 1 1 1 1 3.68 4.65 3.68 2 2 2 - 3.68 4.65 - Note 2: The above information was declared by manufacturer. Note 3: Directional gain information Type Maximum Output Power Power Spectral Density Non-BF Directional gain = Max.gain + array gain. For power measurements on IEEE 802.11 devices Array Gain = 0 dB (i.e., no array gain) for N ANT ≤ 4                     ⋅= ∑ ∑ == ANT N j N k kj N g lGainDirectiona SSANT 1 2 1 , log10 BF                     ⋅= ∑ ∑ == ANT N j N k kj N g lGainDirectiona SSANT 1 2 1 , log10                     ⋅= ∑ ∑ == ANT N j N k kj N g lGainDirectiona SSANT 1 2 1 , log10 Where ; 2.4G G1= 3.68 dBi ;G2= 3.68 dBi ; 5G UNII-1 G1 = 4.65 dBi; G2 = 4.65 dBi; 5G UNII-2A G1 = 4.65 dBi; G2 = 4.65 dBi; 5G UNII-2C G1 = 4.65 dBi; G2 = 4.65 dBi; 5G UNII-3 G1 = 4.65 dBi; G2 = 4.65 dBi; 2.4G DG = 6.69 dBi 5G UNII-1 DG = 7.66 dBi 5G UNII-2A DG = 7.66 dBi 5G UNII-2C DG = 7.66 dB 5G UNII-3 DG = 7.66 dBi RADIO EXPOSURE TEST REPORT Report No. : FA412214 TEL : 886-3-656-9065 Page Number : 7 of 10 FAX : 886-3-656-9085 Issued Date : Sep. 19, 2024 Report Template No.: CB-A1_1 Ver1.1 Report Version :…

Text truncated - open the document above for the full version.

RADIO TEST REPORT Report No. : FR412214AD TEL : 886-3-656-9065 Page Number : 2 of 28 FAX : 886-3-656-9085 Issued Date : Sep. 19, 2024 Report Template No.: CB-A10_6 Ver1.3 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ............................................................................................................................. 8 1.3 Testing Location Information .................................................................................................................. 8 1.4 Measurement Uncertainty ...................................................................................................................... 8 2 Test Configuration of EUT ................................................................................................................... 9 2.1 Test Channel Mode ................................................................................................................................ 9 2.2 The Worst Case Measurement Configuration ........................................................................................ 9 2.3 EUT Operation during Test .................................................................................................................. 10 2.4 Accessories .......................................................................................................................................... 10 2.5 Support Equipment ............................................................................................................................... 11 2.6 Test Setup Diagram ............................................................................................................................. 12 3 Transmitter Test Result ..................................................................................................................... 15 3.1 AC Power-line Conducted Emissions .................................................................................................. 15 3.2 DTS Bandwidth..................................................................................................................................... 17 3.3 Maximum Conducted Output Power .................................................................................................... 18 3.4 Power Spectral Density ........................................................................................................................ 20 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 22 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 23 4 Test Equipment and Calibration Data .............................................................................................. 27 Appendix A. Test Results of AC Power-line Conducted Emissions Appendix B. Test Results of DTS Bandwidth Appendix C. Test Results of Maximum Conducted Output Power Appendix D. Test Results of Power Spectral Density Appendix E. Test Results of Emissions in Non-restricted Frequency Bands Appendix F. Test Results of Emissions in Restricted Frequency Bands Appendix H. Test Photos Photographs of EUT v01 RADIO TEST REPORT Report No. : FR412214AD TEL : 886-3-656-9065 Page Number : 3 of 28 FAX : 886-3-656-9085 Issued Date : Sep. 19, 2024 Report Template No.: CB-A10_6 Ver1.3 Report Version : 01 History of this test report Report No. Version Description Issued Date FR412214AD 01 Initial issue of report Sep. 19, 2024 RADIO TEST REPORT Report No. : FR412214AD TEL : 886-3-656-9065 Page Number : 4 of 28 FAX : 886-3-656-9085 Issued Date : Sep. 19, 2024 Report Template No.: CB-A10_6 Ver1.3 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PA SS - 3.1 15.207 AC Power-line Conducted Emissions PA SS - 3.2 15.247(a) DTS Bandwidth PA SS - 3.3 15.247(b) Maximum Conducted Output Power PA SS - 3.4 15.247(e) Power Spectral Density PA SS - 3.5 15.247(d) Emissions in Non-restricted Frequency Bands PA SS - 3.6 15.247(d) Emissions in Restricted Frequency Bands PA SS - Conformity Assessment Condition: 1. The test results (PASS/FAIL) with all measurement uncertainty excluded are presented against the regulation limits or in accordance with the requirements stipulated by the applicant/manufacturer who shall bear all the risks of non-compliance that may potentially occur if measurement uncertainty is taken into account. 2. The measurement uncertainty please refer to each test result in the chapter "Measurement Uncertainty". Disclaimer: The product specifications of the EUT presented in the test report that may affect the test assessments are declared by the manufacturer who shall take full responsibility for the authenticity. Reviewed by: Sam Chen Report Producer: Sophia Shiung RADIO TEST REPORT Report No. : FR412214AD TEL : 886-3-656-9065 Page Number : 5 of 28 FAX : 886-3-656-9085 Issued Date : Sep. 19, 2024 Report Template No.: CB-A10_6 Ver1.3 Report Version : 01 1 General Description 1.1 Information 1.1.1 RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Frequency (MHz) Channel Number 2400-2483.5 LE 2402-2480 0-39 [40] Band Mode BWch (MHz) Nant 2.4-2.4835GHz BT-LE(1Mbps) 1.0 1TX 2.4-2.4835GHz BT-LE(2Mbps)…

Text truncated - open the document above for the full version.

RADIO TEST REPORT Report No. : FR412214AA TEL : 886-3-656-9065 Page Number : 2 of 30 FAX : 886-3-656-9085 Issued Date : Sep. 19, 2024 Report Template No.: CB-A10_10 Ver1.3 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ............................................................................................................................. 8 1.3 Testing Location Information .................................................................................................................. 8 1.4 Measurement Uncertainty ...................................................................................................................... 9 2 Test Configuration of EUT ................................................................................................................. 10 2.1 Test Channel Mode .............................................................................................................................. 10 2.2 The Worst Case Measurement Configuration ...................................................................................... 10 2.3 EUT Operation during Test .................................................................................................................. 11 2.4 Accessories .......................................................................................................................................... 11 2.5 Support Equipment ............................................................................................................................... 12 2.6 Test Setup Diagram ............................................................................................................................. 13 3 Transmitter Test Result ..................................................................................................................... 16 3.1 AC Power-line Conducted Emissions .................................................................................................. 16 3.2 DTS Bandwidth..................................................................................................................................... 18 3.3 Maximum Conducted Output Power .................................................................................................... 19 3.4 Power Spectral Density ........................................................................................................................ 21 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 23 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 24 4 Test Equipment and Calibration Data .............................................................................................. 28 Appendix A. Test Results of AC Power-line Conducted Emissions Appendix B. Test Results of DTS Bandwidth Appendix C. Test Results of Maximum Conducted Output Power Appendix D. Test Results of Power Spectral Density Appendix E. Test Results of Emissions in Non-restricted Frequency Bands Appendix F. Test Results of Emissions in Restricted Frequency Bands Appendix G. Test Photos Photographs of EUT v01 RADIO TEST REPORT Report No. : FR412214AA TEL : 886-3-656-9065 Page Number : 3 of 30 FAX : 886-3-656-9085 Issued Date : Sep. 19, 2024 Report Template No.: CB-A10_10 Ver1.3 Report Version : 01 History of this test report Report No. Version Description Issued Date FR412214AA 01 Initial issue of report Sep. 19, 2024 RADIO TEST REPORT Report No. : FR412214AA TEL : 886-3-656-9065 Page Number : 4 of 30 FAX : 886-3-656-9085 Issued Date : Sep. 19, 2024 Report Template No.: CB-A10_10 Ver1.3 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PA SS - 3.1 15.207 AC Power-line Conducted Emissions PA SS - 3.2 15.247(a) DTS Bandwidth PA SS - 3.3 15.247(b) Maximum Conducted Output Power PA SS - 3.4 15.247(e) Power Spectral Density PA SS - 3.5 15.247(d) Emissions in Non-restricted Frequency Bands PA SS - 3.6 15.247(d) Emissions in Restricted Frequency Bands PA SS - Conformity Assessment Condition: 1. The test results (PASS/FAIL) with all measurement uncertainty excluded are presented against the regulation limits or in accordance with the requirements stipulated by the applicant/manufacturer who shall bear all the risks of non-compliance that may potentially occur if measurement uncertainty is taken into account. 2. The measurement uncertainty please refer to each test result in the chapter "Measurement Uncertainty". Disclaimer: The product specifications of the EUT presented in the test report that may affect the test assessments are declared by the manufacturer who shall take full responsibility for the authenticity. Reviewed by: Sam Chen Report Producer: Sophia Shiung RADIO TEST REPORT Report No. : FR412214AA TEL : 886-3-656-9065 Page Number : 5 of 30 FAX : 886-3-656-9085 Issued Date : Sep. 19, 2024 Report Template No.: CB-A10_10 Ver1.3 Report Version : 01 1 General Description 1.1 Information 1.1.1 RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Frequency (MHz) Channel Number 2400-2483.5 b, g, n (HT20), ax (HEW20) 2412-2462 1-11 [11 ] Band Mode BWch (MHz) Nant 2.4-2.4835GHz 802.11b 20 2TX 2.4-…

Text truncated - open the document above for the full version.

Description: WIFI-6E EXTERNAL ANTENNA Ampak PART NUMBER: PART NUMBER:TZ2412W Series: AP5881 1 en authorization of Pulse is strictly forbidden. 客戶承認 核准 審核 承認者 承認單位 Pulse 審核 製作 樣品承認書 SPECIFIATION FOR APPROVAL Customer Name: Ampak Technology Corporation Model Name: AP5881 Customer Part No. : Pulse Part No:TZ2412W Product Mode: China 供應商: 新加坡商普思電子有限公司 供應商英文:PULSE ELECTRONICS (SINGAPORE) PTE LTD Description: WIFI-6E EXTERNAL ANTENNA Ampak PART NUMB…

Text truncated - open the document above for the full version.
