ZQ6-AP6234AWifi Dual Band + BT combo module

AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information i Doc. NO: AMPAK AP6234A series Evaluation Kits User manual Version 1.2 Revision History Date Revision Content Revised By Version 2012/12/26 Initial released Dora 1.0 2013/03/07 Modify figure1 Dora 1.1 2013/06/06 Modify figure1 Dora 1.2 2006/8/16 v1.0 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. 2006/8/16 v1.0 This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, 3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain change. As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: ZQ6-AP6234A”. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. 2006/8/16 v1.0 Industry Canada statement: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. 2006/8/16 v1.0 This device is intended only for OEM integrators under the following conditions: (For module device use) 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. Cet appareil est conçu uniquement pour les intégrateu…

Text truncated - open the document above for the full version.

RF_734_00, Issue 1 Modular Approval Request FCC (per DA 00-1407) FCC ID: ZQ6-AP6234A Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular has a shielding Case. Please refer to EUT Photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The component number is BCM43340 3. The modular transmitter must have its own power supply regulation. The component number is BCM43340 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. The device has UFL antenna Connector. And no external amplifier will be used with this modular. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. This modular is tested under stand-alone configuration. Please refer to Test setup photo. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The modular transmitter is labeled with its own FCC ID number. Please refer to label sample and label location. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular complies with this requirement. Please refer to user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The device complies with this requirement. Please refer to RF exposure report. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): __________________ Date: ___15 May 2014____ Signature: ___________________________

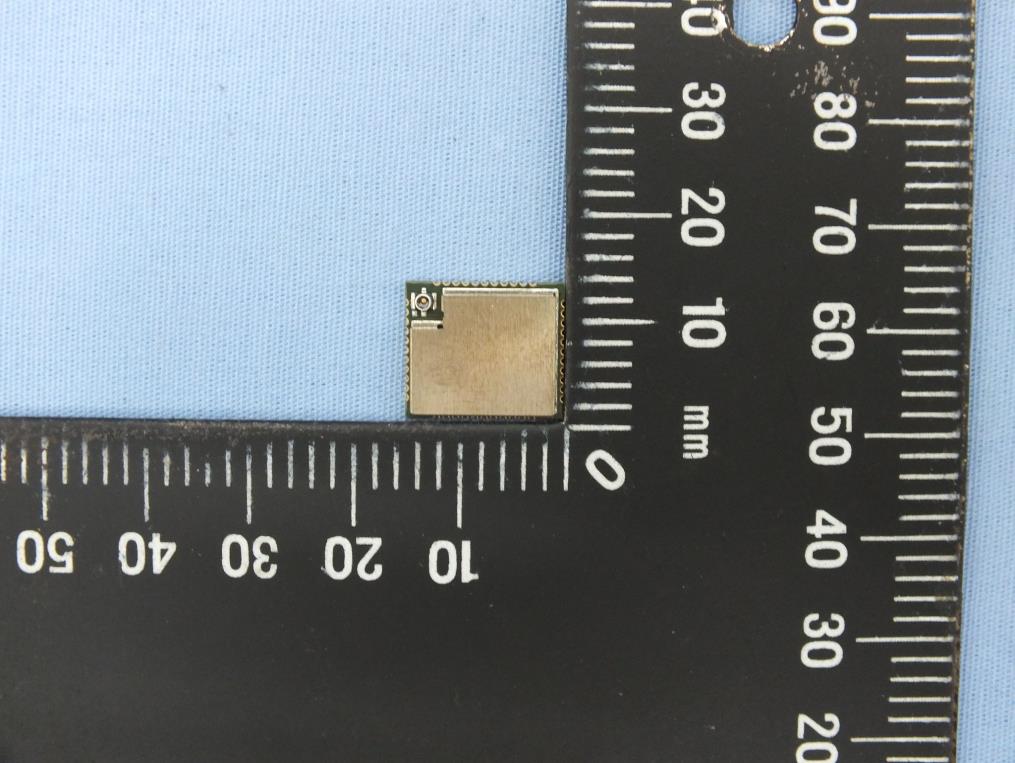

Project No.: EP440102 Page No. : 1 of 7 Photographs of EUT Project No.: EP440102 Page No. : 2 of 7

Label Location

Project No.: EP440102 Page No. : 3 of 7 Project No.: EP440102 Page No. : 4 of 7 Project No.: EP440102 Page No. : 5 of 7 Project No.: EP440102 Page No. : 6 of 7 Project No.: EP440102 Page No. : 7 of 7

Report No.: FA440102 Page : 1 of 5 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : ZQ6-AP6234A Equipment : Wifi Dual Band + BT combo module Model No. : AP6234A Brand Name : Ampak Applicant : Ampak Technology Inc Address : No.1 Jen AI Road, Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, 30352 Standard : 47 CFR FCC Part 2.1091 Received Date : Apr. 01, 2014 Tested Date : Apr. 14 ~ May 07, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA440102 Page : 2 of 5 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 4 2 TEST LABORATORY INFORMATION ................................................................................................. 5 Report No.: FA440102 Page : 3 of 5 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA440102 Rev. 01 Initial issue May 15, 2014 Report No.: FA440102 Page : 4 of 5 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 MPE EVALUATION RESULTS Modulation Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) BT EDR 2402~2480 8.91 2 20 0.002 1 BT LE 2402~2480 6.04 2 20 0.001 1 WLAN 2412~2462 19.84 2 20 0.030 1 5180~5240 16.92 3 20 0.020 1 5260~5320 17.09 3 20 0.020 1 5500~5700 15.55 3 20 0.014 1 5745~5825 15.34 3 20 0.014 1 Report No.: FA440102 Page : 5 of 5 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Tel: 886-2-2601-1640 Tel: 886-3-271-8666 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR440102AN Page : 1 of 83 Report Version: Rev. 01 FCC Test Report FCC ID : ZQ6-AP6234A Equipment : Wifi Dual Band + BT combo module Model No. : AP6234A Brand Name : Ampak Applicant : Ampak Technology Inc Address : No.1 Jen AI Road, Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, 30352 Standard : 47 CFR FCC Part 15.407 Received Date : Apr. 01, 2014 Tested Date : Apr. 22 ~ May 07, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR440102AN Page : 2 of 83 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Testing Applied Standards ................................................................................................................... 10 1.6 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Condition ................................................................................................................................. 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TRANSMITTER TEST RESULTS ........................................................................................................ 12 3.1 Conducted Emissions ........................................................................................................................... 12 3.2 Emission Bandwidth ............................................................................................................................. 15 3.3 RF Output Power .................................................................................................................................. 18 3.4 Peak Power Spectral Density ............................................................................................................... 20 3.5 Peak Excursion..................................................................................................................................... 23 3.6 Transmitter Radiated and Band Edge Emissions ................................................................................ 26 3.7 Frequency Stability ............................................................................................................................... 81 4 TEST LABORATORY INFORMATION ............................................................................................... 83 Report No.: FR440102AN Page : 3 of 83 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR440102AN Rev. 01 Initial issue May 15, 2014 Report No.: FR440102AN Page : 4 of 83 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.154MHz 46.45 (Margin -9.33dB) - AV Pass 15.407(b) 15.209 Radiated Emissions [dBuV/m at 3m]: 5150.00MHz 53.00 (Margin -1.00dB) - AV Pass 15.407(a) Emission Bandwidth Meet the requirement of limit Pass 15.407(a) RF Output Power Power [dBm]: 5150~5250 MHz:16.92 5250~5350 MHz:17.09 5470~5725 MHz:15.55 Pass 15.407(a) Peak Power Spectral Density Meet the requirement of limit Pass 15.407(a) Peak Excursion Meet the requirement of limit Pass 15.407(g) Frequency Stability Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR440102AN Page : 5 of 83 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 5150-5250 5250-5350 5470-5725 a 5180-5240 5260-5320 5500-5700 36-48 [4] 52-64 [4] 100-140 [8] 1 6-54 Mbps 5150-5250 5250-5350 5470-5725 n (HT20) 5180-5240 5260-5320 5500-5700 36-48 [4] 52-64 [4] 100-140 [8] 1 MCS 0-7 5150-5250 5250-5350 5470-5725 n (HT40) 5190-5230 5270-5310 5510-5670 38-46 [2] 54-62 [2] 102-134 [3] 1 MCS 0-7 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Details Ant. No. Type Operating Frequency (MHz) / Gain (dBi) Connector 2400~2483.5 5150~5250 5250~5350 5470~5725 5725~5850 1 Dipole 2 3 3 3 3 UFL 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 3.3Vdc from host. 1.1.4 Accessories N/A Report No.: FR440102AN Page : 6 of 83 Report Version: Rev. 01 1.1.5 Channel List Frequency band (MHz) 5150~5725 802.11 a / n HT20 802.11n HT40 Channel Frequency(MHz) Channel Frequency(MHz) 36 5180 38 5190 40 5200 46 5230 44 5220 54 5270 48 5240 62 5310 52 5260 102 5510 56 5280 110 5550 60 5300 134 5670 64 5320 --- --- 10…

Text truncated - open the document above for the full version.

Report No.: FZ440102 Page : 1 of 15 Report Version: Rev. 01 FCC DFS Test Report FCC ID : ZQ6-AP6234A Equipment : Wifi Dual Band + BT combo module Model No. : AP6234A Brand Name : Ampak Applicant : Ampak Technology Inc Address : No.1 Jen AI Road, Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, 30352 Standard : 47 CFR FCC Part 15.407 Received Date : Apr. 01, 2014 Tested Date : May 10, 2014 Operating Mode : Client without radar detection We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FZ440102 Page : 2 of 15 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Support Equipment List .......................................................................................................................... 5 1.3 The Equipment List ................................................................................................................................ 6 1.4 Testing Condition ................................................................................................................................... 6 1.5 Test Standards ....................................................................................................................................... 6 2 TECHNICAL REQUIREMENTS FOR DFS ............................................................................................ 7 2.1 Applicability of DFS Requirements ......................................................................................................... 7 2.2 DFS Detection Thresholds and Response Requirement ....................................................................... 8 2.3 Radar Test Waveforms .......................................................................................................................... 9 3 TEST RESULT ..................................................................................................................................... 12 3.1 Channel Closing Transmission and Channel Move Time .................................................................... 12 3.2 Non-Occupancy .................................................................................................................................... 14 4 TEST LABORATORY INFORMATION ............................................................................................... 15 Report No.: FZ440102 Page : 3 of 15 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FZ440102 Rev. 01 Initial issue May 15, 2014 Report No.: FZ440102 Page : 4 of 15 Report Version: Rev. 01 Summary of Test Results FCC Rules Description of Test Result 15.407 Channel Closing Transmission Time Pass 15.407 Channel Move Time Pass 15.407 Non-occupancy Pass Report No.: FZ440102 Page : 5 of 15 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) Frequency Range (GHz) 5.15~5.25, 5.25~5.35, 5.47~5.725,5.725~5.85 Wireless Function 11a / HT20 / HT40 Operating Mode at DFS Band Client without radar detection and ad hoc function Firmware / Software Version 5.93.100.23 1.1.2 Antenna Details Ant. No. Type Operating Frequency Band (MHz) / Gain (dBi) 5150~5250 5250~5350 5470~5725 1 Dipole 3 3 3 1.2 Support Equipment List Support Equipment List No. Equipment Brand Name Model Name FCC ID 1 AP (Master) Netgear R6100 PY312400225 2 Notebook DELL LATITUDE-E5420 B6FV9T1 3 Notebook DELL LATITUDE-E6430 9ZFB4X1 Report No.: FZ440102 Page : 6 of 15 Report Version: Rev. 01 1.3 The Equipment List Test Site (DF01-WS) Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until Spectrum Analyzer R&S FSV 7 101607 Dec. 23, 2013 Dec. 22, 2014 Horn Antenna 1G-18G ETS-LINDGREN 3115 00149268 Sep. 27, 2013 Sep. 26, 2014 RF Cable HUBER+SUHNER SUCOFLEX_104 MY15686/4 Dec. 20, 2013 Dec. 19, 2014 RF Cable HUBER+SUHNER SUCOFLEX_104 296081/4 Dec. 20, 2013 Dec. 19, 2014 RF Cable HUBER+SUHNER SUCOFLEX_104 500199/4 Dec. 20, 2013 Dec. 19, 2014 RF Cable HUBER+SUHNER SUCOFLEX_104 500202/4 Dec. 20, 2013 Dec. 19, 2014 RF Cable HUBER+SUHNER SUCOFLEX_104 296088/4 Dec. 20, 2013 Dec. 19, 2014 RF Cable HUBER+SUHNER SUCOFLEX_104 329023/4 Dec. 20, 2013 Dec. 19, 2014 RF Cable HUBER+SUHNER SUCOFLEX_104 329021/4 Dec. 20, 2013 Dec. 19, 2014 Vector signal generator R&S SMJ100A 100498 Dec. 23, 2013 Dec. 22, 2014 Note: Calibration Interval of instruments listed above is one year. 1.4 Testing Condition Test Item Test Site Ambient Condition Tested By DFS DF01-WS 26°C / 66% Ryan Lee 1.5 Test Standards According to the specification of EUT, the EUT must comply with following standards and KDB documents. 47 CFR FCC Part 15.407 FCC 06-96 KDB 848637 Report No.: FZ440102 Page : 7 of 15 Report Version: Rev. 01 2 Technical Requirements for DFS 2.1 Applicability of DFS Requirements 2.1.1 Applicability of DFS Requirements Prior to use of a Channel Requirement Operational Mode Master Client Without Radar Detection Client With Radar Detection Non-Occupancy Period Yes Not required Yes DFS Detection Threshold Yes Not required Yes Channel Availability Check Time Yes Not required Not required Uniform Spreading Yes Not required Not required U-NII Detection Bandwidth Yes Not required Yes 2.1.2 Applicability of DFS Requirements during Normal Operation Requirement Operational Mode Master Client Without Rada…

Text truncated - open the document above for the full version.

Report No.: FR440102 Page: : 1 of 4 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR440102 Page: : 2 of 4 Report Version: Rev. 01 Conducted Emission Test Report No.: FR440102 Page: : 3 of 4 Report Version: Rev. 01 Radiated Emission Test Report No.: FR440102 Page: : 4 of 4 Report Version: Rev. 01 Radiated Emission Test

Report No.: FZ440102 Page: : 1 of 1 Report Version: Rev. 01 Photographs of the Test Configuration DFS Test
