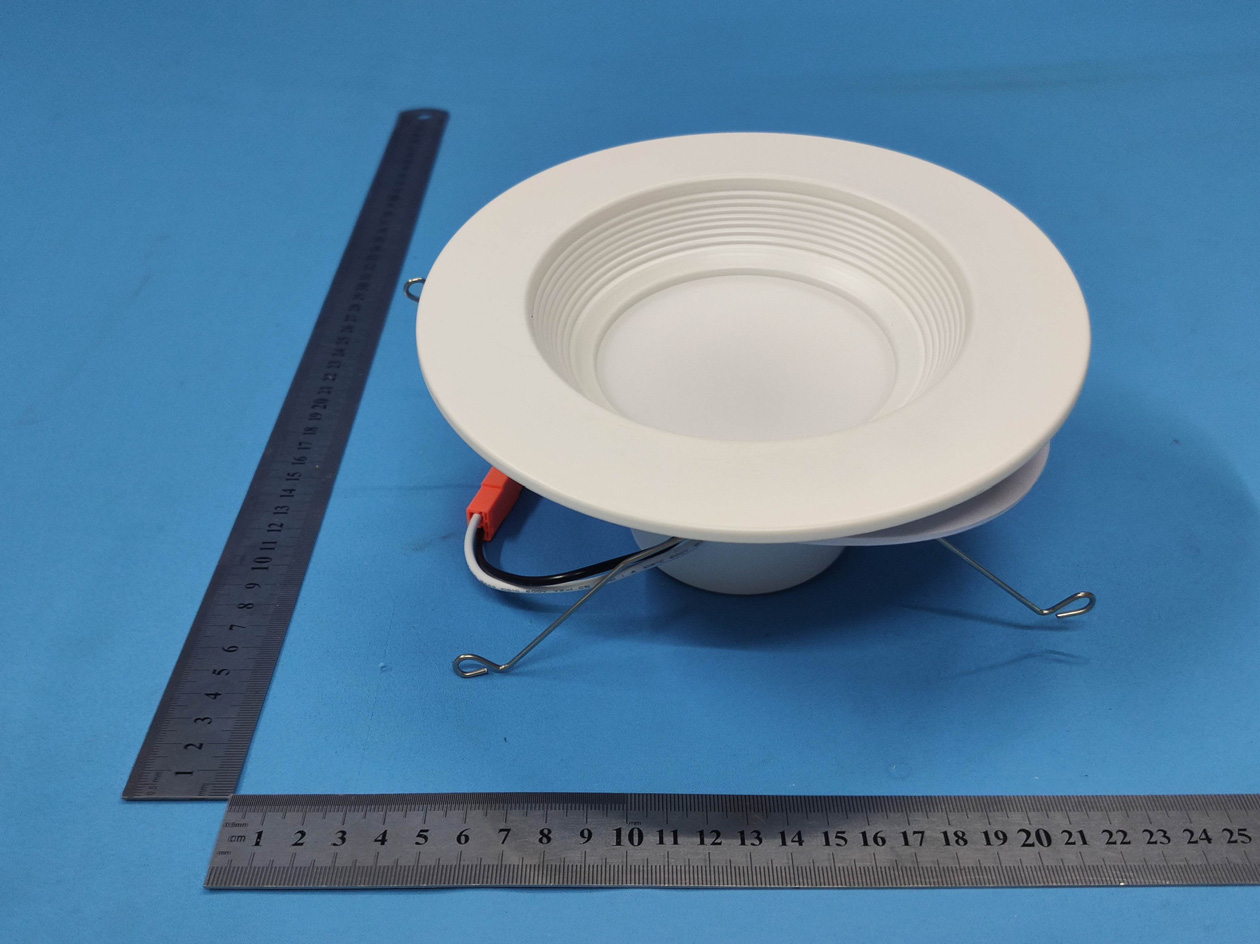

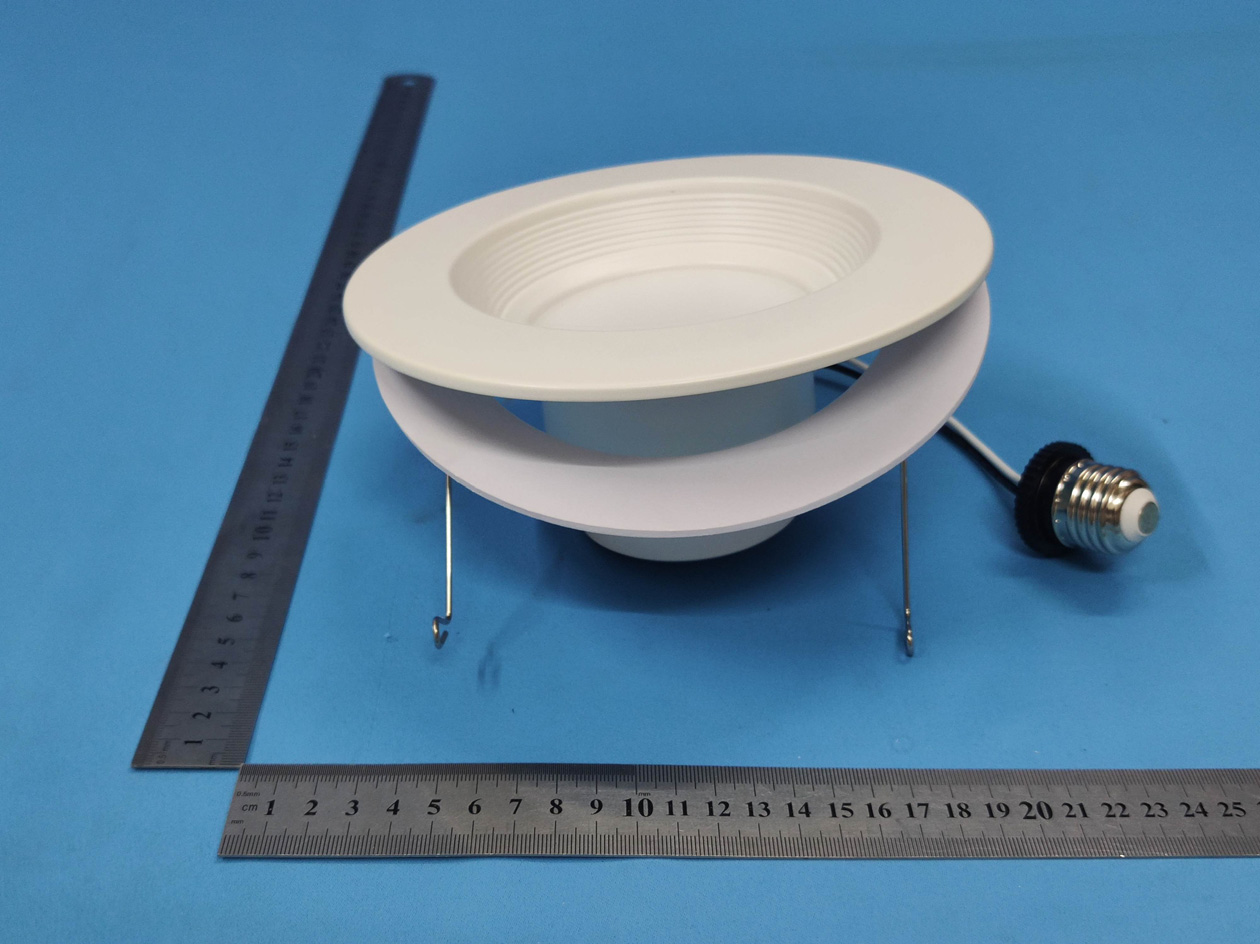

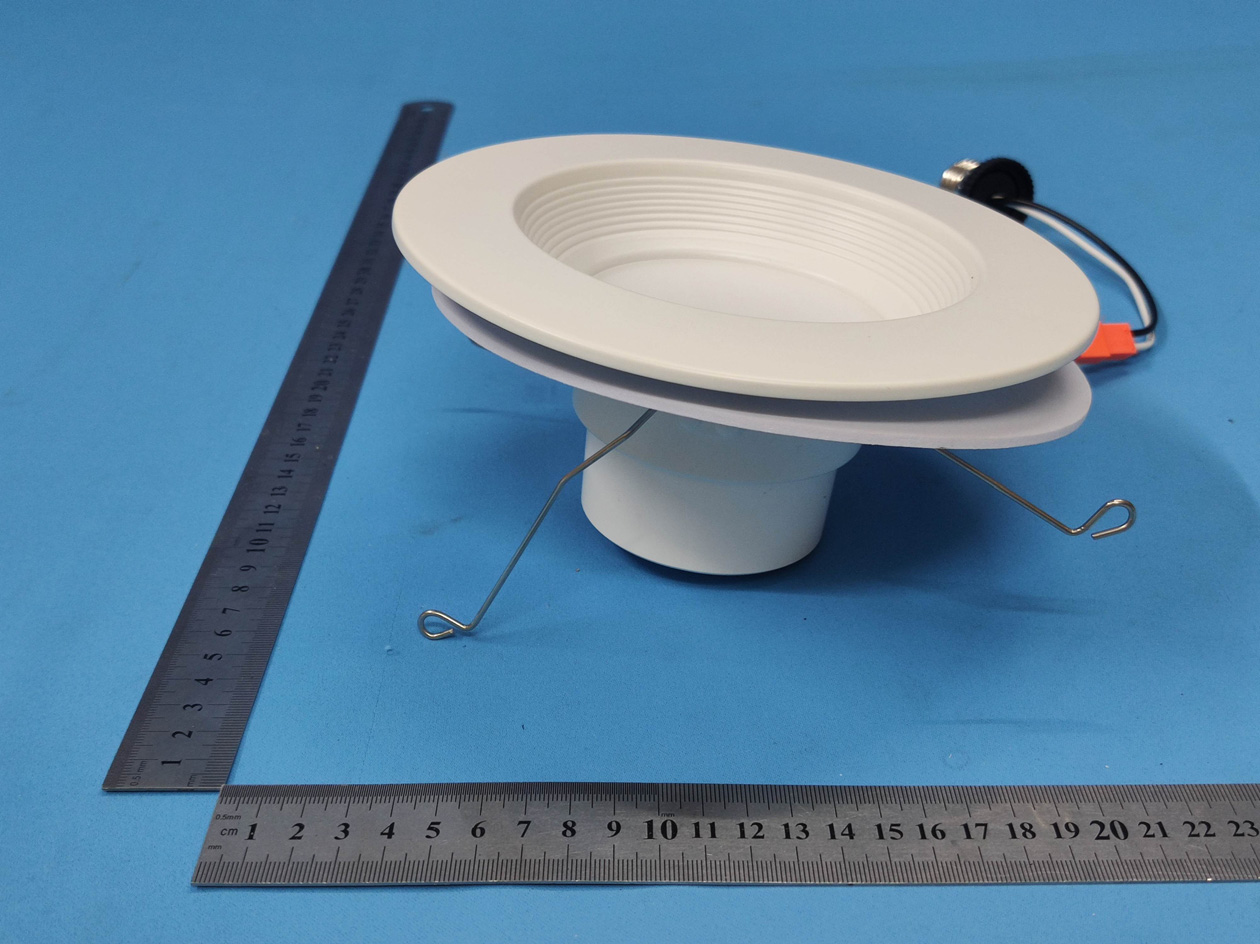

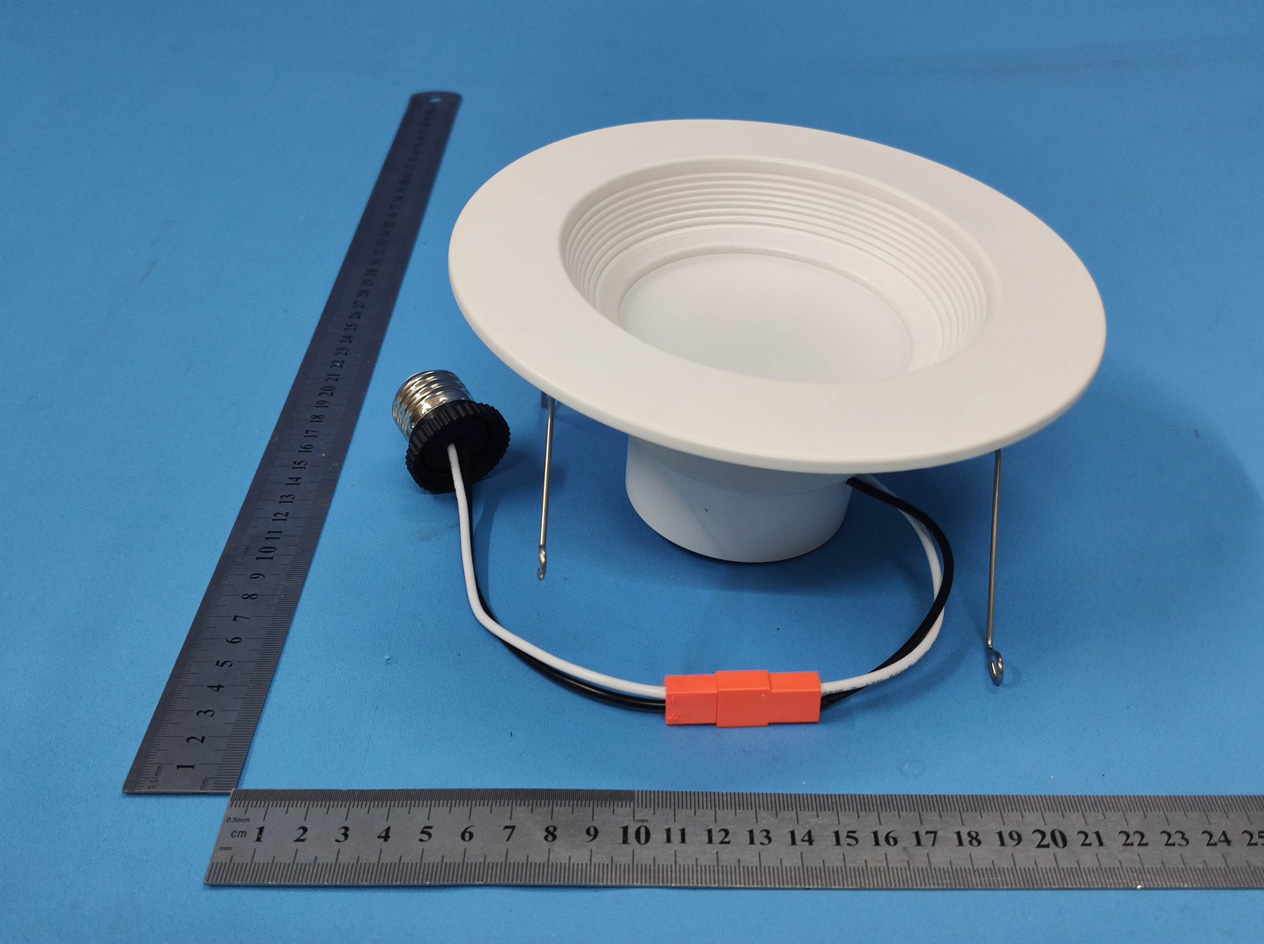

ZR3-HTT0913ALSmart LED Downlight

Description The smart bulb lamp adopts 2.4G Bluetooth control and can perform RGB brightness, color change or cold/warm white light brightness or color temperature nonpolar change. It saves more energy when realizing the articial smart lighting. Download Search “smart life” in APP Store or Google Play to download the APP. Download it from ANDROID MARKET Available on the iPhone Get it on 1 2 Reset the lamp After the product is connected to the power supply, turn off, on, off, on, off, on, The interval between on and off is 2-3s, the light turns into white light slow ashing state, and the reconguration network enters the successful reset state. 3 Notice 1. When the light is conguring the network, turn on both Bluetooth and wi, which can speed up the speed of network distribution and improve the success rate of network distribution. 3. Make sure the switch of product is off before connect to the power supply to prevent electric shock. 4. Operation against rules may damage your property even harm to your personal safety. Only use the control provided with or specied by these instructions to control this lamp. This lamp will not operate properly when connected to a standard (incandescent) dimmer or dimming control. 2. Please conrm the applicable power supply before using. 5. Dangerous high voltage, Non-professionals are not allowed to maintain the products. 7 300.00 mm 7 0 . 0 0 m m 60.00 mm Parameters Power Wireless type Power Supply 6 100V~132Vac, 50/60Hz, 0.15A(Max) 2.4 GHz Can realize timing control Compatible with Android and IOS Can realize group control. Can realize remote control Can adjust CCT and brightness of white light Remote Dimension 5 How to control Control the Bulb light by APP with your Phone and Ipad，See the spec for app. connecting 4 Phone controlvoice control Single Group 9W11W13W Smart LED Lamp User manual Android App store BluetoothWIFI FCC Statement -- Reorient or relocate the receiving antenna. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 8

Test Model No.: HTT6‐013‐AL‐RGBCW‐ZBB

HTT蓝牙筒灯 4寸纹面白色 SIGNCOMPLEX LIMITED HTT4-011-AL-RGBCW-01BB RATING:120VAC, 60Hz, 10.5W CONFORMS TO UL STD 1598C CERTIFIED TO CSA STD C22.2 #250.1 FCC ID:ZR3-HTT0913AL This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN CHINA 12/2020 SIGNCOMPLEX LIMITED HTT4-011-AL-RGBCW-01BB RATING:120VAC, 60Hz, 10.5W CONFORMS TO UL STD 1598C CERTIFIED TO CSA STD C22.2 #250.1 FCC ID:ZR3-HTT0913AL This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN CHINA 12/2020 74.00 mm 4寸纹面白色电源盒外壳丝印/喷码 205-05-0006-**** R U E D N O F O R P M M 0 0 1 , E R T E M A I D M M 0 0 1 T N E M I T R A P M O C U D D I M E N S I O N S 1 0 0 m m D I A M E T E R , 1 0 0 m m D E P T H S N O I S N E M I D E P M A L C E V A R E R T S A C N E À L I E R A P P A T N E M E U Q I N U R E S I L I T U U S E O N L Y R E C E S S E D L U M I N A I R E W I T H L A M P C O M P A R T M E N T C O N V I E N T A U X T Y P E I C O R T Y P E N O N - I C S U I T A B L E F O R T Y P E I C o r T Y P E N O N - I C 125.00 mm P L A C E M M E E X N U T A S T M N O E I U V I N L L O É C S T L O C A E T W I O R N S O F E L B A T I U S 105.00 mm 技术要求： 1.丝印字体：Arial，颜色：黑色； 2.ETL LOGO的高度至少8mm，“C”和“US”字高至少2mm， “Intertek”字高至少3mm，控制号4007461字高至少2mm， 其他字母字高至少1.6mm；所有字母要求清晰可见； 3.“SUITABLE FOR WET LOCATIONS CONVIENT AUX EMPLACEMENTS MOUILLÉS”字高至少2.4mm 4. “RATING:120VAC, 60Hz, 15W;CONFORMS TO UL STD 1598C CERTIFIED TO CSA STD C22.2 #250.1”---字高至少2.4mm 5. 型号、参数、日期根据具体订单确定。 6.MADE IN CHINA----不强制要求，可有可无(同一个客户要一致）

Test Model No.: HTT6‐013‐AL‐RGBCW‐ZBB

FCC ID: ZR3-HTT0913AL RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation BLE mode Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result Lowest (2402MHz) 10.89 0.0039 1.0 PASS Middle (2440MHz) 10.45 0.0037 1.0 PASS Highest (2480MHz) 9.91 0.0035 1.0 PASS Remark: antenna gain=2.5dBi

Global United Technology Services Co., Ltd. Report No.: GTS202011000062F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 34 TEST REPORT Applicant: Signcomplex Limited Address of Applicant: Yijia Industrial Park, Fuqian Road, Guanlan Town, Bao an, Shenzhen,Guangdong China Manufacturer/Factory: Signcomplex Limited Address of Manufacturer/Factory: Yijia Industrial Park, Fuqian Road, Guanlan Town, Bao an, Shenzhen,Guangdong China Equipment Under Test (EUT) Product Name: Smart LED Downlight Model No.: HTT6-013-AL-RGBCW-ZBB, HTT4-009-AL-CW-ZB, HTT4- 009-AL-CW-ZBB, HTT6-013-AL-CW-ZB, HTT6-013-AL-CW- ZBB, HTT4-009-AL-RGBCW-ZB, HTT4-009-AL-RGBCW- ZBB, HTT4-011-AL-RGBCW-ZB, HTT4-011-AL-RGBCW- ZBB, HTT6-013-AL-RGBCW-ZB Trade Mark: Signcomplex FCC ID: ZR3-HTT0913AL Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: November 05, 2020 Date of Test: November 06, 2020-December 15, 2020 Date of report issued: December 16, 2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202011000062F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 34 2 Version Version No. Date Description 00 December 16, 2020 Original Prepared By: Date: December 16, 2020 Project Engineer Check By: Date: December 16, 2020 Reviewer Report No.: GTS202011000062F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 34 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION ...................................................................................................................................................2 3 CONTENTS ...............................................................................................................................................3 4 TEST SUMMARY ......................................................................................................................................4 5 GENERAL INFORMATION .......................................................................................................................5 5.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................5 5.2 TEST MODE .........................................................................................................................................7 5.3 DESCRIPTION OF SUPPORT UNITS ........................................................................................................7 5.4 DEVIATION FROM STANDARDS ..............................................................................................................7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................7 5.6 TEST FACILITY ....................................................................................................................................7 5.7 TEST LOCATION ..................................................................................................................................7 5.8 ADDITIONAL INSTRUCTIONS ..................................................................................................................7 6 TEST INSTRUMENTS LIST ......................................................................................................................8 7 TEST RESULTS AND MEASUREMENT DATA .....................................................................................10 7.1 ANTENNA REQUIREMENT ....................................................................................................................10 7.2 CONDUCTED EMISSIONS ....................................................................................................................11 7.3 CONDUCTED OUTPUT POWER ............................................................................................................14 7.4 CHANNEL BANDWIDTH .......................................................................................................................16 7.5 POWER SPECTRAL DENSITY ..............................................................................................................18 7.6 BAND EDGES .....................................................................................................................................20 7.6.1 Conducted Emission Method ......................................................................................................20 7.6.2 Radiated Emission Method .........................................................................................................21 7.7 SPURIOUS EMISSION .........................................................................................................................24 7.7.1 Conducted Emission Method ......................................................................................................24 7.7.2 Radiated Emission Method .........................................................................................................26 8 TEST SETUP PHOTO ..............................................................................................…

Text truncated - open the document above for the full version.

Test Model No.: HTT6‐013‐AL‐RGBCW‐ZBB Radiated Emission Conducted Emission
