ZRR-IR139Smart Activity and Sleep Tracker

第 1 页 共 12 页 深圳市爱的声音响科技有限公司 SHENZHEN ADITION AUDIO SCIENCE&TECHNOLOGY CO.,LTD File No. Ve r. V 0 . 0 IR139 Smart Wristband Product Name Smart Wristband Model No. IR139 APP Keefit Pro APP Version (iOS/Android) Keefit Pro V1.2.9.ipa/Keefit Pro V1.1.8.apk Firmware Version Issued Date 2015/7/30 Prepared by: Reviewed by Approved by: EE SW QA Y M D Y M D Y M D Y M D Y M D Product Basic Operation Guides 第 2 页 共 12 页 深圳市爱的声音响科技有限公司 SHENZHEN ADITION AUDIO SCIENCE&TECHNOLOGY CO.,LTD 更改记录 （History of Changes）： Version Date Description of Changes V0.0 2015-07-30 First issued 第 3 页 共 12 页 深圳市爱的声音响科技有限公司 SHENZHEN ADITION AUDIO SCIENCE&TECHNOLOGY CO.,LTD IR139 Health Smart Wristband Operation Guides 1. App Installation Please download our app at App store (IOS 7.0 or above) or Google Play (Android 4.3 or above, Bluetooth 4.0 or above) Support： iPhone4S/5/5S/5C,iPod touch5，ipad3，iPad 4，iPad Mini，iPad Mini with Retina display，iPad Air. Samsung S3/S4/S5，Note 2，Note 3. 2. APP 1) Login At the first time log in the app, the user need to create an account and input the user name, nickname, password and phone number( Figure ①); After the registration, the user can log in directly with the user name and the password(Figure ②). Figure① Figure② 第 4 页 共 12 页 深圳市爱的声音响科技有限公司 SHENZHEN ADITION AUDIO SCIENCE&TECHNOLOGY CO.,LTD 2) Personal Centre a. Profile Setting：Complete your name, gender, blood type, height, age, strokes, weight, birthday in My Profile and save all the profile information. b. Workout Goal：Set your daily physical exercise goal KM/Day and save it. 第 5 页 共 12 页 深圳市爱的声音响科技有限公司 SHENZHEN ADITION AUDIO SCIENCE&TECHNOLOGY CO.,LTD c. Activity Reminder: Remind you to do some physical exercise Reminder：Turn on / off Start Hour：set the kickoff time of the day End Hour：Set the end hour of a day Interval：Set the intervals that the band should remind the user to do some exercises . Mon, Tue, Wed, Thu, Fri, Sat, Sun can be selected freely. d. Alarm Smart Alarm：Turn on/ off Time：Set alarm time Monitor Period Mon, Tue, Wed, Thu, Fri, Sat, Sun can be selected freely. 第 6 页 共 12 页 深圳市爱的声音响科技有限公司 SHENZHEN ADITION AUDIO SCIENCE&TECHNOLOGY CO.,LTD e. Sync Health Data（IOS Version Only） Launch the Health (Apple App), click the circle to on state and show color green. Then upload the data (only today’s data). Then you can check your health data at Health. 第 7 页 共 12 页 深圳市爱的声音响科技有限公司 SHENZHEN ADITION AUDIO SCIENCE&TECHNOLOGY CO.,LTD 3) Bind & Unbound （Every time after binding or unbound, the band and the app will follow the user’s guide to delete or keep the data ) a. Login at the first time, click Sync at home page, the app will send a message requiring to bind a ban. Or search the device at home page then bind it. When the ban shows a connect symbol, please press the button on the ban immediately and sync to the app. b. After binding your band, if you want to sync another ban, you need to unbound the bound ban. Please enter About Bracelet at home page and select Unbound. You can select delete or save the data on the app. 第 8 页 共 12 页 深圳市爱的声音响科技有限公司 SHENZHEN ADITION AUDIO SCIENCE&TECHNOLOGY CO.,LTD 4) a. Sync: After binding the band, press the sync icon on the Activity page to sync the data of the band. b. Bluetooth sync (bind the band to APP before use ): Launch app to enter About Bracelet on the home page and click Scan to search bands. While you choose and click to connect one band, the band will show a connect symbol on the screen. Then press the button on the band immediately to sync the band to the app. Noted：After the first binding, all data on the band will be cleared. 3. Activity monitor a. In sleep mode, if press the button on the band twice quickly, it will switch to activity mode and show the icon with vibrating. b. In activity mode, press button to check six parameters like (time/date, electric quantity), (steps), (distance), (calories), (goal percentage). 第 9 页 共 12 页 深圳市爱的声音响科技有限公司 SHENZHEN ADITION AUDIO SCIENCE&TECHNOLOGY CO.,LTD c. After syncing the band to app, you can check activity conditions like steps distance, calories, goal percentage. You can also check the activity general condition of the day, the week, the month and the year. Noted: The workout goal is set on the App. 4. Sleep monitor a. In activity mode, if press button on the band twice quickly, it will switch to sleep mode and show 第 10 页 共 12 页 深圳市爱的声音响科技有限公司 SHENZHEN ADITION AUDIO SCIENCE&TECHNOLOGY CO.,LTD the icon with vibrating. b. In sleep mode, press button briefly just to check (time/date, electric quantity). c. After getting up in the morning, the band will check the user’s activity condition and will automatically switch to activity mode. d. After sync the band to the App, you can check the sleep condition of last night, the day, the week, the month and the year. 第 11 页 共 12 页 深圳市爱的声音响科技有限公司 SHENZHEN ADITION AUDIO SCIENCE&TECHNOLOGY CO.,LTD 5. Heart Rate & ECG test This band doesn’t support these two functions. 6. Battery management This device adopts built-in battery (non-removable).Please charge the band at the first time. Then sync with cell phone. There will be a icon , when it is in charge. And the display will shows charging icon with ascending bars-of-power .At the moment, the button is invalid. After full charge, it will turn into. Noted: It takes two to three hours to charge full. 7. Turn on/off a. In shutdown mode, press and hold the button for 5 seconds, then the screen will show a turning off icon b. In starting up mode, press and hold the button for 5 seconds, then the screen will show a turning on icon 第 12 页 共 12 页 深圳市爱的声音响科技有限公司 SHENZHEN ADITION AUDIO SCIENCE&TECHNOLOGY CO.,LTD FCC Statement z Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. z This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable …

Text truncated - open the document above for the full version.

Shenzhen Adition Audio Science & Technology Co.,Ltd Letter of Authorization Company: Shenzhen Adition Audio Science & Technology Co.,Ltd Address: Mingzhuo Industry Park,Guangming Main Street,Guangming New District,Shenzhen,China Product Name: BT activity tracker Model Number: IR139 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following: • Testing • Approval applications (includes complete product documentation package, including Confidential information) and procedures • Payment of approval fees We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Zhengxin Miao Date: 2015.08.28 Title: General Manager Signature of applicant:

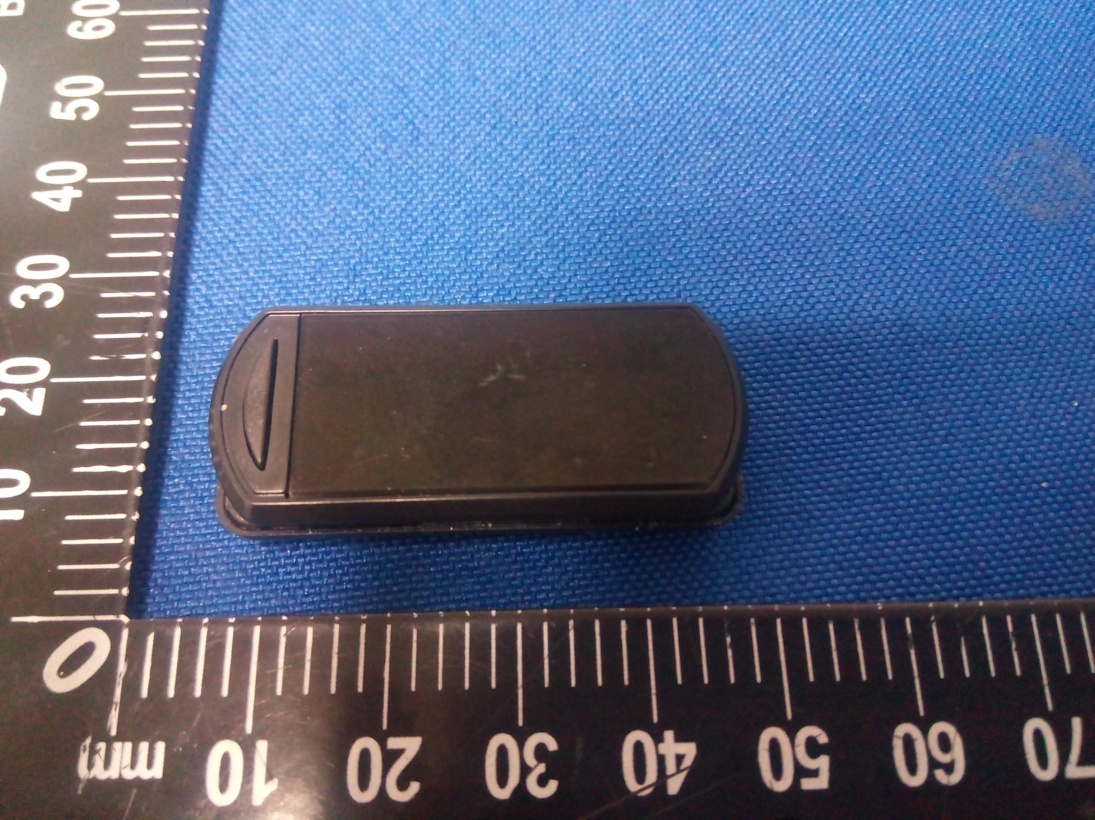

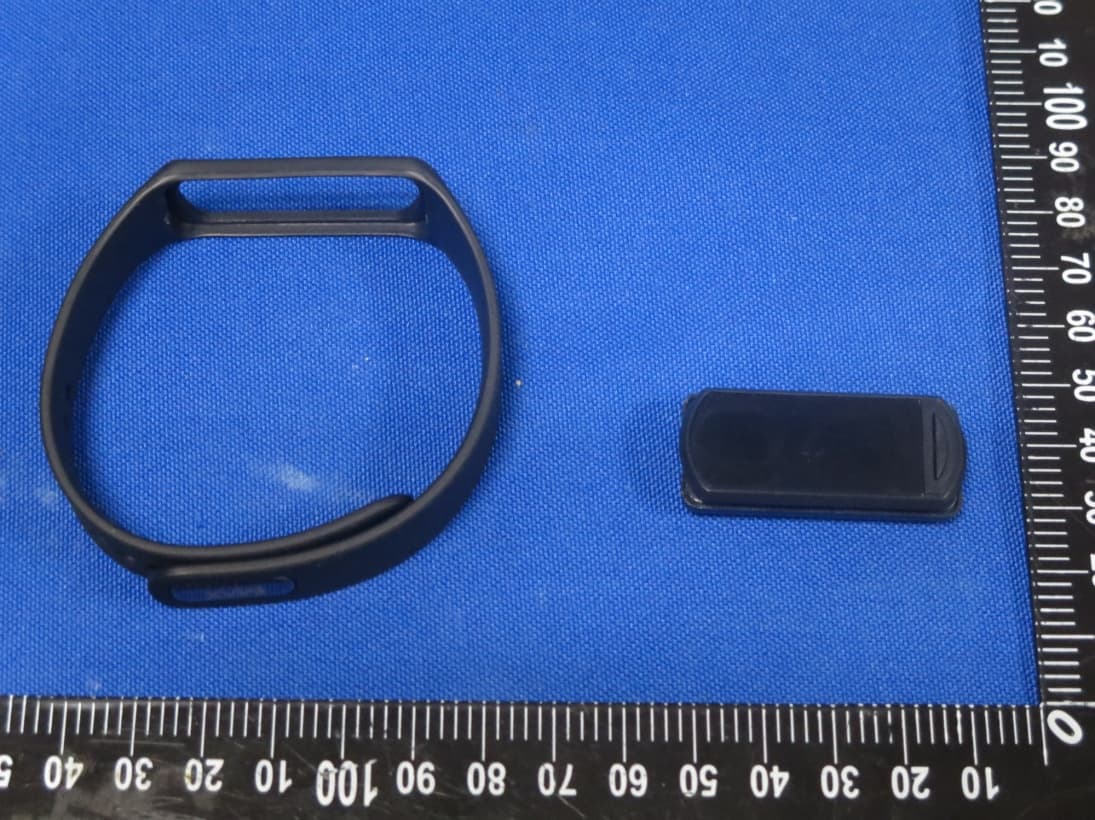

Model: IR139 External Photos

LABEL ARTWORK AND LOCATION L*W=25mm*10mm Max Fitness MULTI Bracelet MODEL: IR139 3.7V Lipo 70mAh USB INPUT: DC 5V 0.5A FCC ID: ZRR‐IR139

Model: IR139 Internal Photos

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: ZRR-IR139 Product: BT activity tracker Model No.: IR139 Additional Model No.: BT activity tracker Trade Mark: QUIKCELL/ADITION/AMZER/NUBAND Report No.: TCT150825E002 Issued Date: Sept. 02, 2015 Issued for : Shenzhen Adition Audio Science & Technology Co.,Ltd Mingzhuo Industry Park, Guangming Main Street, Guangming New District, Shenzhen, China Issued By: Shenzhen Tongce Testing Lab. 1F, Leinuo Watch Building, Fuyong Town, Baoan Dist, Shenzhen, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT150825E002 Page 2 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification....................................................................................... 3 2. Test Result Summary ............................................................................... 4 3. EUT Description ........................................................................................ 5 4. Genera Information ................................................................................... 6 4.1. Test environment and mode ................................................................................. 6 4.2. Description of Support Units ................................................................................ 6 5. Facilities and Accreditations ................................................................... 7 5.1. Facilities ................................................................................................................. 7 5.2. Location ................................................................................................................. 7 5.3. Measurement Uncertainty ..................................................................................... 7 6. Test Results and Measurement Data ...................................................... 8 6.1. Antenna requirement ............................................................................................ 8 6.2. Conducted Emission ............................................................................................. 9 6.3. Conducted Output Power ................................................................................... 13 6.4. Emission Bandwidth ........................................................................................... 16 6.5. Power Spectral Density ....................................................................................... 19 6.6. Test Specification ................................................................................................ 19 6.7. Conducted Band Edge and Spurious Emission Measurement ....................... 22 6.8. Radiated Spurious Emission Measurement ...................................................... 25 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT150825E002 Page 3 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: BT activity tracker Model No.: IR139 Additional Model No.: BT activity tracker Applicant: Shenzhen Adition Audio Science & Technology Co.,Ltd Address: Mingzhuo Industry Park, Guangming Main Street, Guangming New District, Shenzhen, China Manufacturer: Shenzhen Adition Audio Science & Technology Co.,Ltd Address: Mingzhuo Industry Park, Guangming Main Street, Guangming New District, Shenzhen, China Date of Test: Aug. 25 – Sept. 02, 2015 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 KDB 558074 D01 DTS Meas Guidance v03r02 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date:Sept. 02, 2015 Garen Reviewed By: Date:Sept. 02, 2015 Joe Zhou Approved By: Date:Sept. 02, 2015 Tomsin Report No.: TCT150825E002 Page 4 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge 1§5.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT150825E002 Page 5 of 31 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product Name: BT activity tracker Model : IR139 Additional Model: BT activity tracker Trade Mark: QUIKCELL/ADITION/AMZER/NUBAND Operation Frequency: 2402MHz~2480MHz Channel Separation: 2MHz Number of Channel: 40 Modulation Technology: GFSK Antenna Type: Internal Antenna Antenna Gain: 1dBi Power Supply: Rechargeable Li-ion Battery DC3.7V Operation Frequency each of channel Channel FrequencyChannel FrequencyChannelFrequencyChannel Frequency 0 2402MHz10 2422MHz20 2442MHz30 2462MHz 1 2404MHz11 2424MHz21 2444MHz31 2464MHz ... ... ... ... ... ... ... ... 8 2418MHz18 2438MHz28 2458MHz38 2478MHz 9 2420MHz19 2440MHz29 2460MHz39 2480MHz Remark: Channel 0, 19 …
