ZRR-SA1012.0 CH 3D soundbar

- 6 - PACKAGE CONTENTS Soundbar(1) Remote Control( 1) Optic al cable (1x4.92ft) AUX cable (1x2. 62ft) Screw bag(1) Wall Mount TemplatePlus Bracket (1 set) - 7 - Posi�oning the Sound Bar Place on a flat Surface Place the sound bar horiz ontally on a flat surfac e such as a TV unit or shelv es and align it centrally wit h the TV screen. Allow some spac e between the speak er and the wall. Don’t place in sid e a cabin et or an a walled shelf . Follow this guid ance for best sound output and good airflow ar ound the sound bar . Mount on th e wall WARNING: If you don’t feel confident to correctly and securely wall-mount the sound bar , seek the as sis tance of an experie nced person of professio nal. Insert the two wall-mount screws in to the wall, refer to wall moun�ng templa te we supplied in pac kage for the dis tance. Install the speak er on a ver�cal, fas t, rein forced ar ea of wall. For plaster walls, it is recommended to screw in to wall studs for gr eater securit y. For op�mum performance, allow at le as t 30mm dis tance between the sound bar and the TV. Follow below steps to mount the sound bar on the wall 1. Mak e 2 hole s on the wall wit h dis tance same as the wall brac ket on the soundbar , refer to wall moun�ng templa te to mak e it correct eas ily . 2. Put the plas�c anchors onto the wall and secure the screws to the plas�c clip, do not �ghten the screws all the way mak e sure le ave some spac e. 3. Once the screws securely fas tened, hang the sound bar over by in ser�ng the screws onto the wall mount brac ket. 4. We also provide one set of plus bracket in case you need more distance between wall and soundbar when you use HDMI or Op�cal cable, only move the screw of original bracket on the soundbar and exchange the plus set. - 8 - - 9 - - 10 - Playi ng Audio vi a U SB Port 1. Ensure that your USB flash drive contains MP3 or WMA audio files (other file types not supported). 2. Connect the USB flash drive to the USB port on the sound bar (or your own USB extension cable connected to the USB port); 3. Select USB mode by short press USB on remote control; 4. The remote control includes USB input mode playback controls. Op�cal Mode You can connect digital amplifiers or TV with an op�cal digital output to the sound bar via op�cal cable. . Proceed as follows: • Connect the op�cal cable to the op�cal digital output of your output device. • Then connect the op�cal cable to soundbar. • Press OP on the remote control to select op�cal mode. • Start playing on the output device. • Using the na�ve controls on your connected device, ensure the audio se�ngs are set to PCM or Op�cal Audio. HDMI Mode 1. The Soundbar supports HDMI with Audio Return Channel(ARC). lf your TV is HDMI(ARC) compliant, you can hear the TV audio through your Soundbar by using a single HDMI cable. 2. Using a High Speed HDMI cable, connect the HDMI(ARC) connector on the soundbar to the HDMI (ARC) connector on the TV. The HDMI(ARC) connector on the TV might be labelled differently. For details, see the TV user manual. 3. By using HDMI connec�on, you can control soundbar vol+/- through TV remote control. Important Notes: 1. Enable Consumer Electronics Control(CEC) on your TV; Only HDMI ARC connec�ons needs to enable CEC. 2. These are names different brands might use for HDMI-CEC: Samsung (Anynet+++), Vizio(CEC),Sony(Bravia Sync), LG(SimpLink), Sharp(Aquos Link), Philips (EasyLink), Roku(1-Touch Play) Specifica�ons ModelL200M Technolo gyBT/AUX/HDMI(ARC)/OPTICAL/USB Fr equency Response60Hz-20KHz Power Input100V-240V~50Hz/60Hz Blu etooth Versio nVersio n: 5.0 Range:up to 10m Blu etooth Fr equency2402MHz - 2480MHz Dimensio nsSoundbar :15.75*2.36*3.54 in ch Trouble shoo�ng IssuesProblemsSolu�ons Sound No sound from SoundBar speakers Connect the audio cable from your soundbar to your TV or other devices. However, you do not need a separ at e audio connec�on when the Soundbar and TV ar e connected through HDMI ARC connec�on On the remote control, select the correct audio input. Distorted sound or echolf you play audio from the TV through the soundbar , make sure that the TV is muted. Bluetooth A device cannot connect with the SoundBar Restar t the soundbar and try pai ring agai n You have not enabled the bluetooth func�on of the device. See the user manual of the device on how to enable the func�on. The device is not correctly connected. The soundbaris al ready connected with another bluetooth device. Disconnect the connected device, then try agai n. Qual ity of audio play from a conne cted Bluetooth device is poor. The bluetooth recep�on is poor. Move the device closer to the soundbar , or remove any obstac le between the device and the soundbar . The connected Bluetooth device connects and disconnects constantly The bluetooth recep�on is poor. Move the device closer to the soundbar , or remove any obstac le between the device and the soundbar . we will support you in shortest �me. Remar k: Once addi�onal in forma�on needed, ple as e kin dly contac t [email protected] -11 - FCC Compliance NOTE: This equip ment has been tested and found to comply wit h the limit s for a Class B digital devic e, pursuant to par t 15 of the FCC Rule s. These limit s ar e designed to provid e reas onable protec�on against har mful in terference in a resid en�al in stalla�on. This equip ment generates uses and can radia te radio frequency energy and, if not in stalled and Thank you for purchasing the home theater L200M Soundbar. Please read this user manual carefully and keep for future reference. To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. No user-serviceable parts inside.Refer servicing to qualified personnel only The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons. This applian…

Text truncated - open the document above for the full version.

Shenzhen Adition Audio Science & Technology CO., LTD. Floor1-5, No.2 Building, Huidebao Industrial Park, No.11, Second Industrial Zone, Baihua Community, Guangming Sub-district, Guangming District, Shenzhen City, China The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD21046 2023-02-20 U.S. Agent Designation Shenzhen Adition Audio Science & Technology CO., LTD.acknowledges their consent for the following contact located in the United States to act as their agent for service of processforthe equipment for which authorization is sought (FCC ID:ZRR-SA101): Name and company of U.S. agent: Keenetic Information Technology Inc Physical U.S. address of agent: 18300 S. Wilmingto Avenue Suite 150 Rancho Dominguez. CA 90220 United States Email address of U.S. agent: FRN of U.S. agent: [email protected] 0033494063 Keenetic Information Technology Incacknowledges their obligation to accept service of process on behalf of Shenzhen Adition Audio Science & Technology CO., LTD. Shenzhen Adition Audio Science & Technology CO., LTD.accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature Applicant Name: Zhengxin Miao Title: PM Applicant Company: Shenzhen Adition Audio Science & Technology CO., LTD. Signature U.S. agent Contact Name：Danny Miao U.S. agent Title：owner U.S. agent Company：Keenetic Information Technology Inc 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 2

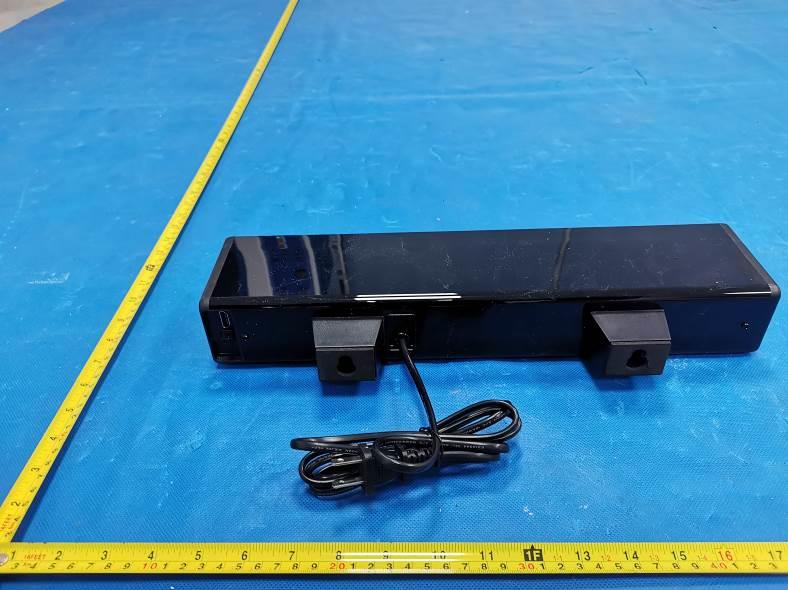

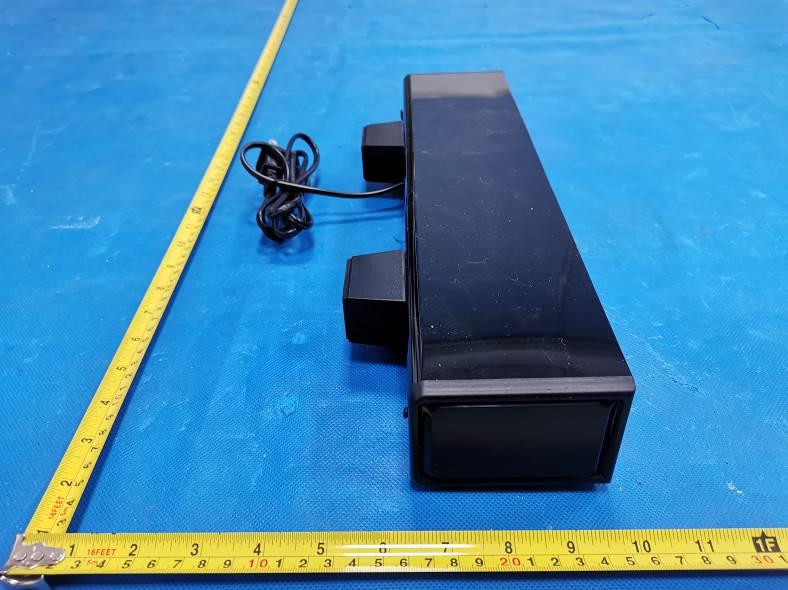

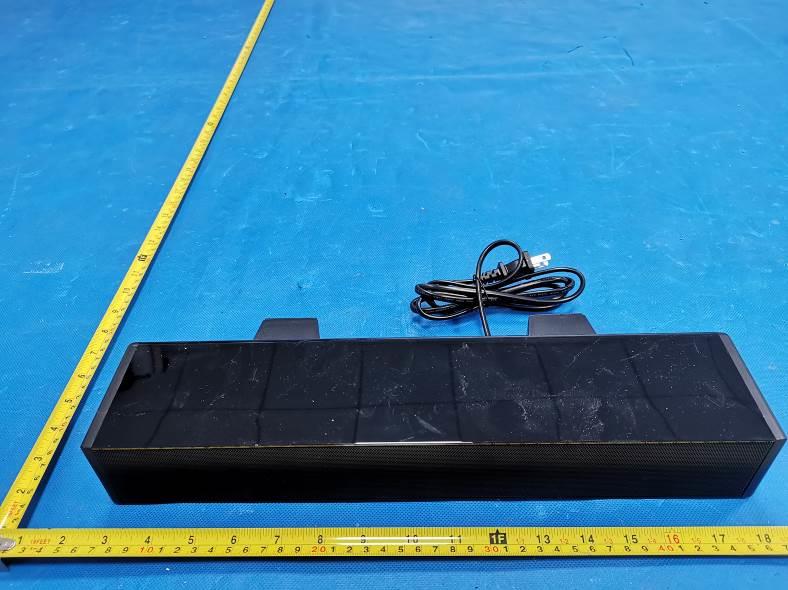

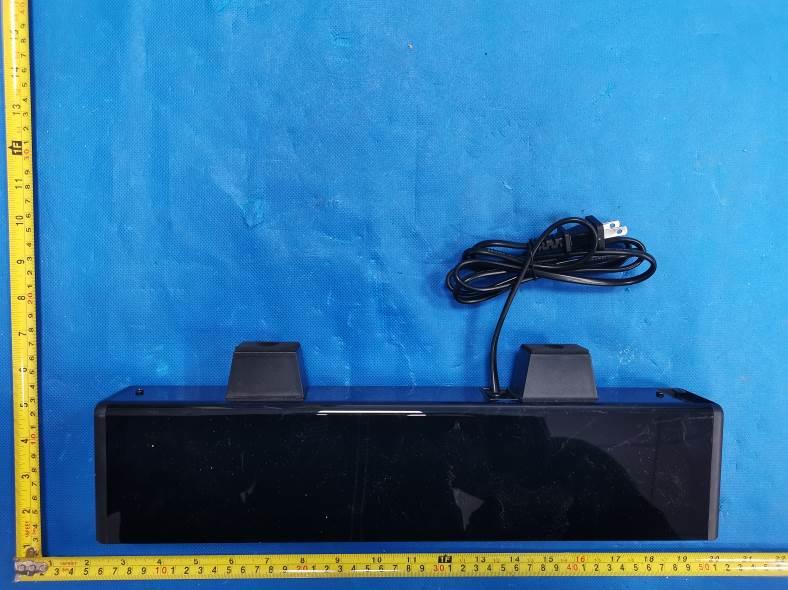

FCC ID: ZRR-SA101 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: ZRR-SA101 Photo 4 Photo 5 Photo 6 FCC ID: ZRR-SA101 Photo 7

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location 2.0 CH 3D soundbar Model No.: SA101 FCC ID : ZRR-SA101 Caution : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: ZRR-SA101 SA101 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 BT (PCB) Antenna FCC ID: ZRR-SA101 Photo 4 Photo 5 Photo 6 FCC ID: ZRR-SA101 Photo 7 Photo 8

RF Exposure evaluation FCC ID: ZRR-SA101 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information SA101 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT / PCB antenna 2.07dBi for 2400-2500MHz; 5. Manufacturing Tolerance GFSK(Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 0.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 0.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 0.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 2.07dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BT 1 1.2589 2.07 1.6106 0.0004 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------
