ZTJ-UB5WIRELESS MICROPHONE SYSTEM

PV1 UHF This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interfer- ence caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter.

1 2 34 ABCD 4 3 2 1 D CBA compressor mod deviation frequency modulation 32.768KHz pilotone signal Fosc=XT1*3 F=Fosc*12 filter amp DC IN POWER SUPPLY mic in amp ANT

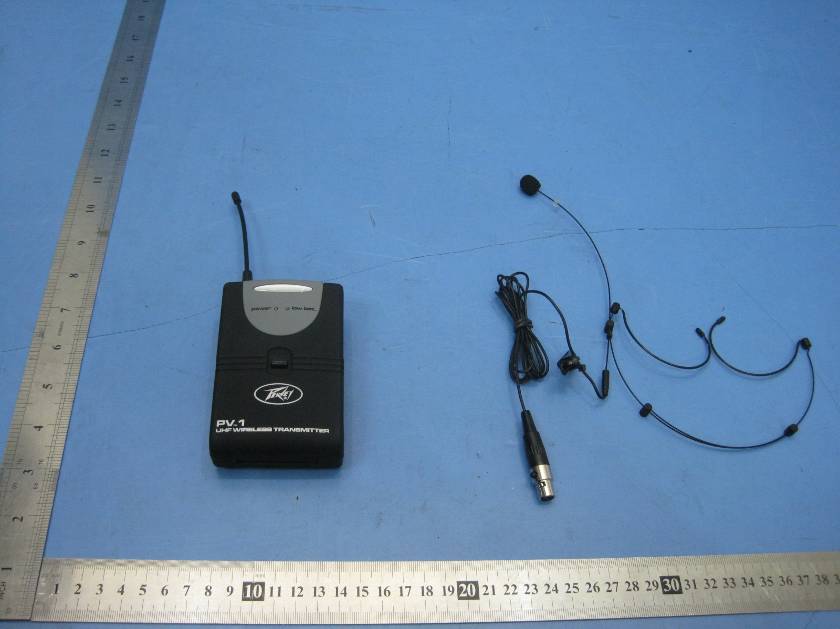

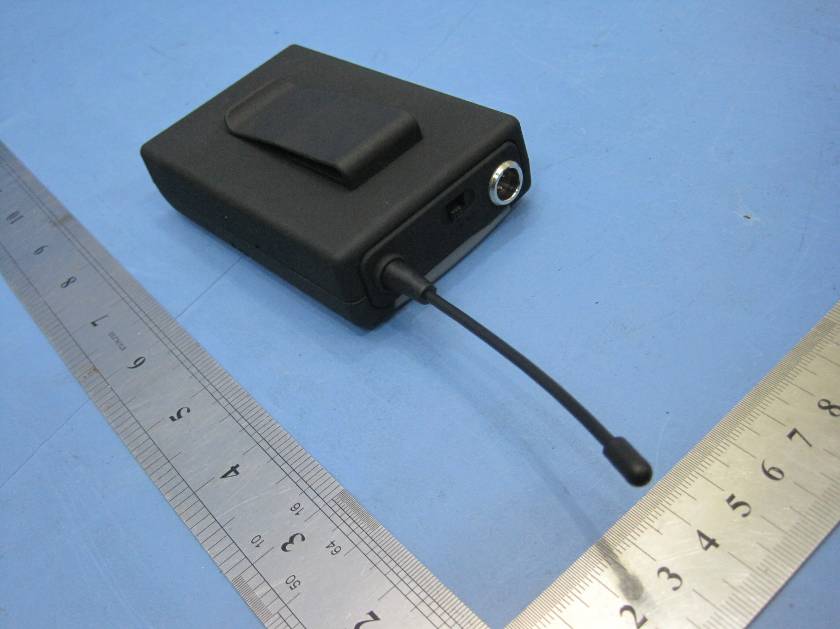

2.1 Product View 2.2 EUT – Front View 2.3 EUT – Back View

2 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. FCC ID : ZTJ-UB5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Simple for Mode : UB-5 LT; UB-5 GT; PV-1 U1 BL(Transmitter); PV-1U1 BHS(Transmitter); PV-1 U1 BG(Transmitter) FCC ID : ZTJ-UB5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 EUT – Open View 2.2 PCB – Front View 2.3 PCB – Back View

Circuit Description: The amp amplify the audio signal from the MIC, and send it to the compressor. After compressing, the signal is modulated with the carrier wave which is decided by XT1 (25.167MHz ~ 25.778MHz). Then the frequency of carrier signal is doubled by 36 times and amplied. In the end, the signal is transmited over space via antenna.

1 2 34 ABCD 4 3 2 1 D CBA R4615K R62K2 R910K R49 22K R4410K R511K R710K R29510R R1110K R2833K R1410K R33680R R351K R5310K R810K R4522K R18100KR16100K R3410K R1733K R1210K R206K8 XT1? L81uH L715nH L91uH T174 Q92002 Q32734 D22638 C2222P C76103P C78 150P C21100P C77102P C81104P C222P C491P5 C471P C732P +6.5V C1310uF C94.7uF C5010uF C174.7uFC184.7uF C144.7uF C124.7uF C114.7uF C101uF 326 8 517 4 G IC2BNE571 LED1RED LED2GRN +6.5V +5V ANT FL1910MHz C69? C68? C65100P C27102P C67? L108N2H L422nH R3147R R320R L51uHL622nH Q52734 C6212P C66100PC64100P C63? C592P C602P R3027K R27100R Q42734 C72102P C55100P C61100P C57100PC56330PC58102P C4812P C52100PC53102PC54102P VC23-10P L322nH VC13-10P R26330R R24100K R221K R251K T429 T529 Q23EMC3556P C371P C4422P C40? C3415P C46100P C45100P C42102P C4133P C3933P R23510R C38102P R21100K C33102P C3222P C3139P C43102P R19510R T231 T331 Q13EMC26100P C291P C30? C2815P R131K C79102P R1522K C24102P C2512P 12 CN2BAT 12 CN1MIC IN 3 2 OUT 1 Q1378L05 1 2 3 SW1GT/LT 1 2 3 SW3GT/HGT +6.5V R10100K C20105P R5410K R5215K R2100K R501K R410K R4815K R110K R310K C19102P C36220P C7547P C23103P C71104P C847uF C1510uF C3100uF C4100uF C1610uF C12.2uF C74.7uF C547uF C647uF SW2PWR VR210K 56 7 IC1B4558 32 1 IC1A4558 +6.5V Q103904 Q1121 L1100uH L2100uH D34148 D1MA735 IN 3 2 OUT 1 Q126.5V +5V NAMEDATA UB-5-36UWTECH2010.10.06 C85105P VR1100K R392K2 C74103P R3856K C80102P R47220R R42220R R41100K R3610K R405K6 R43100K R371K C86105P C8210PC83104P C5110P Q73904 XT2 32.768K +6.5V Q82SK208

Page: 1 of 21 FCC TEST REPORT WALTEK SERVICES Reference No.: WT11073610-E-E-F FCC ID : ZTJ-UB5 Applicant : Shenzhen Uniwisdom Technologies Co., Ltd. Address : Bldg.91-94 3rd Industrial Zone, Lisonglang, Gongming Town, Bao’an District, Shenzhen, P.R.China Equipment Under Test (EUT) : Product Name : Wireless Microphone System Model No. : UB-5 LT; UB-5 GT; PV-1 U1 BL(Transmitter); PV-1U1 BHS(Transmitter); PV-1 U1 BG(Transmitter) Standards : FCC Part 15 Subpart C:2009 Date of Test : July 18, 2011 ~ July 20, 2011 Date of Issue : July 26, 2011 Test Engineer : Hunk yan Reviewed By : Philo zhong Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel :+86-755-27553488 Fax:+86-755-27553868 — The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Page:2 of 21 Shenzhen Uniwisdom Technologies Co., Ltd. FCC ID: ZTJ-UB5 WALTEK SERVICES Reference No.: WT11073610-E-E-F 2 Test Summary FCC Part 15 Subpart C Requirements Test Items Test Requirement Test Method Result Conducted Emission (150KHz to 30MHz) FCC Part 15.207 ANSI C63.4: 2003 N/A Radiated Emission (30MHz to 10GHz) FCC Part 15.209 ANSI C63.4: 2003 PASS 20 dB Bandwidth FCC Part 15.249 ANSI C63.4: 2003 PASS Page:3 of 21 Shenzhen Uniwisdom Technologies Co., Ltd. FCC ID: ZTJ-UB5 WALTEK SERVICES Reference No.: WT11073610-E-E-F 3 Contents 1 COVER PAGE....................................................................................................................1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................ 4 4.1 CLIENT INFORMATION........................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 4 4.3 DETAILS OF E.U.T................................................................................................................................................. 4 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 4 4.5 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 4 4.6 TEST FACILITY...................................................................................................................................................... 5 4.7 TEST LOCATION.................................................................................................................................................... 5 5 EQUIPMENT USED DURING TEST .................................................................................................................. 6 6 ANTENNA REQUIREMENT ............................................................................................................................... 8 7 CONDUCTED EMISSION .................................................................................................................................... 8 8 RADIATION EMISSION DATA .......................................................................................................................... 8 8.1 TEST EQUIPMENT.................................................................................................................................................. 8 8.2 MEASUREMENT UNCERTAINTY............................................................................................................................. 8 8.3 EUT SETUP........................................................................................................................................................... 9 8.4 SPECTRUM ANALYZER SETUP............................................................................................................................. 10 8.5 TEST PROCEDURE................................................................................................................................................ 10 8.6 CORRECTED AMPLITUDE & MARGIN CALCULATION........................................................................................... 11 8.7 RADIATED EMISSIONS LIMIT...............................................................................................................................11 8.8 TEST RESULTS..................................................................................................................................................... 12 8.9 PHOTOGRAPH – RADIATION EMISSION TEST SETUP............................................................................................ 16 9 20 DB BANDWIDTH ........................................................................................................................................... 17 9.1 TEST EQUIPMENT................................................................................................................................................ 17 9.2 TEST PROCEDURE................................................................................................................................................ 17 9.3 TEST RESULT.................................................................................................................................................…

Text truncated - open the document above for the full version.

2.1 Photograph – Radiation Emission Test Setup Below 1GHz Above 1GHz
